HUGE 200T SINGLE DAYLIGHT HOT PRESS 4100 X 1850MM

RHINO Australasia's largest supplier of Hot, Cold and Through Feed Hydraulic Presses for the Timber and Panel Industry!

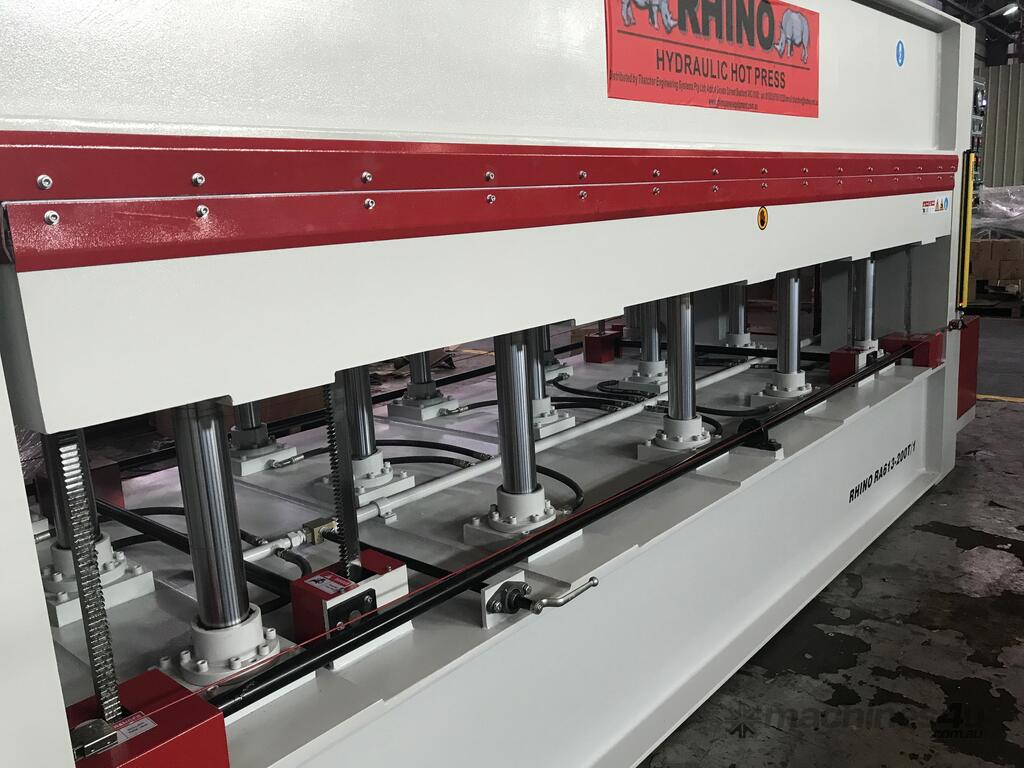

RHINO 200T SINGLE DAYLIGHT HYDRAULIC HOT PRESS MODEL RA613-200T/1

Worktable dimensions: 4100 x 1850mm
Working pressure: 200T
Qty of cylinder: Main cylinder 90mm x 15 pieces
Opening of platens: 400mm
Layer of platens: single layer
Electrical heating power: 72kW
Installed power: 10.5kW

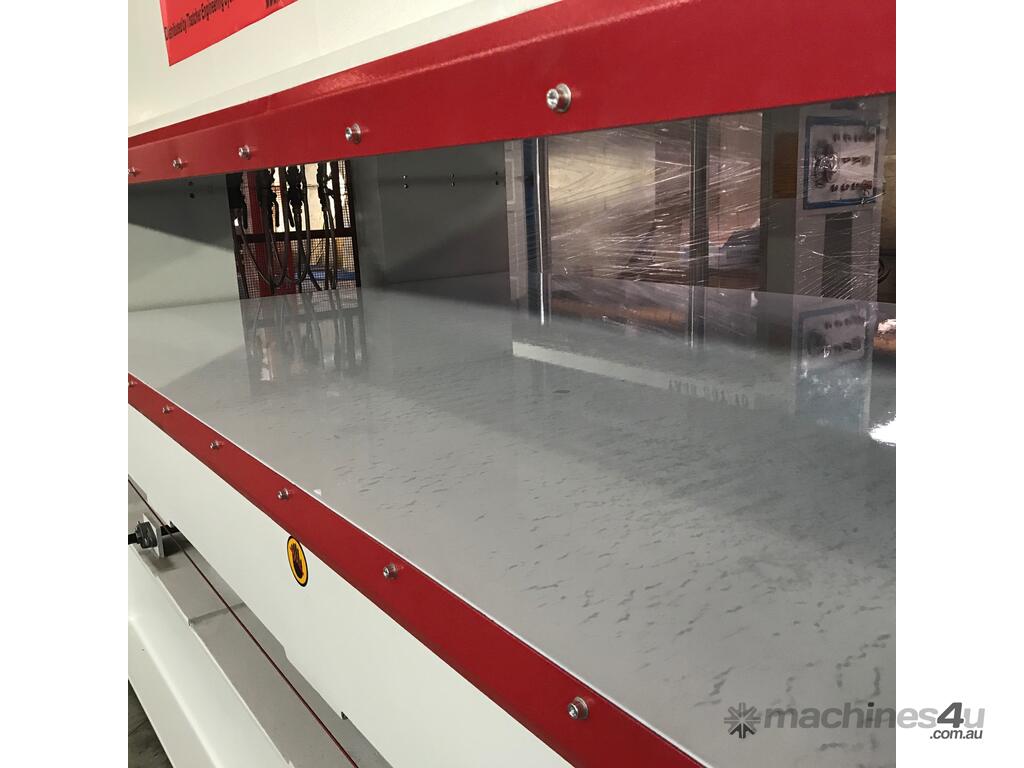

Mylar installed on the surface of platen

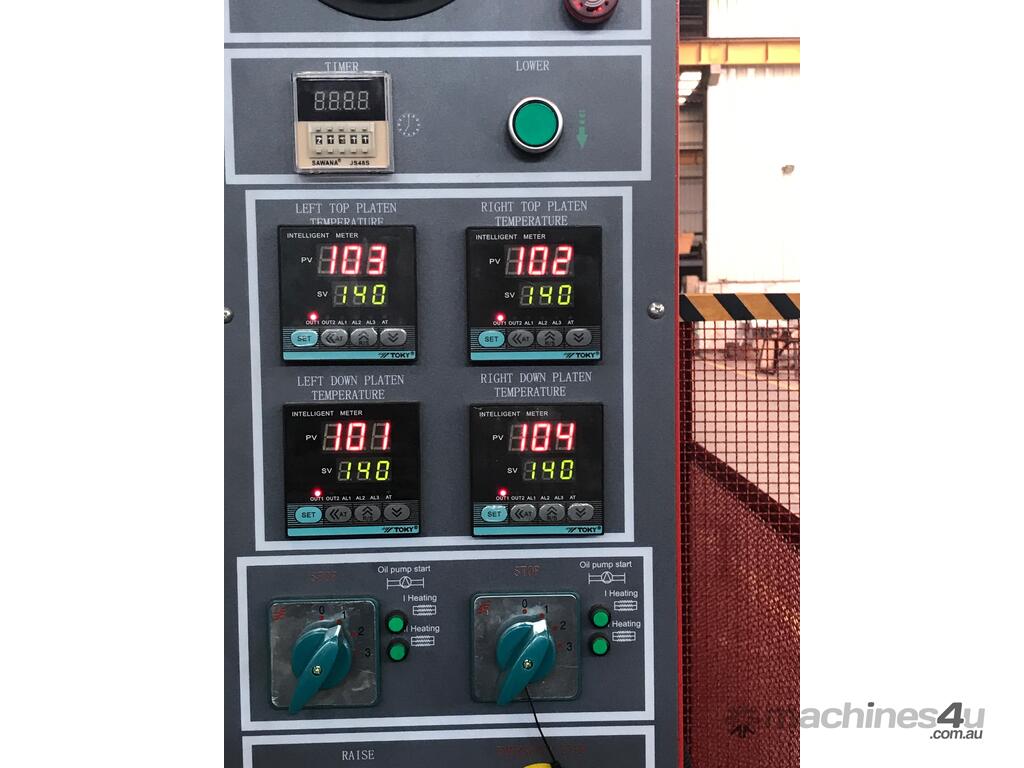

Manual + Automatic Press Cycle

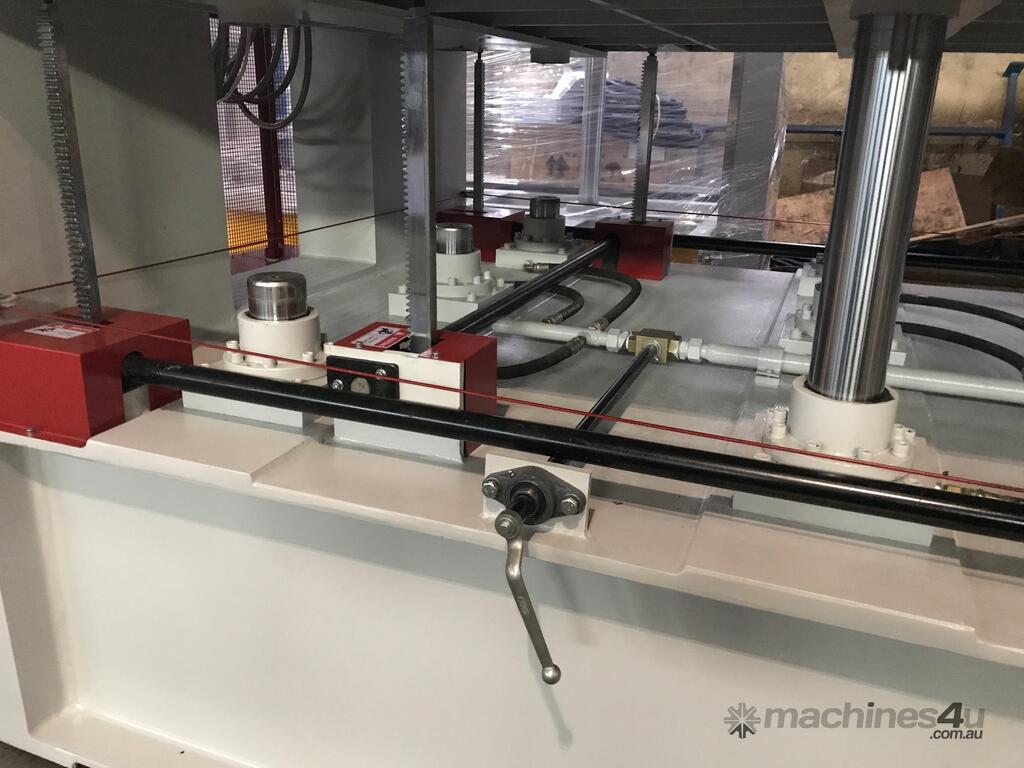

Isolation valves for 2 x rows of end cylinders so they float and not pressurize when pressing lengths shorter than 4100mm
Safety light curtain barrier along front face of press

PRICE P.O.A

DELIVERY APPROX. 12-14 WEEKS FROM ORDER + DEPOSIT

RHINO as used by all major door, joinery, laminating and furniture manufacturers!

NOTE: Presses can be custom made to suit your specific need ranging in tonnage from 50 - 200T, platen width & length as required with single or multi day light.

Full range of GLUE SPREADERS also available ranging from 1300 - 2000mm wide - click link below to see our range of equipment.
