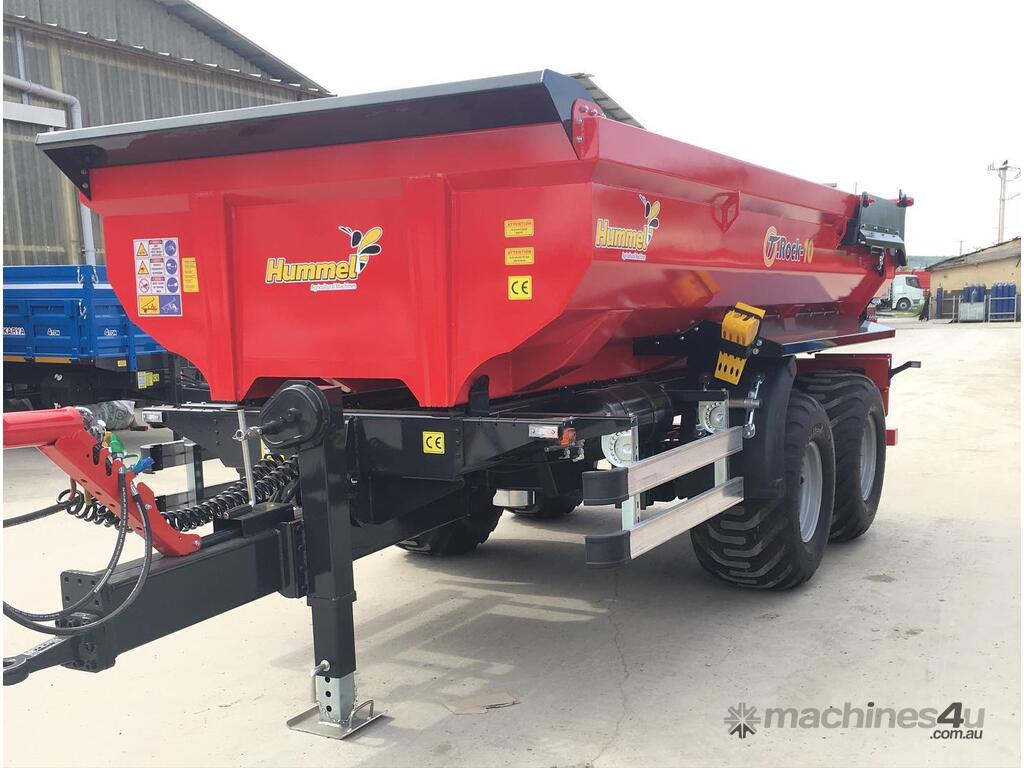

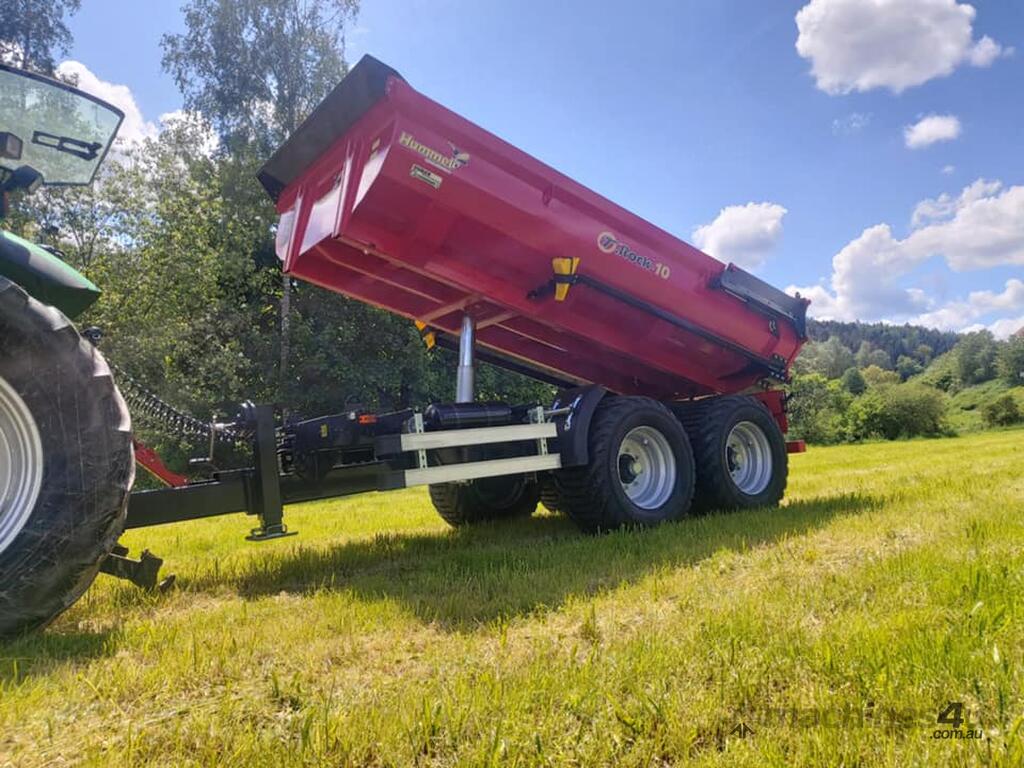

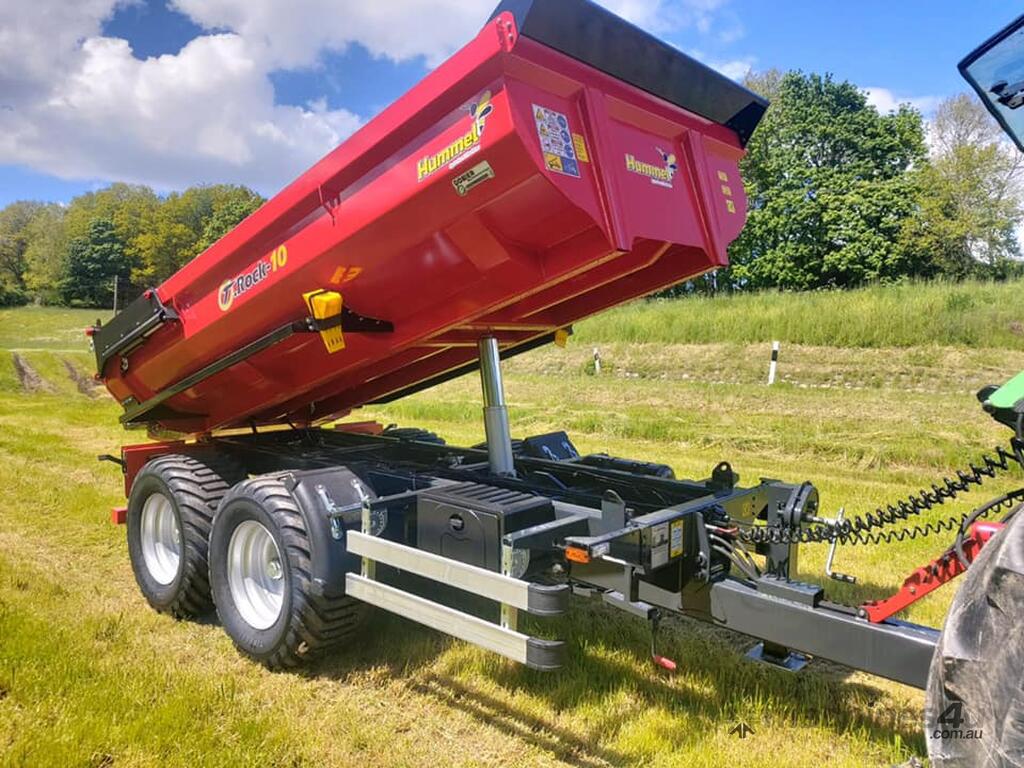

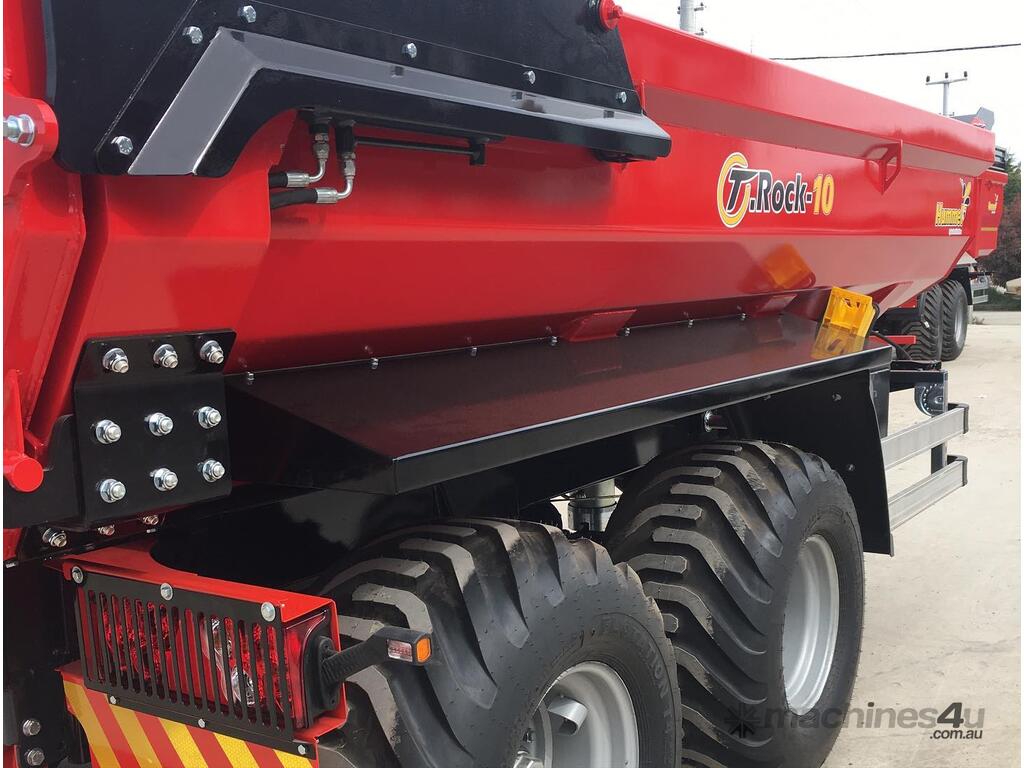

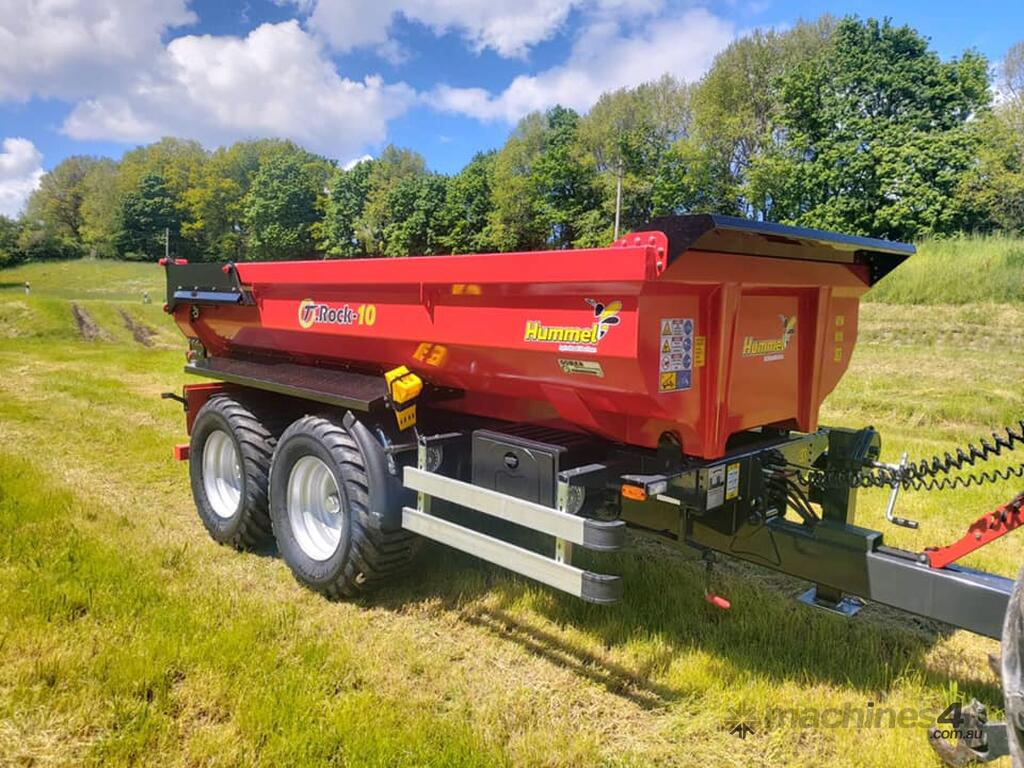

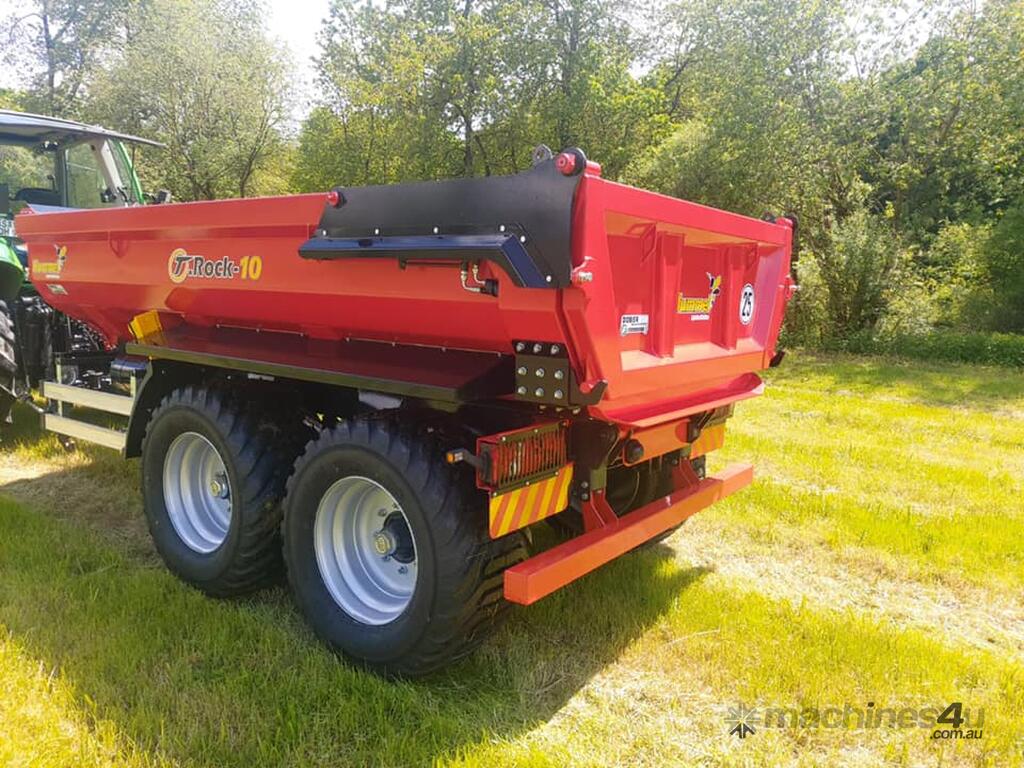

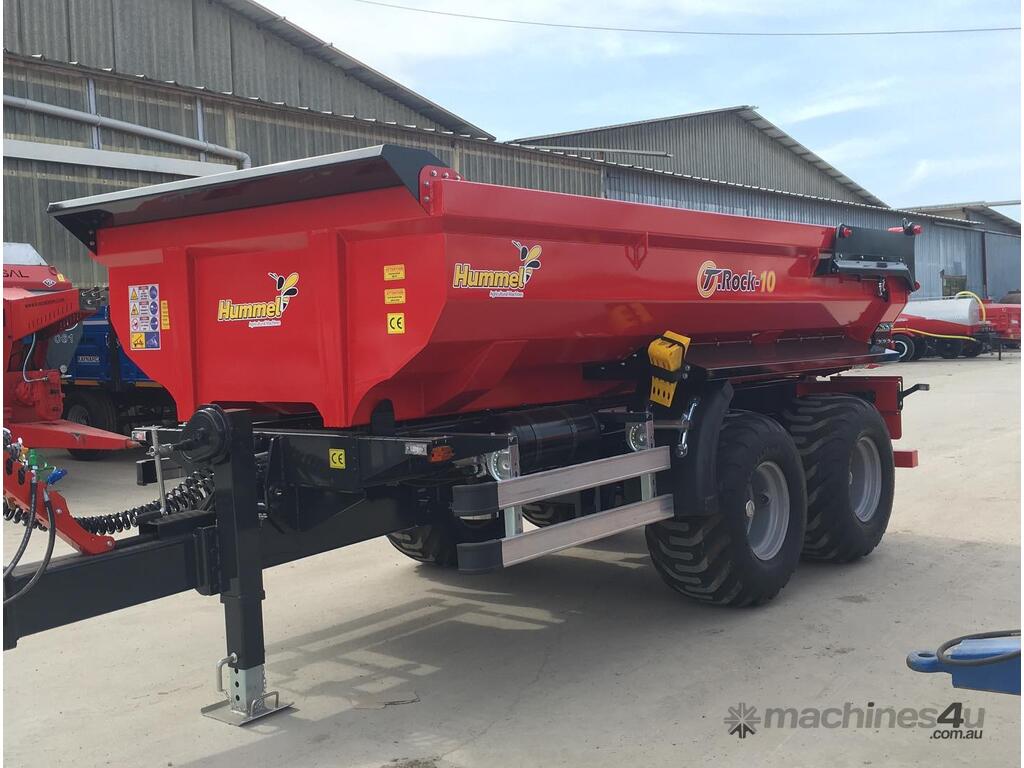

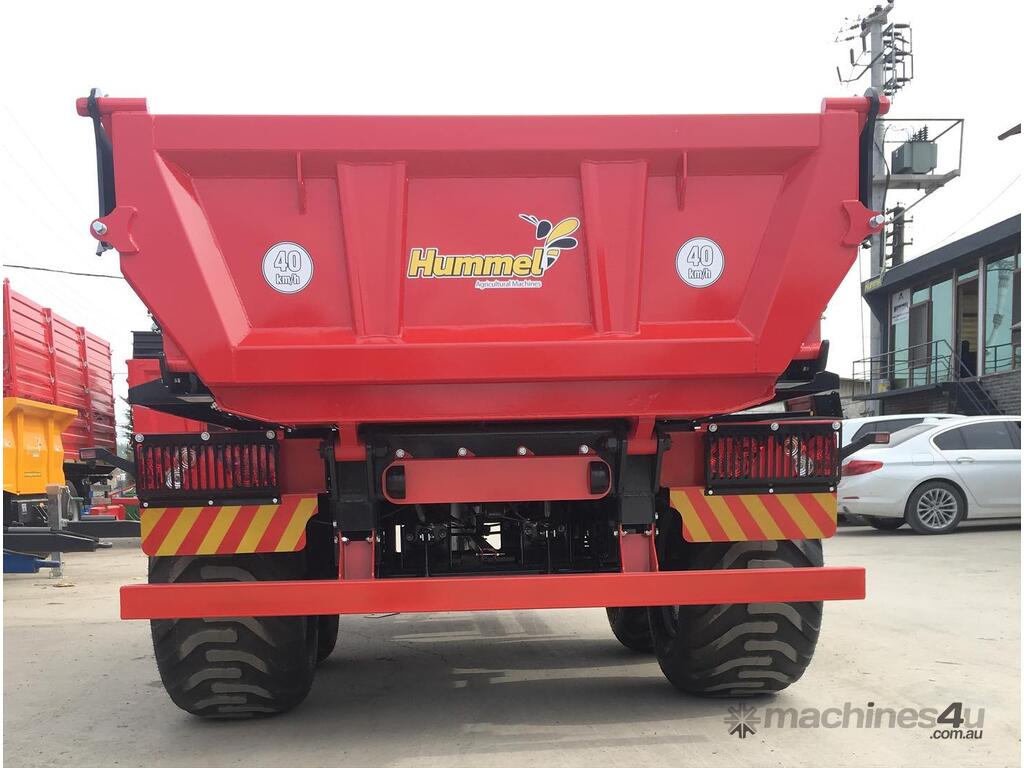

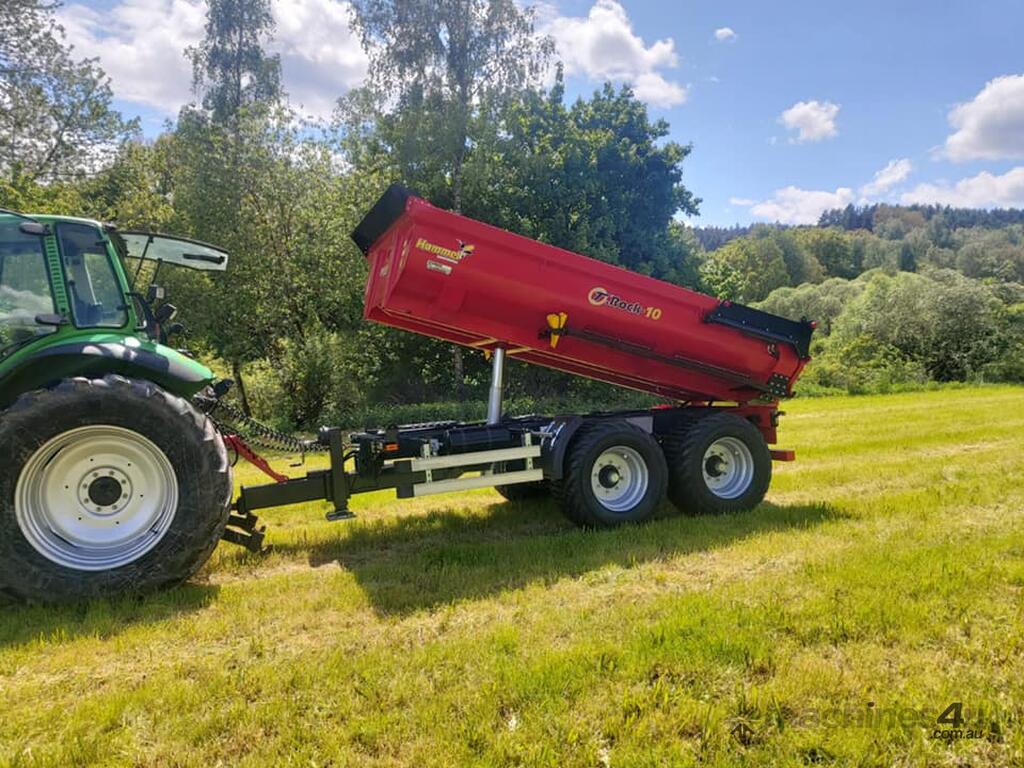

Proudly manufactured in Turkey the New Hummel Agri excavation and heavy-duty tipping trailers.
TECHNICAL SPECIFICATIONS:
Empty Weight: 3,500 KG
Loading Capacity: 10,000 KG
Load Volume: 8 M3
Loading Area: 6 M2
Length & Width inside of Loading Bag: 4150/2000 MM
Length & Width outside of Loading Bag: 4250/2100 MM
Total Length • Width • Height: 5620/2250/1950 MM
Lateral Height: 700 MM
Floor • Wall Thickness: 5 / 5 MM
Height From Ground: 1100 MM
Wheel Track Length: 1700 MM
Suspension: PARABOLIC
Tires: 445/45R 19,5
Maximum Speed: 40 KM
Roll-over System Backside: REAR

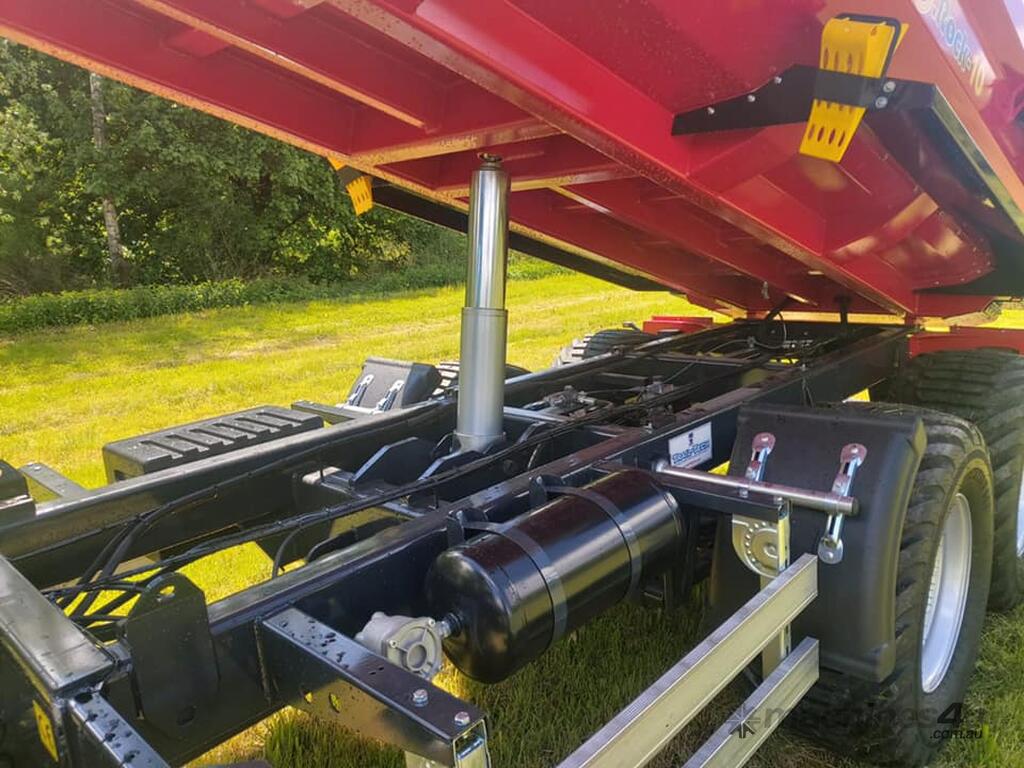

Number of Telescopic Cylinders And Number of Cylinder Sections: 1 / 5
Oil Need: 18 Liter
Operating Pressure: 180 PS
Minimum Tractor Power Requirement: 100 HP/ 74 KW
Optional Brake System: HYDRAULIC AIR
Equipments Included In The Price
TOOL CABINET
ELECTRICAL INSTALLATION AND STOP LAMP
REAR TOW
LADDER
LUG WRENCH
LIMITED COLOR OPTION (RED/BLUE/GREEN)
FOOT JACK
HYDRAULIC AXLE LIFTING
Equipments NOT Included In The Price
TIRE WEDGE
E CERTIFICATED STOP LAMP
E CERTIFICATED REFLECTIVE APPLICATION
EU COMPLIANT LIGHTING SYSTEM
CANVAS
SPARE TIRE
BICYCLE PROTECTION BARRIER
SECOND VEHICLE OIL AND AIR OUTPUTS
RALL OPTION PAINT COLOR
AIR BRAKE
SELF-STEERING SYSTEM
Machine/Equipment base price only, additional price for optional extras.
