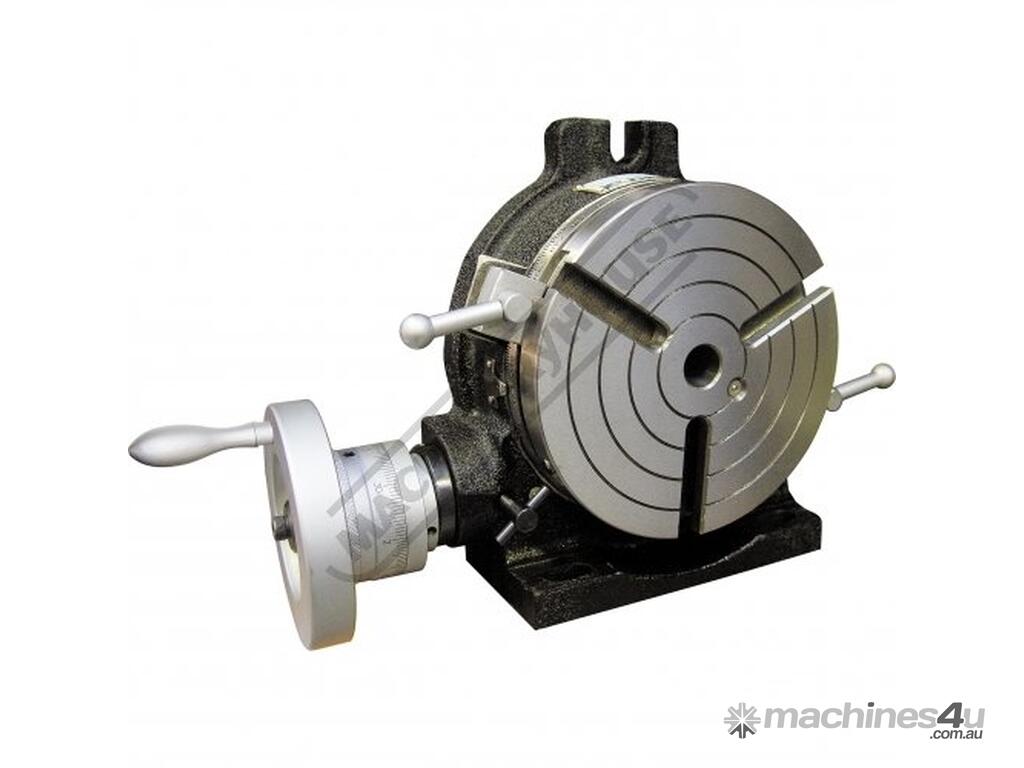

HV-6 Vertex Rotary Table Ø152mm

VERTEX HV-6 Vertex Rotary Table Ø152mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: R006

Manufactured in Taiwan

The Vertex Rotary Table has been designed to be used where a precision work positioning device is required. It allows the operator to mill or drill components at exact intervals around a fixed axis.
Additional indexing plates can be fitted to allow the Vertex Rotary Table to be used as a Dividing Head.

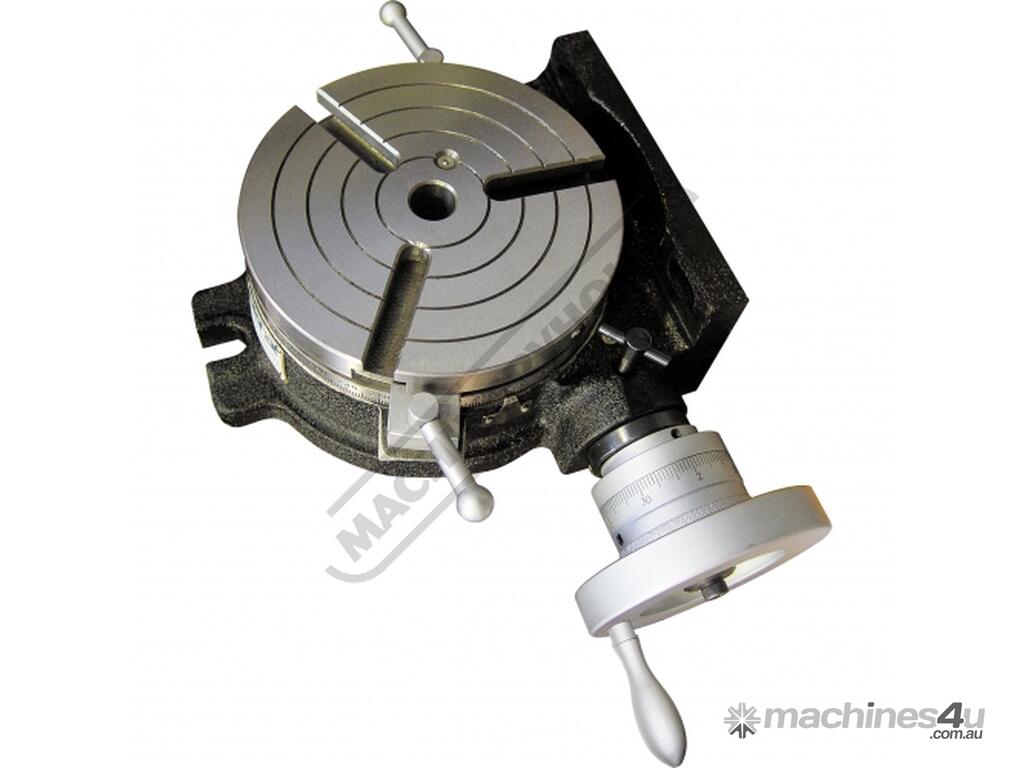

The Vertex Rotary Table can be used in both the horizontal or vertical plane.

Features:
The Vertex Rotary Table is manufactured from high-density Meehanite cast iron with ground surface areas on the table and body to ensure smooth rotation
Critical wear parts are hand finished for ultra precision
All tables are tested for accuracy using 'Heidenhain' electronic equipment to ensure continuing quality
Worm is hardened and precision ground with a ratio of 90:1
Table is graduated to a full 360º so one turn of the handle moves the table 4º
The collar on the handle is graduated with a vernier scale readings down to 10 seconds are possible


Specifications:
ORDER CODE: R006
MODEL: HV-6
Size (mm): 152
A1 (mm): 78
D (mm): 150
H (mm): 80
H1 (mm): 100
A (mm): 200
B (mm): 160
e (mm): 11
g (mm): 15
Number of T-Slots (No.): 3
T-Slot Size (mm): 11
Taper In Centre (MT): 2MT
Nett Weight (kg): 14


To Purchase Online Please Visit The Machineryhouse & Search For 'R006'
