HVAC 1600mm Wide Full Auto HVAC Duct Production Line - Heavy Duty Professional Series

## Lock In Your Federal Government Tax Break & Get This HVAC Full Production Line Making you $$$ ##
HVAC Duct Production Line. Model: SM-Auto Pro CAL-6-1.2-1600- Compact Series. 9 Function Heavy Duty Twin Decoiler, Straightener, Beading, Notching, Punching, Shearing, Pittsburgh, Duplex TDF & Folding

Description

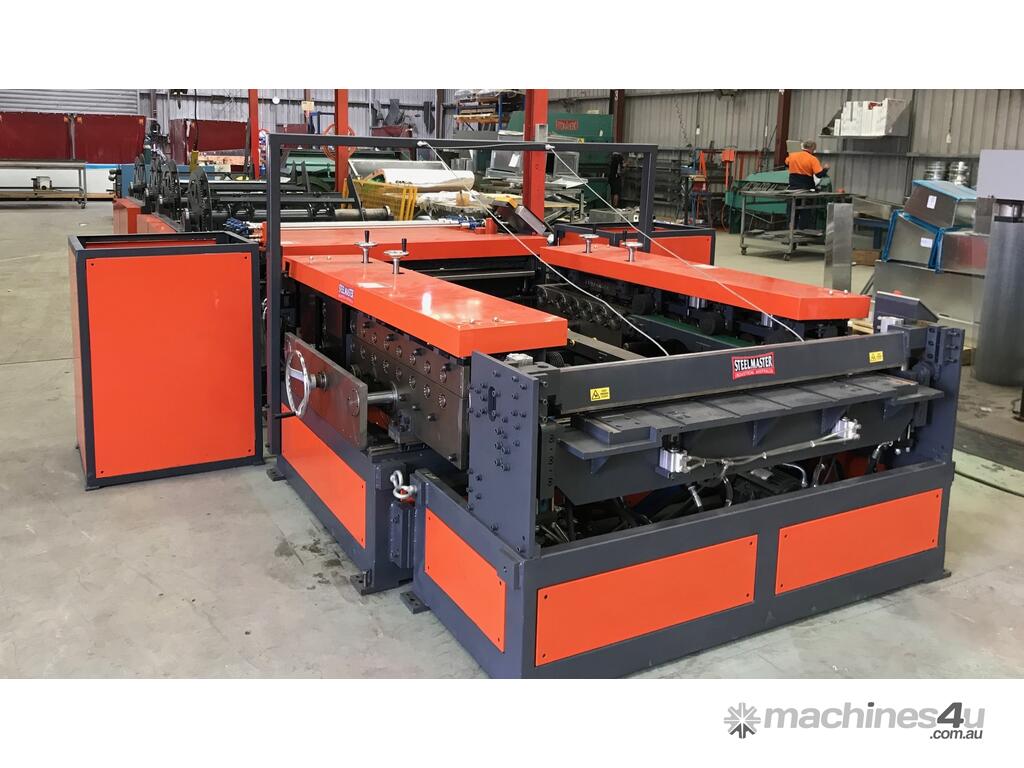

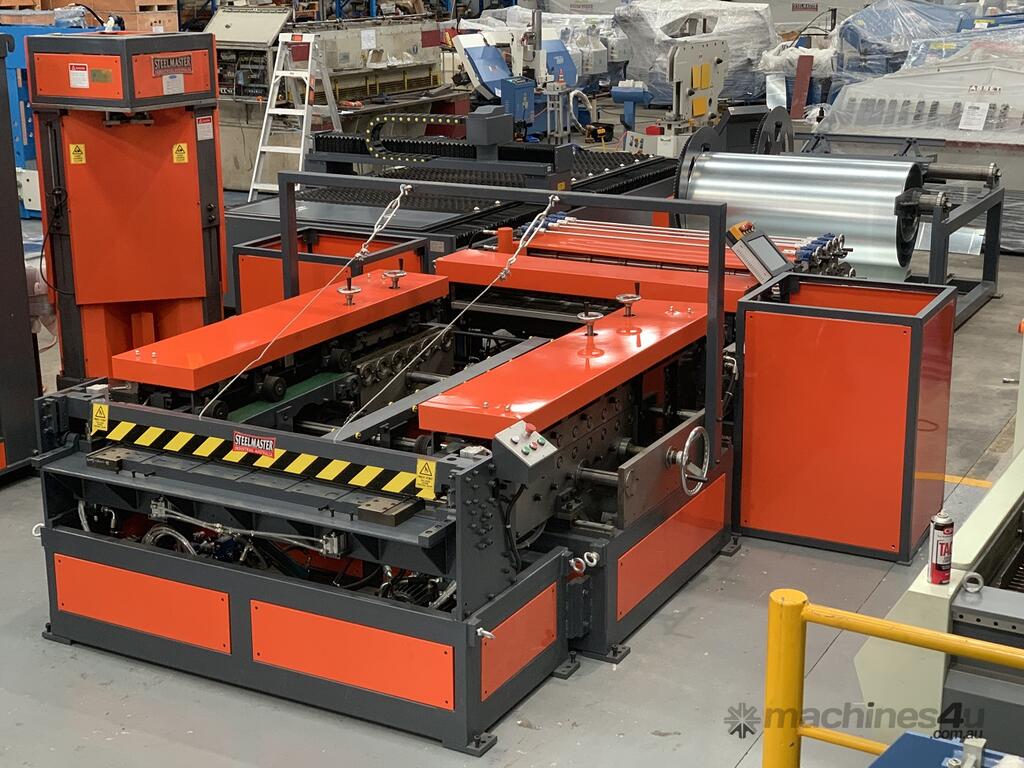

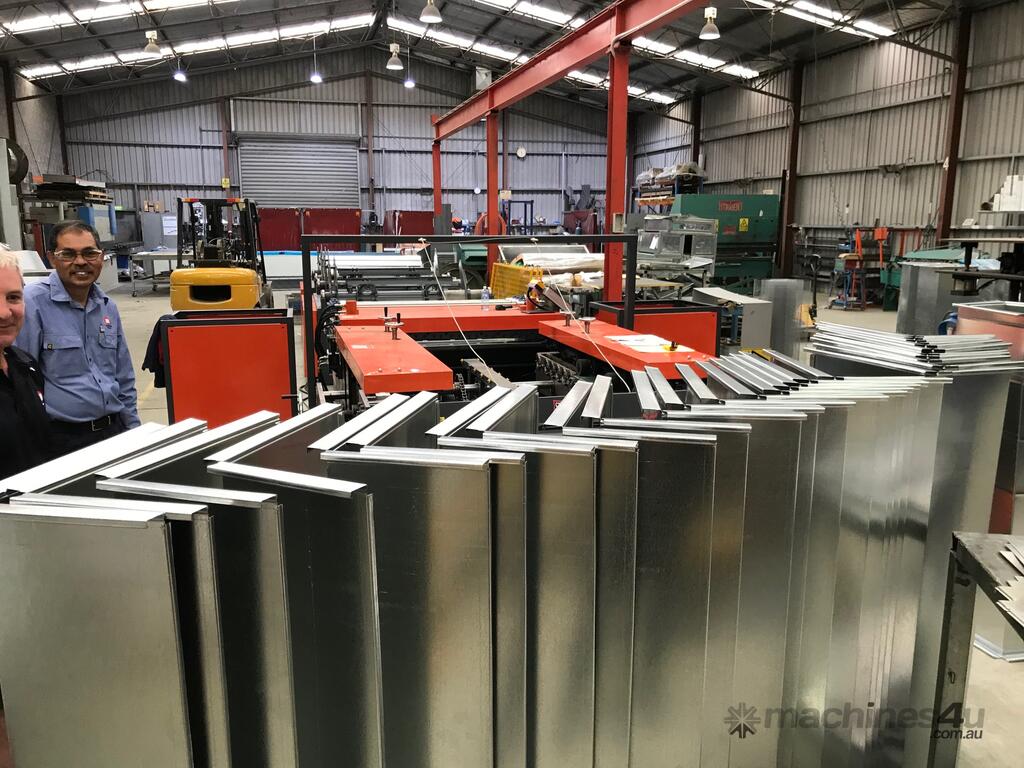

The world’s newest designed duct manufacture auto line is now available by STEELMASTER - Auto Line Pro – CAL-6 - Compact!
Strategically, can be placed in which can be put in a 20GP container and shipped to site.
Container Duct Auto Line VI with the feature of small size, heavy duty structure and easy for installation, it can be used in the construction site to fulfil the ideal of movable operation and processing.

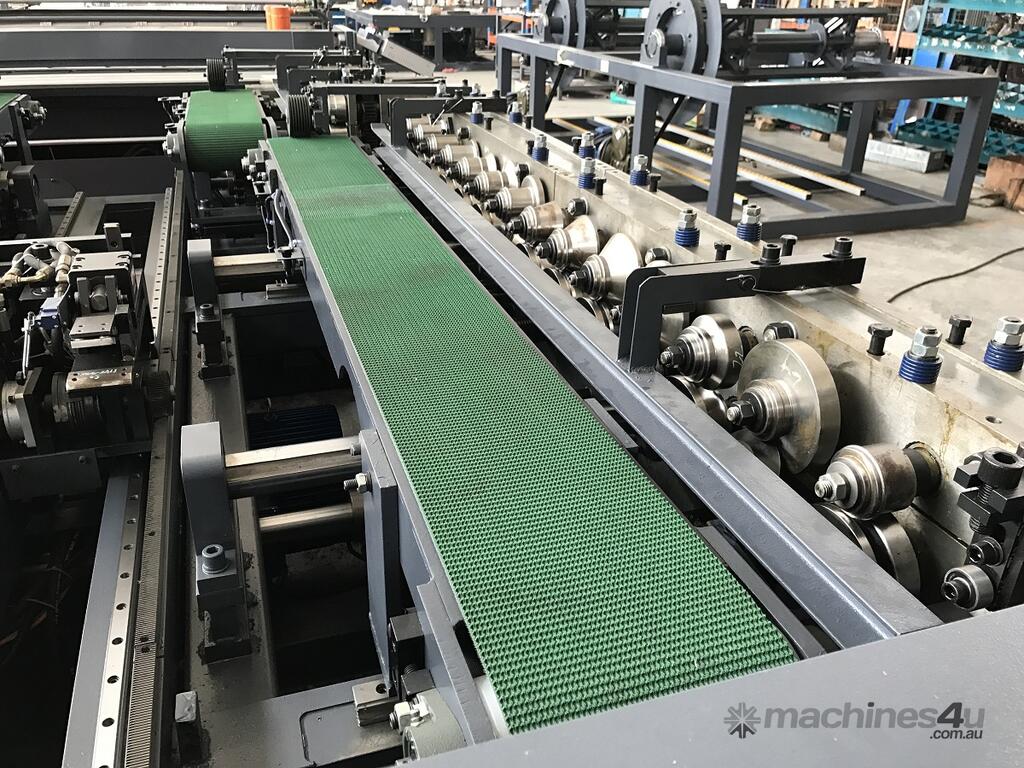

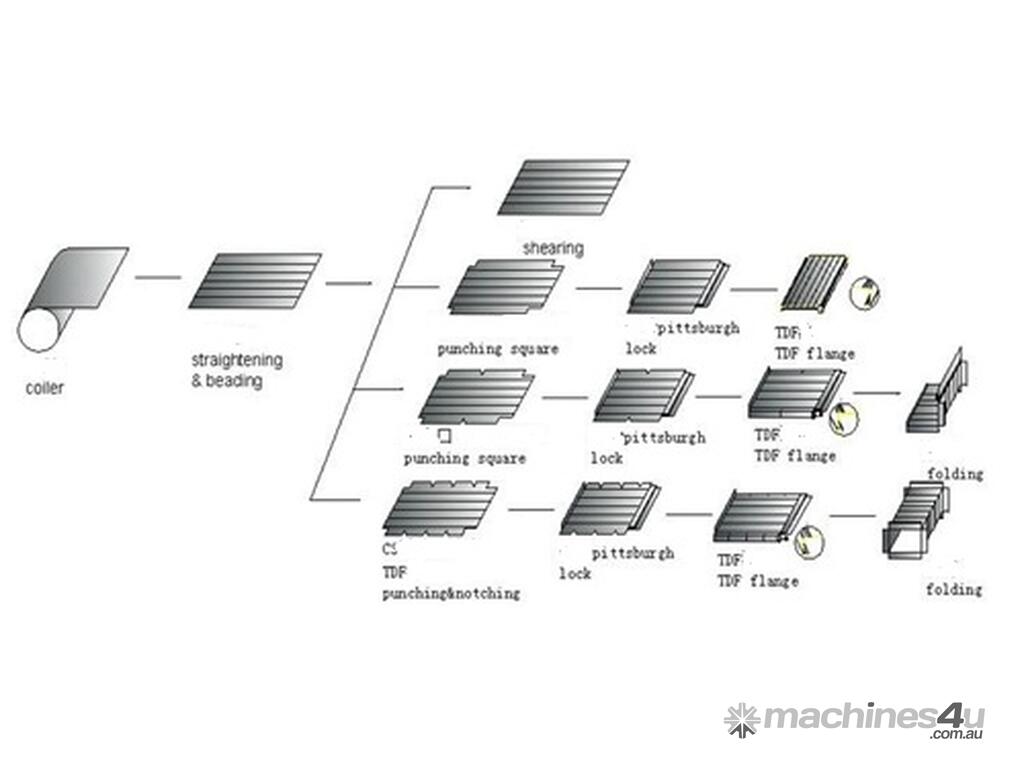

This auto line consists of twin Decoiler (a special design which is easy to load coils in construction site), straightening, beading, punching, notching, shearing, patented automation Pittsburgh lock forming (shearing, Pittsburgh lock, right angle lock in one time), duplex TDF flange forming, duplex right angle lock forming (for angle iron), and TDF folding. It

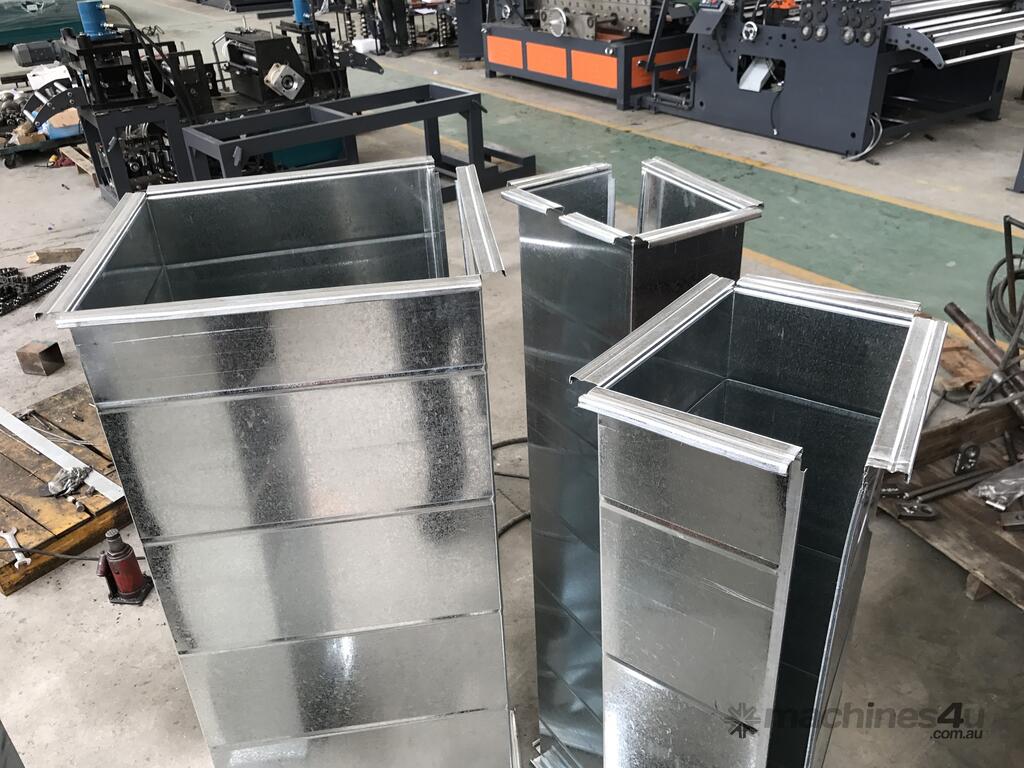

can process different ducting of “L”, and“ ?”. Used with the STEELMASTER vertical duct seaming machine and corner inserter, increases production efficiency and saves labour cost.
Utilizing the container set up saves the manual work and transportation cost, which can move to different construction sites just by moving the container (No extra installing and testing are needed).

CONFIGURATION?

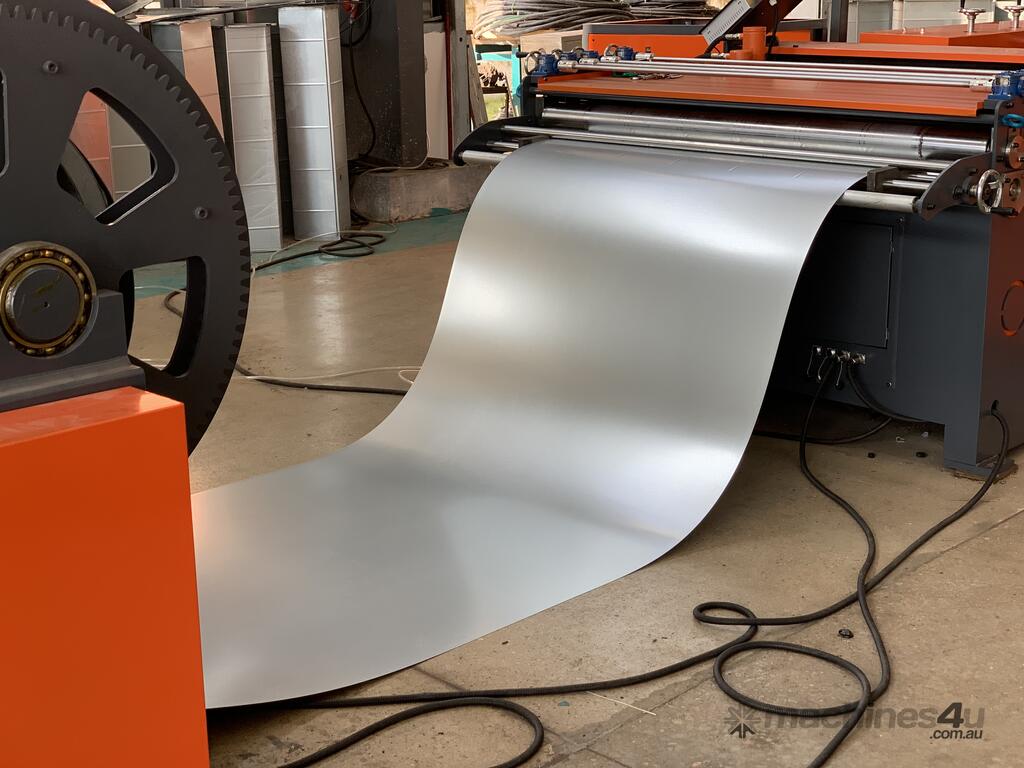

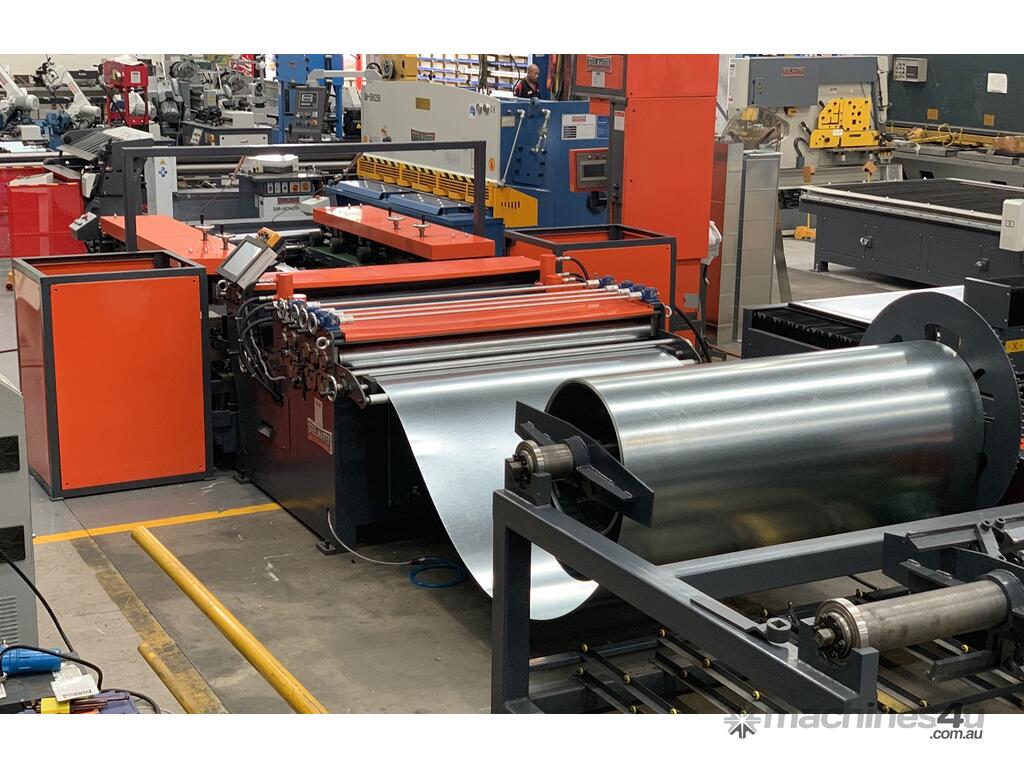

1) Motorized Twin Decoiler – 5000Kg - 1 x Double Mandrel Set Supplied

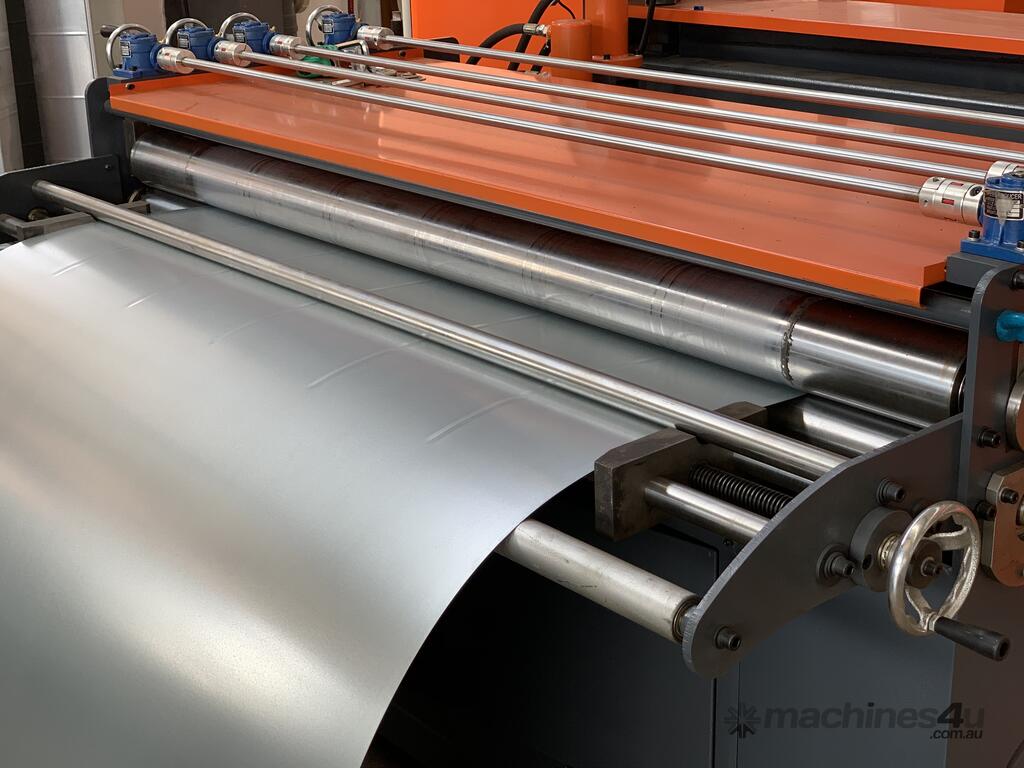

2) Straightener
Pneumatic Controller Straightener, No Adjustment Required When Changing From 0.4mm ~ 1.2mm Material
No. of Straightening Rollers - 9
Straightening Roll Diameter – 100mm
Straightening Roll Material – Chrome Plated, Hardened &Ground
3) Beading?Pneumatic Controlled Beader, No Adjustment Required When Changing From 0.4mm ~ 1.2mm Material
No. of Beading Rollers – 2 – Others Can Be added
Optional Beading Profile Shapes Can Be Ordered
4) Notching & Punching
5) Hydraulic Shearing Tolerance ±0.5mm

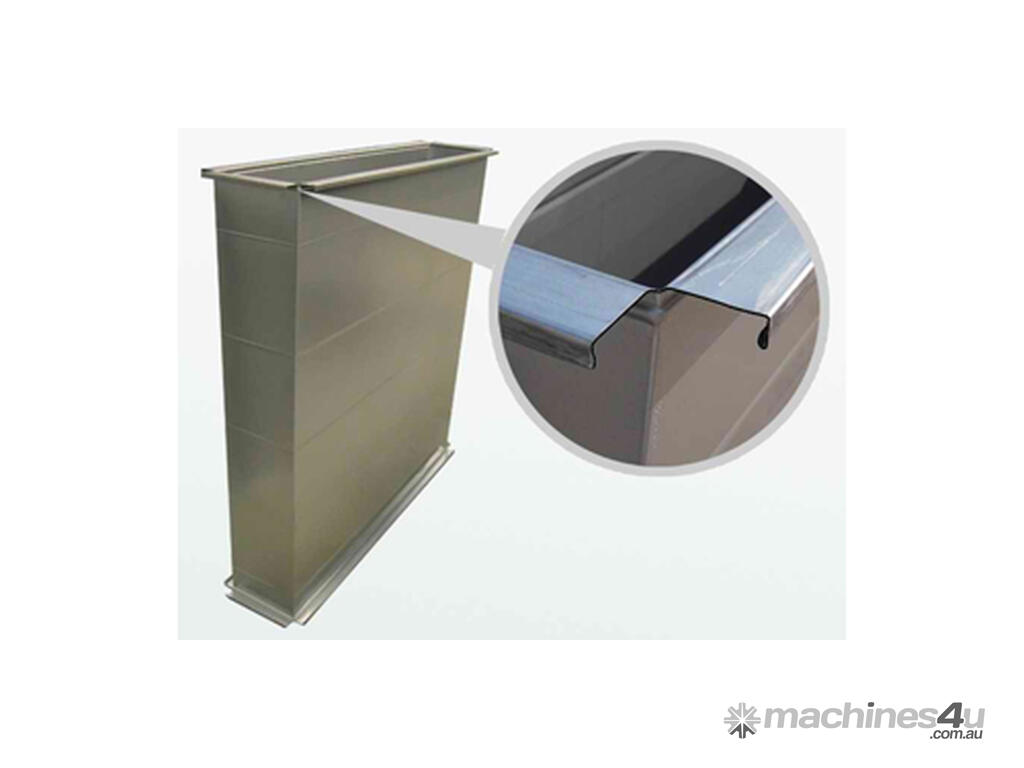

6) Pittsburgh Profile.
7) Duplex / Twin TDF Flanger
8) Hydraulic Folder

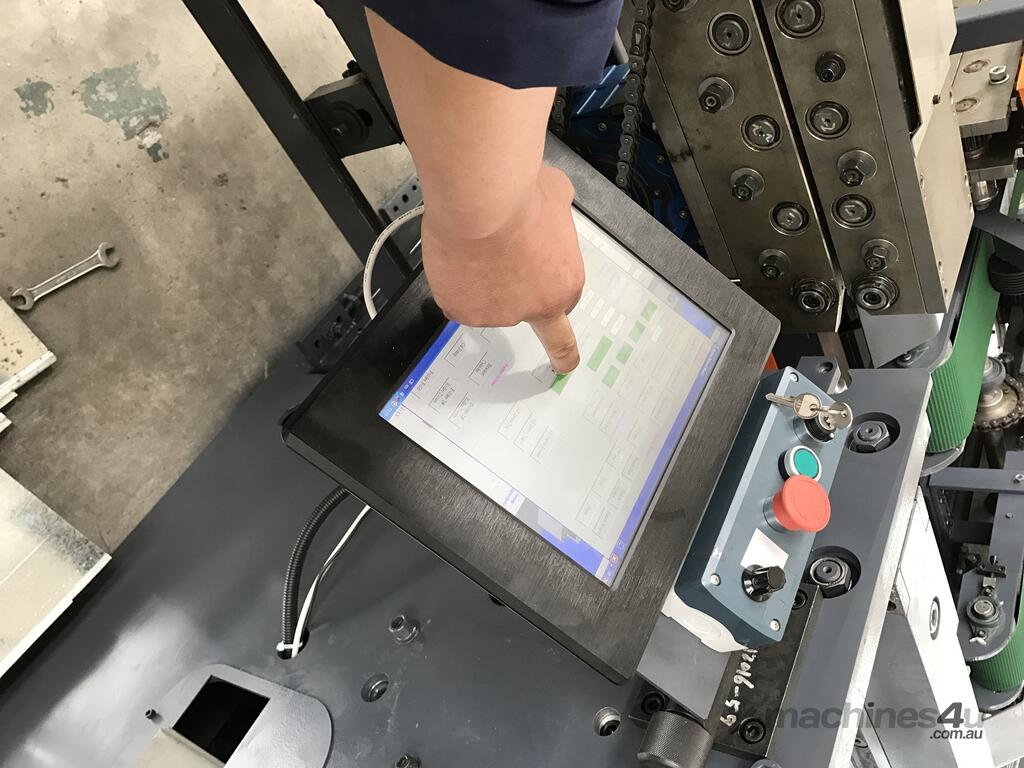

9) Touch Screen Controller: Simply Input Your Dimensions – Easy To Operate

Technical Snap Shot
?Model No. SM-Auto Pro CAL6-1.2-1600- Compact Series.

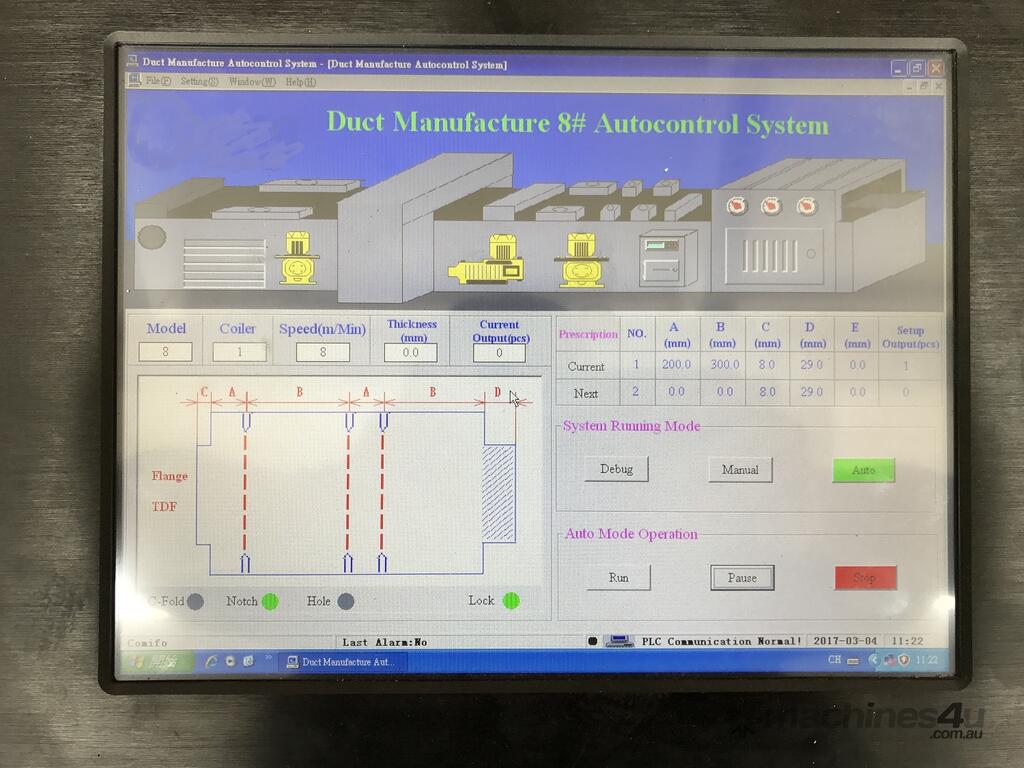

?Panasonic Servo with Touch screen PLC Control
?Multiple page programming capability
?Material Thickness: 0.4 ~ 1.2mm (Gal)
?Maximum Width: 1600mm
?Maximum Folding Height: 1550m
?Minimum Folding Height: 180mm
?Line Speed: 8-20m/min.
?Can straight inline blank from 1220mm wide ~ 1550mm and all inline function can be turn on and off to suit.
?Power: 27.8Kw/V With 1 x Duplex Decoiler
?Power: 35Kw / 70 Amp overall power.
?Dimensions.10000mm x 4000mm (moving Pittsburgh included) x 1500mm - with 1 x duplex Decoiler


Optional
?Shipping Container Supplied Extra To Customers Requirements.

We can also offer experienced service technicians in house or onsite to assist – Please contact us for further information.
