HVAC Auto Duct Line Model Compact Line III, 1600mm

HVAC Auto Duct Line Model: HD Compact Line III, 1600mm Wide, 6 In 1 Machine. Decoiler/LevelerGrooving/Notching/Folding/Shearing. PLC Touch Screen Controller. Volt.

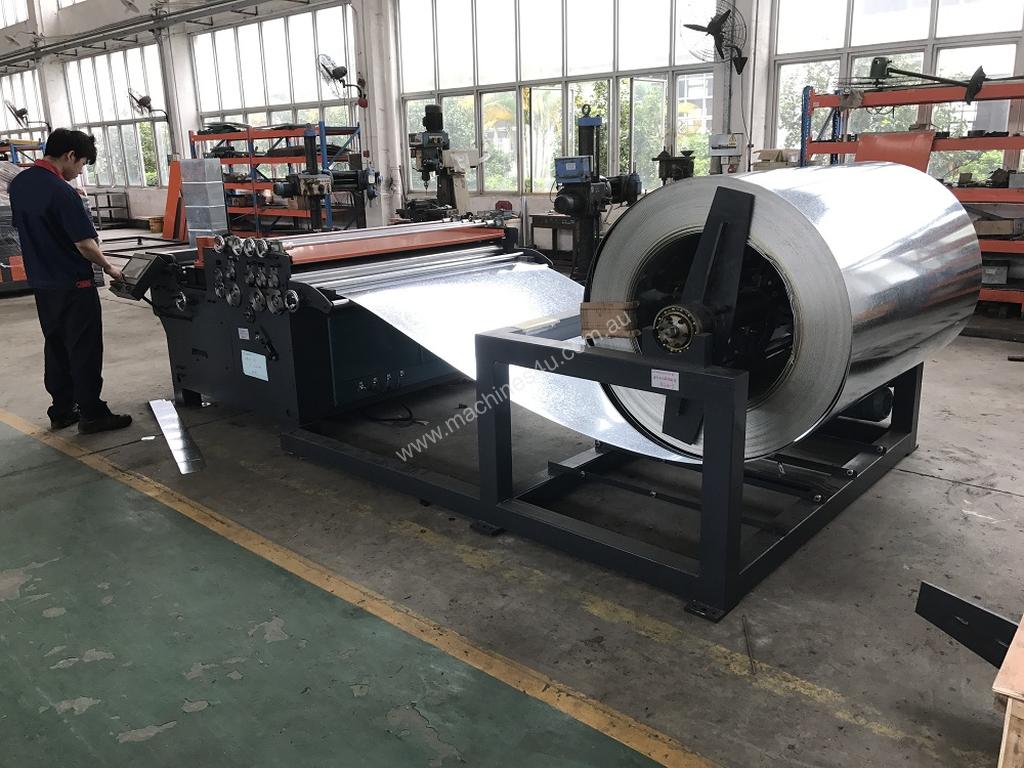

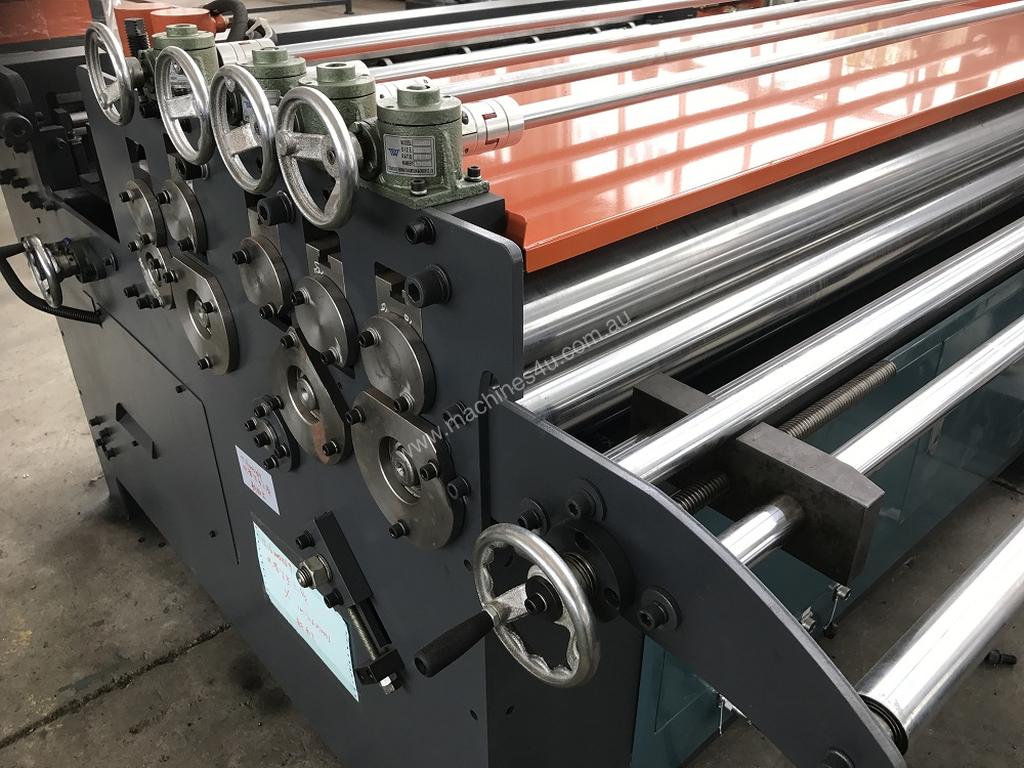

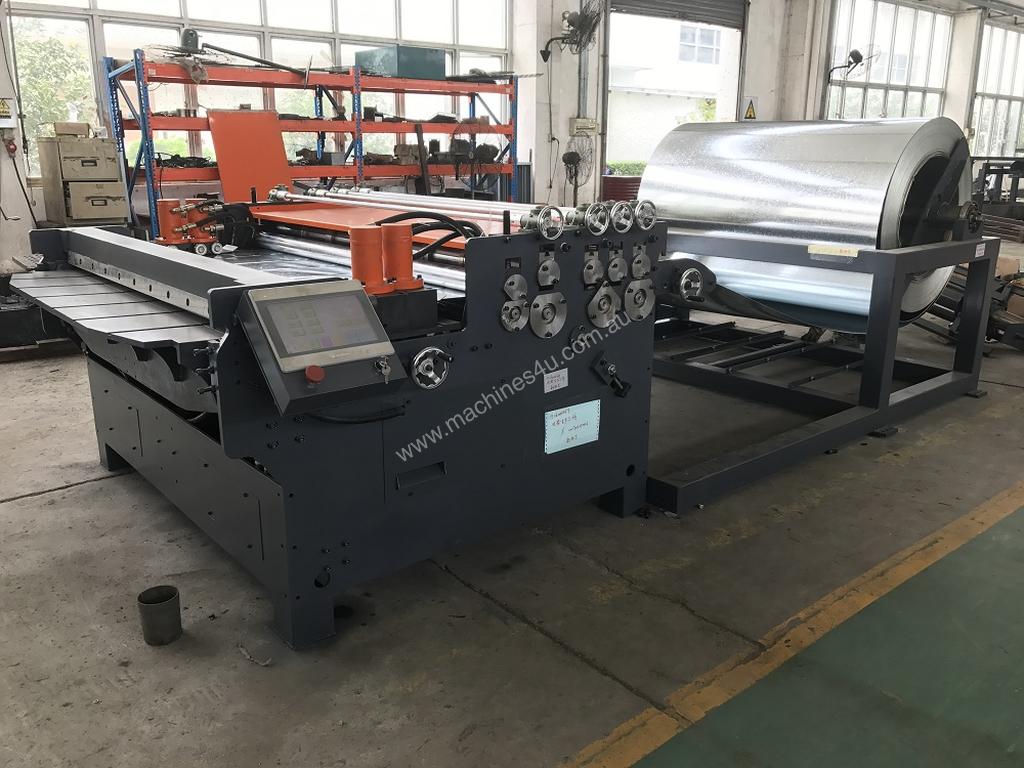

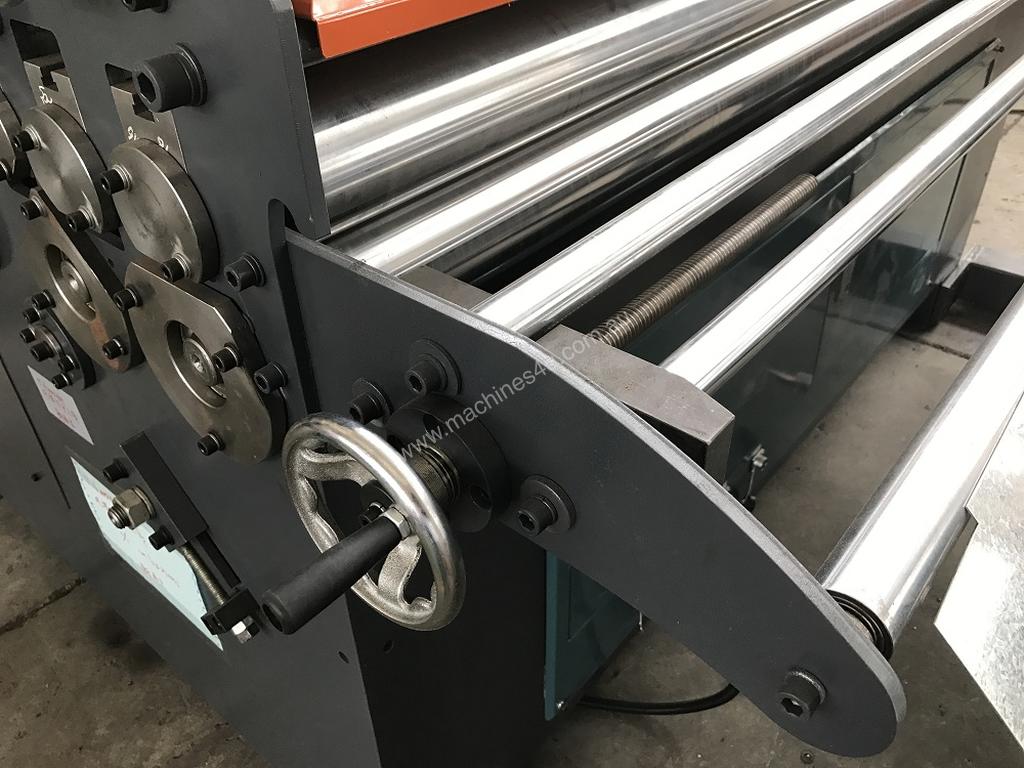

Our Heavy Duty Compact Series Production Line III comprises of a cradle style decoiler, straightening, beading, punching, notching, hydraulic folding and hydraulic shearing. It processes maximum coil width 1600mm galvanized steel for upto 1.2mm material into blank for TDF integrated flange duct.
The production line electrical control part adopts full servo control; the control system has a closed-loop feedback system, Accuracy and stability were obvious improved. The maximum operating speed of 18 m / min.
Length tolerance is ±0.5mm; diagonal tolerance is ± 0.8mm. The system can meet each 8-hour shift production capacity of 1000m2 duct.

Features:

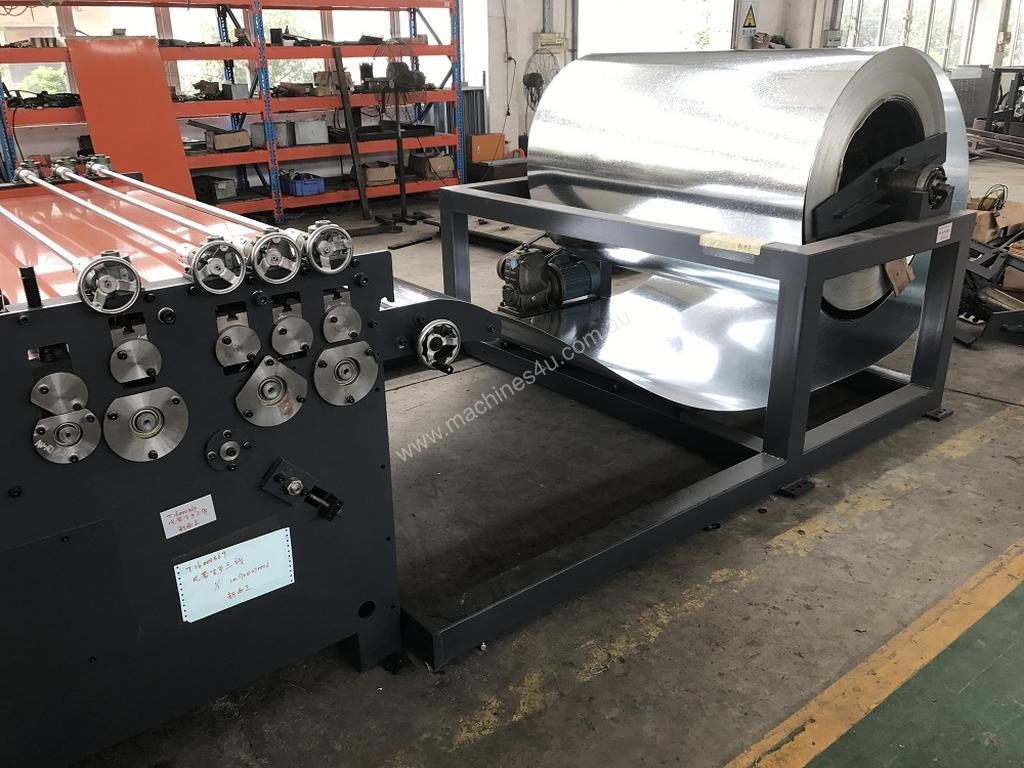

Motor driven decoiling, selectable coils stand by, maximum capacity of 5-ton per station (optional: up to 10-ton per station)
Bends right angle lock.

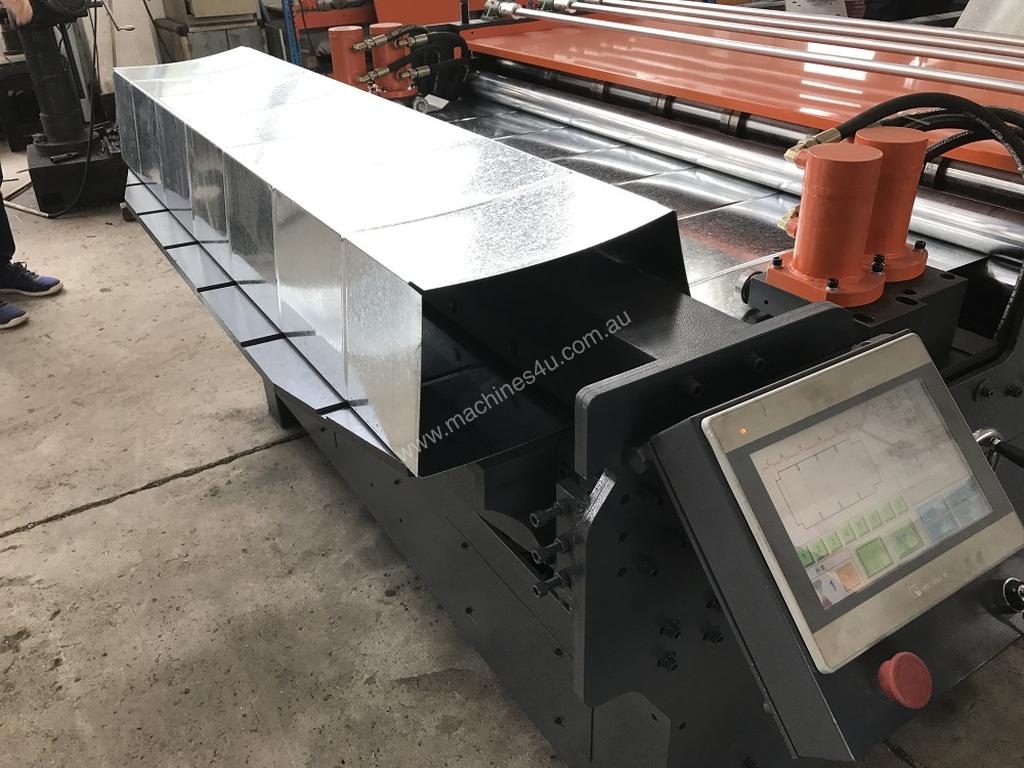

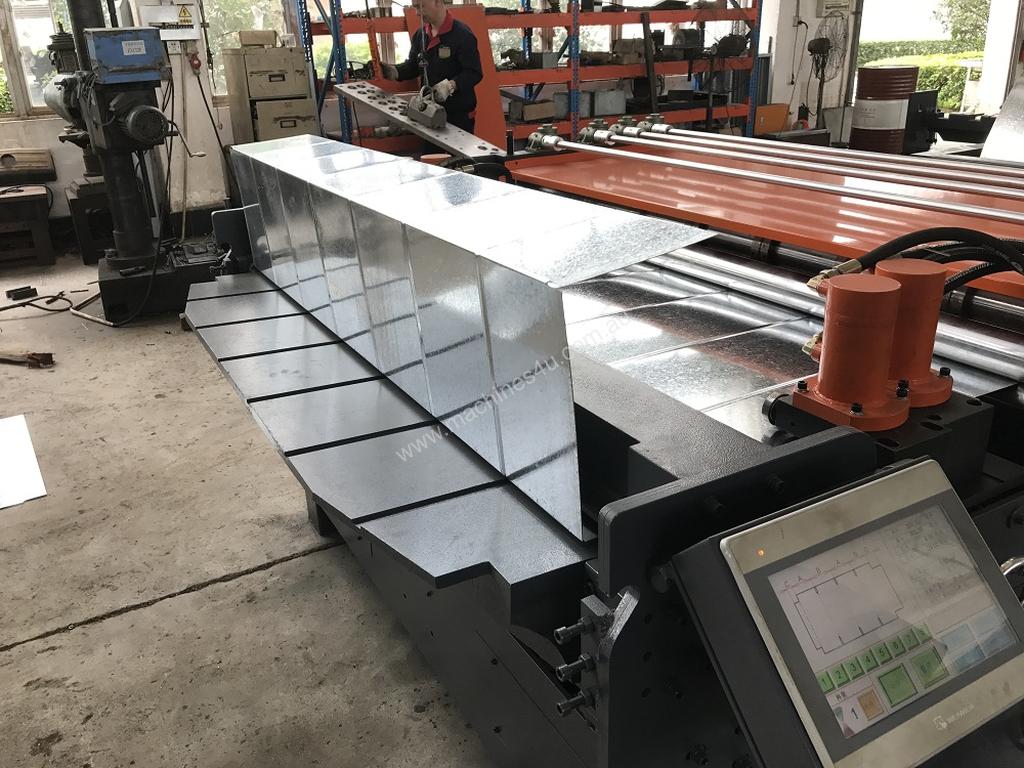

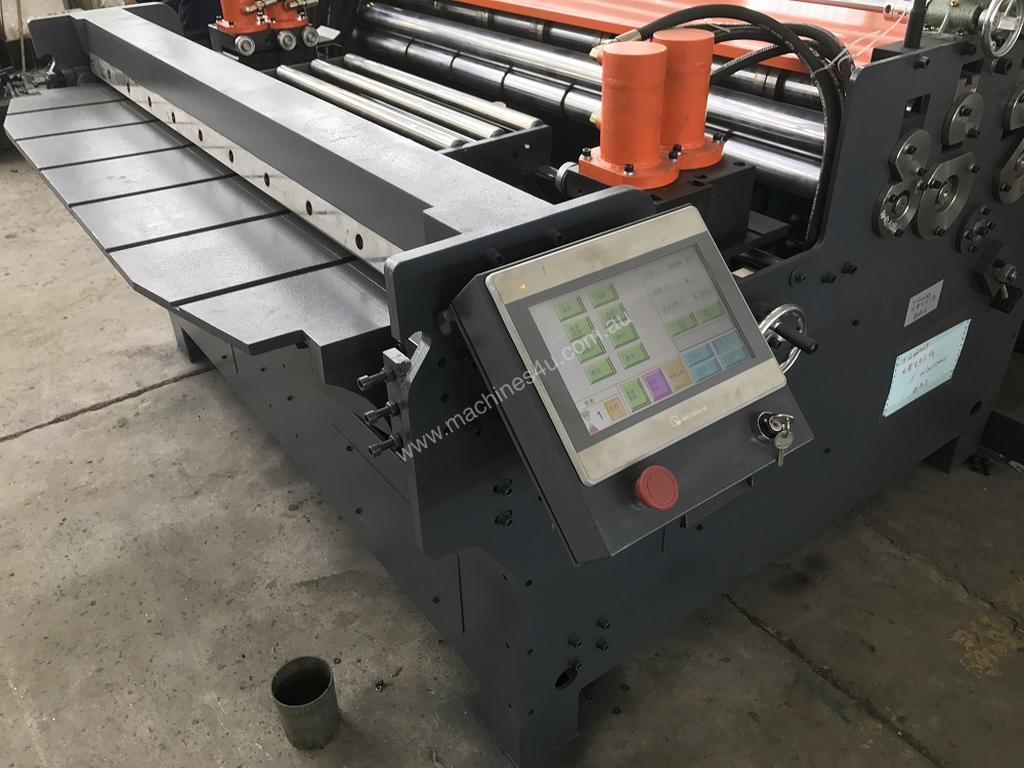

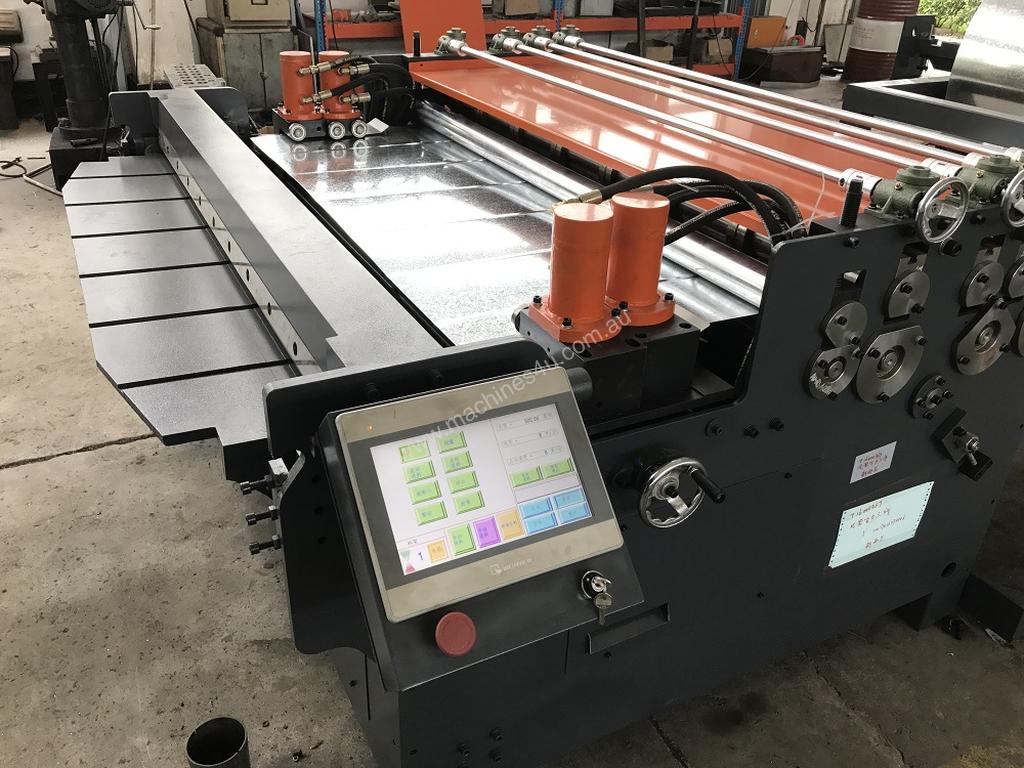

PLC control, preset available profiles and folding style, notching size, punching size, cutting dimension on touch screen.

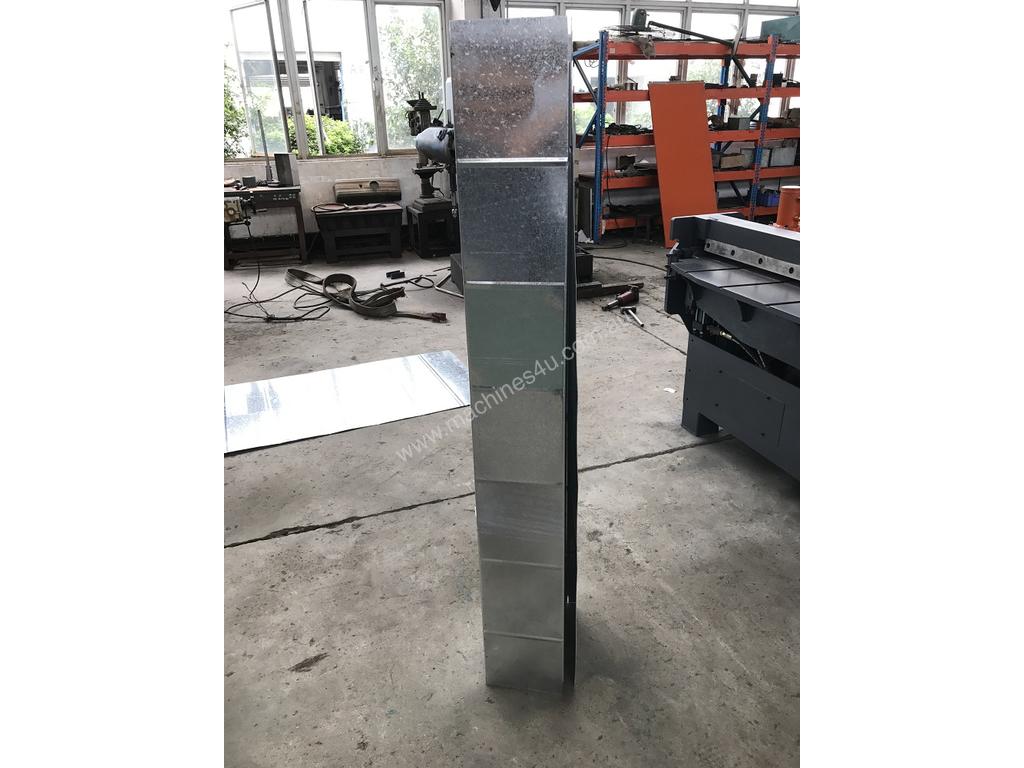

This auto line will process 1600mm galvanized steel into blank for plasma cutting machine or notch blank for "L" section or full ductwork.

Technical Snap Shot
Up to 1550mm wide material
Thickness: 0.4-1.2mm
Shearing tolerance of ±0.5mm

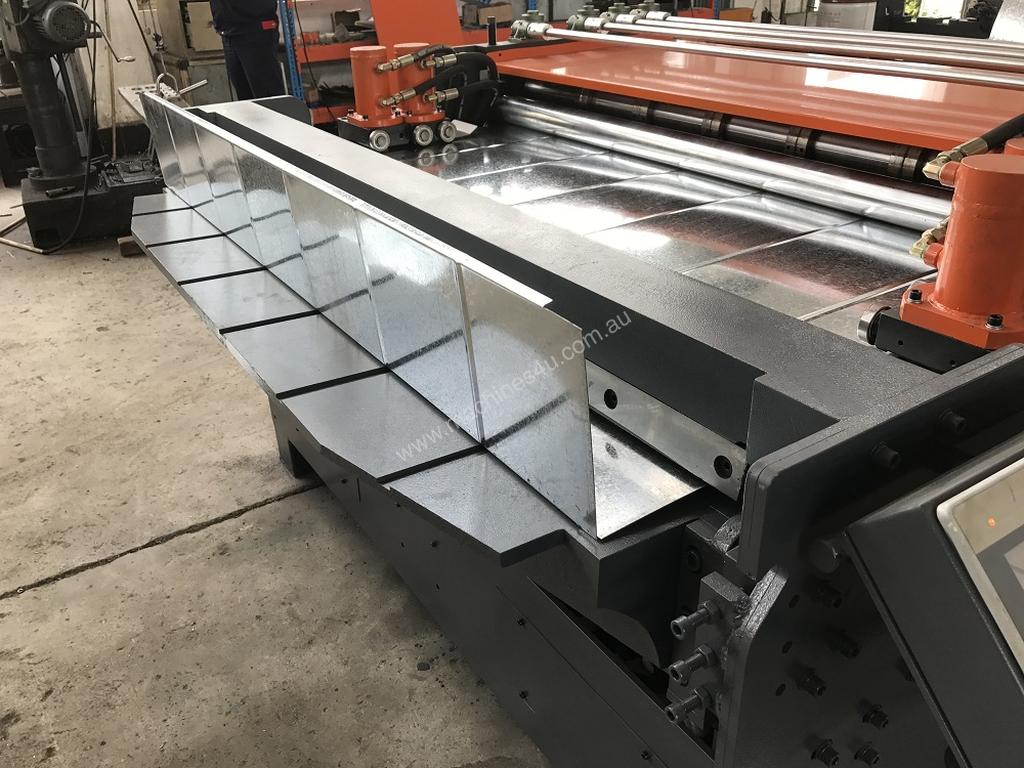

Hydraulic folding tolerance of ±0.5mm
0-18m/min feeding speed, fast acting back gauge
Dimensions: 3400mm x 2100mm x 1400mm x 4800Kg
