HVAC Auto Line, 1600mm Wide, Decoiler, Straighten, Bead, Notch, Fold & Shear

##ON SPECIAL - SAVE $2,000 OFF LIST PRICE OF $88,850.00 + GST##

A MUST FOR ALL HIGH VOLUME HVAC WORKSHOPS!

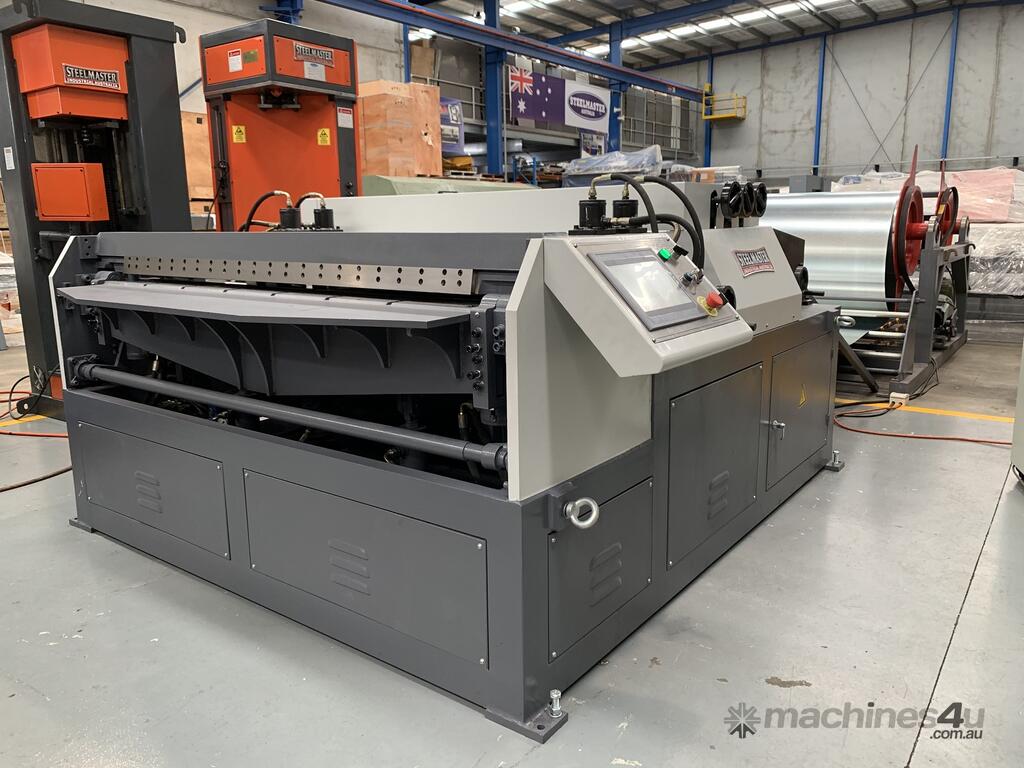

HVAC Auto Duct Line Model: AML-3, 1550mm, Twin Decoiler, Leveller/Ribbing/Notching/Shearing/Folding TDF Flange Fold Profiles also Formed. Vector Servo System, PLC Controlled. Volt

Description

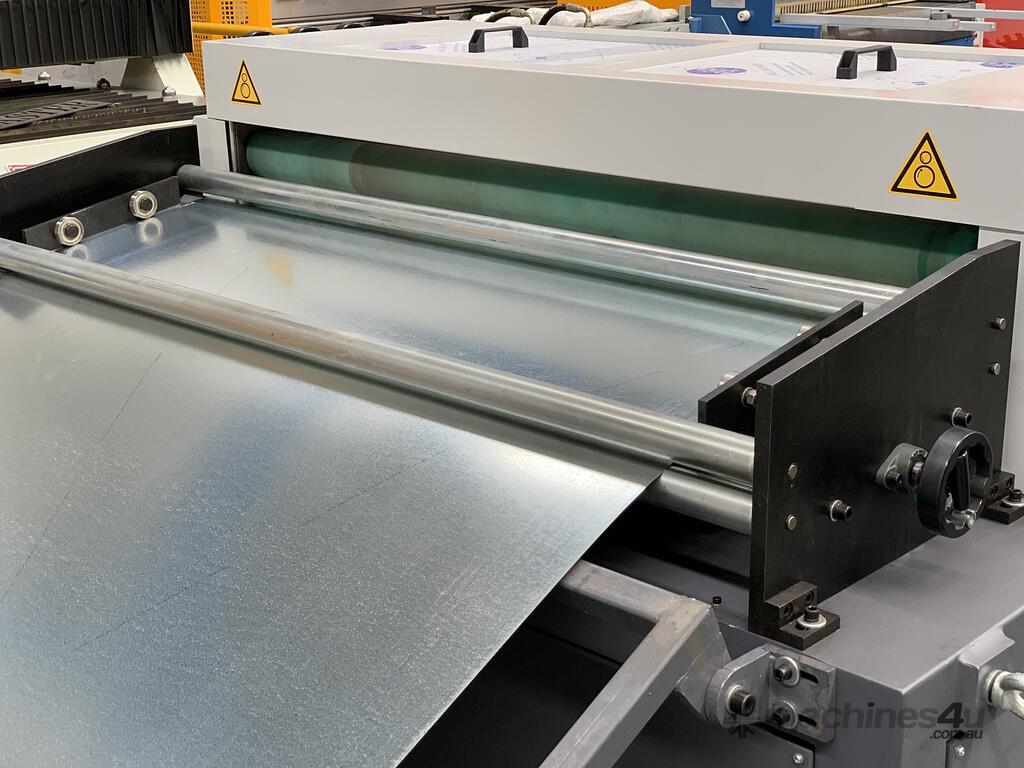

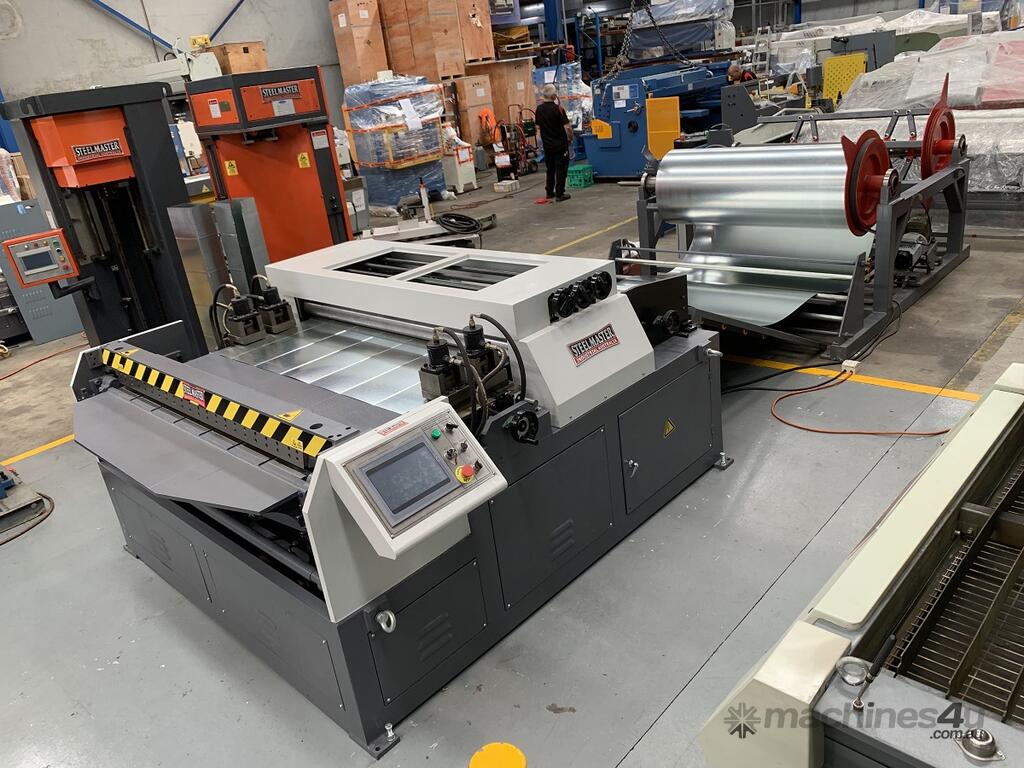

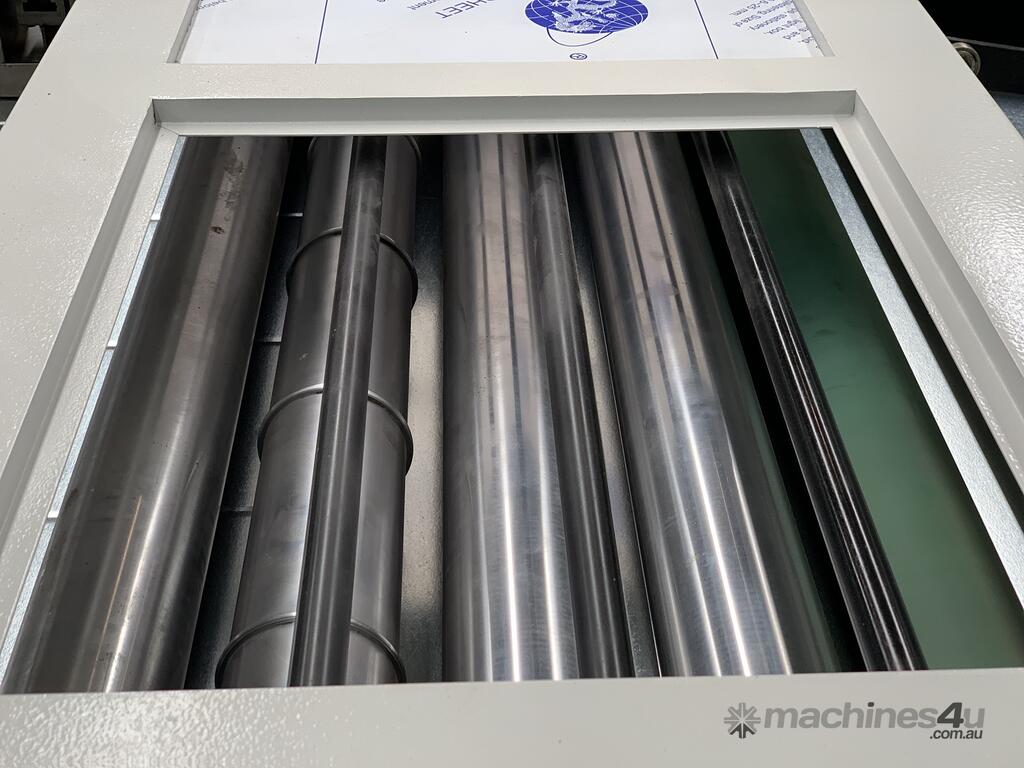

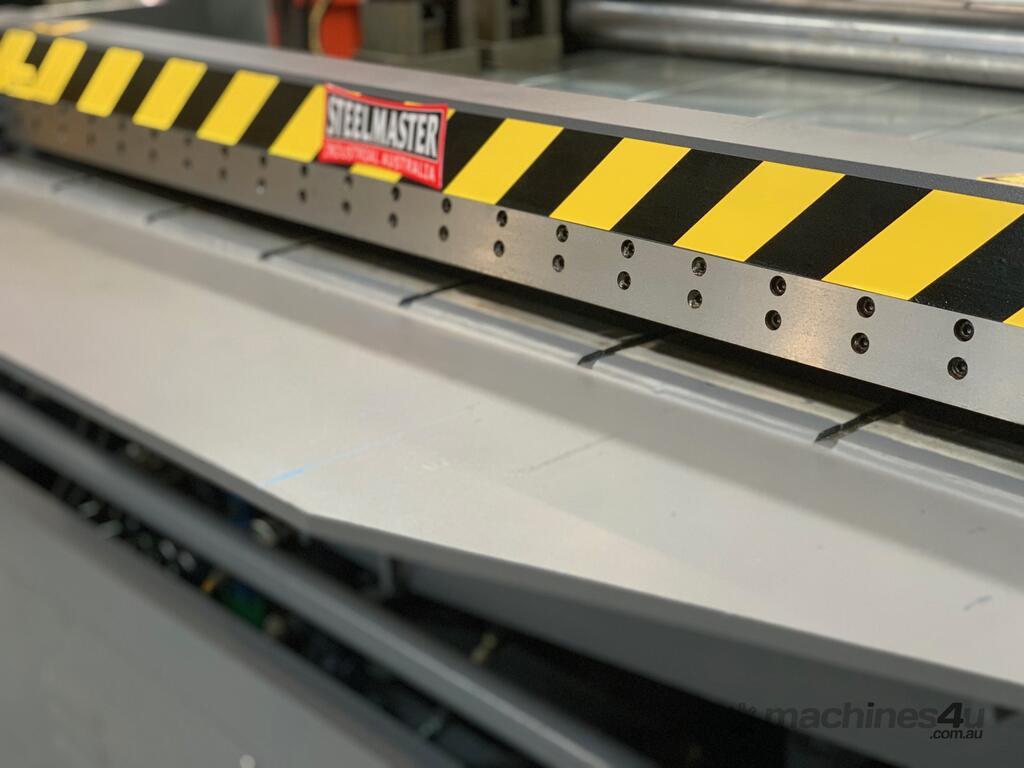

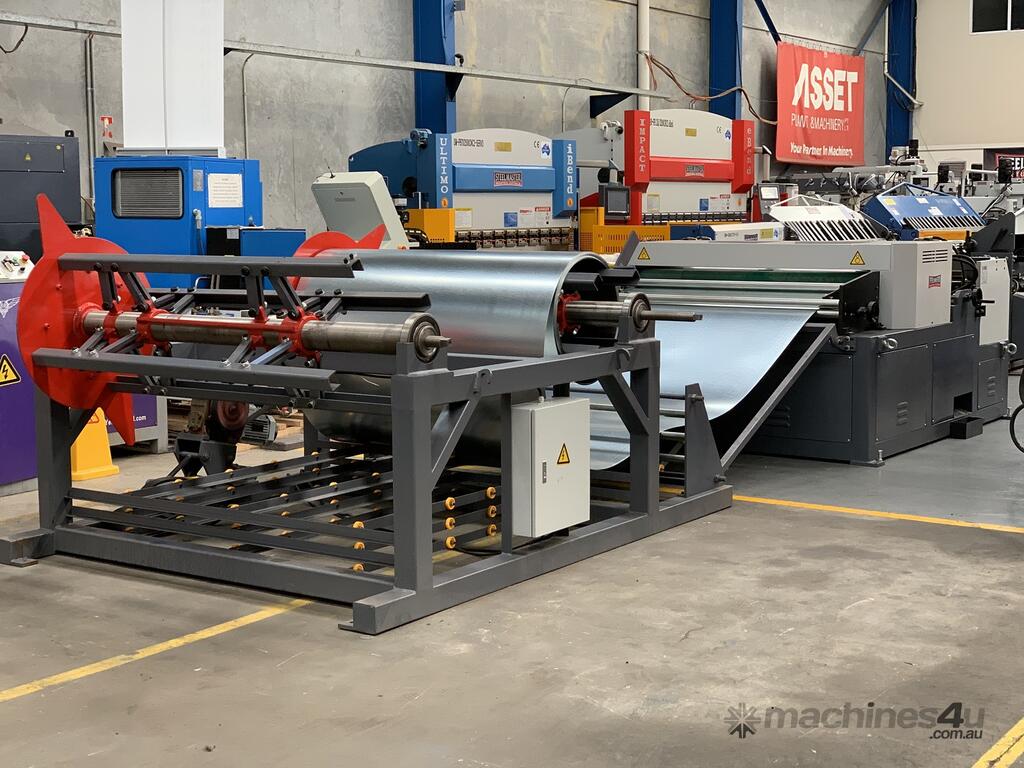

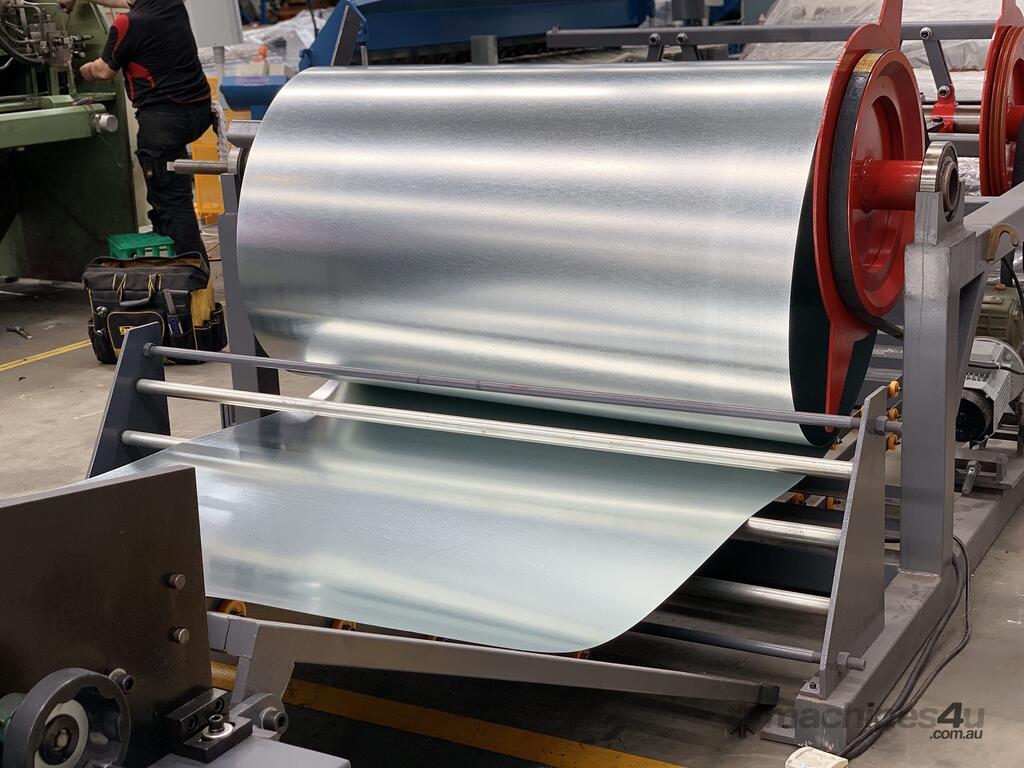

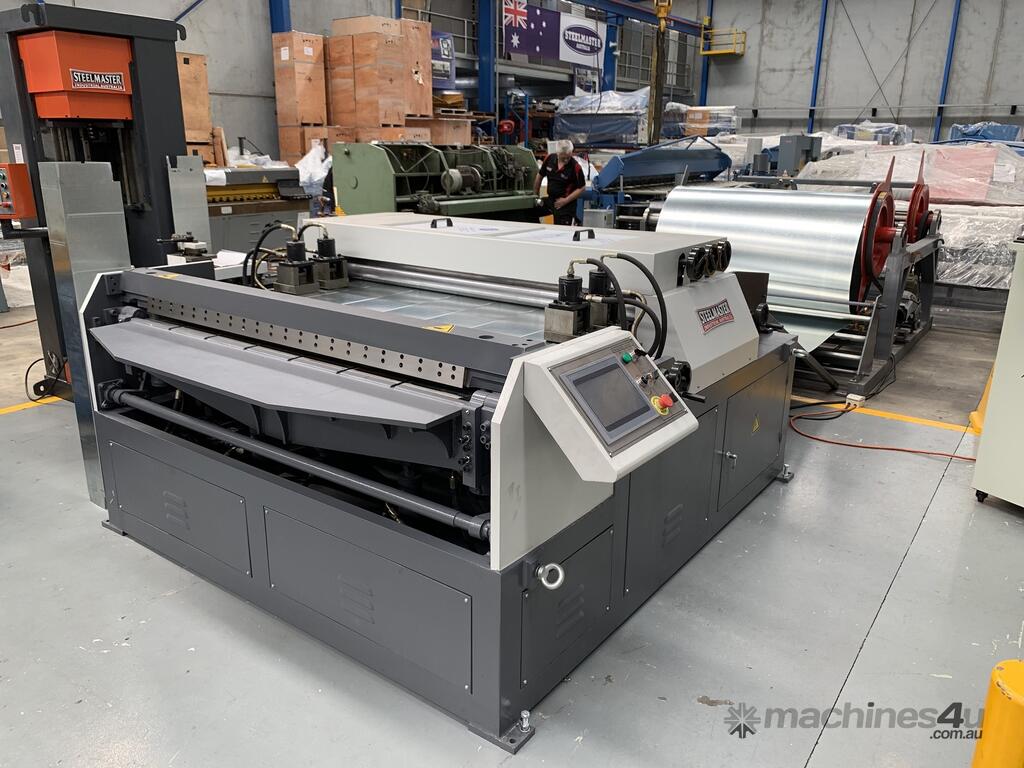

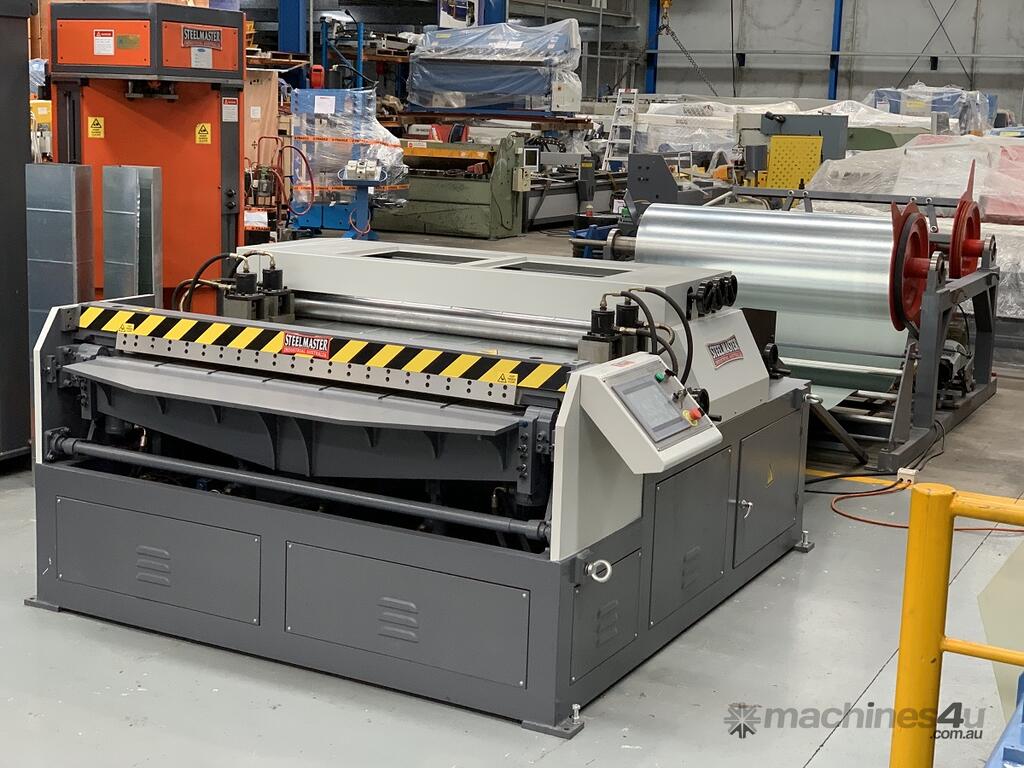

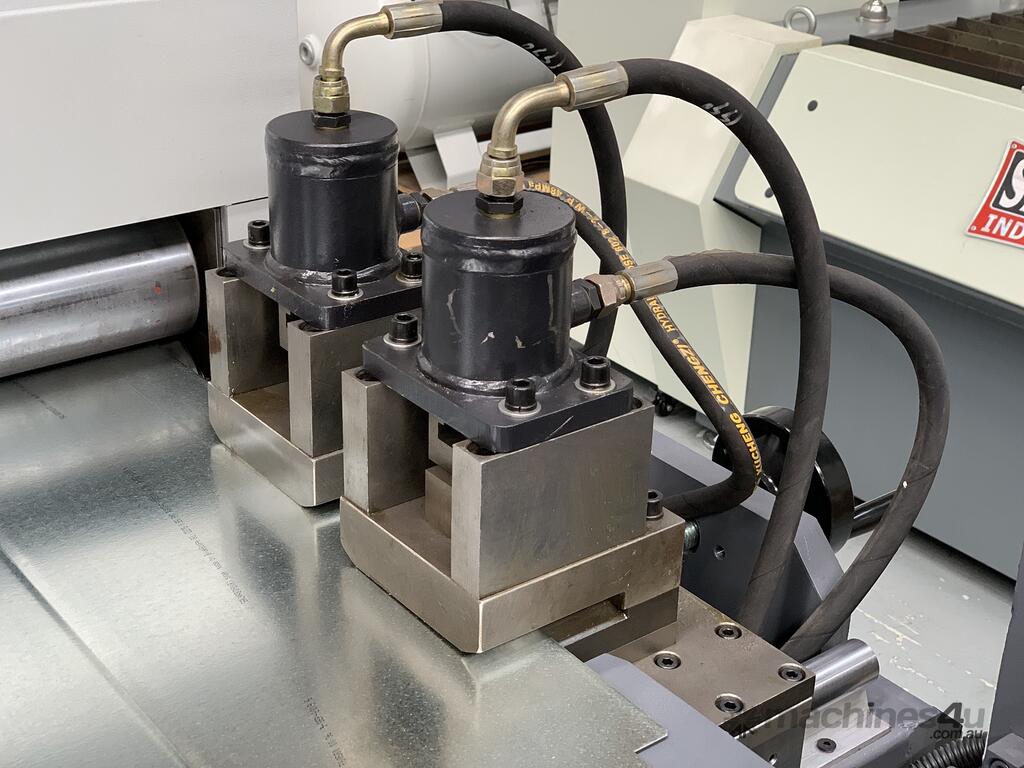

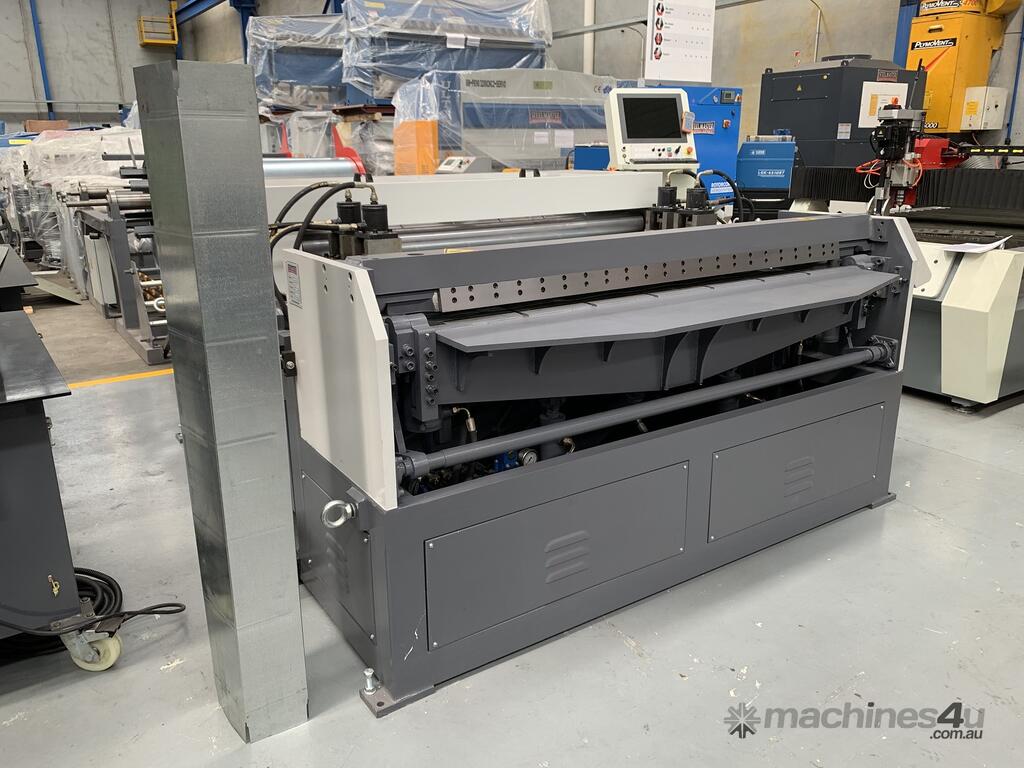

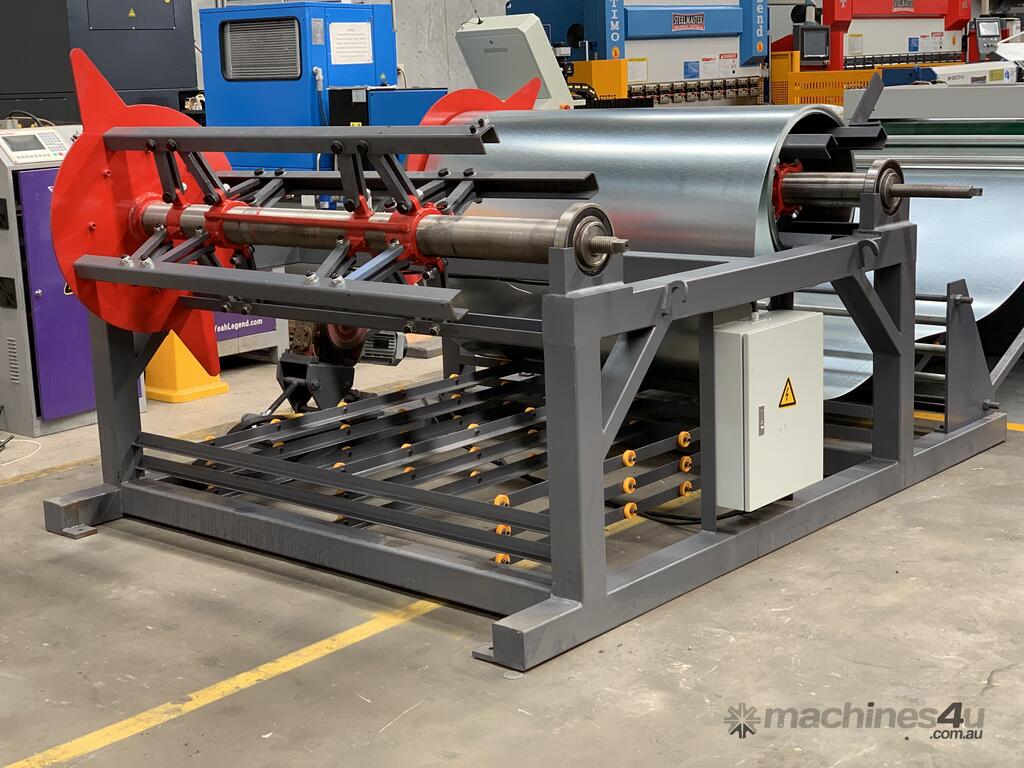

Our Duct production line III comprises of a twin decoiler, leveller grooving unit, “V” and “?” notching unit, cutting unit, bending unit composition. The standard configuration the “V” and “?” notching unit make for TDF flange duct, thereinto the “?” notching unit also can be used to produce TDC flange. Bending unit can be made with the Pittsburgh match the right angle, also can be sheet metal bending into a "?" or "L" type. Greatly improve the utilization of the plate, reduce labour intensity and reduce labour.

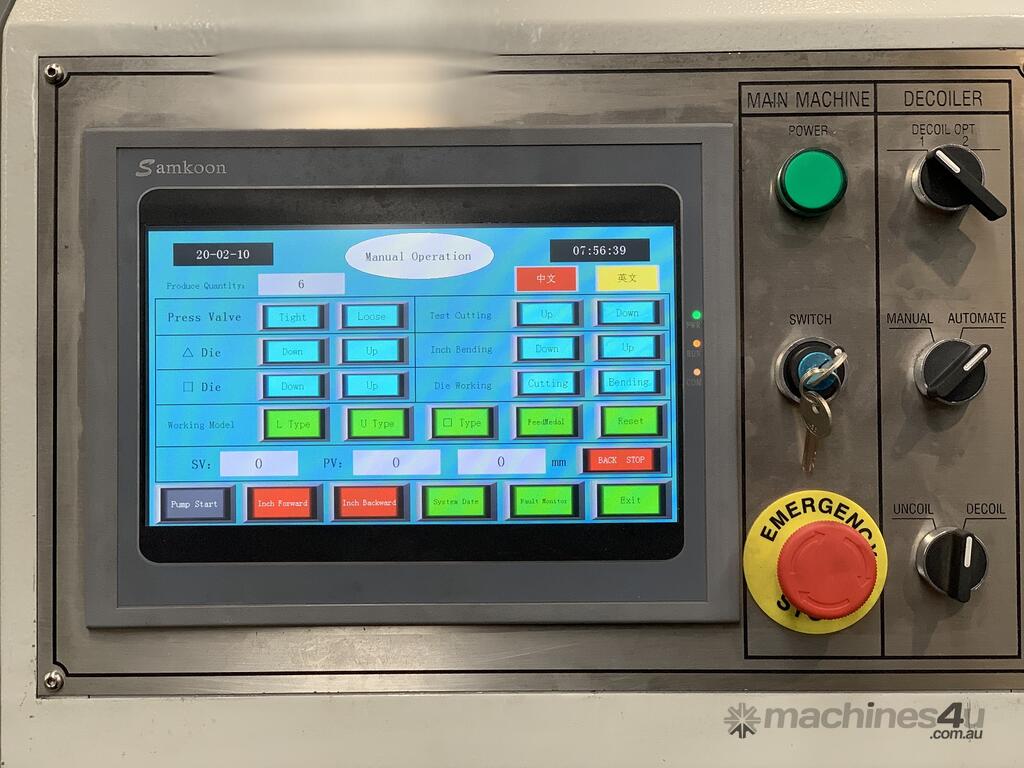

The production line electrical control part adopts full servo control; the control system has a closed-loop feedback system, Accuracy and stability were obvious improved. The maximum operating speed of 16 m / min.
Length tolerance is ±0.5mm; diagonal tolerance is ± 0.8mm. The system can meet the each shift?8 hours? production capacity of 1000m2 duct.

Technical Snap Shot
- Brand STEELMASTER INDUSTRIAL
- Up to 1550mm wide material

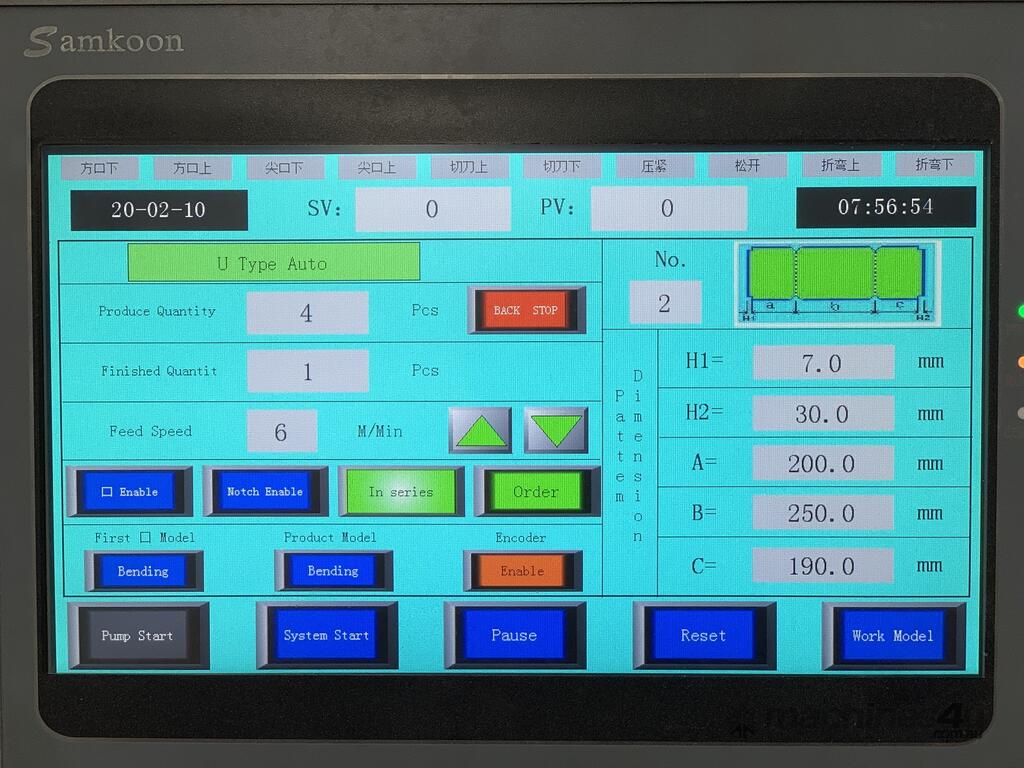

- Vector Servo PLC Control

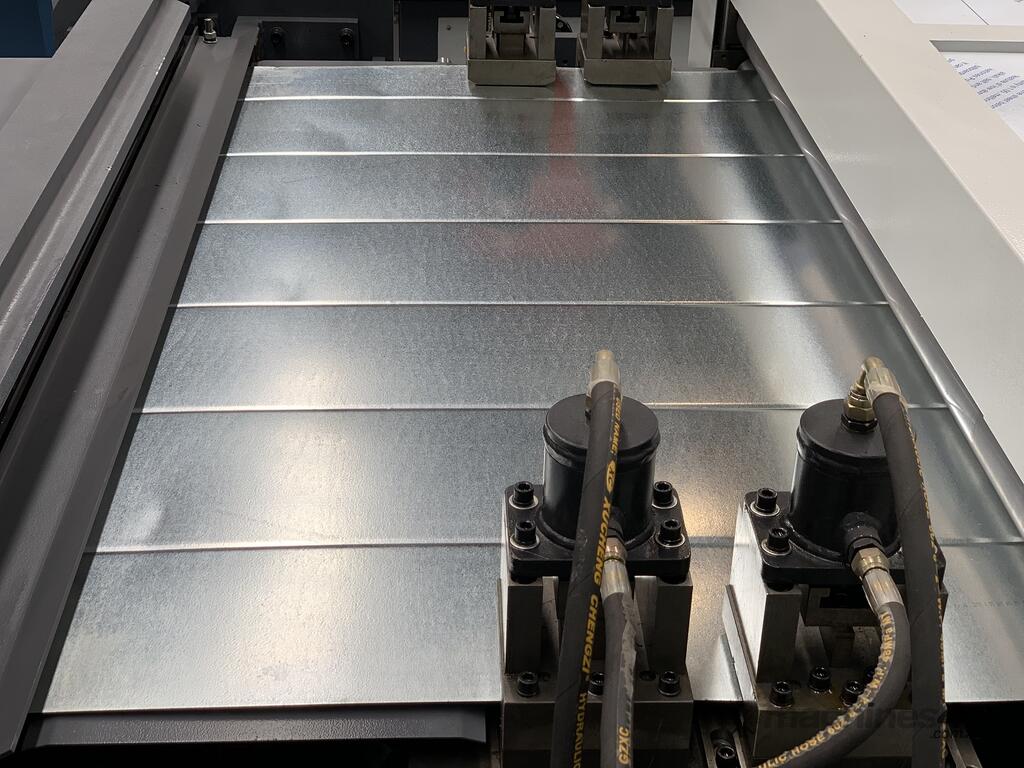

- Twin Powered Decoiler, PLC Programming, Infeed Straightening / Levelling, Ribbing, Notching, Shearing & Folding
- Note - Inline Ribbing, Notching, Folding & Shearing can be turned on or off through PLC.
- Thickness: 0.4-1.0mm
- Shearing tolerance of ±0.5mm
- Hydraulic folding tolerance of ±0.5mm
- 0-16m/min feeding speed, fast acting back gauge
- Dimensions: 7200mm x mm x 1400mm x 4800Kg
