HVAC Auto Line - 1600mm Wide - Ex Stock - Includes Twin 3500Kg Decoiler

HVAC Auto Duct Line Model: AML-3, 1550mm, Twin Decoiler, Leveller/Ribbing/Notching/Shearing/Folding , Vector Servo System, PLC Controlled. Volt

Description

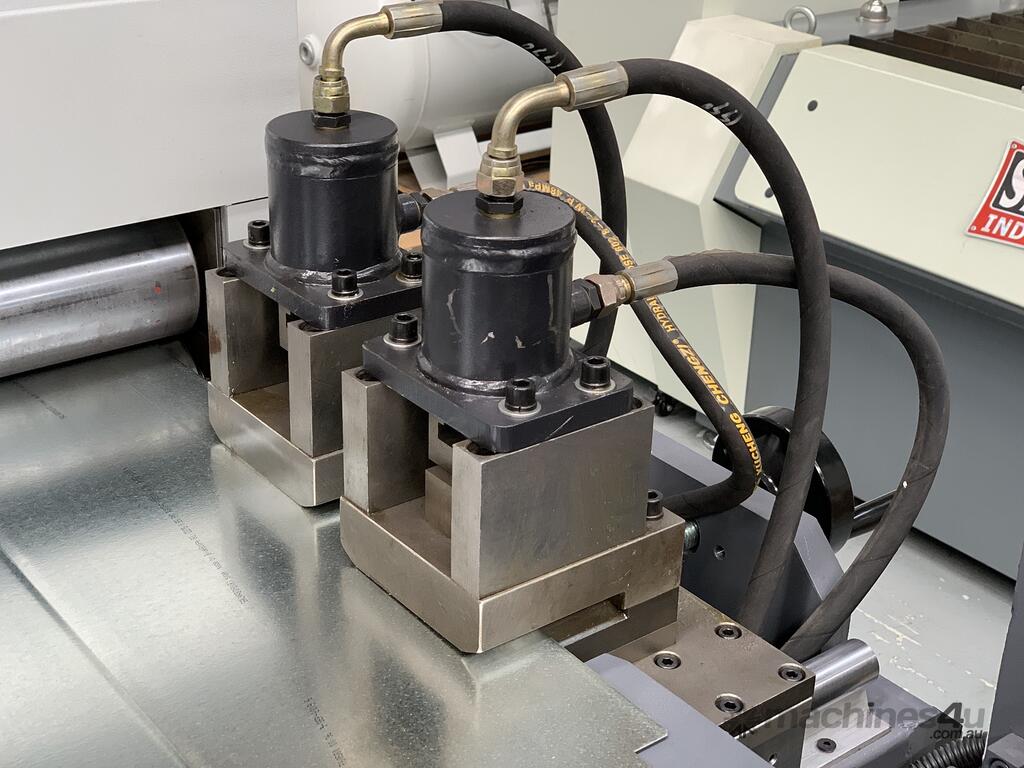

Our Duct production line III comprises of a twin decoiler, leveller grooving unit, “V” and “?” notching unit, cutting unit, bending unit composition. The standard configuration the “V” and “?” notching unit make for TDF flange duct, there into the “?” notching unit also can be used to produce TDC flange. Bending unit can be made with the Pittsburgh match the right angle, also can be sheet metal bending into a "?" or "L" type. Greatly improve the utilization of the plate, reduce labour intensity and reduce labour.

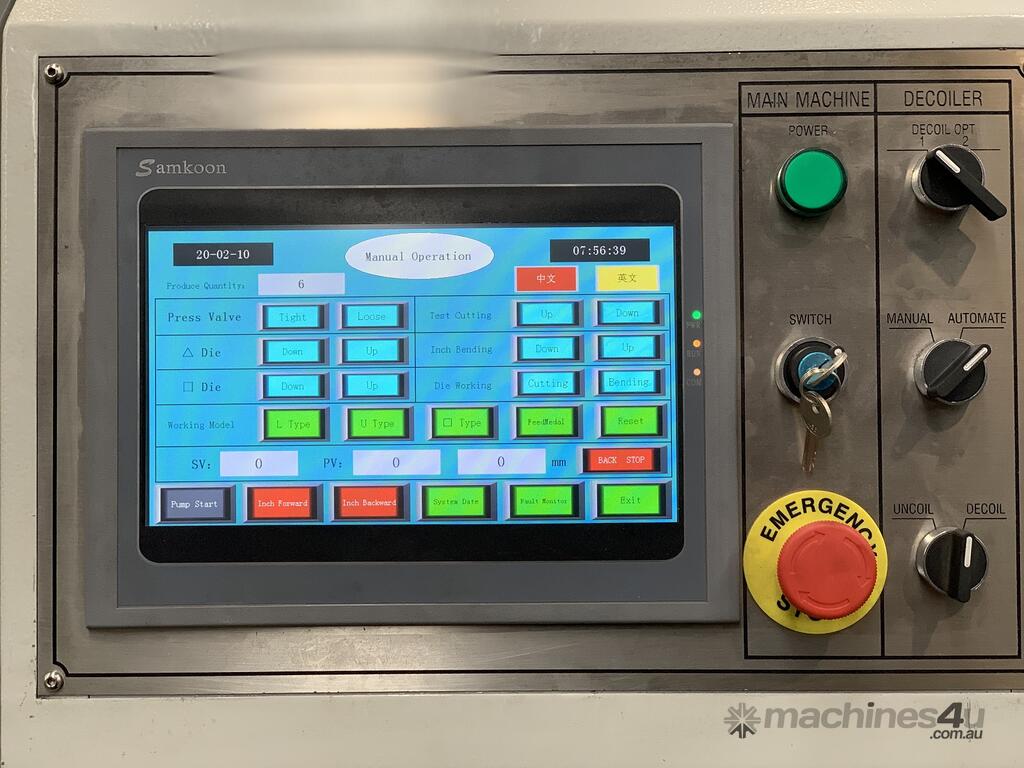

The production line electrical control part adopts full servo control; the control system has a closed-loop feedback system, Accuracy and stability were obvious improved. The maximum operating speed of 16 m / min.
Length tolerance is ±0.5mm; diagonal tolerance is ± 0.8mm. The system can meet the each shift?8 hours? production capacity of 1000m2 duct.

Technical Snap Shot
Up to 1550mm wide material

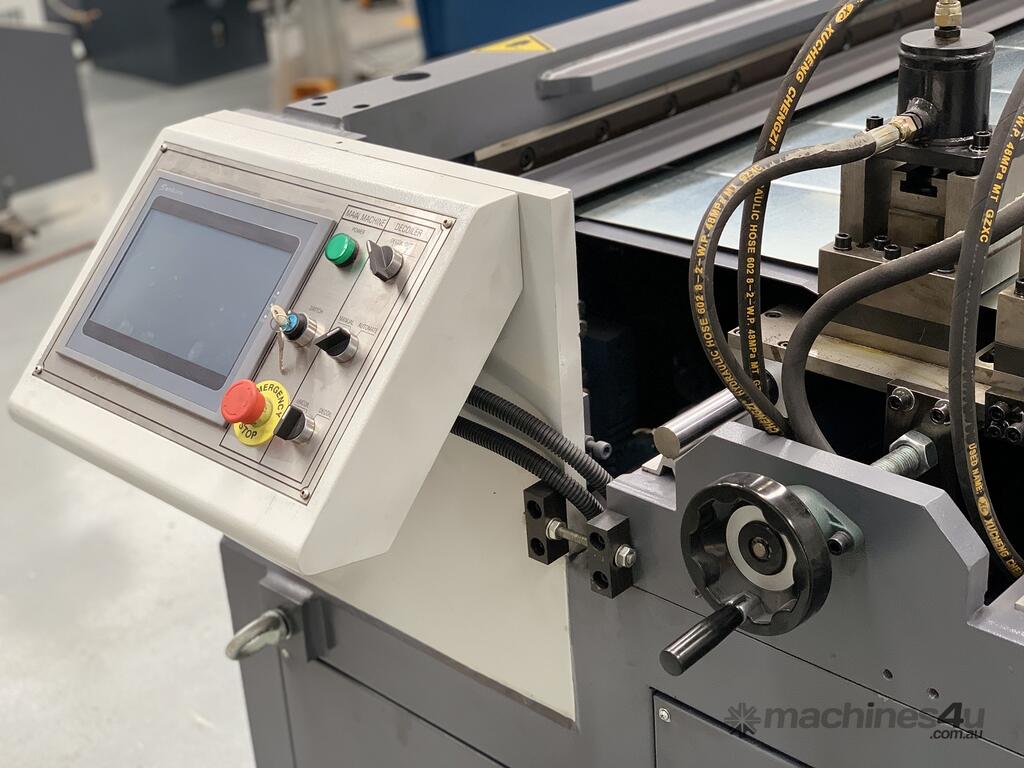

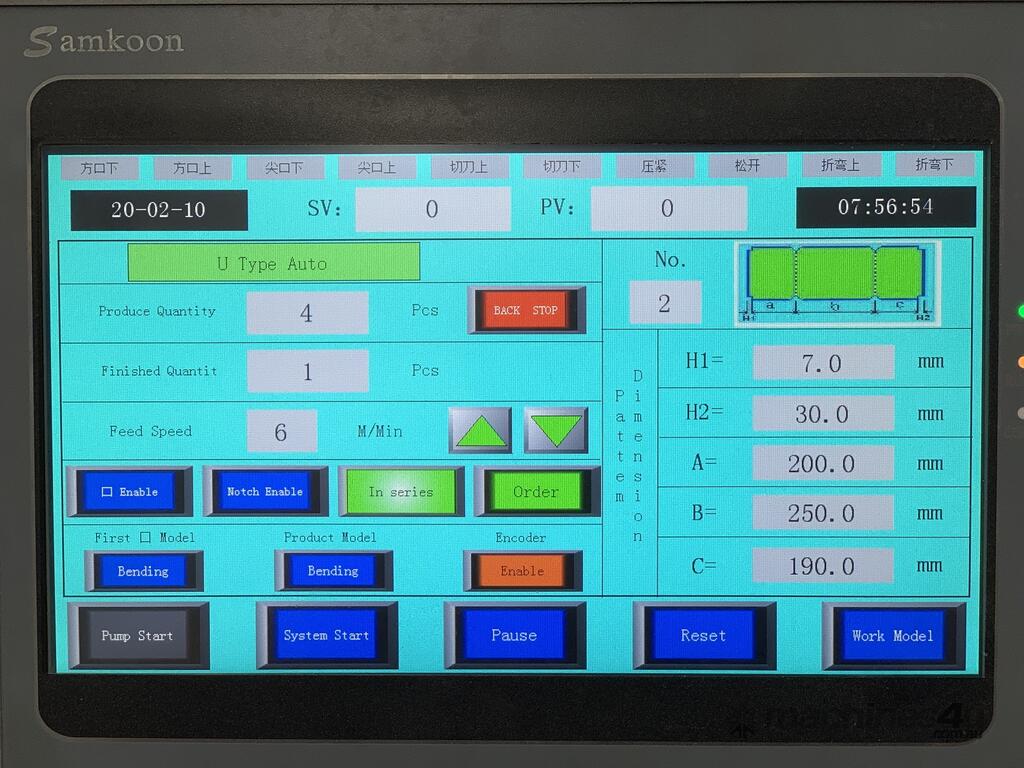

Vector Servo PLC Control

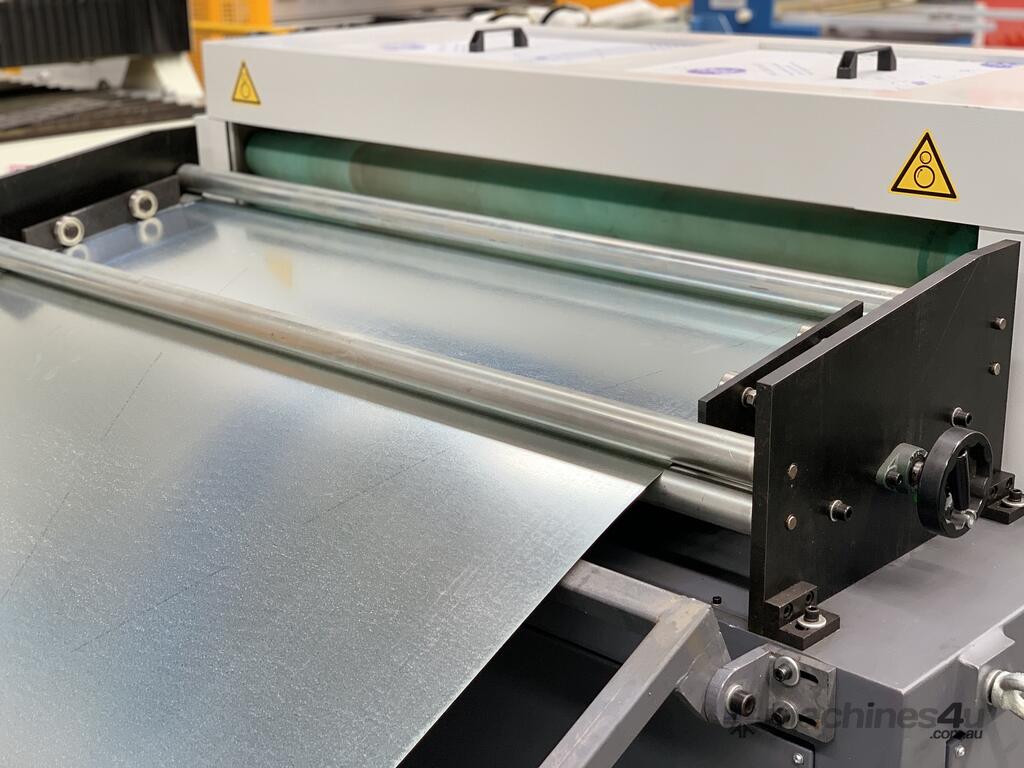

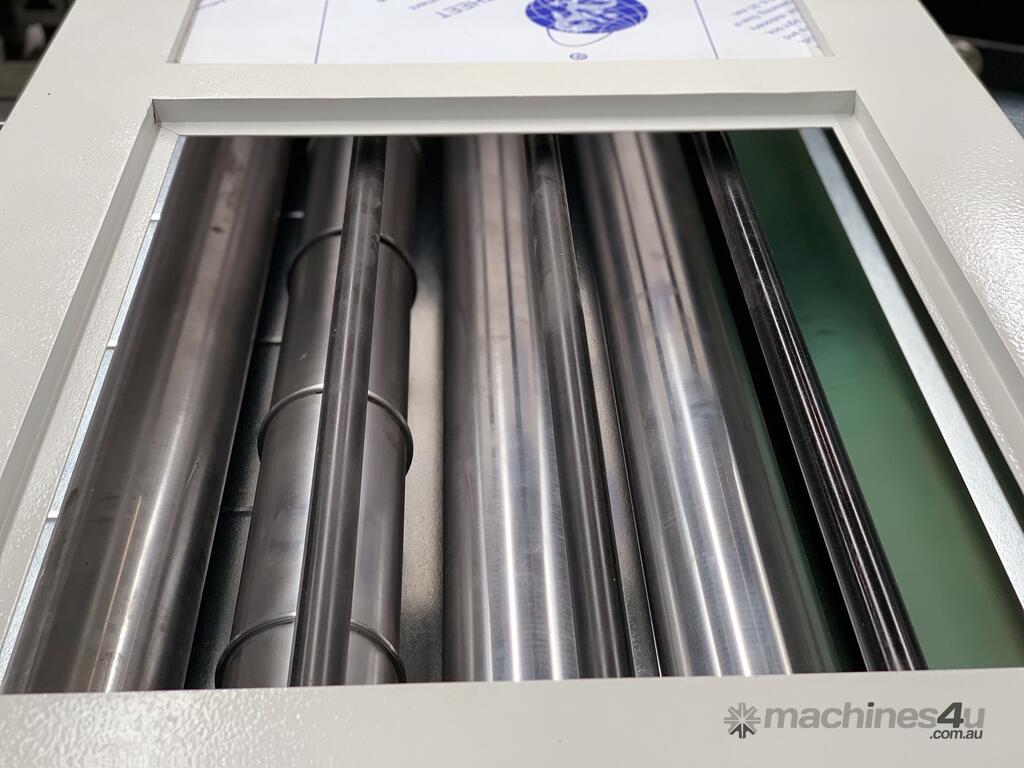

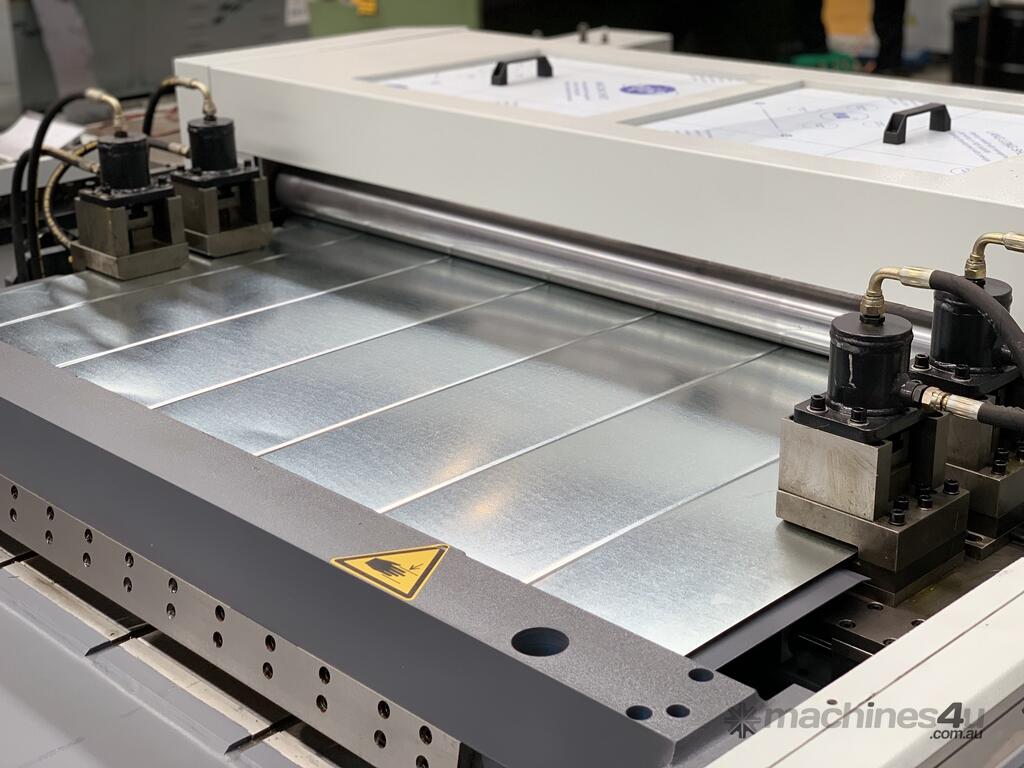

Twin Powered Decoiler, PLC Programming, Infeed Straightening / Levelling, Ribbing, Notching, Shearing & Folding
Note - Inline Ribbing, Notching, Folding & Shearing can be turned on or off through PLC.
Thickness: 0.4-1.0mm
Shearing tolerance of ±0.5mm

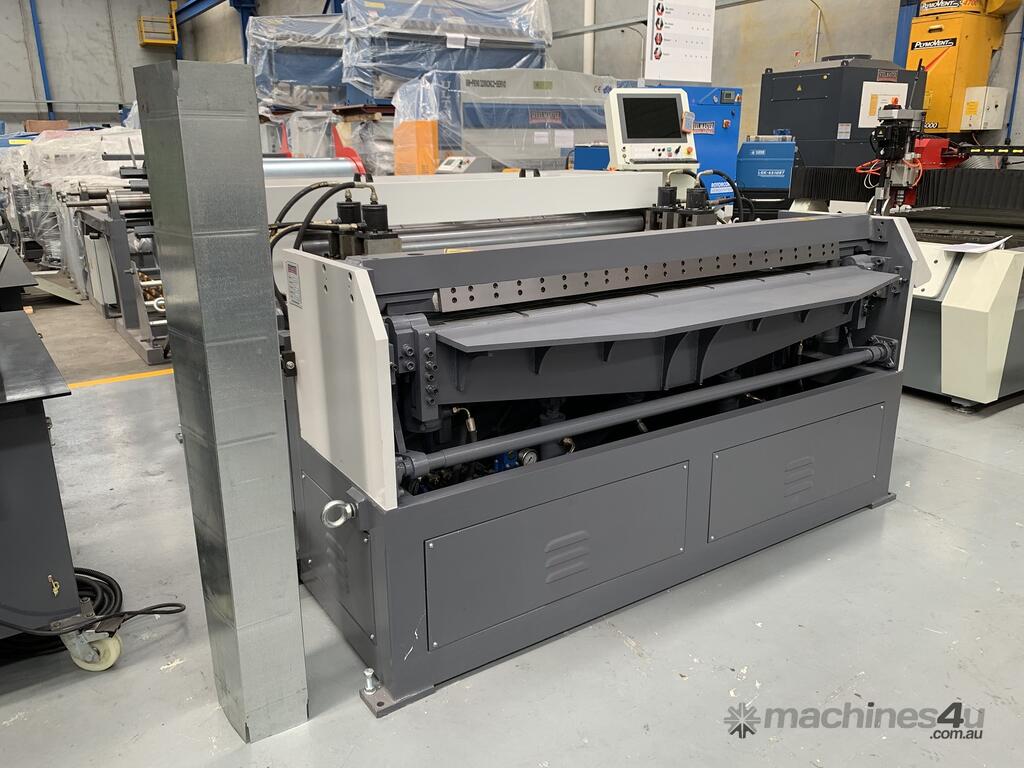

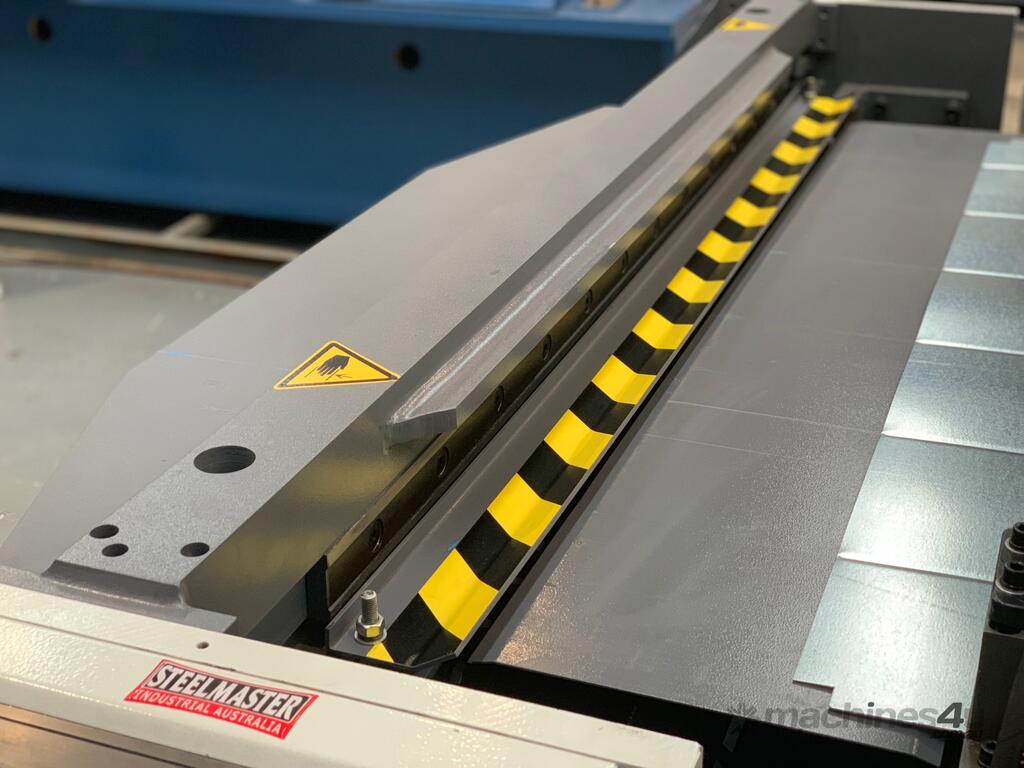

Hydraulic folding tolerance of ±0.5mm
0-16m/min feeding speed, fast acting back gauge

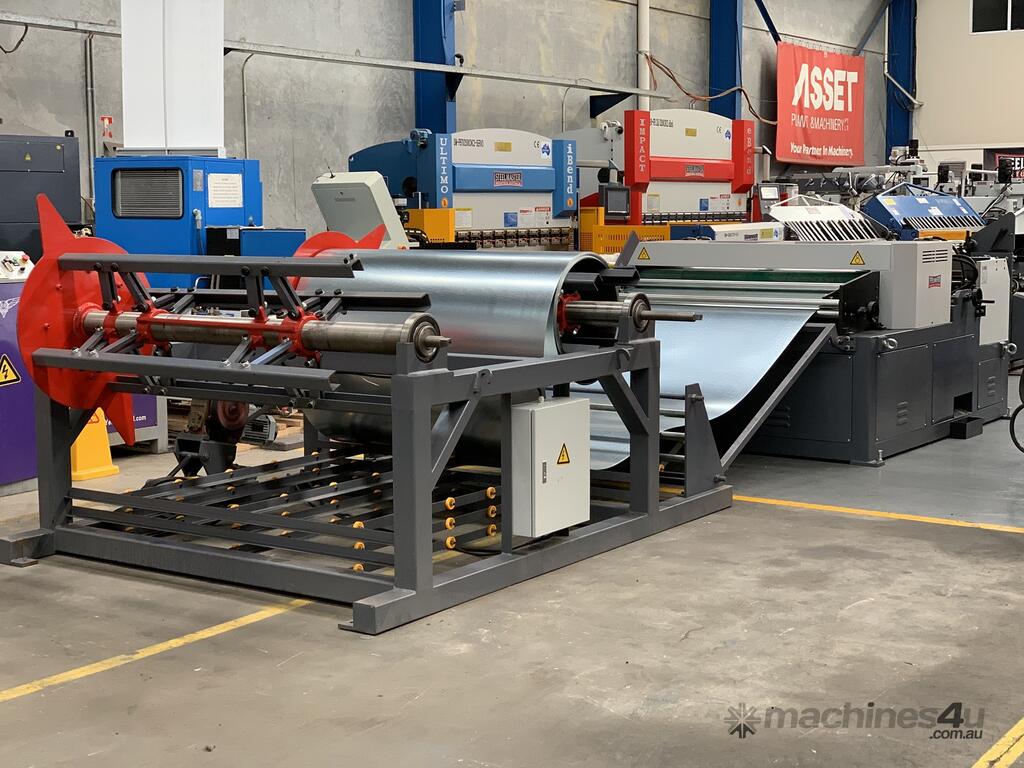

?Floor plan with 1 x twin decoiler - 6500mm
?Freight dimensions:

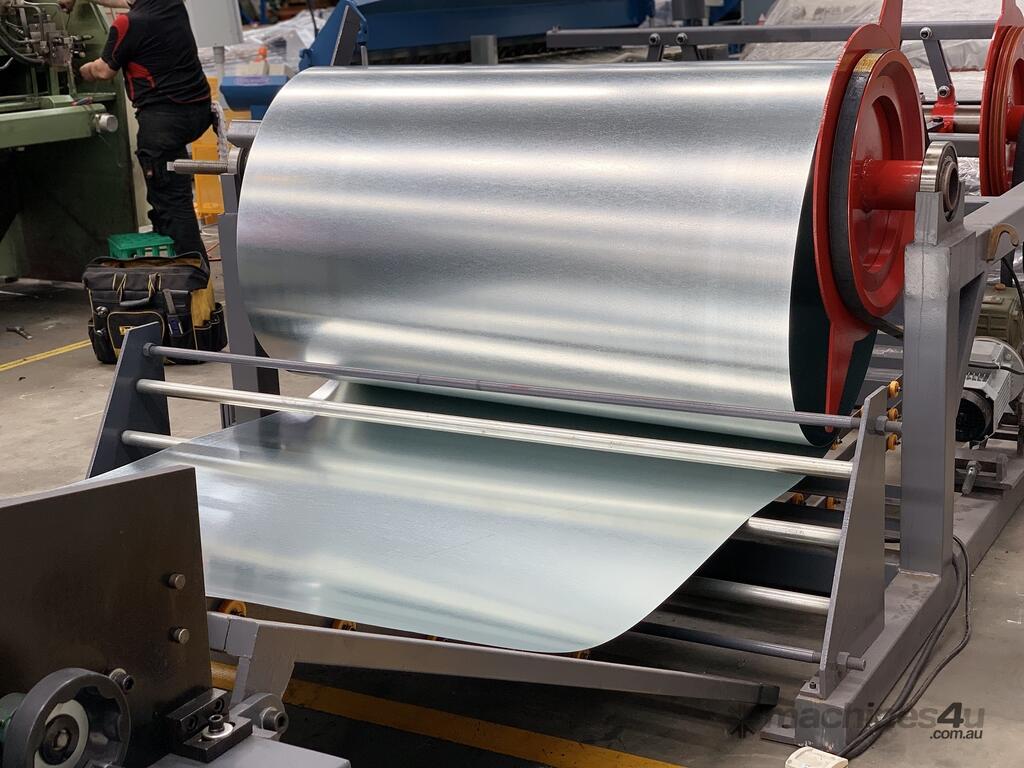

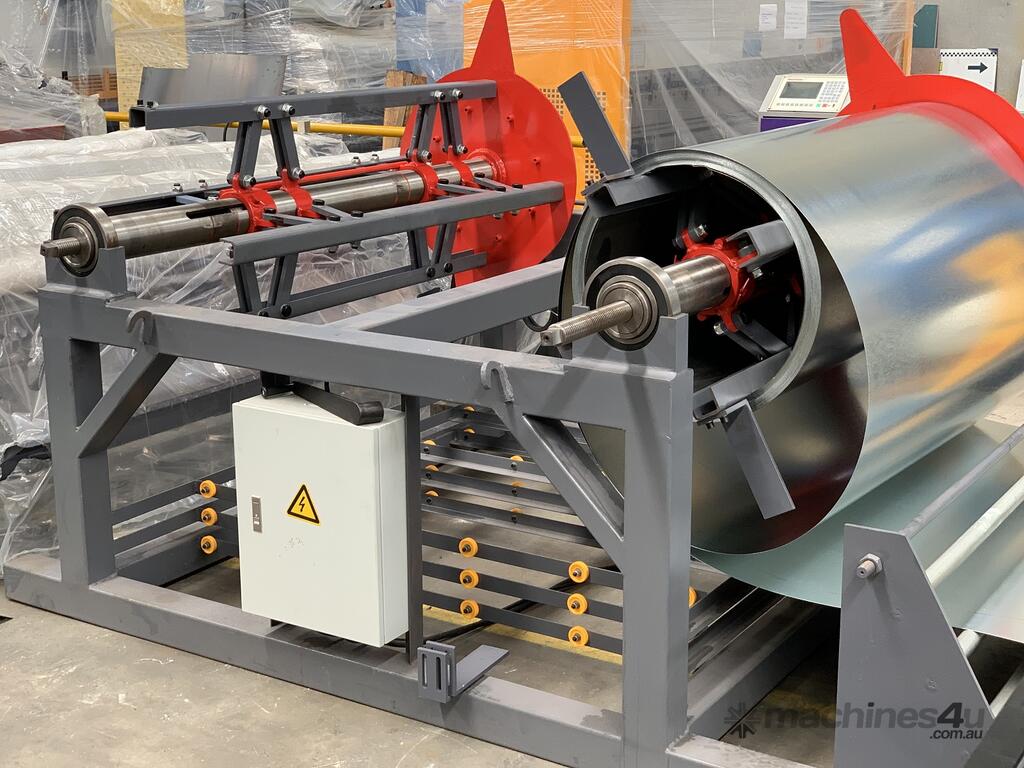

?Decoiler: 2200mm x 1750mm x 1600mm x 3500Kg

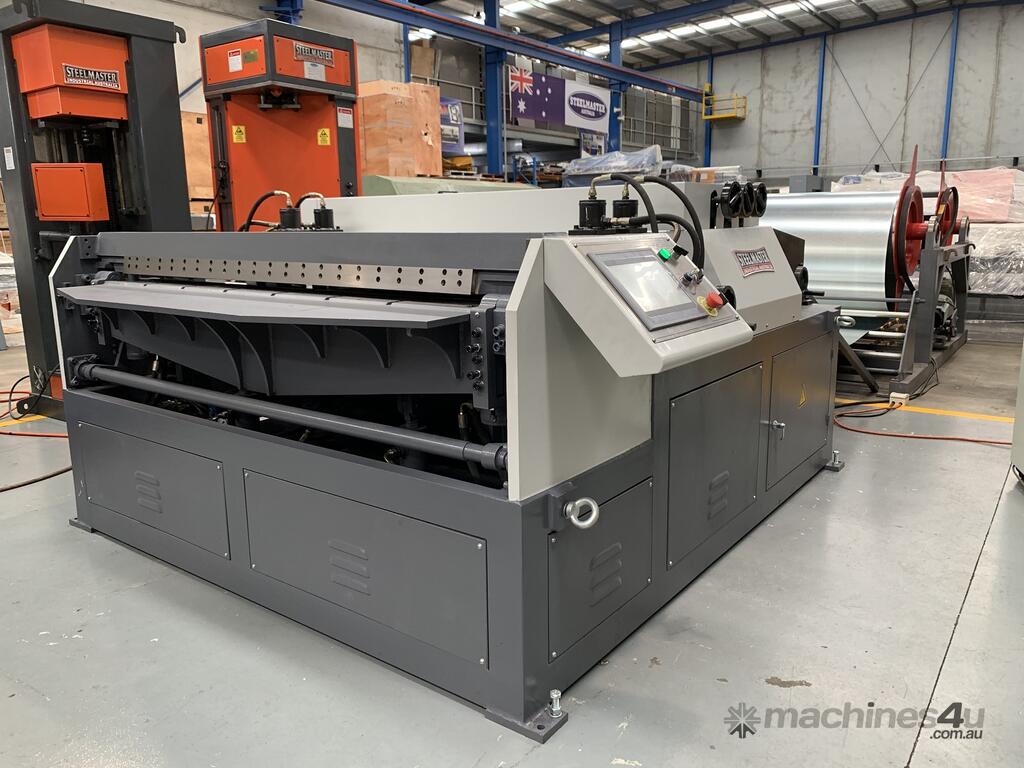

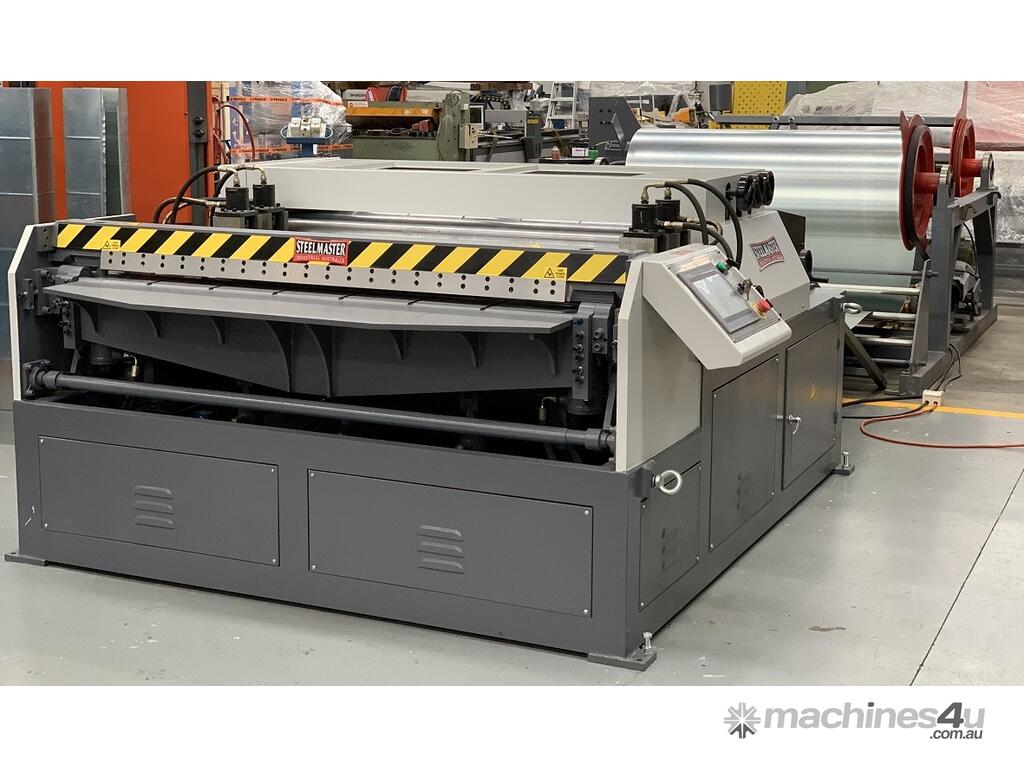

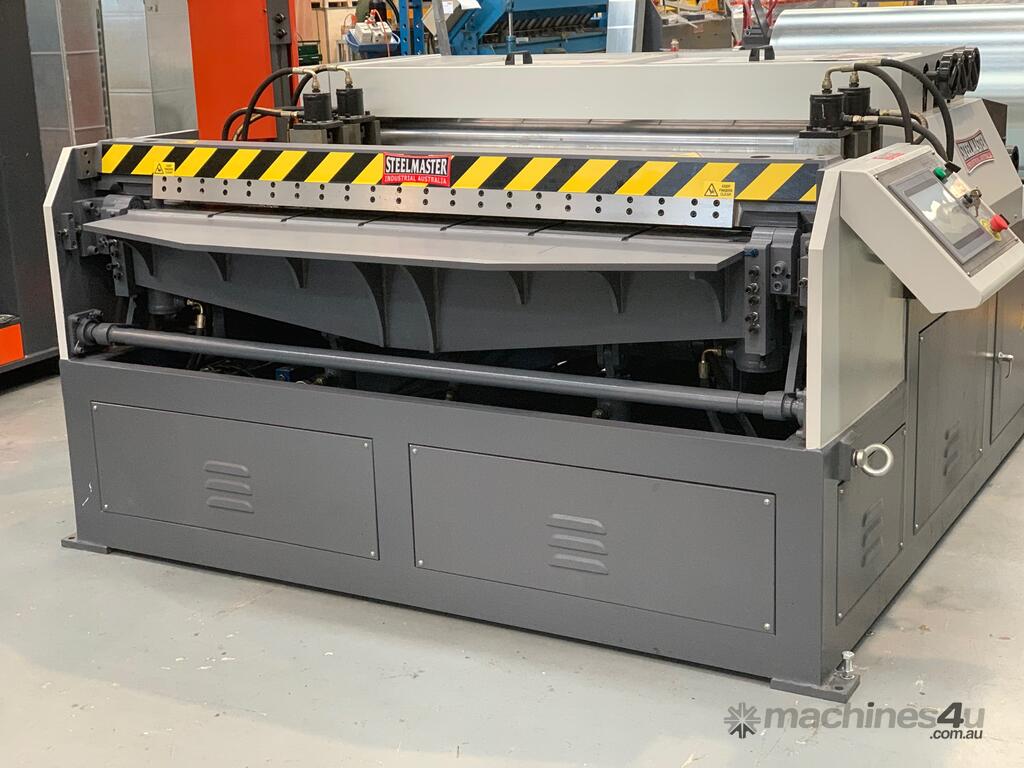

?Main body: 2500mm x 1750mm x 1400mm x 3800Kg
