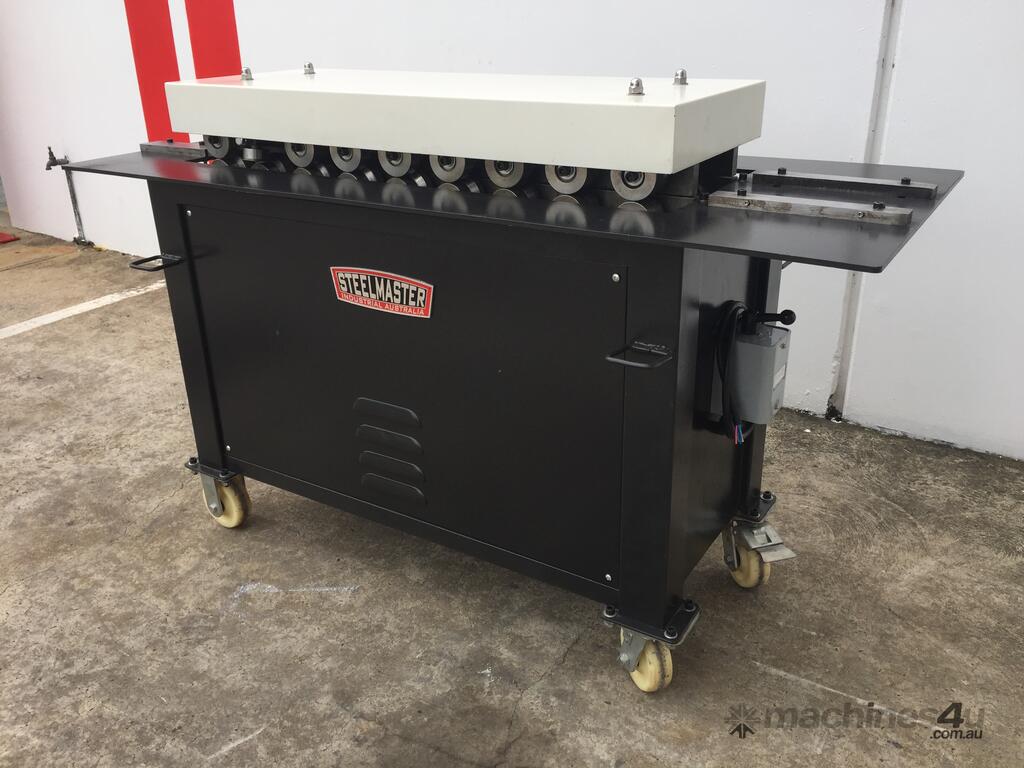

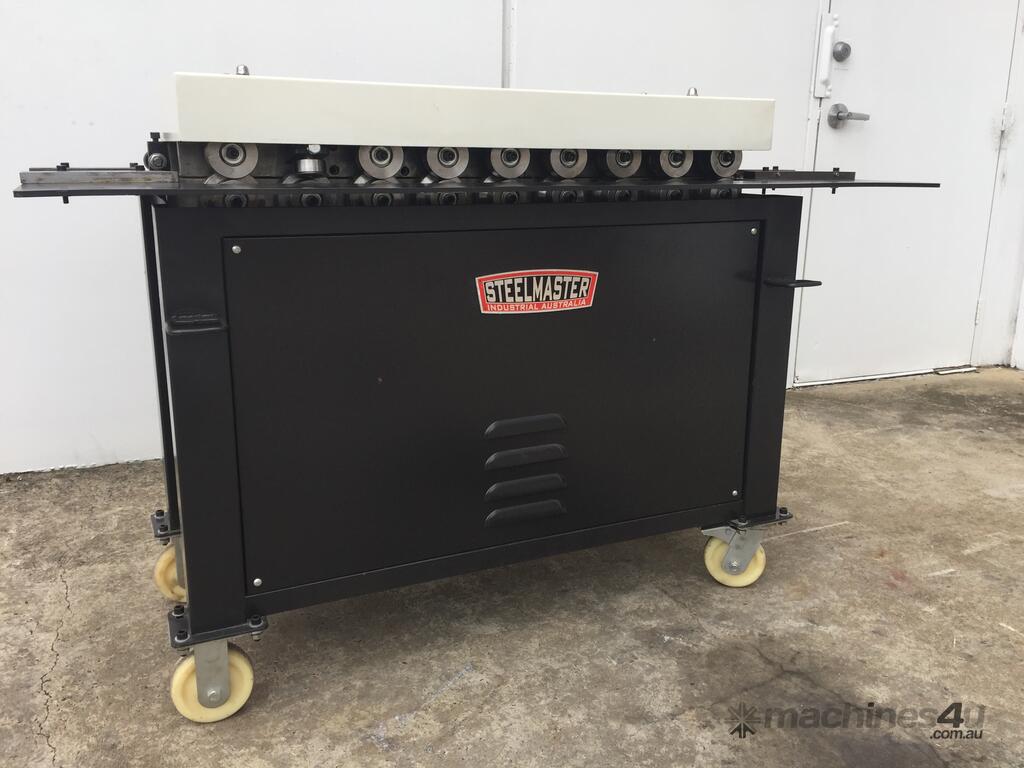

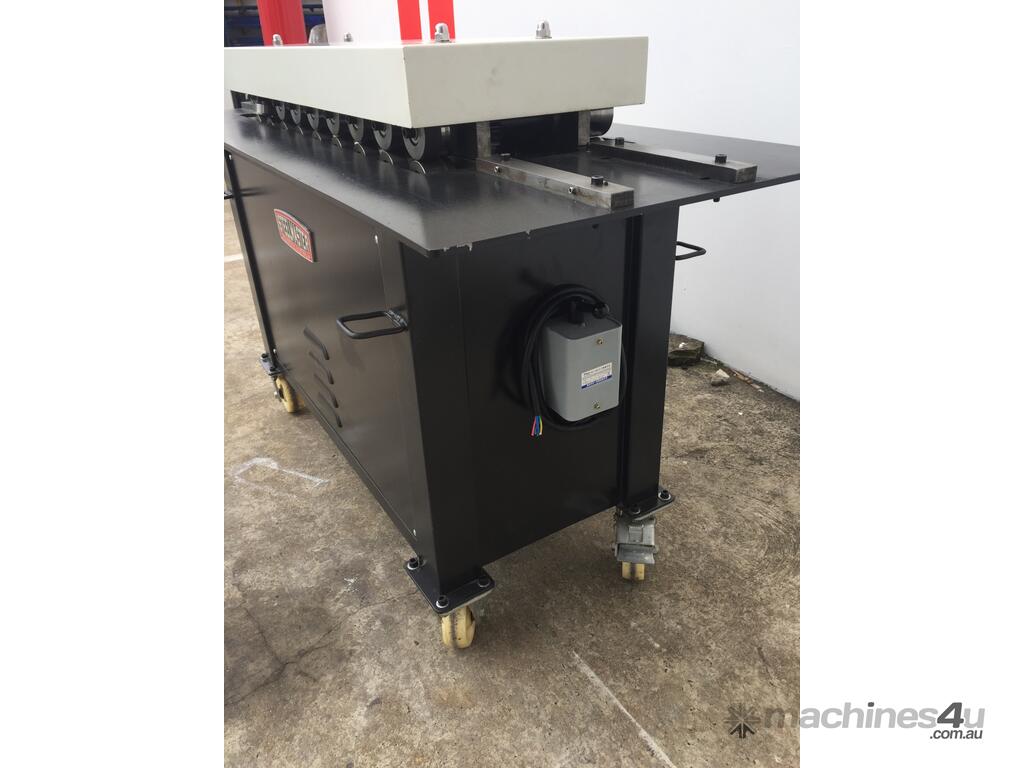

HVAC / Sheetmetal Button Punch Snap Lock. Steelmaster Model: SM-SLC-20. Lock Former 1.2mm Capacity. 9 Stage Former. Right Angle Turn Up With Snap Lock Profiles, Other Side Fitted With Locking Profile.
HVAC Machinery for sale delivery Australia wide - Industry to Industry pricing.
Description

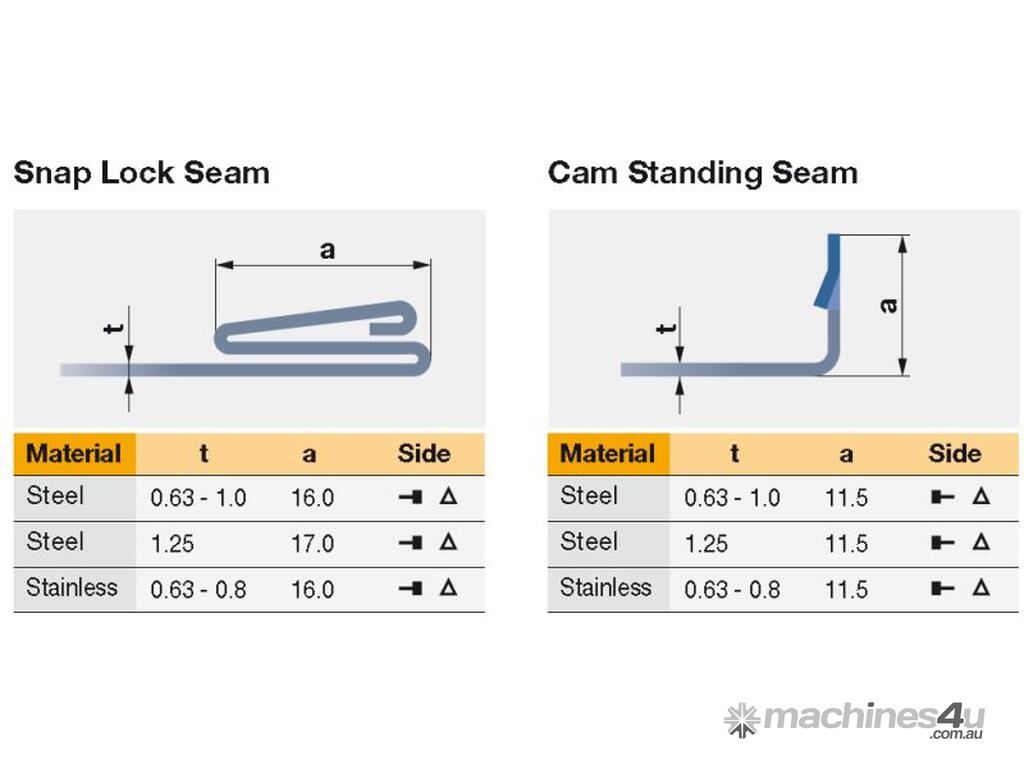

Specially designed for HVAC commercial and industrial ductwork, these Button Punch Snap Lock machines will turn out perfectly formed locks.

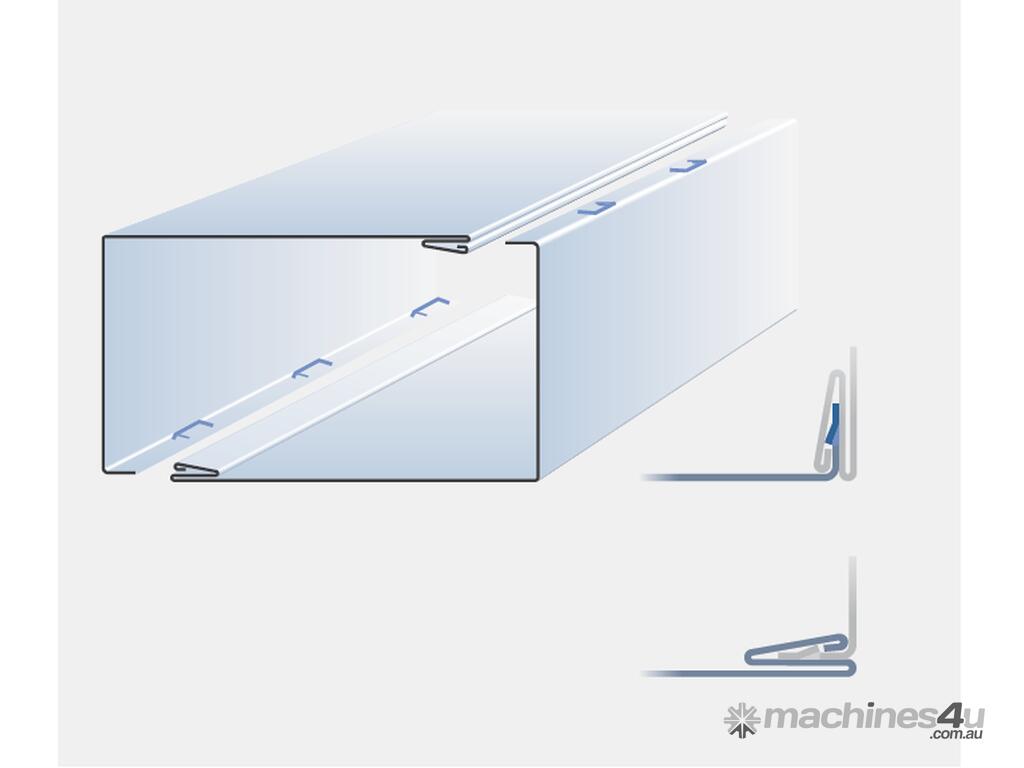

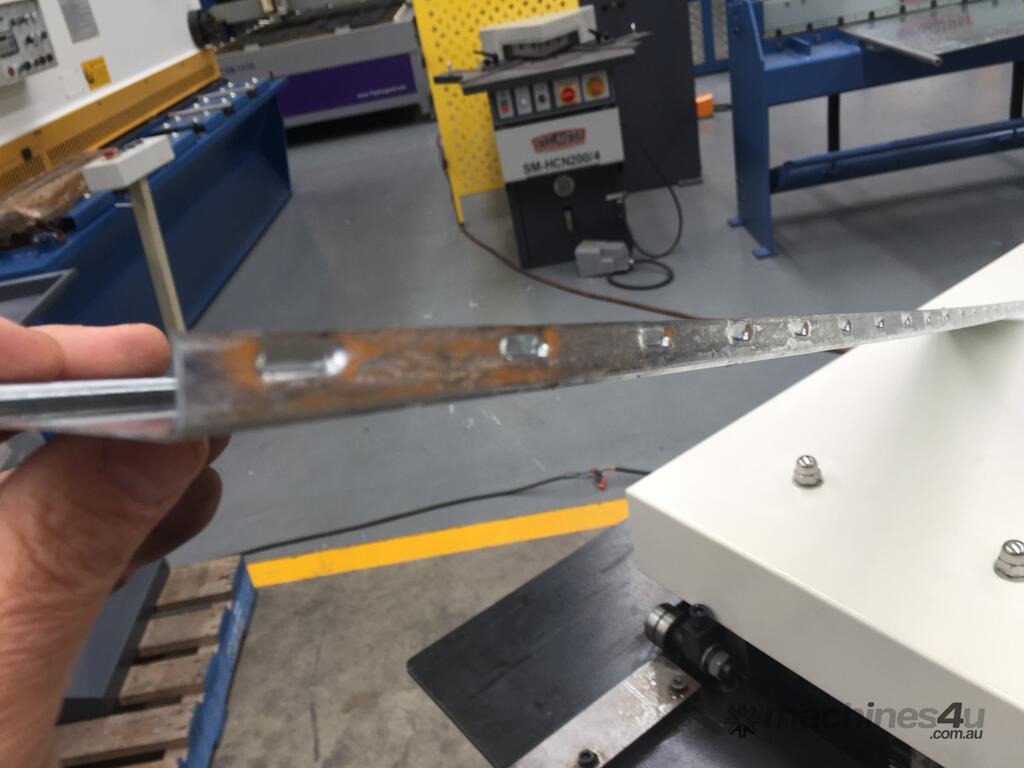

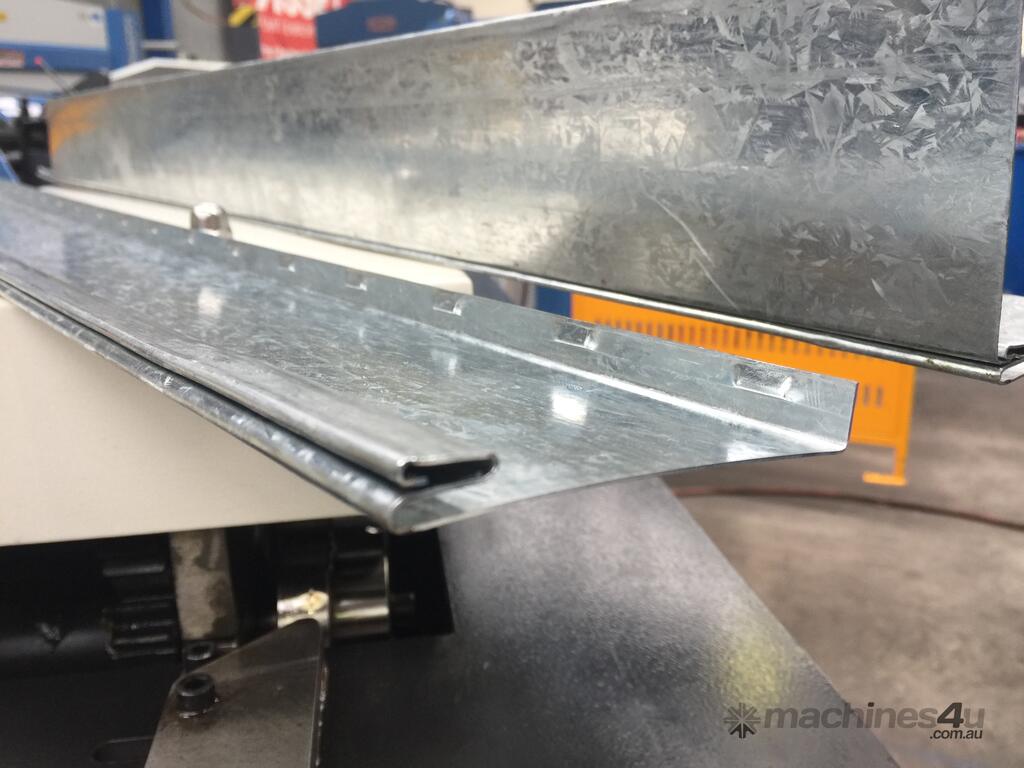

They will produce both a female button lock (inboard rolls) and a button-punched right-angle flange (outboard rolls). 9-station machine.
Features
?a must for all HVAC sheetmetal, ducting and climate control fabricating workshops
?positive lubrication to all moving parts via grease nipples

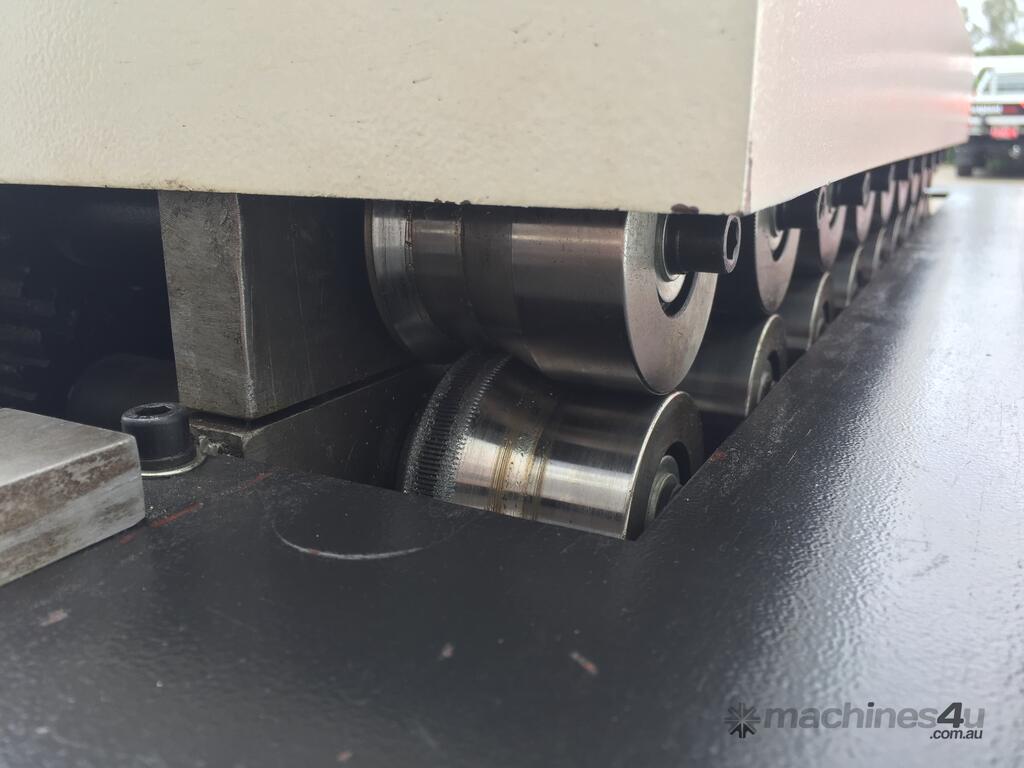

?hardened and ground shafts with case hardened formers

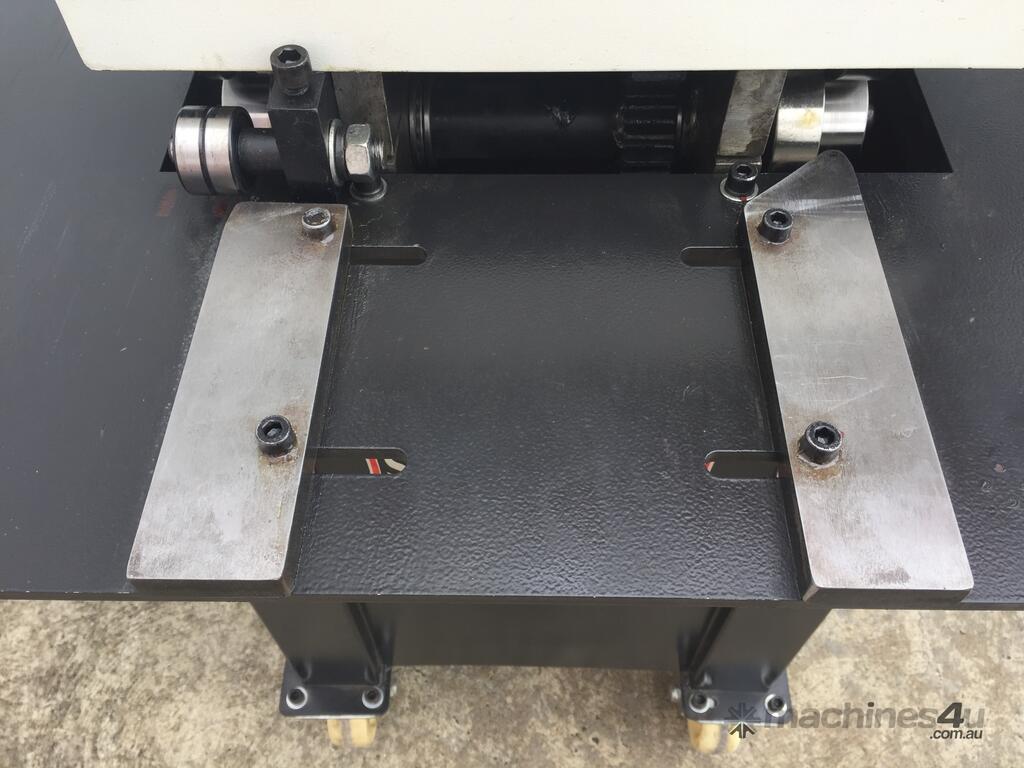

?hardened sheet guides
?extended shafts for additional rolls
?approx 14 m/min. forming speed

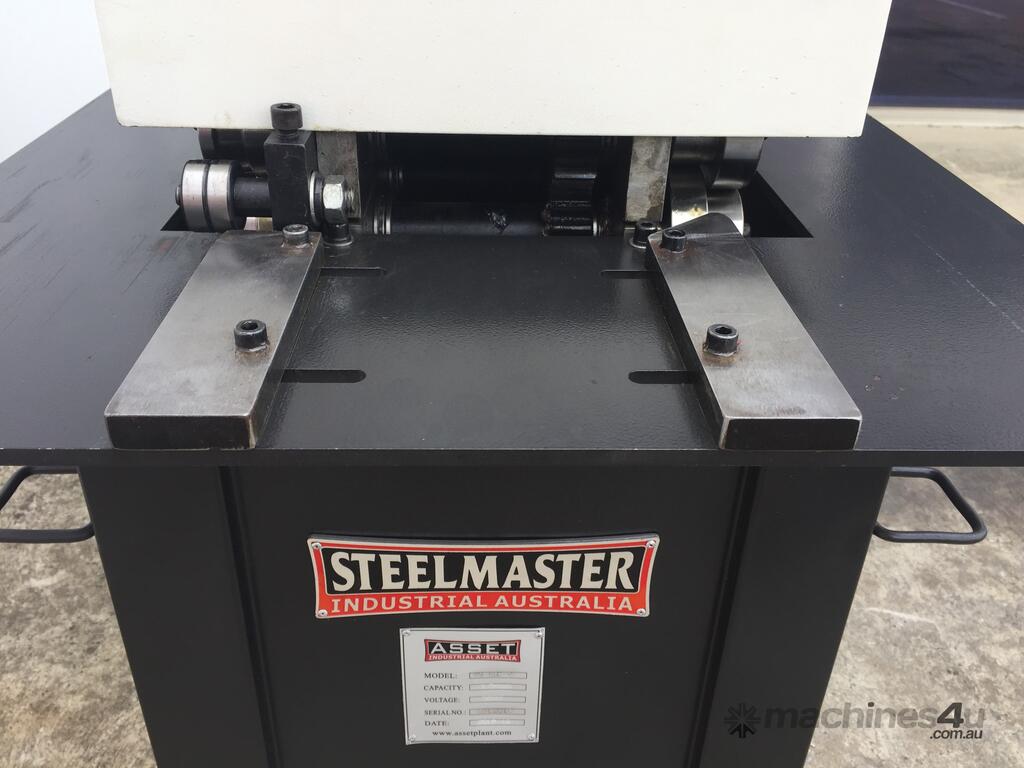

?large in-feed table
Technical Data

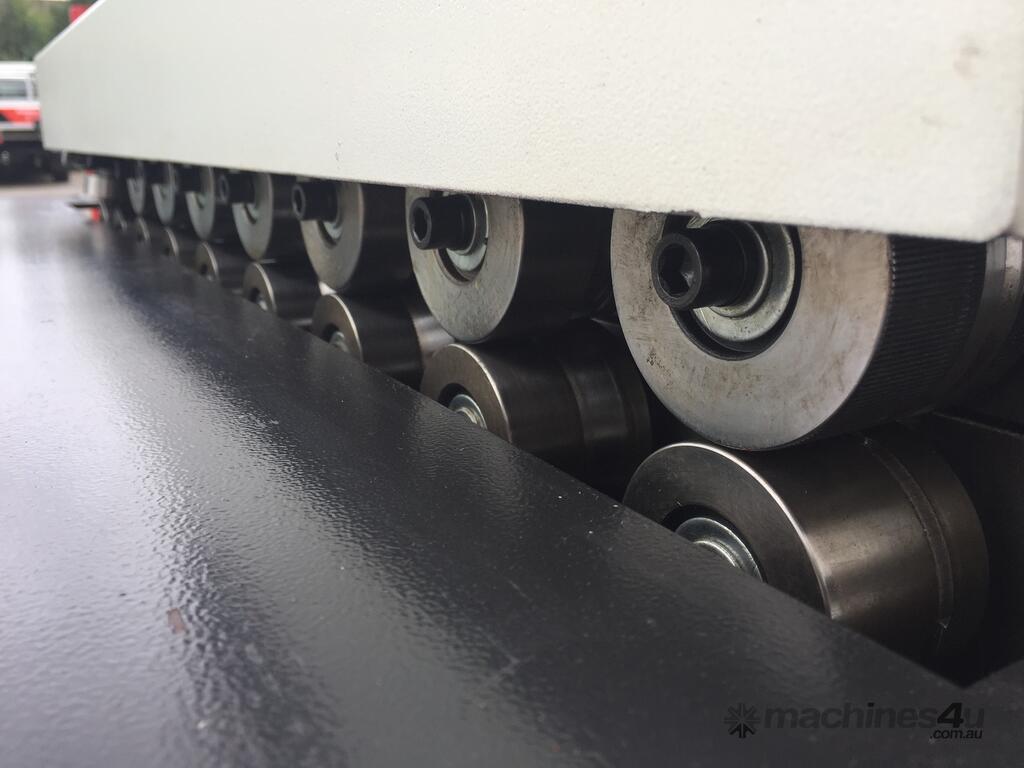

?9 stage roll configuration
?button punch snap lock with turn up supplied as standard

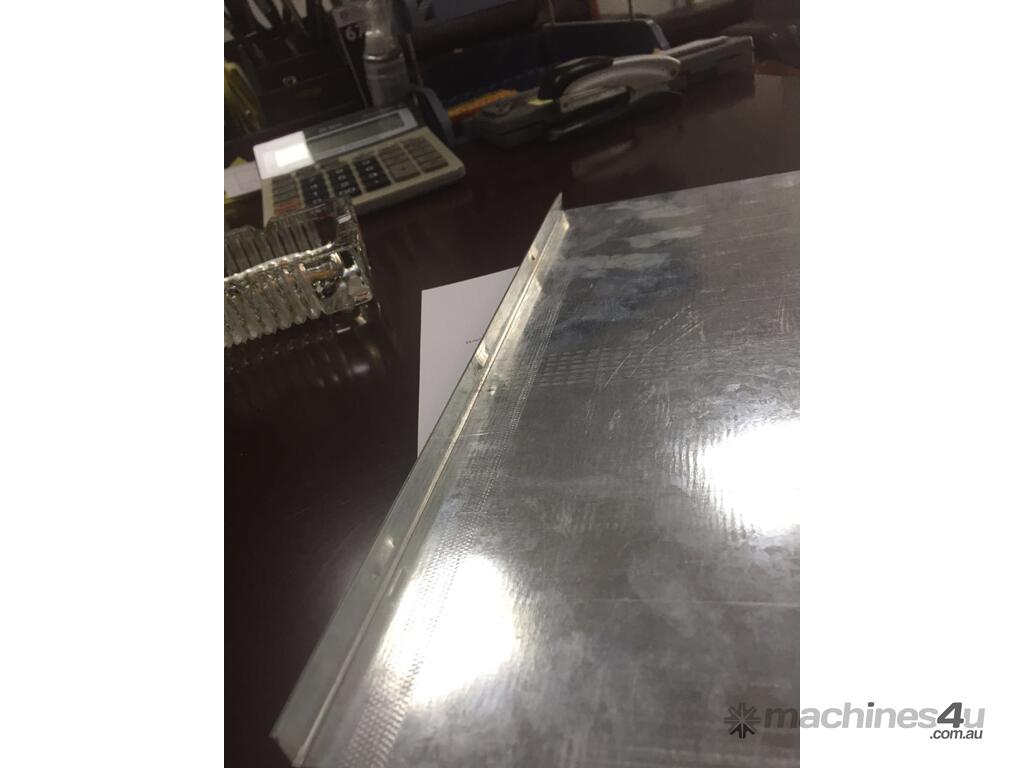

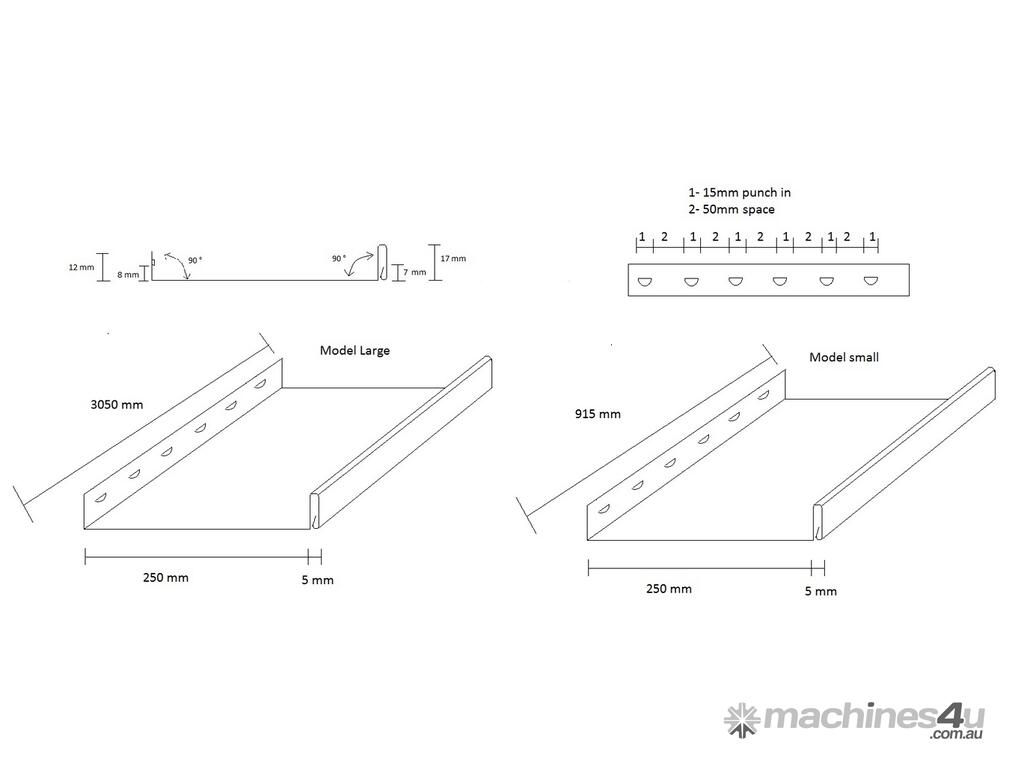

?snap lock dimensions as follows, 12mm turn up height, 15mm snap lock width, 50mm spacings.
?opposite station has snap lock female profile
?0.6mm ~ 1.0mm capacity.
?work table height - 810mm
?3Kw Volt - 3 Phase Power.
?1500mm x 630mm x 1000mm x 300Kg Dimensions
We offer a large range of ex stock HVAC Machinery for all your requirements from Lockseamers, TDF / TDC Formers, Ribbing / Beading Machines, Duct Manufacturing Lines, Snap Lock Machines, Jenny Swages, Rollers & More
SHIPPING: Can be arranged Australia wide to business addresses where powered unloading is available Monday - Friday
