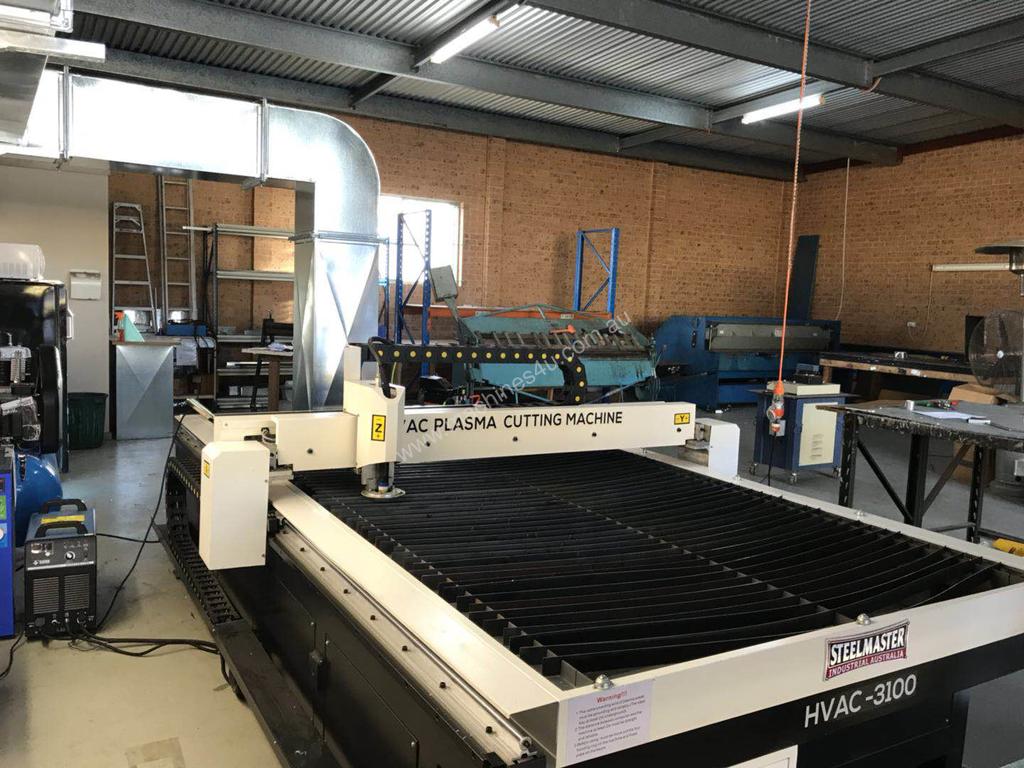

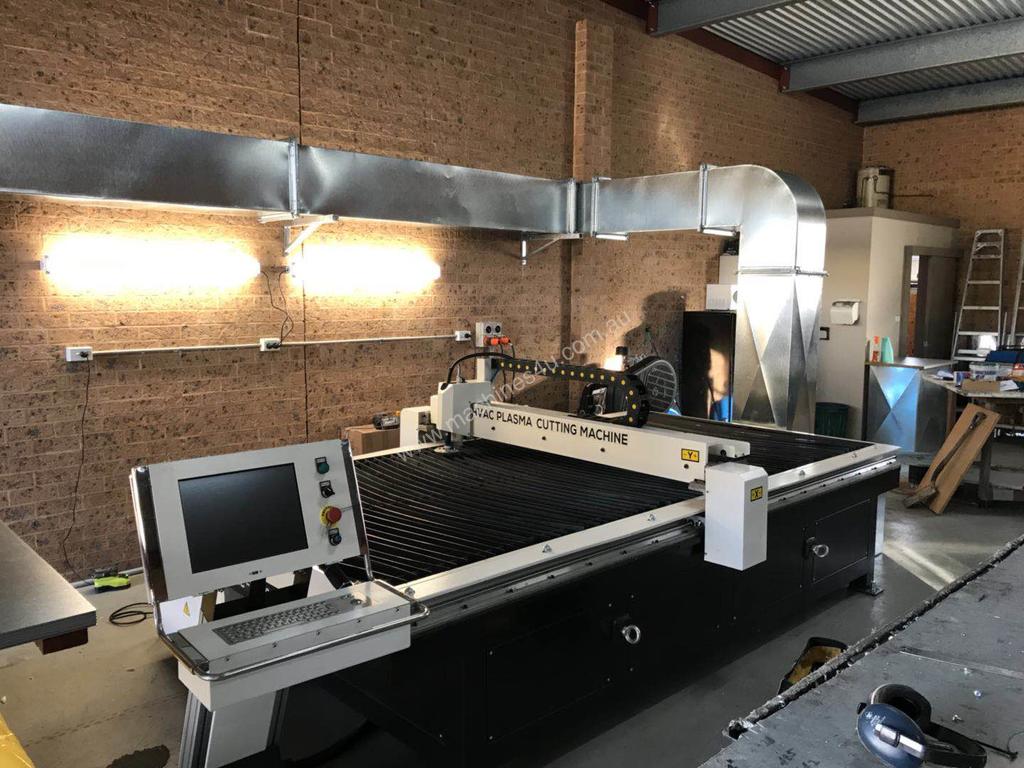

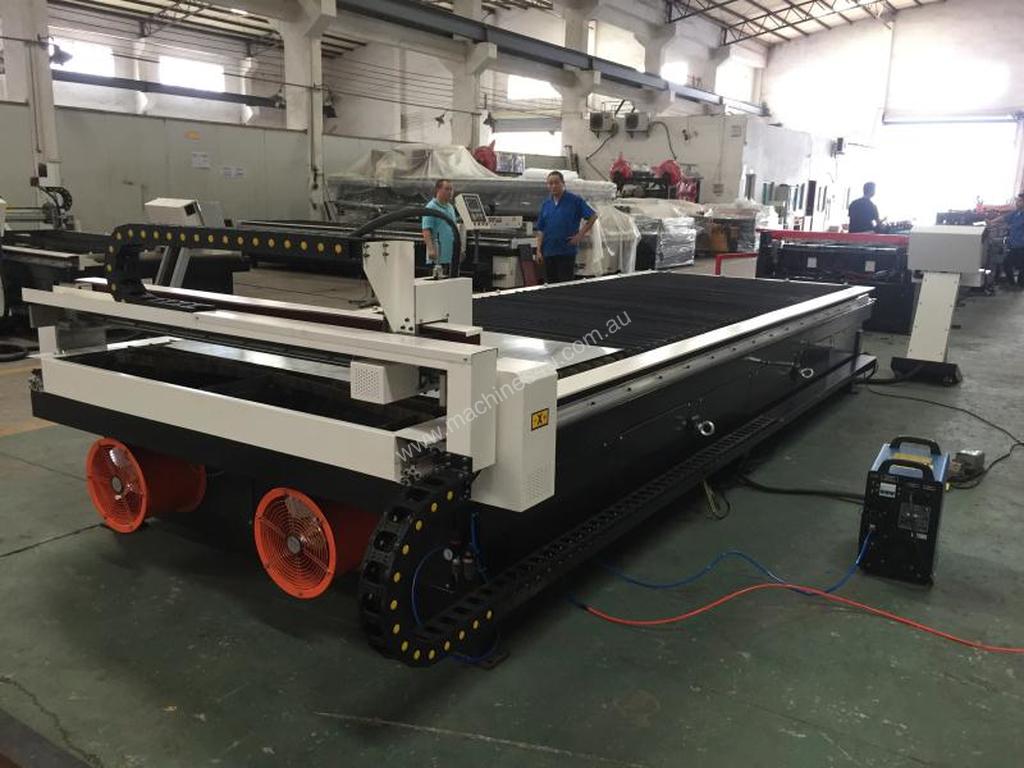

HVAC CNC Plasma 1500mm x 5100mm, 63 Amp POwer Source & Software Included

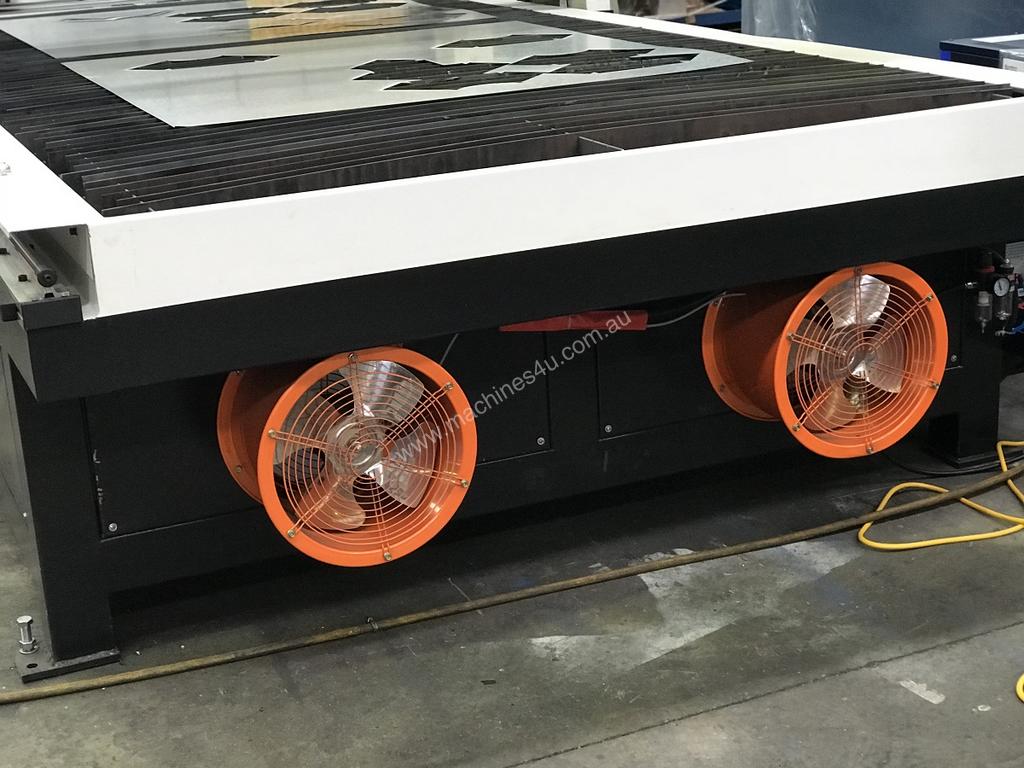

Plasma CNC – DUCTMASTER Model: HVAC – 5100 CNC Plasma, 1500mm x 5100mm Table, 63Amp Plasma Included, 15” LCD Touch Screen with HVAC Software, Auto Nesting, 0.5mm ~ 6mm Capacity, Table Extraction.

Description

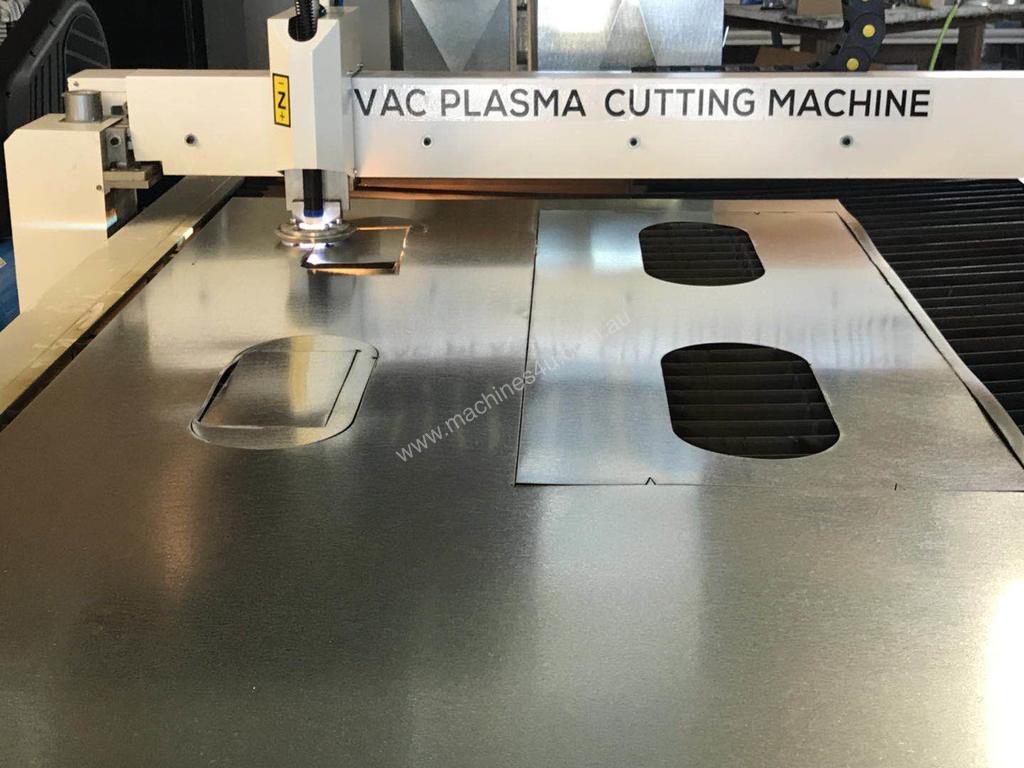

The “Must Have” CNC Plasma cutter for all serious HVAC shops.
Offered in 2 x models widths 1300mm & 1500mm and also 3100mm & 5100mm long.
Complete with power source and Camduct software, Panasonic Servo Drives, our Ductcam CNC Plasma will increase your shopfloor productivity without breaking the bank!

Features
? Power Source Plasma included.

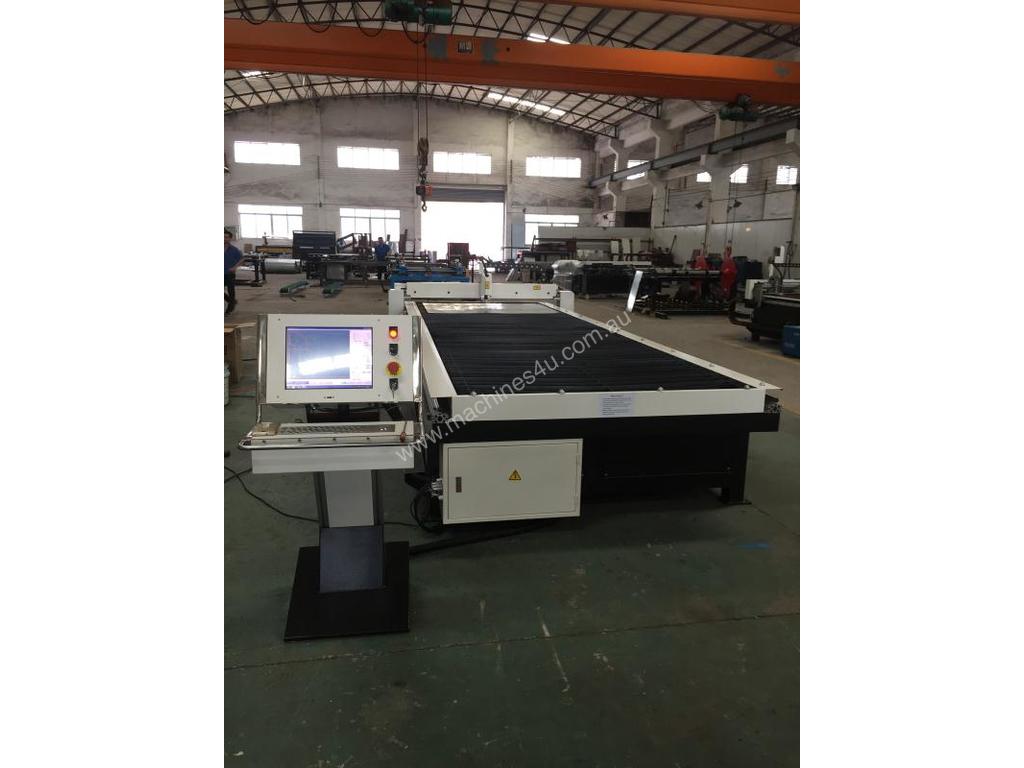

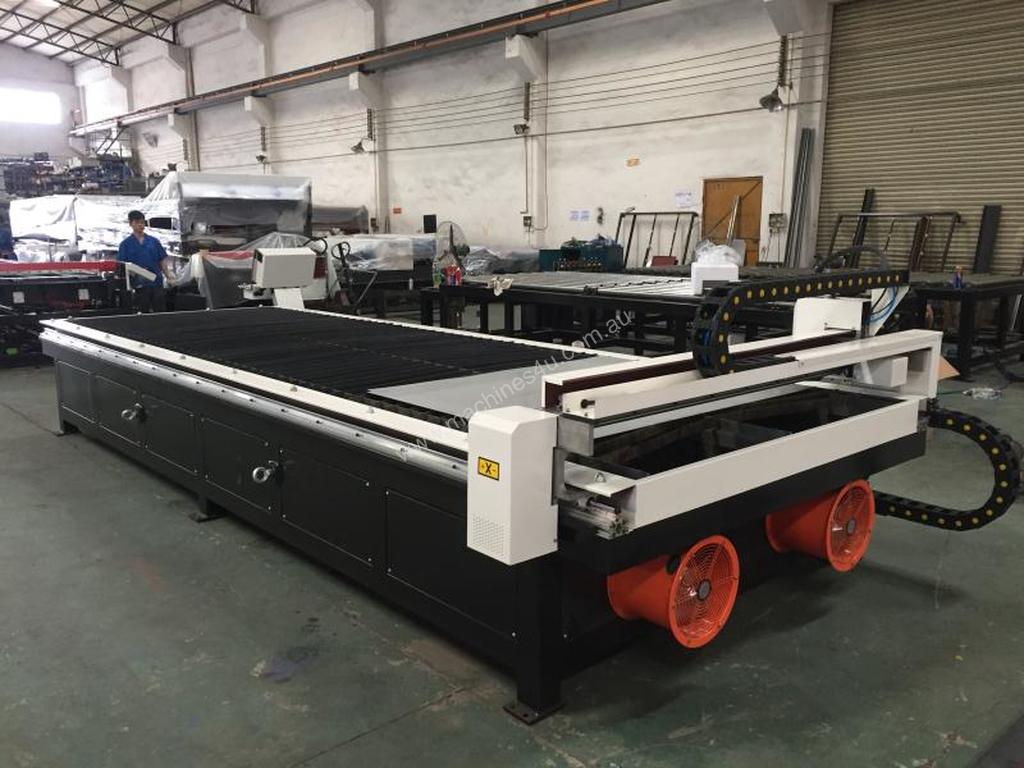

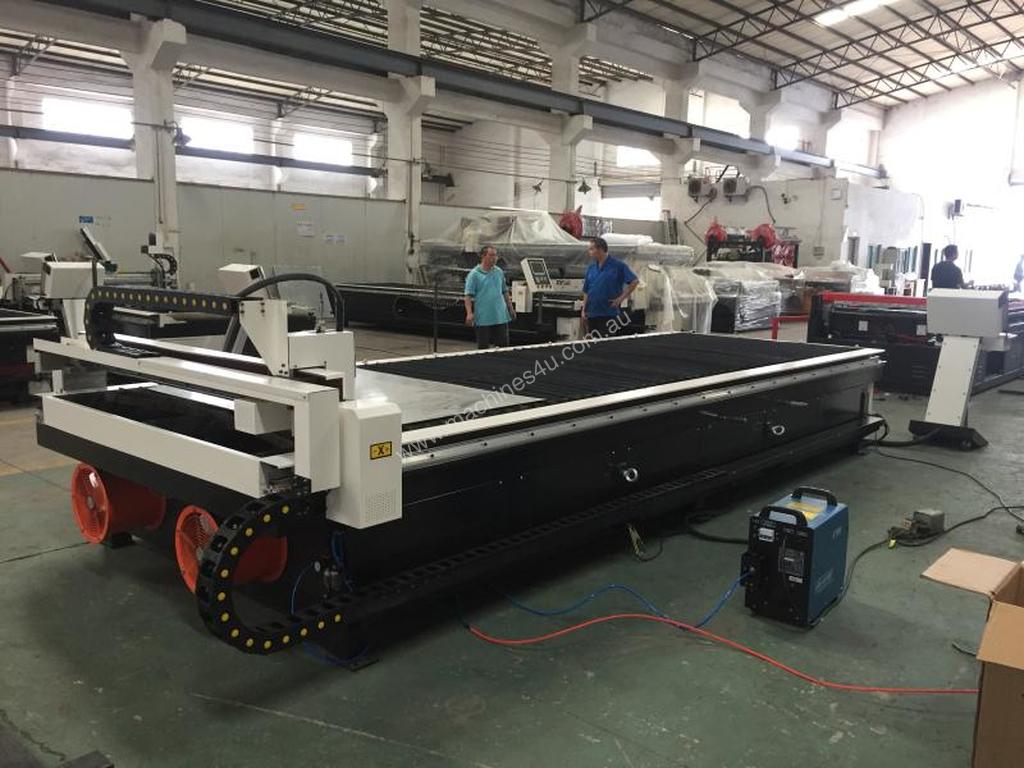

? 1510mm x 5100mm cutting table.
? other table sizes 1300/3100, 1500/3100 & 1300/5100mm
? superior cut speed, quality and stability
? Panasonic Servo Drives
? optimum track speed. even for fine contours and tight radii
? Duct Cam 2013 software supplied on machine only - not offline.

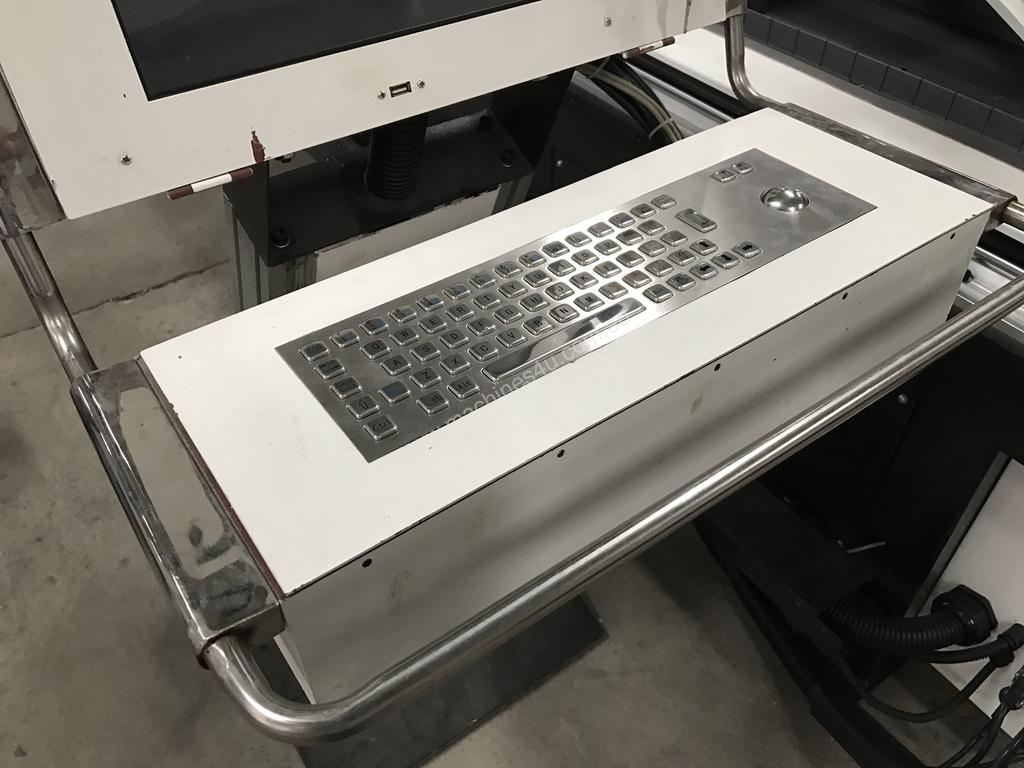

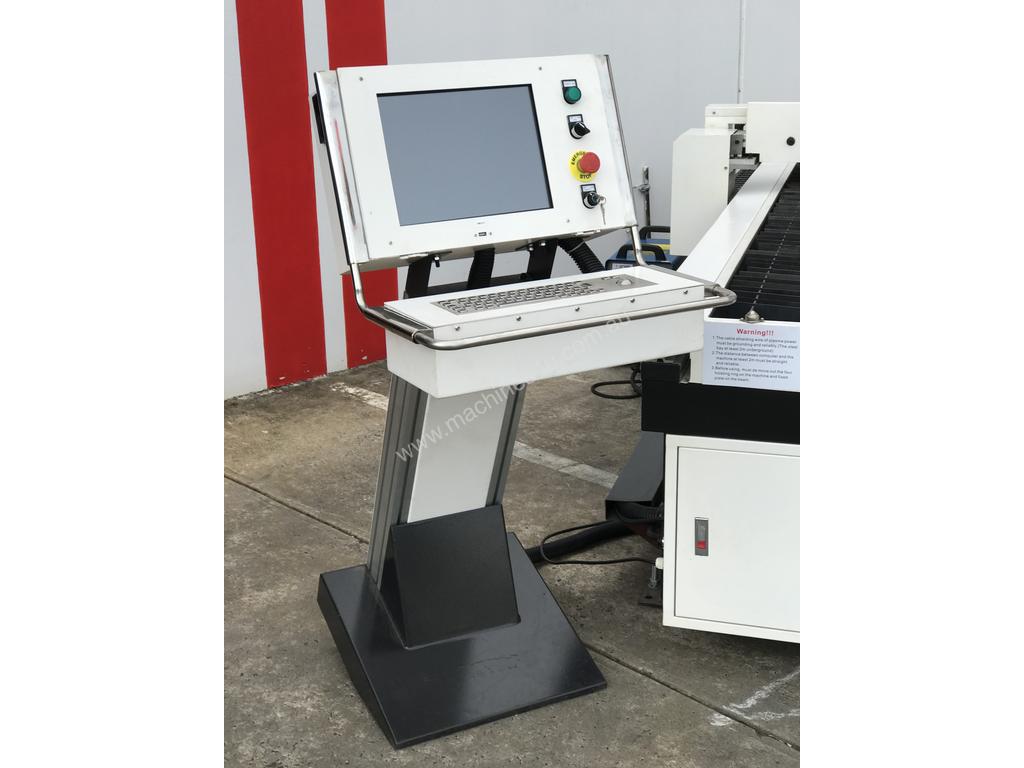

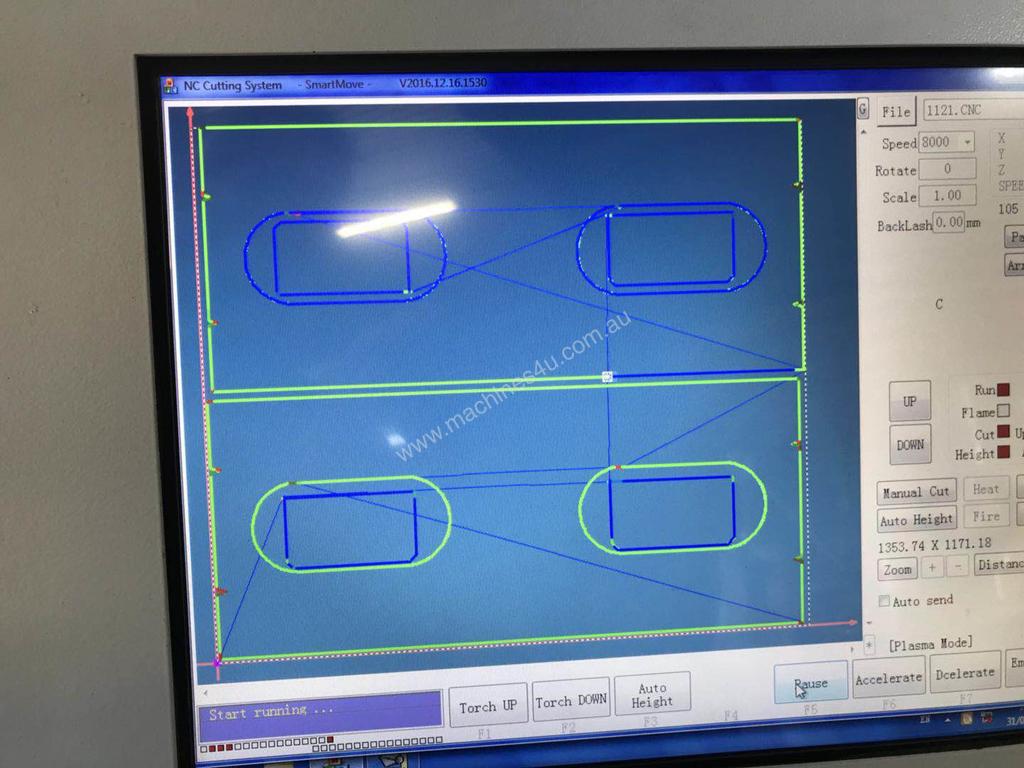

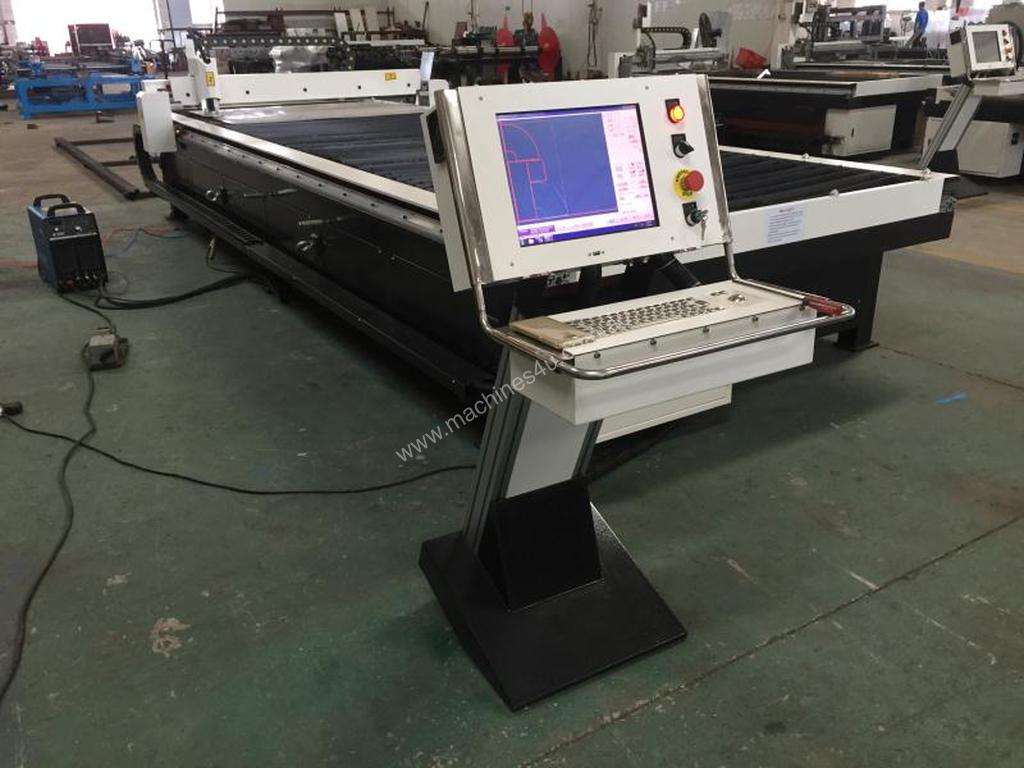

? 15” colour LCD monitor

Technical data

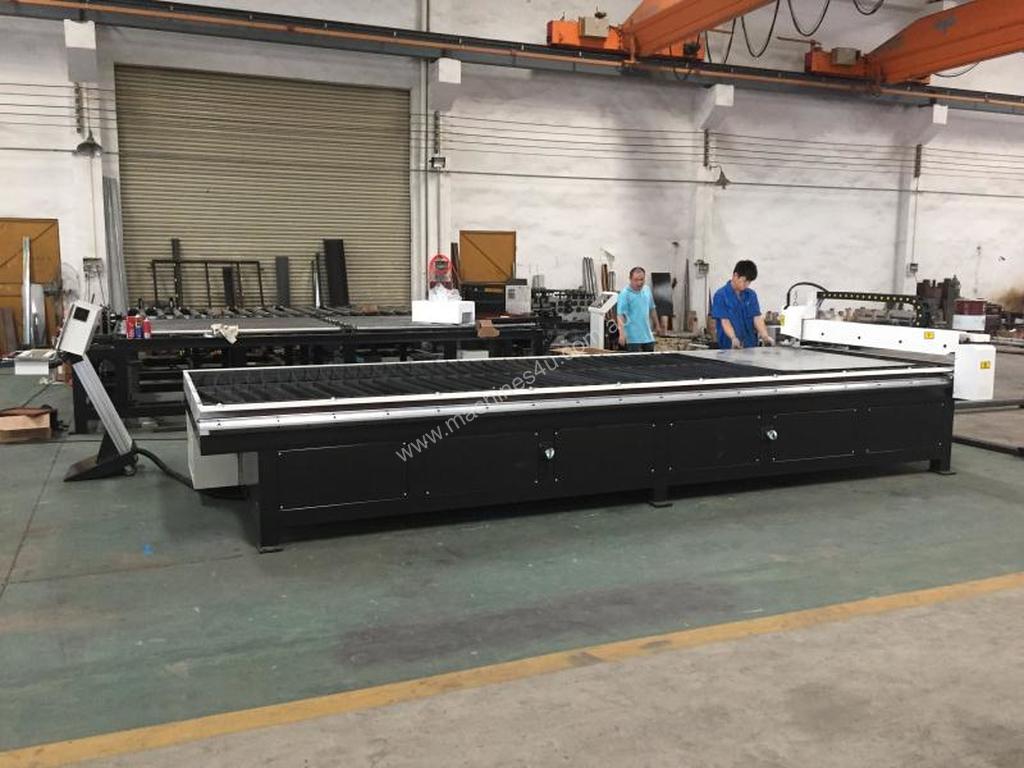

? cutting area – 1500mm x 5100mm.
? larger engineered tables available
? cutting speed - 0 ~ 8000mm / min.
? MAX positioning speed – 12,000mm / min
? machine power source – 240volt
? 12 month warranty

Power Source Supplied

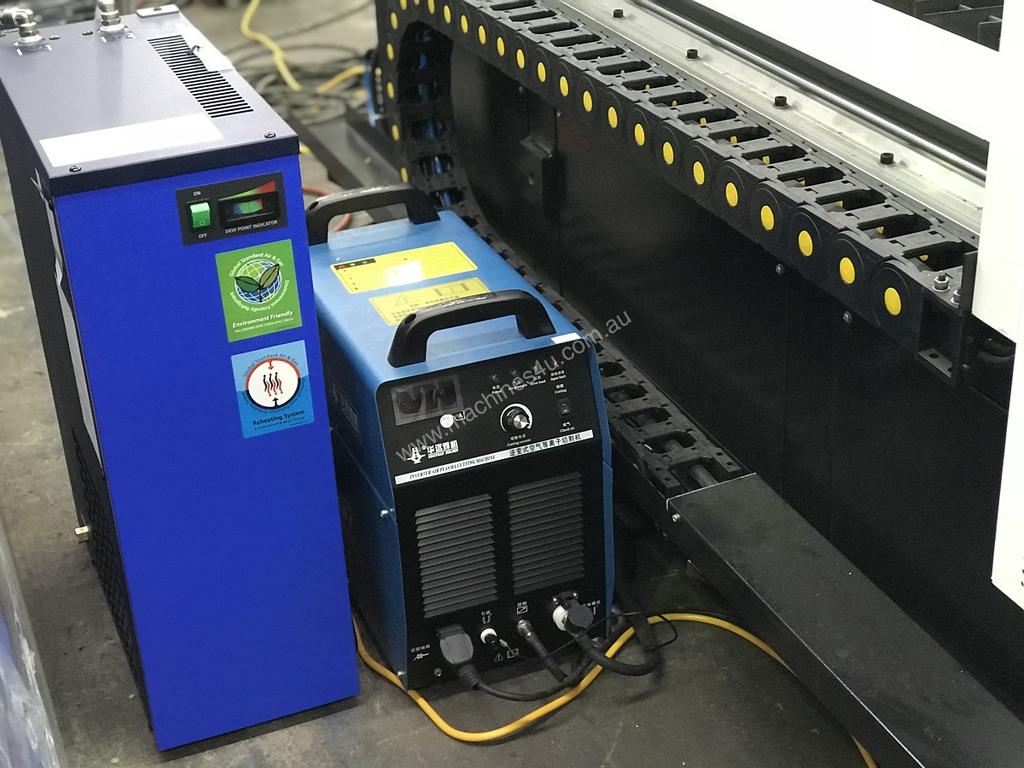

? LGK-63 Amp Inverter Air Plasma Power Source Standard.
? Optional Hypertherm PMX45 upgrade available.

Programming
? Duct Cam 2013 software supplied on machine only - not offline / additional updated licence will be required.

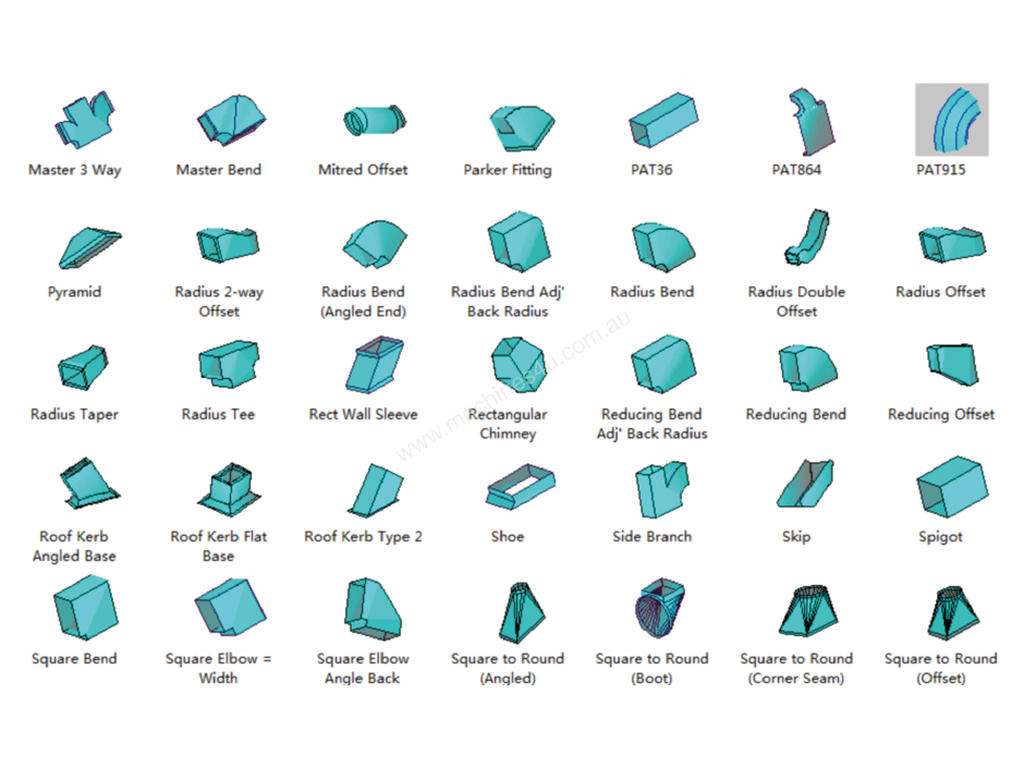

?Extended library of parametric parts and HVAC figures.
?Easy to use. The user only needs to select the part and enter the data for the system automatically develop the part. For a faster production there is also a figures editor.
?2D Design. integrates a CAD 2D module to design any part, as well as any geometric modification of the contours. The flat pattern can then be cut automatically.
?Parts management. All the parts are stored in organized data bases.
?Parts management. All the parts are stored in organized data bases.
?Weight and cost estimates. The software Expert calculates weight, cutting perimeter and material costs.
?Smart importer/exporter. Connection with major CAD systems on the market: DXF, DWG, IGES, etc.
?Integration of all the options. All the options of FABRICATION CAMDUCT 2013 Duct are fully integrated with the other modules of the Expert family in a single program. So, any modification in the part will be achieved from the same program without switching programs or affecting the nesting or the cutting sequence.
?Production management process. FABRICATION CAMDUCT 2013 Expert is capable of integration with ERP by automatic process.

Services required to be provided by customer.
? electrical connection.
? compressed air.
? air dryer, filter and air micron filters highly suggested - Asset stock codes for these are 25-0256, 25+0257 & 25+0258
? fume extraction provisions.
? Asset can offer you the above additional items on request.
