HVAC Coil Line - Multi Process

HVAC Automatic Integrated Duct Line Model: AML-4, Leveler/Grooving/Notching/TDF Forming/Pittsburgh/ Shearing & Folding. Panasonic Servo System, Touch Screen PLC Controlled. Volt

Description
Our Duct production line IV comprises of a integrated all in one system. Combining twin decoiler, leveler grooving unit, “V” and “?” notching unit, TDF Forming, Pittsburgh Forming, Shearing & Folding all in one. Offering all these applications in one machine increases production, reduces labour and maximizing profit.
The production line electrical control part adopts full servo control; the control system has a closed-loop feedback system, Accuracy and stability were obvious improved. The maximum operating speed of 15 m / min.
Length tolerance is ±0.5mm; diagonal tolerance is ± 0.8mm.

Technical Snap Shot

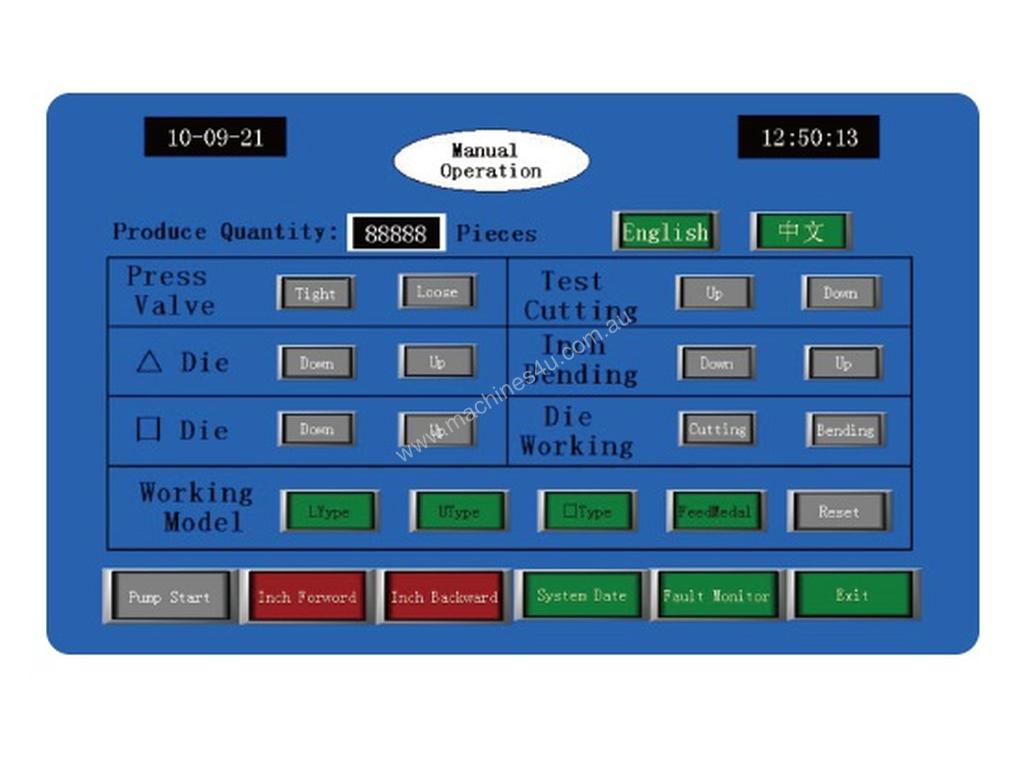

?Panasonic Servo with Touch screen PLC Control
?Infeed Material Levelling,
?Material Grooving
?Vee or Rectangle Notching
?TDF Forming on Both Side of Sheet - Adjustable Width to 1500mm.
?End Pittsburgh Profile Forming
?Material Box Folding
?Material Shearing
?Up to 1500mm width x 1.0mm material
?Decoiler width upto 1500mm wide & 2500Kg Capacity.
We offer a large range of ex stock HVAC Machinery for all your requirements from Lockseamers, TDF / TDC Formers, Ribbing / Beading Machines, Duct Manufacturing Lines, Snap Lock Machines, Jenny Swages, Rollers & More

SHIPPING: Can be arranged Australia wide to business addresses where powered unloading is available Monday - Friday

MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
