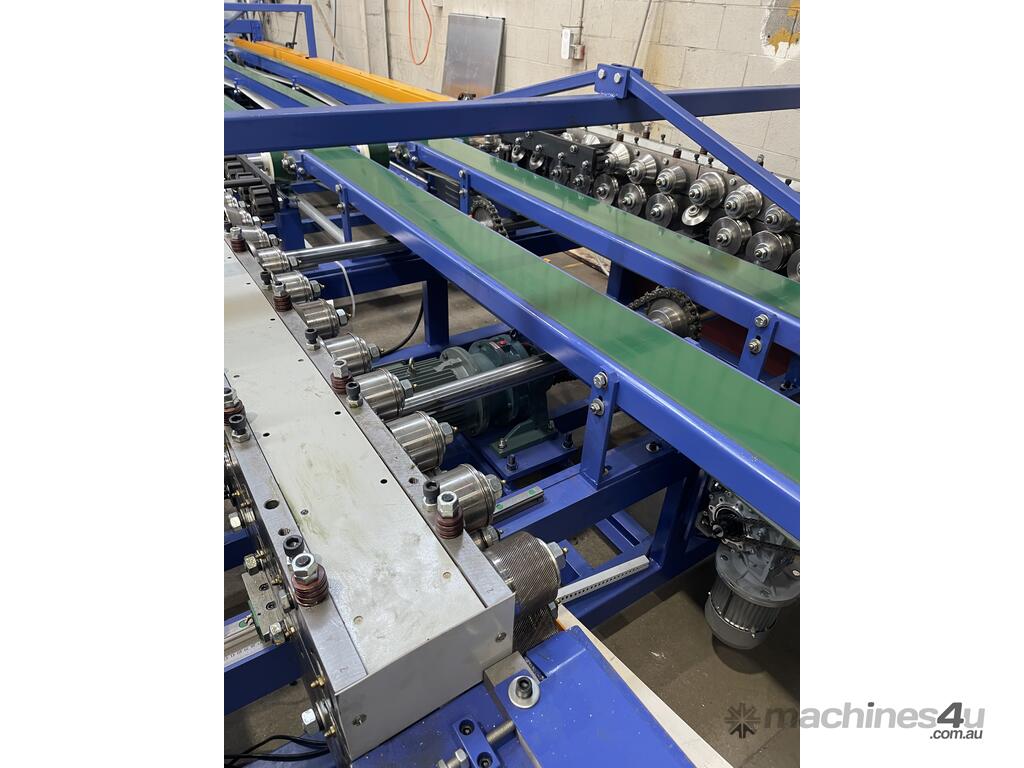

HVAC Duct Forming Auto Line VII

Alpha HVAC Duct Auto Line VII
Experience unmatched efficiency and precision with our cutting-edge duct manufacturing system designed to elevate your production capabilities. Crafted with advanced features and a robust U-type structure.

Key Features:

U-Type Structure: Streamline your manufacturing process with our uniquely designed U-type structure, reducing plate passing time and boosting overall productivity.

PLC controller with touch screen: Powered by the state-of-the-art Alpha PLC controller as the central processing unit, our system ensures seamless control and precision.

Pittsburgh Seam Integration: The Pittsburgh Seam, seamlessly integrated after processing, ensures a high-quality finish for your air ducts.

Tailored for Large Ducts: Specifically engineered for large-size duct production, our system prioritizes efficiency by bending the short side first, catering to the demands of large-scale projects.



Basic Configurations:

Decoiler with 4 Coil Cradles to Cover Common HVAC Gauge 0.6mm, 0.8mm, 1.0mm and 1.2mm

9 Rolls Straightener, Beading and Notching

Hydraulic Guillotine

PLC Controller with Touch Screen

Pittsburgh Lock Roll Former

TDF Flange Forming

Servo Motor Driven Bending Unit?

Unloading Rack

Optional Plate Lamination Device


Model: Alpha B1600 VII
Material Thickness: 0.6 ~ 1.6mm (Gal)
Maximum Width: 1600mm
Maximum Folding Height: 1550m
Minimum Folding Height: 150mm
Speed: 10-25m/min.
Weight: 19000kg
