HVAC Duct Zipper - 150mm x 150mm Min. Box Size

HVAC / Sheetmetal Ducting Duct Zipper. Steelmaster Model: DZ-H10, 150mm x 150mm Min. Duct Size.Fast Efficient Duct Seaming Taking The Seaming Processing From 3 Steps to 1 = More Profit! – Volt

Our Steelmaster Duct Zipper allows you to produce the highest quality duct work faster, easier, and more profitably than ever before. This technology and engineering have taken the seaming process from the traditional three steps down to only one.

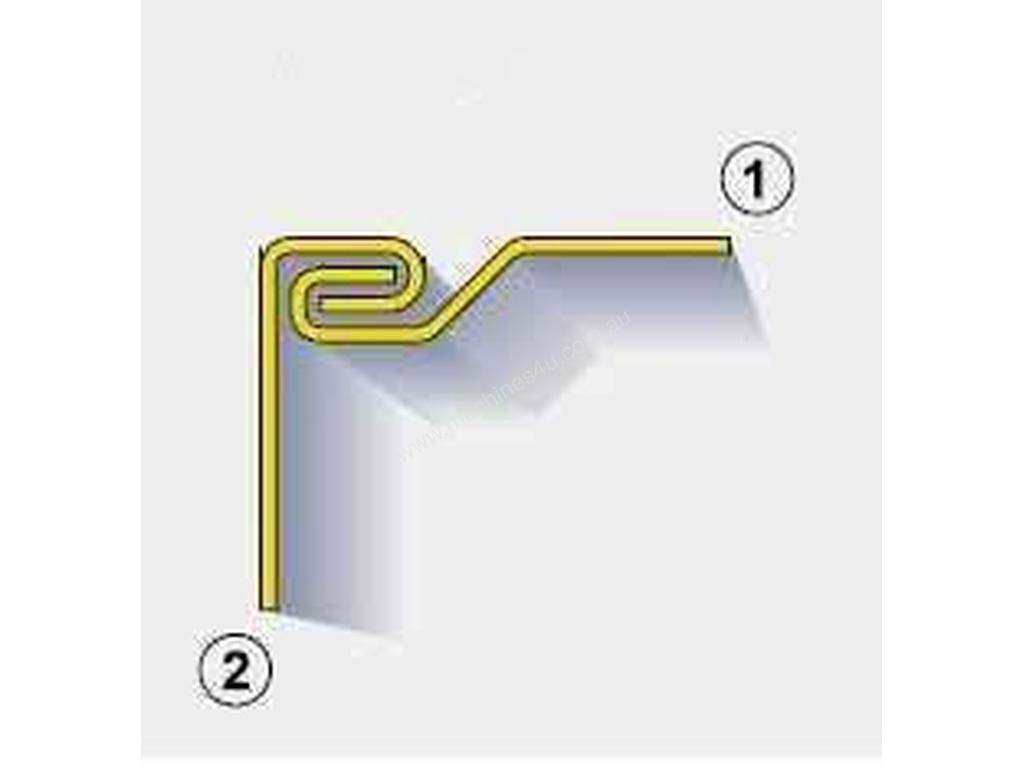

Traditional methods roll form the receiver lock, then the roll form the flange, and finally connect the two and close the seam. Our Duct Zipper does all this in one smooth and simple operation! The material handling system supports the blanks and moves through the machine along with the duct work. After one seam is completed, the operator simply puts the duct crosswise onto the material guidance system and slides it back to the entry point. It's that simple, easy and more often than not saves a second operator!

Features
a must for all sheetmetal HVAC, ducting and climate control fabricating workshops.
the seaming processing from 3 Steps to 1

Technical Data
150mm x 150mm min. duct size
700mm bearing height.
1550mm bearing length.
0.4mm ~ 1.0mm material thickness.
15m/min line speed
worktable height - 800mm
Volt - 3 Phase Power.

We can cater for you full HVAC Ducting requirements -
* LOCKSEAMERS
* JENNY & SWAGE
* CNC PLASMA
* TDF, TDC MACHINES
* FOLDERS & GUILLOTINES
* NOTCHERS
* HVAC AUTO PRODUCTION LINES
* DUCT ZIPLOCKERS
* MORE

Visit our , or call us with your requirements!

MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
