HVAC - Ducting - 1550mm Auto Duct Production Line

Name: HVAC - Ducting - 1550mm Auto Duct Production Line
Brand: steelmaster
SKU: 20-0618
Price: 98850 AUD
Availability: InStock

DANDENONG SOUTH, VIC - Delivers Nationally

Play Video

$98,850 AUD($108,735 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$344.32
Per Week

3.7% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Coil Lines

Make:

STEELMASTER

Model:

AML-3 - 1550MM

No. in Stock

Year:

2024

Member Since: Oct 2007

Platinum Member

Listings: 366

Sellers stock ID:

20-0618

Description

HVAC Auto Duct Line Model: AML-3, 1550mm, Twin Decoiler, Leveller/Grooving/Notching/Shearing/Folding TDF Flange Fold Profiles also Formed. Panasonic Servo System, PLC Controlled. Volt

Description

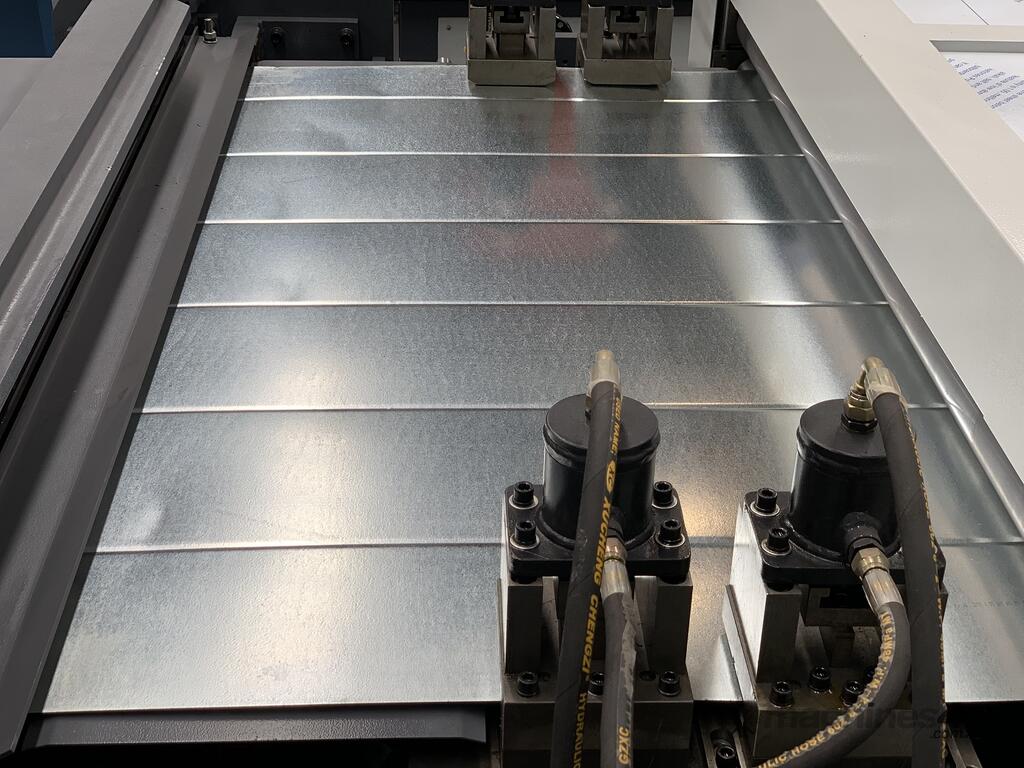

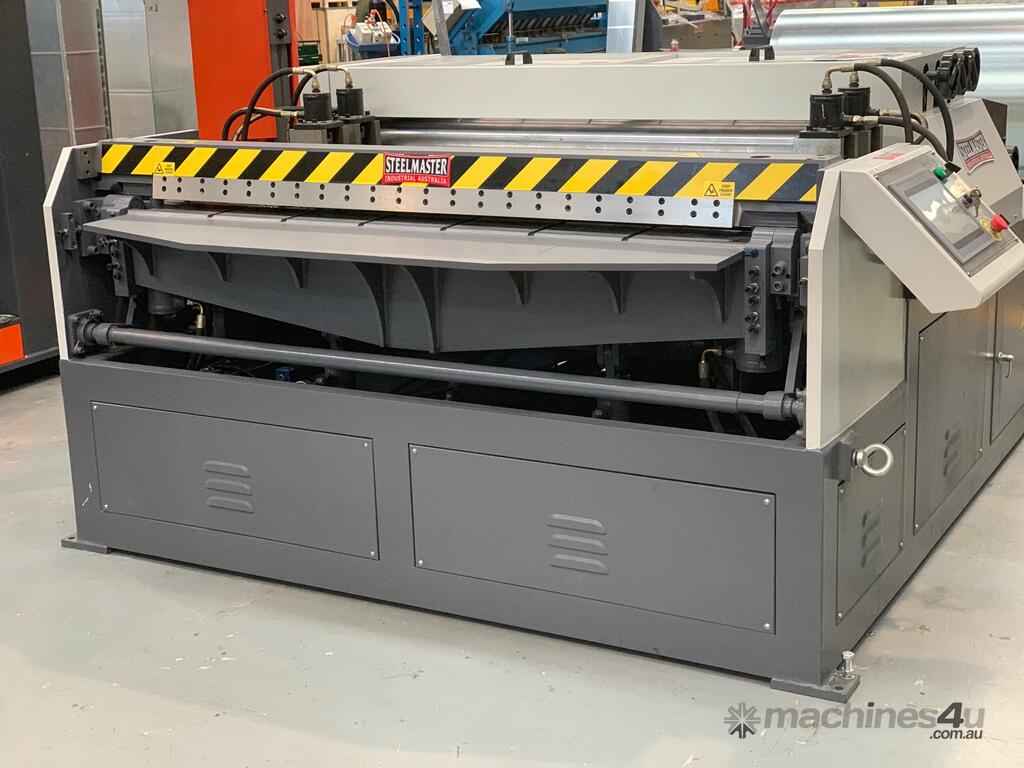

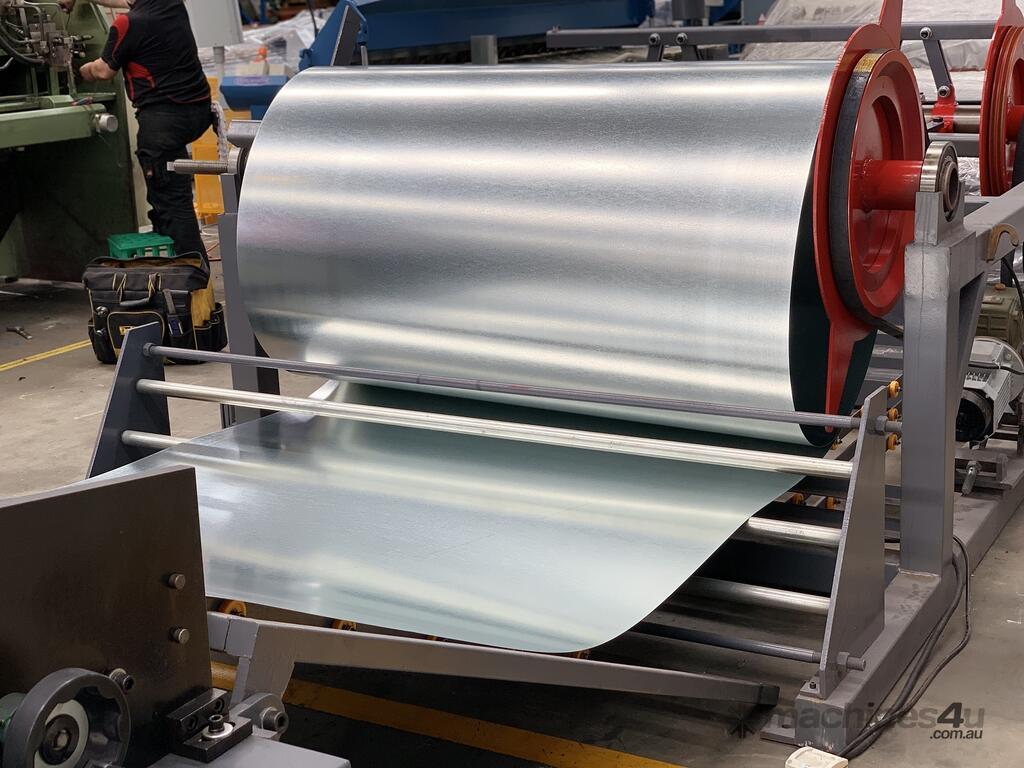

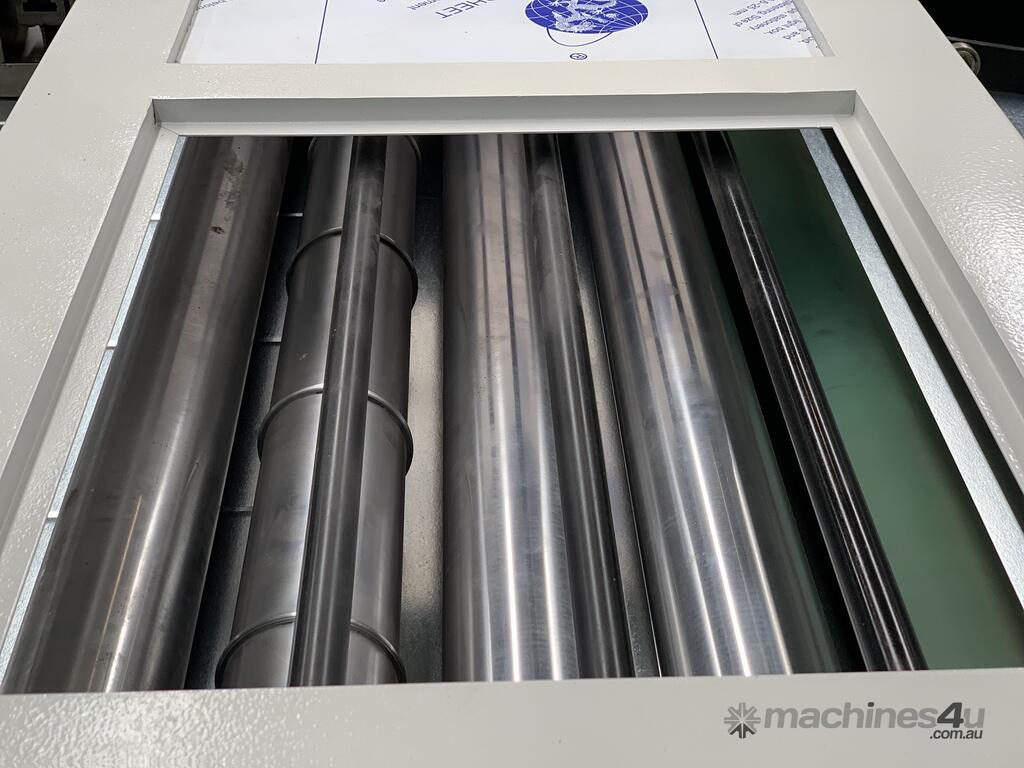

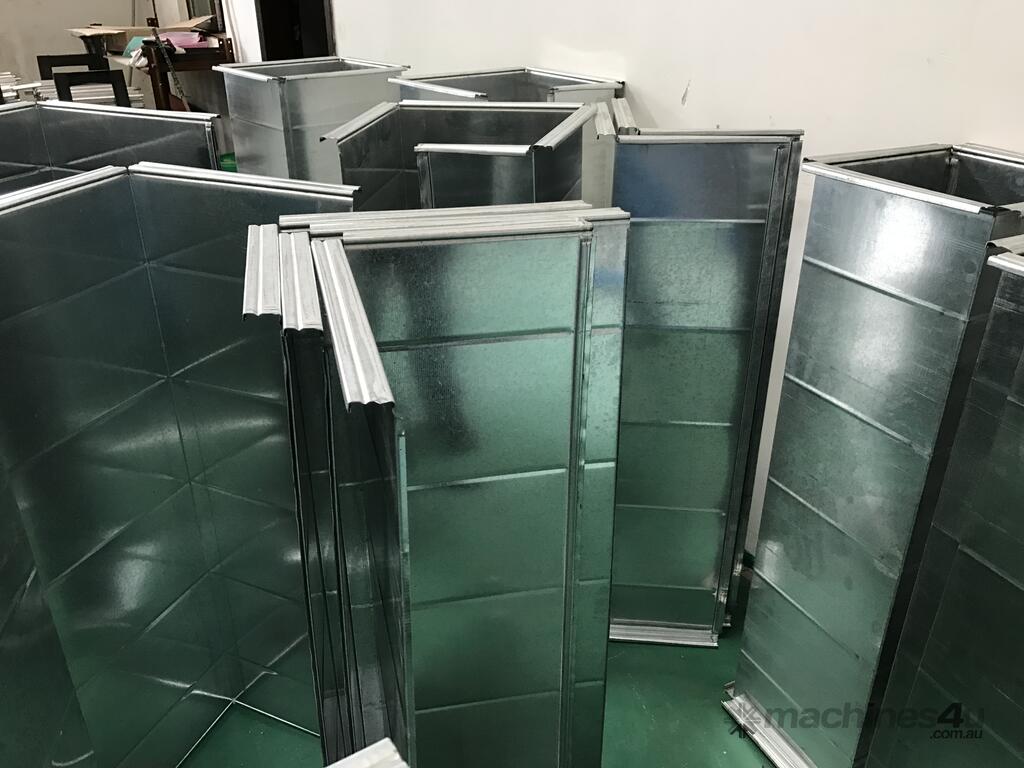

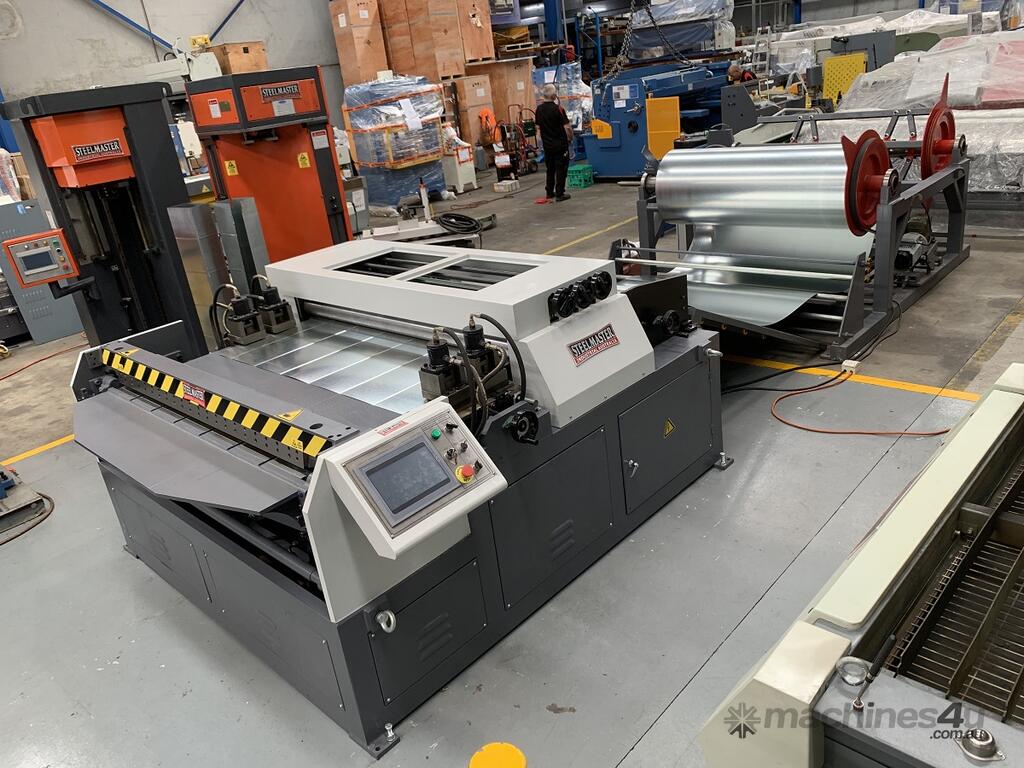

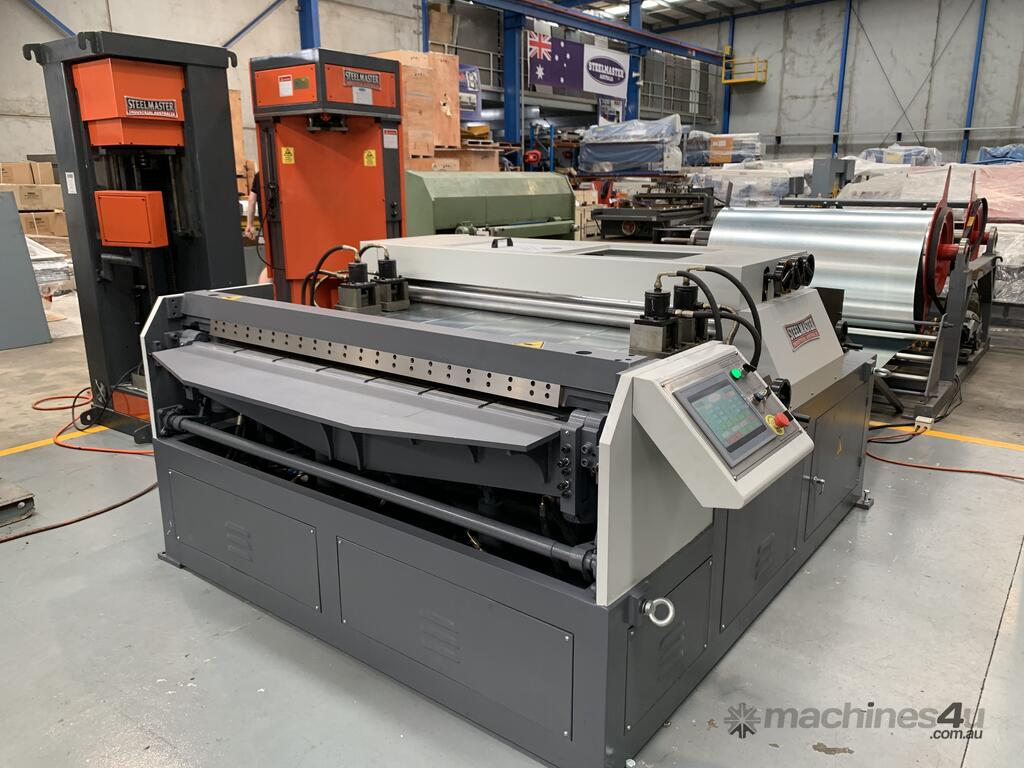

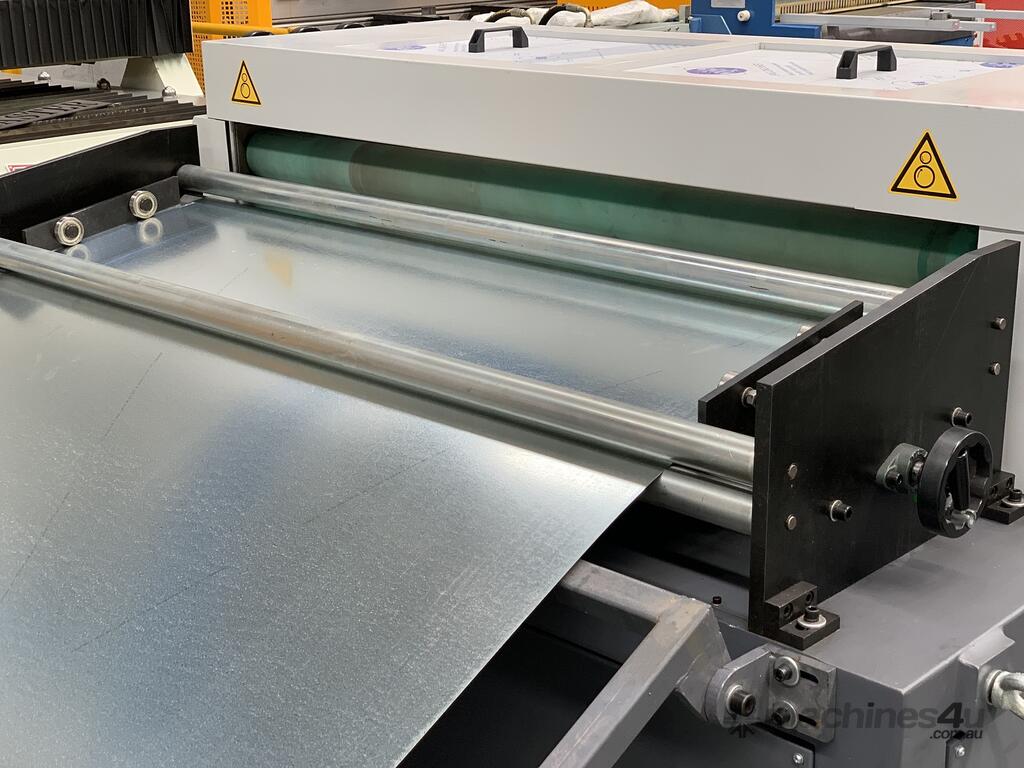

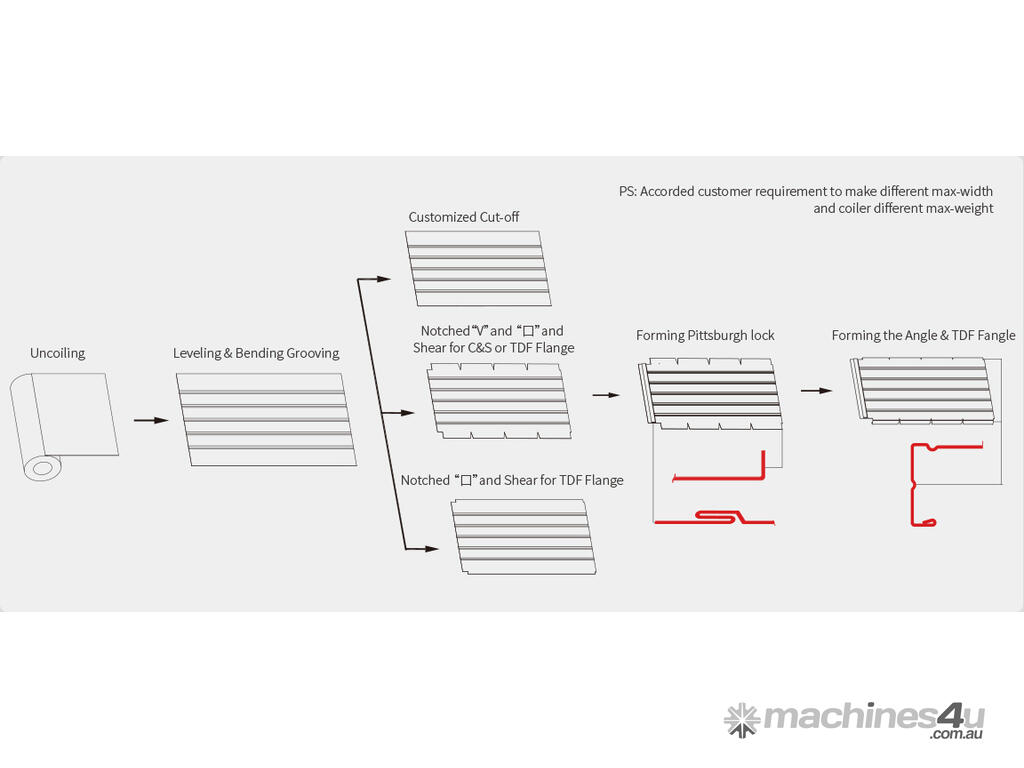

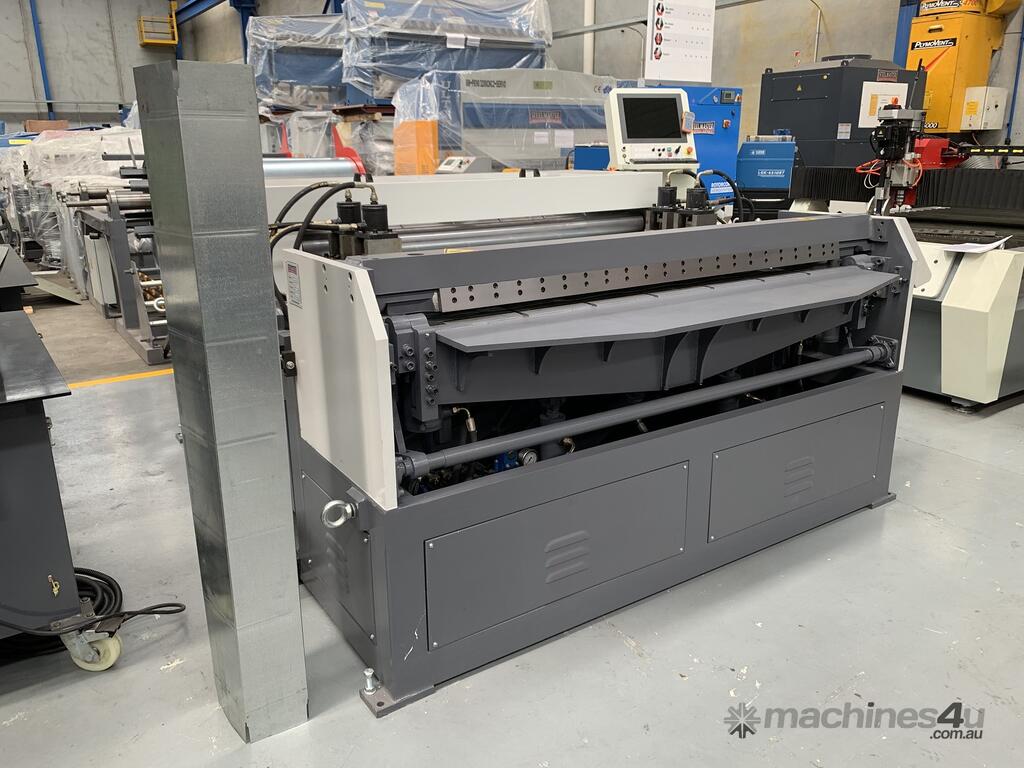

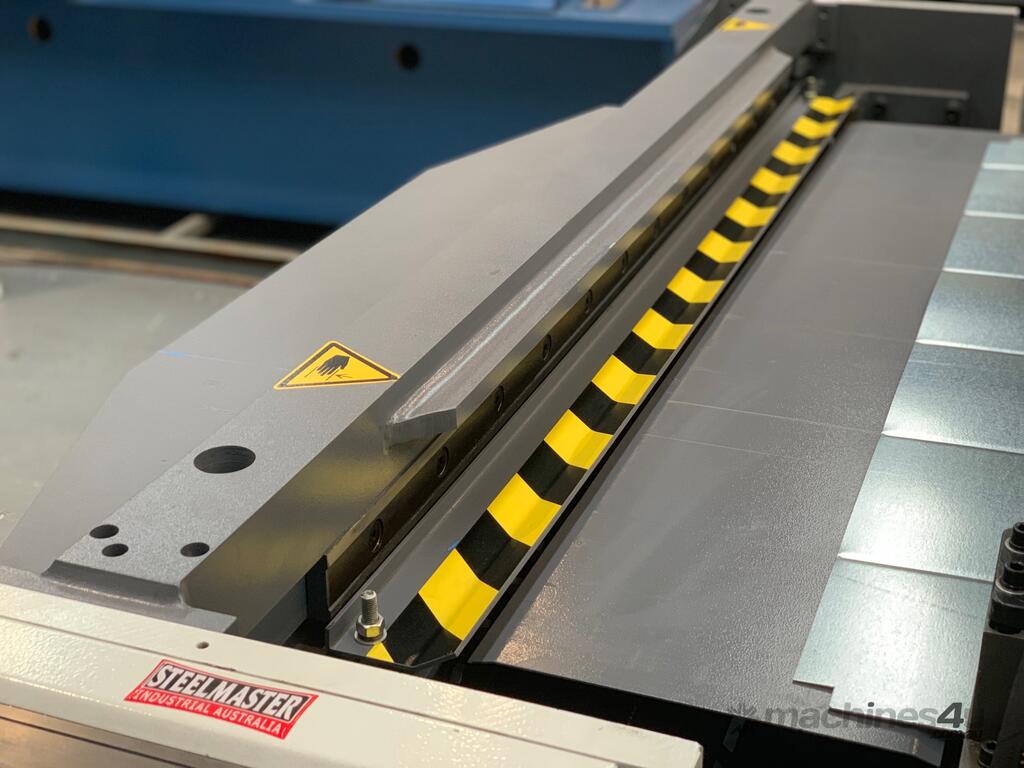

Our Duct production line III comprises of a twin decoiler, leveller grooving unit, “V” and “?” notching unit, cutting unit, bending unit composition. The standard configuration the “V” and “?” notching unit make for TDF flange duct, thereinto the “?” notching unit also can be used to produce TDC flange. Bending unit can be made with the Pittsburgh match the right angle, also can be sheet metal bending into a "?" or "L" type. Greatly improve the utilization of the plate, reduce labour intensity and reduce labour.

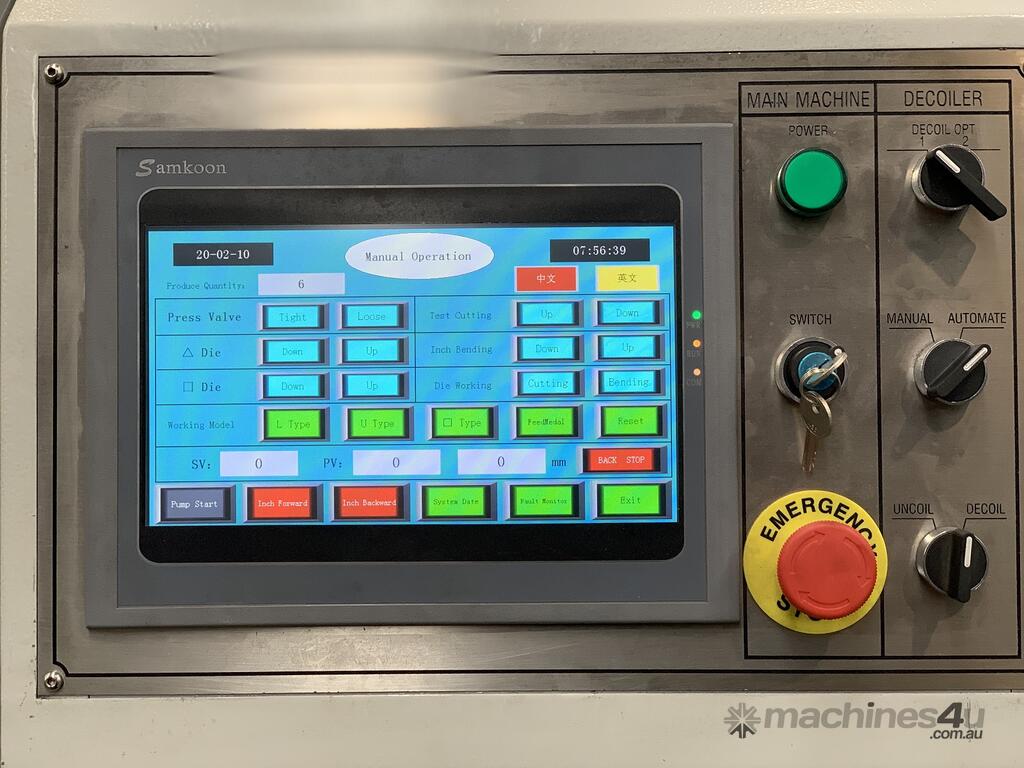

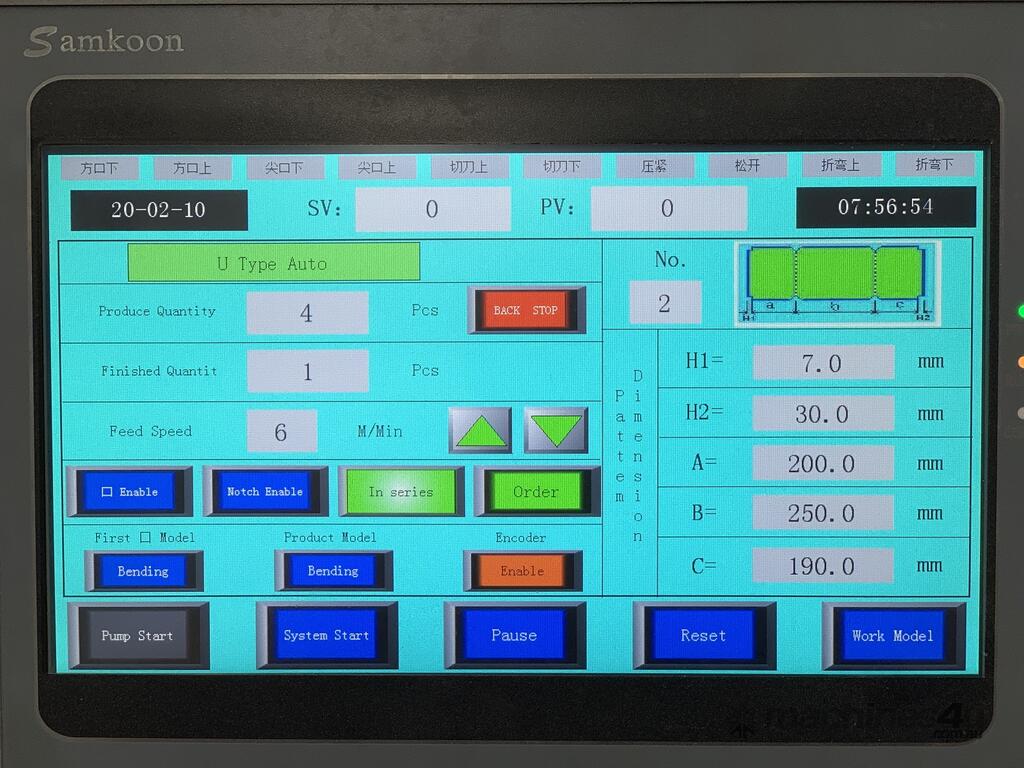

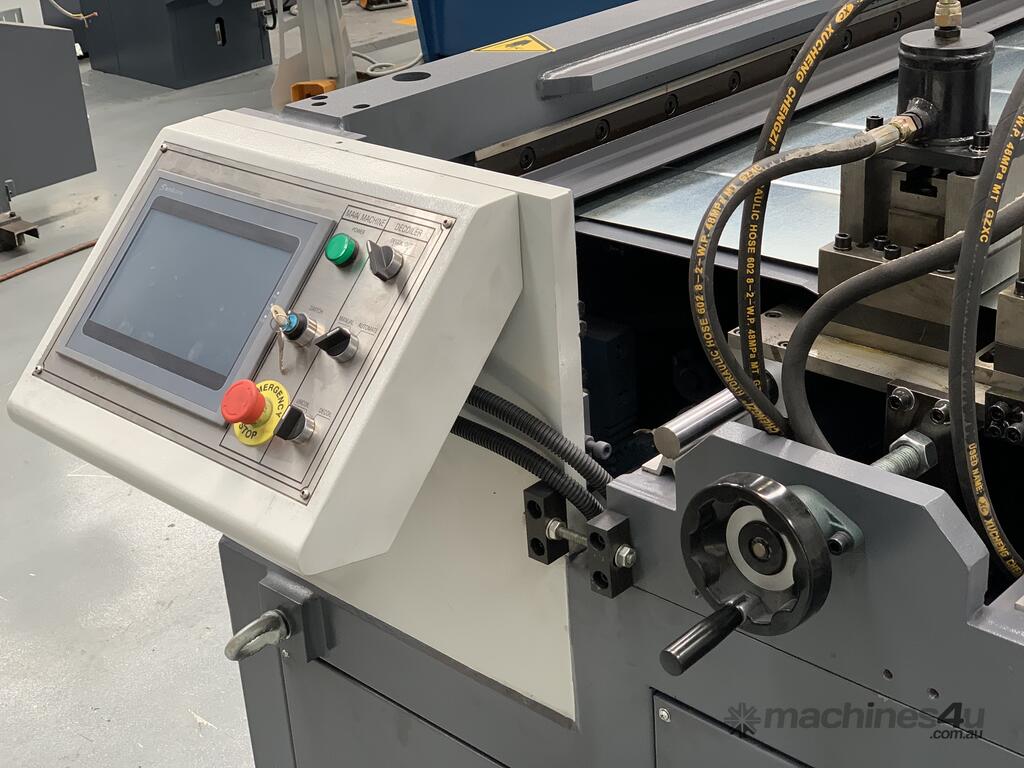

The production line electrical control part adopts full servo control; the control system has a closed-loop feedback system, Accuracy and stability were obvious improved. The maximum operating speed of 16 m / min.
Length tolerance is ±0.5mm; diagonal tolerance is ± 0.8mm. The system can meet the each shift?8 hours? production capacity of 1000m2 duct.

Technical Snap Shot
?Up to 1550mm wide material
?Panasonic Servo PLC Control
?Levelling, Notching, Shearing & Folding
?Thickness: 0.4-1.0mm
?Shearing tolerance of ±0.5mm
?Hydraulic folding tolerance of ±0.5mm
?0-16m/min feeding speed, fast acting back gauge
?Dimensions: 9800mm x mm x 1400mm x 4800Kg

Dimensions: 5400mm x 2100mm x 1400mm x 4800Kg

MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
