HVAC Full Auto Ducting Line - 1550mm Sheet Size

HVAC Auto Integrated Duct Line Model: AML-V-U Type, 1550mm, Leveler/Grooving/Notching/TDF/Pittsburgh Inline Lock Former Unit / TDF / Shearing & Folding. Panasonic Servo, Touch Screen PLC Control V

Description

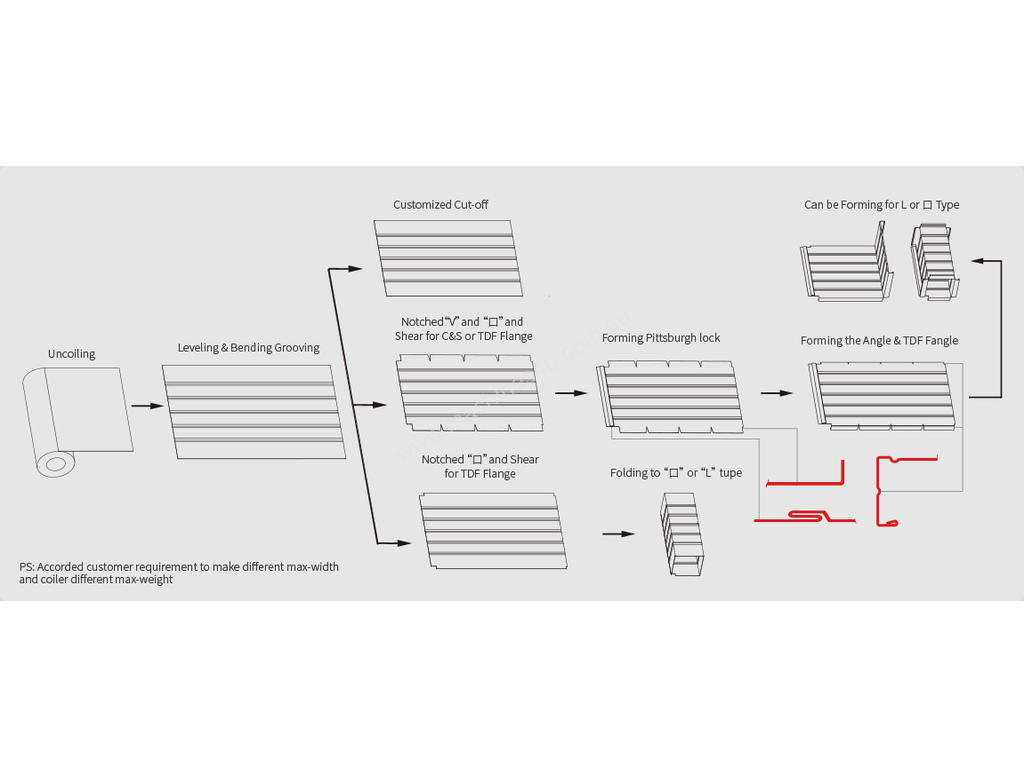

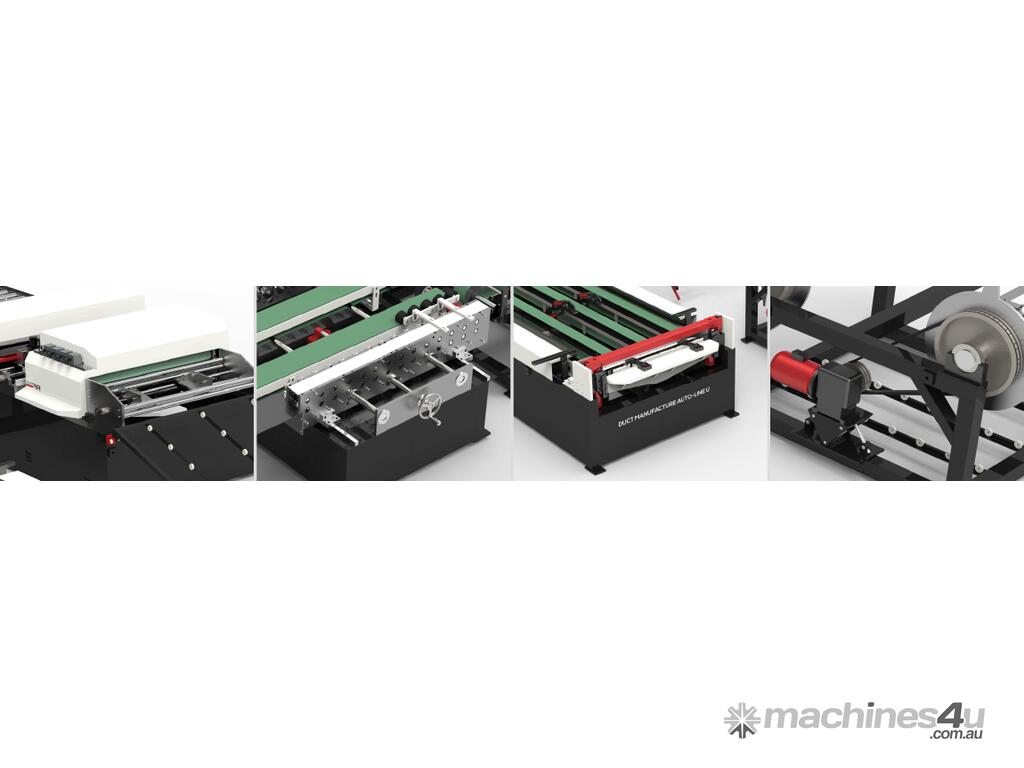

Our Duct production line V (U Type) comprises of a integrated all in one system. Combining twin decoiler, leveler grooving unit, “V” and “?” notching unit, TDF Forming, Pittsburgh Forming, Shearing & Folding all in one. Offering all these applications in one machine increases production, reduces labour and maximizing profit.
The production line electrical control part adopts full servo control; the control system has a closed-loop feedback system, Accuracy and stability were obvious improved. The maximum operating speed of 15 m / min.
Length tolerance is ±0.5mm; diagonal tolerance is ± 0.8mm.

Technical Snap Shot:

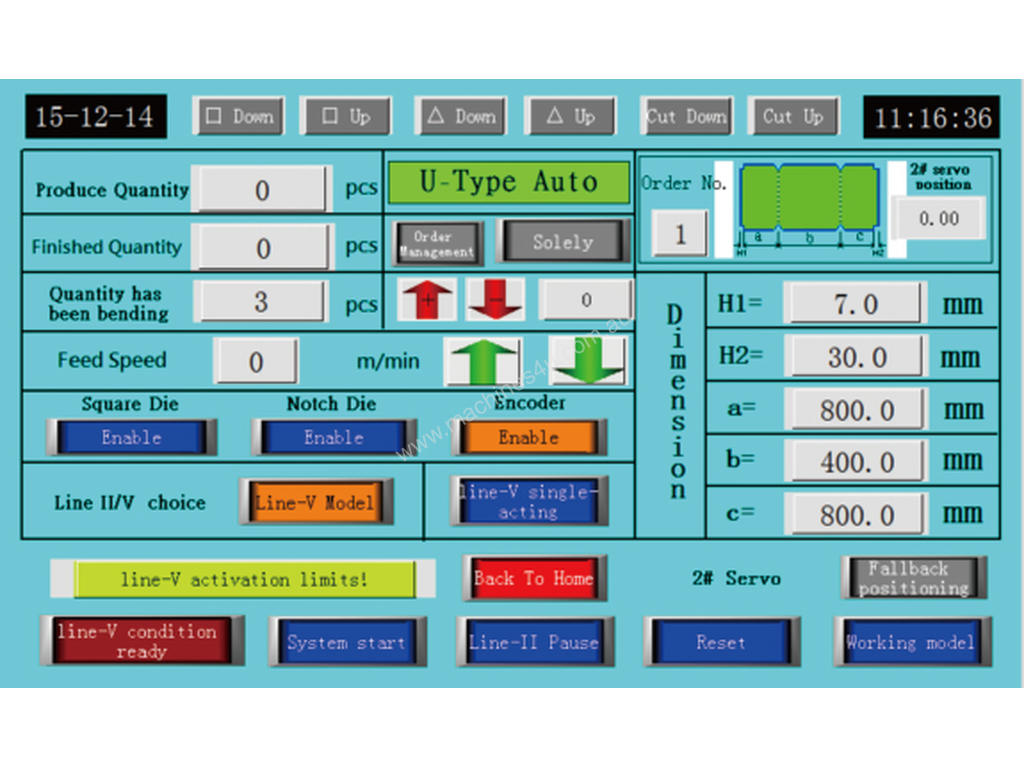

Panasonic Servo with Touch screen PLC Control

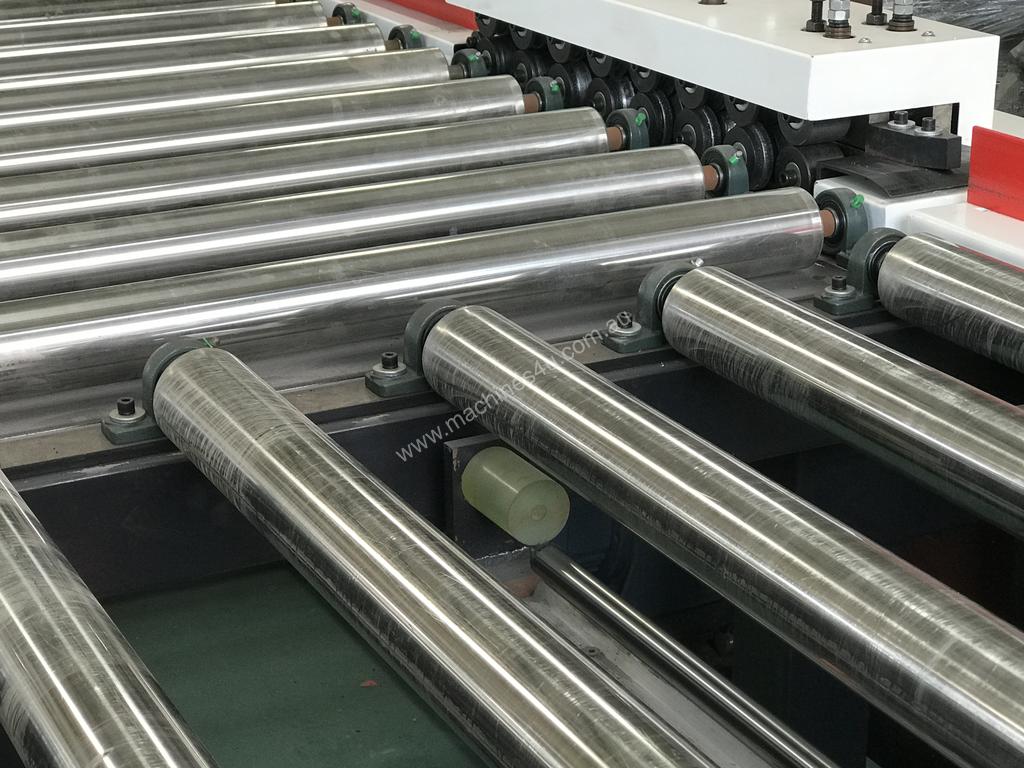

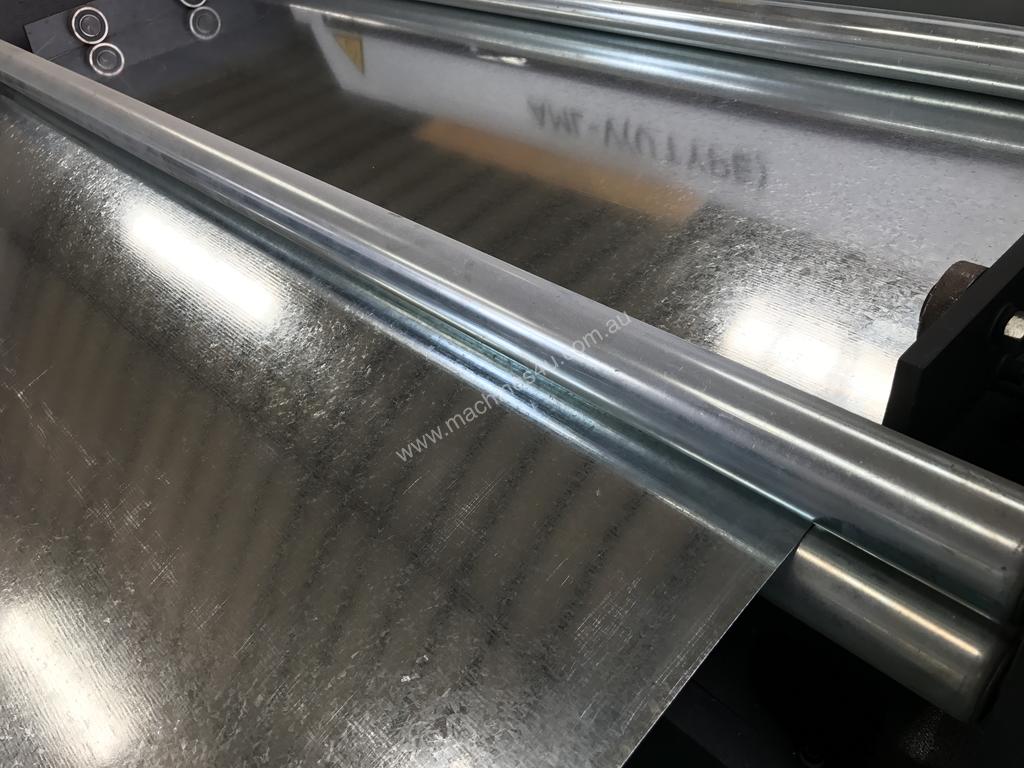

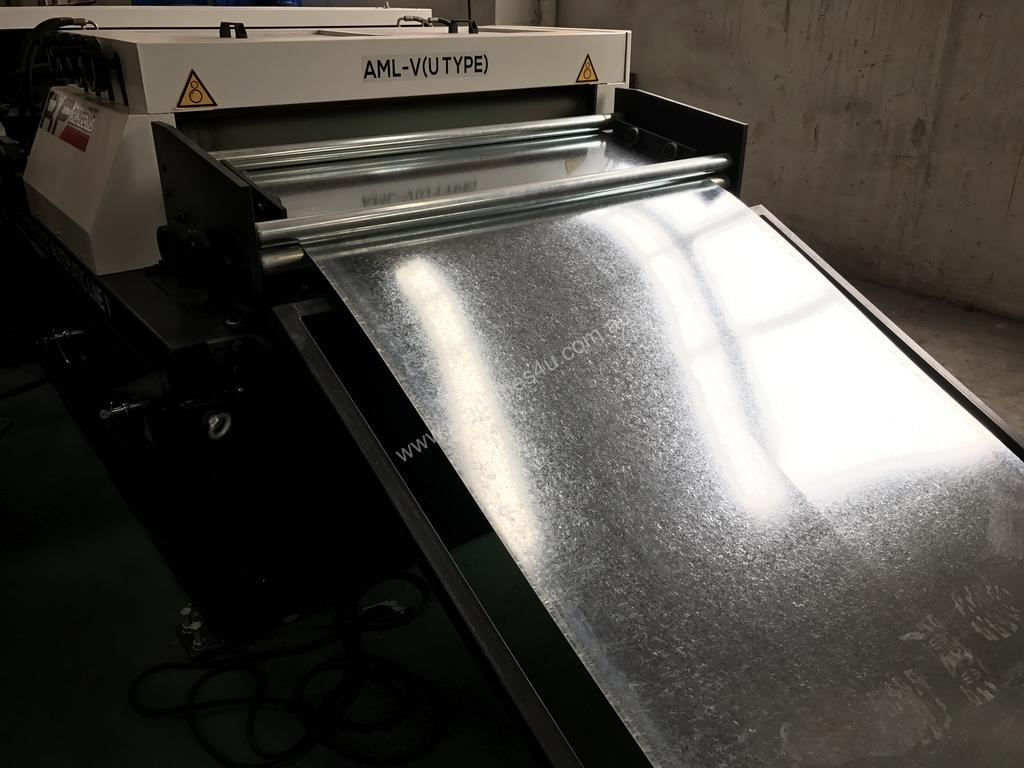

Infeed Material Levelling,

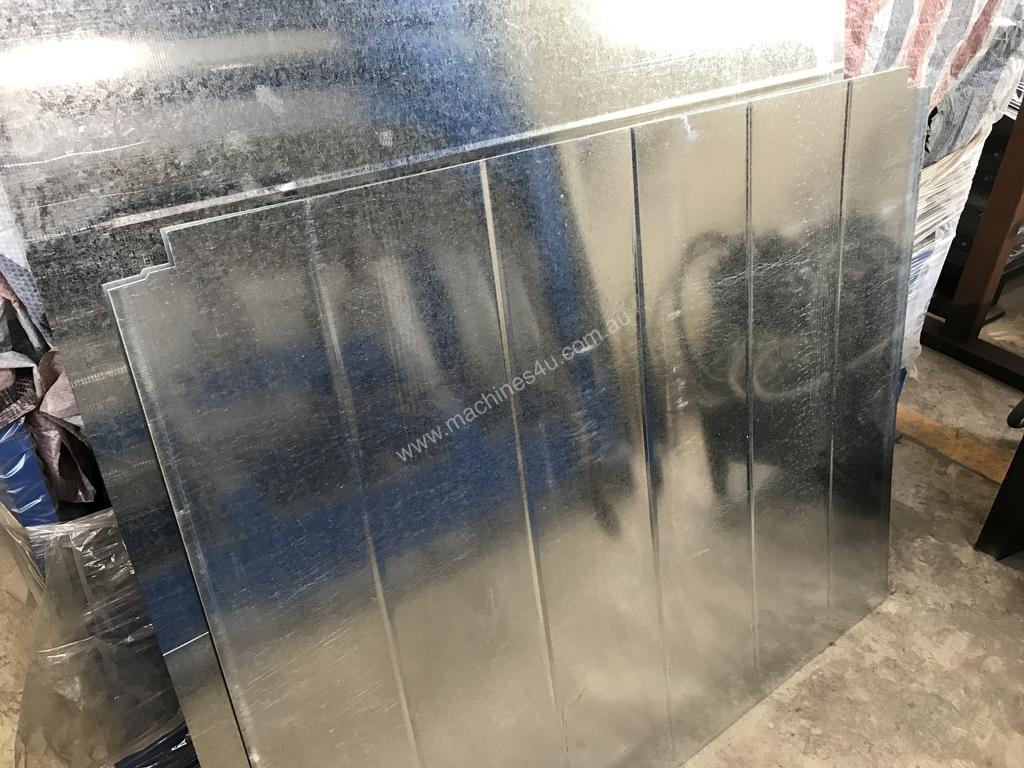

Material Grooving
Vee or Rectangle Notching
TDF Forming on Both Side of Sheet - Adjustable Width to 1500mm.
End Pittsburgh Profile Forming
Material Box Folding
Material Shearing
Up to 1500mm width x 1.0mm material
Shearing tolerance of ±0.5mm
Hydraulic folding tolerance of ±0.5mm
0-18m/min feeding speed, fast acting back gauge
Decoiler width up to 1500mm wide & 2500Kg Capacity.
