HVAC Jenny & Swage, 250mm Thoat x 1.6mm

SM-EMR-RT-1.6 Jenny & Swage. Volt. Steelmaster Motorised, 1.6mm Capacity, 280mm Throat, Bronze Bushed, 1 Set Bead Rollers Standard, Others Available. 32 RPM. 240v & v Options
Description

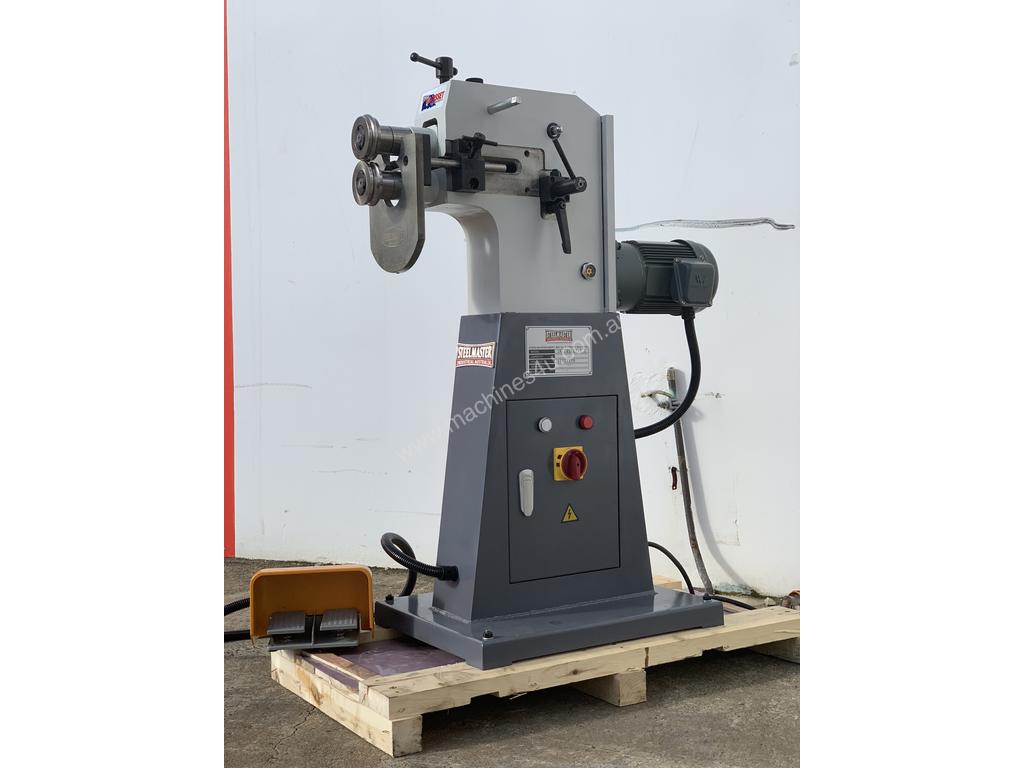

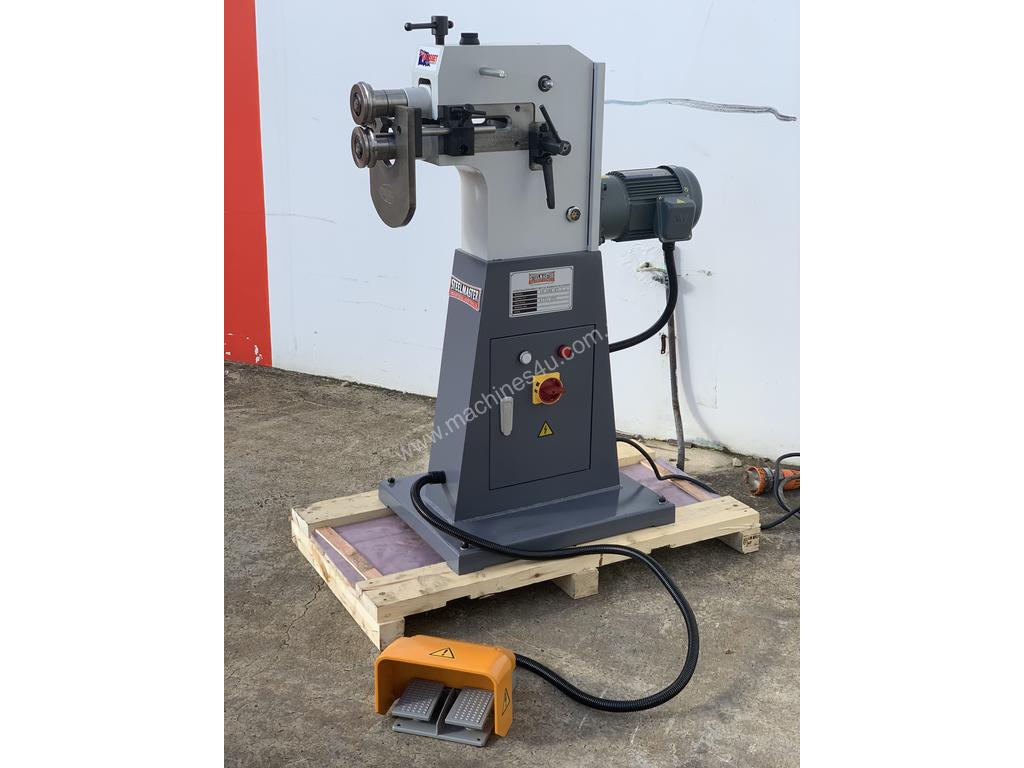

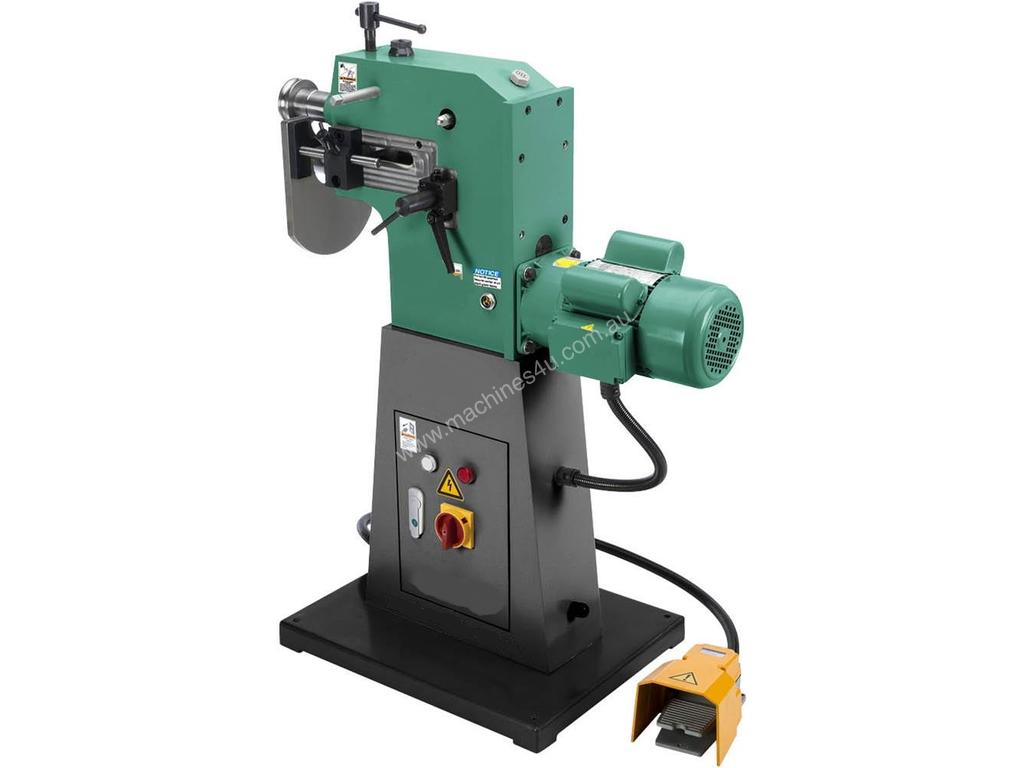

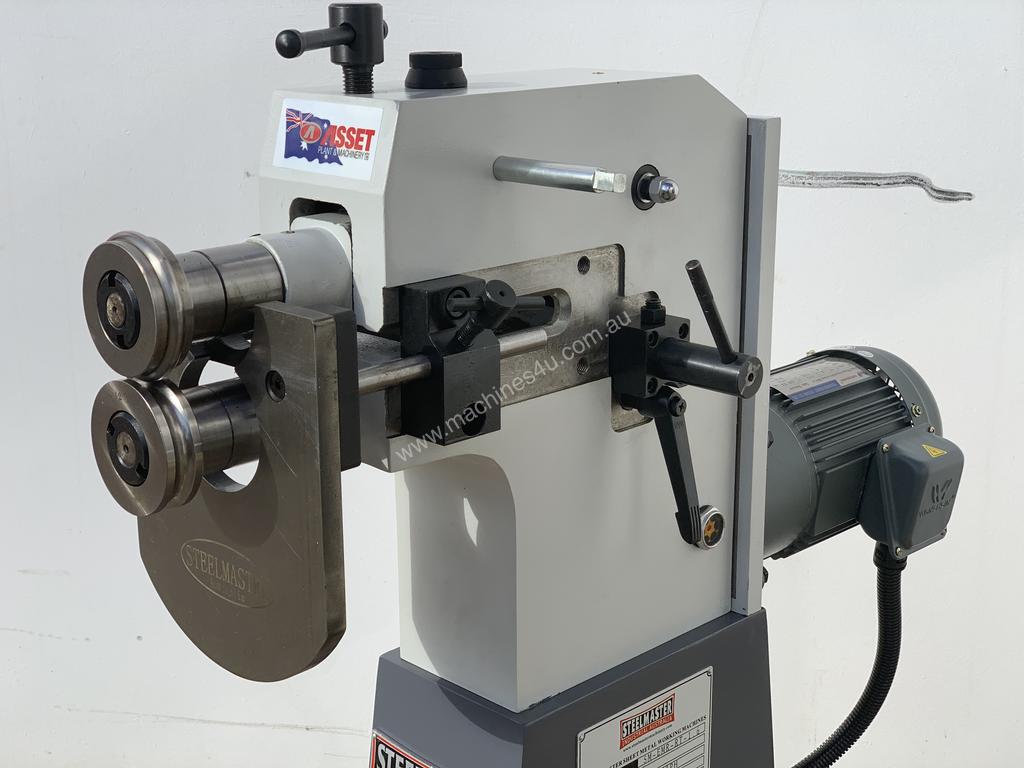

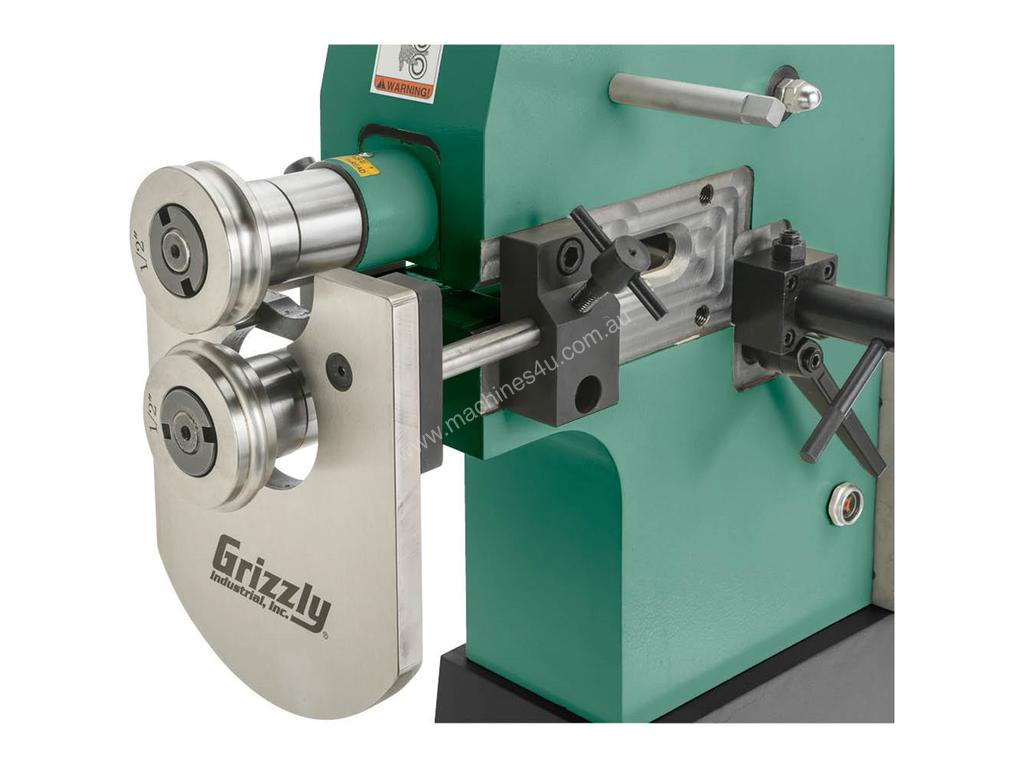

This NEW heavy duty cast motorized Jenny & Swage is a vital partner in any Sheetmetal, ducting & fabrication shop.
With deep throat size, you are able to achieve deeper with the backing plate removed.
Hardened tooling available with 1 x set beading formers supplied.

Features
?STEELMASTER 'EMR' series jenny & swages are quality USA design and build.
?bronze bushed.
?hardened and ground gears.

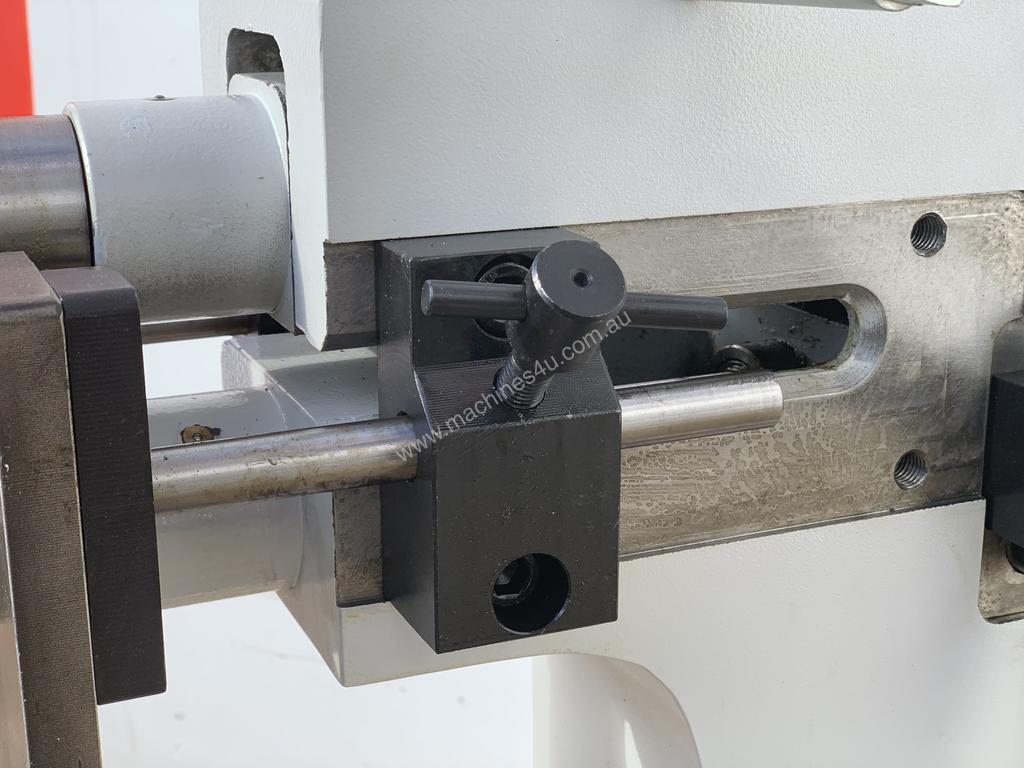

?adjustable side support

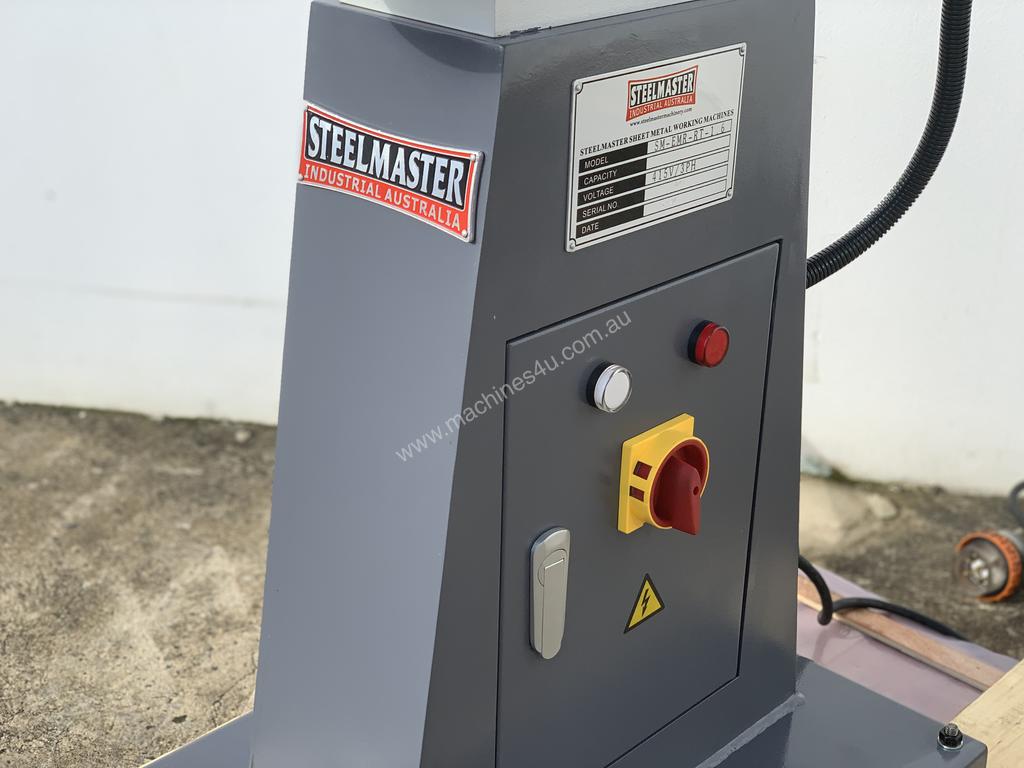

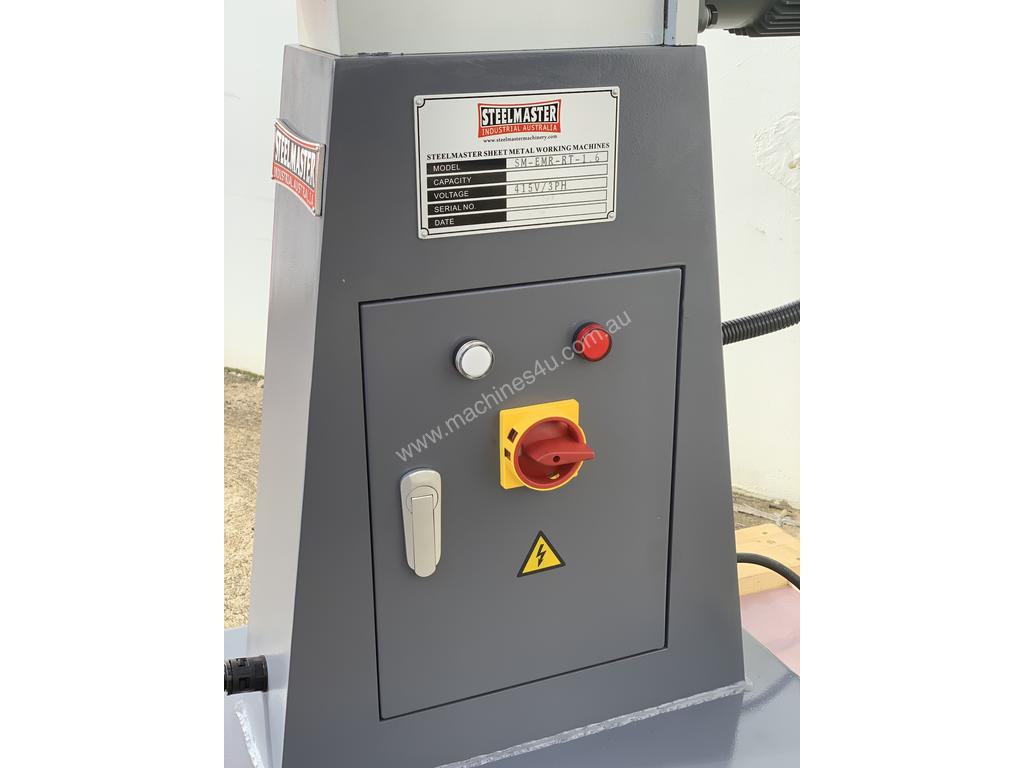

?motorised drive and supplied with stand.
?heavy duty cast-iron construction
?1 set of standard rolls supplied.
?many other additional formers available
?manufactured to CE standard.

Key Features:
?1.6mm Capacity.
?Heavy Duty Cast Construction.
?250mm Side Throat.
?Supplied with 1 Set Formers / additional formers available noted below.

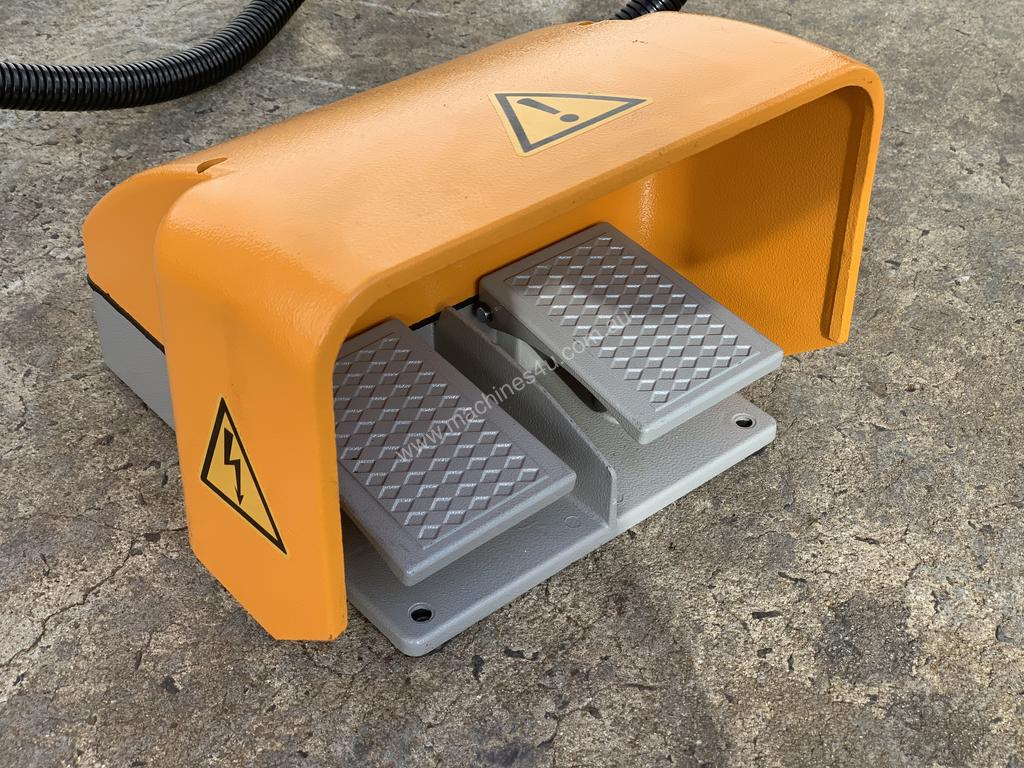

?Forward & Reverse Operation
?Volt Operation

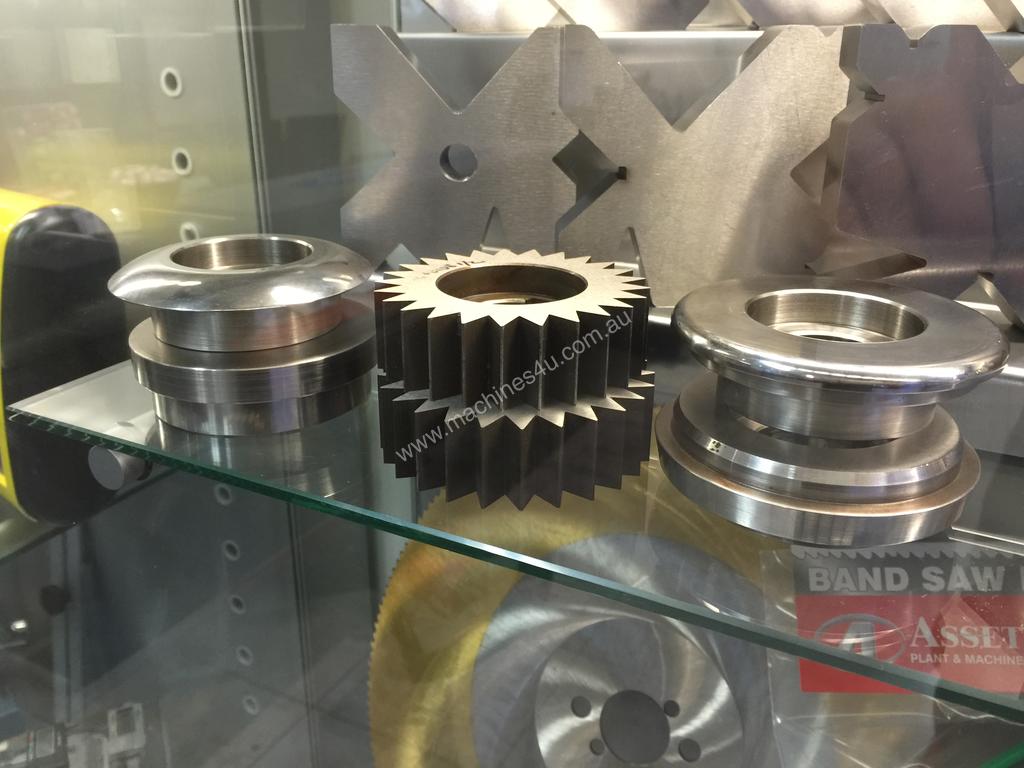

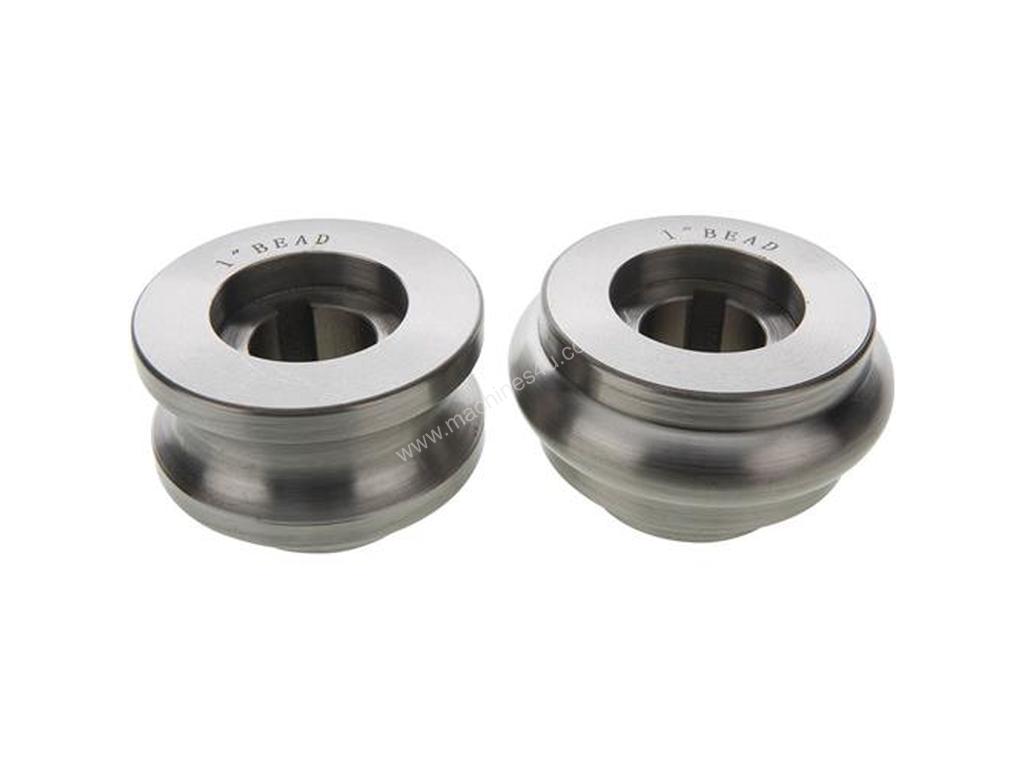

Optional formers:
?26+0108 – 50mm wide crimping profile
?26+0109 – 10mm necking / joggling profile
?26+0111 – 42mm Crimp & 8mm bead
?26+0107 – 10mm (3/8”) flanging profile
?26+0148 – 12mm (1/2”) flanging profile

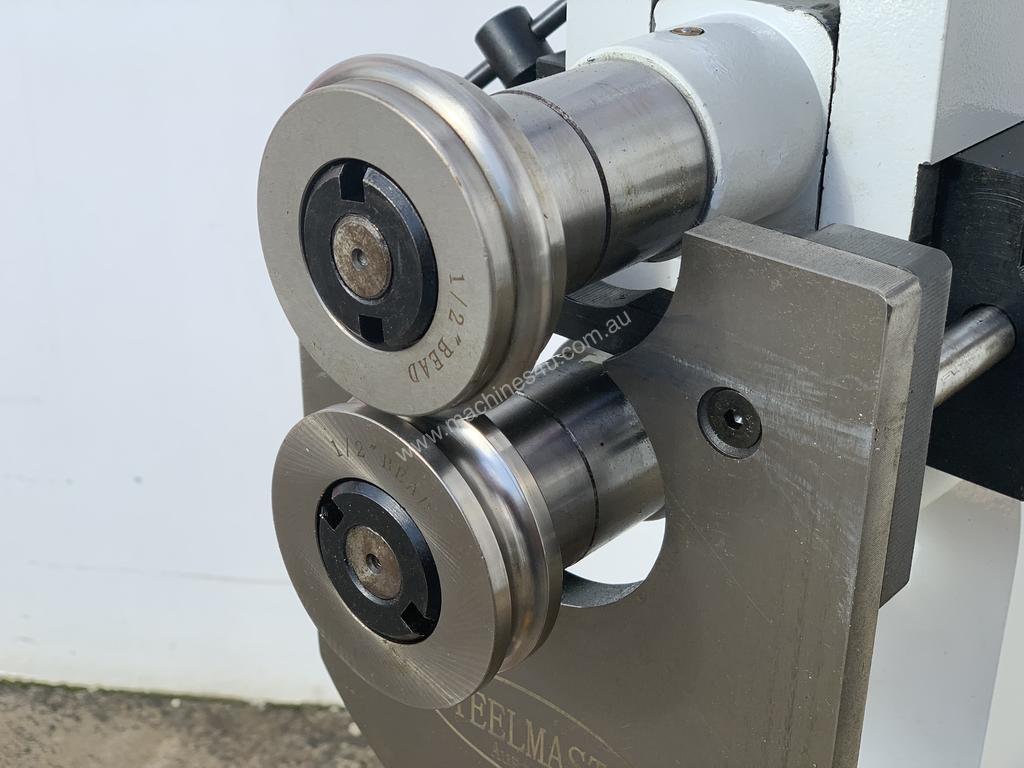

?26+0113 – 6mm (1/4”) beading profile

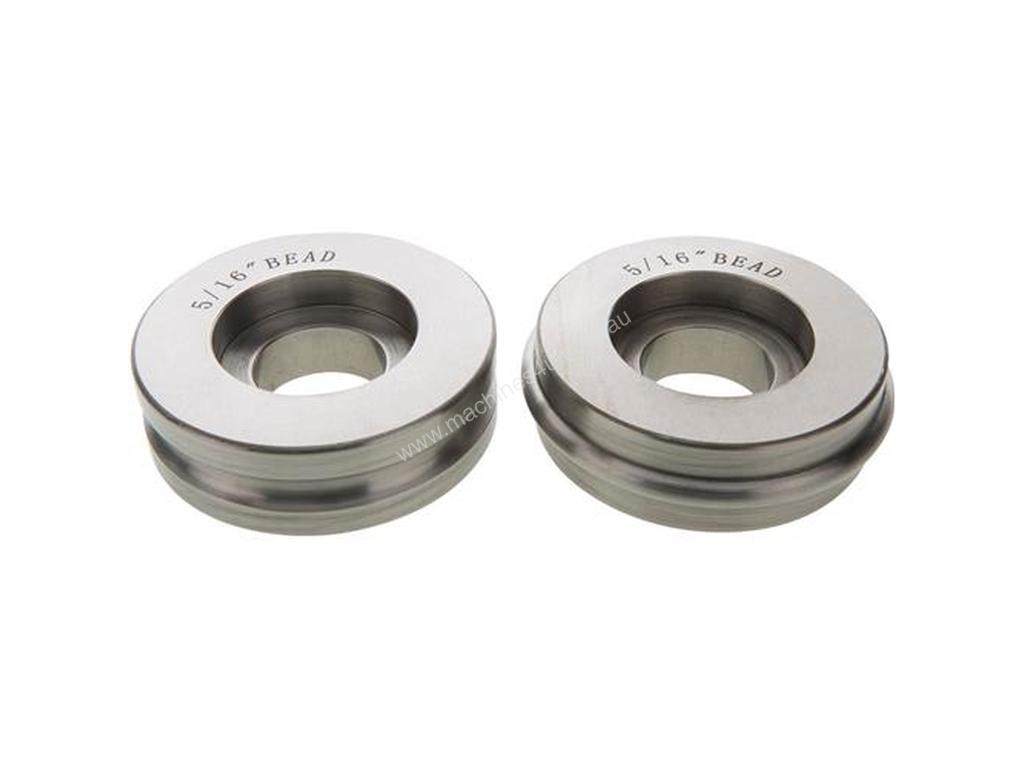

?26+0110 – 8mm (5/16”) beading profile

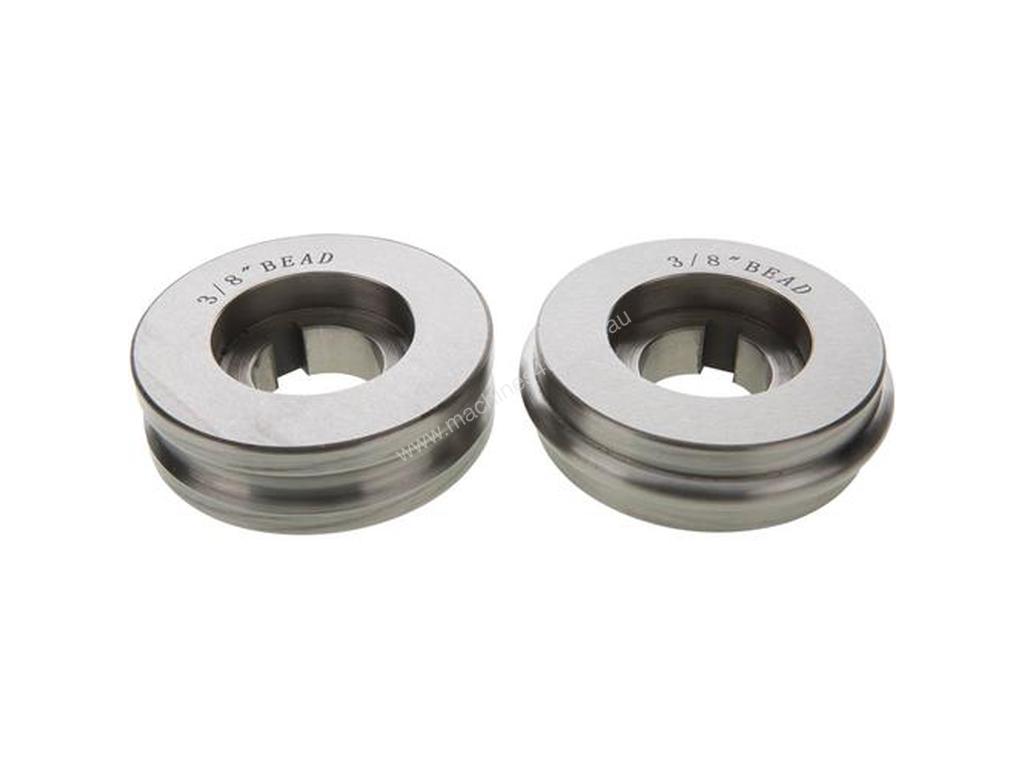

?26+0152 – 10mm (3/8”) beading profile
?26+0110 – 12mm (1/2”) beading profile

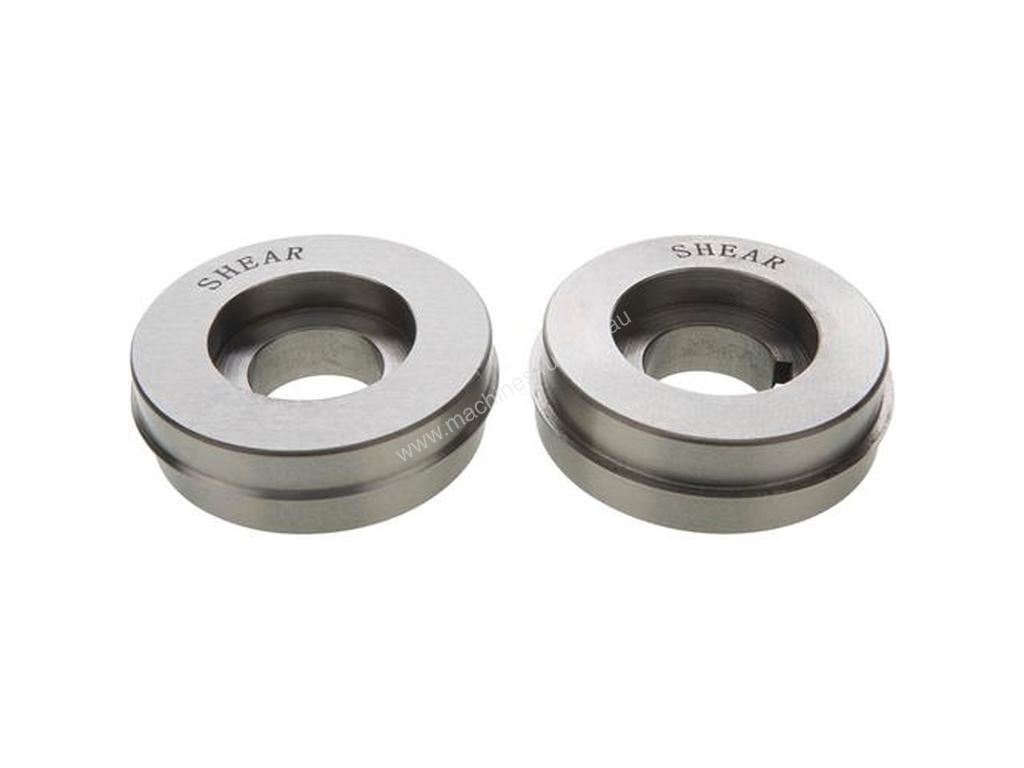

?26+0114 – shearing profile
?26+0149 – 5mm (3/16”) Step Profile
?26+0150 – Vee groove profile
?26+0151 – 45-degree step profile

Shipping dimensions
?700mm x 500mm x 1250mm
?weight - 190kg
We offer a large range of ex stock HVAC Machinery for all your requirements from Lockseamers, TDF / TDC Formers, Ribbing / Beading Machines, Duct Manufacturing Lines, Snap Lock Machines, Jenny Swages, Rollers & More

SHIPPING: Can be arranged Australia wide to business addresses where powered unloading is available Monday - Friday

MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
