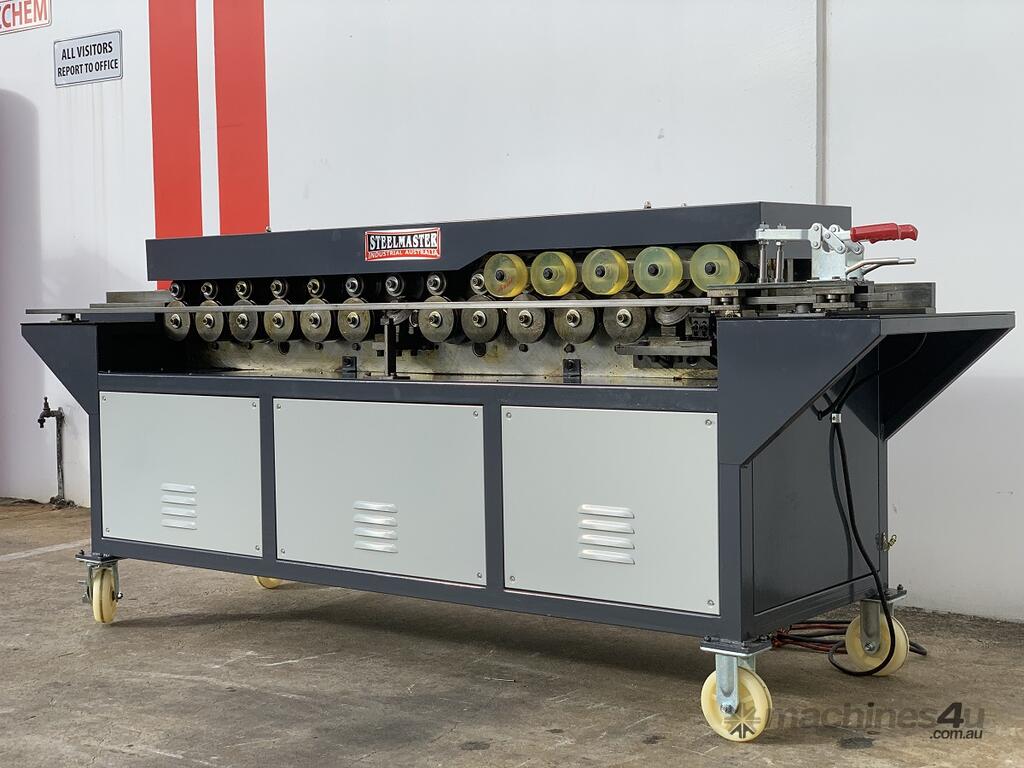

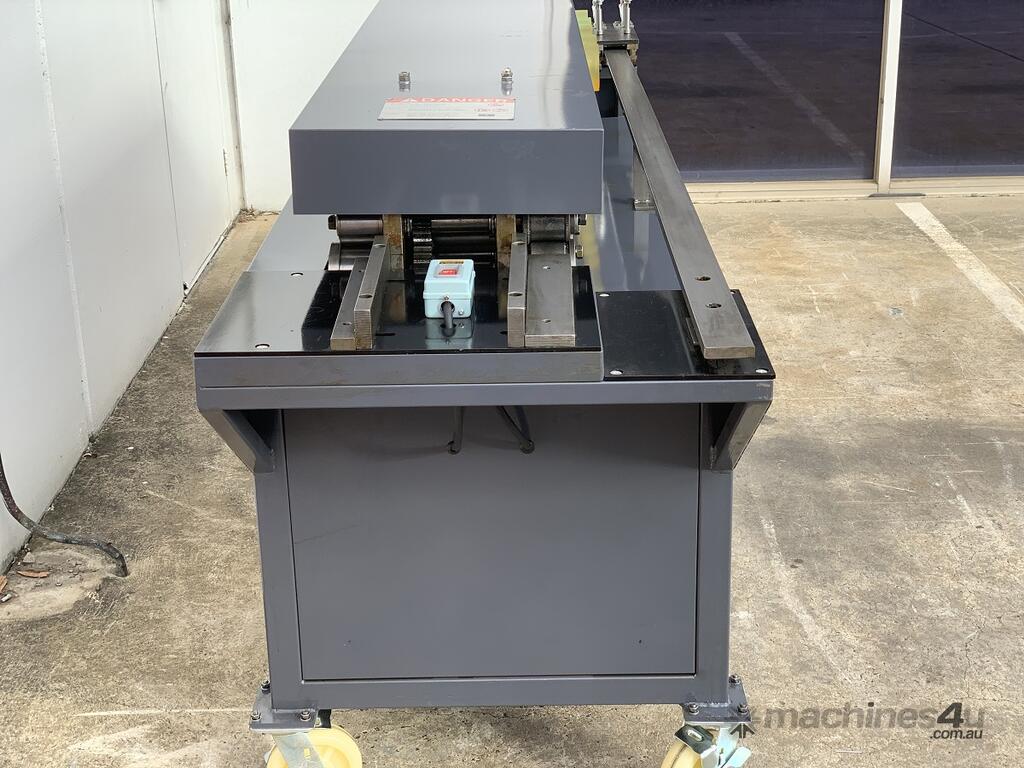

HVAC / Sheetmetal TDF Duct Roll Former. Steelmaster Model: TDF 1.6, 16 Station, 25mm & 35mm
Includes Small Parts Feeder, Must Have For All HVAC Shops – 3Ph. Volt
Description
Perfect for all air conditioning & ducting applications. Our TDF 16 Station Roll former offers a 25 & 35mm TDF flanges,
& small parts feeder.
Features
- a must for all Sheetmetal, ducting and climate control fabricating workshops

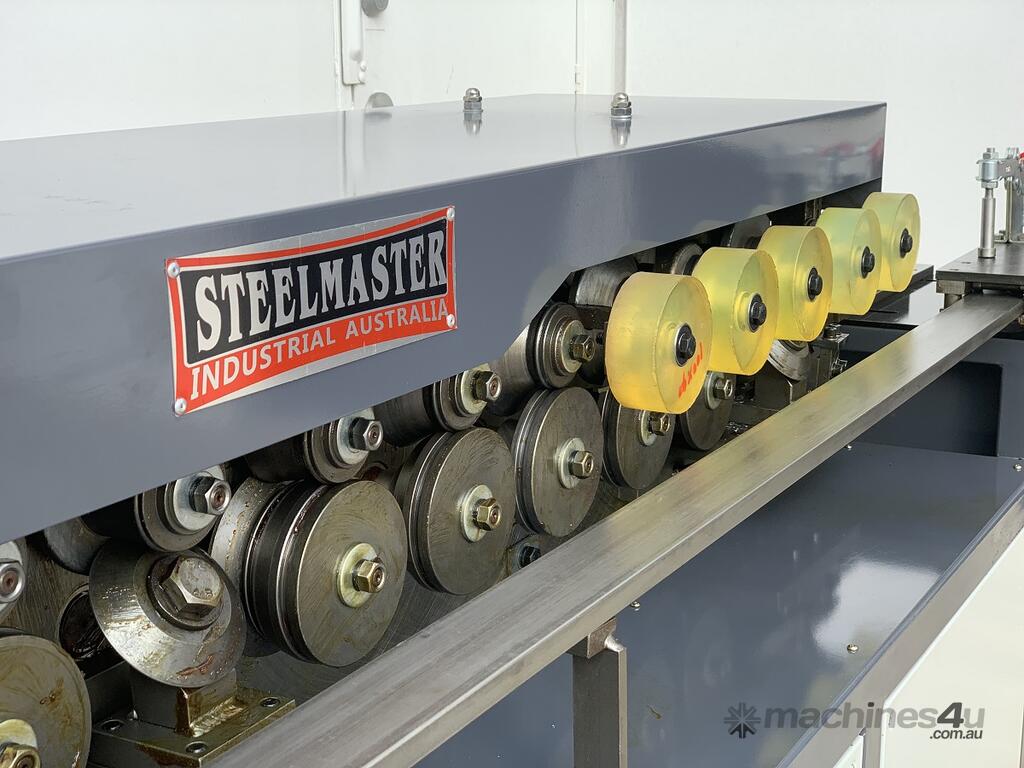

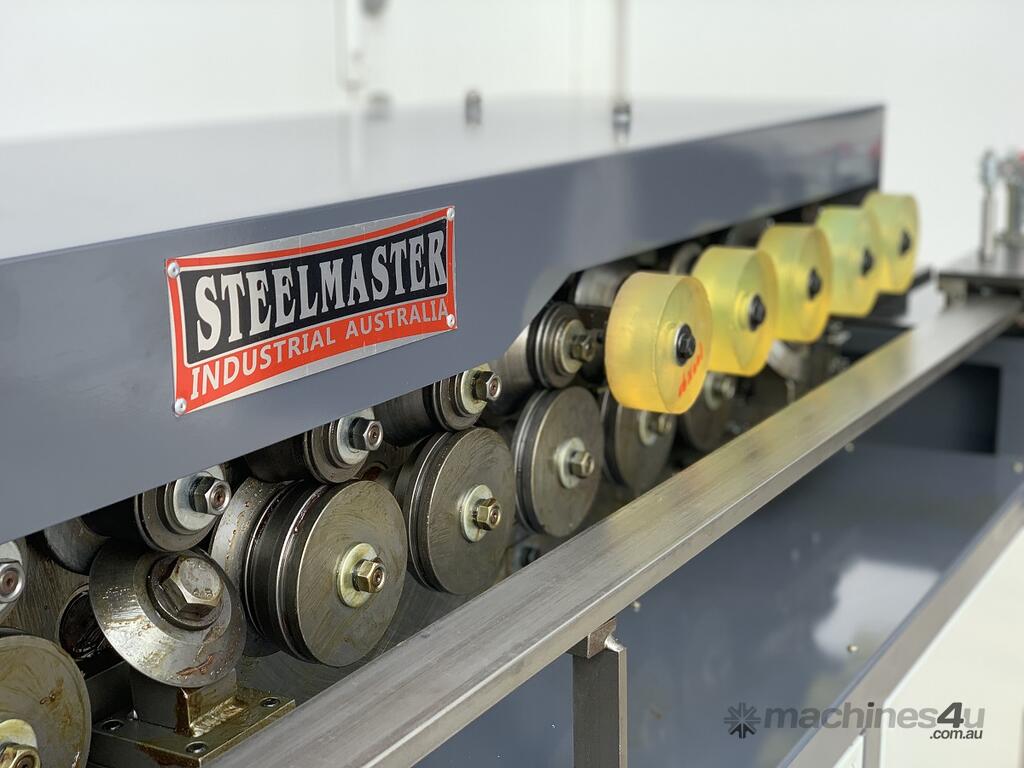

- 16 station drive / forming system
- positive lubrication to all moving parts via grease nipples

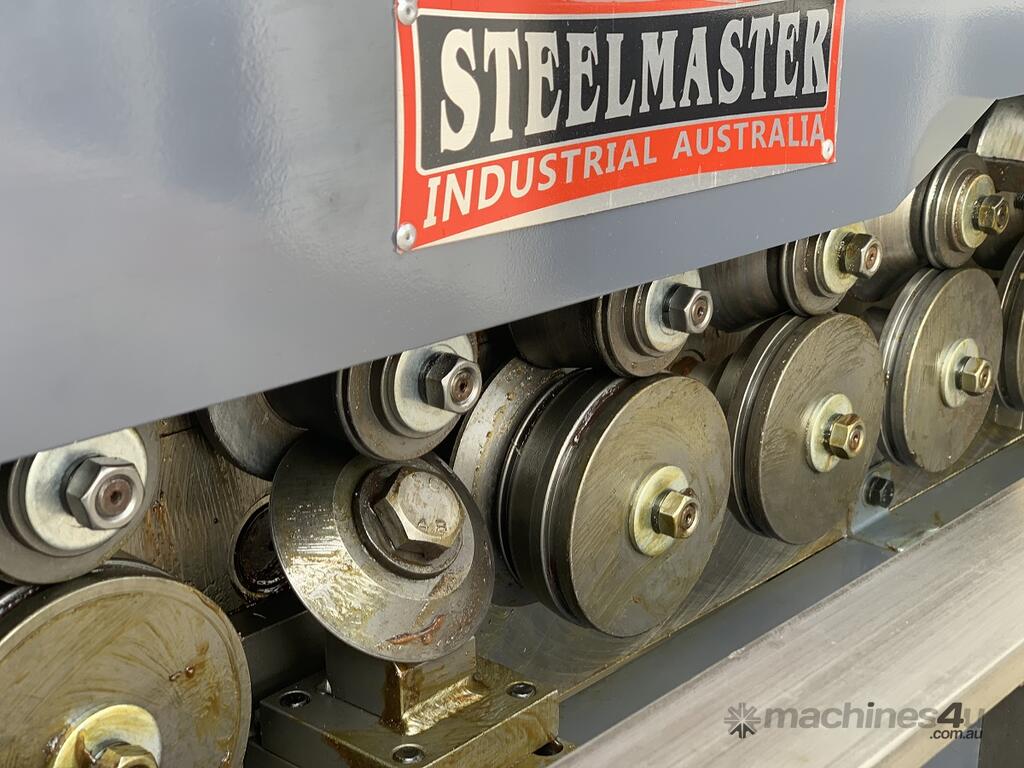

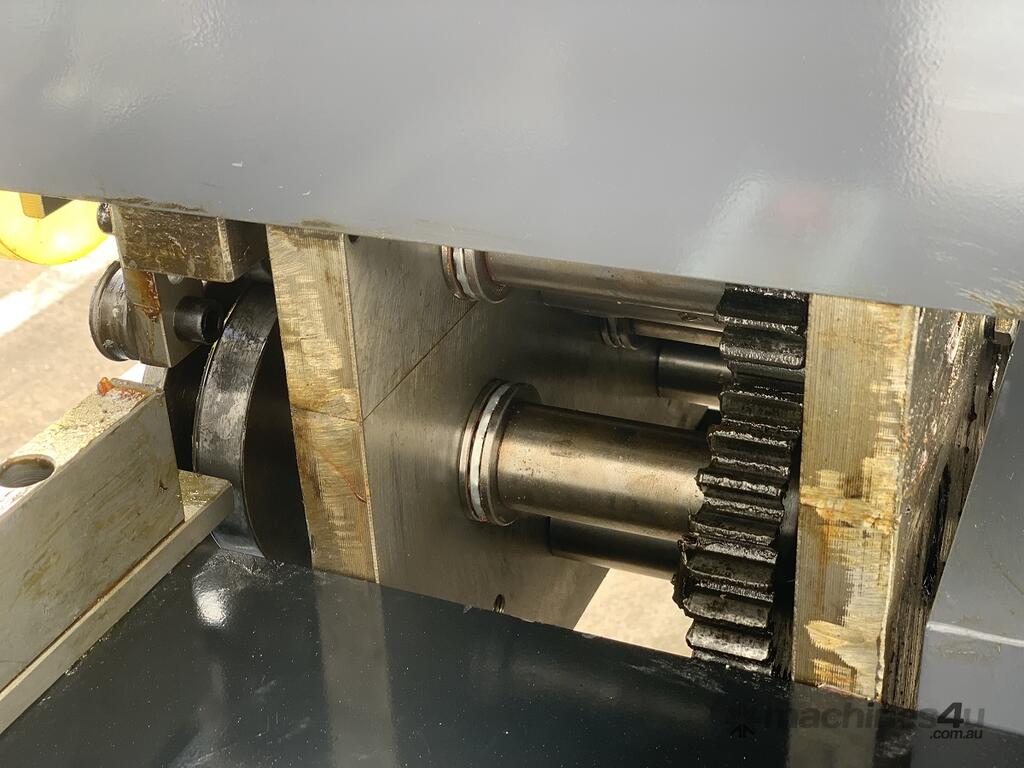

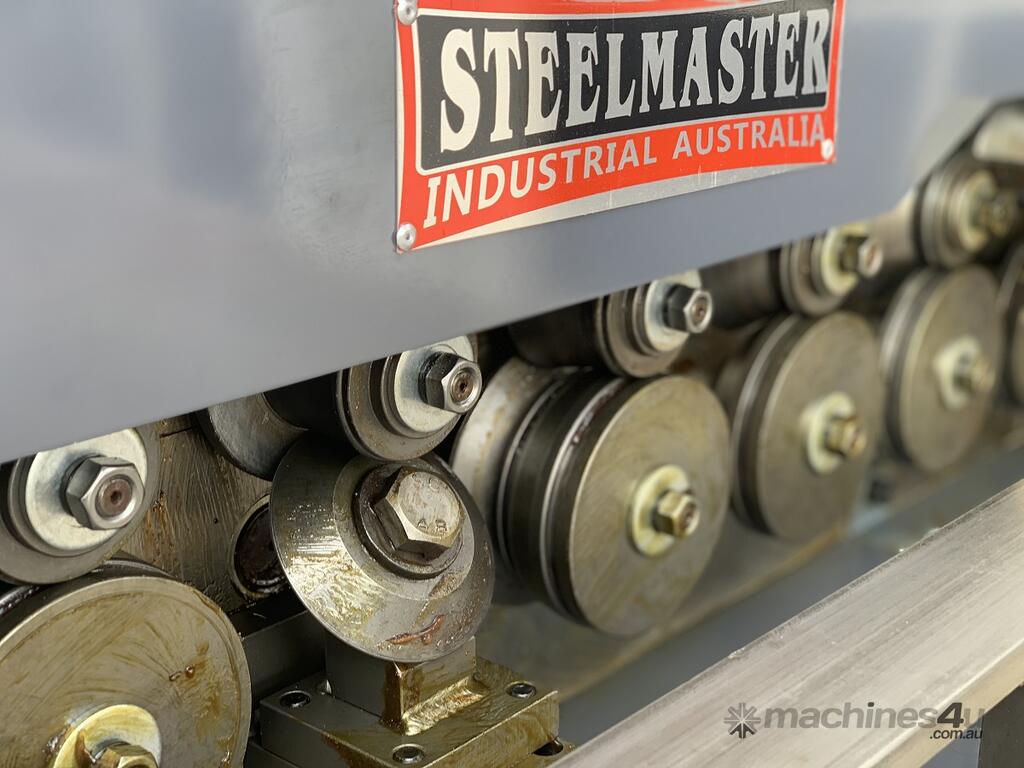

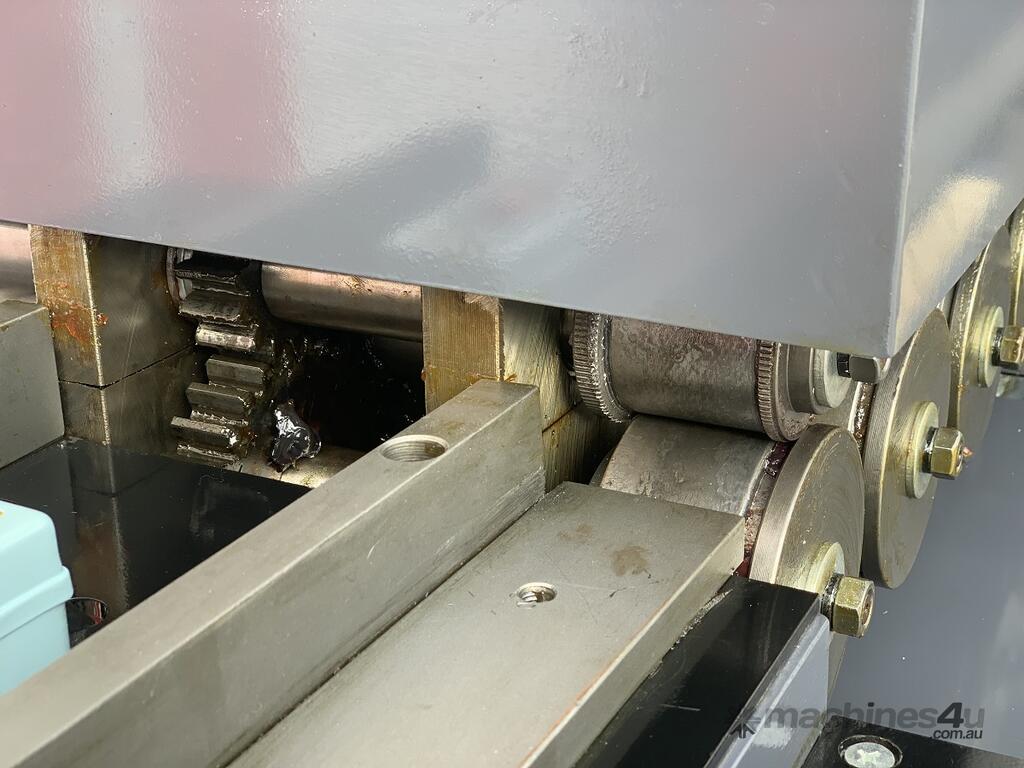

- hardened and ground shafts with case hardened formers

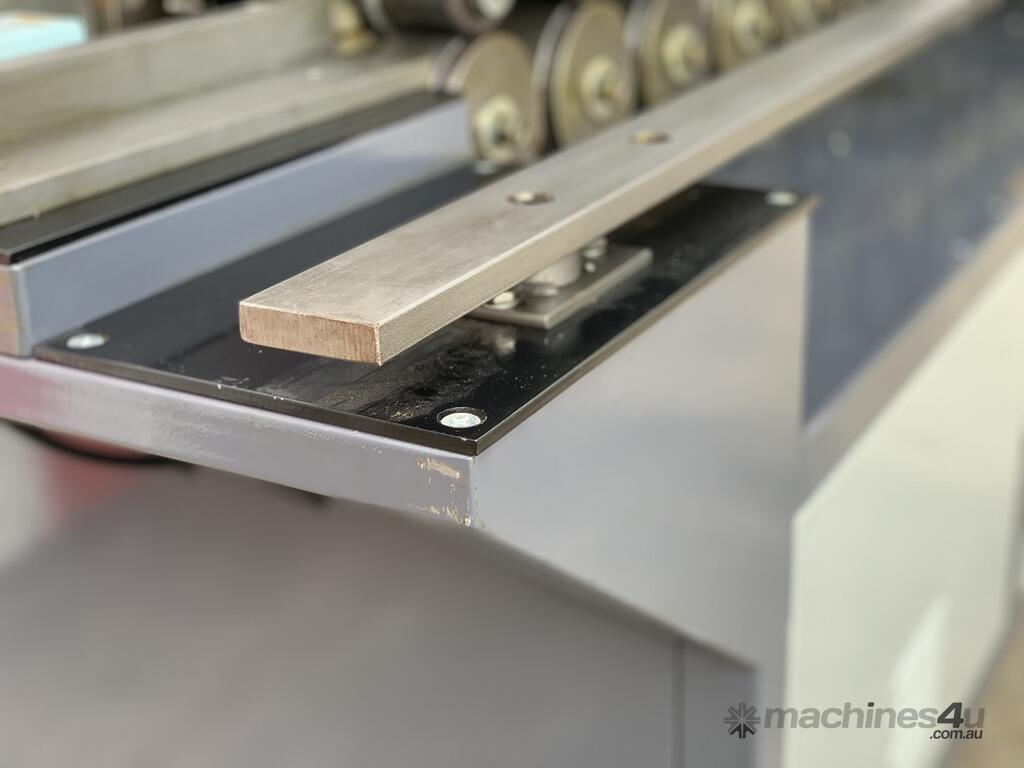

- hardened sheet guides
- 6 m/min. forming speed

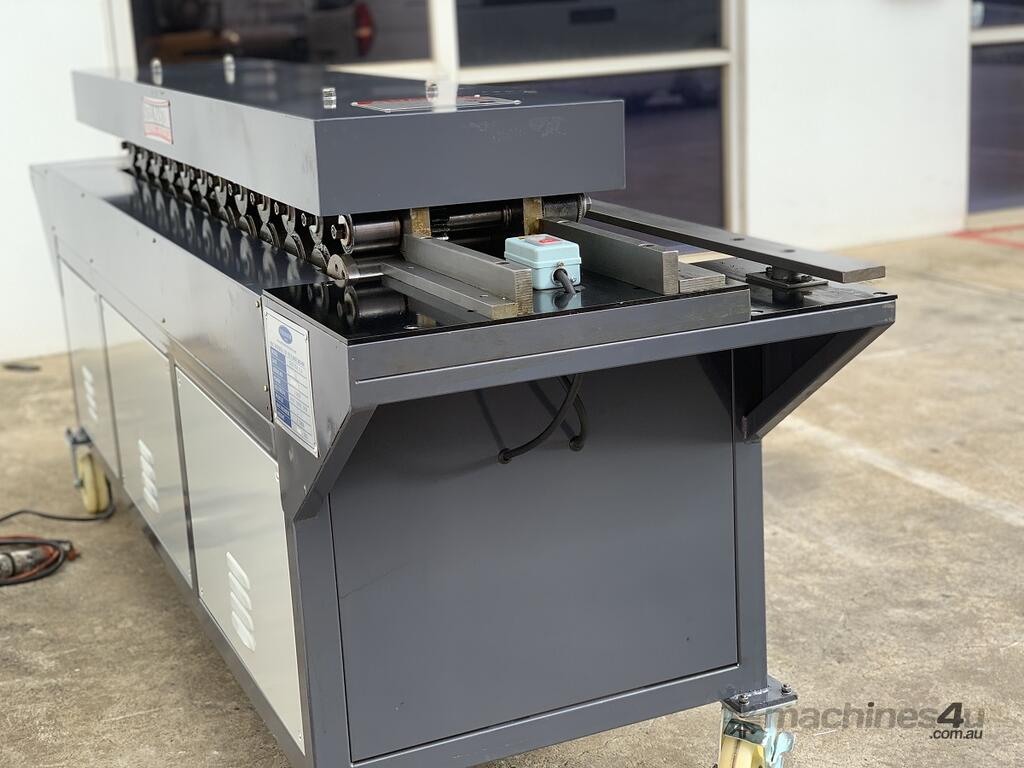

- large in-feed table
- Corner Bracket Clips Can Be Supplied On Request – Min 10000 Pieces
Technical Data

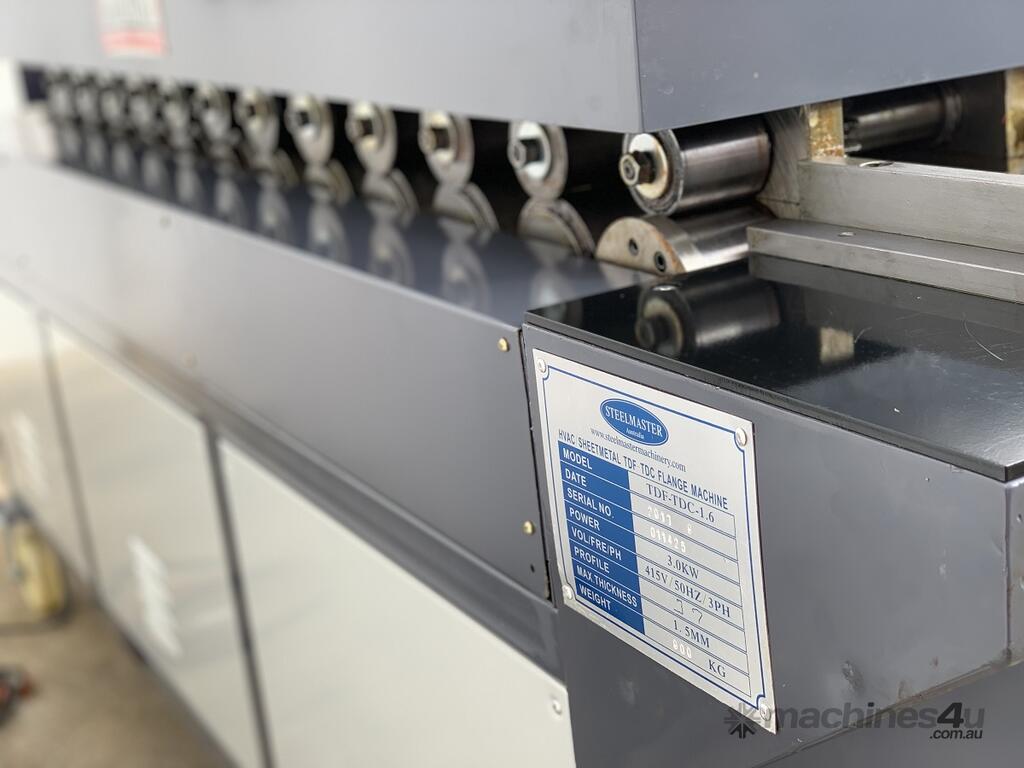

- Model: Steelmaster SM-TDF-1.6
- Capacity - 0.6 – 1.5mm

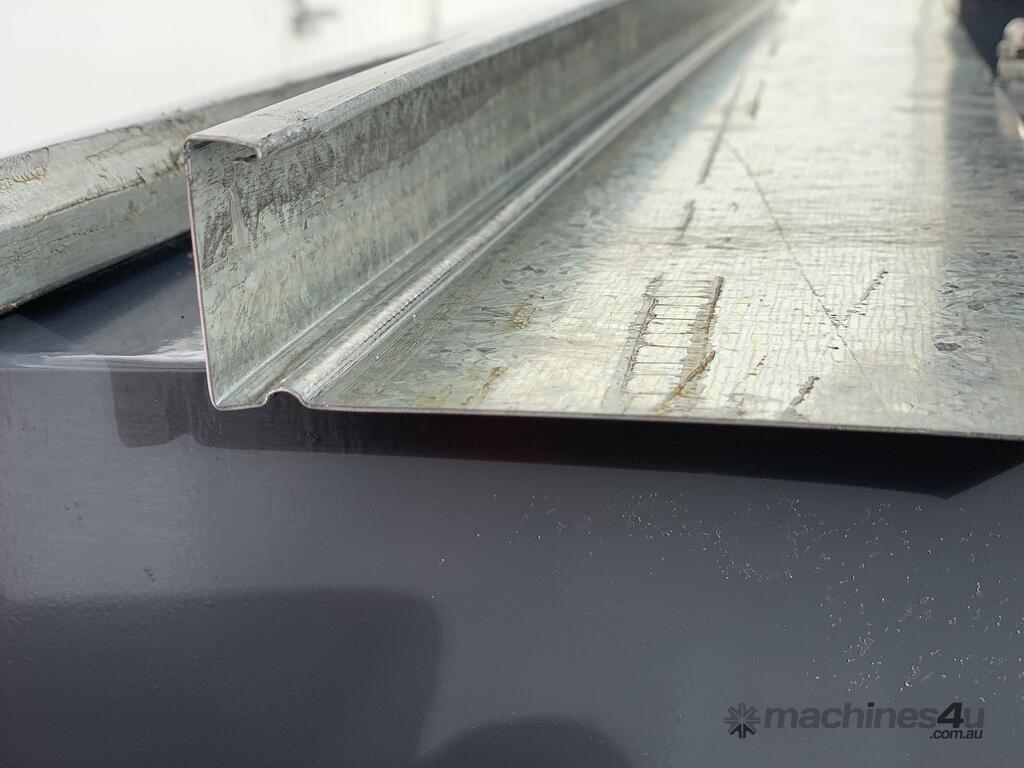

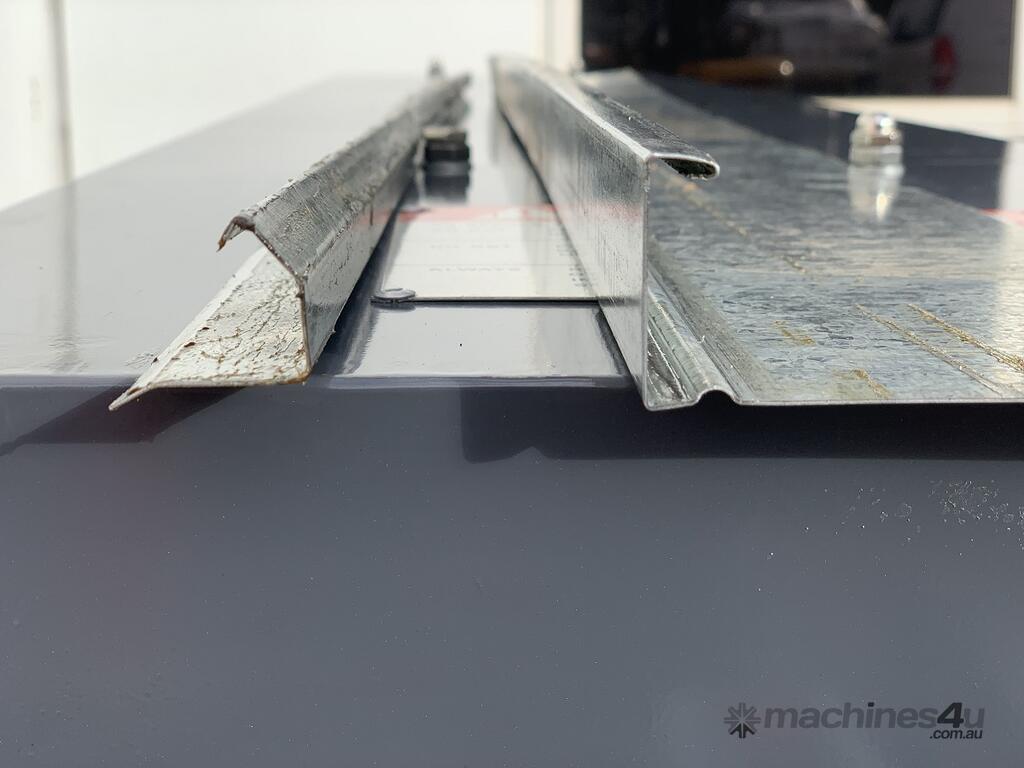

- 25mm & 35mm high TDF profiles formers fitted
- Table Height - 960mm
- Motor - 3kw - Volt
- Dimensions – 2700mm x 700mm x 1100mm x 950kg
We also offer, TDF folders, TDF Powered Flange Machines, Lockseamer, Jenny Swages & More.
