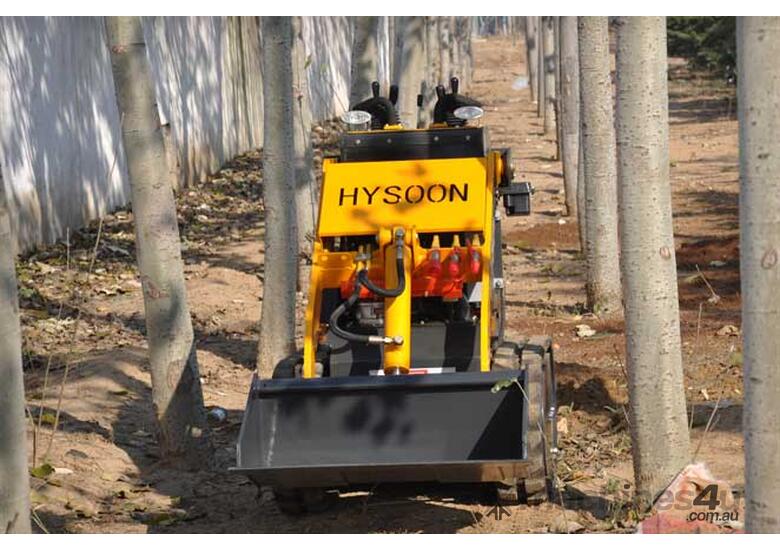

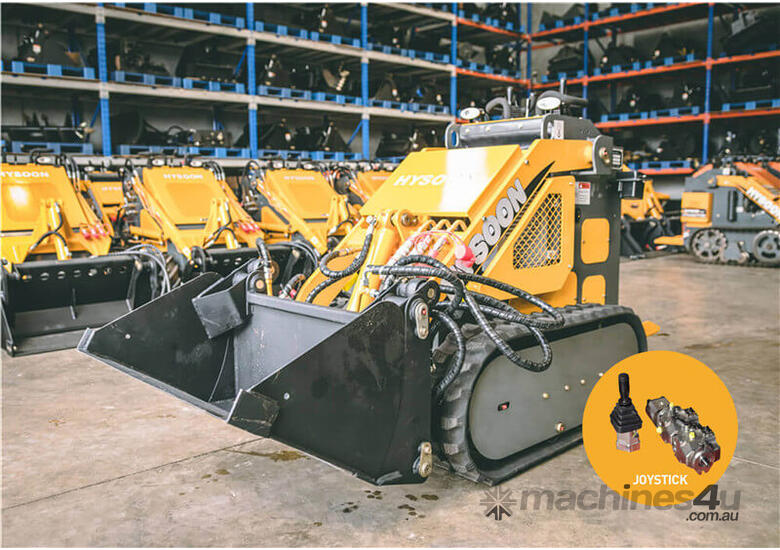

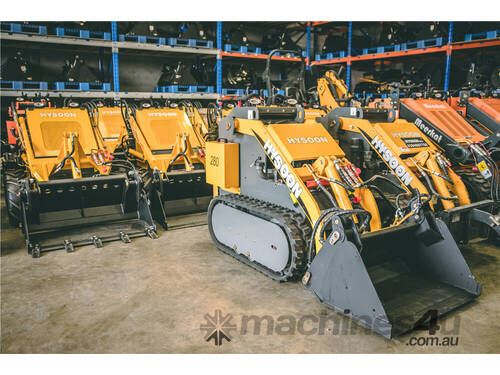

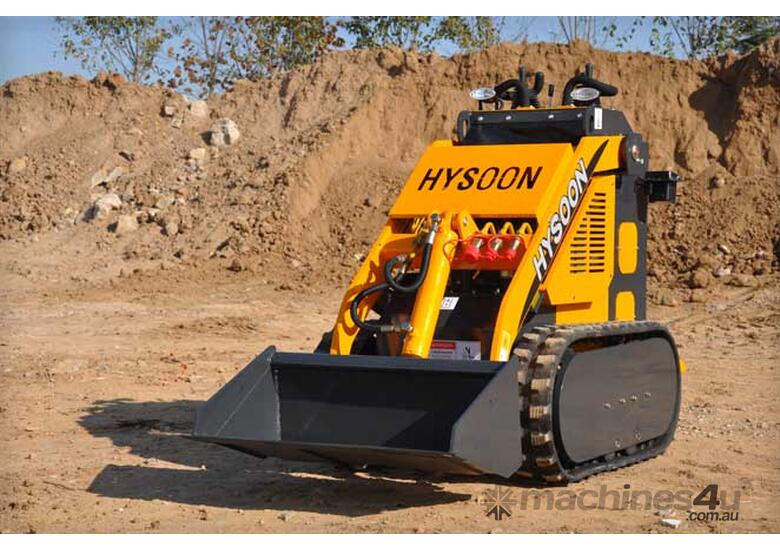

HY280 Mini Skid Steer Loader - Joystick READY TO DELIVER

The width of the HY280 mini skid steer loader is only 860mm, allowing more versatility to work in smaller working spaces, in particular, fitting through gates, doorways etc. It will greatly improve your working efficiency . It’s a great machine for landscapers, builders , electricians, contractors etc.

The machine has been designed with a large 37 ltr fuel tank, allowing for a continuous 6 hours’ work.
The HY280 machine is available with Tracks.

Though it is small, it has amazing features that leave our competitors behind. It has a lift capacity of 375 kg, operating load of 165kg and a dump height of 1412mm. Includes spot lights, Horn, folding rear platform, key lockable petrol cap and bonnet, mobile phone charger point and easy to access grease points.

The hitch backing plate design integrates with the main mini loaders on the market, making it a great machine for all jobs.

With more than 20 different kinds of attachment available to suit the HY280 mini skid steer loader along with the versatility and size makes this machine a valuable piece of machinery for any application.


Standard Specification:
• Engine: Briggs & Stratton Vanguard V twin Petrol 23HP
• Track: Dedicated track system
• Motor: American brand high torque hydraulic Motor
• Hydraulics Pumps: Double pump & triple pump models available
• Bucket: GP and 4 in 1 buckets available
• Size(length*width*height): 2350*840*1250mm (bucket width 880mm)
• Bucket capacity: 0.12cbm
• Operating weight: 855kg (machine only)


Facts about HY280
Specially designed motor support sleeve
When compared with conventional two-motor drive machines, the HY280 adopts a four hydraulic motor direct drive system that drives the wheels . This reduces transmission components such as sprockets, chains, sprocket shafts, bearings, etc., and avoids the hidden problems that those components could cause.

Common to mini diggers on the market now with a four hydraulic motor design is that the motor is mounted on the side plate of the rack, with the motor output shaft cantilever mounts over the tyres. The motor output shaft is then unsupported and operational forces could reduce the service life of the motor. Also motor maintenance and disassembly must be done from the inside of the rack and it is a complex task.

However, the mini digger's four-motor-driving system is connected to the frame through a specially designed motor support sleeve and the forces transmitted to the motor output shaft have been reduced by more than 50%, significantly improving the service life of the motor. At the same time, the motor can be easily removed by loosening the bolts of the externally mounted motor support sleeve, reducing maintenance downtime and labour costs if required.

Mini diggers designed to work in narrow spaces for the professional & DIY
When the HY280 is fitted with either track or narrow tyre, the width of the whole machine is only 835mm, so it can be easily driven into the backyard or through narrow gates. The maximum working height of the HY280 mini digger's hinge pin is 1798mm significantly more than some others on the market, whose maximum working height can be only 1670mm.


Warranty
Hysoon Australia covers all the machines and attachments with a full 12-month warranty on all parts and labor.
