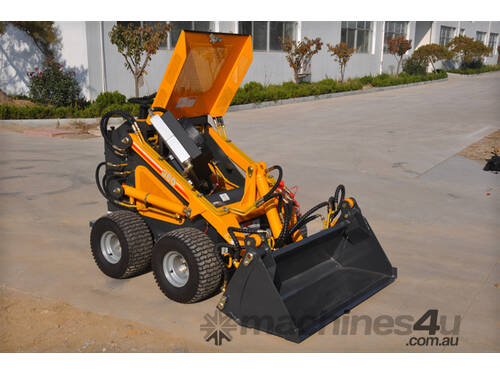

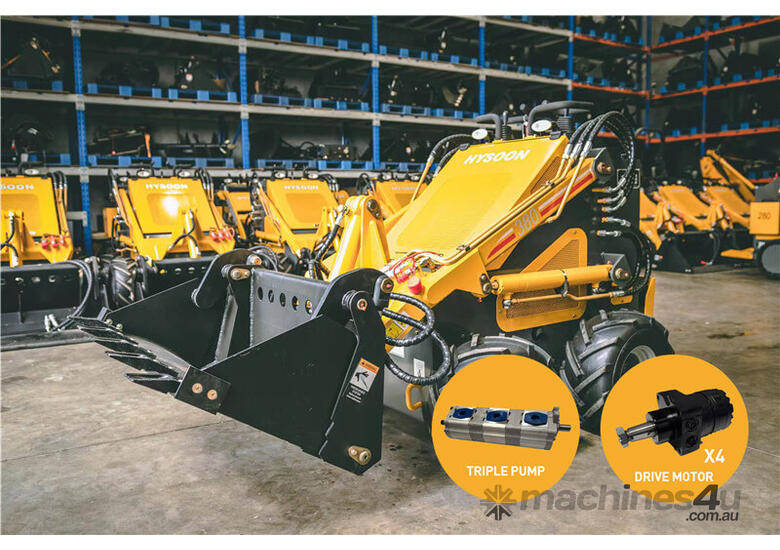

HY380 Mini Loader (Triple Pump + Drive Motor x4) IN STOCK

HYSOON HY380 Mini diggers designed to work in narrow spaces for the professional & DIY

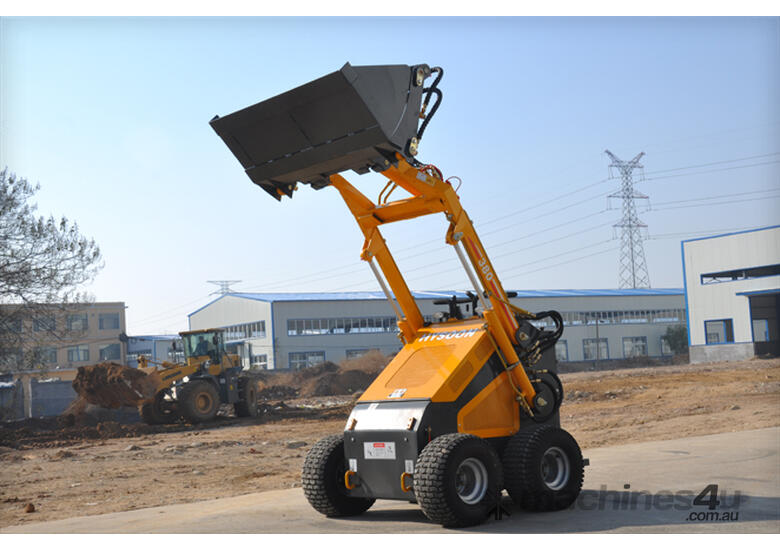

When the HY380 is fitted with tyres, the width of the whole machine is only 1150mm, so it can be easily driven into the backyard or through narrow gates. The maximum working height of the HY380 mini digger's hinge pin is 1884mm, significantly more than some others on the market, whose maximum working height can be only 1670mm.

The quick fit industry standard hitch plate is compatible with other leading brands so you can use your existing attachments or any other that you may rent out.

With more than 20 different kinds of attachment available to suit the HY380 mini skid steer loader along with the versatility and size makes this machine a valuable piece of machinery for any application.

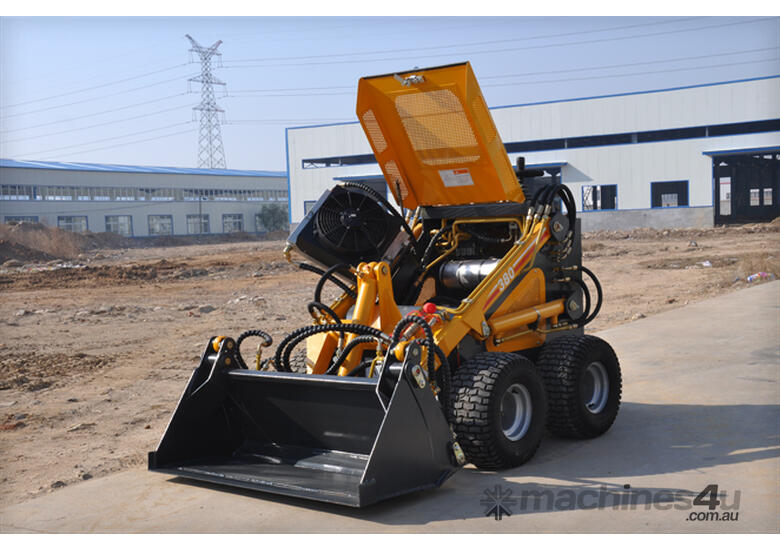

Some of the amazing features Include spot lights, Horn, folding rear platform, key lockable petrol cap and bonnet, mobile phone charger point and easy to access grease points.

The 380 is available with a variety of tyre options according to your applications, they include Chevron High Traction tyres for mud and dirt, Turf tyres that run smooth to help reduce damage to lawns. Special wear-resistant solid tires for heavy applications on concrete or a waste management yard to eliminate punctures.

Standard Specification:
• Engine:Briggs & Stratton Petrol Engine(23HP)
• Tyre:Chevron tire
• Motor: high torque motors
• Hydraulic Pump: Gear type
• Bucket:optional 4 in 1 bucket or GP bucket
• System pressure:17Mpa
• System flow: 51L/min
• Speed:0-6.0km/h
• Size ( length *width *height):2206*1160*1233mm
• Bucket capacity:0.15cbm/200kg
• Operating weight:940kg

Facts about HY380
Specially designed motor support sleeve
When compared with conventional two-motor drive machines, the HY380 adopts a four hydraulic motor direct drive system that drives the wheels . This reduces transmission components such as sprockets, chains, sprocket shafts, bearings, etc., and avoids the hidden problems that those components could cause.

Common to mini diggers on the market now with a four hydraulic motor design is that the motor is mounted on the side plate of the rack, with the motor output shaft cantilever mounts over the tyres. The motor output shaft is then unsupported and operational forces could reduce the service life of the motor. Also motor maintenance and disassembly must be done from the inside of the rack and it is a complex task.

However, the mini digger's four-motor-driving system is connected to the frame through a specially designed motor support sleeve and the forces transmitted to the motor output shaft have been reduced by more than 50%, significantly improving the service life of the motor. At the same time, the motor can be easily removed by loosening the bolts of the externally mounted motor support sleeve, reducing maintenance downtime and labour costs if required.

Mini diggers designed to work in narrow spaces for the professional & DIY
When the HY380 is fitted with either track or narrow tyre, the width of the whole machine is only 835mm, so it can be easily driven into the backyard or through narrow gates. The maximum working height of the HY280 mini digger's hinge pin is 1798mm significantly more than some others on the market, whose maximum working height can be only 1670mm.

Warranty
Hysoon Australia covers all the machines and attachments with a full 12-month warranty on all parts and labor.
