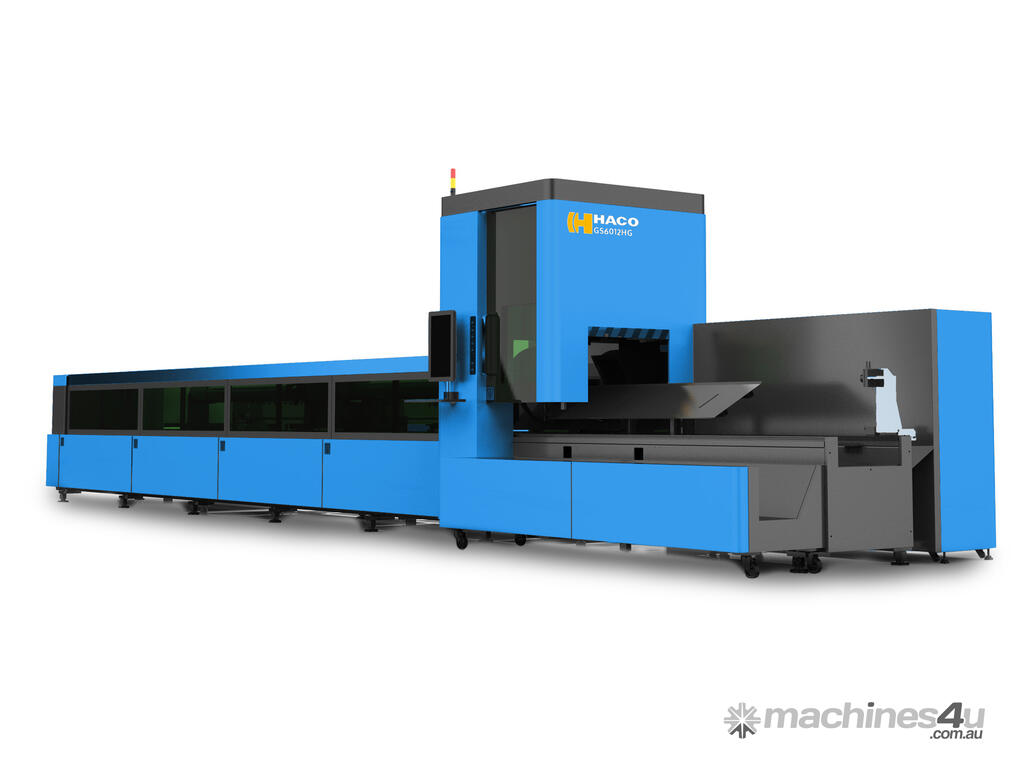

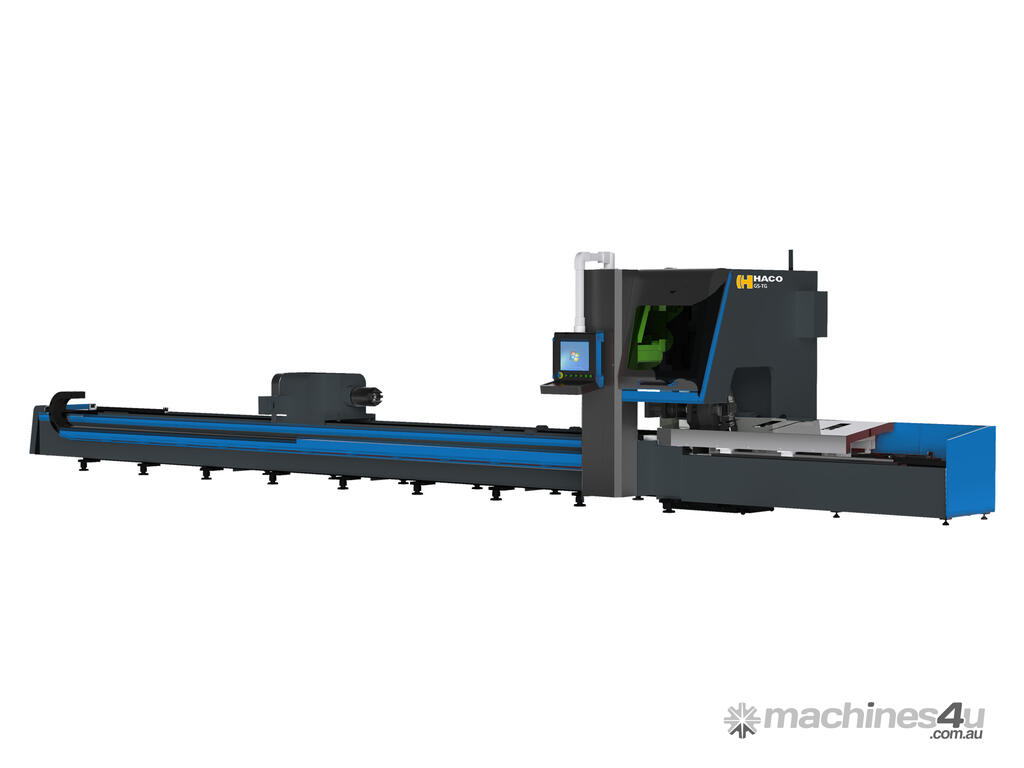

Haco - Fiber Tube Laser
Model HFL-GS6022HG
HG model standard specifications as below:

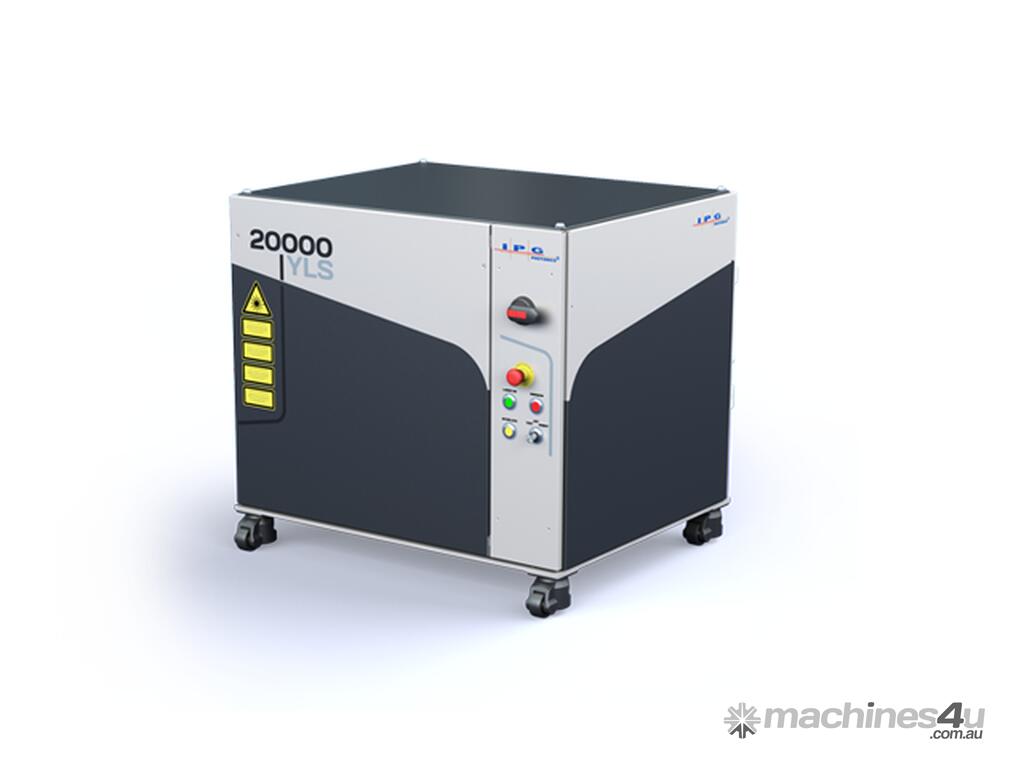

Laser Type Fiber Laser IPG
Laser Power 2000W
Functions: 3 chucks; Zero tailing function; automatic unloading material device
(and the unloading length can be 6m Option)
Tube Cutting Length Range Max 6000 mm
Maximum chuck load capacity 180 kg
Maximum length of laying-off 6000mm
Y-axis travel 7500 mm
X-axis travel 450 mm
Z-axis travel 450 mm
A-axis travel Infinite rotating
W-axis travel Infinite rotating

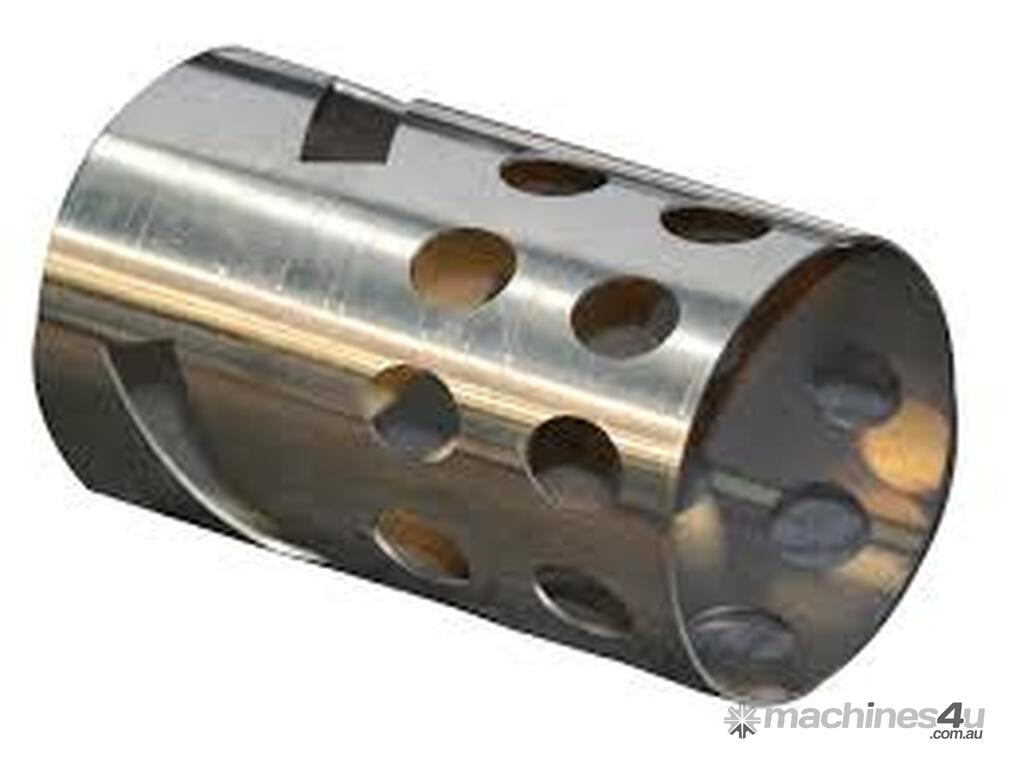

Round Tube Cutting Diameter Range 15mm~220mm (other sizes available)

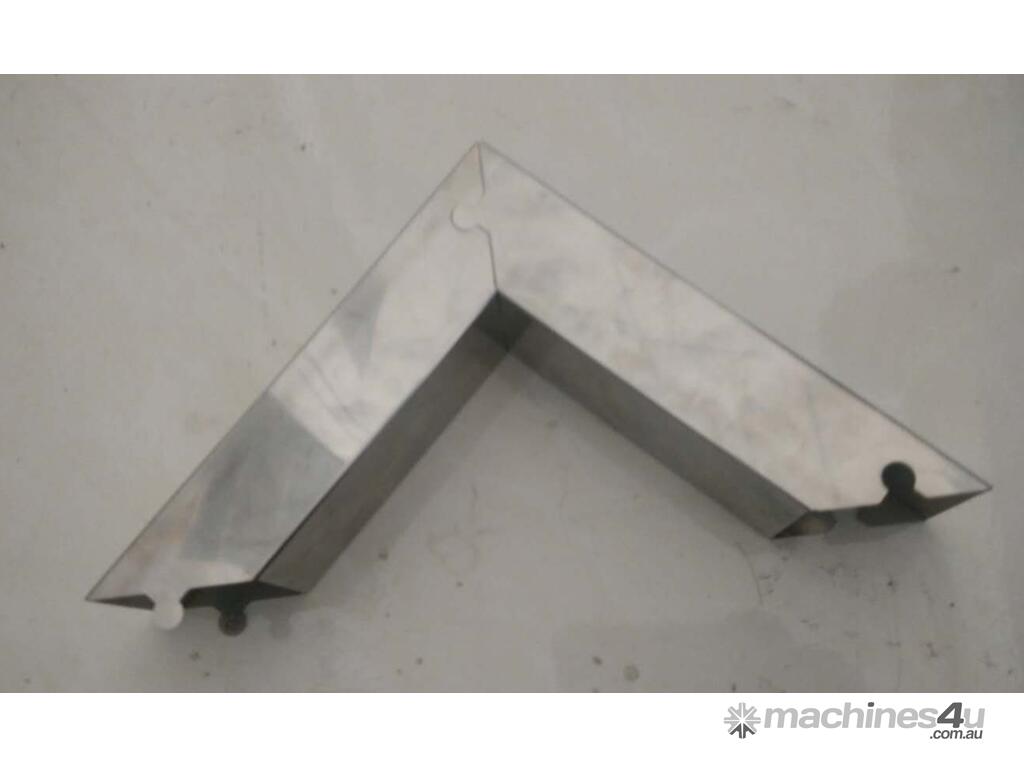

Square Tube Cutting Range 20mm x 20mm ~150mm x 150mm
Other available tube: Rectangular tube, round tube, OB tube, D-tube, triangle tube, elliptical tube, equal-diameter shaped tube and other standard tube type
Working Voltage 380 V/50Hz
Power Consumption 24.33 KW
Automatic clamp tube Yes
Follow-up support Yes
Machine Dimension 12500*2500*2560mm
Gross weight 10 tons
Option:
Automatic Bundle Loading unit Moreprice $TBA + gst
load multiple lengths of material in stacker and machine automatically feeds onto system for cutting

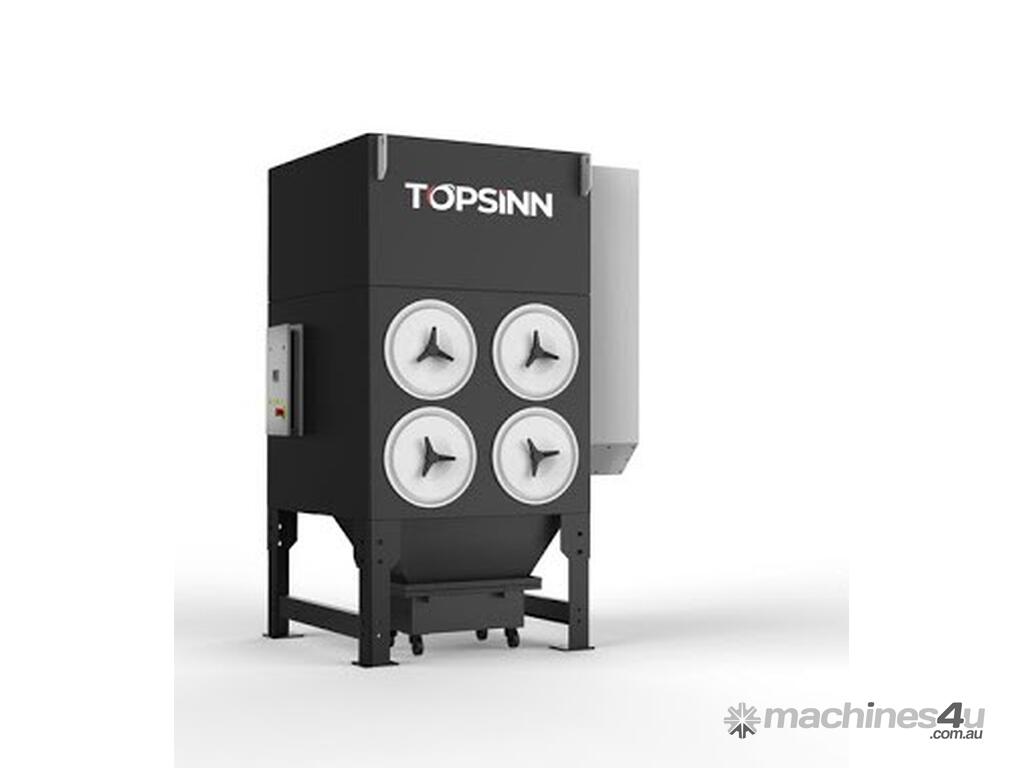

Fume Dust Extractor $16950.00 + gst
