Haco Euromaster S 30150-4A CNC Pressbrake 3.1m x 150T

Haco Euromaster S 30150 CNC Pressbrake 4 Axis backgauge

THE NEW HACO EUROMASTER–S Pressbrakes combine:
- ACCURACY
- SPEED
- RELIABILITY
- REPEATABILITY

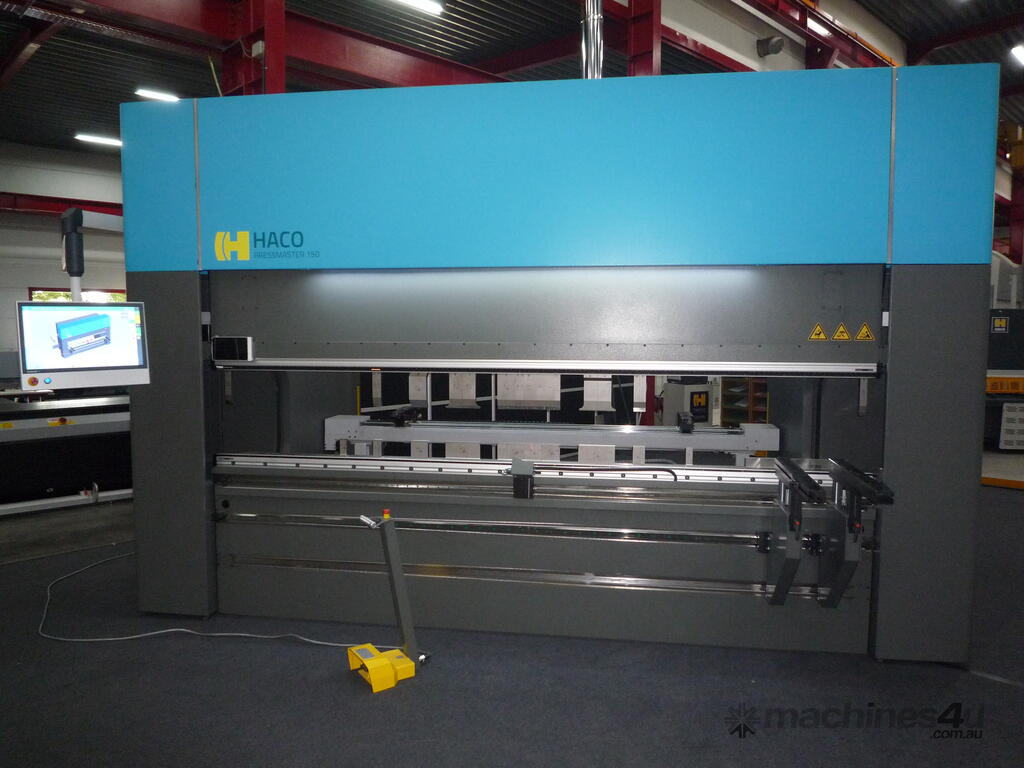

Euromaster-S 30150 3.1M x 150T 7 AXIS CNC CONTROLLED PRESSBRAKE
(AXIS:Y1-Y2/X-R/Z1-Z2/ADT)

Equipped with our FASTBEND 2D Multi Touch Premium operator control, the EUROMASTER-S series machines are a combination of modern technology with high accuracy, high speed positioning, superior reliability and repeatability.

The EUROMASTER-S provides outstanding performance.
Our 2D graphic CNC controls with automatic bending sequence calculation, high-speed back gauge systems, tooling choice and safety equipment make the EUROMASTER-S Pressbrake the most complete offer in the market.

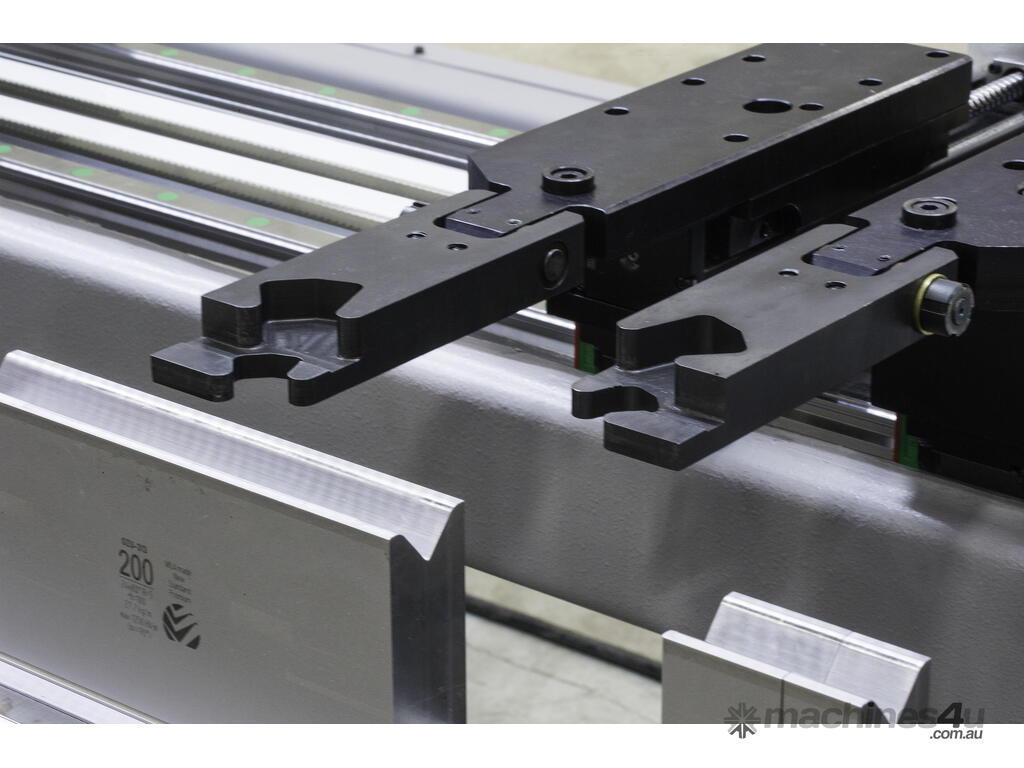

The 4-axis asymmetric backgauge (X/R/Z1/Z2) system gives the operator all the flexibility he
needs. With the independent finger width, we can set up divided dies over the full table length and
move both finger blocks over the full length of the bed

SPECIFICATIONS:

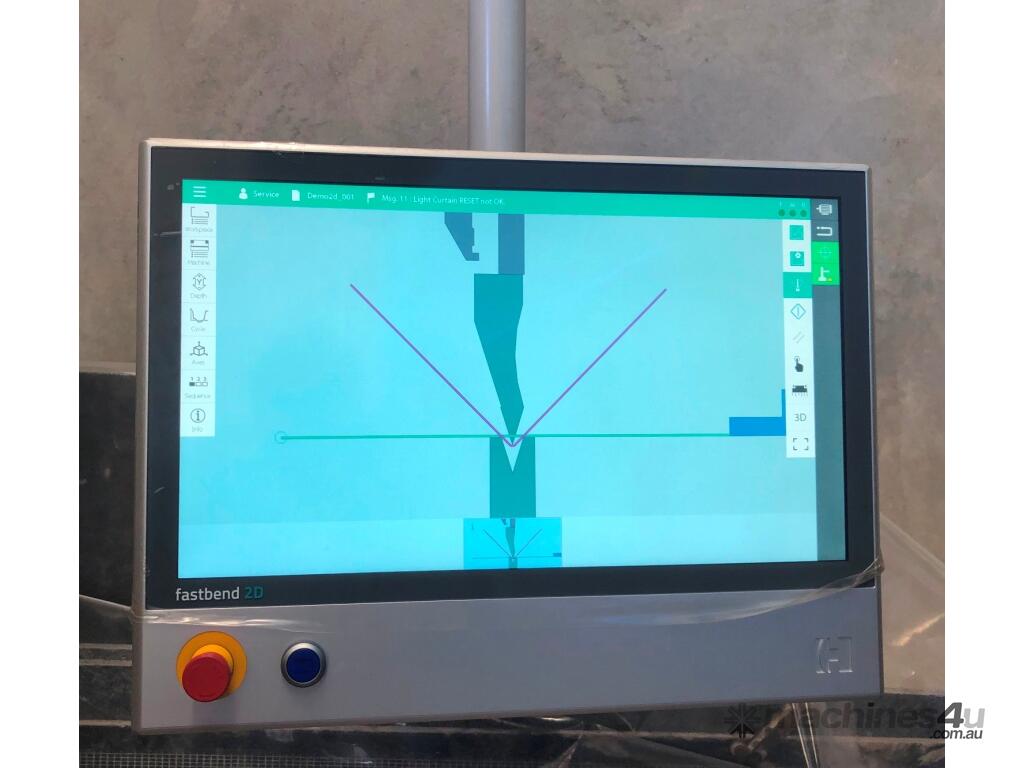

• FastBEND-2D MT Premium Graphic Control with 21.5” Touch Screen
• Fast X/R/Z1-Z2, 4-axis backgauge.
• Y1/Y2 Hydraulic SYNCHRO axis with 0.01mm positioning accuracy.
• 520mm Daylight 270mm Stroke
• Fast Approach Speed 200mm/s (models up to 2000kN)
• Stroke X-axis = 800mm
• Speed X-axis = 800mm/s (models up to 4m and 2500kN)
• Stroke R-axis = 130mm (models up to 4m and 2500kN)
• Speed R-axis = 350mm/sec
• Speed Z-axis = 800mm/sec
• Throat Depth 400mm
• European Standard top tooling with quick release tool change clamps
• CNC Crowning Table.

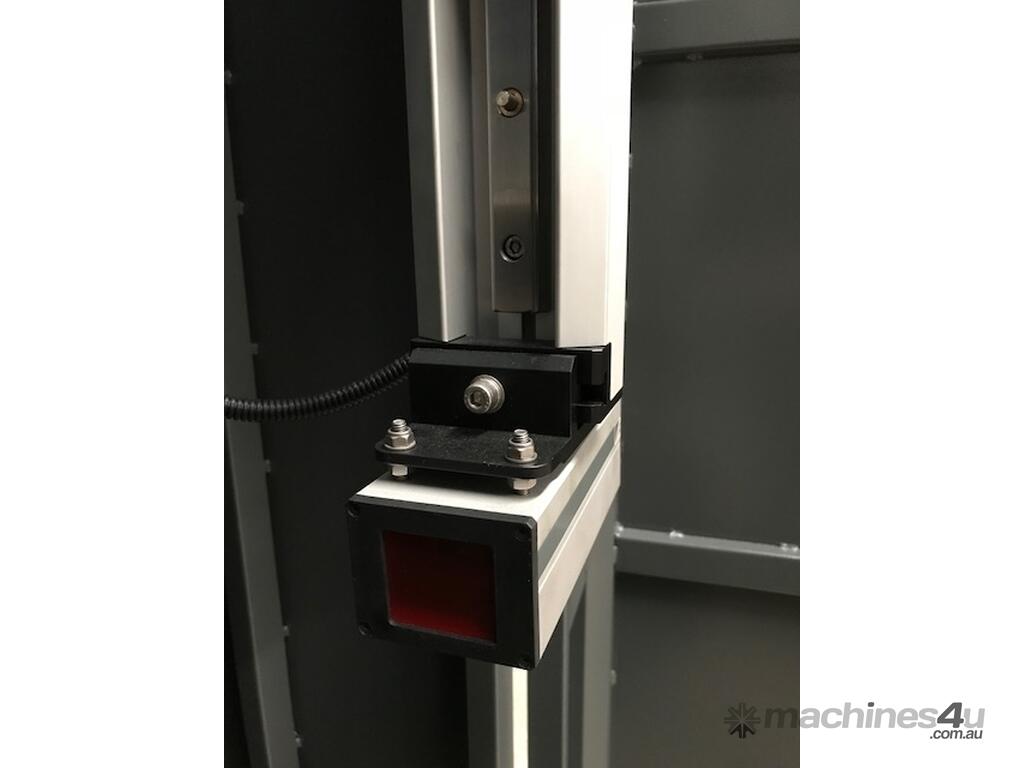

• Manufacturer supplied Laser Safety light guard with 2mm Fast-slow point
• Operation, programming and maintenance manual.
• Foot pedal control
Manufacturers Installation & Backup Australia Wide
