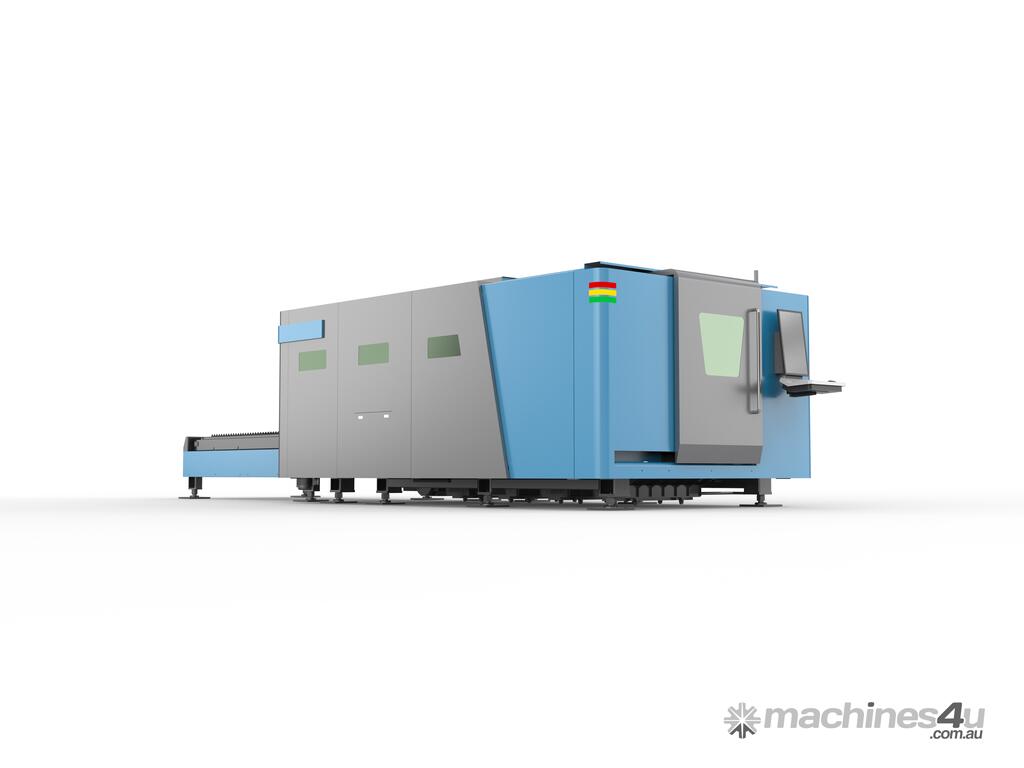

Haco - Fiber Laser Machine 6000w
Model HFL-GSH6025

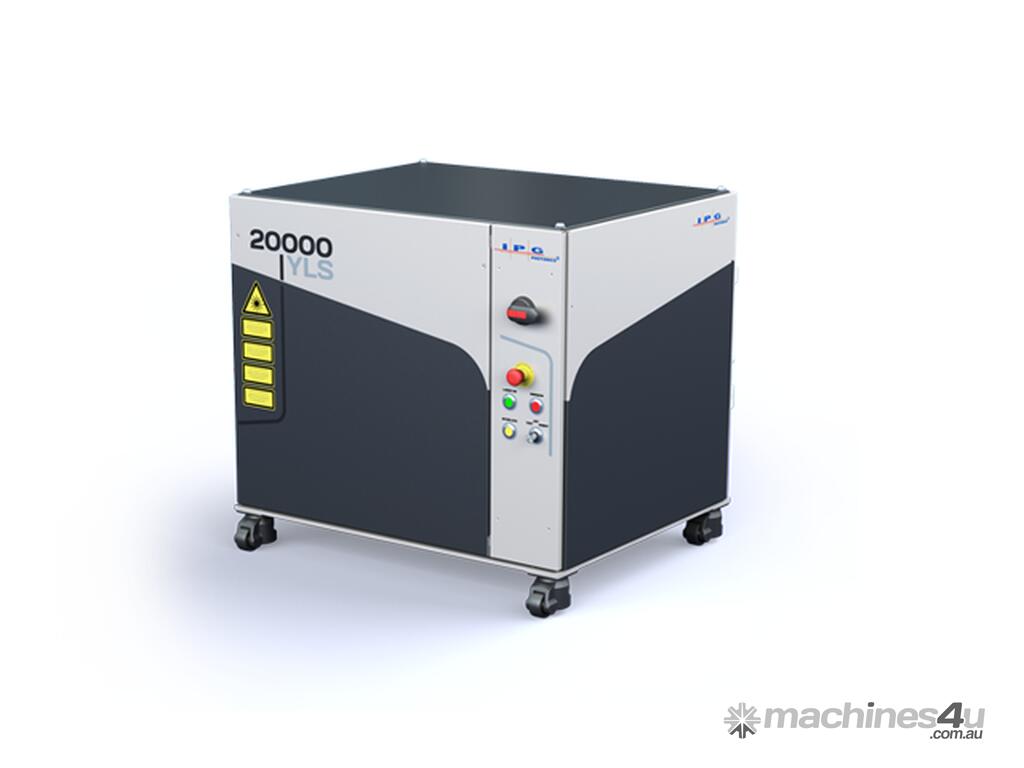

Laser Type Fiber Laser IPG
Laser Power 3000 W
Stroke of X-Axis 3030mm
Stroke of Y-Axis 1520mm
Stroke of Z-Axis 290mm
Max acceleration 2.8G
Machine Dimension 15300*4200*2500 mm
Gross weight 16000 kg
Cutting Parameters
Material Max cutting thickness 6000W
Mild steel 25 mm 22 mm Pierce
Stainless Steel 16 mm
Aluminum Alloy 12 mm
Brass/Copper 6 mm
Accessories included

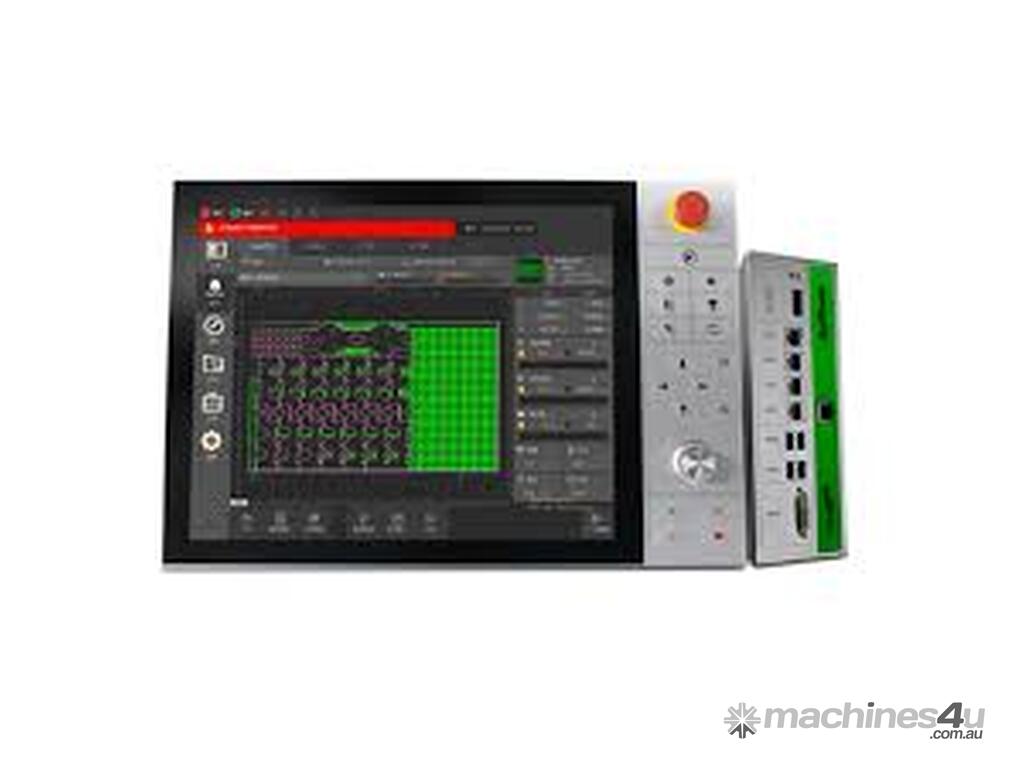

Control Software Hypcut laser cutting control system
Nesting software Integrated with Cypcut
IPC High stability industry PC
Voltage Regulator Standard Configuration
Inner Camera Standard Configuration
Automatic lubrication system Standard Configuration
Collect Trolley Standard Configuration
Remote Control Standard Configuration
Options

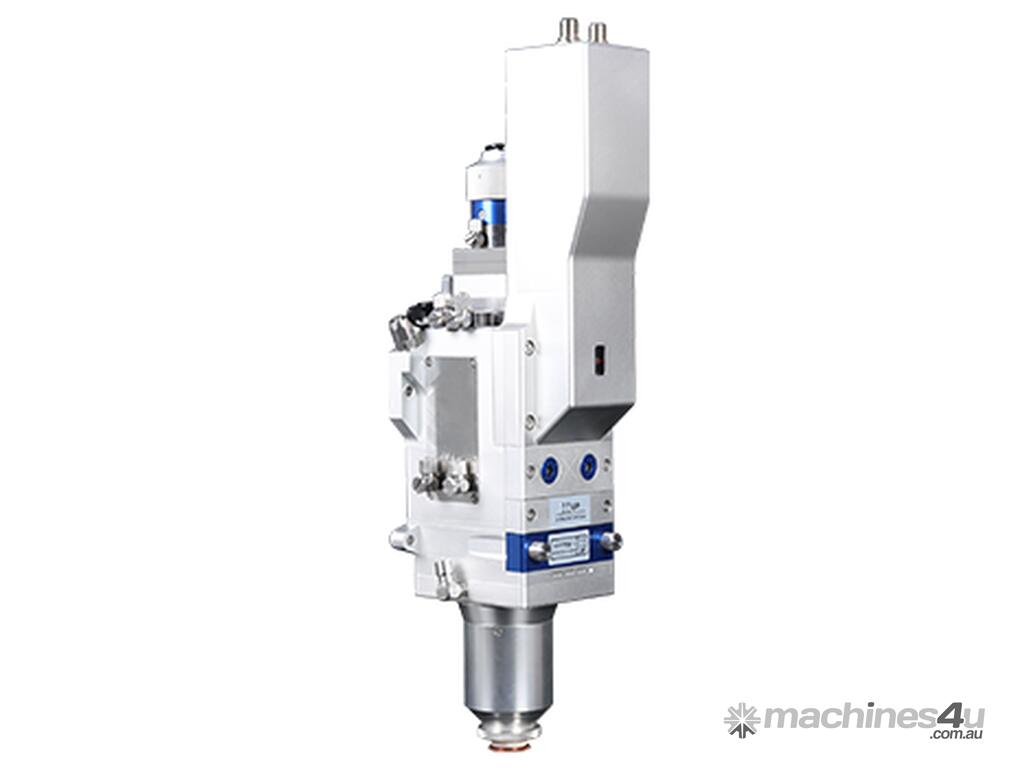

Precitec Laser Head

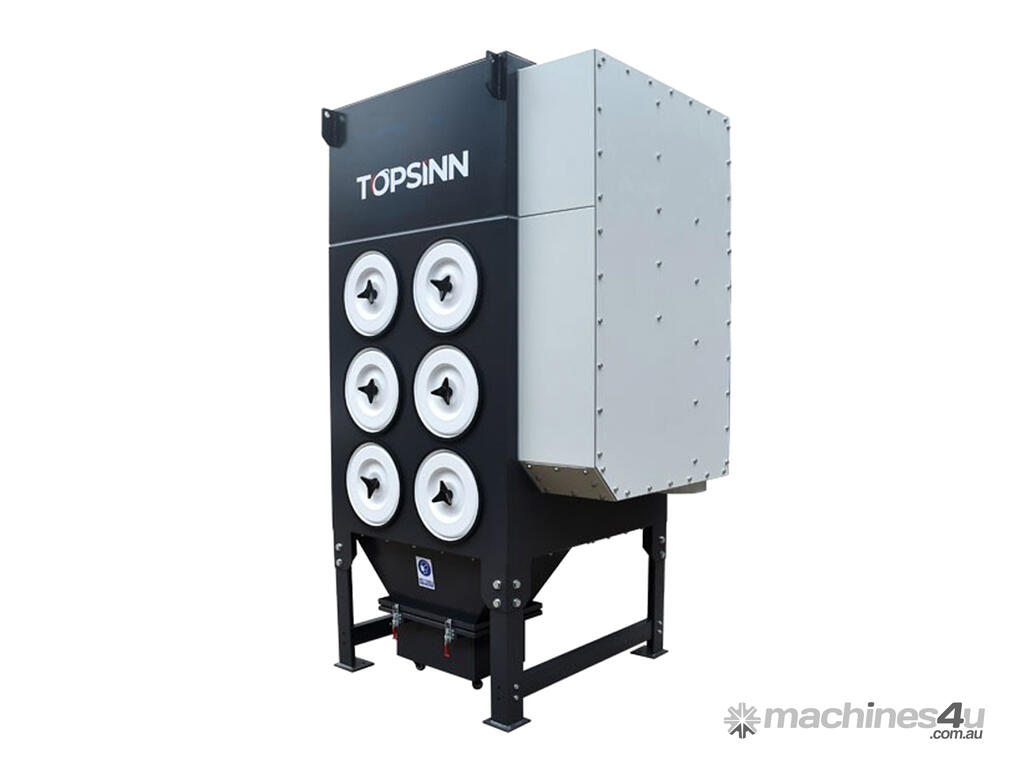

Dust-Fume Collector
