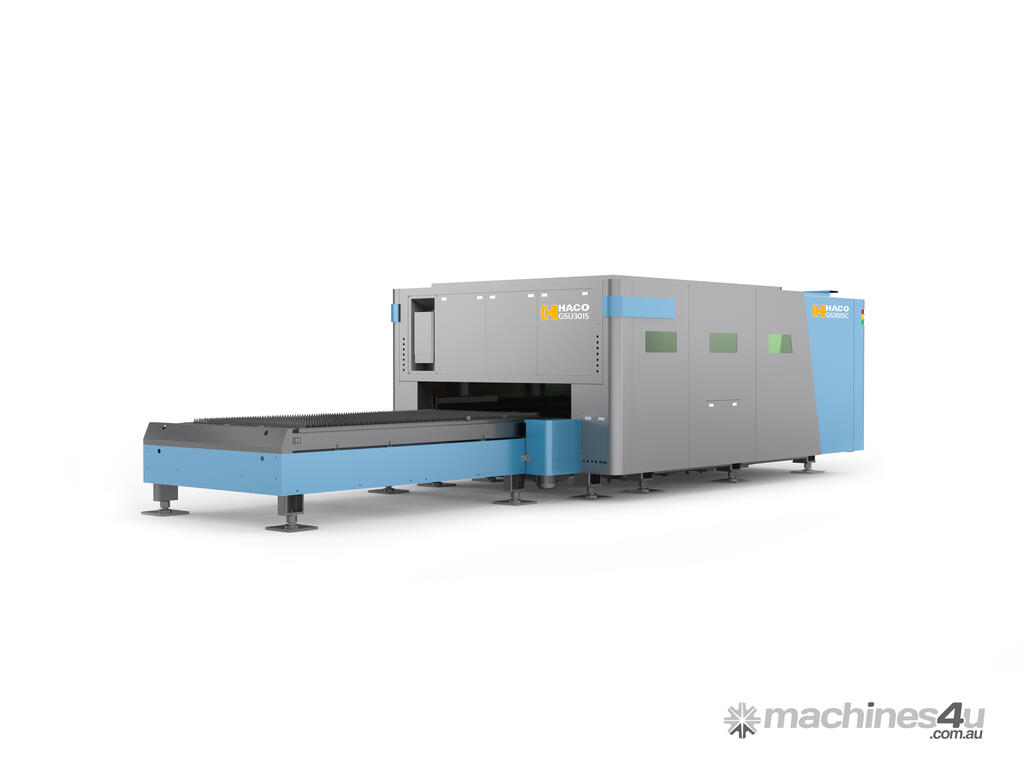

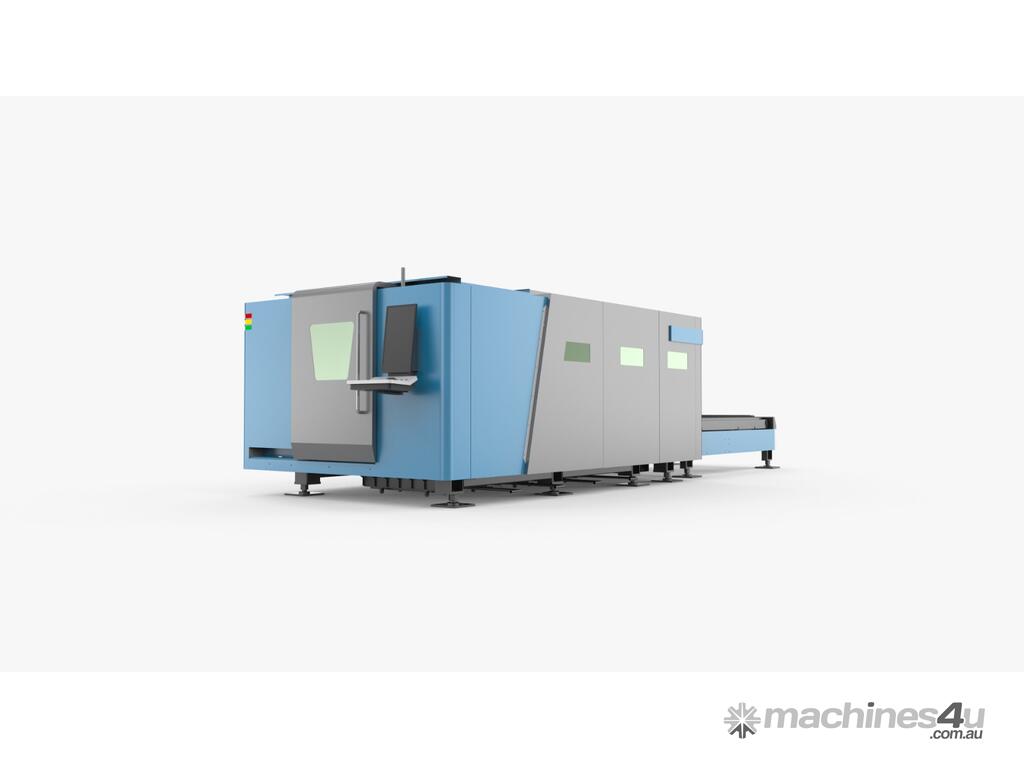

Haco Fiber Laser GSU3015-12000W

Haco - Fibre Laser Machine 12000w
Model HFL-GSU3015

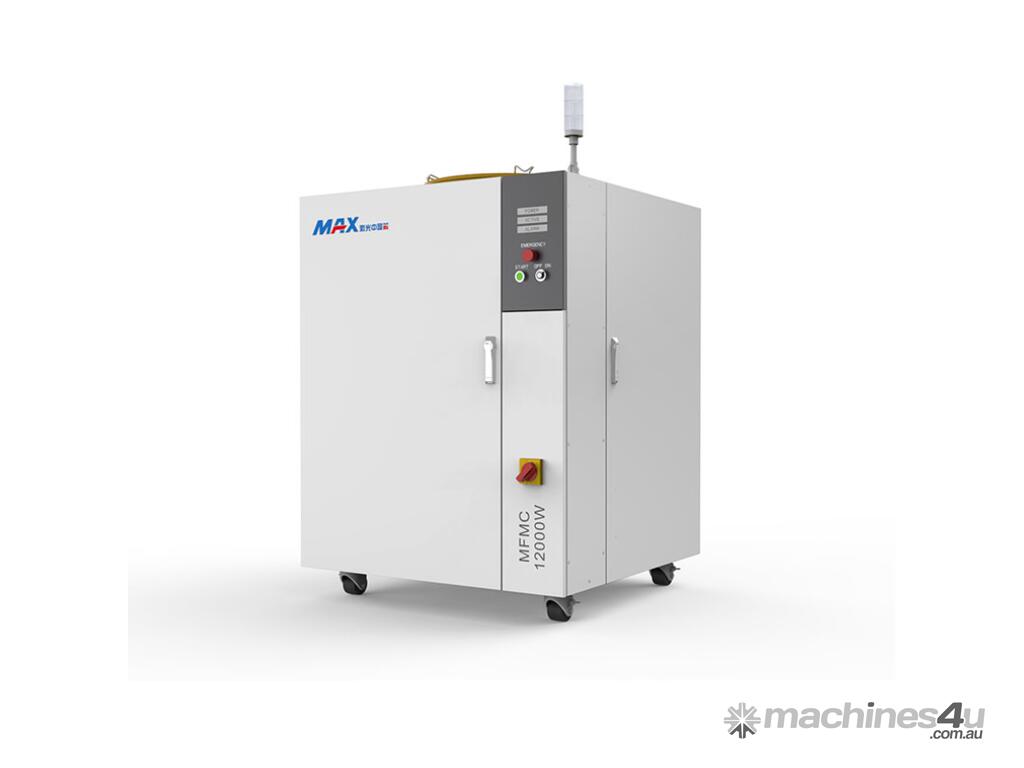

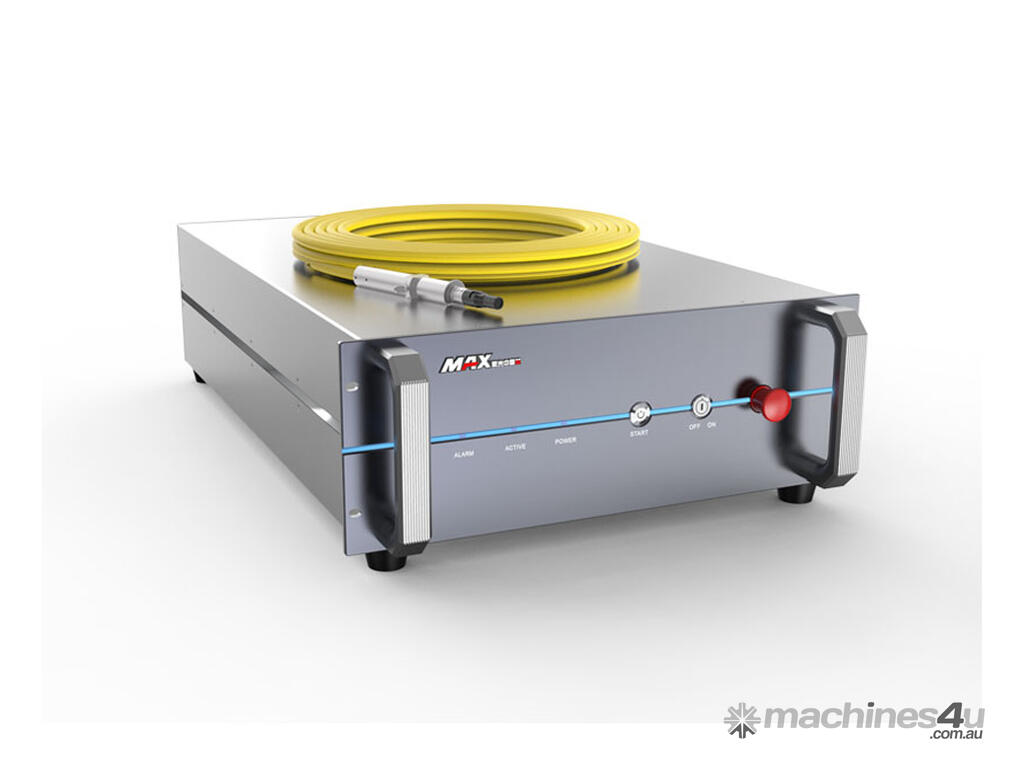

Laser Type Fiber Laser Max
Laser Power 12000 W
Stroke of X-Axis 3050mm
Stroke of Y-Axis 1520mm
Stroke of Z-Axis 290mm

Machine Dimension 8500*2850*2500 mm
Gross weight 9000 kg

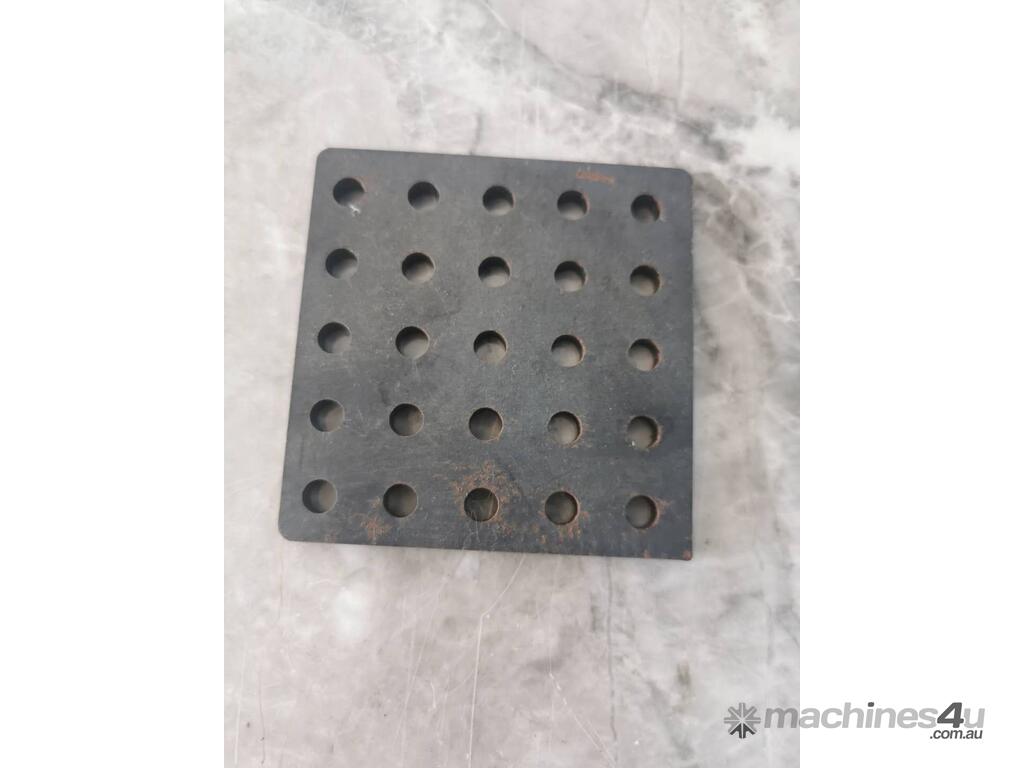

Cutting Parameters
Material Max cutting thickness 3000W
Mild steel 45 mm 35 mm Pierce
Stainless Steel 30 mm
Aluminum Alloy 30 mm
Brass 12 mm

Accessories included
Control Software Cypcut Most popular control system
Nesting software Integrated with Cypcut
IPC High stability industry PC
Voltage Regulator Standard Configuration
Inner Camera Standard Configuration
Automatic lubrication system Standard Configuration
Collect Trolley Standard Configuration
Remote Control Standard Configuration

Standard Features:

- Touch screen controller
- Air filtration system

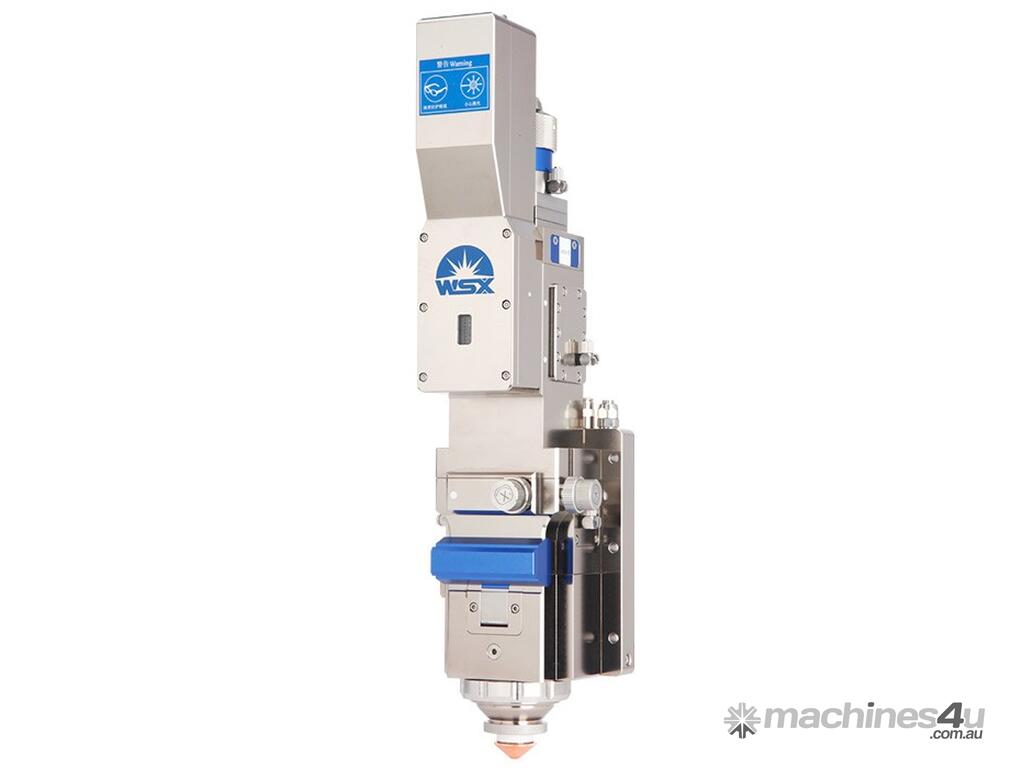

- Auto focus cutting head
- Pneumatic safety door at rear of the machine

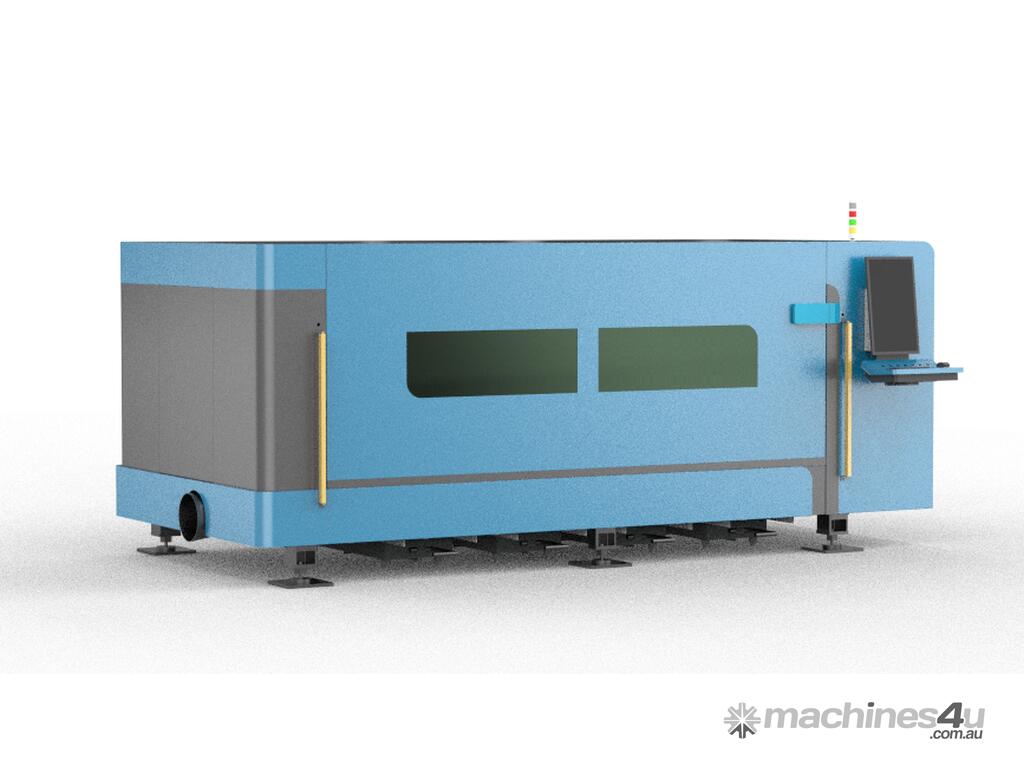

- Fully enclosed design
- Laser grade safety glass
- Controller has the ability to network to office PC or server for file transfer
- Internal LED lighting
- External 3 colour status lamp

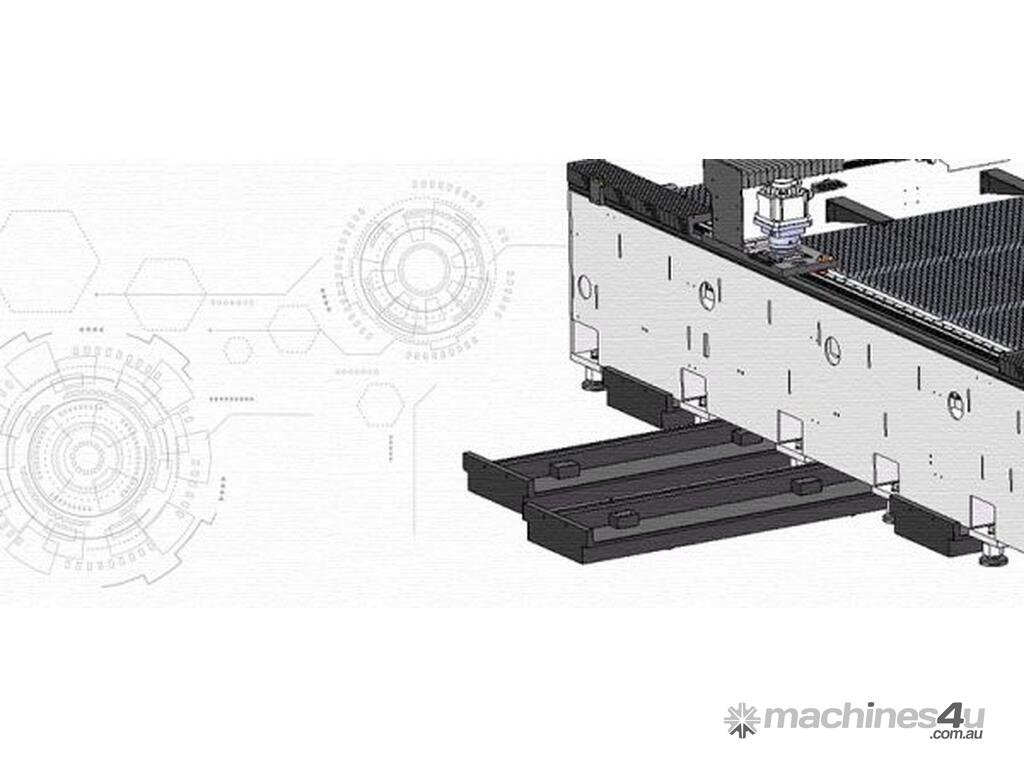

- Solid heavy duty frame for greater vibration absorption
- Quick changing of exchange tables
- Oxygen Air & Nitrogen auto gas selection via a servo valve

Options
Precitec Laser Head (only available on new orders)
Dust-Fume Collector

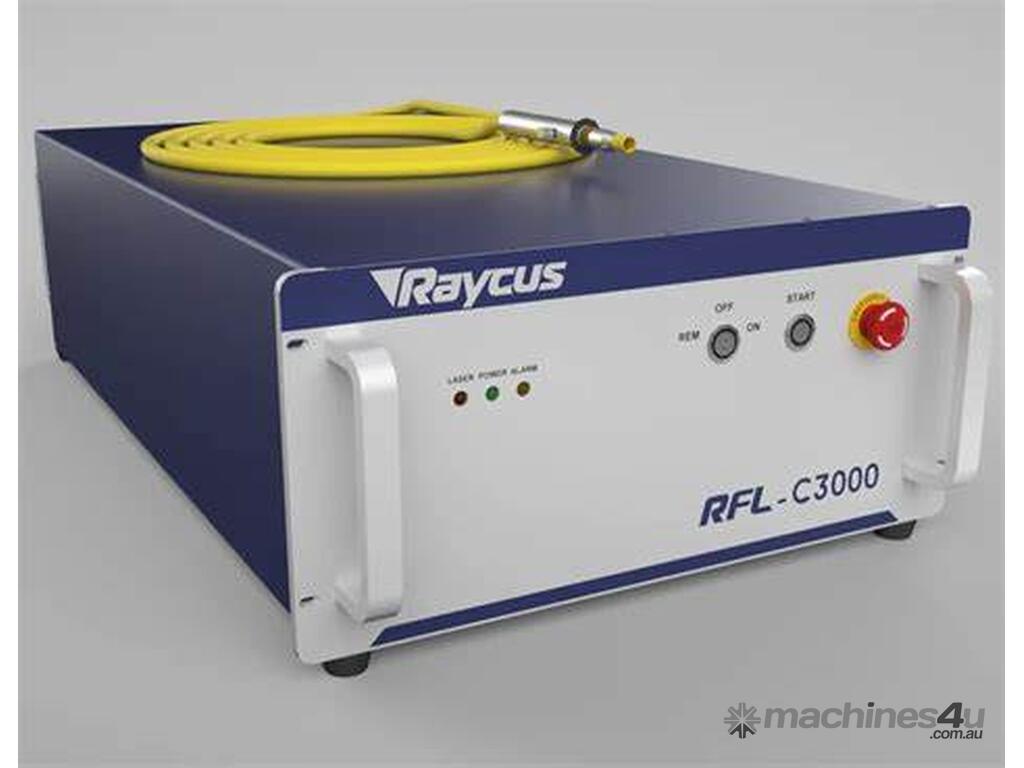

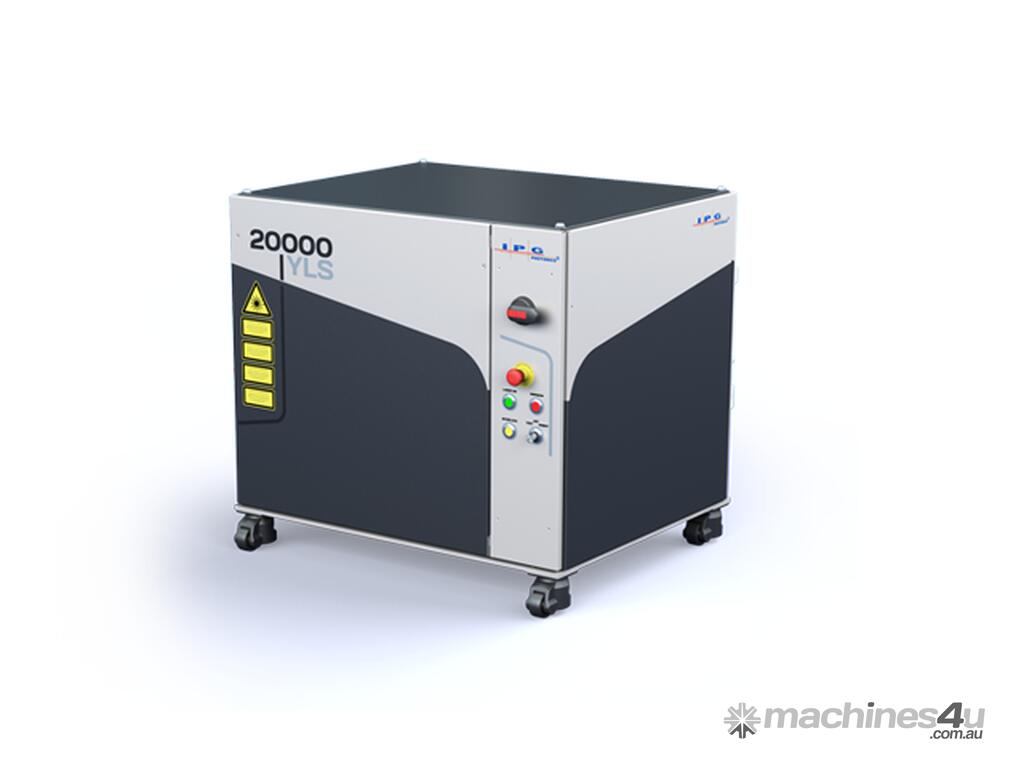

Raycus or IPG Laser Source Moreprice TBA
