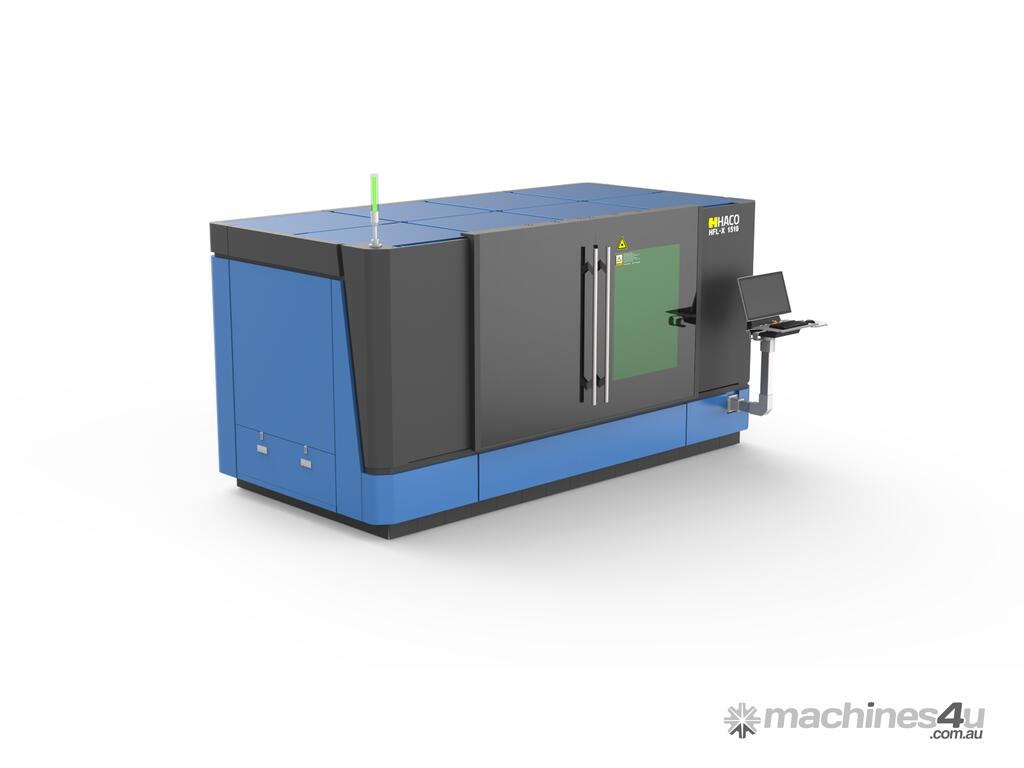

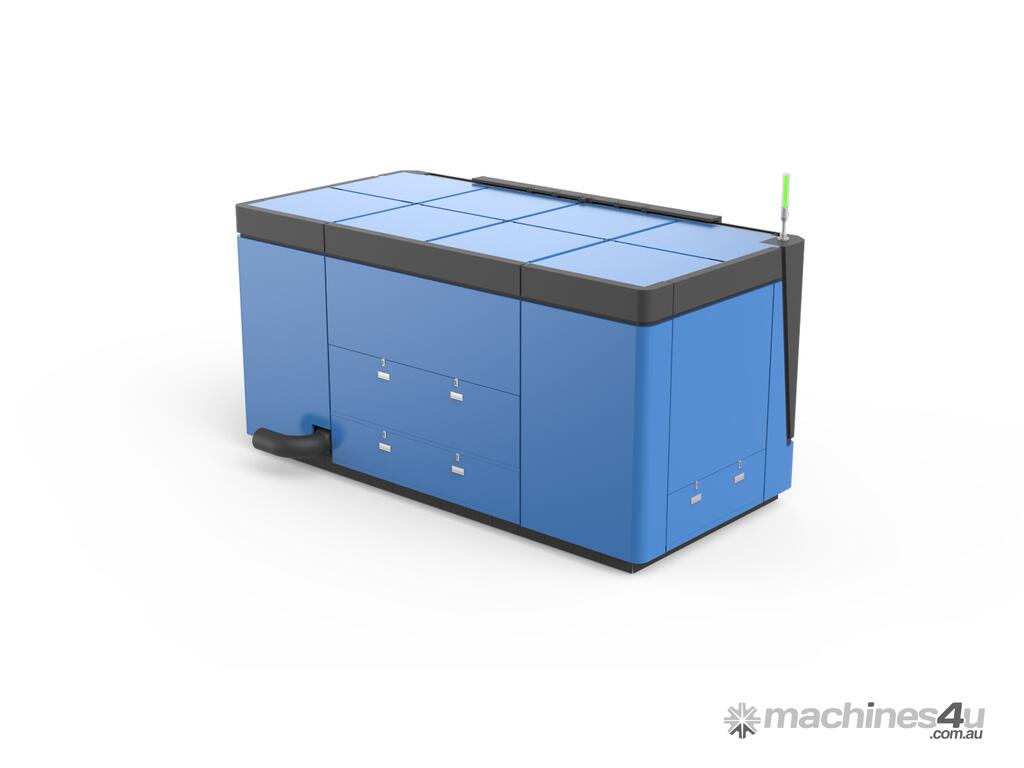

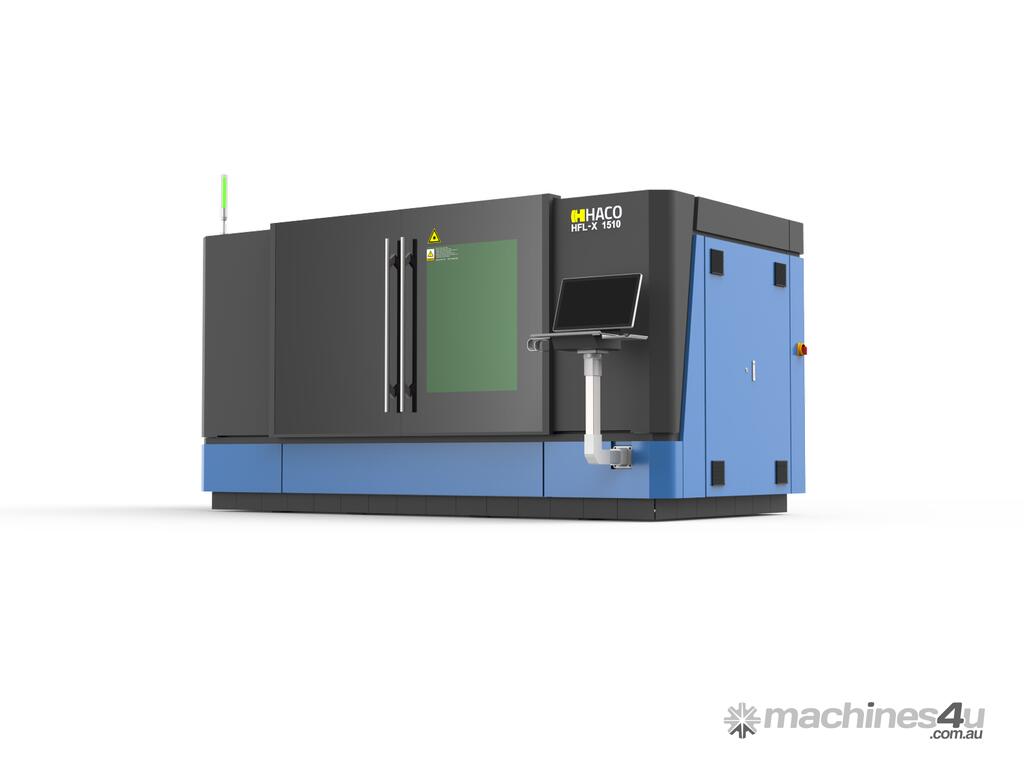

Atlantic - Fibre Laser Machine 3000w no exchange table system (table slides out front of machine)
Model HFLX3015-3
Laser Type Fiber Laser IPG
Laser Power 3000 W
Stroke of X-Axis 3000mm
Stroke of Y-Axis 1500mm
Stroke of Z-Axis 220mm
Machine Dimension 4850*2260*2100 mm
Gross weight 4500 kg
Cutting Parameters
Material Max cutting thickness 3000W
Mild steel 20 mm 16mm pierce
Stainless Steel 8 mm
Aluminum Alloy 6 mm
Brass 2 mm
Accessories included
Control Software Alphat 1.0 CNC System
Cypnest Offline Nesting Software
IPC High stability industry PC
Voltage Regulator Standard Configuration
Inner Camera Standard Configuration
Automatic lubrication system Standard Configuration
Collect Trolley Standard Configuration
Remote Control Standard Configuration
Options
Precitec Laser Head
Fume-Dust Extractor
perfect machine when space is limited only need 6m x 3.5m of space
smaller model machines available 1500mm x 1050mm table size
