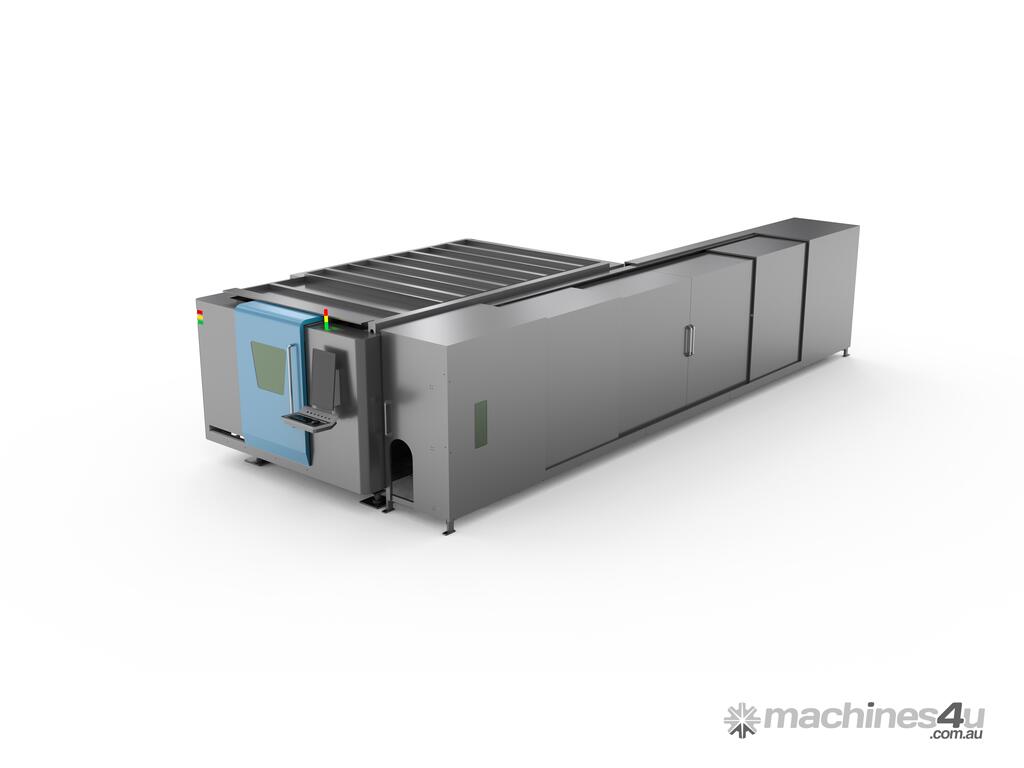

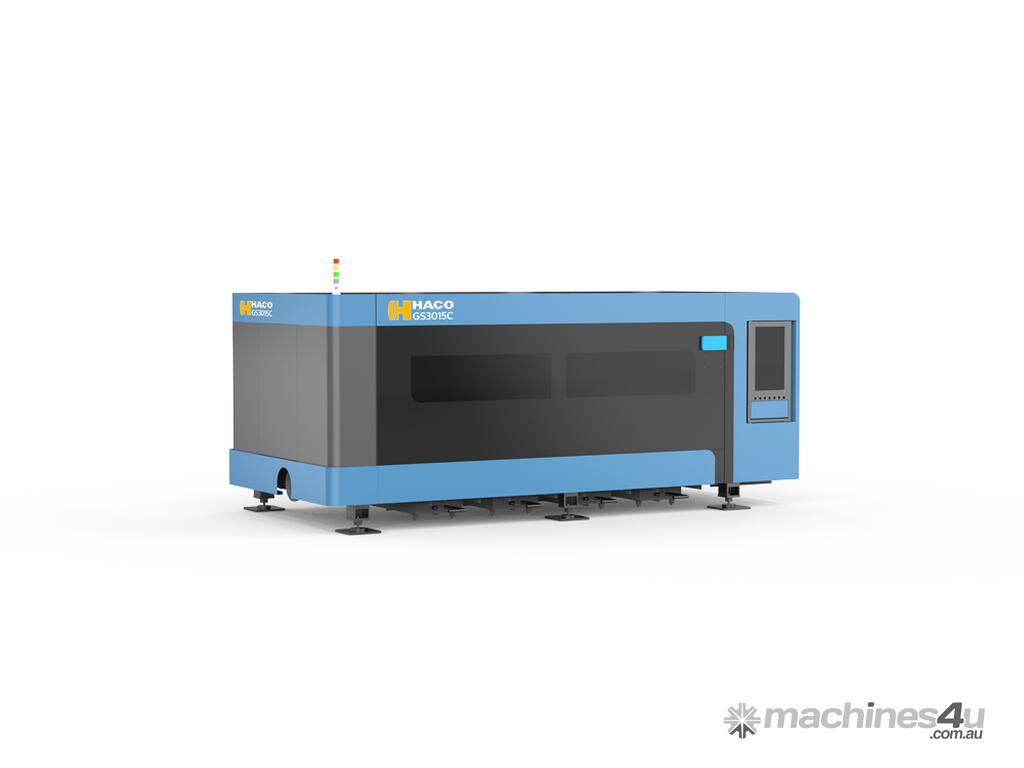

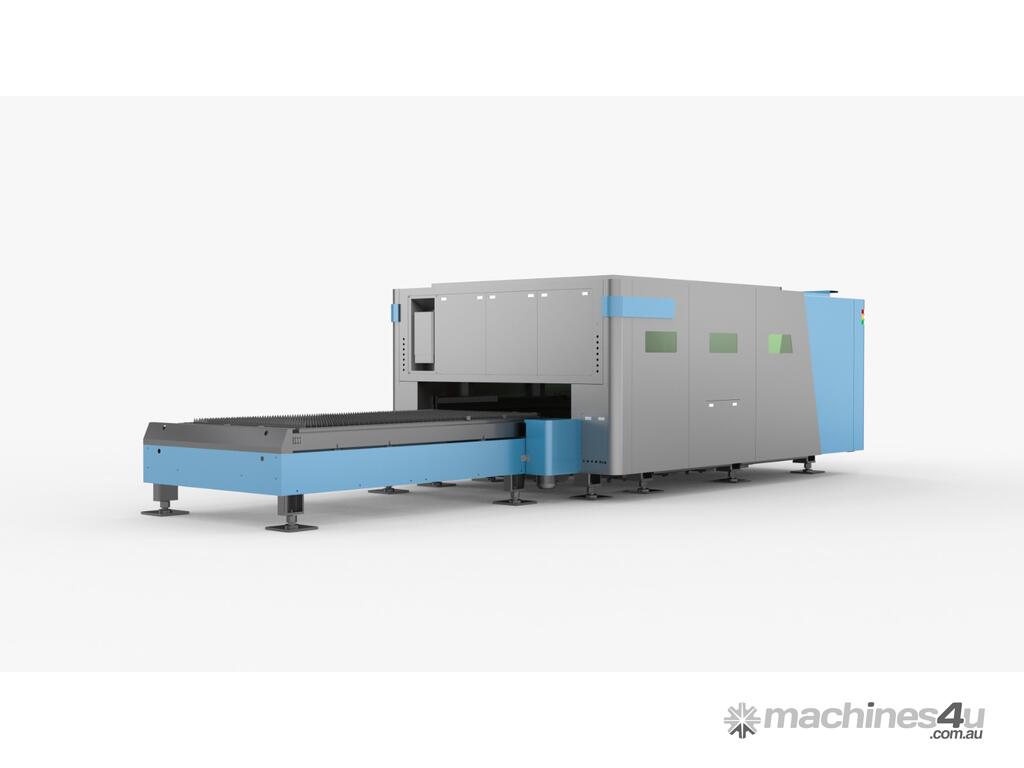

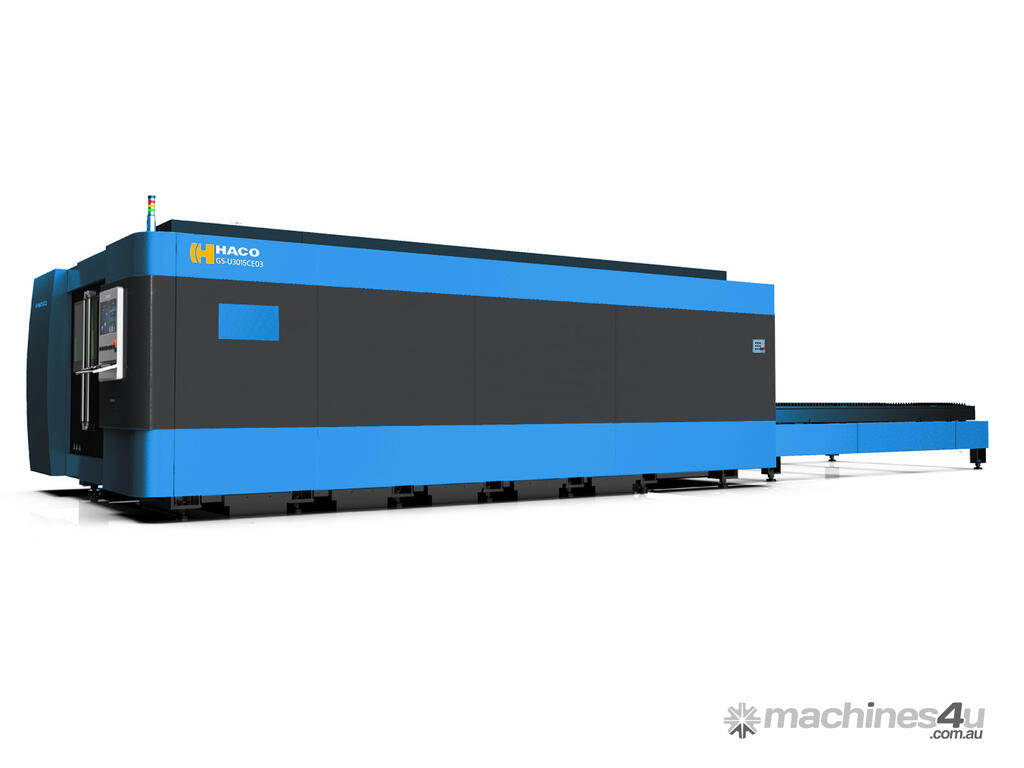

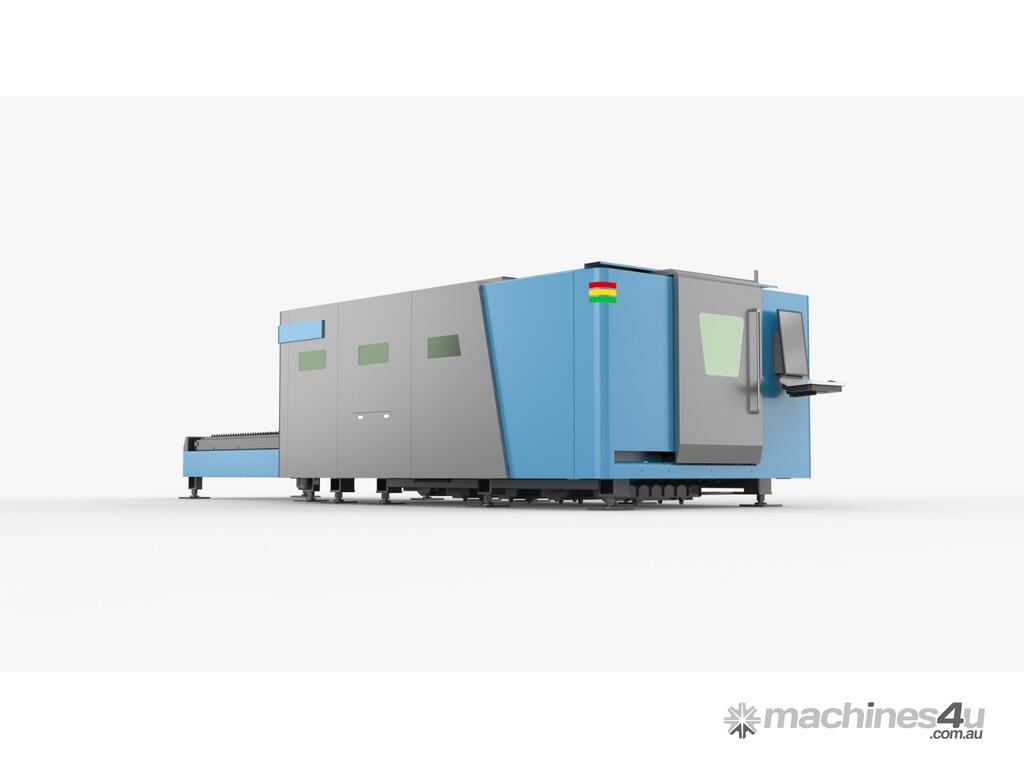

Haco - Fibre Laser Machine 3000w
Model HFL-GSU3015

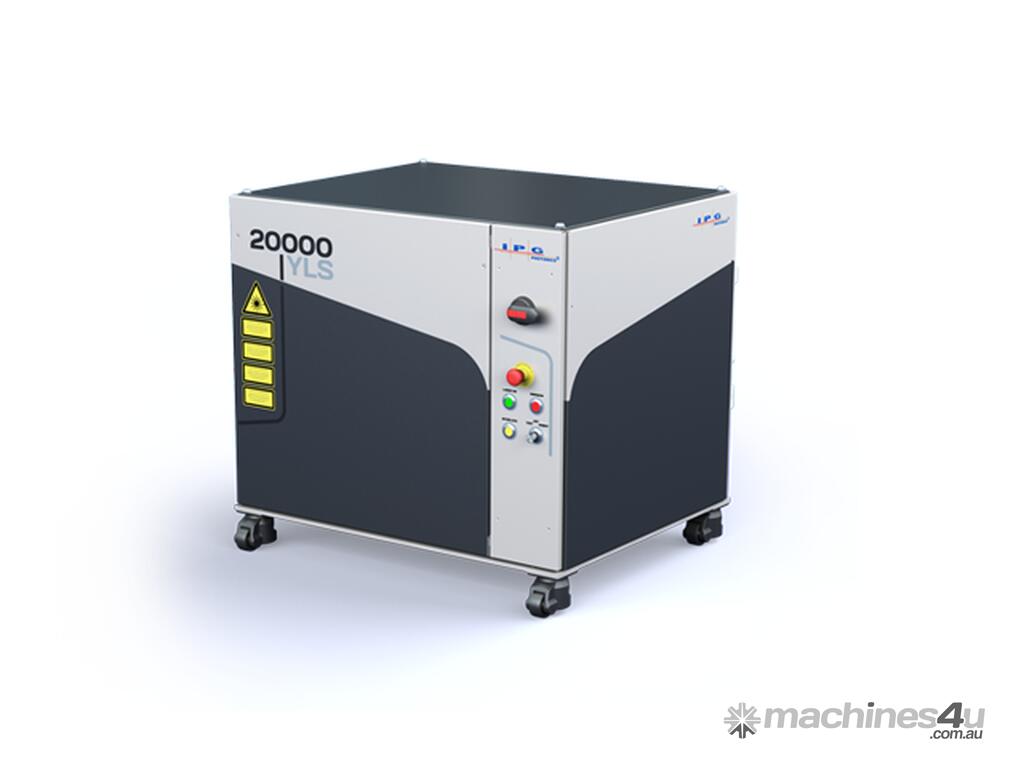

Laser Type Fiber Laser IPG
Laser Power 3000 W
Stroke of X-Axis 3050mm
Stroke of Y-Axis 1520mm
Stroke of Z-Axis 290mm
Machine Dimension 8500*2850*2500 mm
Gross weight 9000 kg
Cutting Parameters
Material Max cutting thickness 3000W
Mild steel 20 mm 16 mm Pierce
Stainless Steel 8 mm
Aluminum Alloy 6 mm
Brass 6 mm
Accessories included
Control Software Cypcut Most popular control system
Nesting software Integrated with Cypcut
IPC High stability industry PC
Exhaust Blower Standard Configuration (not fume-dust this is optional at more-price)
Voltage Regulator Standard Configuration
Inner Camera Standard Configuration
Automatic lubrication system Standard Configuration
Collect Trolley Standard Configuration
Remote Control Standard Configuration
Standard Features:
- Touch screen controller
- Air filtration system
- Auto focus cutting head
- Pneumatic safety door at rear of the machine
- Fully enclosed design
- Laser grade safety glass
- Controller has the ability to network to office PC or server for file transfer
- Internal LED lighting
- External 3 colour status lamp
- Solid heavy duty frame for greater vibration absorption
- Quick changing of exchange tables
- Oxygen Air & Nitrogen auto gas selection via a servo valve
Options
Precitec Laser Head (only available on new orders)

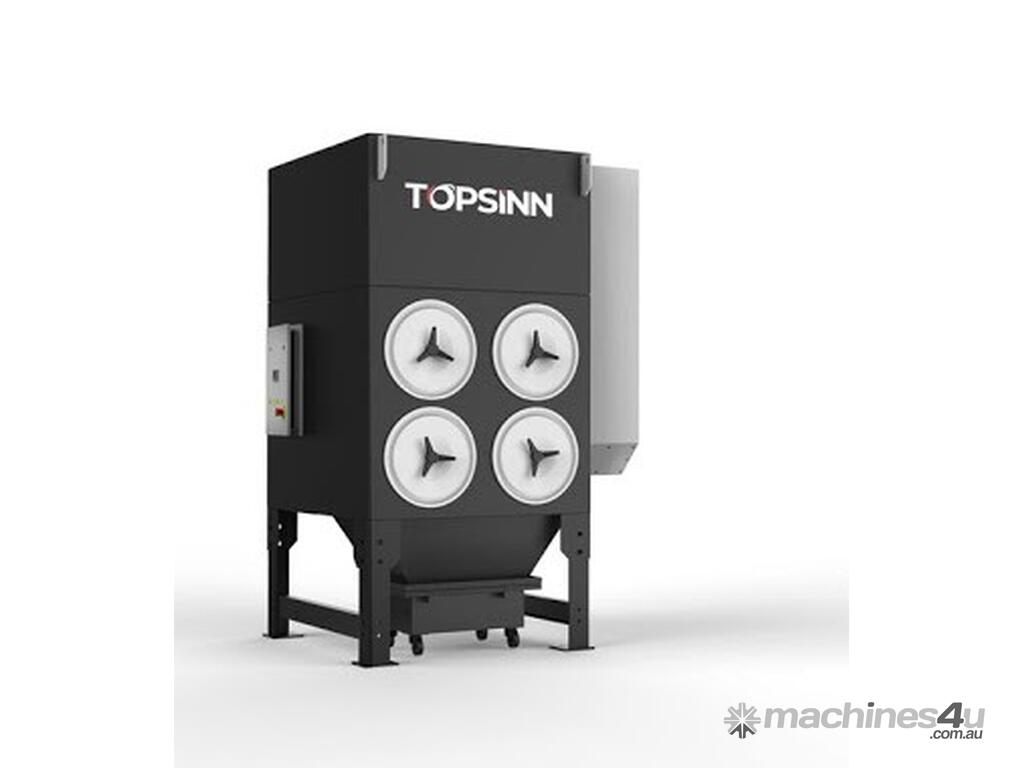

Dust-Fume Collector

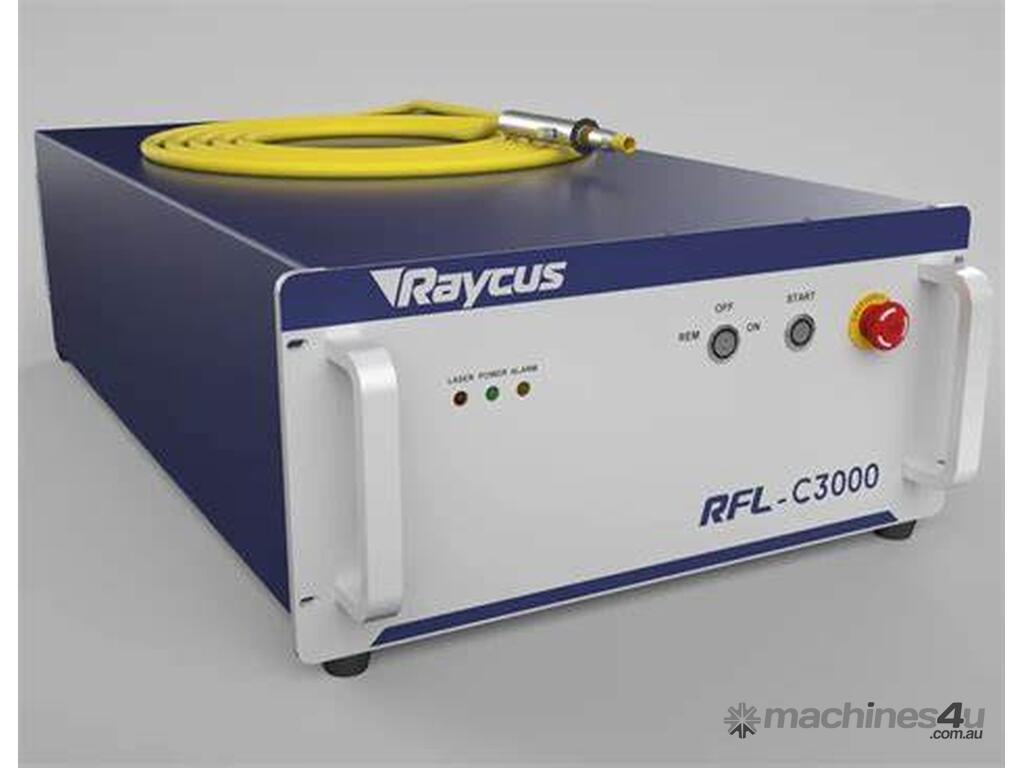

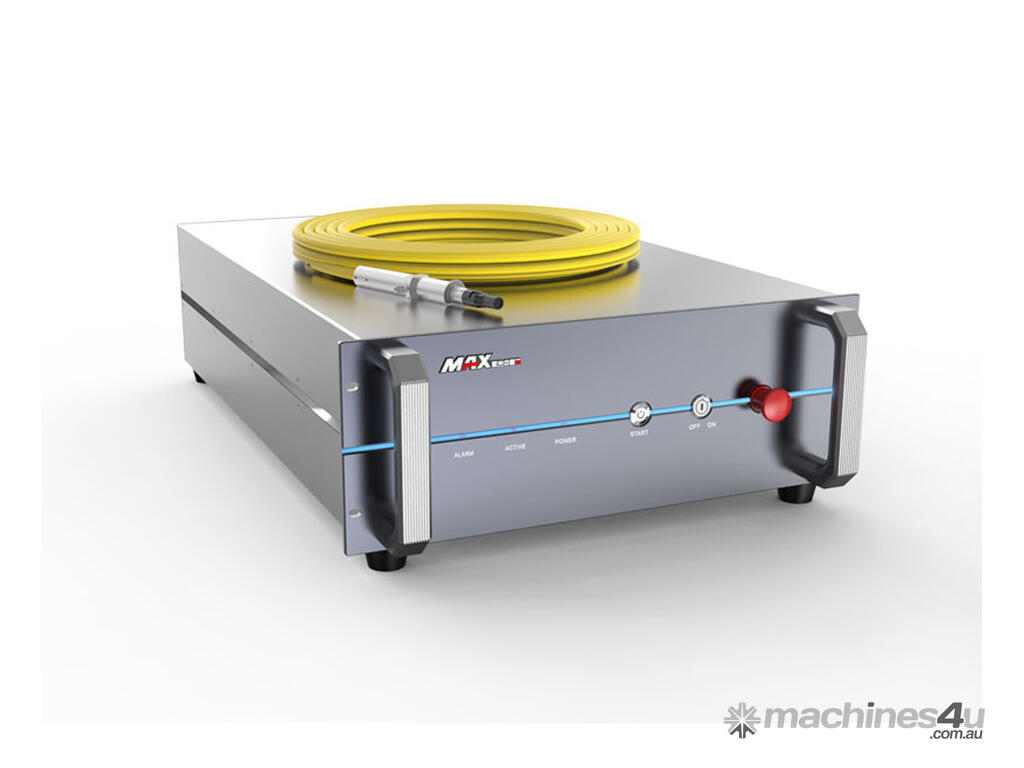

Raycus or Max-light Laser Source Price reduction $30K ($185000.00 + gst)
