Haco Kingsland HPC50 Hi Speed Press

THE NEW HIGH SPEED HYDRAULIC PRESSES DEVELOPED BY KINGSLAND ENG CO. LTD
HIGH SPEED COMBINED WITH CONTINUAL MAXIMUM FORCE.
Kingsland have developed a new range of eccentric presses. Unlike the conventional press they are hydraulically driven and not mechanically.
High speed is combined with maximum force continually through stroke. This is created with the use of a high-speed module.
There are thousands of mechanical eccentric presses being used worldwide in the current market today but some of the following disadvantages are apparent with these machines:
. They do not conform to CE regulations so can be dangerous
. There can be blockage of the dies
. The maximum force is only reached at the final point of the stroke.

The new hydraulic eccentric presses have many advantages such as:
. Continuous high speed

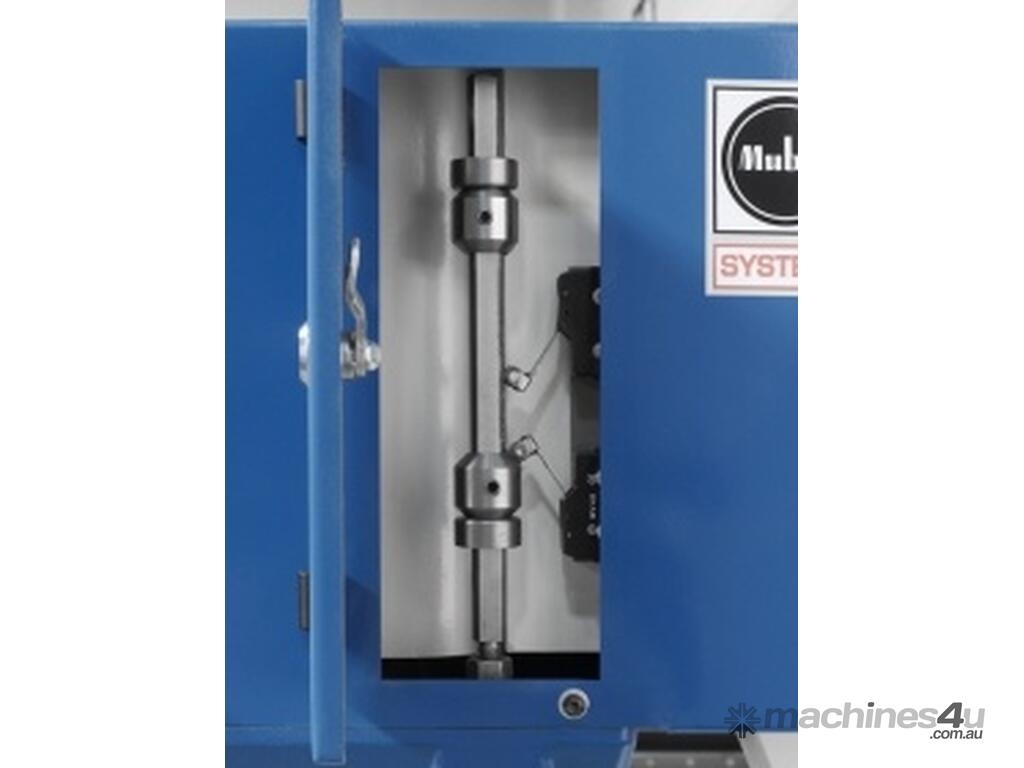

. Adjustable stroke length
. Continual maximum punch force.
. It is not possible for die blockage to occur and therefore the dies will have a much longer life
. A smooth working process

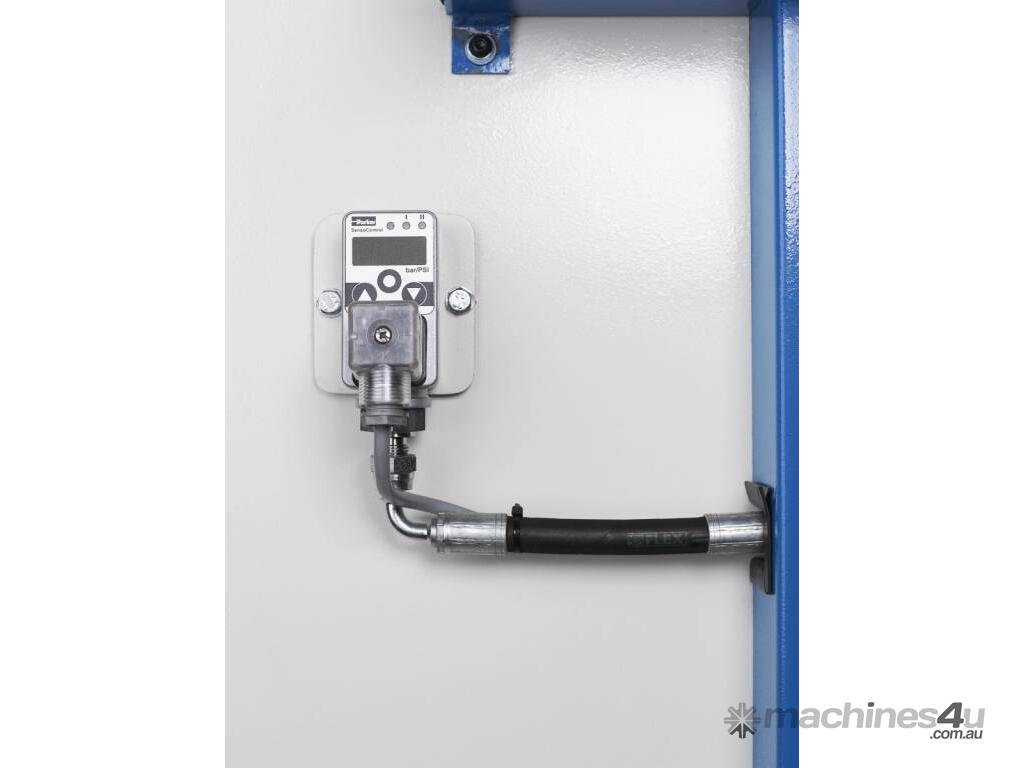

. Adjustable tonnage with a digital display

TECHNICAL SPECIFICATION HPC50
Maximum punch force ? 50 ton
Maximum stroke (mm) ? 60mm
Stroke(s) per min 20mm travel ? 40
Throat depth (mm) ? 280mm
Working height (mm) ? 1020mm
Motor ? 5.5 Kw
Nett Weight ? 650 Kgs
Machine Dimensions (cm) ? 60x100x170

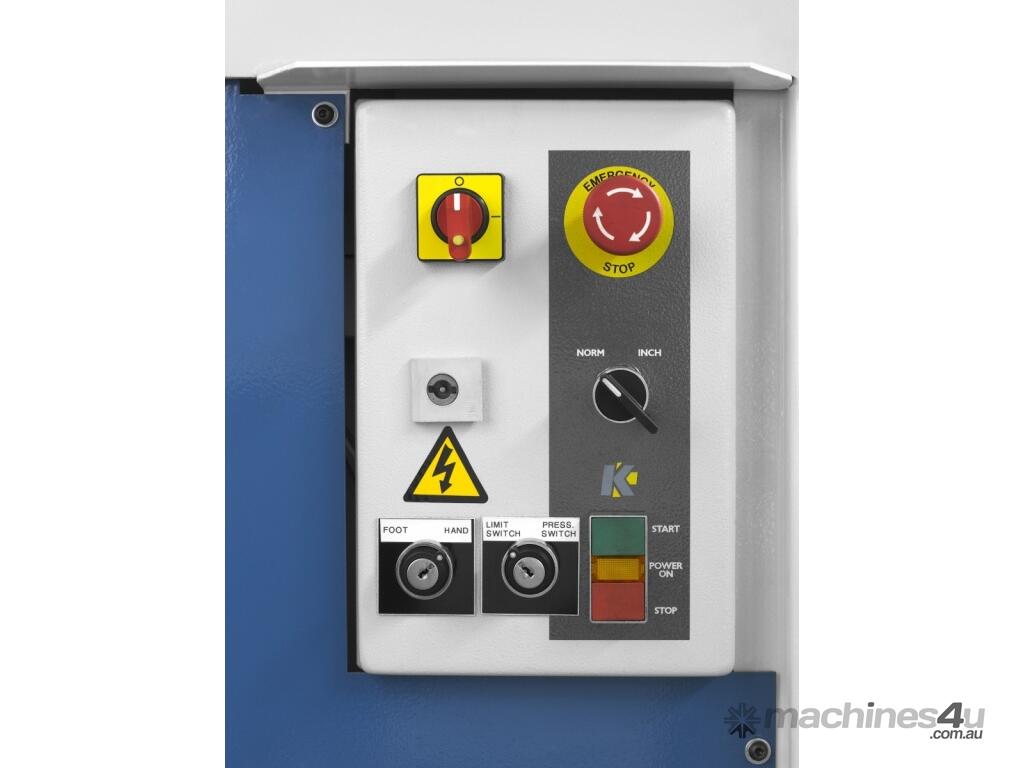

2 hand operating systems ? Standard
Adjustable punch force ? 10-50 ton
