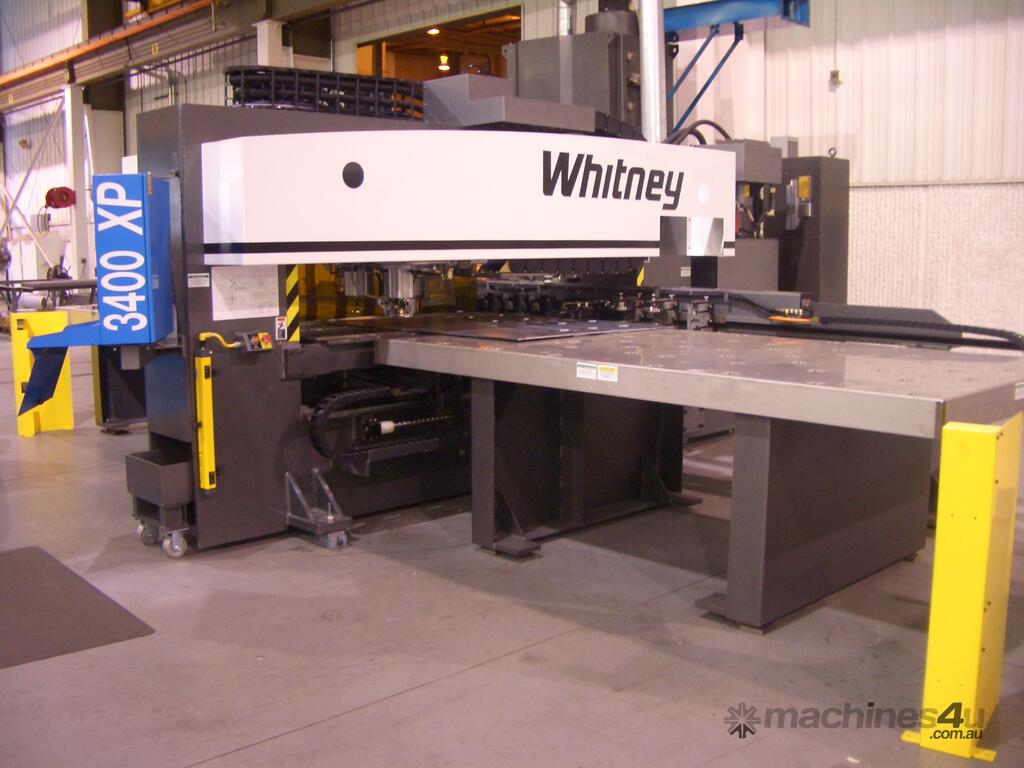

Haco/Whitney 3400XP CNC Punch/Plasma Combination

Achieve the lowest cost of equipment ownership with Whitney™ Combination machines. The RAMPAGE! Oxygen Plasma Cutting System or optional Hypertherm© XPR300 High Speed Oxygen Plasma system combines with the power of hydraulic punching to produce precision parts from plate up to 12mm thick.

High speed, dross-free plasma cutting, clean hydraulic punching, and precision forming work together to produce complete parts in one operation. Parts flow to bending, robotic welding or assembly.

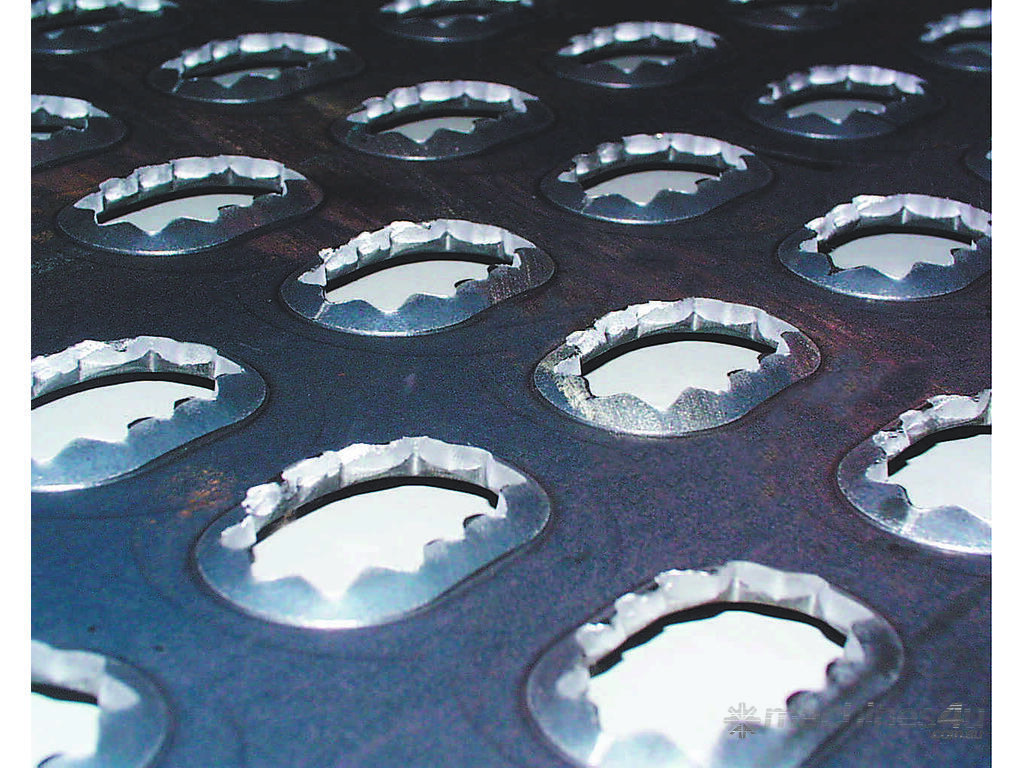

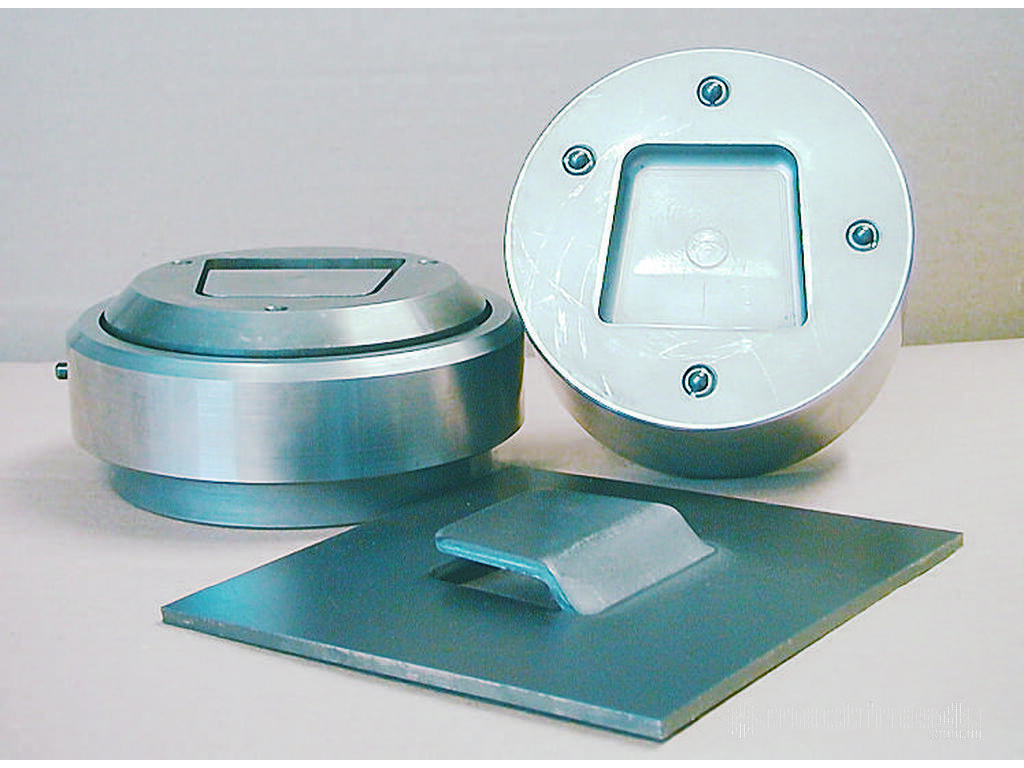

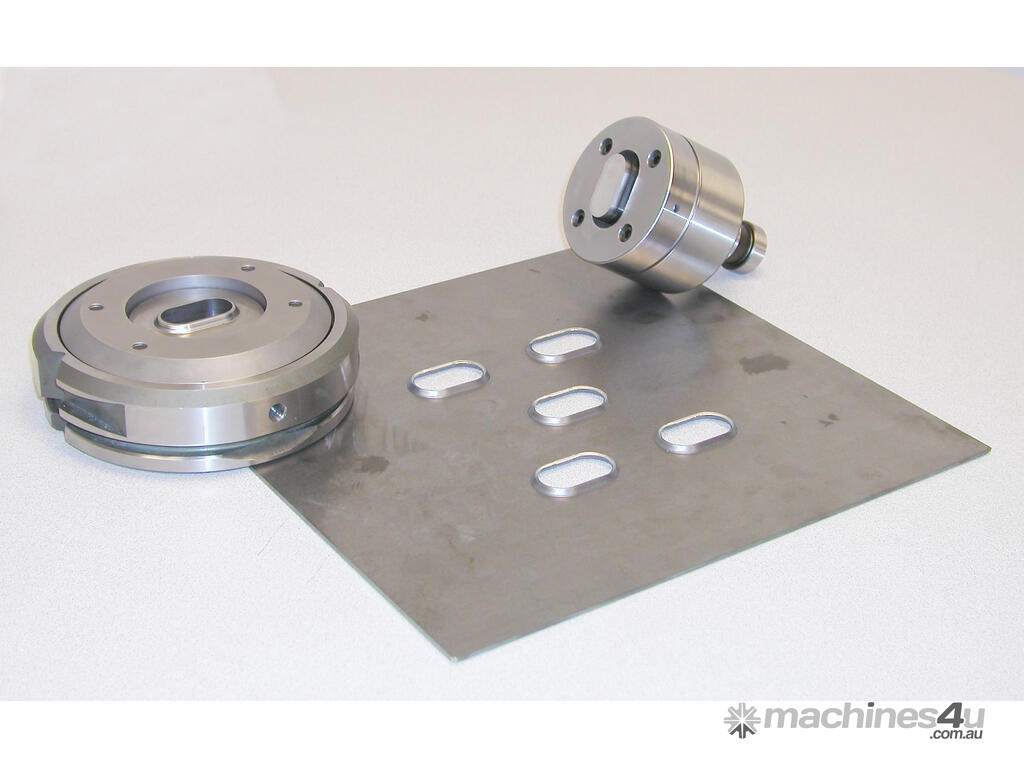

Hydraulic punching is the lowest cost, most accurate way of producing holes. You determine whether standard tooling or the very tough premium TuffSkin punches are best for your application. Full bodied tooling, insert punches and forming tools, all available in standard or TuffSkin, expand the capabilities of your plasma-punch combination. The Tooling Configuration helps you choose the right tooling for a specific job.

A variety of integrated, automatic and semi-automatic material handling equipment further enhances plasma-punch machine productivity.

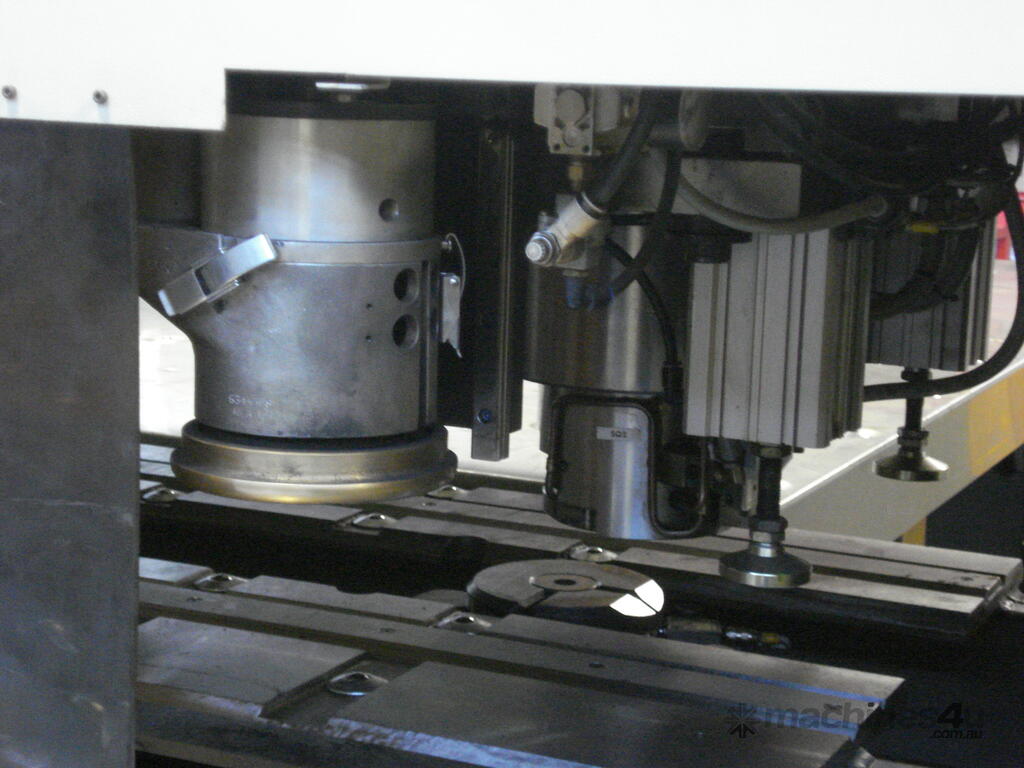

The 3400 XP (Xtreme Performance) plasma-punch combination machine features the patented Rail Tool Changer with nine stations. Each station accommodates punch and die tooling to punch up to 127mm diameter holes.

36 ton of hydraulic punching power and RAMPAGE! Oxygen Plasma Cutting System or optional XPR300 High Speed Oxygen Plasma system Cutting equal productivity.

Features:
Cartridge-style tooling for easy off-line set-up and quick cartridge placement.

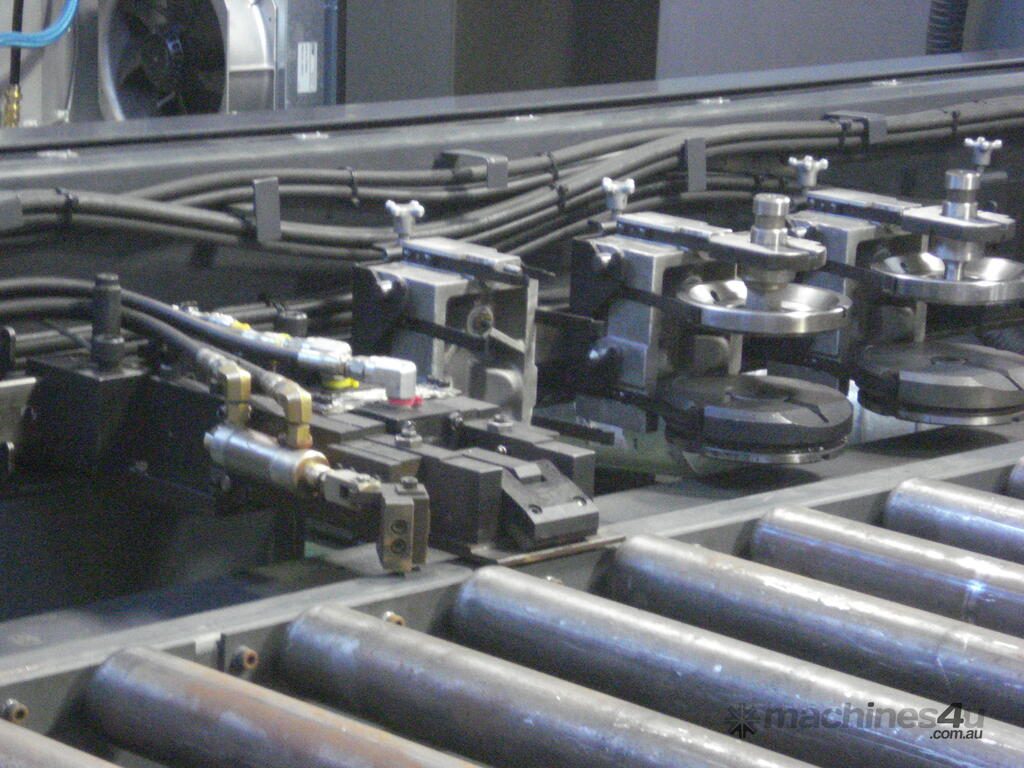

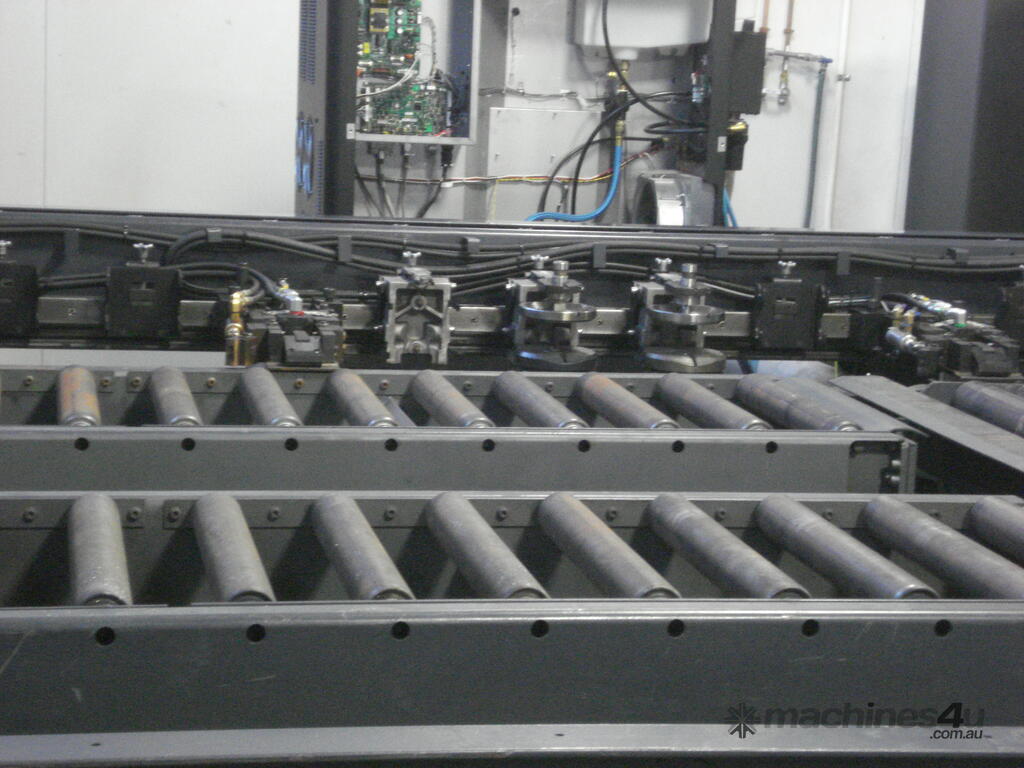

Powerful work clamps, with multiple positioning choices, to secure material.

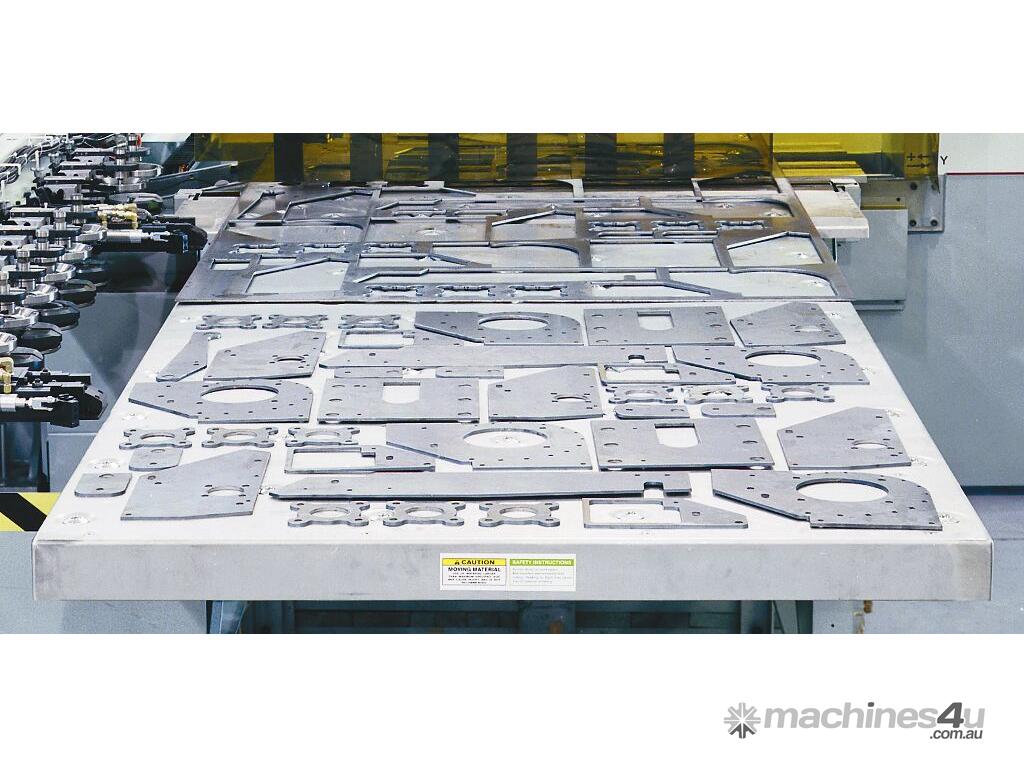

Wide drop door (1500 x 600) for easy, lightning fast removal of completed parts.
36 tons of hydraulic punching power to quickly punch, form and mark parts in one operation.
Faster rapid speeds, faster torch ignitions, faster drop door speeds.
RAMPAGE! Oxygen Plasma Cutting System for 40 to 50% faster cutting speeds at lower cost.
Optional Hypertherm© XPR300 provides higher cutting speeds with high definition quality.
Optional tool caddy adds 21 more tool stations.
Automated material handling solutions " PlatePARTNER, PartHANDLER-II, PlateSTORE, PartSCHEDULER
Technical specifications:

Sheet sizes: 1500 x 3500 without repositioning.
Max plate thickness: 12mm
Punching capacity: 360KN (36T)
Tool changer: 9 stations, with optional 21 stations available
Small parts removal: 1500 x 600mm
