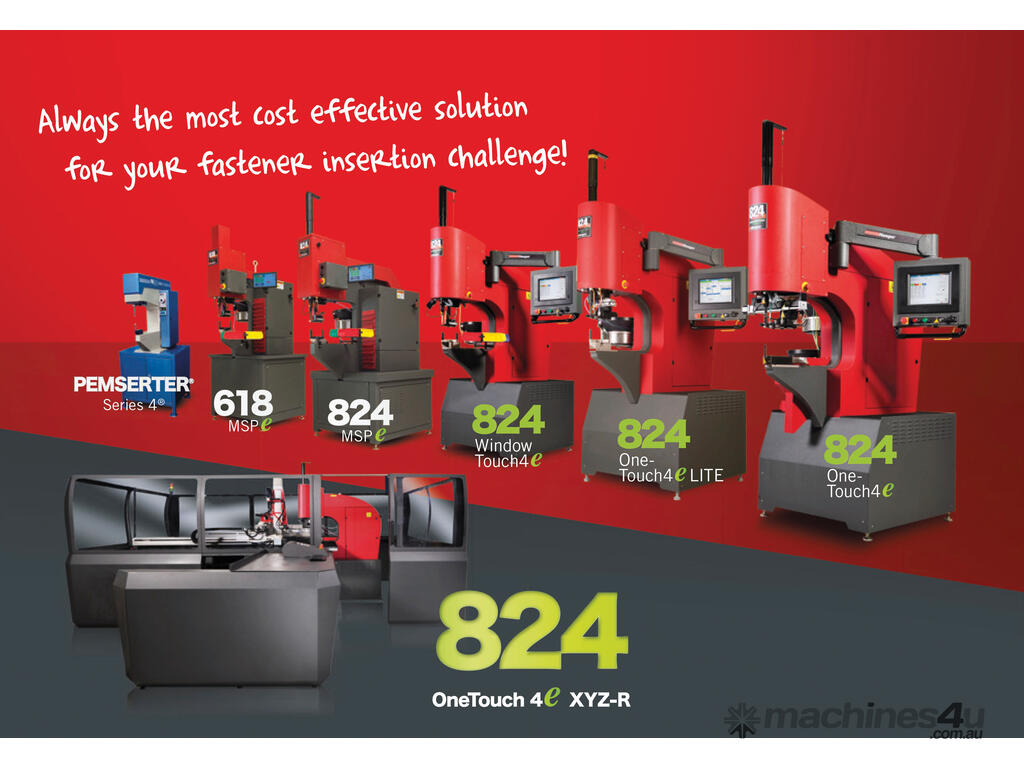

Haeger Insertion Press

824 MSP

8-tons (72kn) ram force and 24 inches (610mm) throat depth with adjustable ram retract position. Reliability and energy efficiency of a fully hydraulic machine. Equipped with Heager’s patented safety system.
Fully Hydraulic
Fully hydraulic with PLC electrical controls

Batch Counter
Built-in batch counter

Manual Turret
Manual turret upgradeable to TIS-2

Positive Stop System

The Positive Stop System provides an easily adjustable method of precisely maintaining the stopping point of the machine cylinder. The system is particularly well suited for improving uniformity on soft, delicate workpieces. It is also effective when inserting small hardware. In addition to aluminum, the system also provides excellent insertion results on a wide variety of softer materials such as fiberglass printed circuit boards and many plastic or composite materials.

Modular Autofeed System

The MAS 9 Modular Autofeed System works with nuts, studs & standoffs sizes 4-40/M2 through 1/4-20/M6. Maximum stud & standoff lengths up to 30mm

4-Station PLC Touch Screen
4-Station with PLC Touch Screen with built-in storage for 100 programs
