Hammer A3-41A by Felder

Hammer A3-41A planer

Please download PDF sheet for available machine options


Comes standard with SILENT POWER SPIRAL CUTTER HEAD

Electrics:
3 phase motor voltage (can come in single phase 4hp as well)
Motor 4.0 HP (3.0 kW) S6/40 even in single phase (5.5 hp optional)

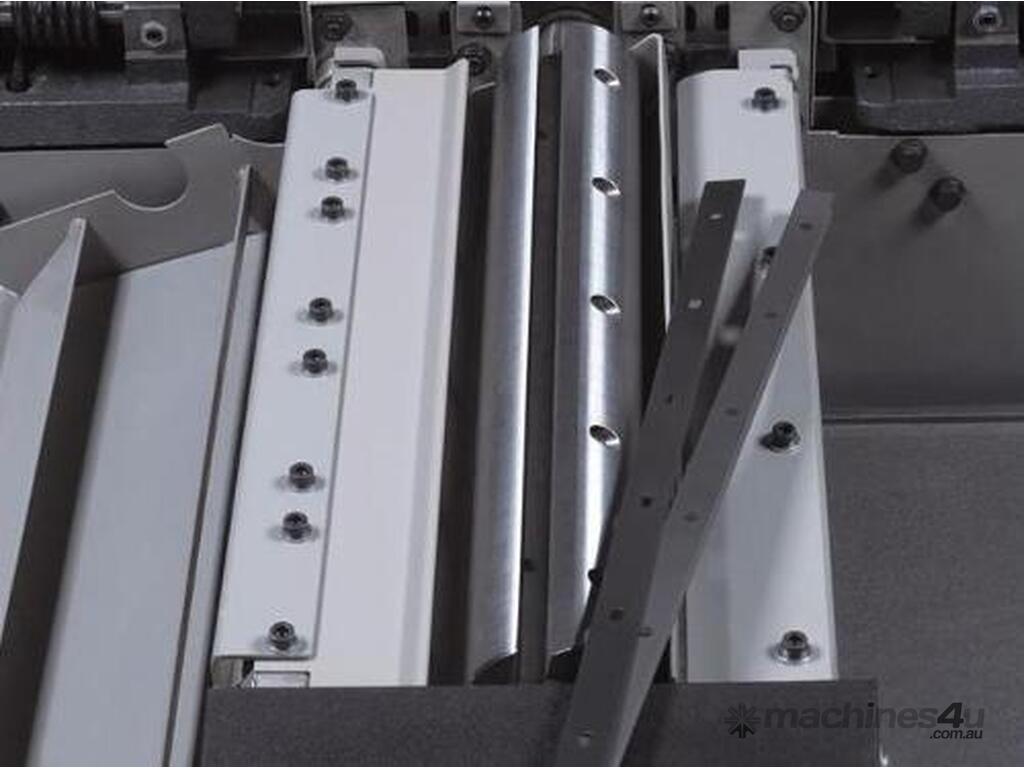

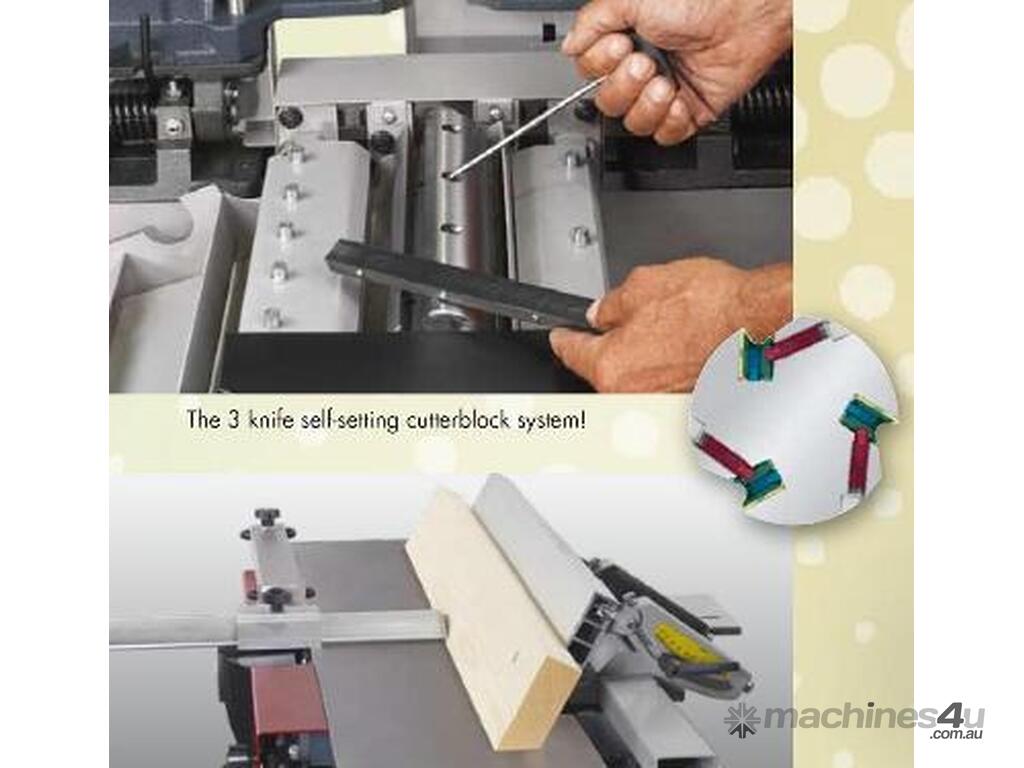

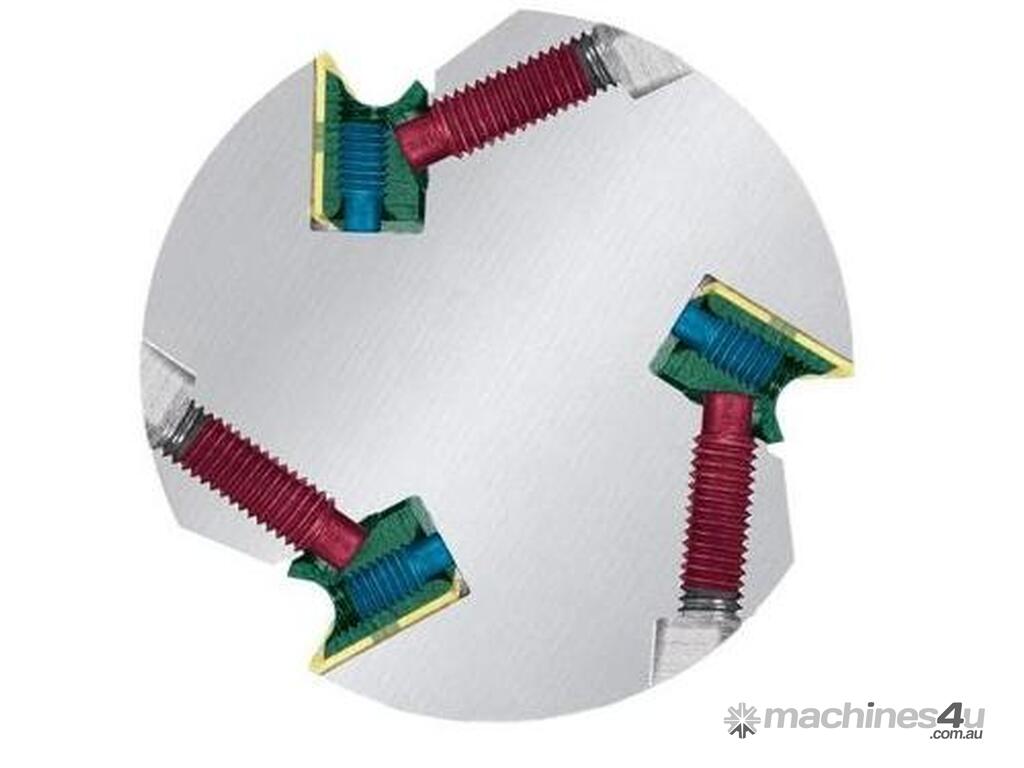

3 knife quick-change, self-setting cutterblock system (no setting required) - STANDARD
Maximum depth of cut in mm 4 mm
Surface planing width: 410 mm
Surface planer table length: 1800 mm
Planer fence tilting from 90°–45°, anodised
Length of surface planer fence: 150 x 1100 mm
central support on planer fence + safety cover for cutterblock
weight: 300KG

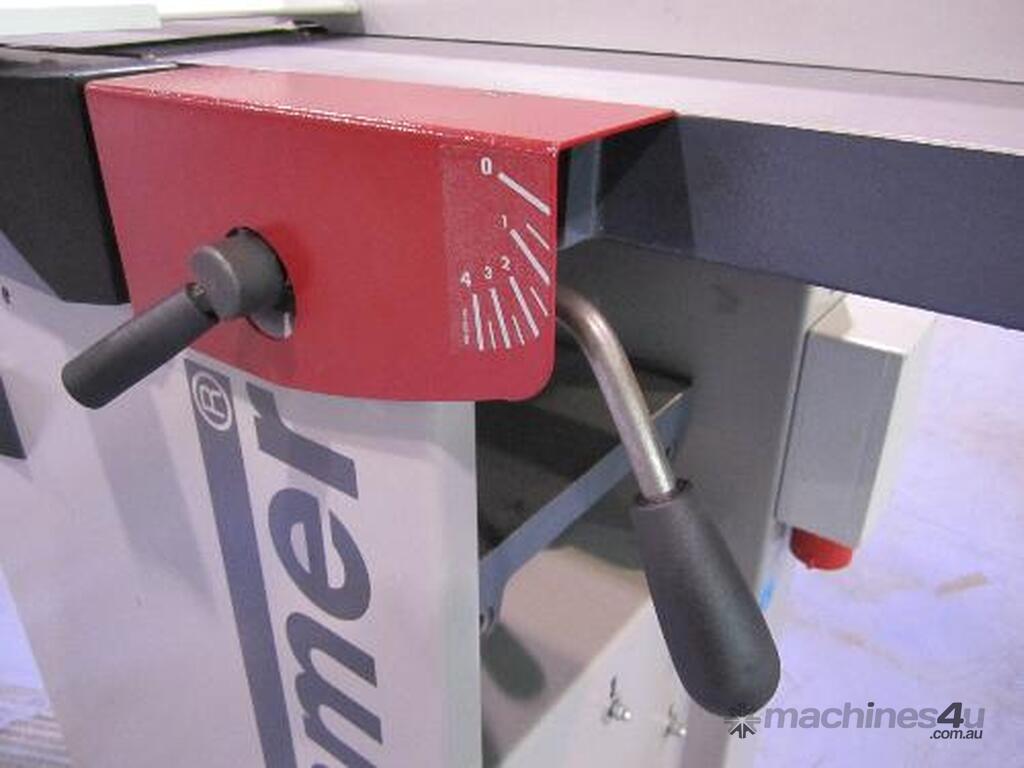

single lever adjustment on the depth of cut. No unlocking or locking back of the table required.

Options (with extra charge):
extension tables (400 & 800 mm)
5.5 hp motor (only on three phase)
rolling carriage and lifting bar
