Hammer B3 Winner Saw Spindle by Felder

Please download PDF sheet for available machine options


Hammer B3Winner Single or 3 phase Saw Spindle:

Cutting and moulding for the discerning woodworker!

With the B3 winner you, as a discerning woodworker, are investing in a panel saw and spindle moulder machine that is in a class of its own. The smooth action of the generously sized format ­sliding table will impress you even before you make the first cut. The panel saw and spindle moulder units have been optimised with regard to precision and performance. Professional stops ensure exact cross and parallel cuts as well as spindle work.

Fast and easy: Innovative Hammer ­technology allows you to conveniently switch from one application to another.


Details that ­impress!

Numerous unique details, ­harmoniously integrated into the machine design, ­guarantee optimal user-friendliness and extraordinary precision.

Technical Details:
Motor 4.0 HP (3.0 kW) (5.5 HP Optional in 3 phase)
Forward and Reverse Run on Spindle

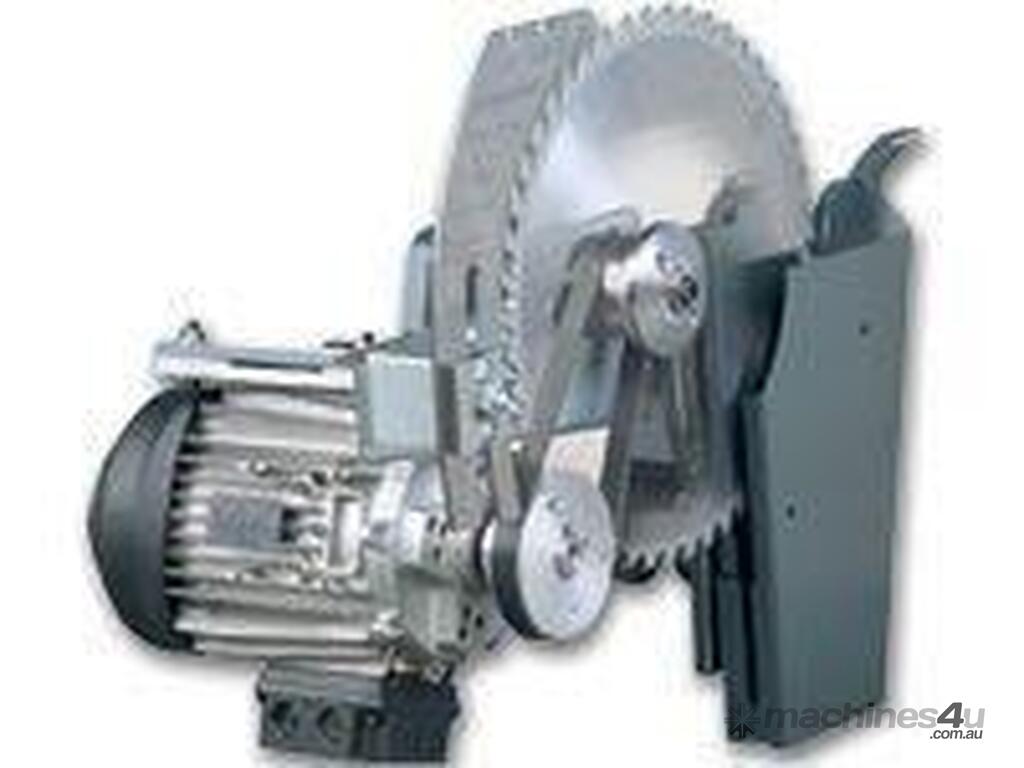

Main sawblade dia. 250–315 mm, Saw unit speed 4800 rpm
Saw blade tilting from 90°–45°, Max. cutting height 103 mm
Saw-spindle moulder table in mm 950 x 385 mm
Rip capacity continuously adjustable 800 mm (Optional 1250mm)
Preparation for Dado tooling up to 19.5 mm width ( Optional)

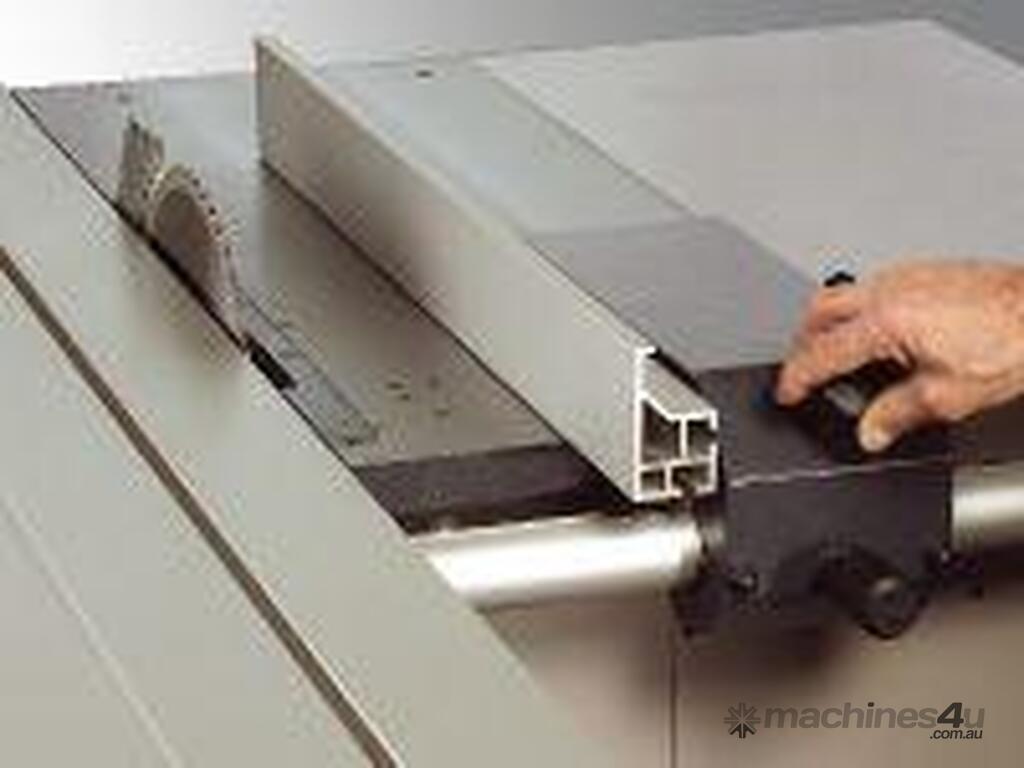

Rip fence winner with large round guiding bar
Fine adjustment for rip fence winner/basic ( Optional)
Cast iron professional rip fence bar ( Optional)
Mechanical scoring unit, scoring blade dia. 80 mm ( Optional)

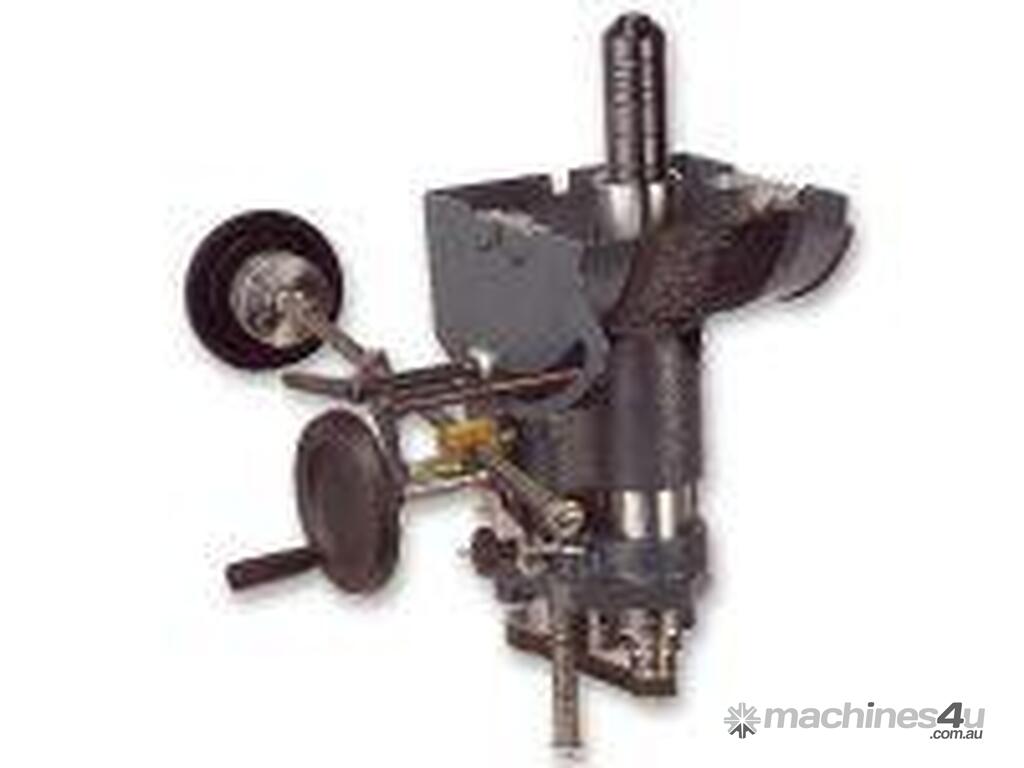

Spindle moulder tilt 90°–45°
Spindle Speed 3000/6000/8000/10.000 rpm S
Moulder spindle dia. 30 mm, usable height 100 mm
Router spindle 14,000 rpm instead of dia. 30 mm spindle ( Optional)

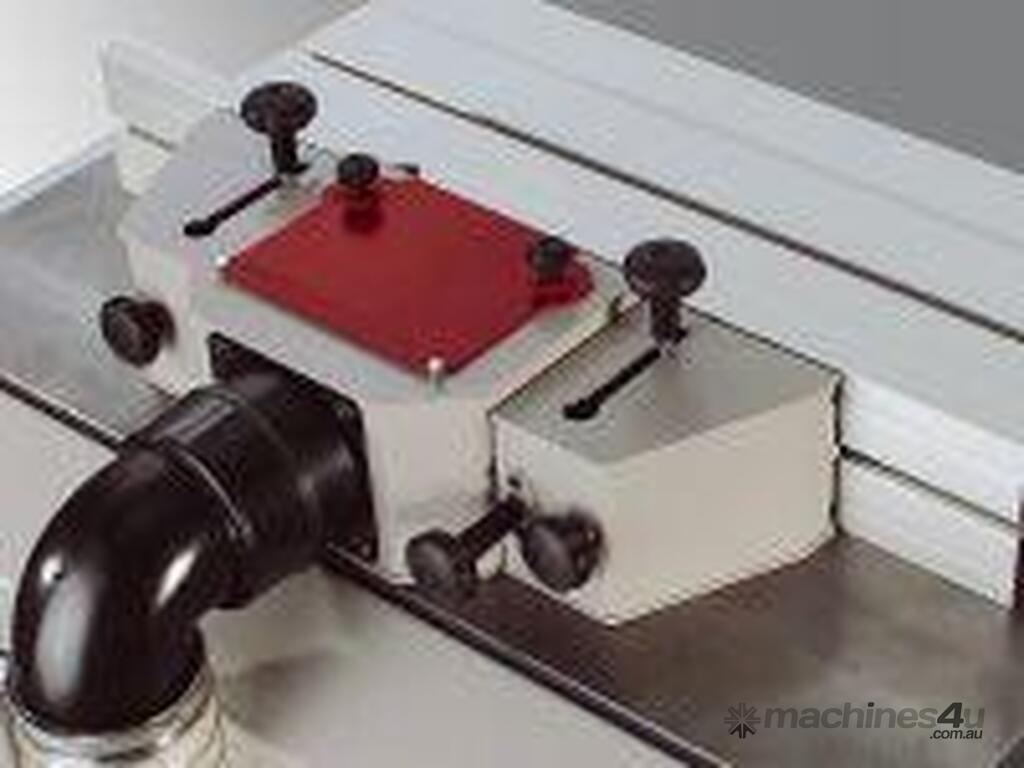

Spindle fence 220 for max. ­tooling diameter 220 mm (above cast iron table)
Max. tooling diameter beneath table at 90° 180 mm
Format sliding table 1250 mm, cutting length 1300 mm ( Optional 2000 mm)
Outrigger table 1100mm ( Optional)
Precision mitre guide index system in every 5 degrees and 22.5 degree ( Optional)
Crosscut fence 900 mm for all sliding table
Crosscut fence 1300 mm ( Optional)

Important Accessories
Rolling carriage & lifting bar to move machine around the workshop ( Optional)
Tilt-away mount for power feeders ( Optional)

NOTE:
All optional items, accessories, etc have additional costs.
Price is ex-our warehouse in Emu Plains (Penrith), Western Sydney.
Saw blades and cutters are not included in the price.
You need 20 AMP power point to run this machine due to motor power. Three phase machine is $250 cheaper.



Price excluding GST & Delivery
