Combination machine Hammer C3-31
Please download PDF sheet for available machine options
A complete woodworking setup in one machine
Made in Austria to a quality that cant be beaten!
3 motors 4.0 HP (3kw) single phase or three phase power
Saw unit with 103mm cutting height
Planing/ Thicknessing width 310 mm,
Planer table length 1400 mm,
3 knife quick-change self-setting cutter block system, optional spiral head)
Saw blade tilt 90°–45°,
4 Speed spindle moulder with 30mm shart
Sliding table options from 800mm to 2500 mm
Crosscut fence 900mm-1300 mm options
Solid cast iron tables and units, Forward and reverse run on spindle.

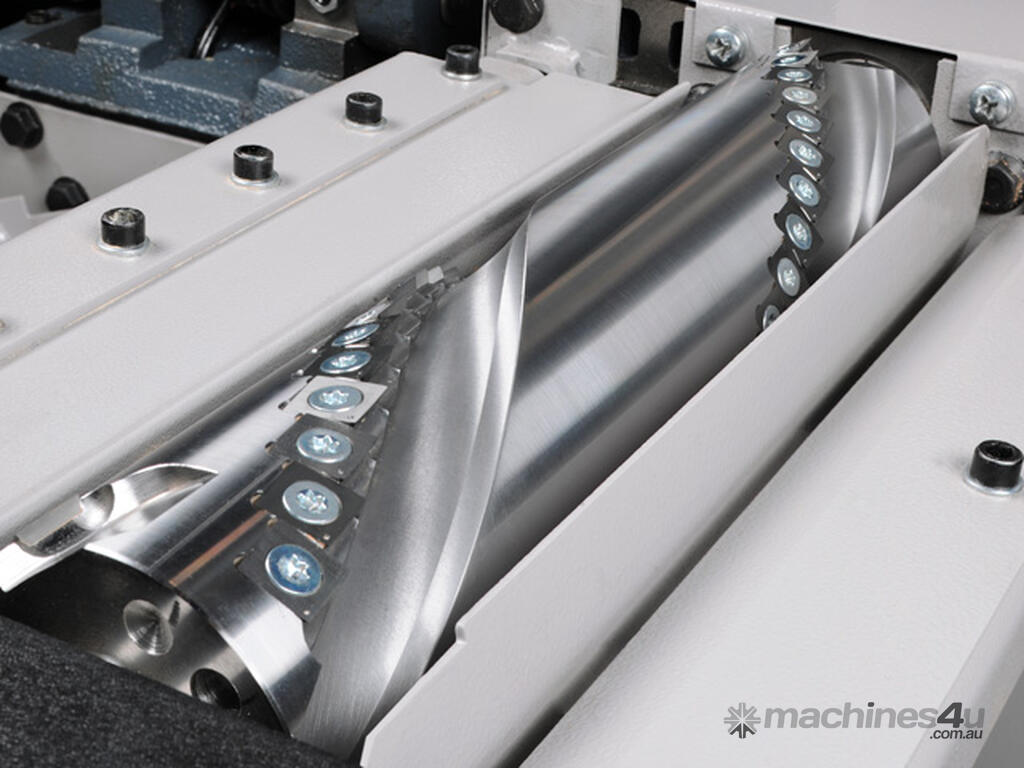

Silent Power Spiral Cutter Head
The specifications are as follows (please see PDF option sheet)
Planer:
Maximum depth of cut in mm 4 mm
Surface planing width in mm 310 mm
Surface planer table length in mm 1400 mm

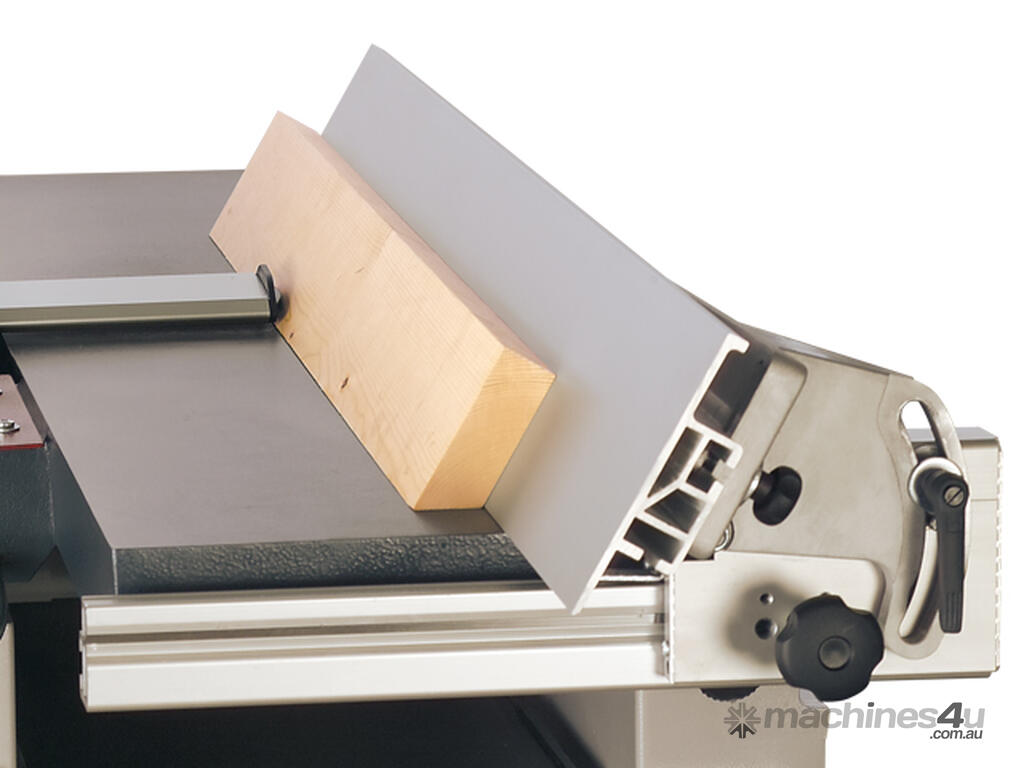

Planer fence tilting from 90°–45°, anodised

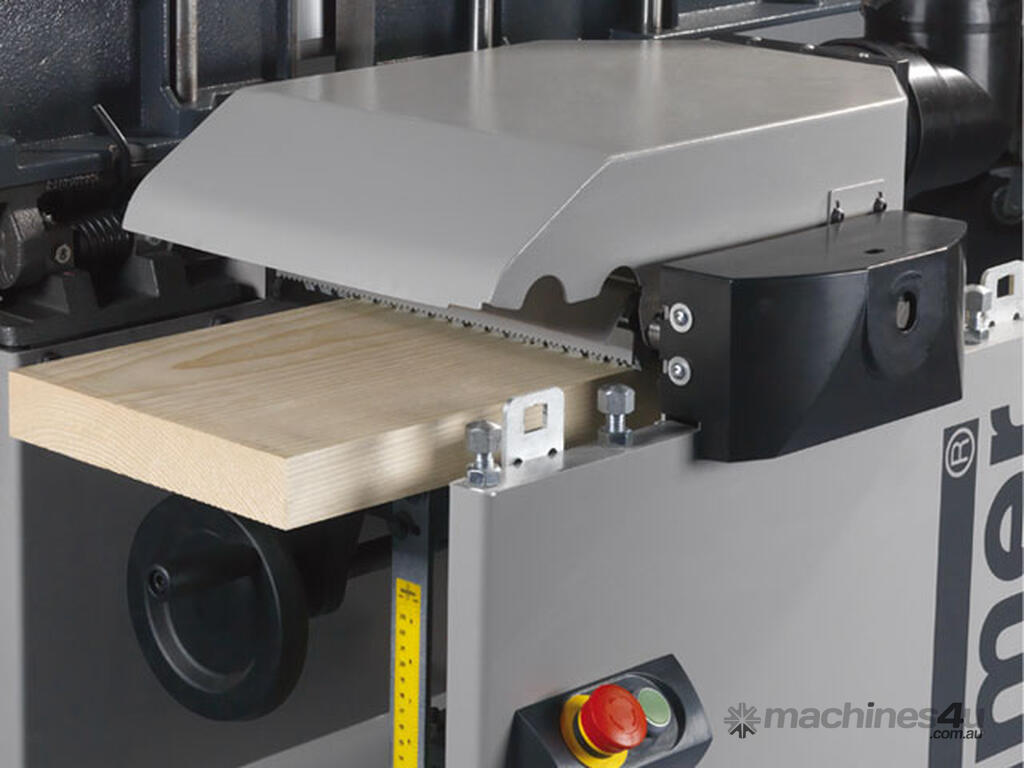

Thicknesser:
Thicknessing planing width in mm 306 mm

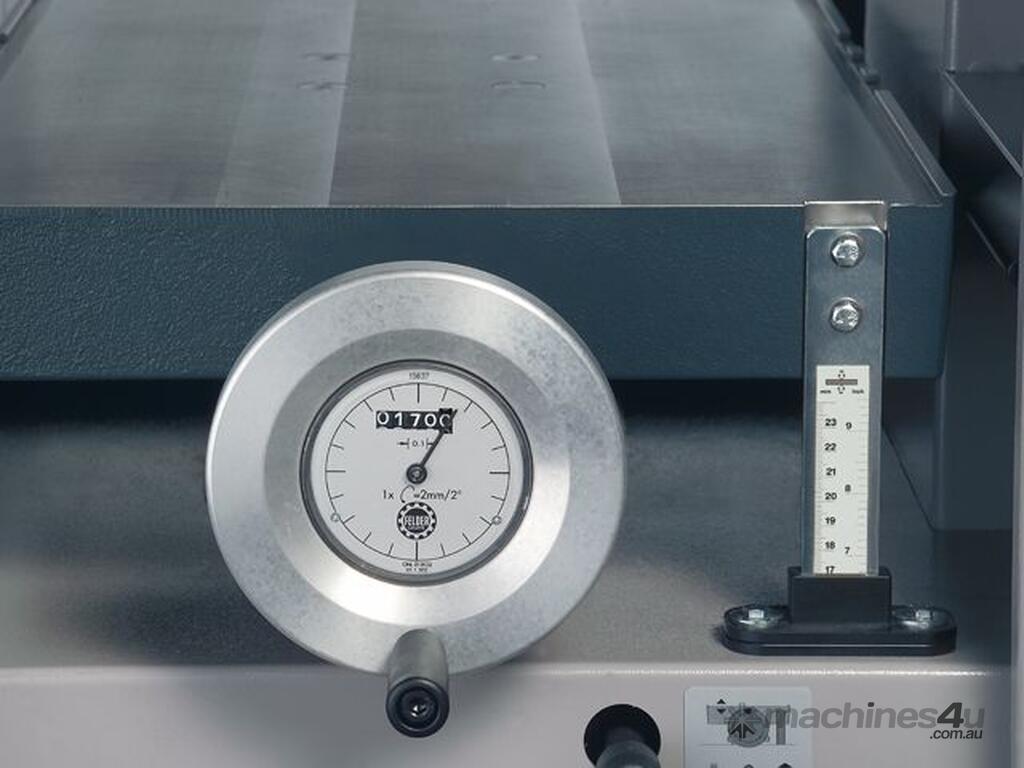

Thicknessing height min. – max. 4–225 mm
Synchronized feeder drive 6 m/min

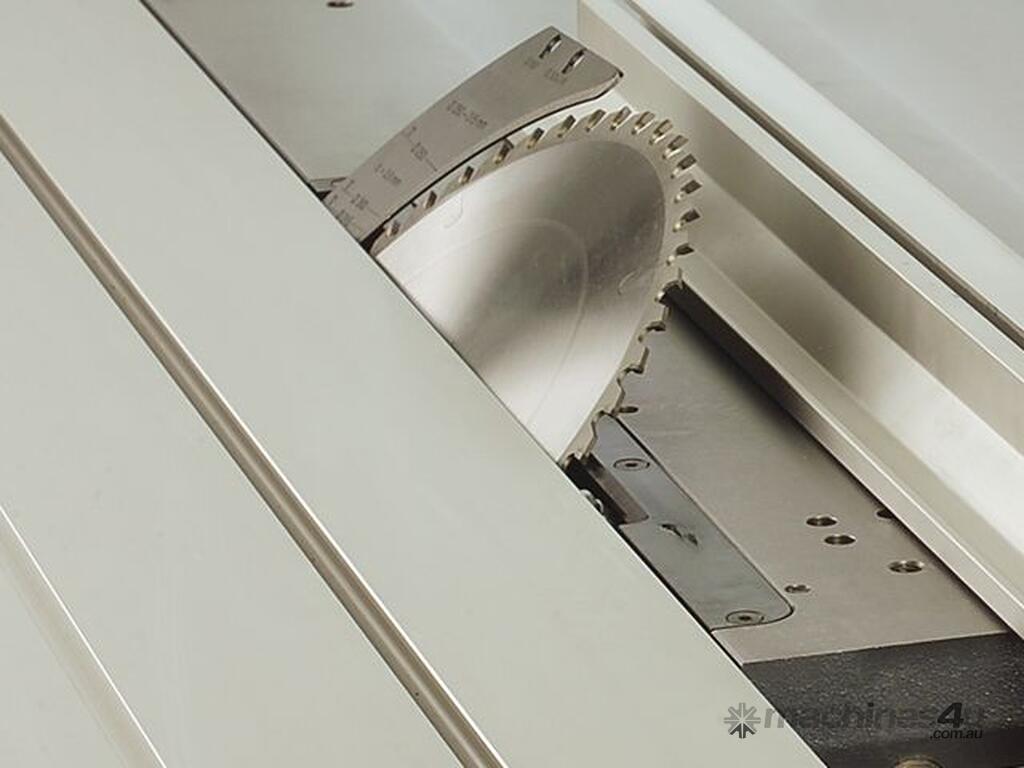

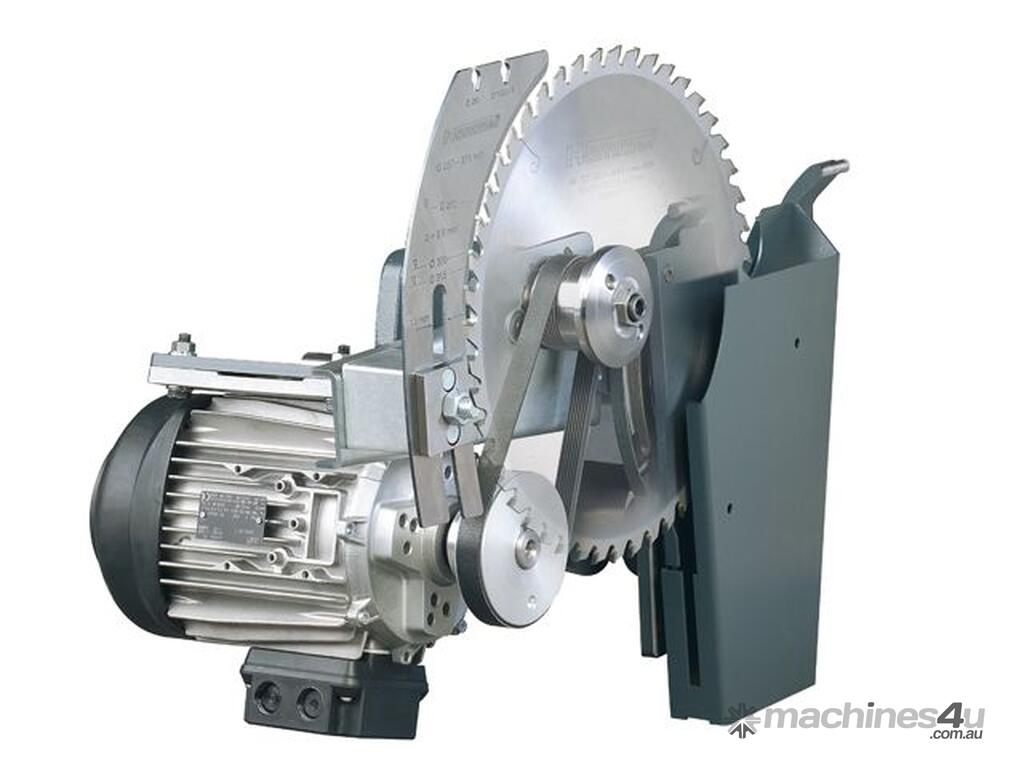

Saw Unit:
Main saw blade dia. 250–315 mm, Saw unit speed 4800 rpm
Saw blade tilting from 90°–45°, Max. cutting height 103 mm
Saw-spindle moulder table in mm 860 x 300 mm

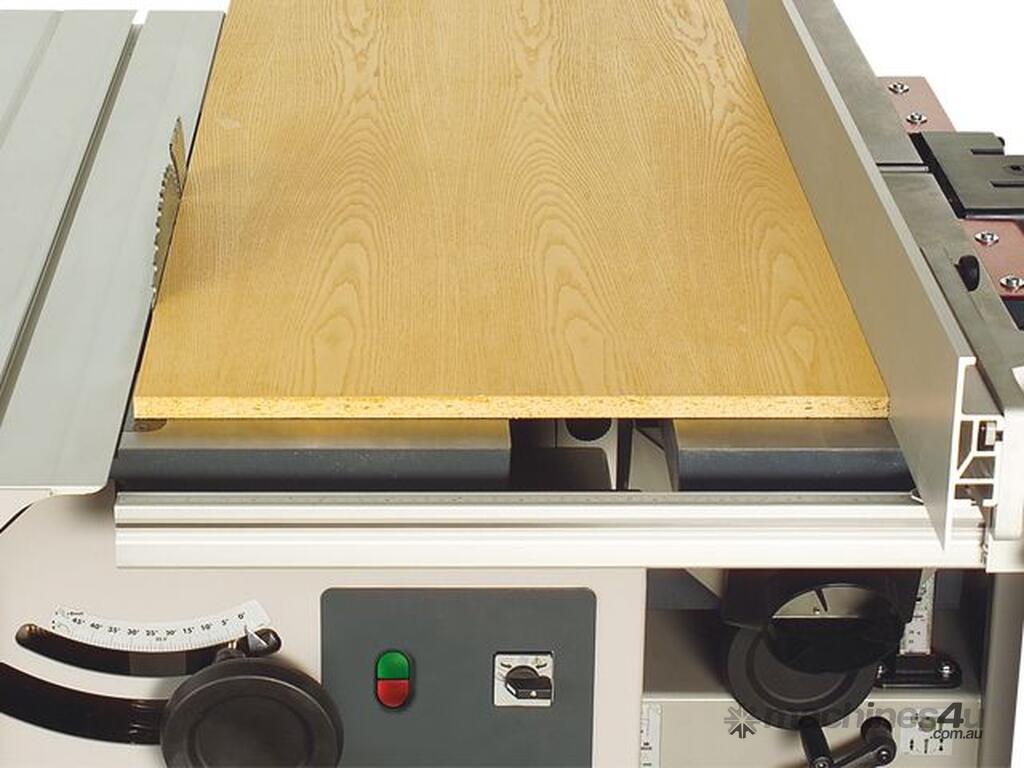

Rip capacity continuously adjustable 0–600 mm

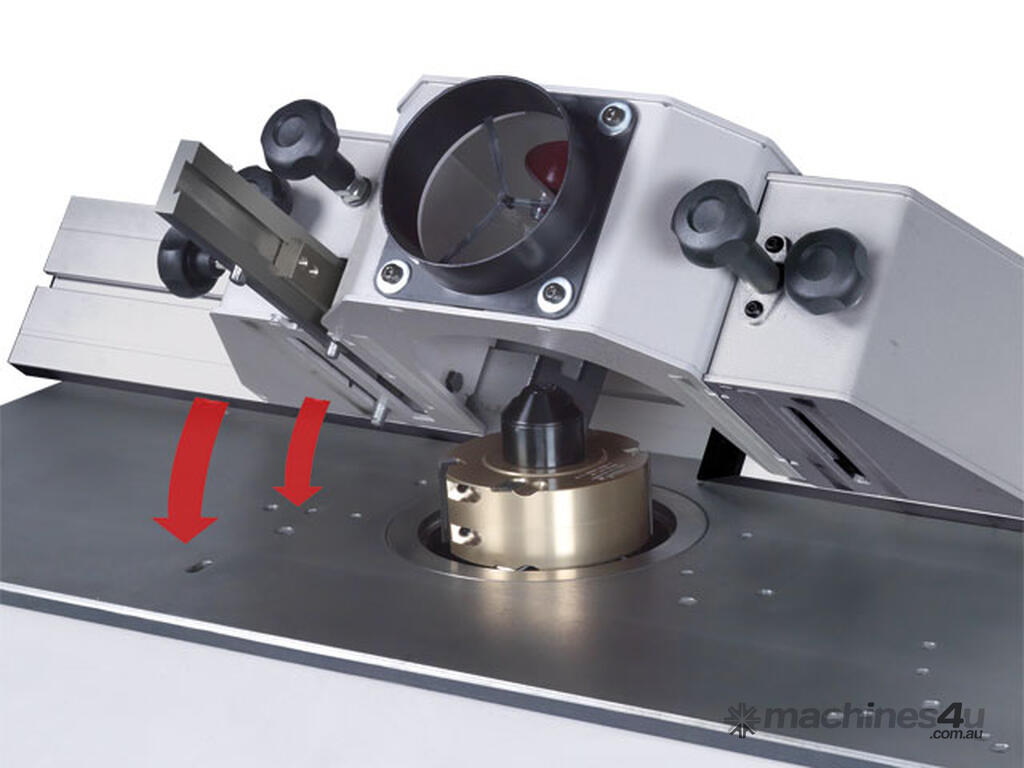

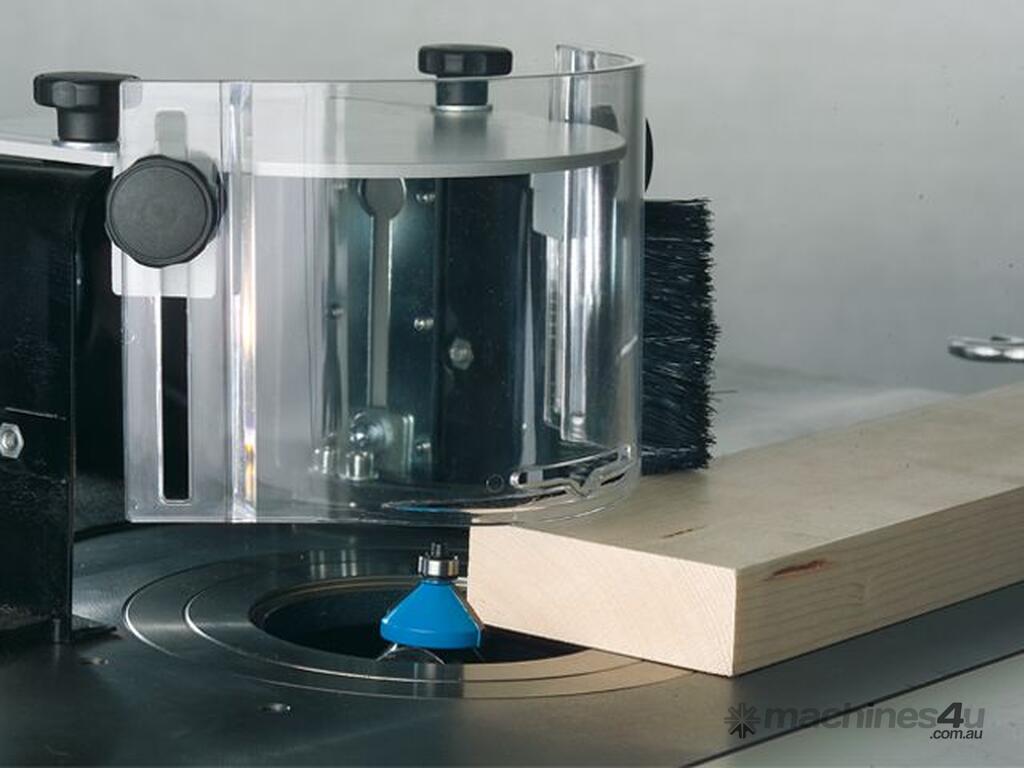

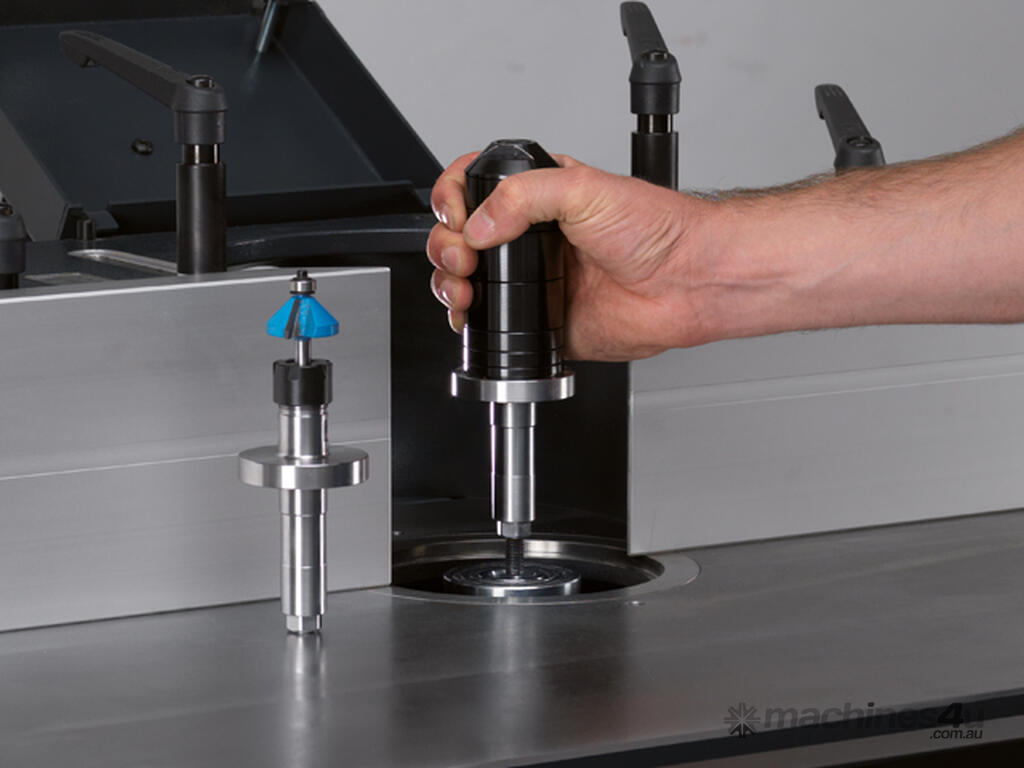

Spindle Moulder Unit and Spindle Fence:
Fixed spindle with height adjustment from the front
Speed 3000/6000/8000/10.000 rpm
Moulder spindle dia. 30 mm, usable height 100 mm
Router spindle 14,000 rpm instead of dia. 30 mm (option with a surcharge)

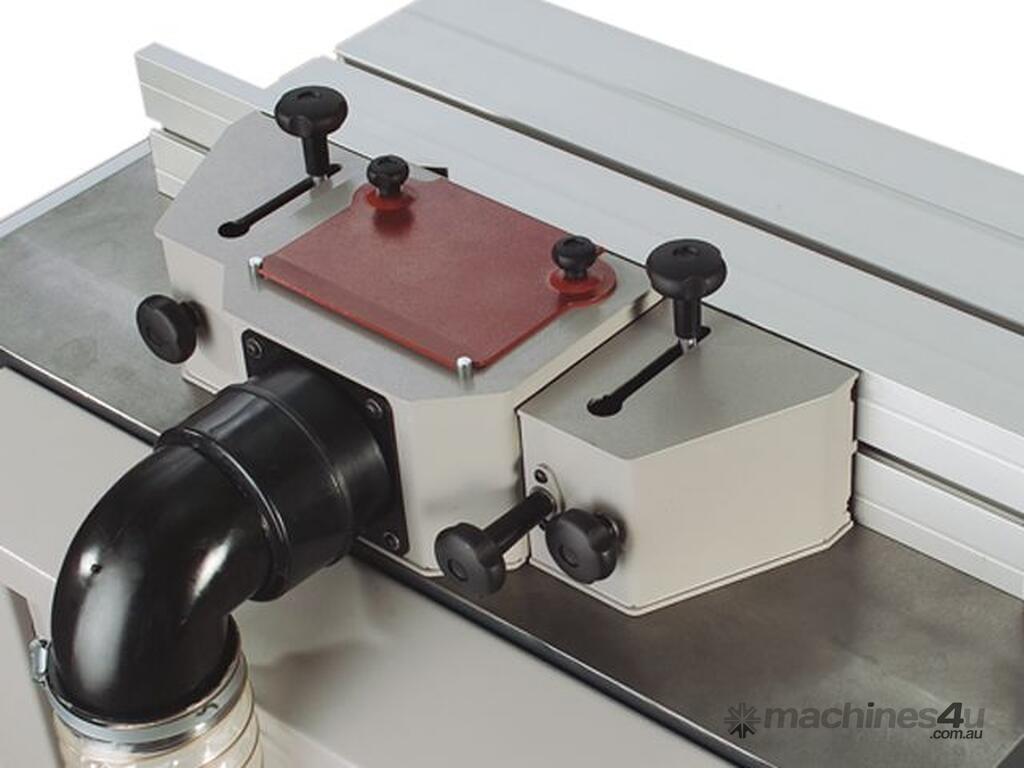

Spindle fence 220 for max. tooling diameter 220 mm
Max. tooling diameter beneath table at 90° 180 mm

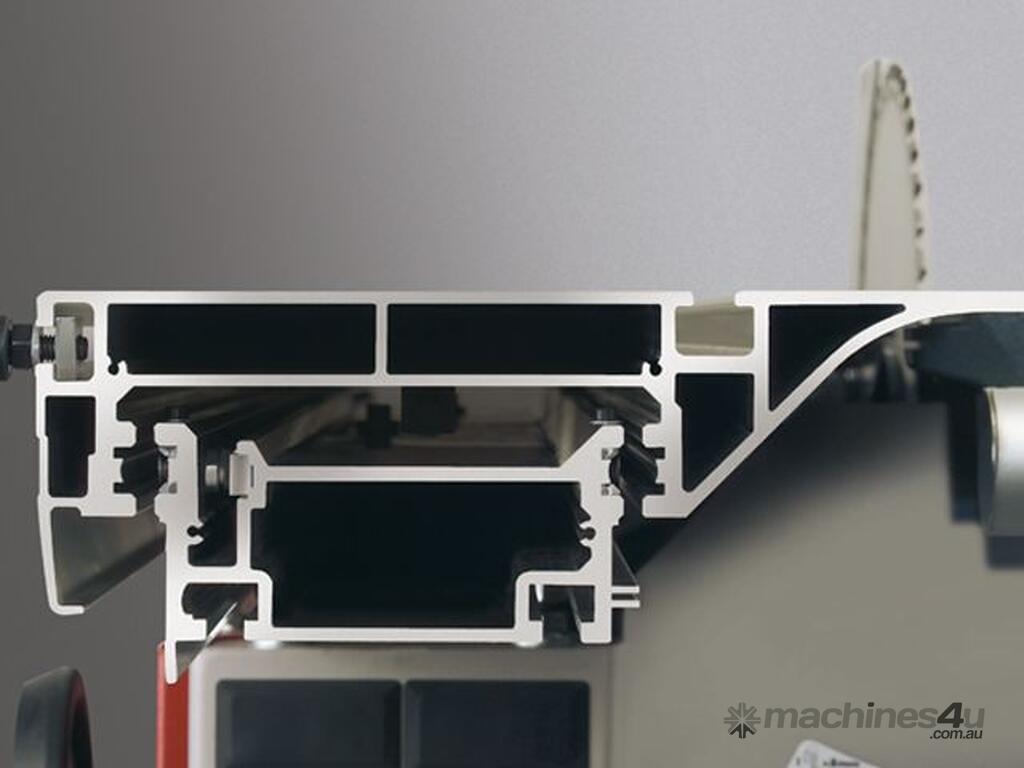

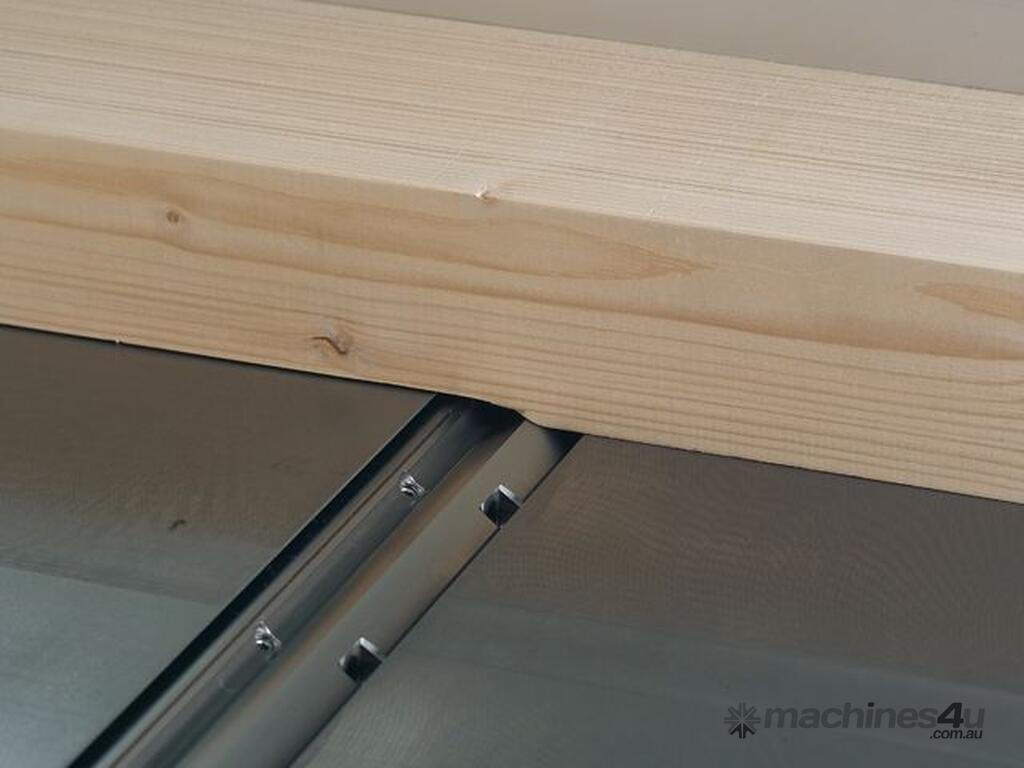

Anodised Format Sliding Table:
Format sliding table 800mm - 2500mm, cutting length 2050 mm*

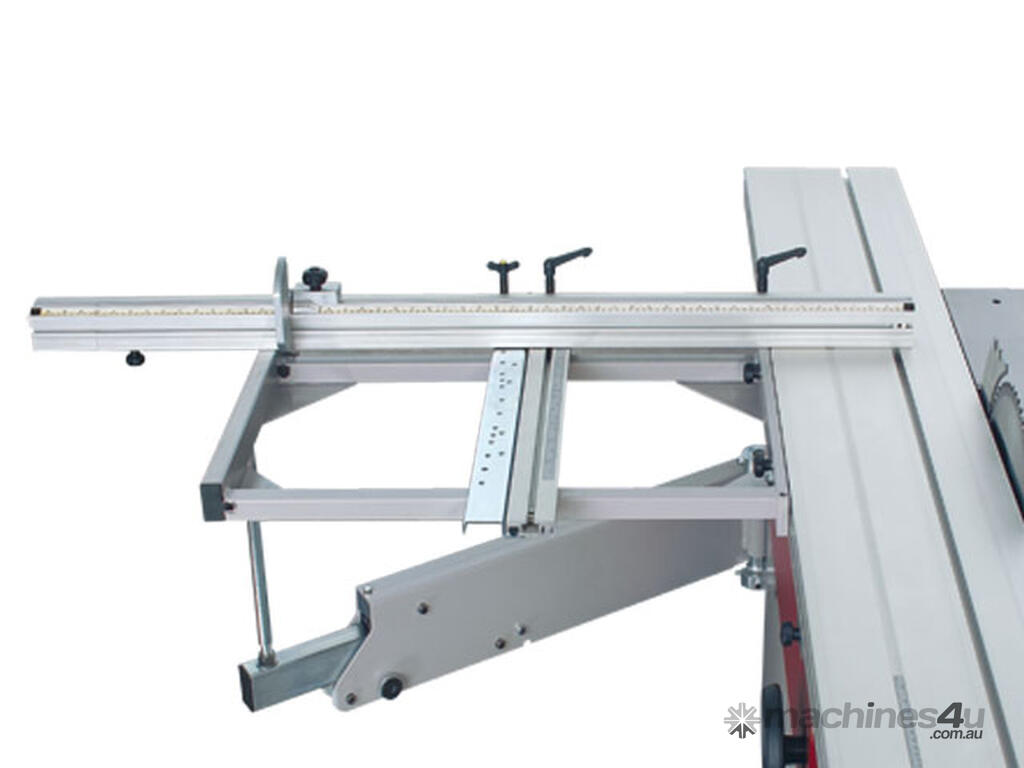

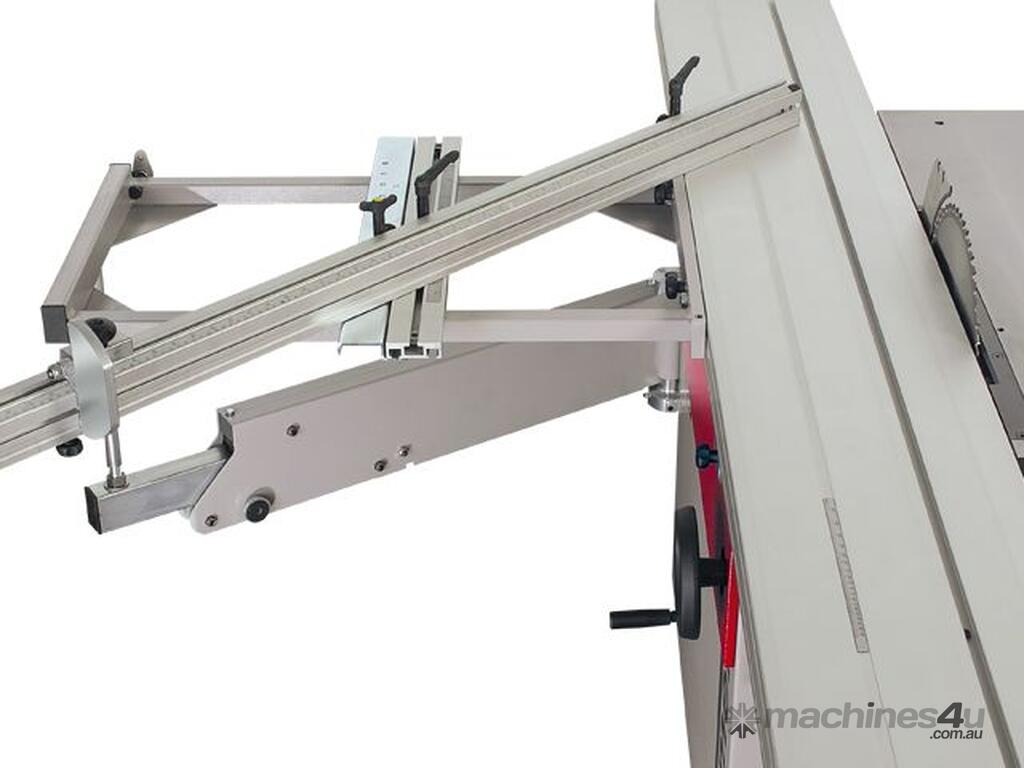

Outrigger Tables and Crosscut Fences:
Outrigger table 1100mm
Precision mitre guide index system

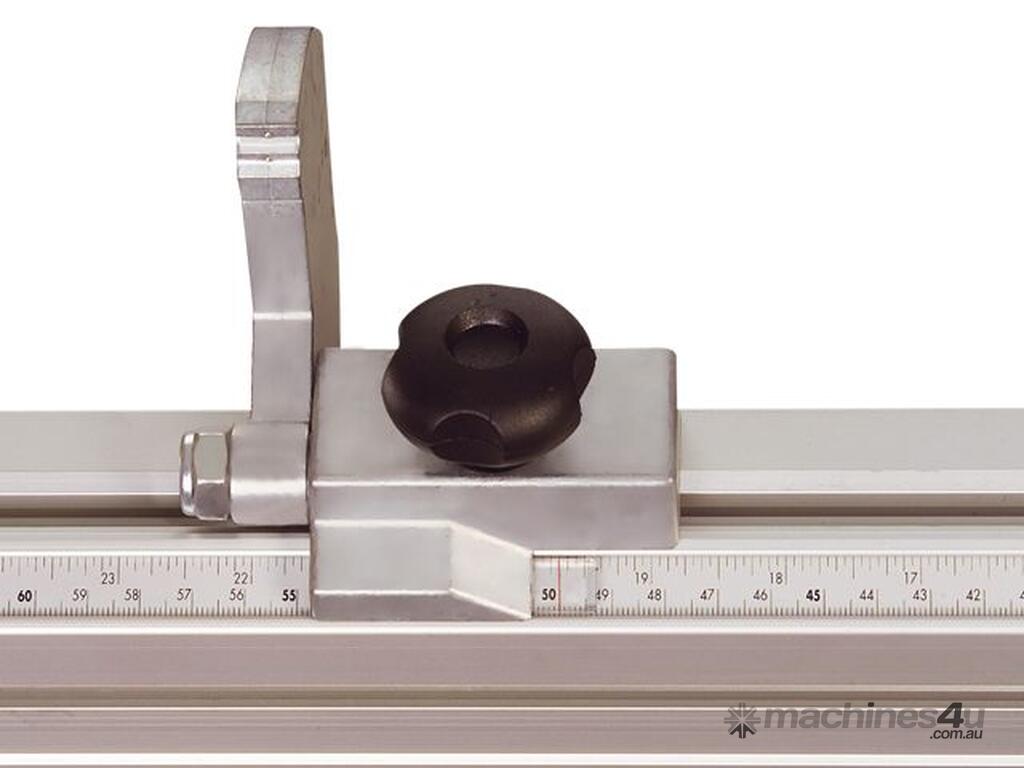

Crosscut fence 1300 mm for outrigger 1100

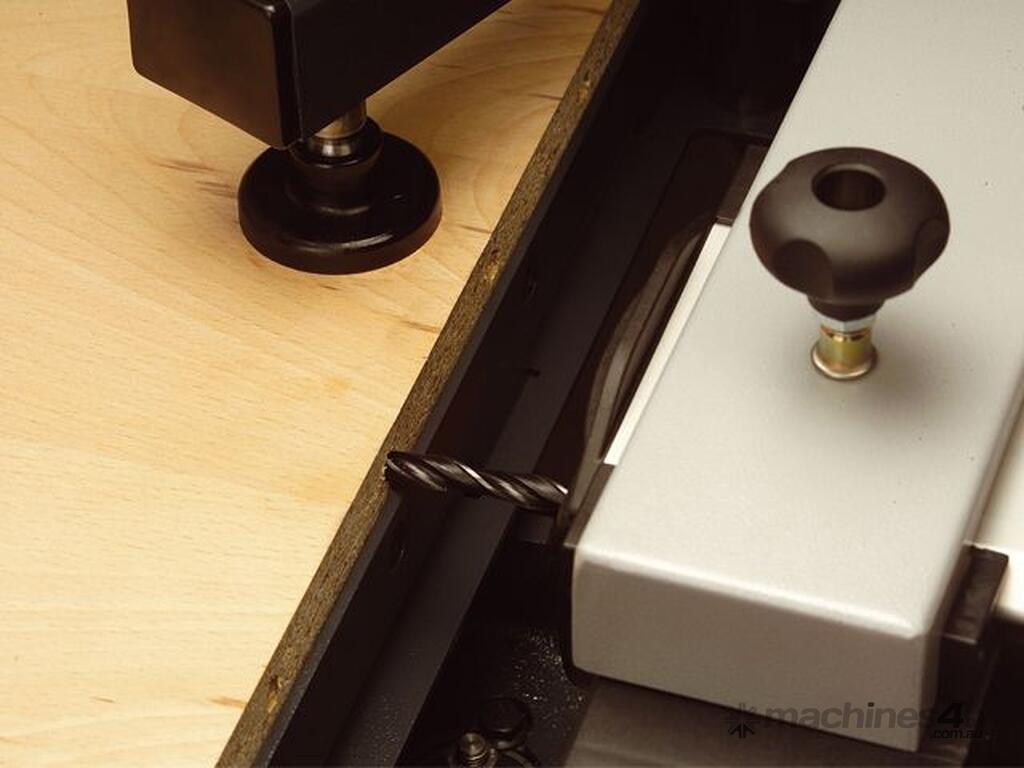

Mortising Unit (optional)
Mortising table
Mortising chuck 0–16 mm
Important Accessories (optional with surcharge)
Rolling carriage without lifting bar
Lifting bar
Tilt-away mount for power feeders
Weight:
Weight, kg (with average equipment) net/gross 610/780kg
Other popular options
Preparation for Dado tooling up to 19.5 mm width

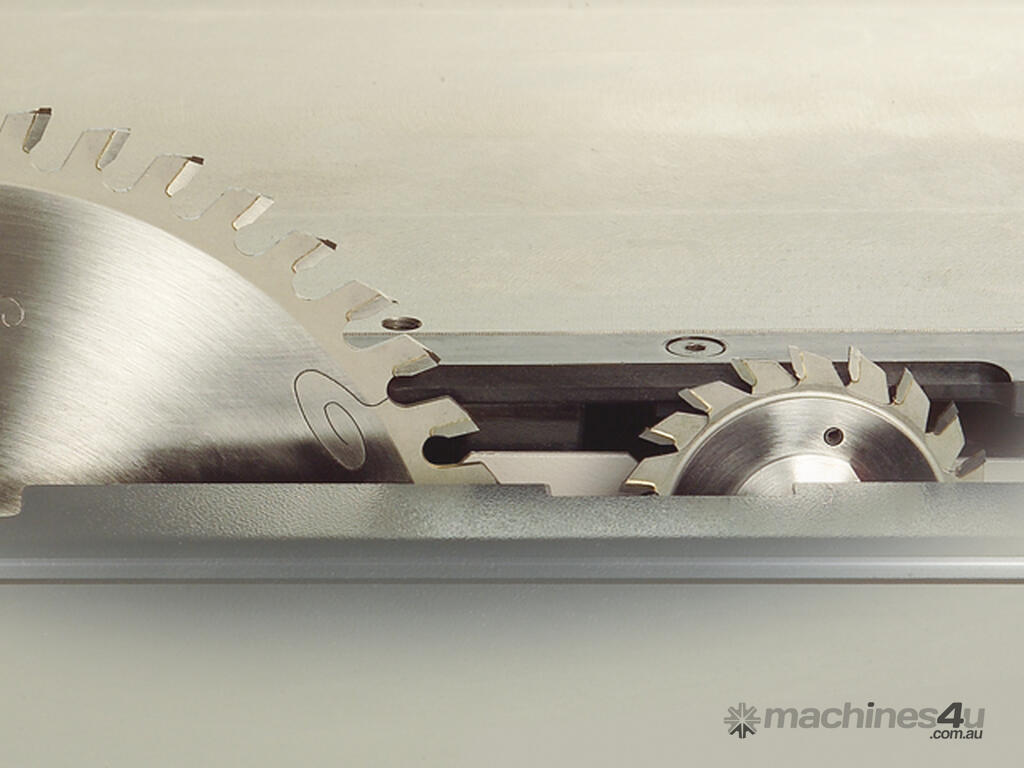

Mechanical scoring unit, scoring blade dia. 80 mm

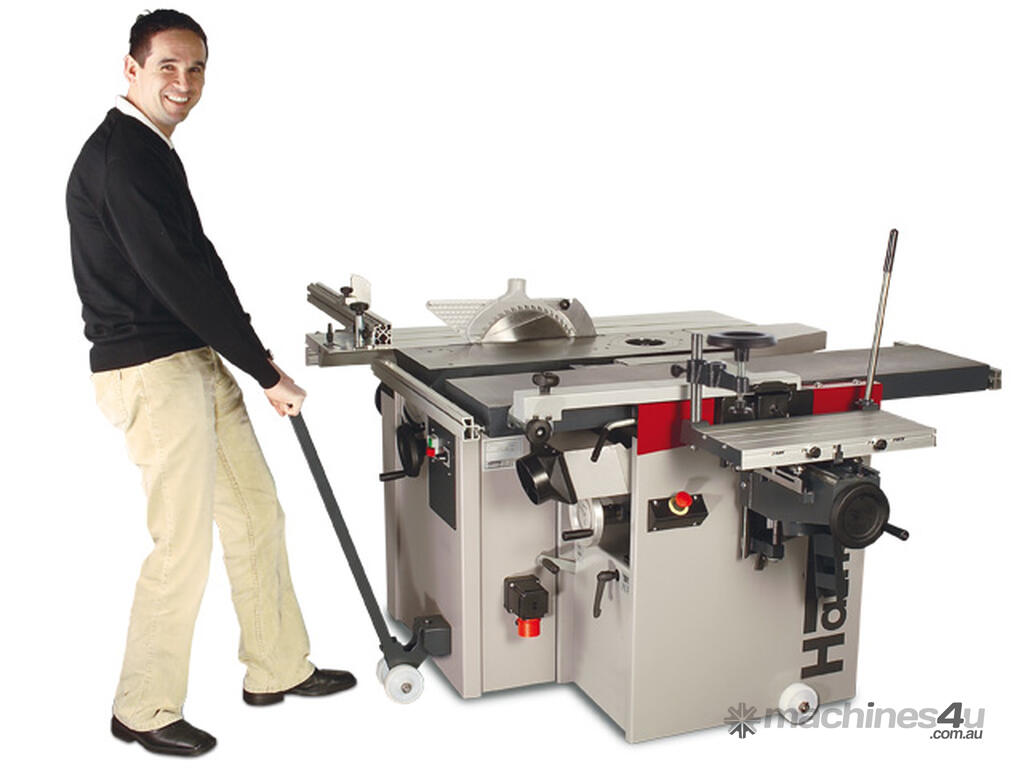

Rolling carriage for your workshop
Made to order depending on different customer needs
