Please download PDF sheet for available machine options

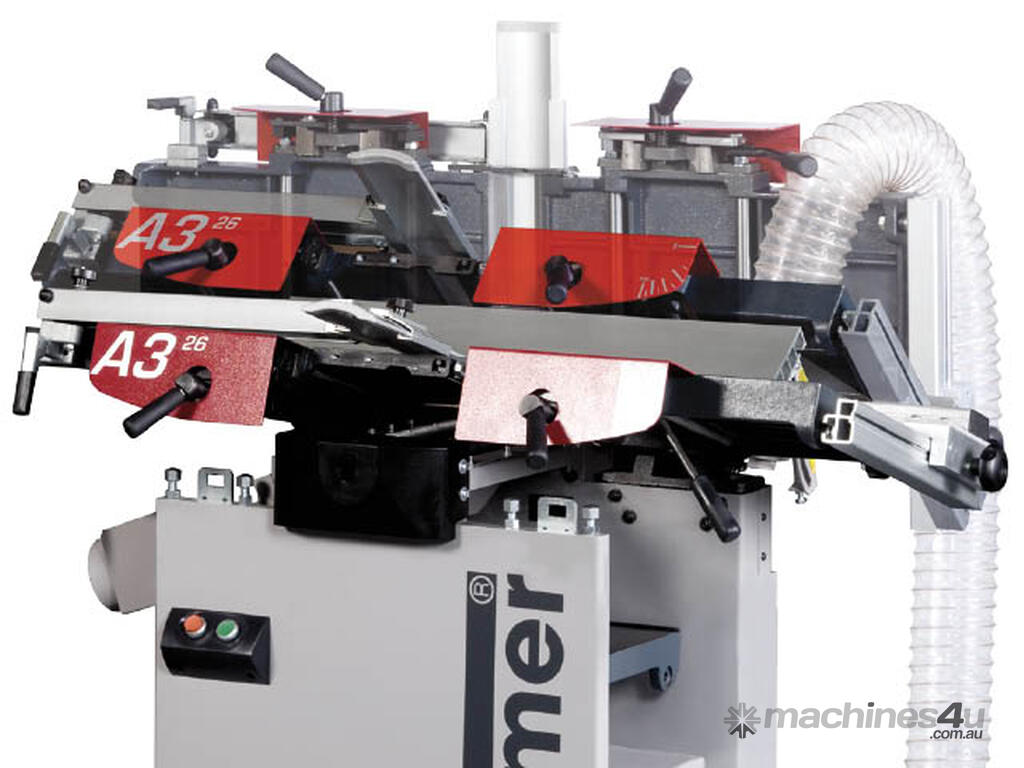

A complete woodworking setup in one machine
Made in Austria to a quality that cant be beaten!
3 motors 4.0 HP (3kw) single phase or three phase power
Saw unit with 103mm cutting height
Planing/ Thicknessing width 310 mm,
Planer table length 1400 mm,
3 knife quick-change self-setting cutter block system, optional spiral head)
Saw blade tilt 90°–45°,
4 Speed spindle moulder with 30mm shart
Sliding table 1250mm
Crosscut fence 900 mm,
Solid cast iron tables and units, Forward and reverse run on spindle.

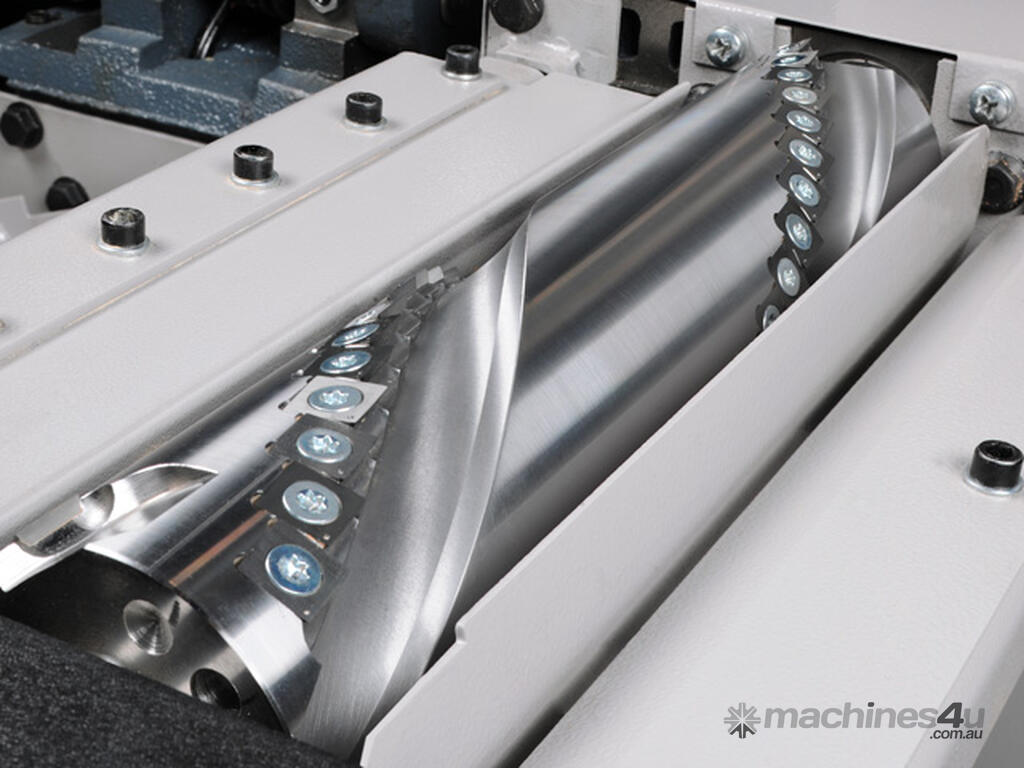

Silent Power Spiral Cutter Head
The specifications are as follows:
Planer:
Maximum depth of cut in 4 mm
Surface planing width in mm 410 mm

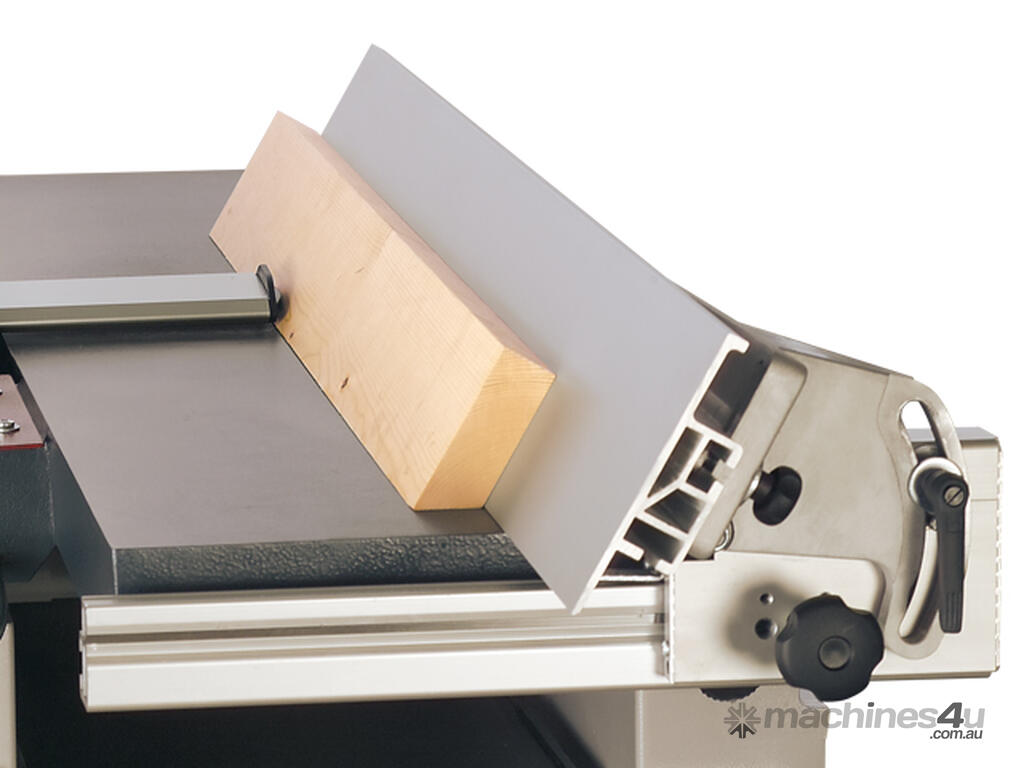

Planer fence tilting from 90°–45°, anodised
Surface planer table length 1800mm

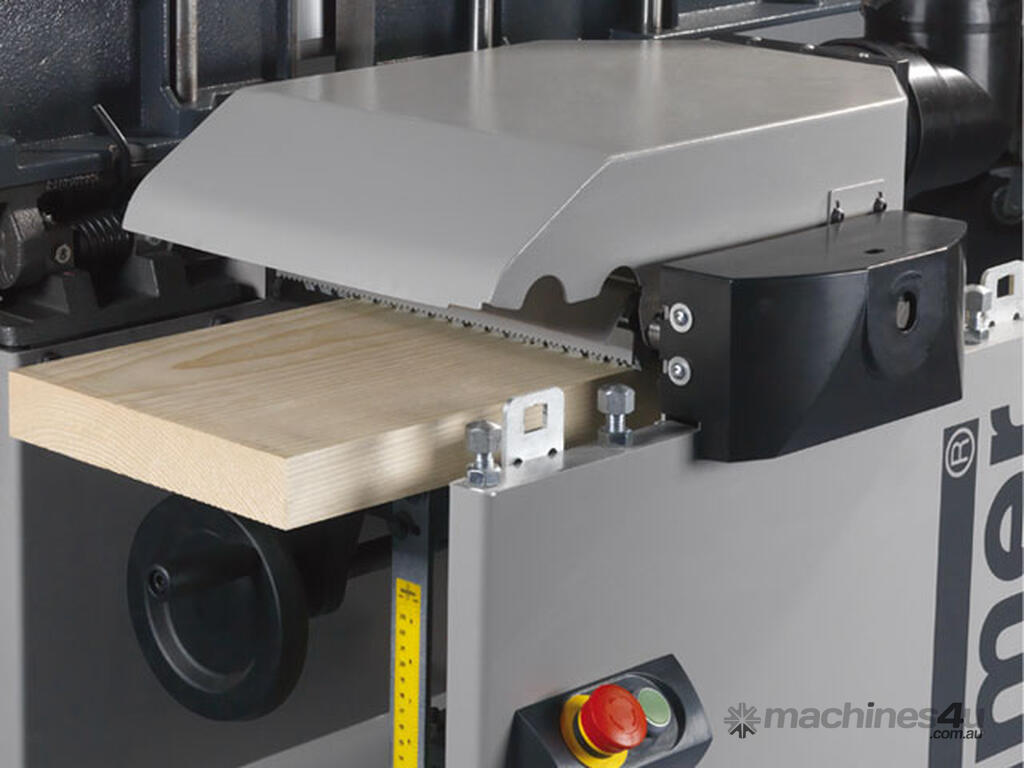

Thicknesser:
Thicknessing planing width in mm 406 mm

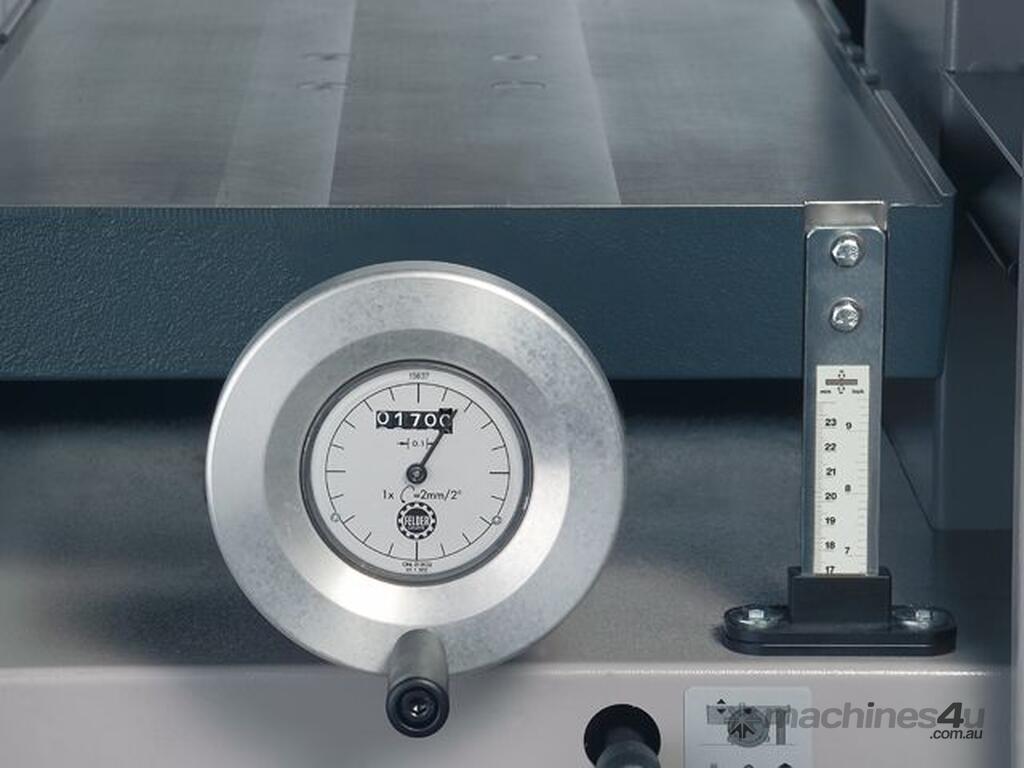

Thicknessing height min – max. 4–225 mm
Synchronized feeder drive 6 m/min
Thicknesser table length 600m

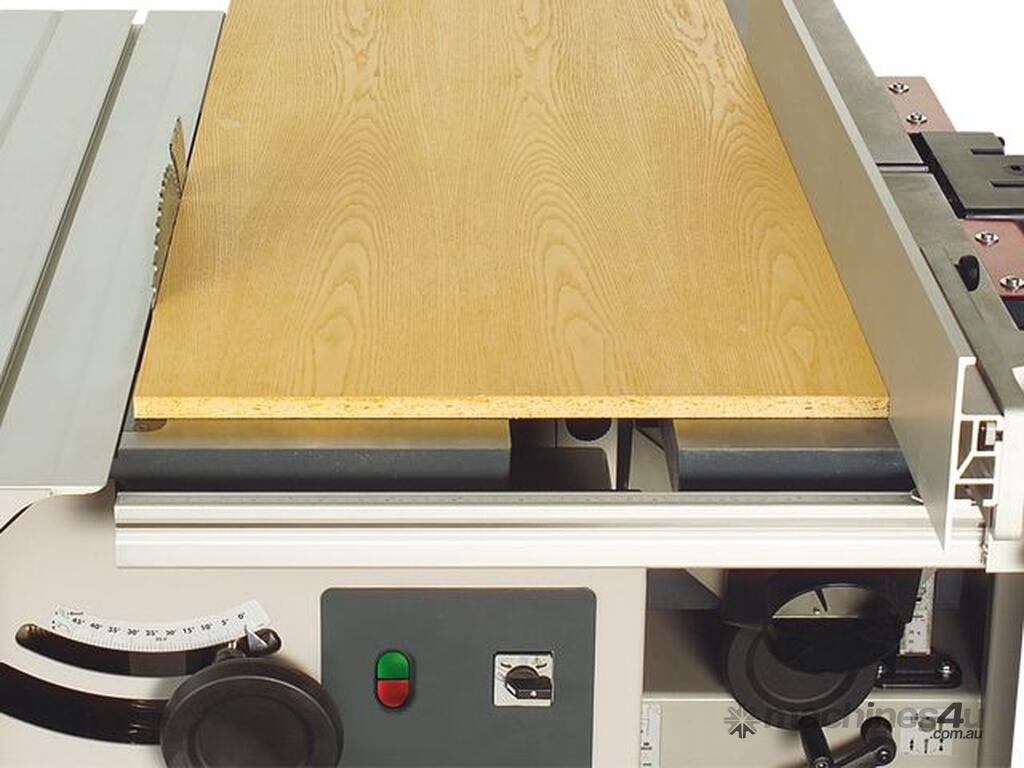

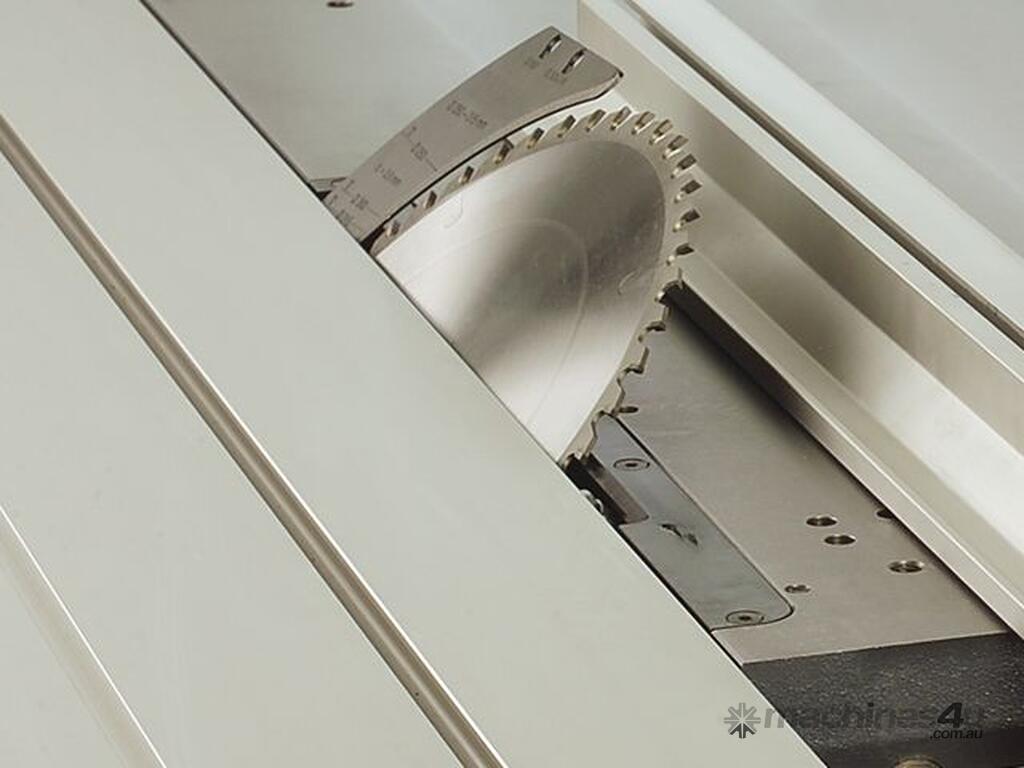

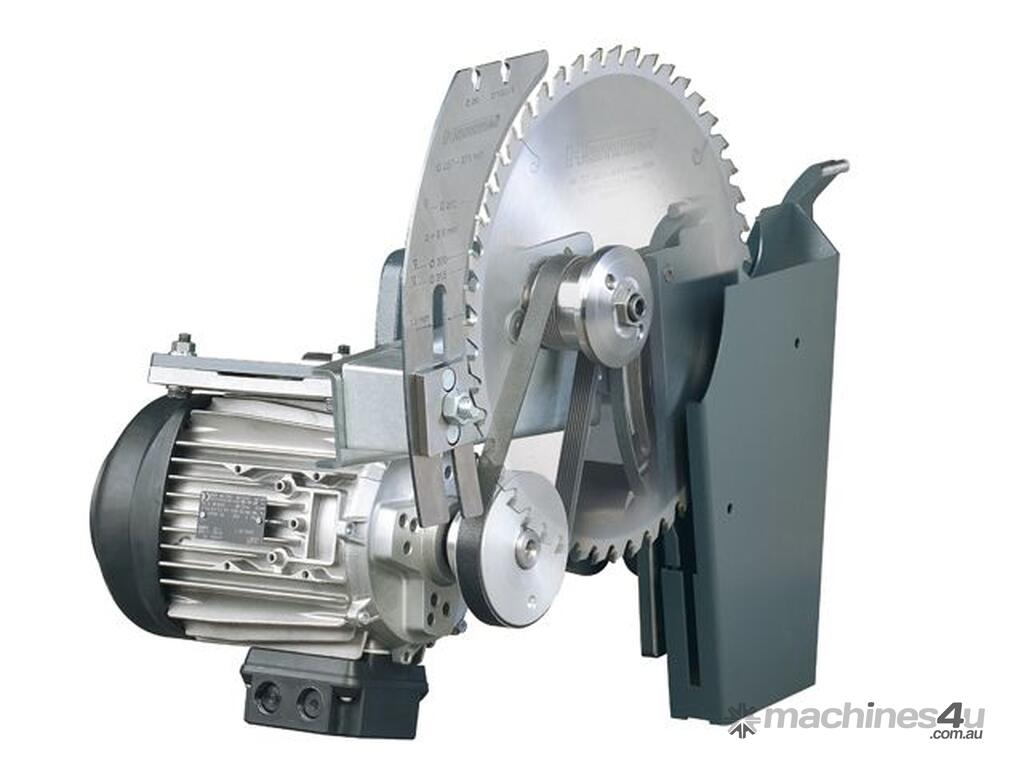

Saw Unit:
Main saw blade dia. 250–315 mm,
Saw blade tilting from 90°–45°, Max. cutting height 103 mm

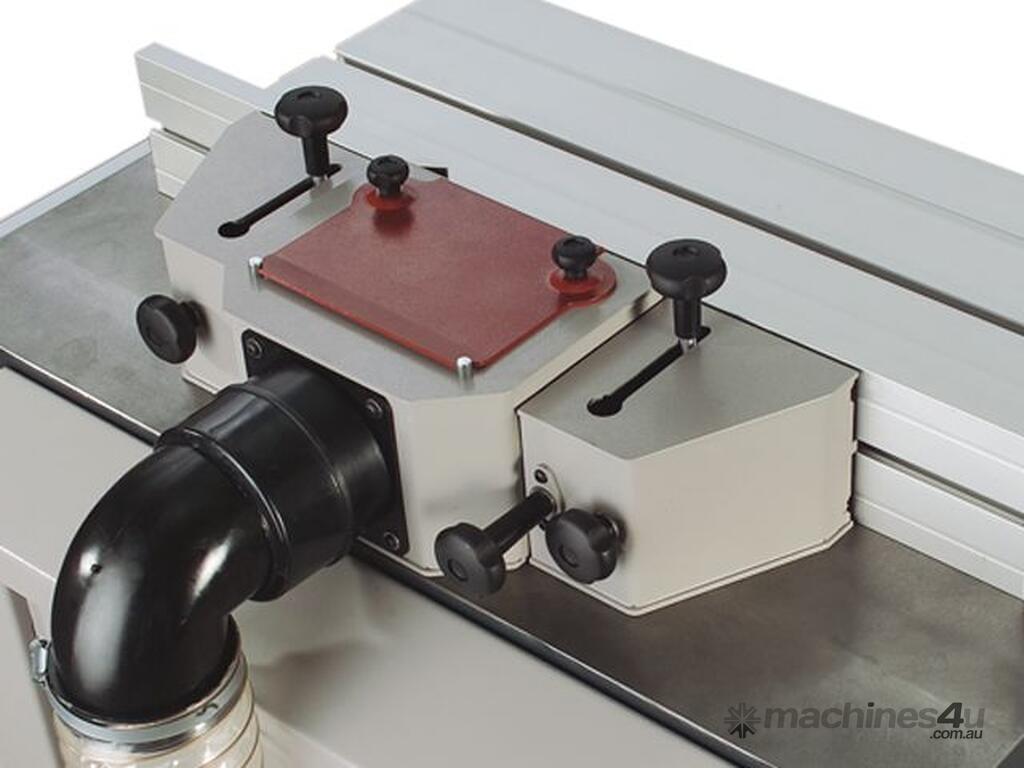

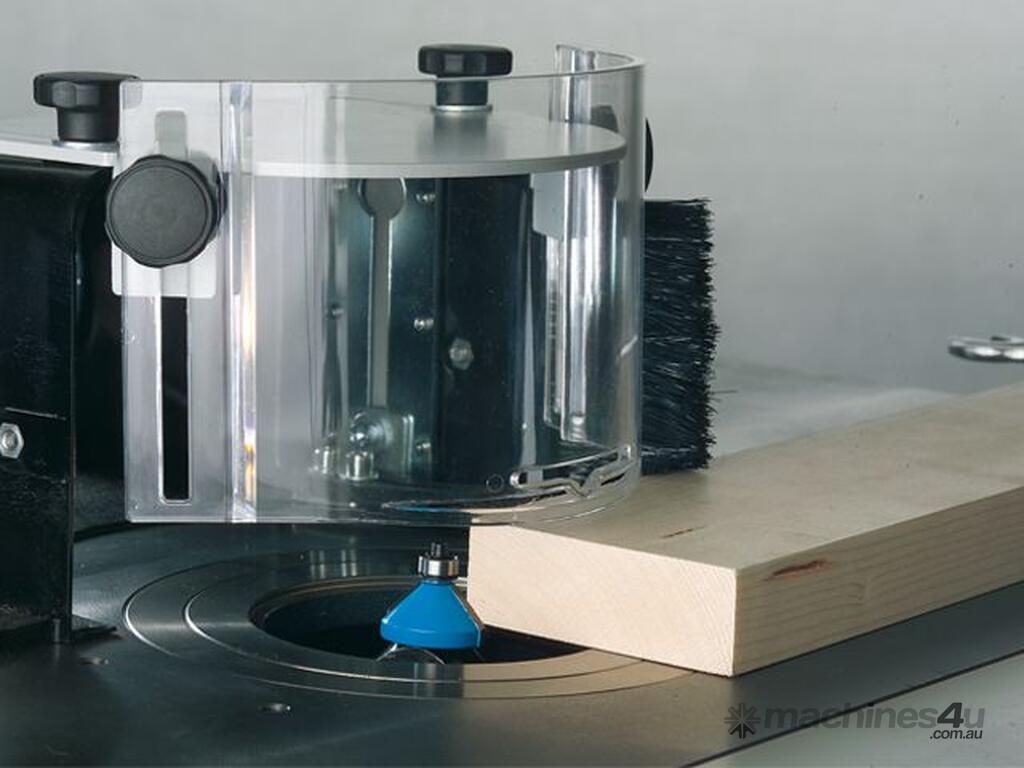

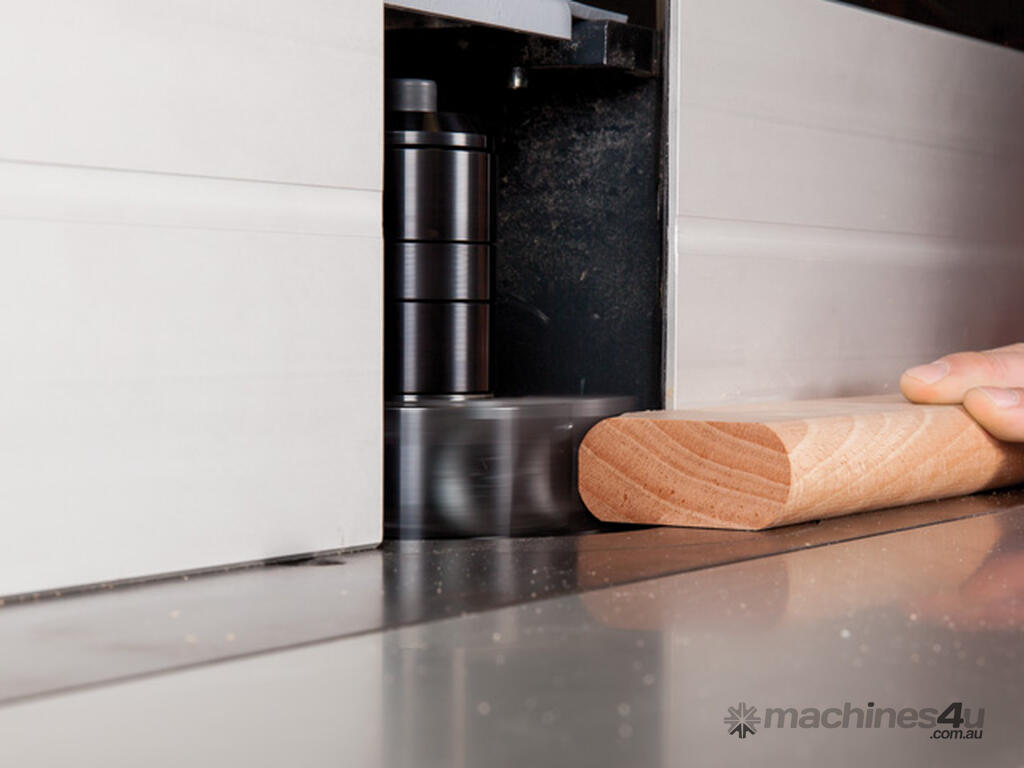

Spindle Moulder Unit and Spindle Fence:
Moulder spindle dia. 30 mm, usable height 100 mm

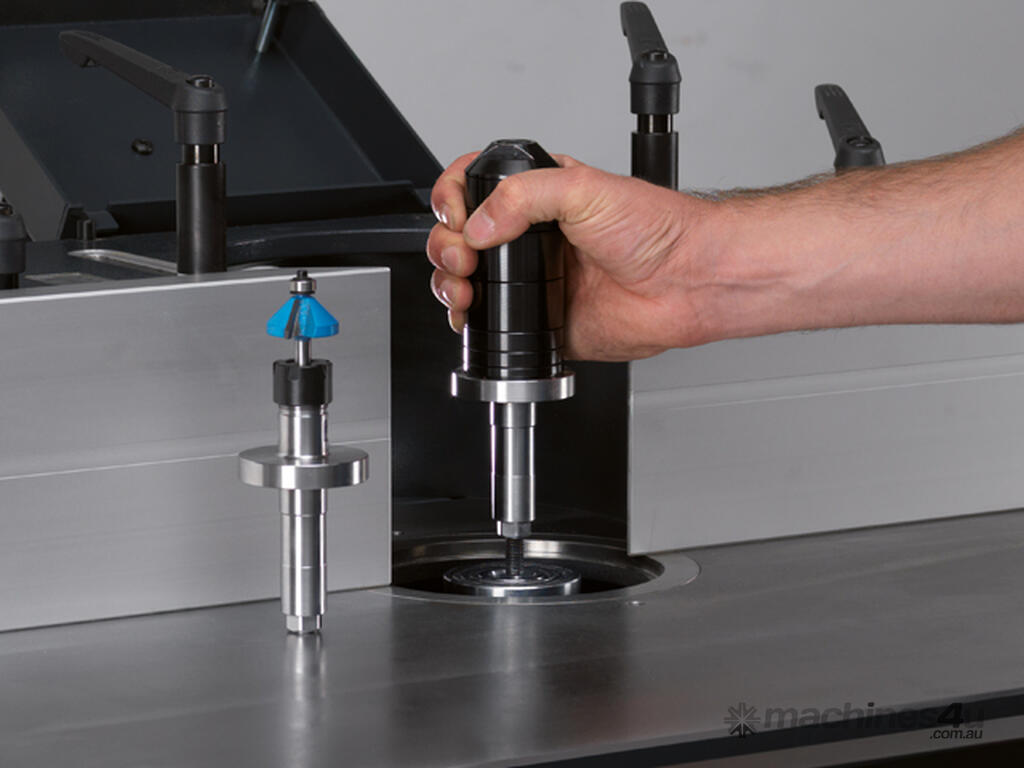

Router spindle 14,000 rpm instead of dia. 30 mm (option with a surcharge)

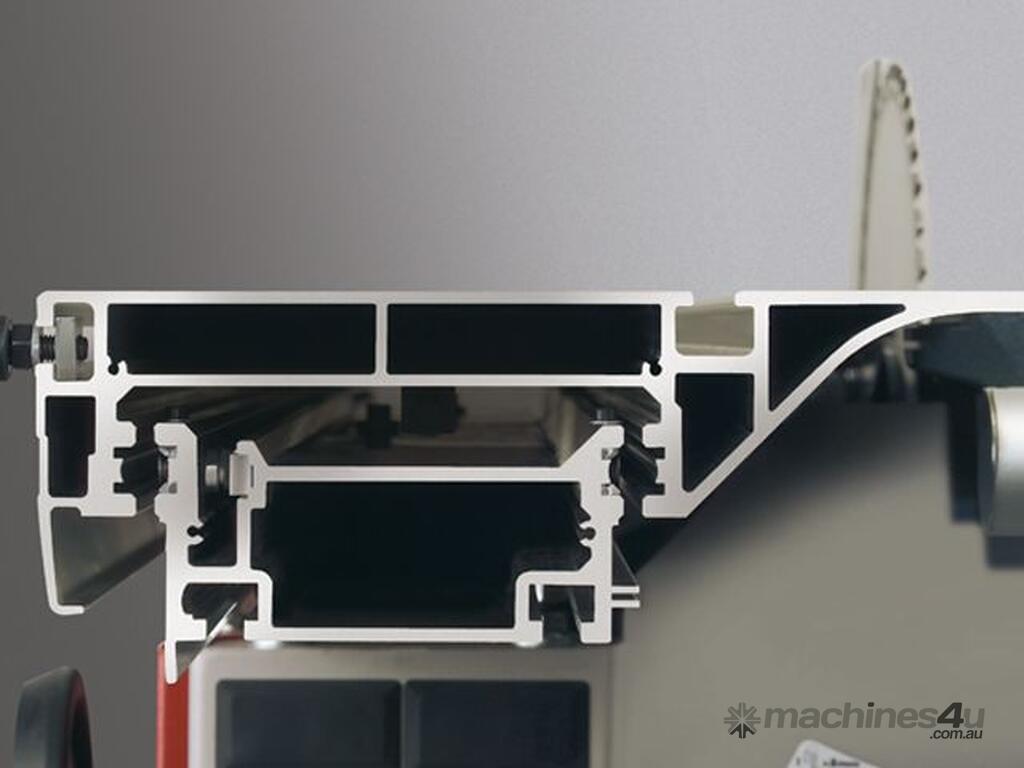

Anodised Format Sliding Table:
Format sliding table 1250mm, cutting length 1300 mm

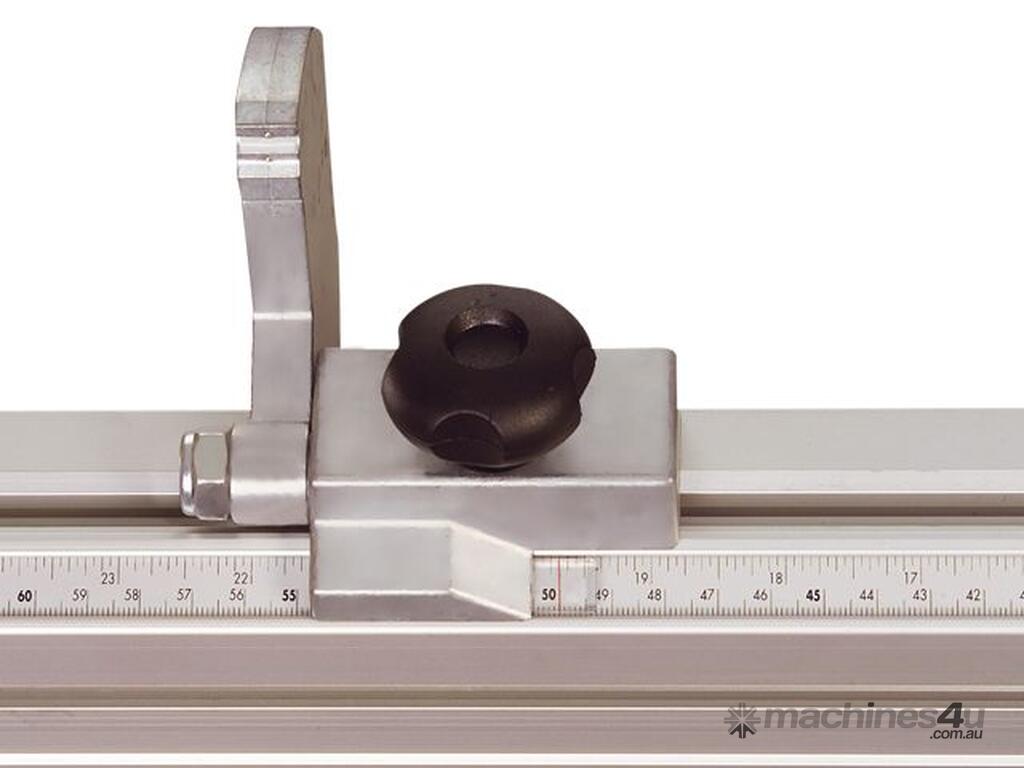

Crosscut fence 900 mm on sliding table
Sliding table options 800mm - 2,500mm

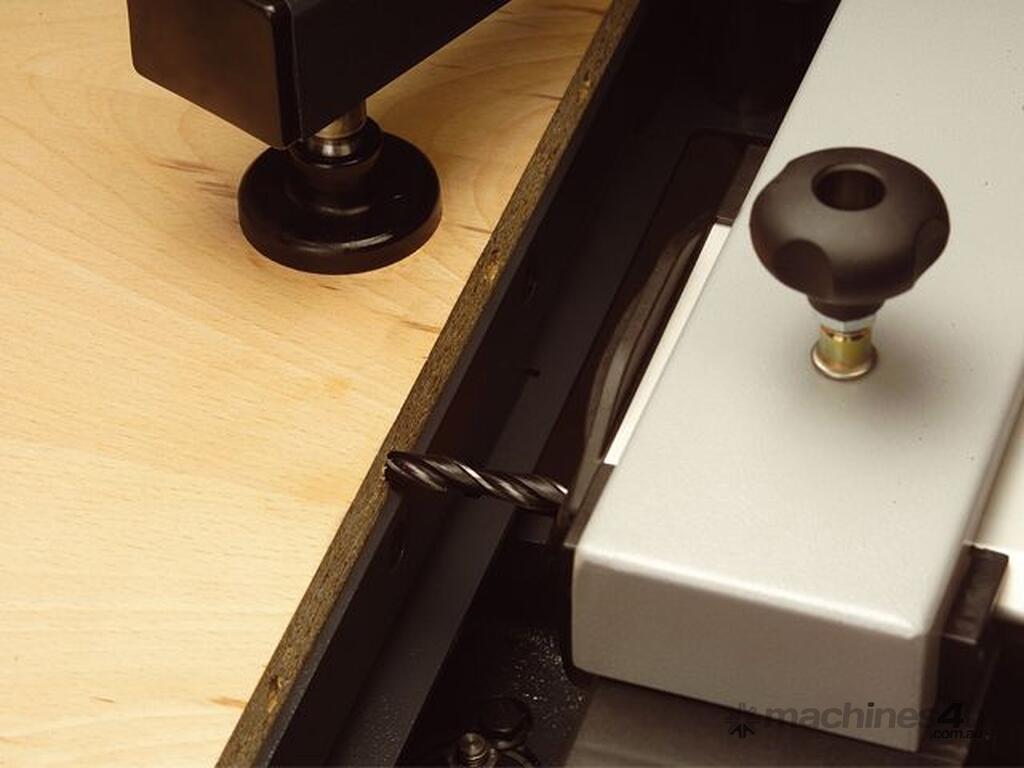

Mortising Unit (optional)
Mortising table
Mortising chuck 0–16 mm
Important Accessories (optional with surcharge)
Rolling carriage without lifting bar
Lifting bar
Tilt-away mount for power feeders
Weight 720 - 810kg
Other popular options

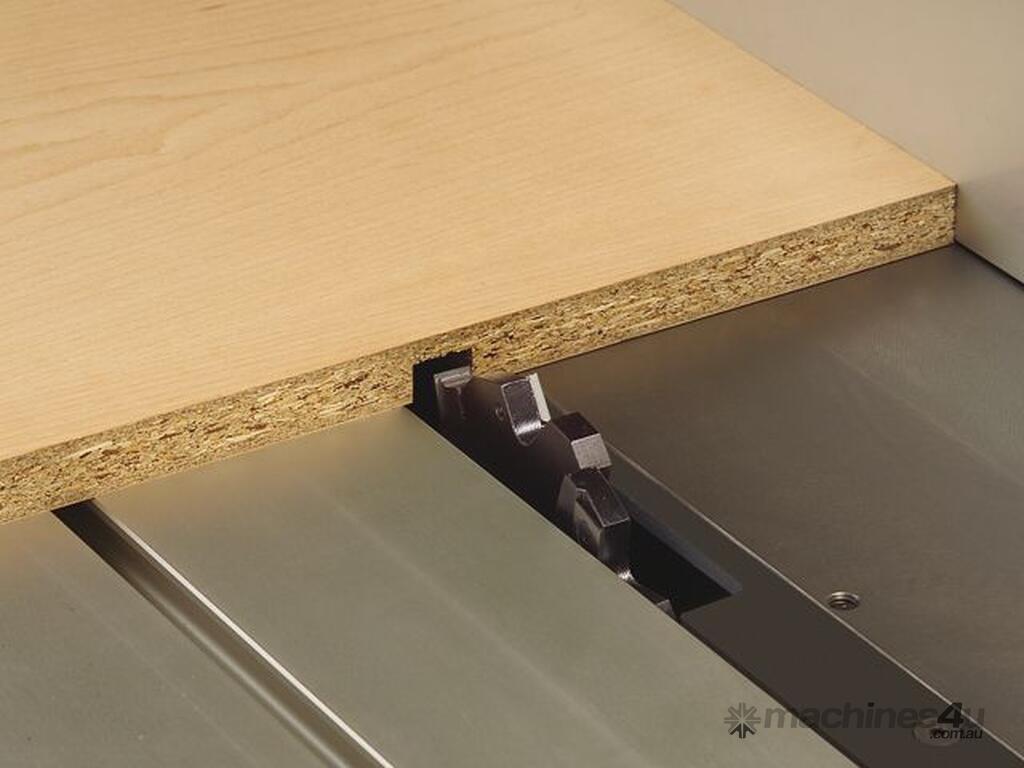

Preparation for Dado tooling up to 19.5 mm width

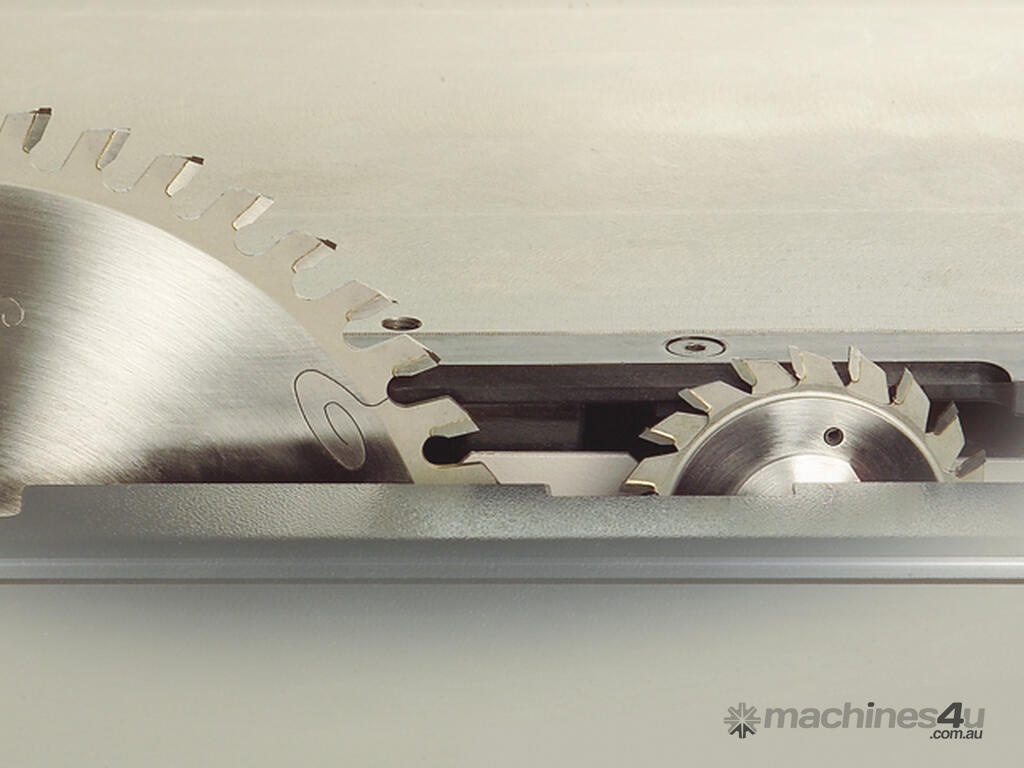

Mechanical scoring unit, scoring blade dia. 80 mm
