Hammer K3 Winner panel saw, the precision circular saw for the discerning woodworker.
Please download PDF sheet for available machine options
Exact parallel cuts as well as precise cross, mitre and format cuts along with the smooth operation of the format sliding table. These are the qualities that discerning woodworkers like you expect in a precision circular saw.

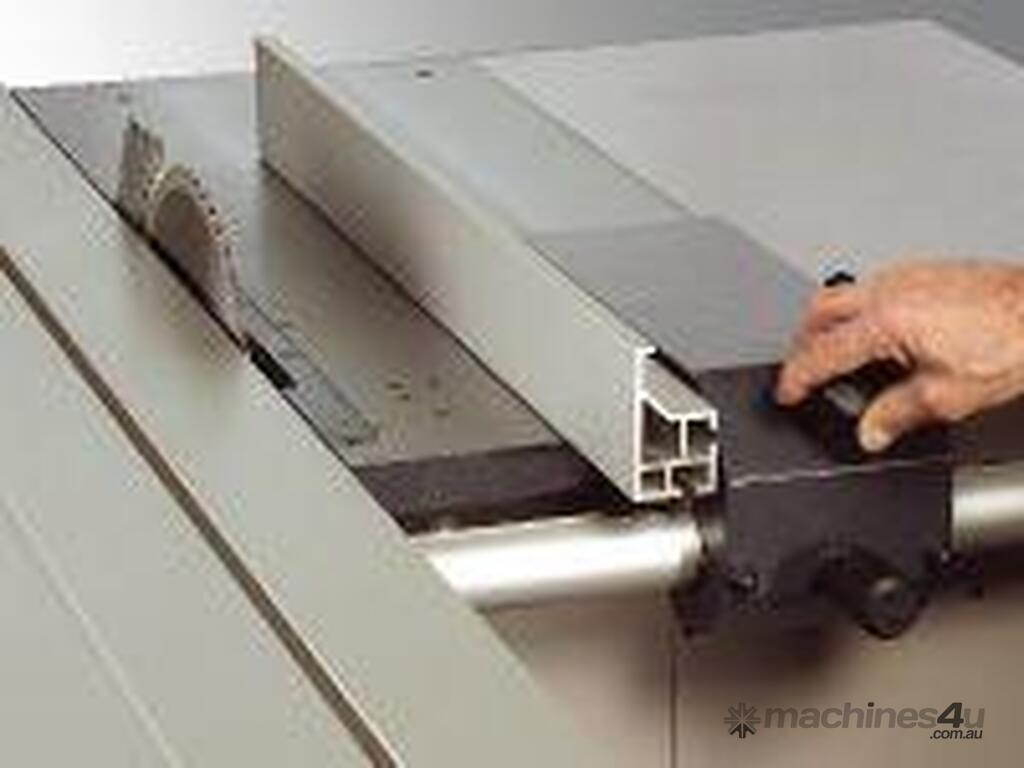

Above and beyond that, the K3 winner gives you features that you will not find in similar types of machines, e.g. the precision circular saw unit, the cross-cut stop with the scale set at an angle, a magnifying lens to assist with making exact adjustments and the rip fence with fine adjustment system, guided on large round bar. The K3 winner is the choice for discerning woodworkers.
Details that impress!
- Sensational value for your money
- Massive cast iron saw table
- Robust saw unit
- Professional rip fence on round guiding bar
- Innovative machine technology
- Generous standard features
- Remarkably user friendly
- Quality and precision that will last many, many years
- Preparation for Dado tooling up to 19.5 mm width
Technical Specifications:
motor 4.0 HP (3.0 kW) S6/40% (available in single phase as well as an option)
Main sawblade dia. 250–315 mm, Saw unit speed 4800 rpm O
Saw blade tilting from 90°–45°, Max. cutting height 103 mm
Rip capacity continuously adjustable 800 mm (1250 mm optional)
Preparation for Dado tooling up to 19.5 mm width (optional)
Fine adjustment for rip fence winner/basic (optional)
Mechanical scoring unit, scoring blade dia. 80 mm (optional)
Anodised Format Sliding Table
Format sliding table 1250 mm, cutting length 1300 mm
Crosscut fence 900 mm (1300mm optional)
Sliding Table Length Options - 800mm - 2,000mm
Please note that the Options will have a surcharge.
Price excluding GST & Delivery
