Hammer K4 Perform Panel Saw by Felder

Hammer K4 Perform panel saw, the precision circular saw for the discerning woodworker.


Please download PDF sheet for available machine options


Exact parallel cuts as well as precise cross, mitre and format cuts along with the smooth operation of the format sliding table. These are the qualities that discerning woodworkers like you expect in a ­precision circular saw.

Above and beyond that, the K4 Perform gives you features that you will not find in similar types of machines, e.g. the precision circular saw unit, the cross-cut stop with the scale set at an angle, ­a magnifying lens to assist with making exact adjustments and the rip fence with fine adjustment system, guided on large round bar. The K4 Perform is the choice for discerning ­woodworkers.

Details that ­impress!

- Sensational value for your money
- Massive cast iron saw table

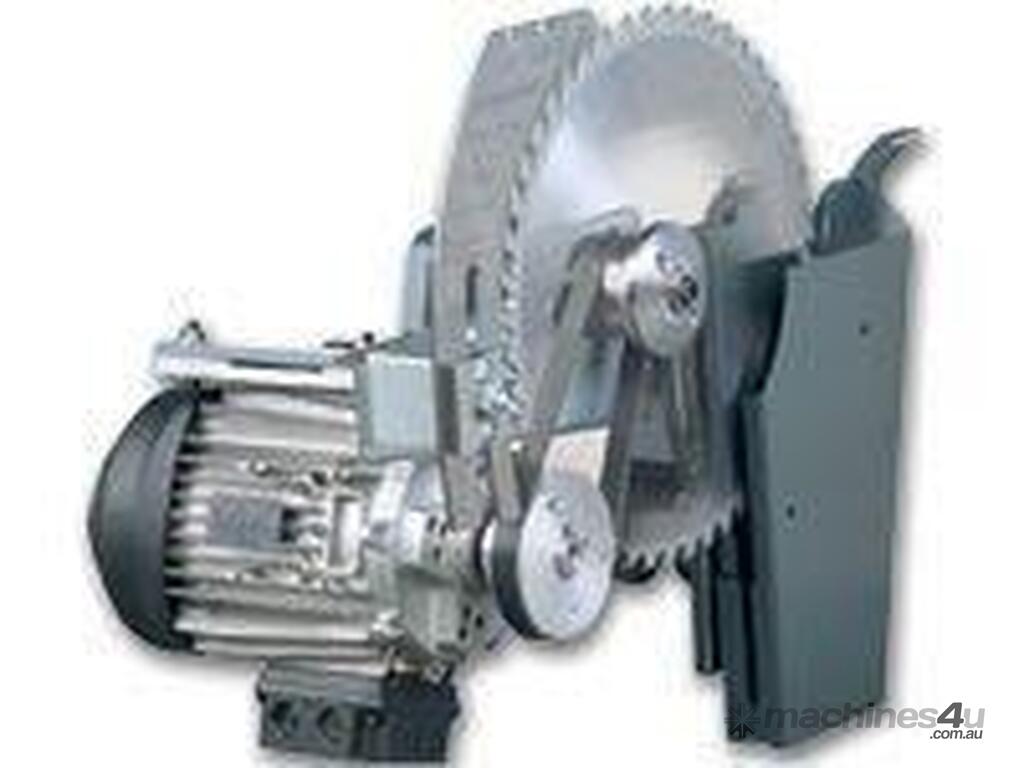

- Robust saw unit

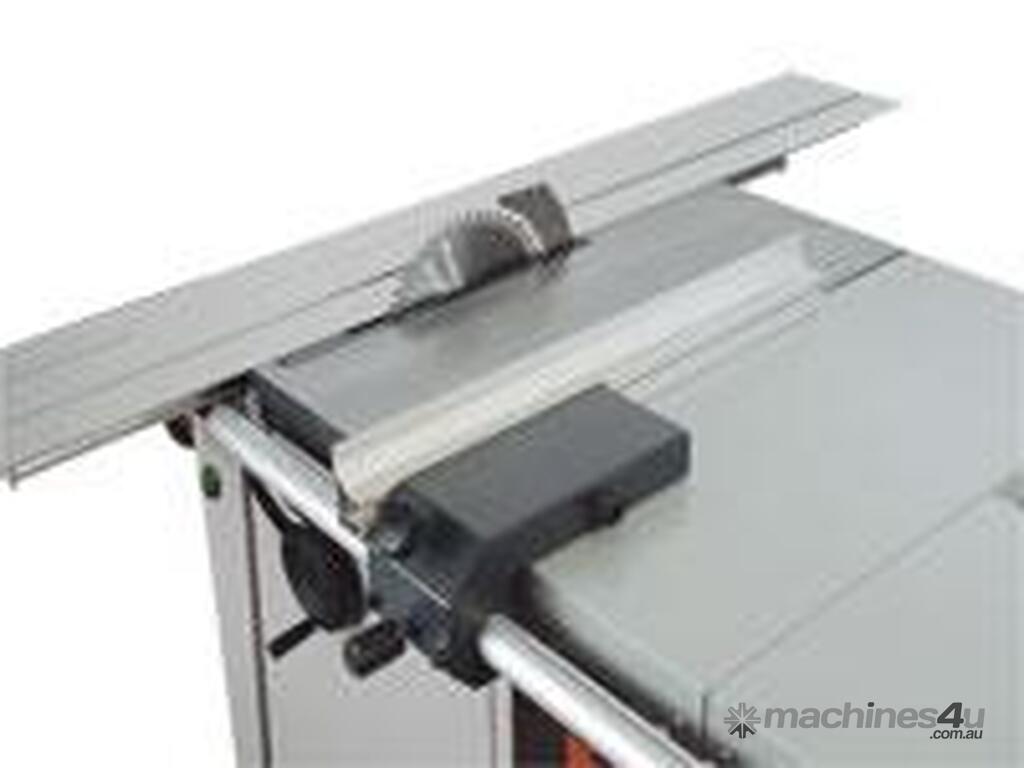

- Professional rip fence on round guiding bar
- Innovative machine technology
- Generous standard features
- Remarkably user friendly
- Quality and precision that will last many, many years
- Preparation for Dado tooling up to 19.5 mm width

Technical Specifications:
motor 5.5 HP (4.0 kW) S6/40% (7.5 HP optional) (only 4 hp available in single phase, optional)

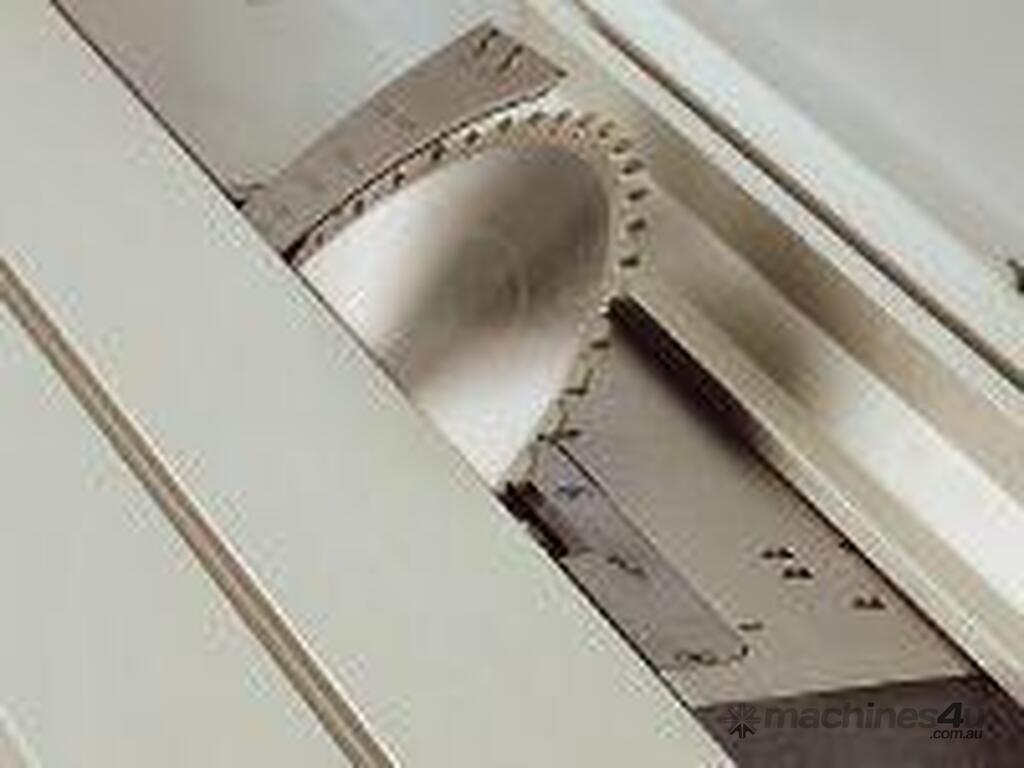

Main sawblade dia. 250–315 mm, Saw unit speed 4800 rpm O
Saw blade tilting from 90°–45°, Max. cutting height 103 mm
Rip capacity continuously adjustable 800 mm (1250 mm optional)
Preparation for Dado tooling up to 19.5 mm width (optional)

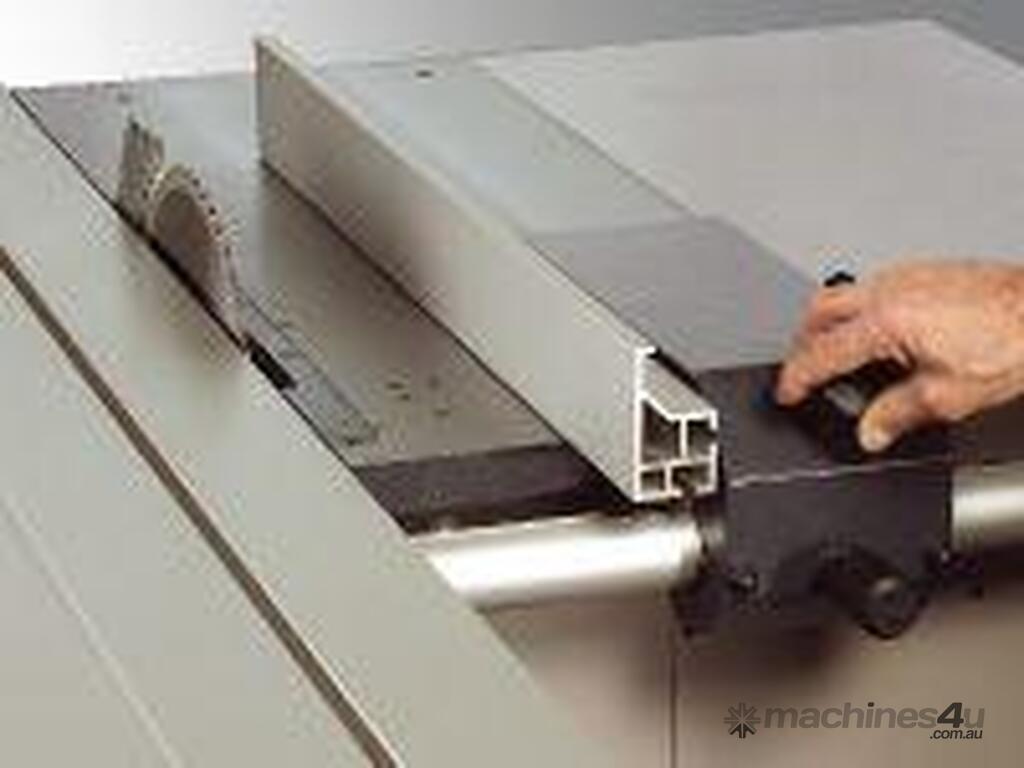

Fine adjustment for rip fence
Scoring unit, Motor 1.0 HP (0,75 kW), scoring blade dia. 80 mm
Anodised Format Sliding Table
Format sliding table 3200 mm
Crosscut fence 2600mm

Outrigger table 1250
Precision mitre guide index system (Optional)

Please note that the Options will have a surcharge. Sawblades not included.

This machine needs some assembly and set up which should preferably be done by Felder Group Australia but can be done by purchaser too.

Price excluding GST & Delivery and Setup
