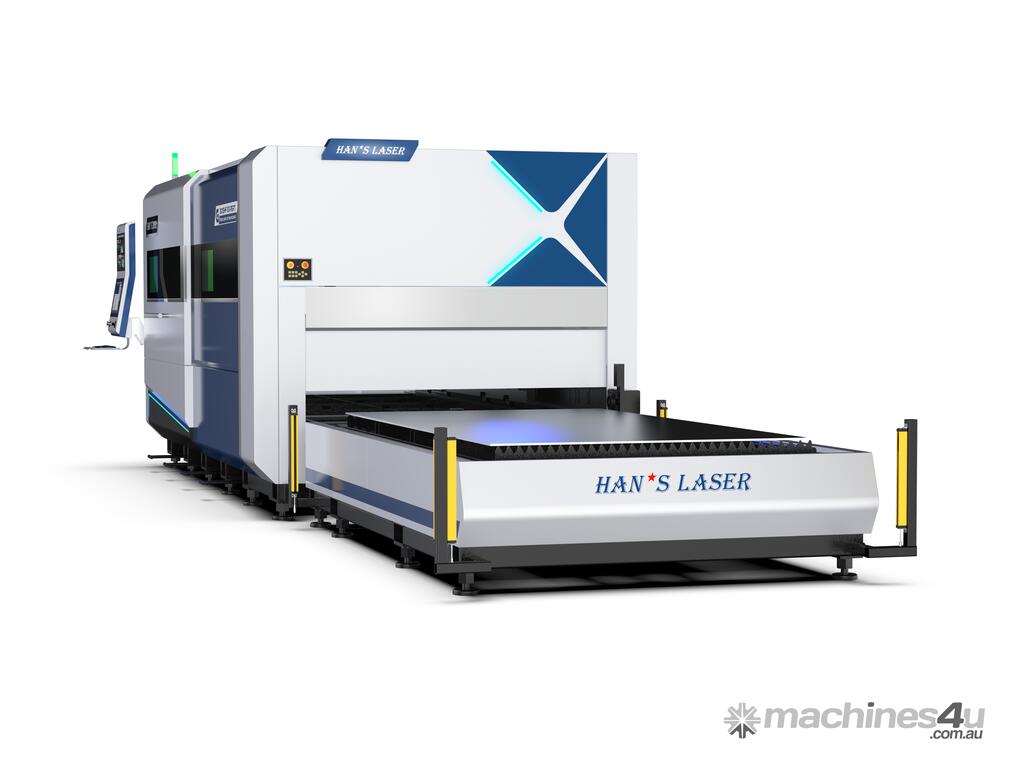

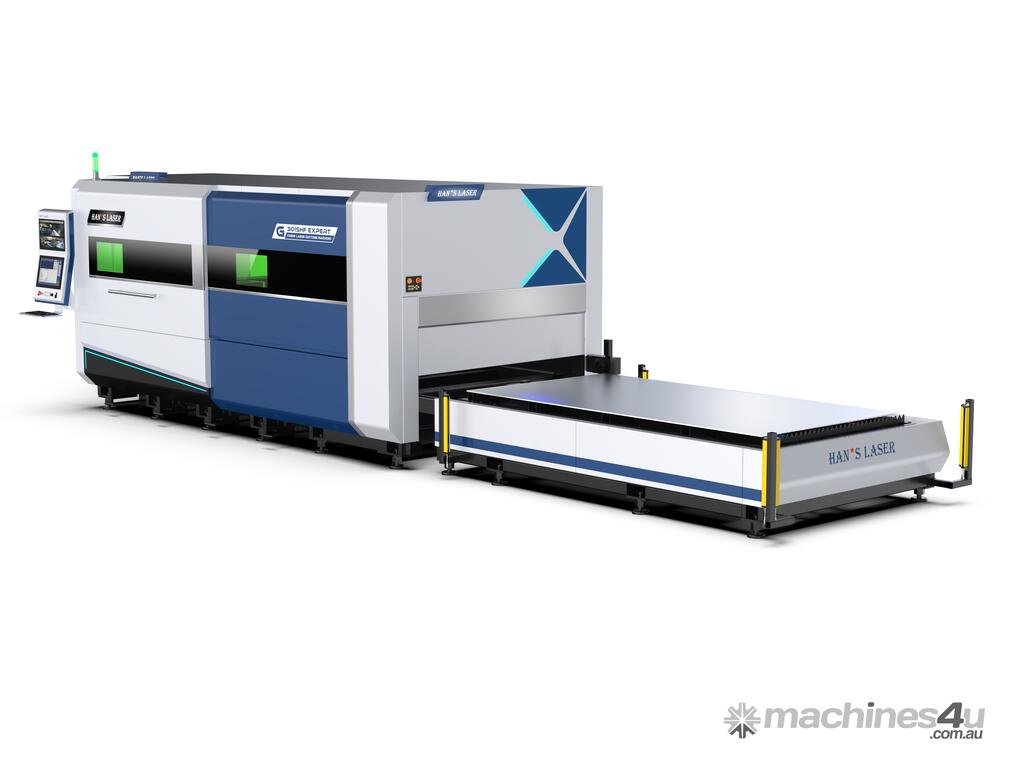

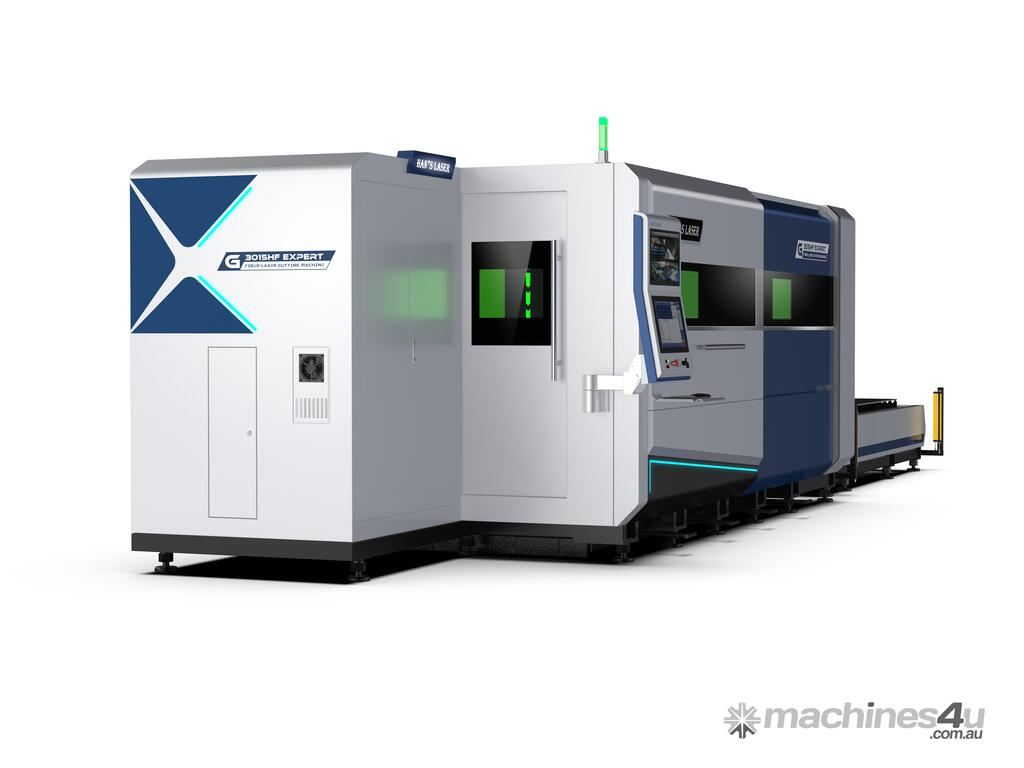

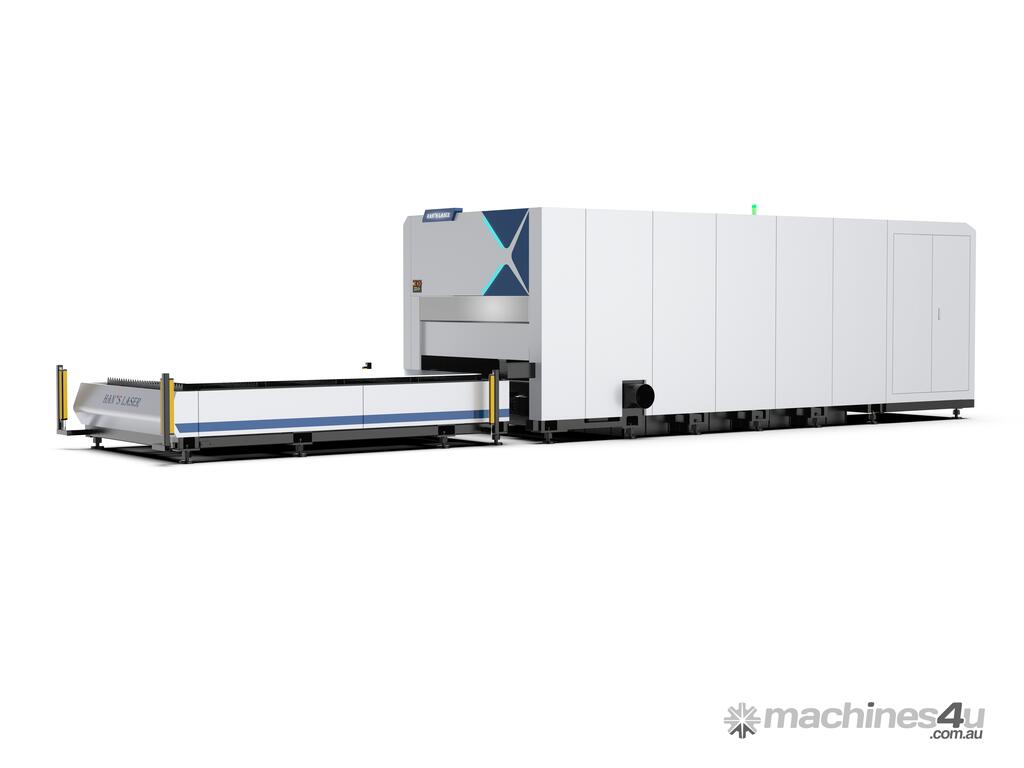

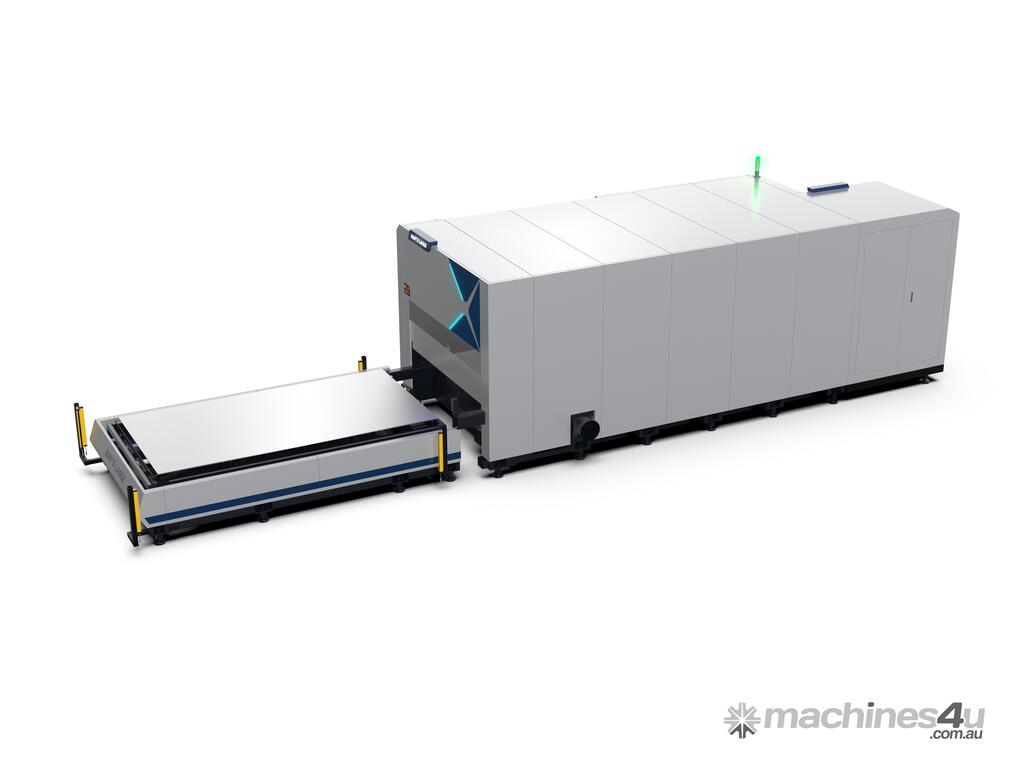

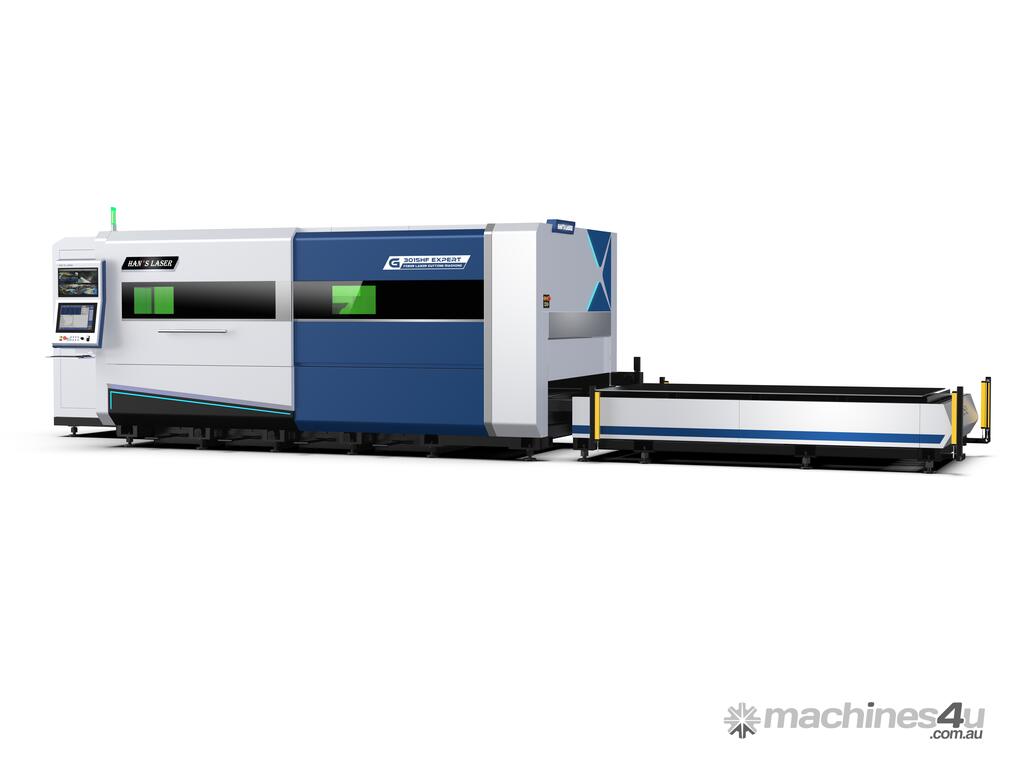

Han's Laser 40kW HF Expert Series Fiber Laser Cutting Machine

China's largest and most trusted fiber laser producer is finally available in Australia with local support!!!

Introducing the all new Han's Laser HF Expert Series Heavy Industrial fiber laser.

The HF Expert Series Fiber Laser Cutting Machine is the epitomize of fiber laser technology. Boasting true 3g acceleration 280m/min cutting speeds and a real Bosch Rexroth Developed G code control.

Set yourself apart from the crown, with modern looks, HUGE side entry sliding door and ready for Automation, the HF Expert series for for those fabrication shops who don't want to mess around with their machinery. All imported components and

Components are processed by rough machining, vibration aging treatment, and precision machining helping to achieve extremely high form and position tolerance accuracy. In terms of transmission, it is equipped with high-efficiency transmission mechanisms, precision reducers, grinding gears and racks and high-precision linear guides which are both extremely rigid and highly accurate. This ensures the long-term stable operation of the equipment.

The HF Expert series is a true G Code machine the oiperating system was developed between Han's and Bosch Rexroth and is supplied with either Lantek or Metalix. It is a purpose built high performance heavy duty fiber laser however has maintained a fantastic price point aimed at allowing every metal shop to purchase a high end machine without having to sell the farm!

Advanced options:
- Mixed Gas advanced Cutting: For burr free high speed cutting on thin mild steel an option usually reserved for only the most advanced EUROPEAN or JAPANESE machines is now available. Allowing for cooler, cleaner and faster cutting without being 100% reliant on N2.
- Full automation options available



FEATURES:
----------------------------------------------------------------------------------------------------------------------------------:

- 40kWkW MAX Photonics Laser Source

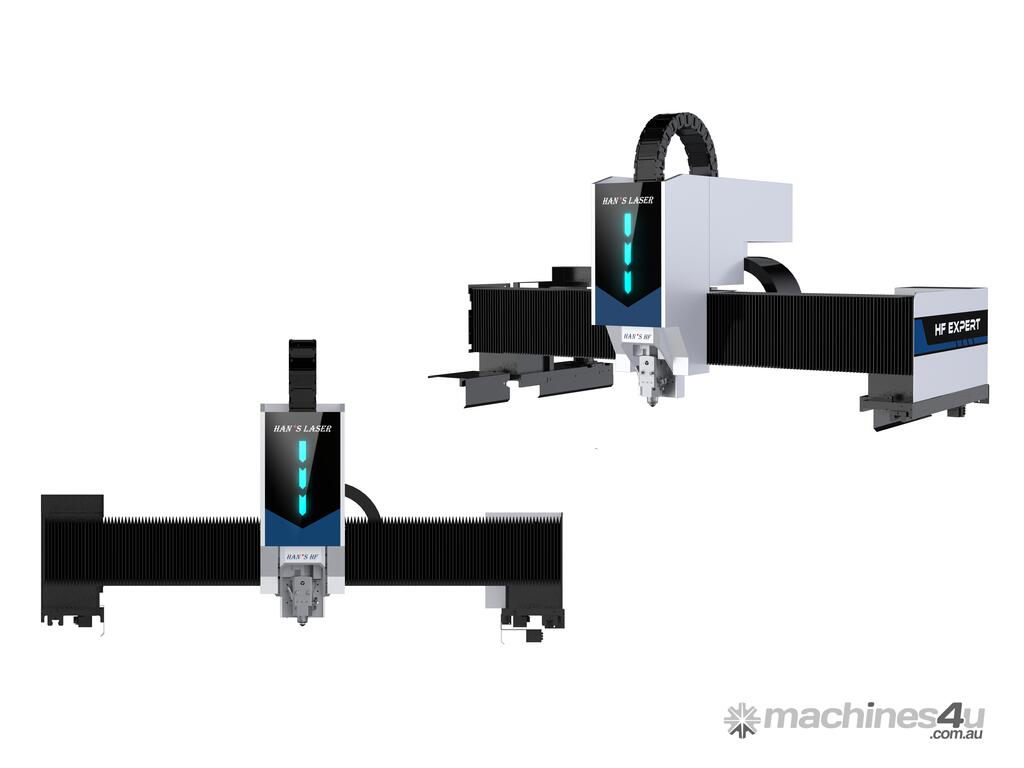

- Han’s Laser Autofocus temperature sensing cutting head
- Full CE certified cutting enclosure
- NC Auto gas Selection (No2, O2 and Compressed Air)
- Dynamic Extraction Bays
- OD Safety Viewing windows
- Internal Monitoring Camera’s
- Dual Circuit Industrial Chiller
- Voltage Transformer and Stabaliser
- Air Conditioned Cabinet for Laser Source
- Hydraulic Dual Exchange tables
- Han’s 901 CNC Operating Software Developed along side Bosch Rexroth
- Exchange Table movement controlled from main working station
- Choice of Metalix or Lantek Advanced Nesting Software (compatible with Sigmanest or most G code nesting software)
- Safety Light Guarding to Rear Exchange table


SPECIFICATIONS:
----------------------------------------------------------------------------------------------------------------------------------

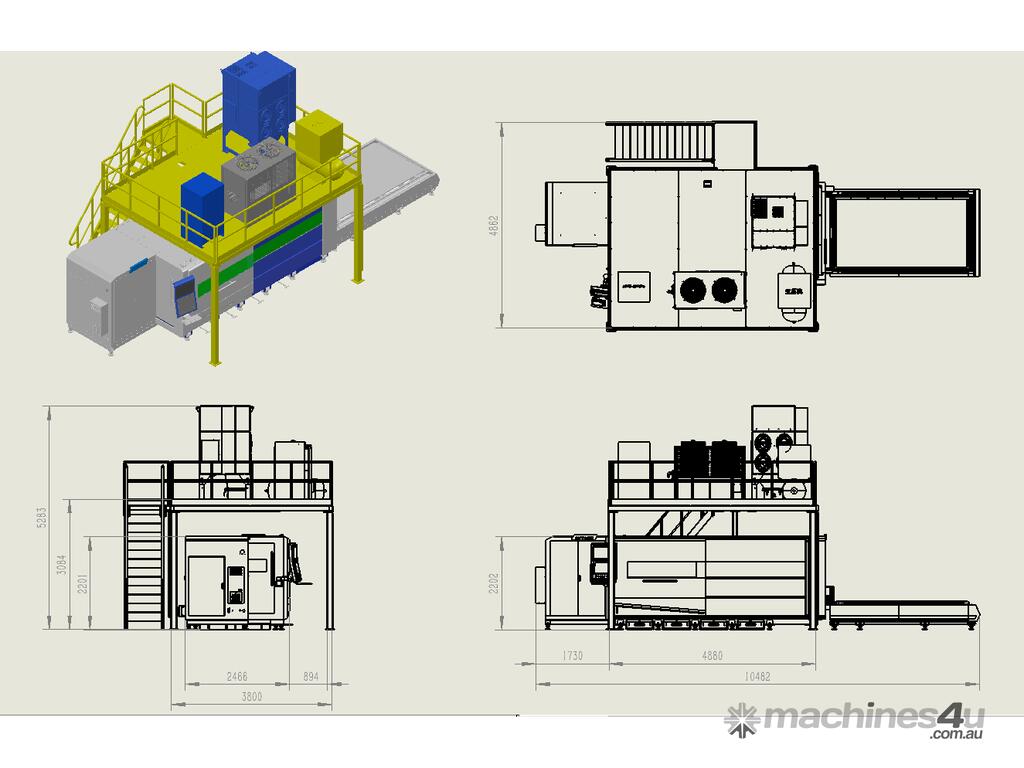

All sizes available (3m x 1.5m shown below)
Processing Surface (L X W) 3000 mm × 1500 mm
X Axis Stroke 3100 mm
Y Axis Stroke 2100mm
Z Axis Stroke 120 mm
Positioning accuracy of X, Y and Z axles ±0.03 mm/m
Repeated positioning accuracy of X, Y and Z axles ±0.02 mm
Maximum positioning speed of X and Y axles 280m/min
X/Y Axis max Acceleration 3G
Maximum load of workbench 2150kg

See below detail brochure for further information, or alternatively call one of our friendly team to book in your DEMO today. Hurry while still in stock!

----------------------------------------------------------------------------------------------------------------------------------

With over 100 Fiber lasers installed in Australia and NZ the team at intermach Here at Intermach, we offer:

- FREE DEMOS of the machines we have in our showroom.

- FREE EXPERT CONSULTATIONS to help you select a machine that suits your operational and financial requirements.

- CONSISTENT AND COMPETITIVE PRICING for our machines based on their capacity.

- CONSUMABLES AND SPARES, we stock all you will ever need to keep your machine in tip top shape!

- AND A LOCAL SUPPORT TEAM OF HIGHLY EXPERIENCED ENGINEERS who are on call for swift repair of any issues that might arise with a machine.

As part of our mission statement, Intermach prioritises customer satisfaction. To that end, we have a growing wealth of references nation-wide who can attest to the high quality of our machines and service.



Phone our sales team now to book a demonstration or a consultation. We look forward to hearing from you!

----------------------------------------------------------------------------------------------------------------------------------
