Hangcha Electric Articulating Boom Lifts

Brand New Hangcha Electric Articulating Boom Lifts

200- 230kgs Lifting Capacity
9.95- 18.8m Platform Height

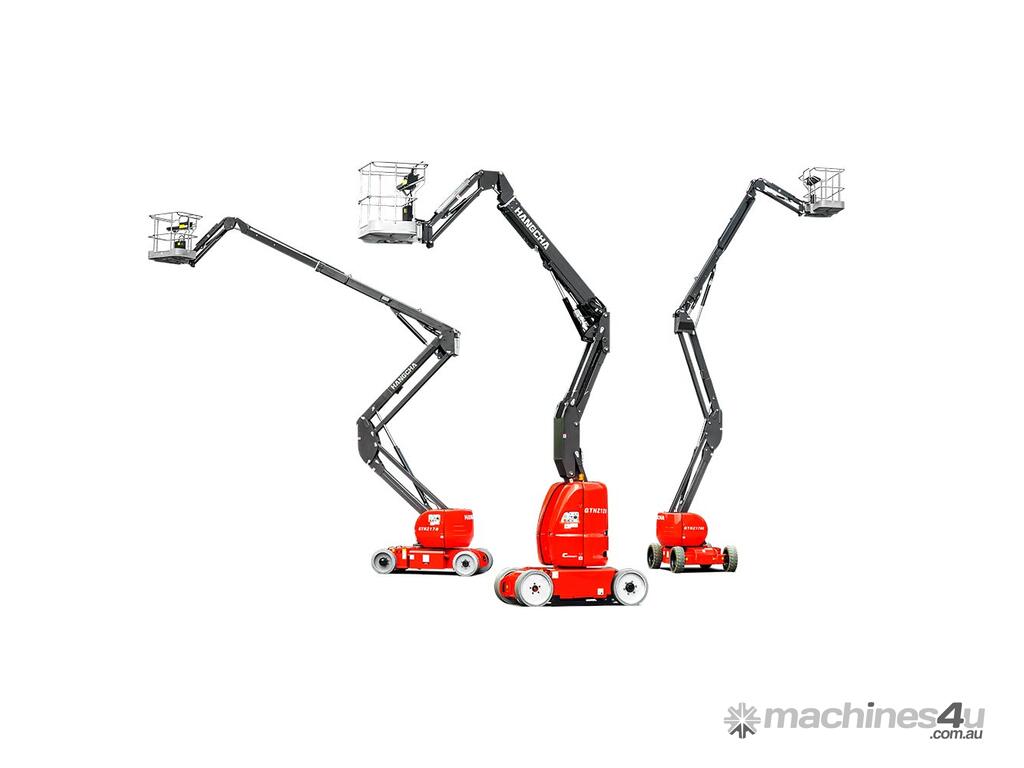

Articulating Booms

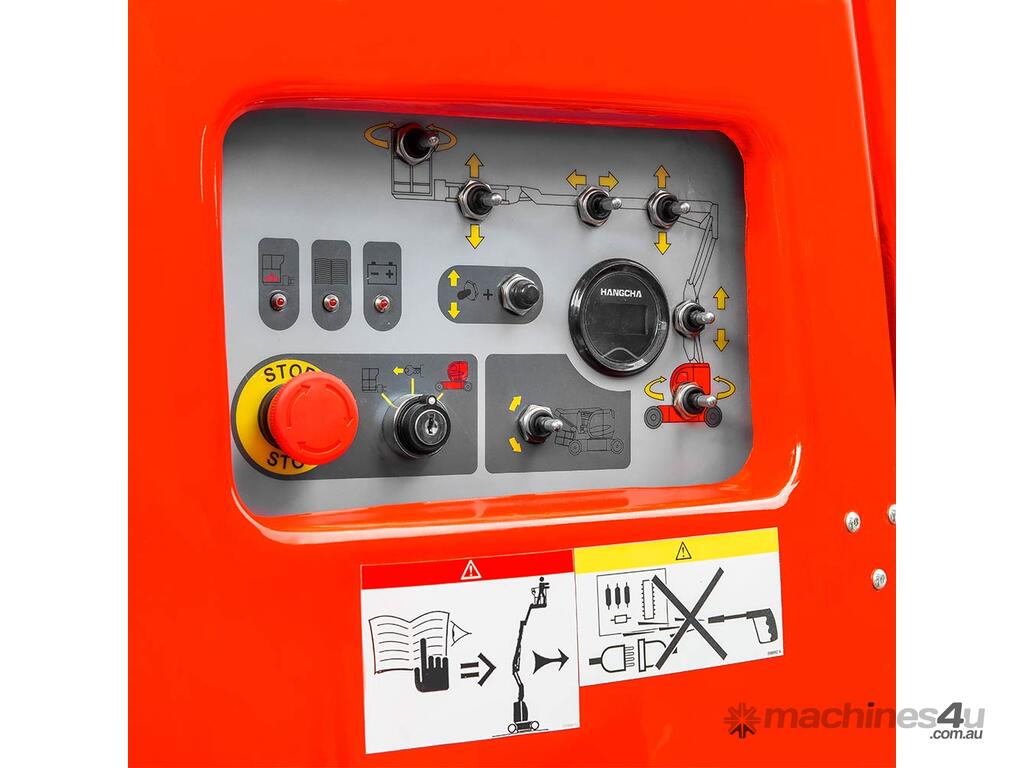

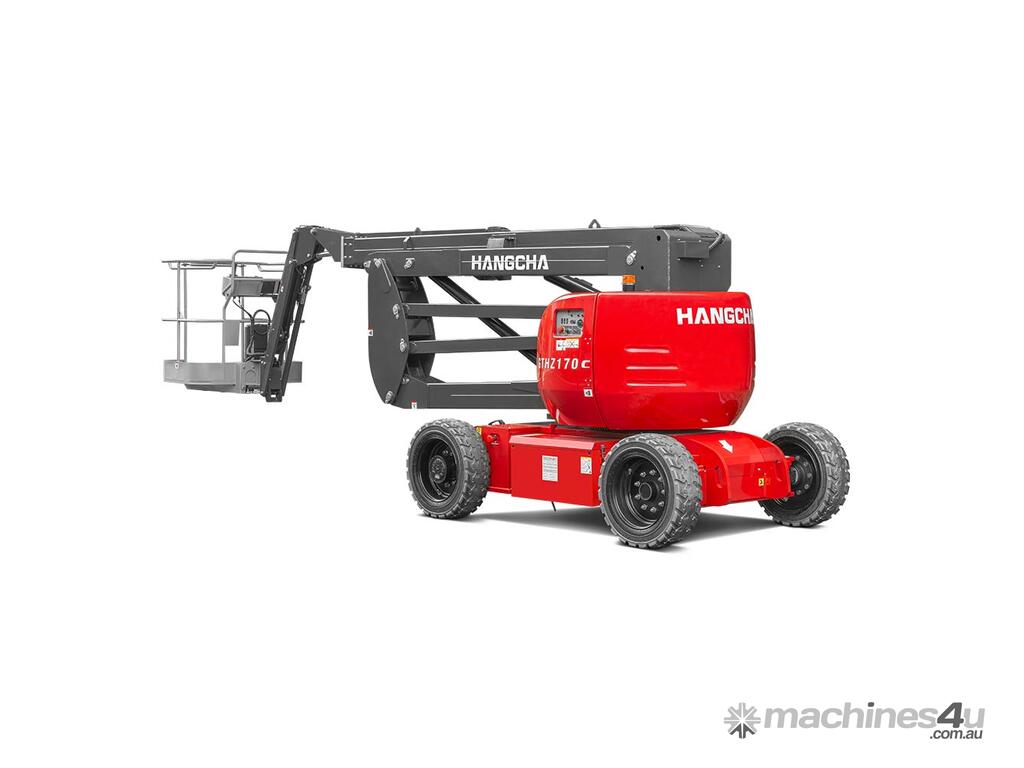

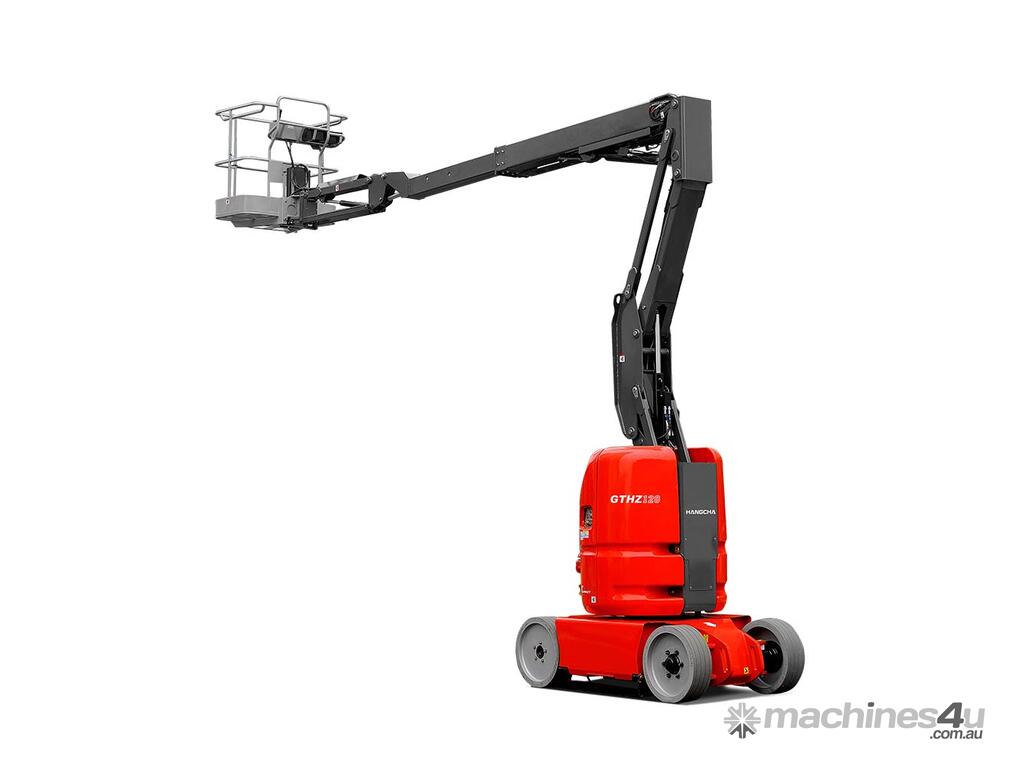

This machine features an articulation boom that enables it to navigate obstacles while carrying two individuals and a selection of tools in the basket. Its compact design and small turning radius make it ideal for operation in confined spaces. The machine can be controlled from either the basket or the base, eliminating the need to descend during movement. Additionally, the multi-motion control allows for simultaneous execution of multiple actions. With the use of this machine, work can be conducted more efficiently and comfortably.

Safety
- Swing shaft design, offers excellent off-road capabilities, maintaining stability while navigating rough terrains;
- Middle arm frame, features a compact and secure structure.
- Utilizes control system redundancy design, includes cylinder to the top buffer design, ensuring smooth boom movement and comfortable operation;
- All critical components sourced from reputable brands in the industry, ensuring high reliability;
- Equipped with four-wheel electromagnetic braking system.

Energy saving and effcient
- Standard lithium iron phosphate battery, providing energy efficiency and environmental friendliness, with a rapid charging time and extended lifespan.
- Gravity-assisted hydraulic system, offering energy conservation and strong durability.
- The entire vehicle is equipped with an efficient air conditioning system.
- Utilizing a proportional valve, enabling seamless speed regulation, quick responsiveness, and stable operation.
- Includes a spacious platform and a thoughtfully designed three-door configuration.

Features
- Enhance the ground clearance for enhanced maneuverability.
- This platform is equipped with rugged terrain tires, making it well-suited for outdoor work activities.
- The maximum driving speed is 6.1km/h.
- Boost climbing capability by 30%.
- The motor and reducer are integrated in a cohesive design. The motor effectively controls the reducer during braking, minimizing the impact and ensuring user comfort.
- The equipment is equipped with a potentiometer, allowing for differential speed between the left and right wheels during steering, improving stability.
- The drive motor is an AC motor.
