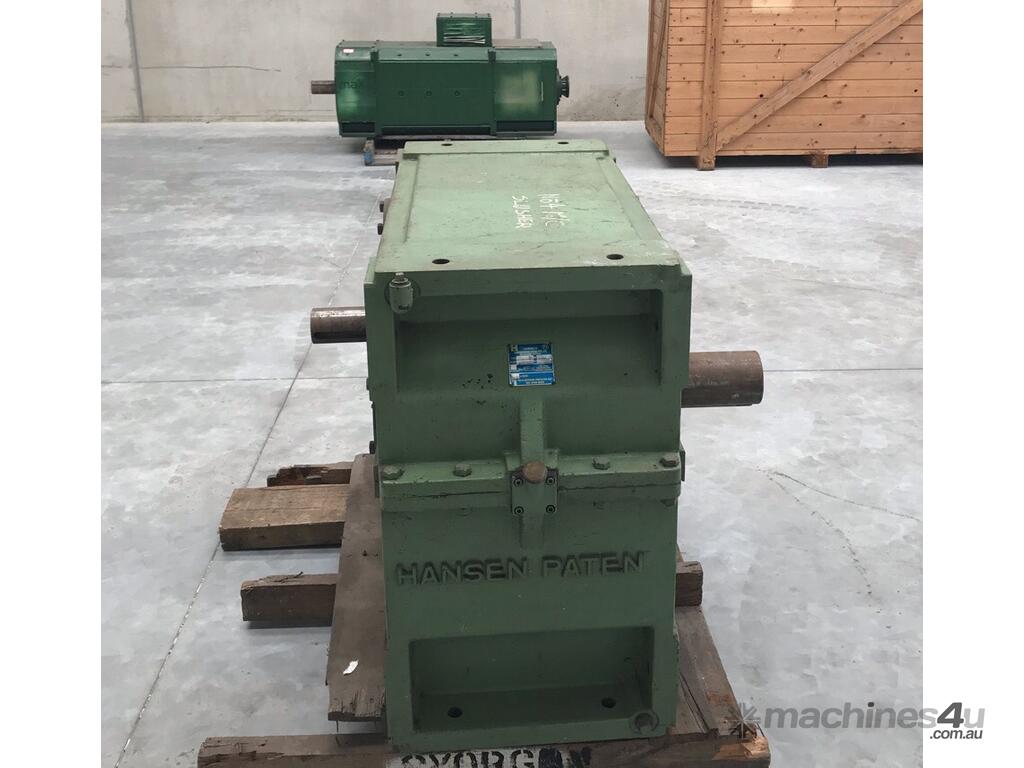

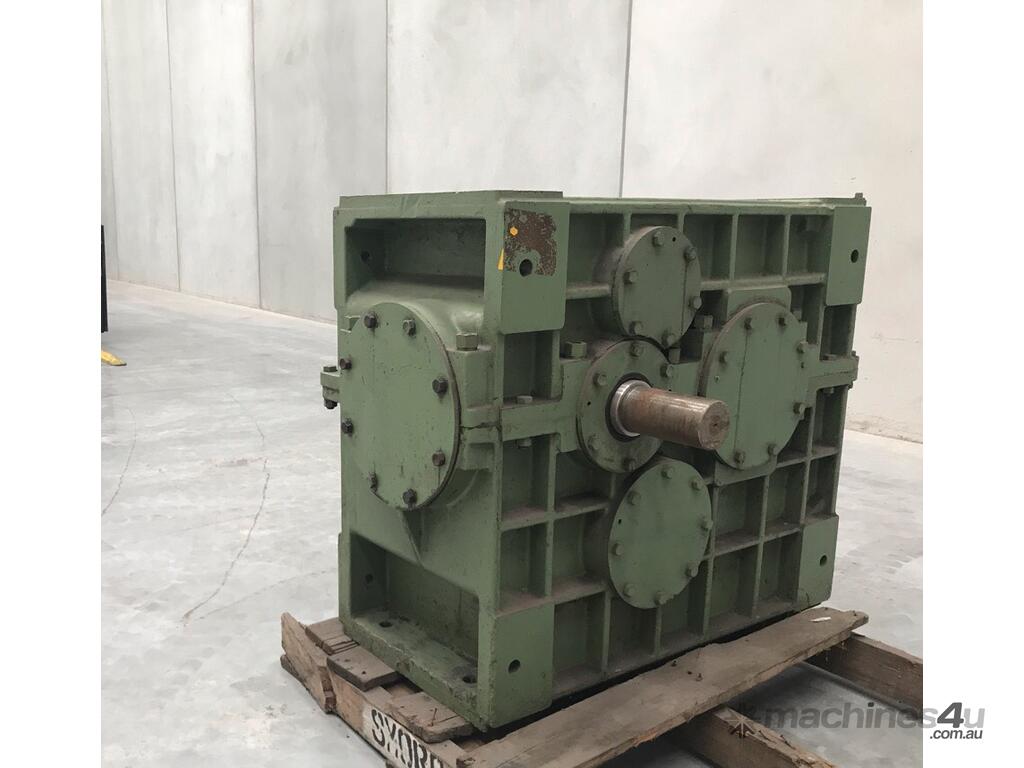

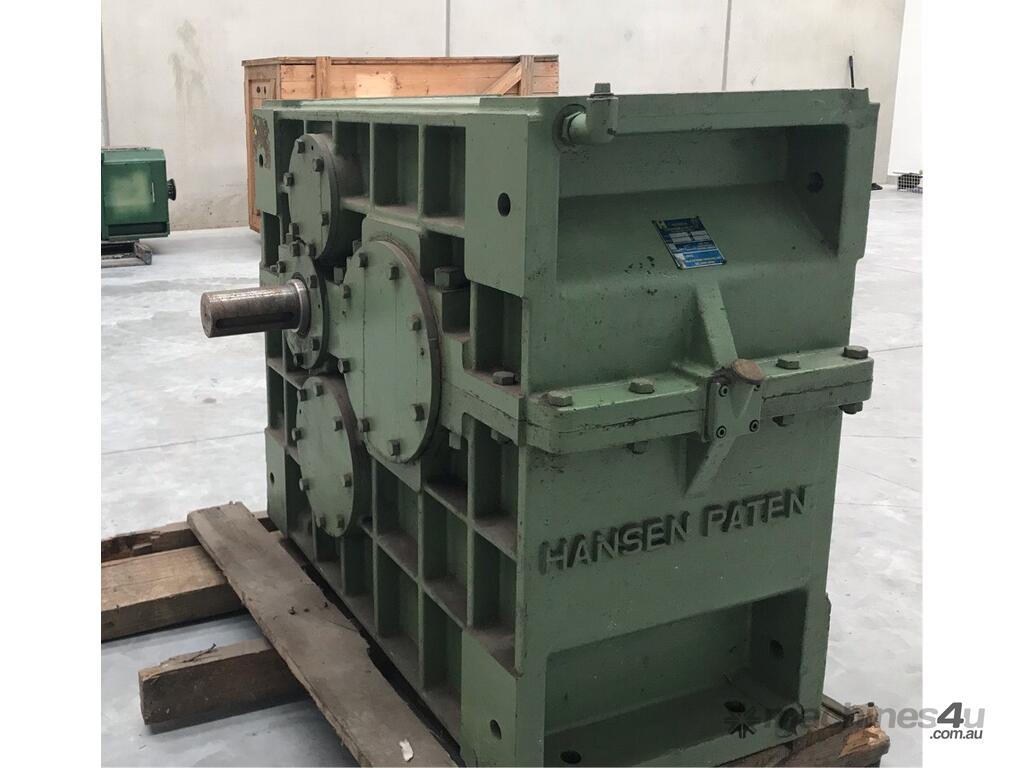

Hansen Gearbox Reduction Box Type 711TP Rated 520 KW Ratio 4.26:1 Unused
Category: Gearbox. Reduction Box
Make: Hansen

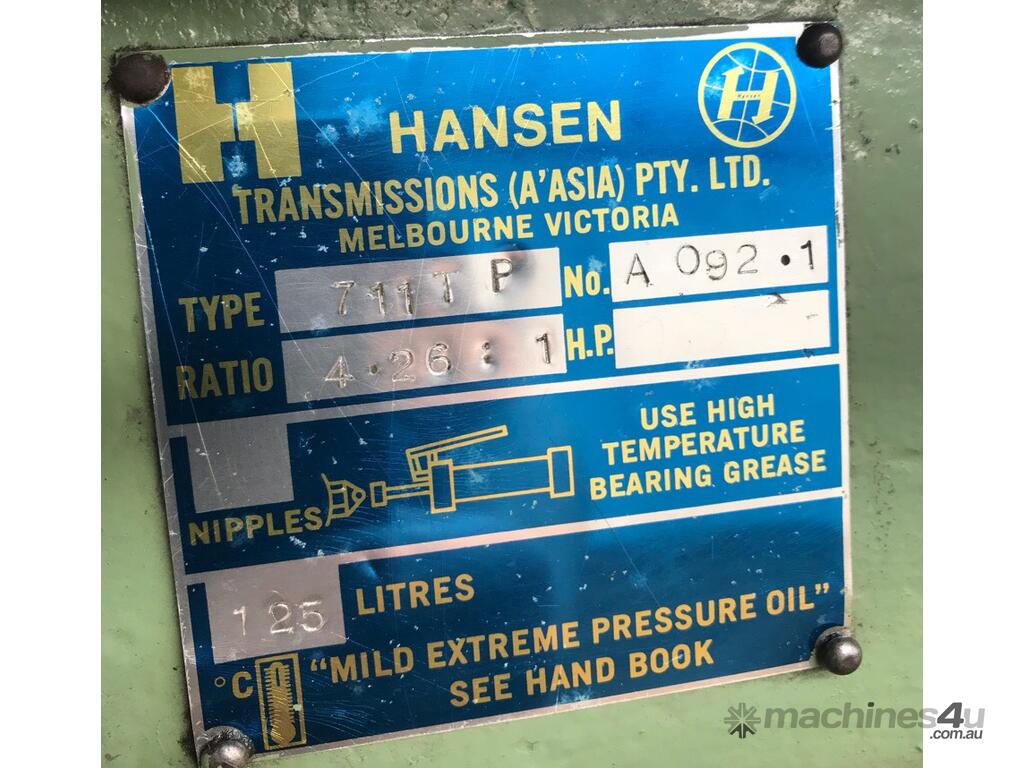

Type: 711TP
Rated: 520 KW (700 HP)
Reduction Ratio: 4.26:1
Frame: Size 700
High Speed Shaft: 90 mm DIA (170 mm long)
Low Speed Shaft: 120 mm DIA (200 mm long)
Output speed scenarios:
4 pole motor (1440 rpm) - 338 rpm output speed
6 pole motor (980 rpm) - 230 rpm output speed
8 pole motor (740 rpm) - 174 rpm output speed
QTY: 1
Condition: Unused. This box has never been in to service.
Immediate supply Pakenham VIC Australia
