Heavy Duty 3100mm x 8mm Plate Curbing Roller with Stub Extensions

Name: Heavy Duty 3100mm x 8mm Plate Curbing Roller with Stub Extensions
Brand: steelmaster
SKU: 23-0215
Price: 27850 AUD
Availability: InStock

DANDENONG SOUTH, VIC - Delivers Nationally

Play Video

$27,850 AUD($30,635 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$97.01
Per Week

3.7% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Plate Rolls

Make:

STEELMASTER

Model:

SM-MCR3108

No. in Stock

Year:

2024

Member Since: Oct 2007

Platinum Member

Listings: 367

Sellers stock ID:

23-0215

Description

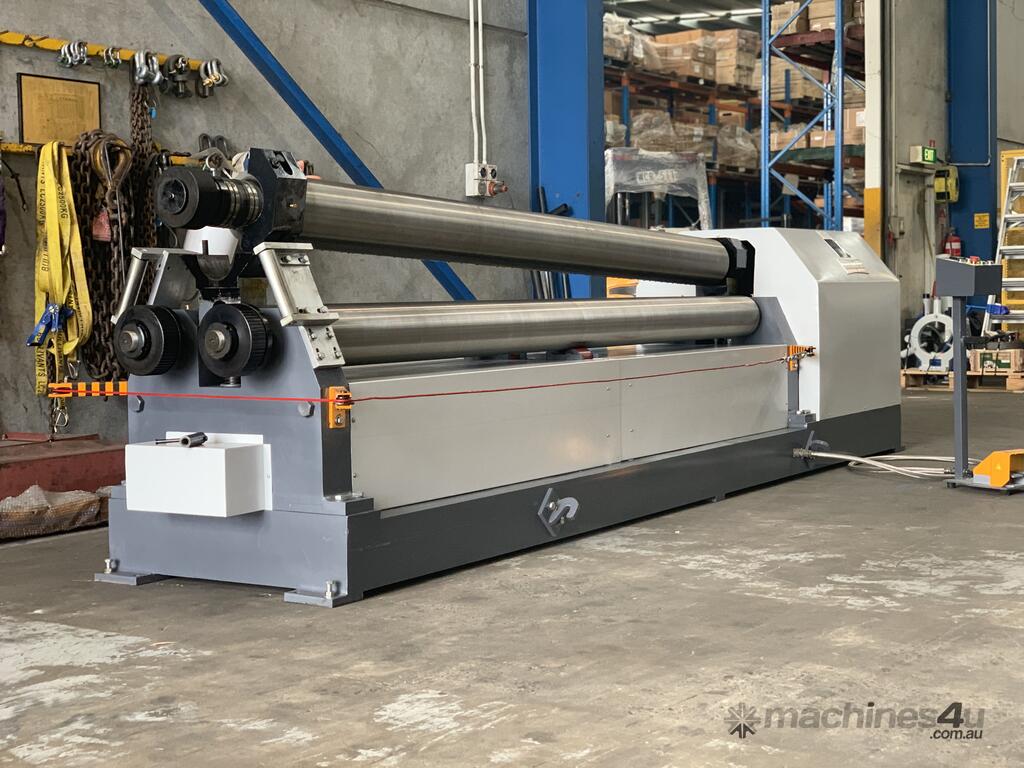

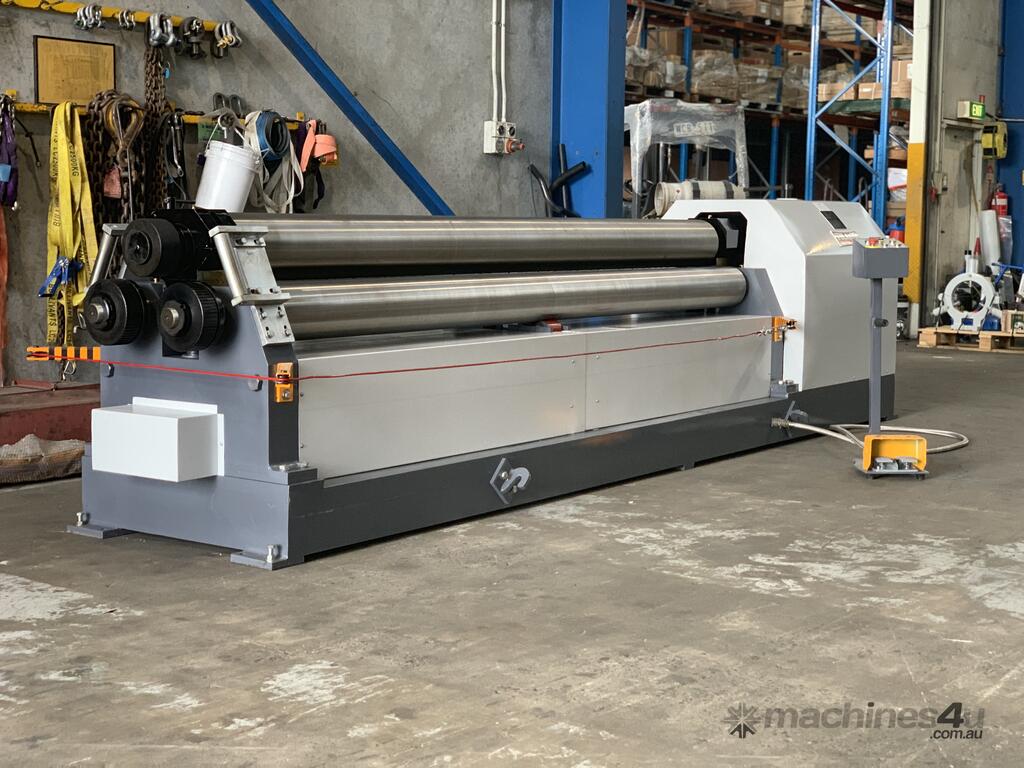

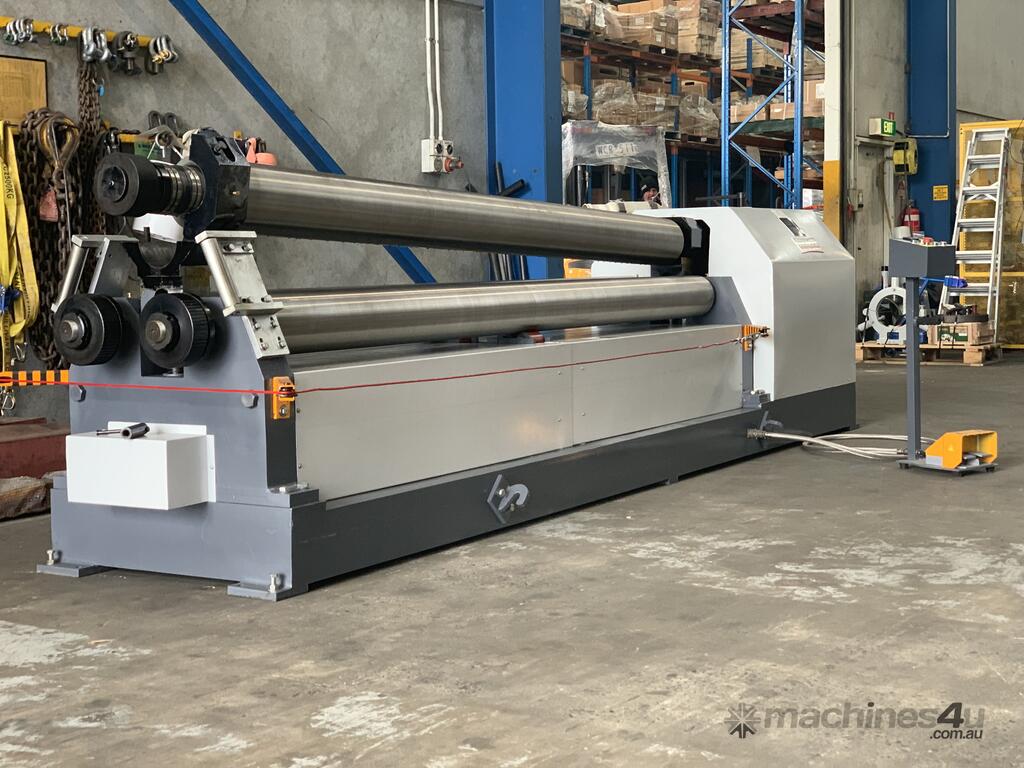

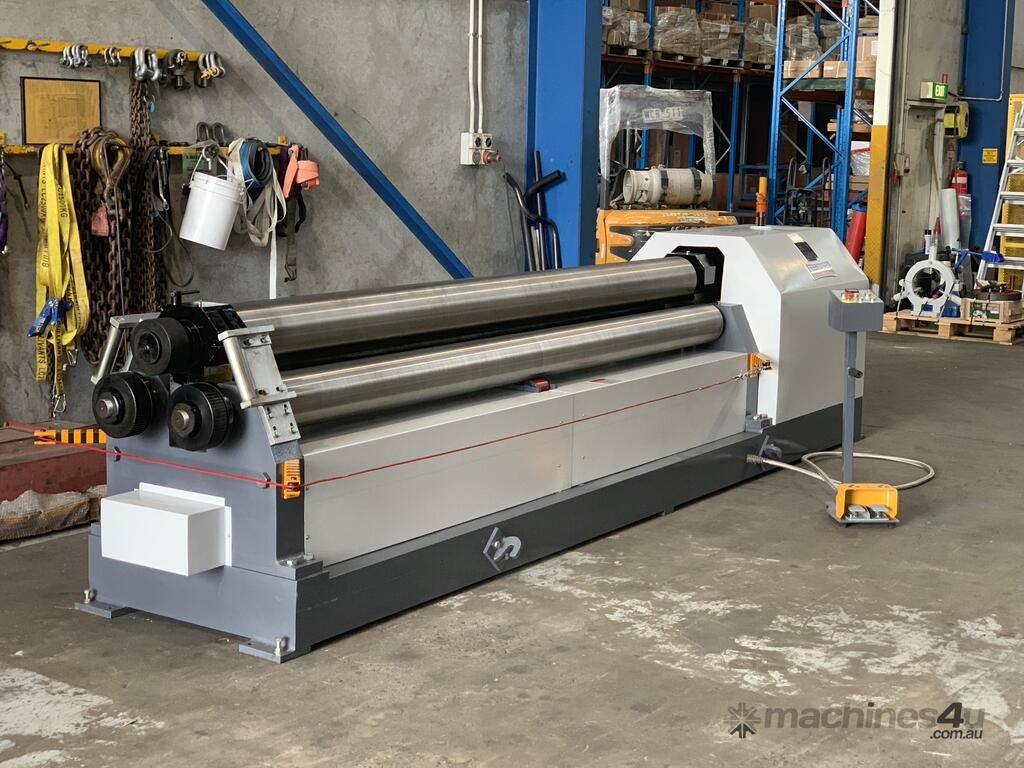

SM-MCR3108. Plate / Curving Rollers. 3100mm x 8mm Capacity. Steelmaster Motorized Operation.
Swing Out Top Roller & Safety Cable. Fitted with Stub Extension Sections Rollers.

## NEW DIGITAL TOP ROLL POSITION READ OUT NOW FITTED##
Description
These rollers offer great value all round, not to mention the additional section rollers on the end.
Fitted also is the surround safety trip wire enabling power cut off with your legs - simply lean on wire.
With a 3100mm x 8.0mm capacity, add on the extension stub rollers at the end - this is a winner.
NEW Digital Read Out On Top Roll Position

Features
?heavy duty welded frame construction
?bottom rolls powered by gearbox and gear system
?power up & down top roll for curving adjustment
?digital readout display for top roller position

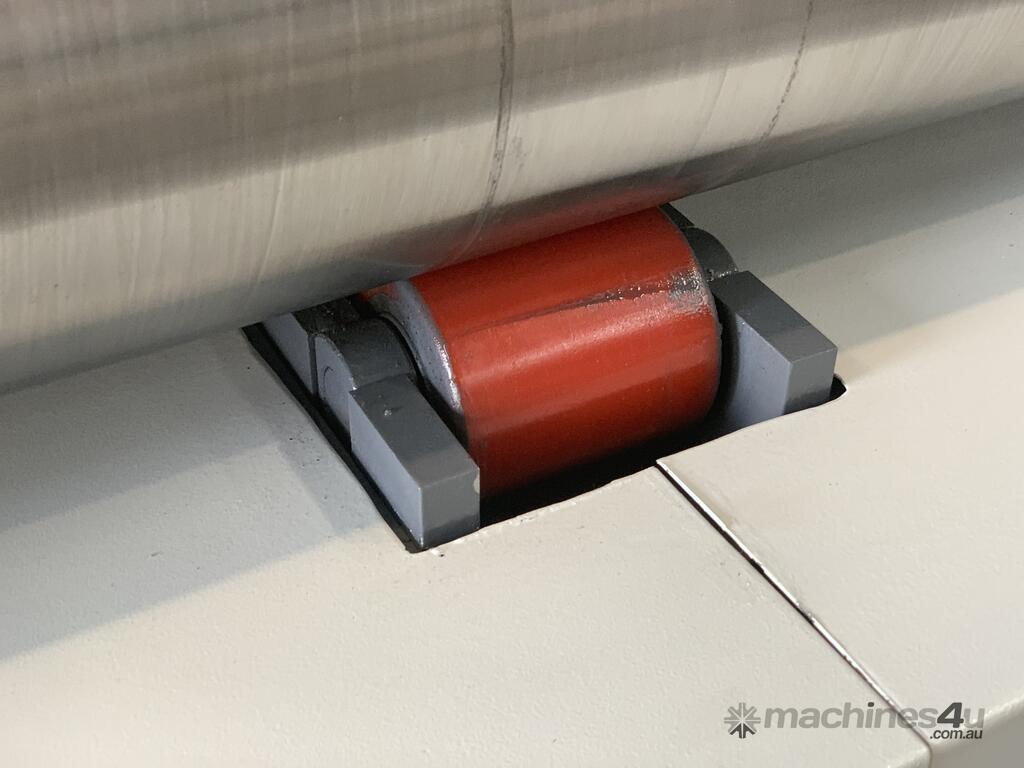

?tilt and support bearings for top roller
?precision ground rolls

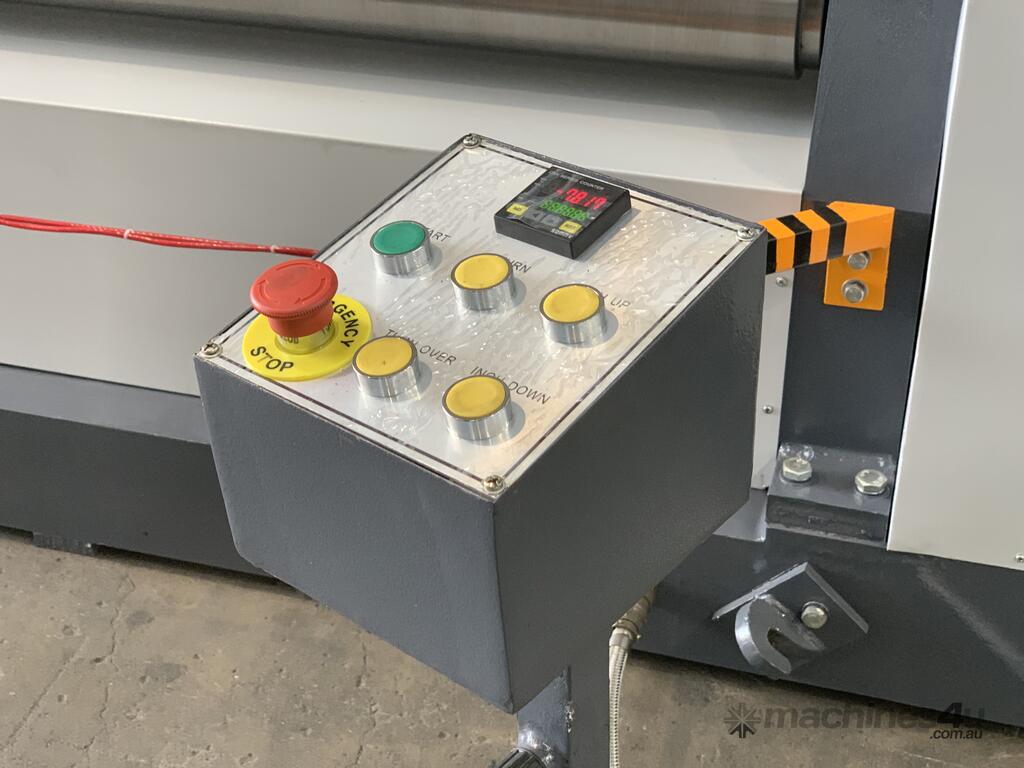

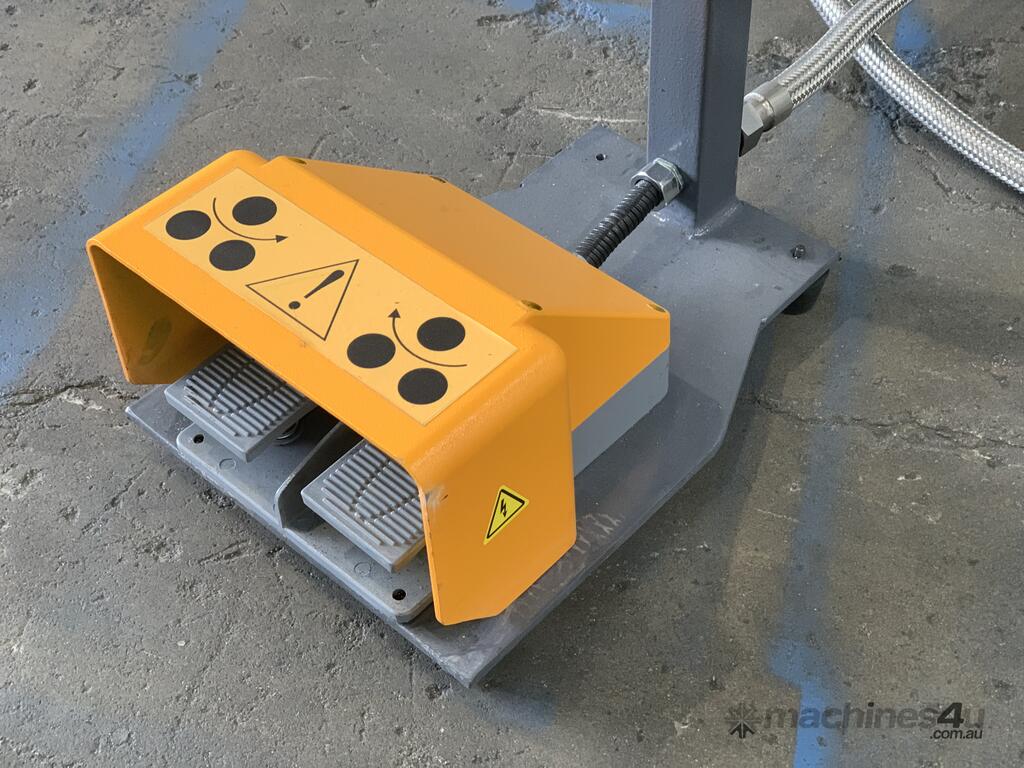

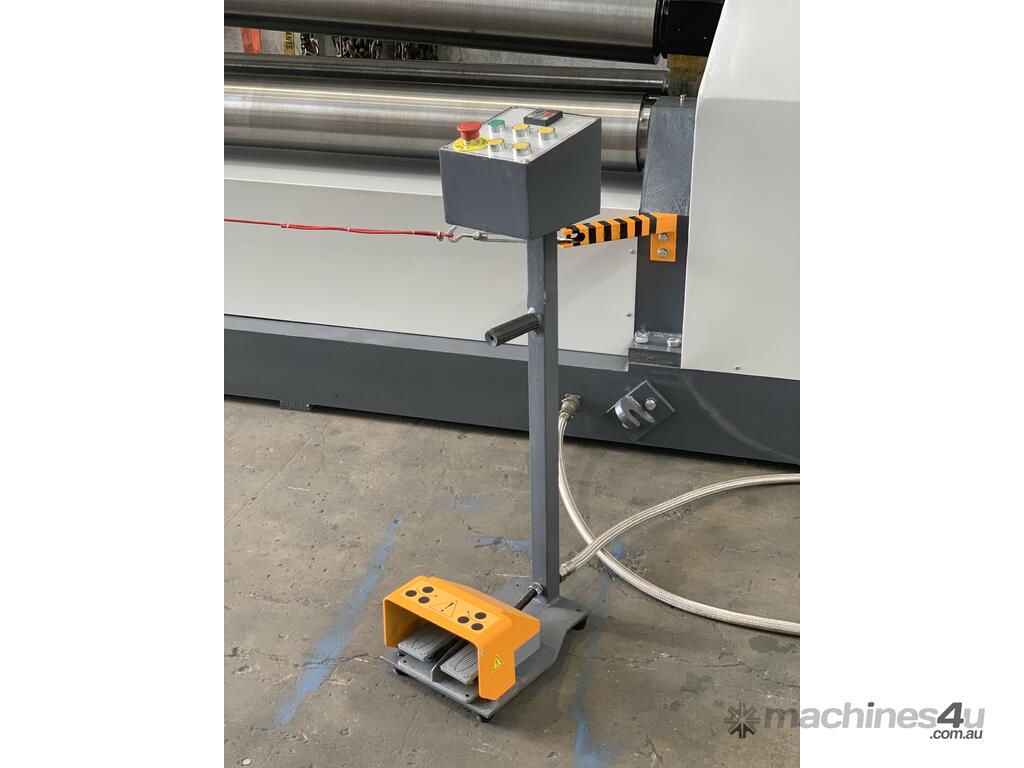

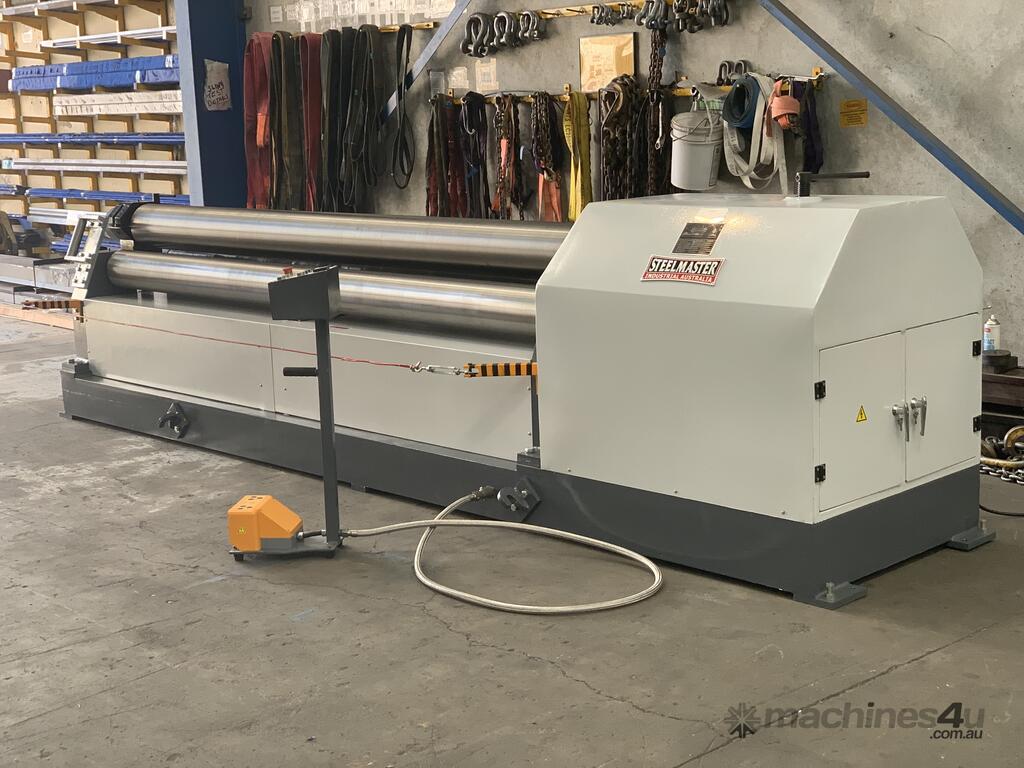

?pendent control operation with forward and reverse on the foot pedal

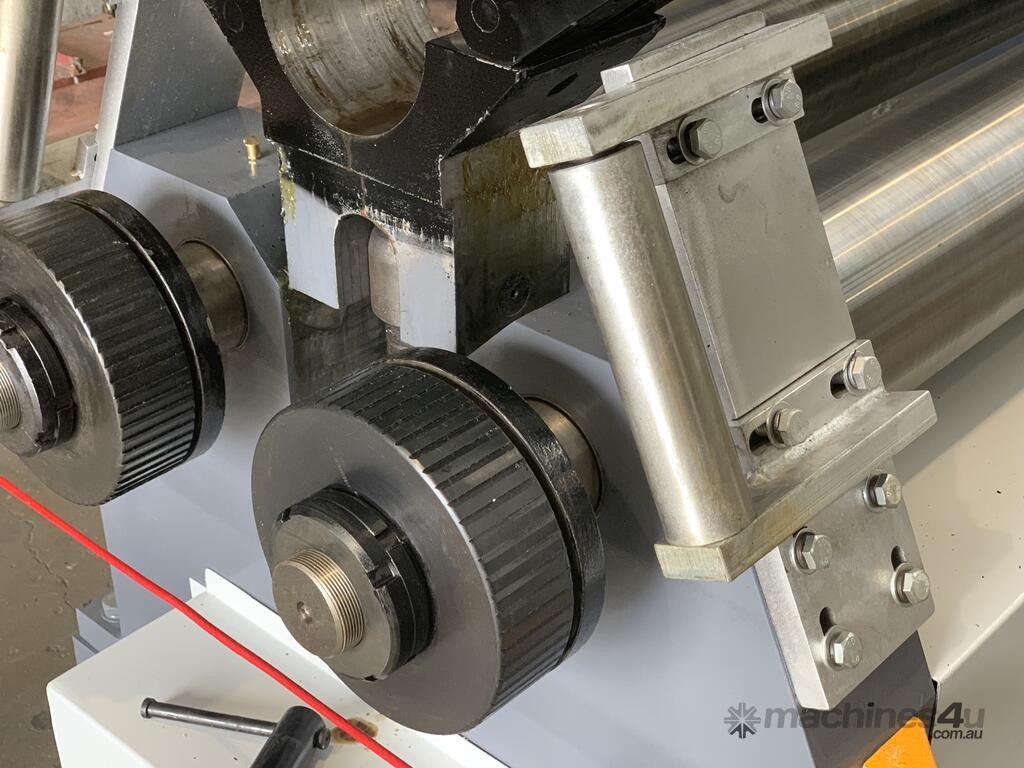

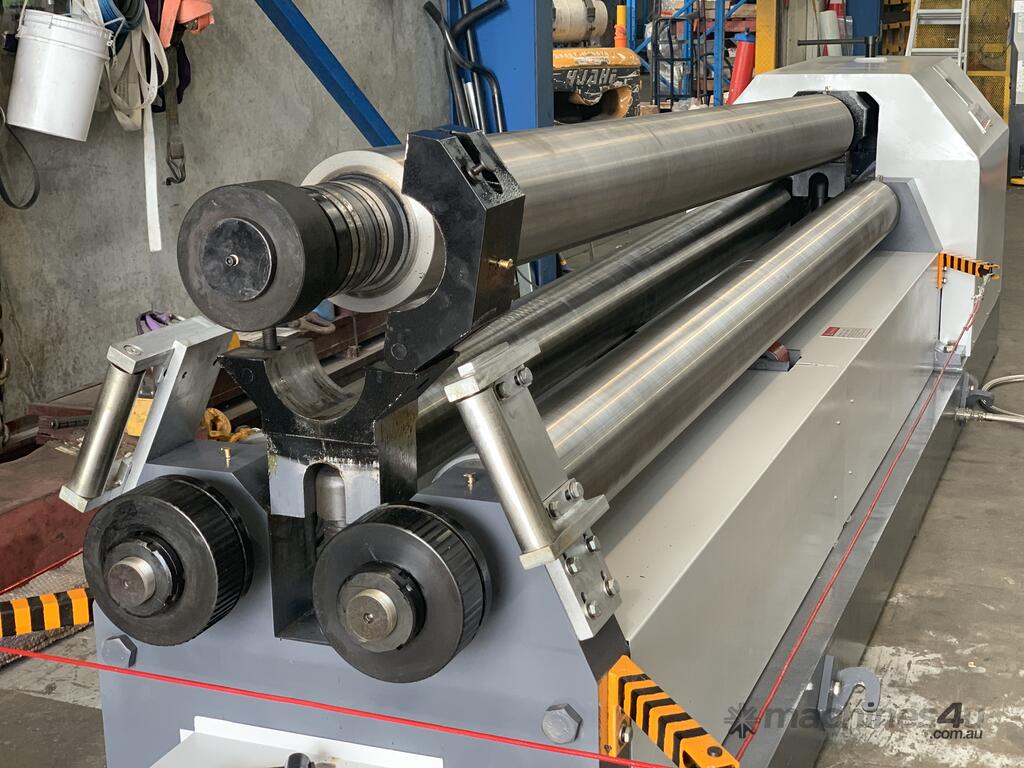

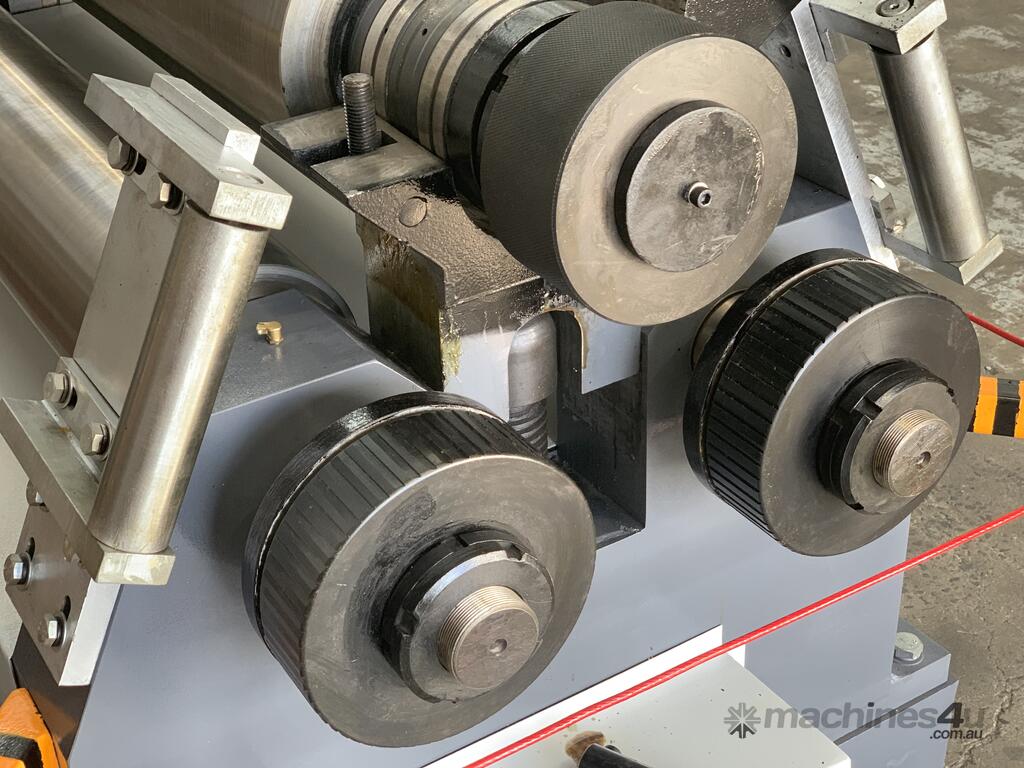

?stub extensions standard, offering basic section rolling operation
?safety interlocks and emergency shut-off device surrounding roll operation area

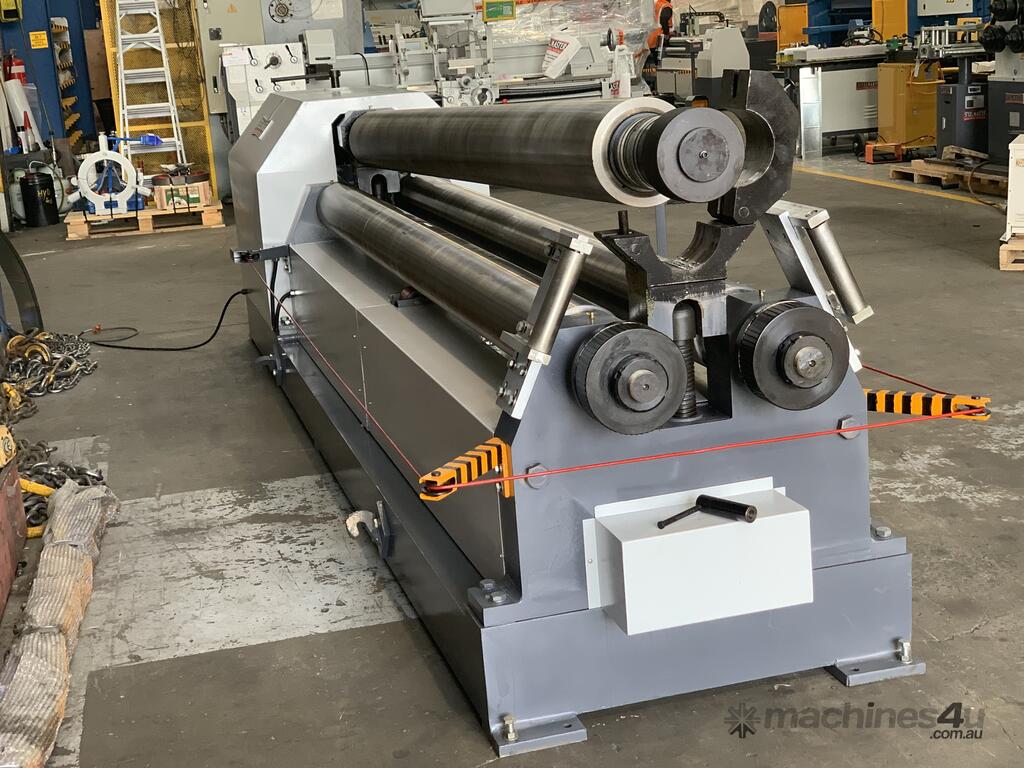

?swing out end enables complete cylinders to be removed

Includes
?pipe profile and standard section rollers 60.3mm (1 size of each)

Technical data
?capacity - 3100mm x 8mm mild steel
?digital readout display for top roller position
?230mm top roll diameter
?210mm bottom roll diameter
?260mm minimum roll diameter
?5.5kw - volt
?dimensions - 4900mm x 1200mm x 1450mm
?weight - 4800kg

MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.

Asset Plant & Machinery - Steelmaster Machinery
118 Logis Boulevard Dandenong South VIC 3175
