Models Offered from 80/100/150/200Ton and Custom Made If Required
Below Overviews Our 80Ton Model - Contact us wit your requirements

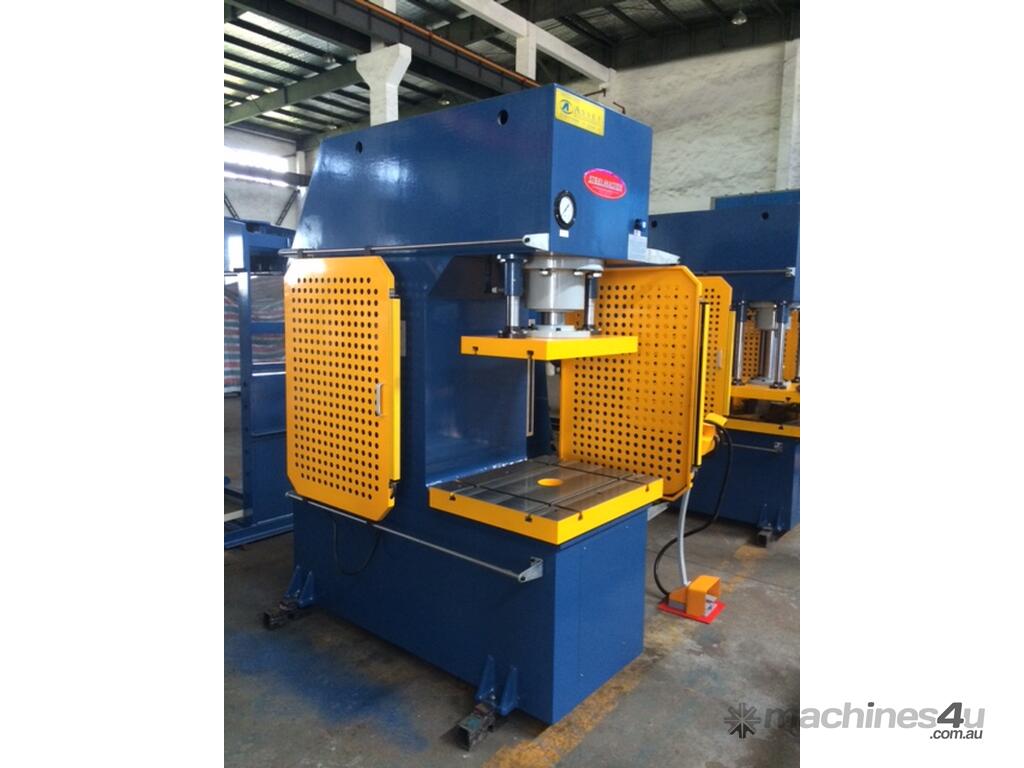

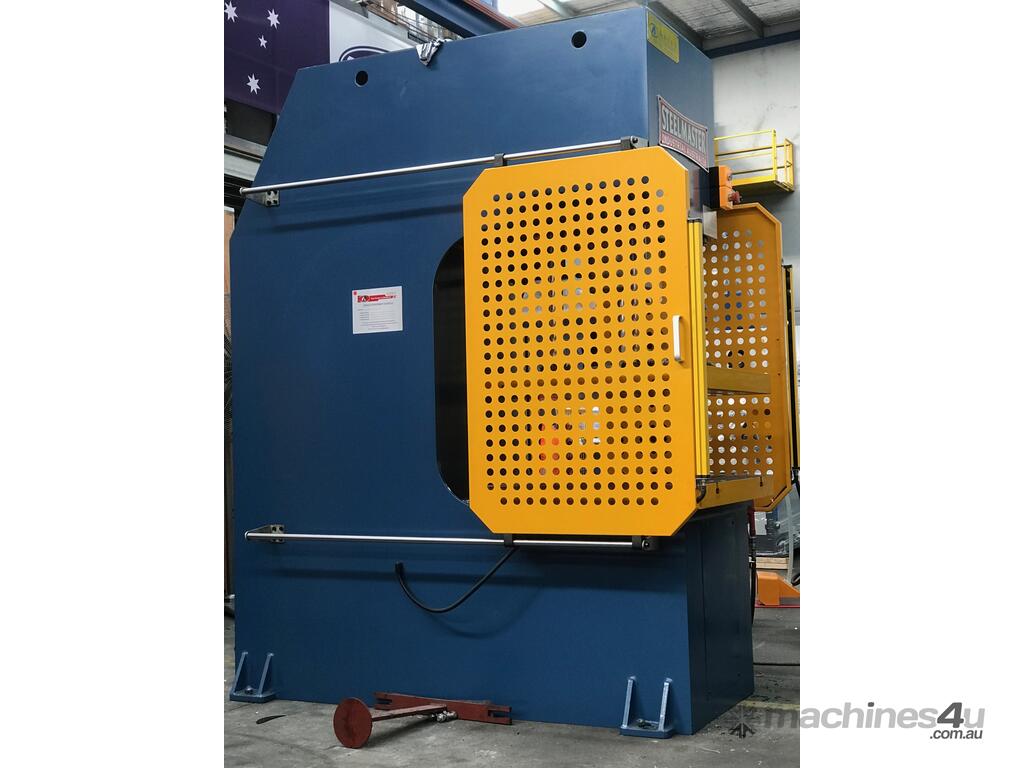

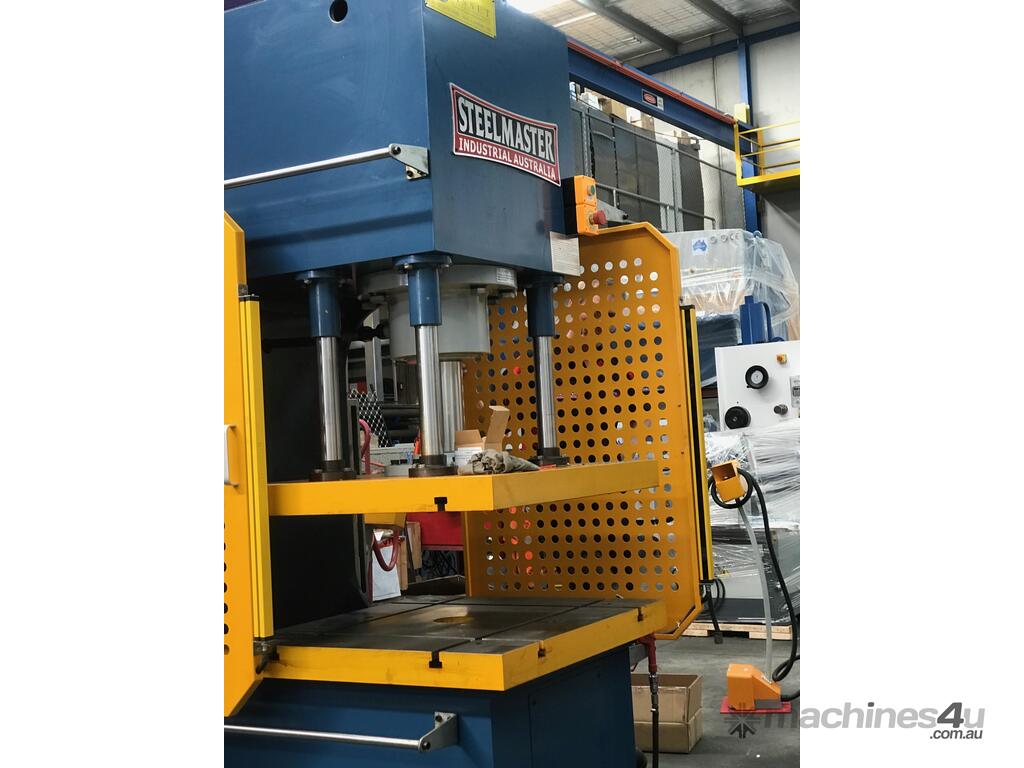

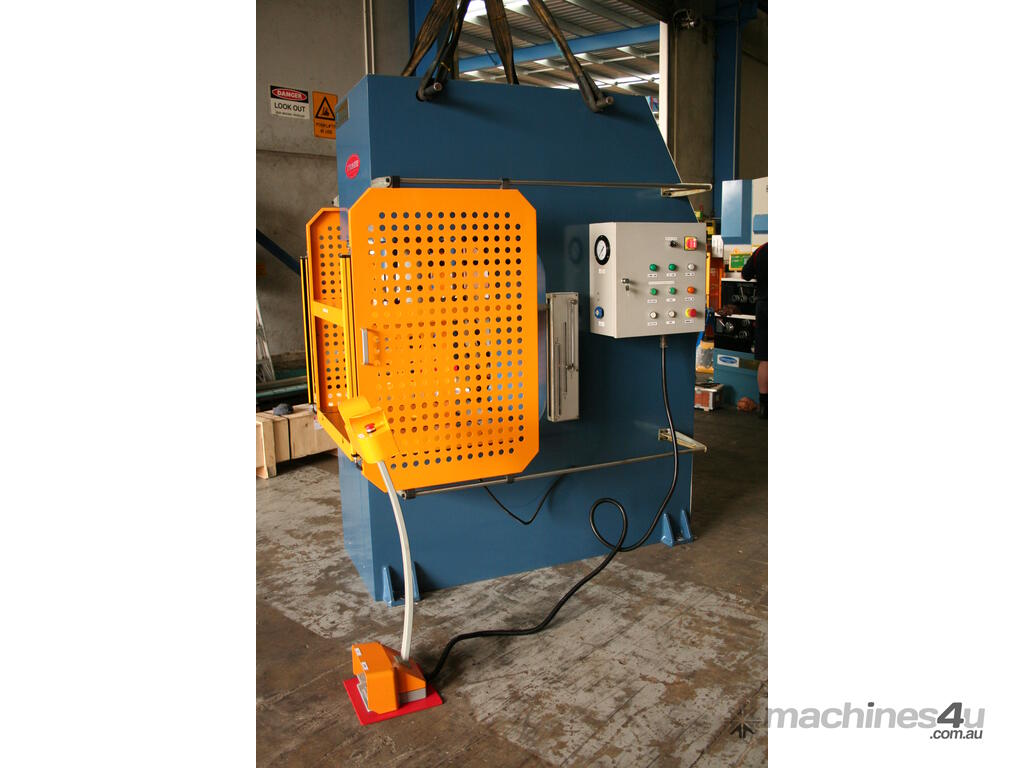

SM-CDY80 Open Front Hydraulic Press. 80Ton Capacity Heavy Duty Industrial Type, Single Cylinder,
Twin Guided, 300mm Ram Stroke, 650mm x 520mm Tee Slotted Table 3 Speed Operation. V.
Description
Our NEW Steelmaster Industrial Open Front Presses offer Solutions for Pressing, Bending, Punching & Moulding.

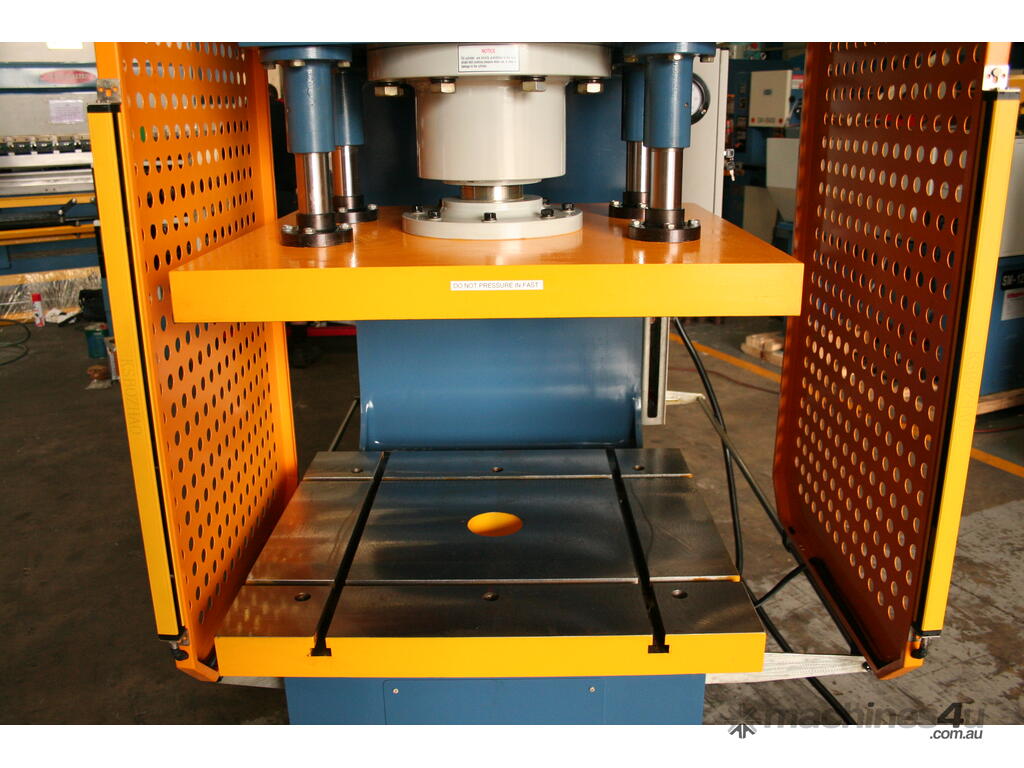

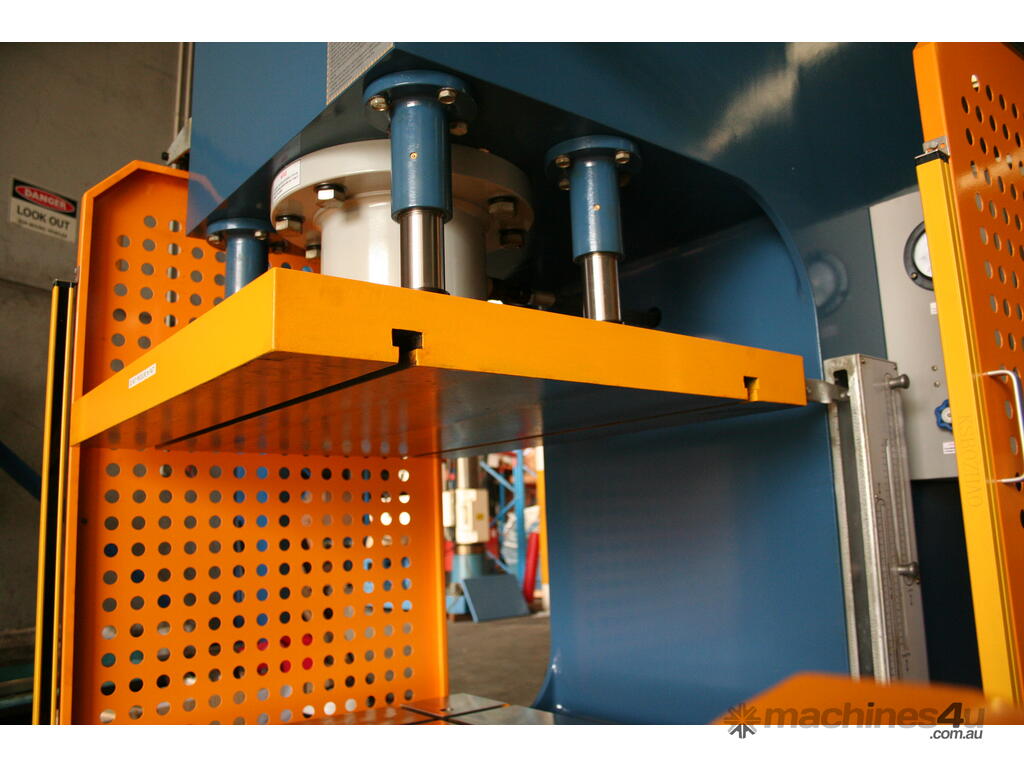

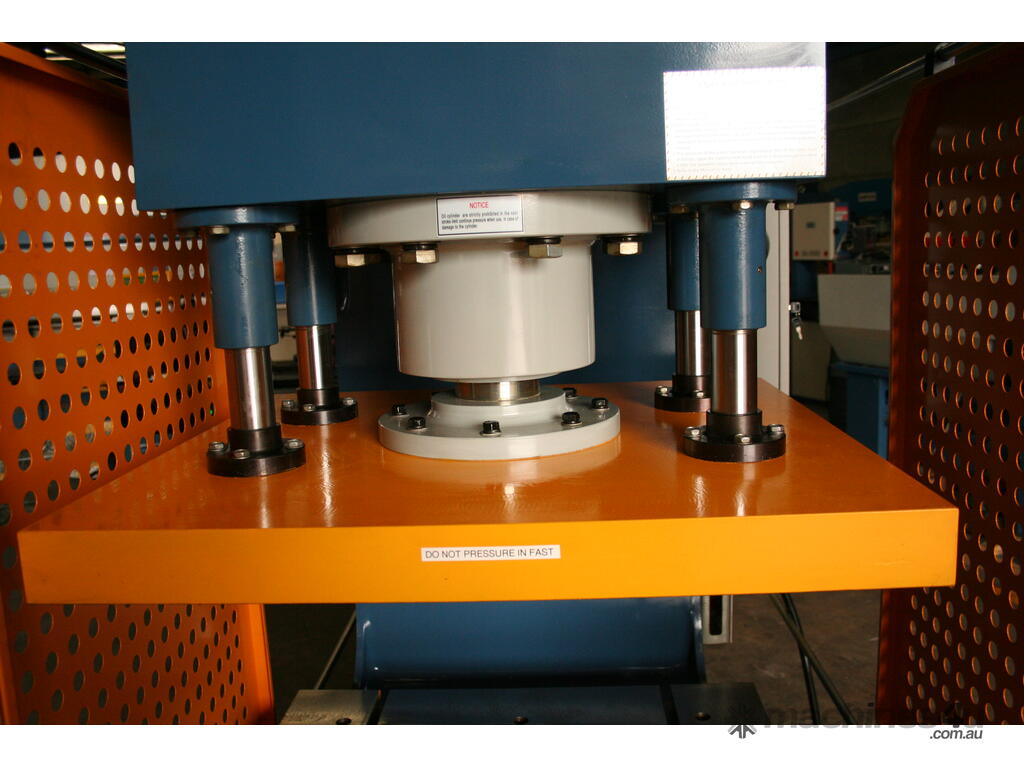

A Powerful Hydraulic Cylinder & Two Side Guides Ensure Precise & Uniform Feed of the Ram During Pressing Applications.
Top Ram Plate, Along with Large Fixed Bottom Worktable with T-Slots for tool Clamping.

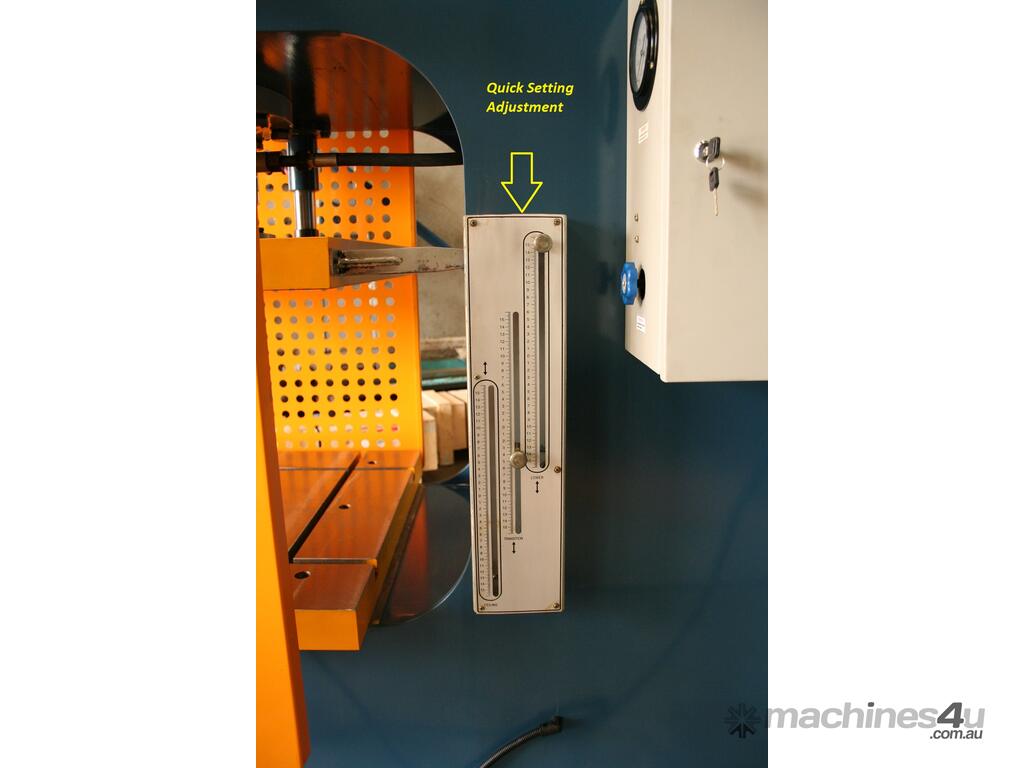

Fitted With Adjustable Limit Switches For Top and Bottom Settings.
Features
?80 ~ 200 ton force models available
?strong hydraulic cylinder ensures uniform and precise pressing during operation
?ideal for pressing, bending, punching & moulding

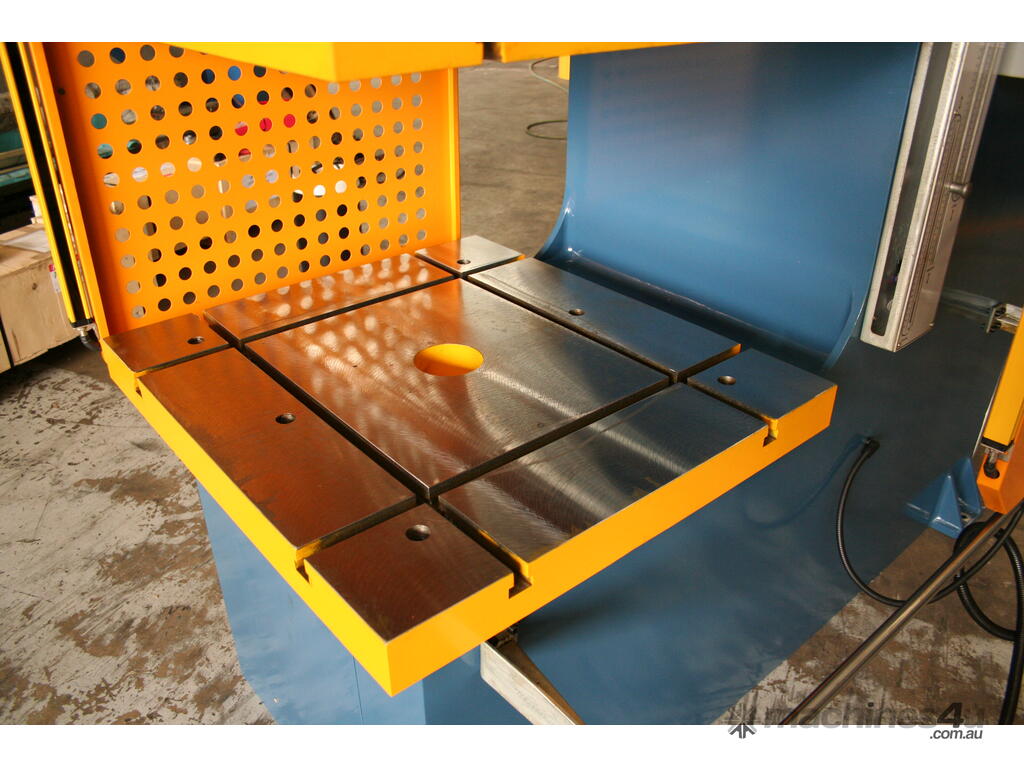

?fixed T-Slotted bottom bed for tool and job clamping

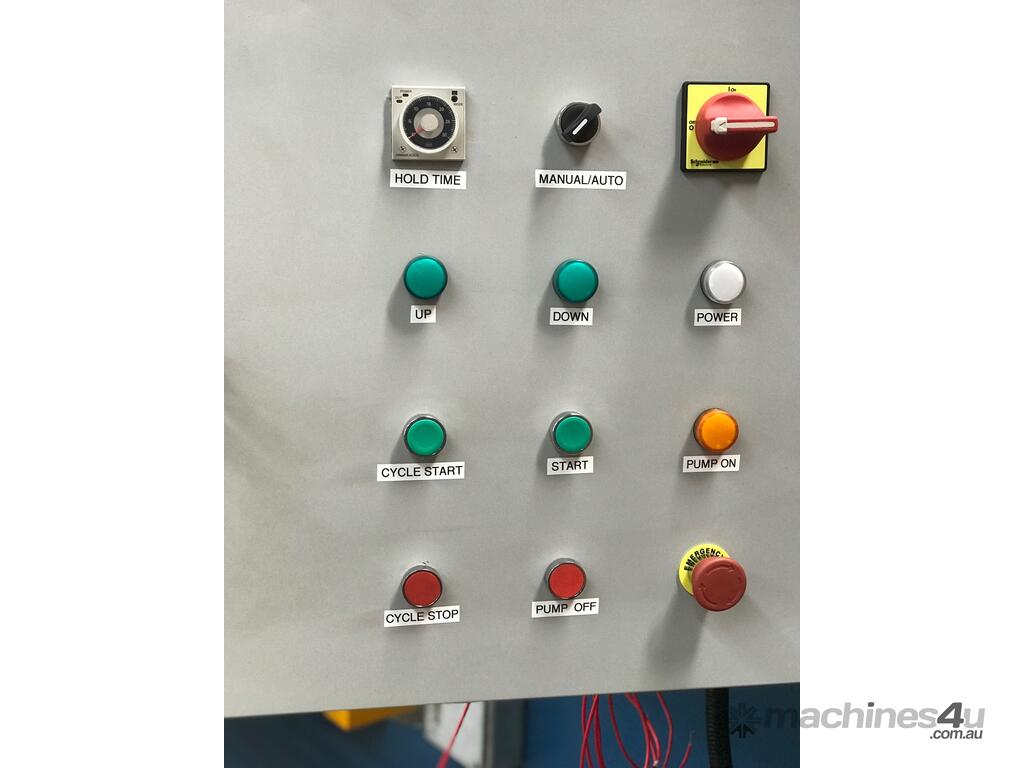

?three speed operation, rapid & working speed & retract.
?extremely torsion proof steel welded frame

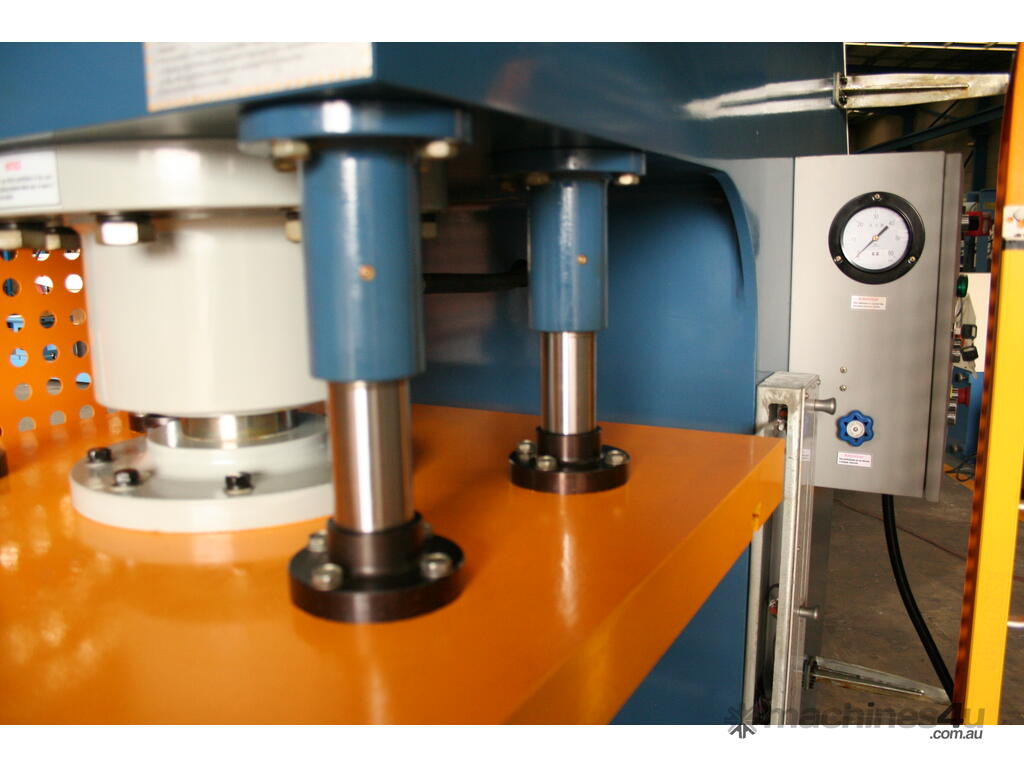

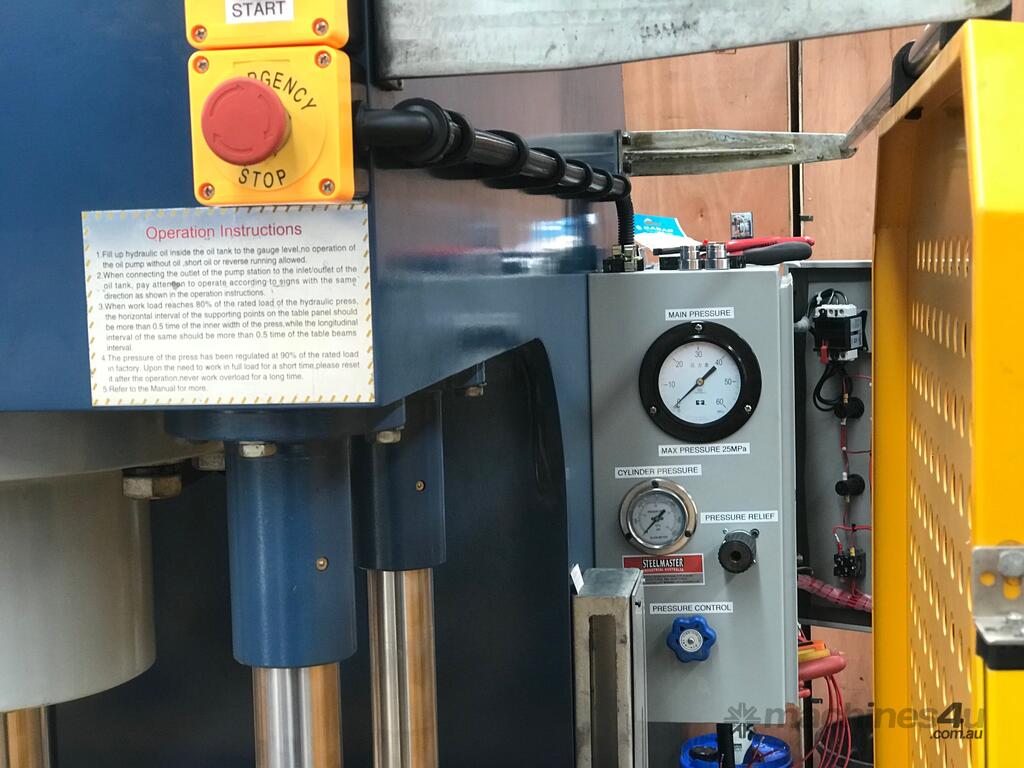

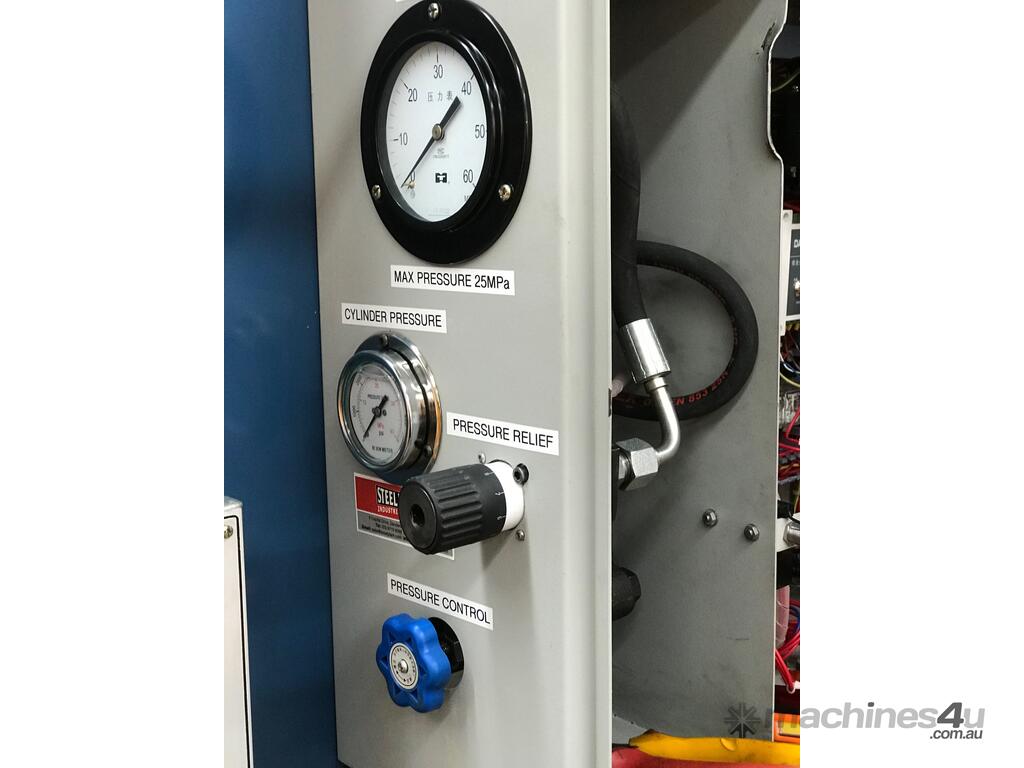

?hydraulic pressure gauge fitted

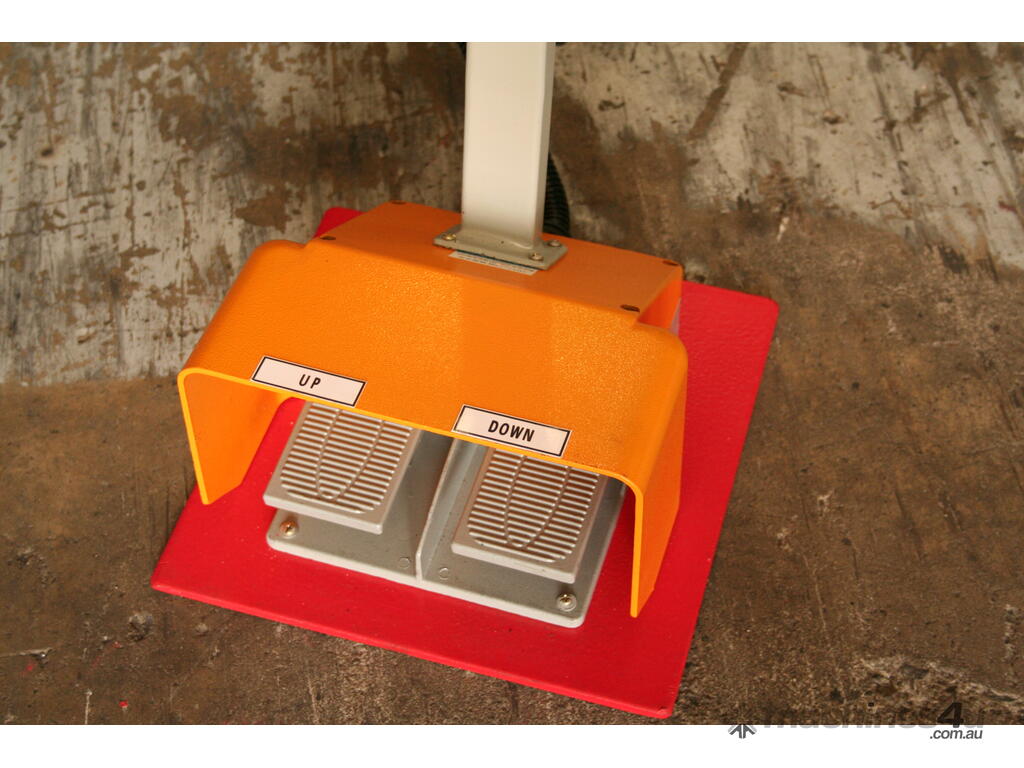

?foot pedal operation option.

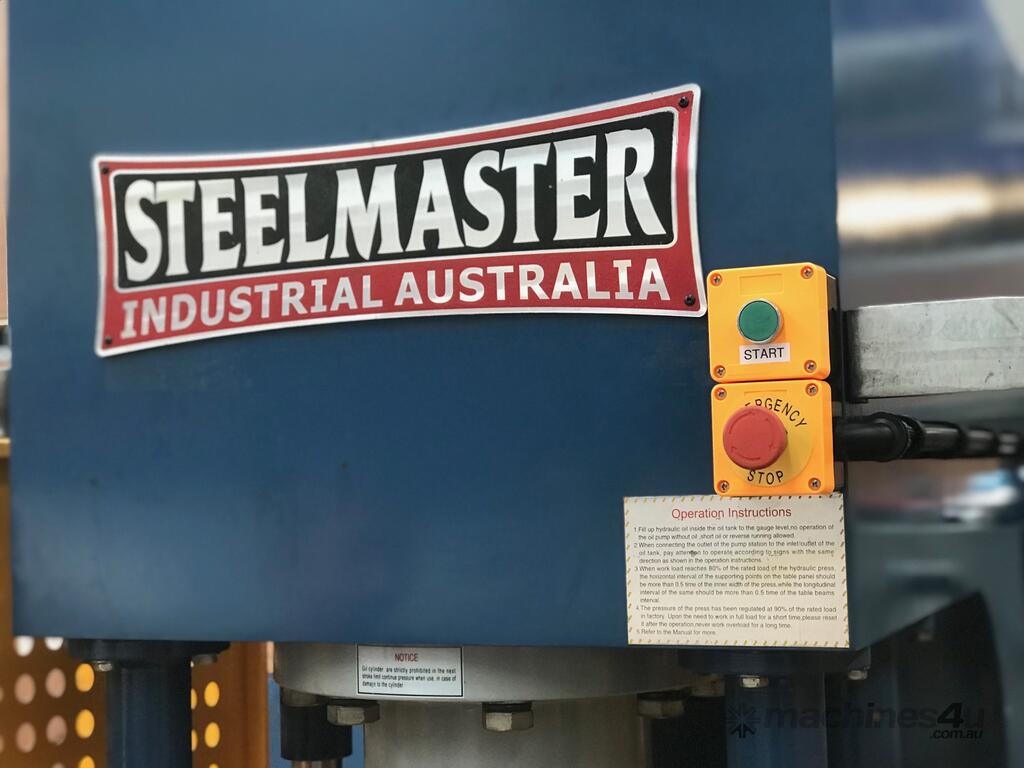

?CE standard and safety E stops and standard.
Technical Snapshot
?capacity – 80Ton
?table dimensions – 650mm x 520mm
?guide positioning pillars - 2
?throat depth - 320
?stroke length - 300mm
?open height - 470mm
?table height - 760mm
?speed- approach, pressing, return – 23 / 6 / 31mm/sec
?power - 5.5kw / Volt
?dimensions - 1380mm x 800mm x 1950mm x 3300kg
Options

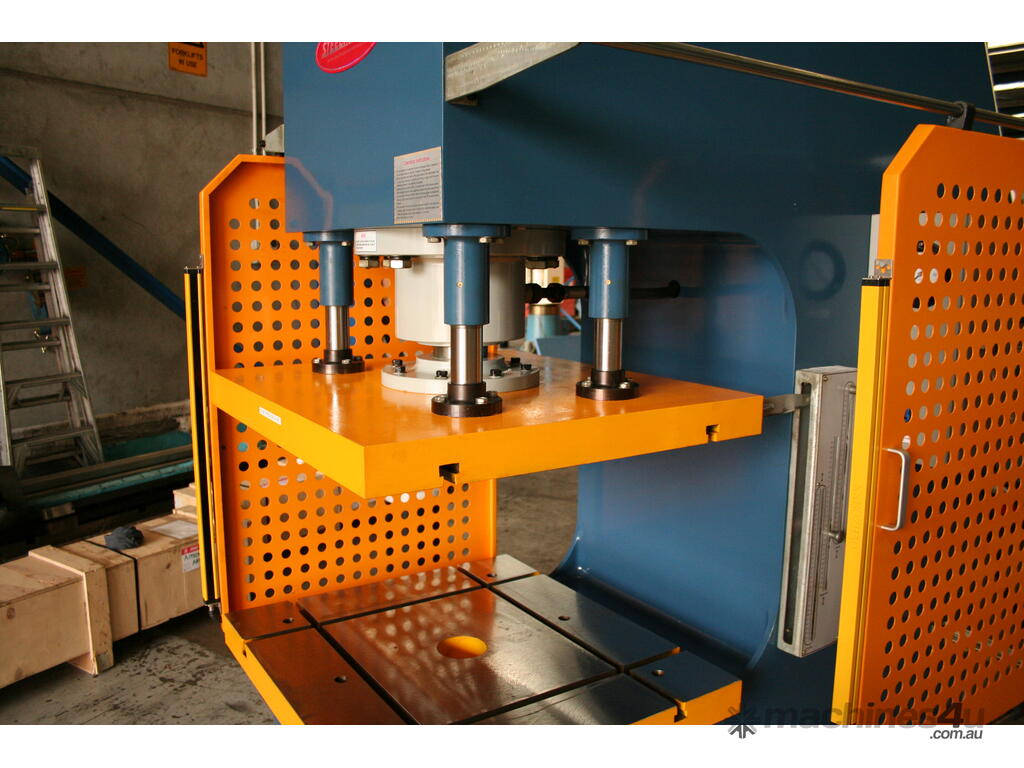

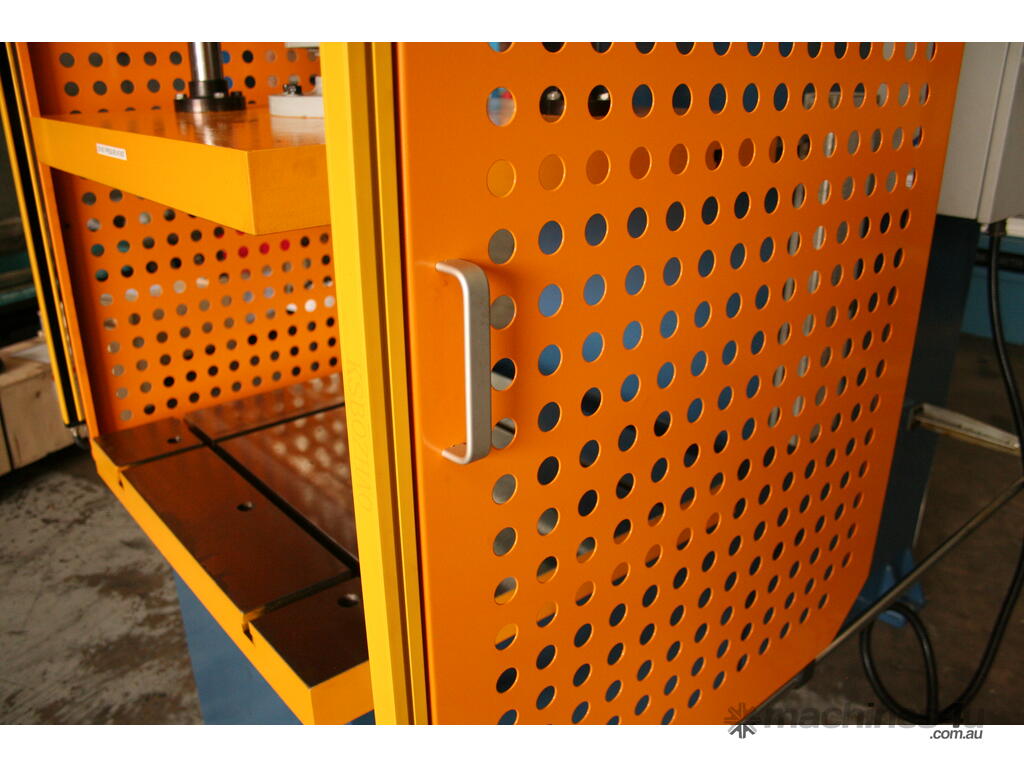

?We also offer OH&S Front Safety Laser Guards as Pictured To Ensure Safe WorkplacePlease Quote Product Code: 27+0006
MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
