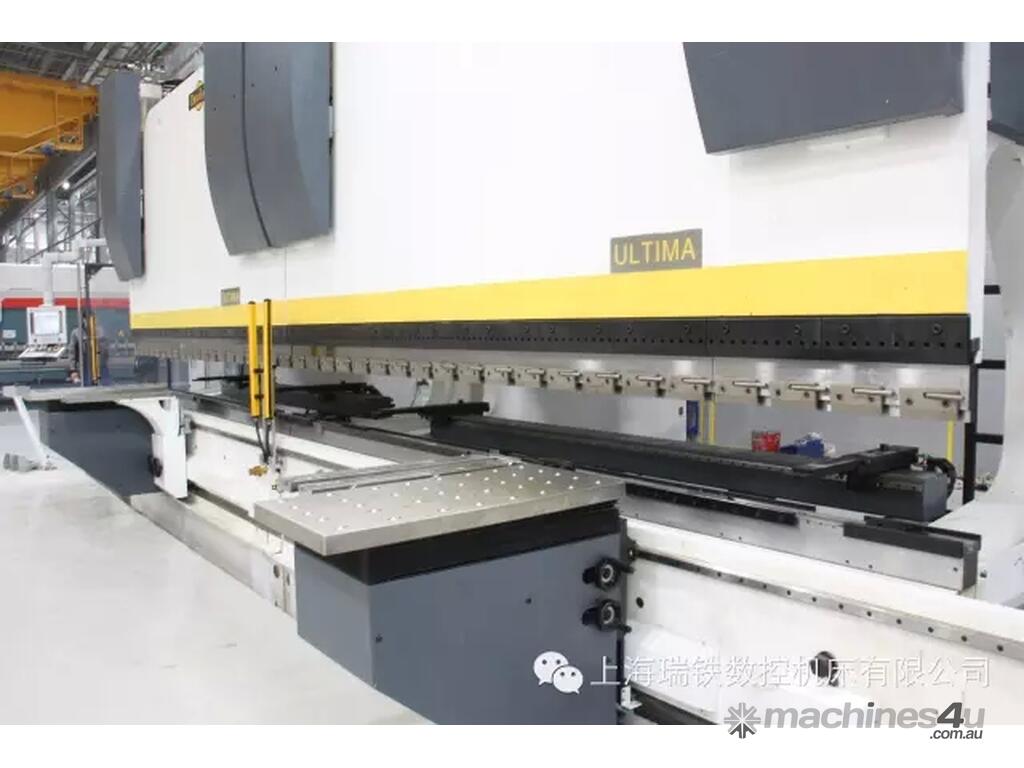

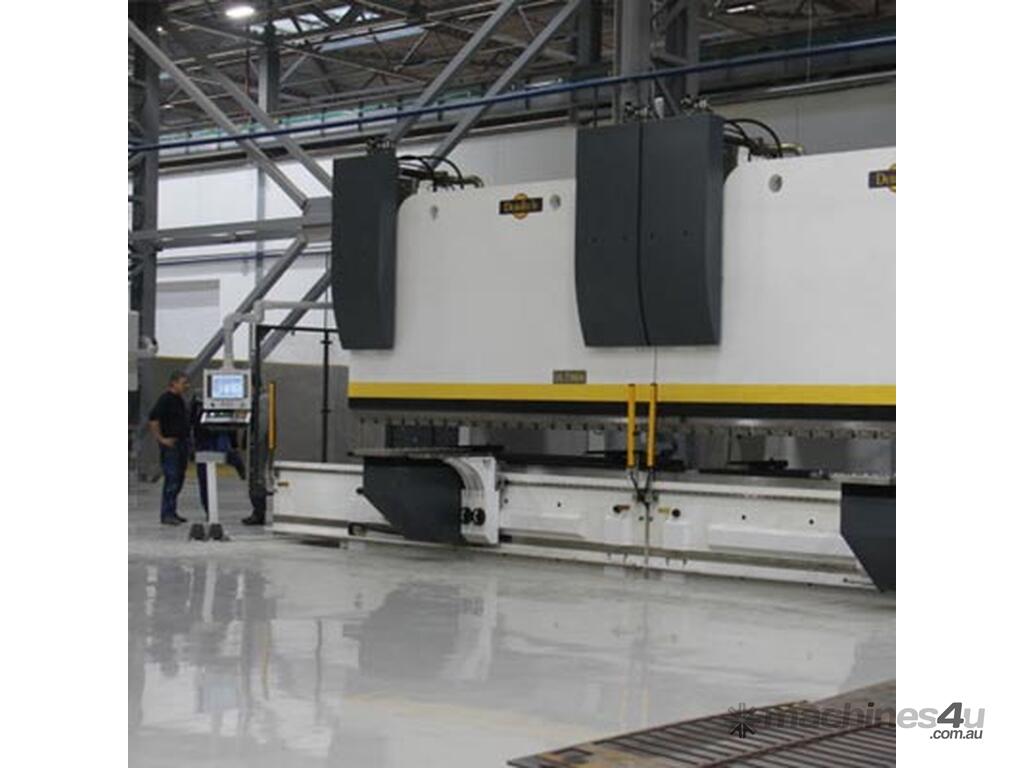

Heavy Duty CNC Press Brake

Ultima Heavy Duty, the reference in high tonnage machinery…

Manufactured according to customers specifications and requirements. Our experienced engineering team is specialized to design machines in press brakes with bending forces up to 1500ton.

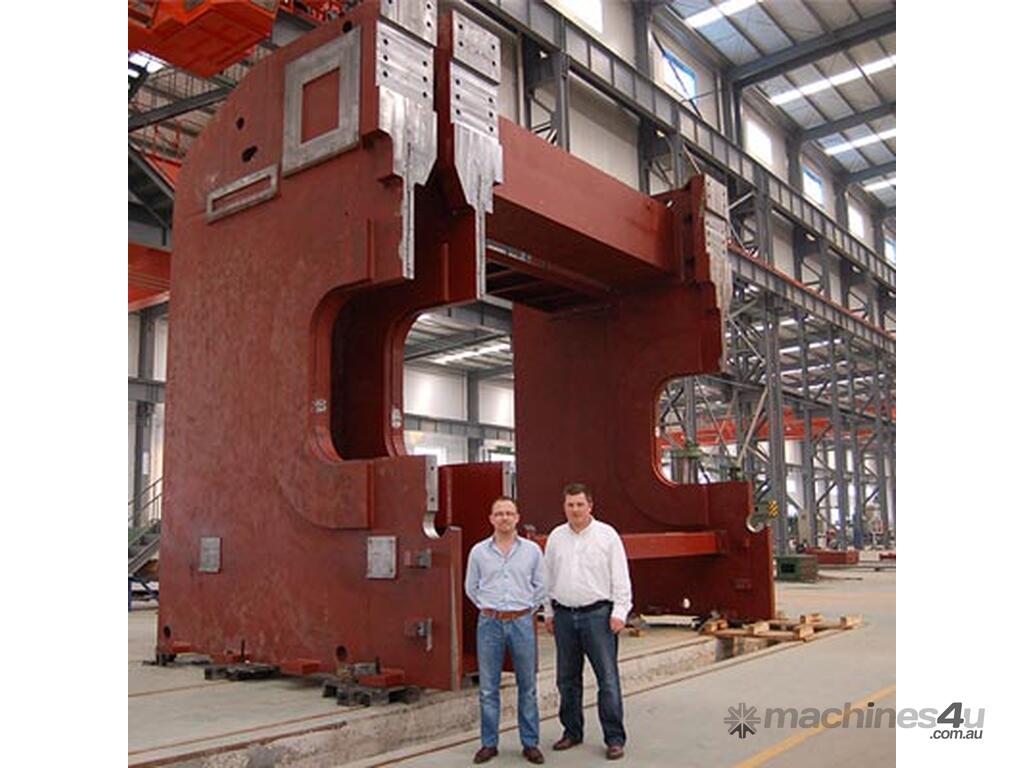

The frame of the larger brakes can also be dismantled into smaller parts and transported as normal freight which makes its transportation and installation considerably easier and less expensive.

A wide range of press brake accessories is, also possible to produce all DERATECH GROUP press brakes brakes in tandem-version, 3 or a maximum of 4 adjacent press-brakes make it possible to set extremely long products.

Technical information
- 5 CNC-controlled axis as standard: Y1-Y2-X-R-V
- Up to 1500 ton in bending force
- Up to 10 meter bending length
- Custom made stroke, daylight-opening and throat depth
- Big stroke available

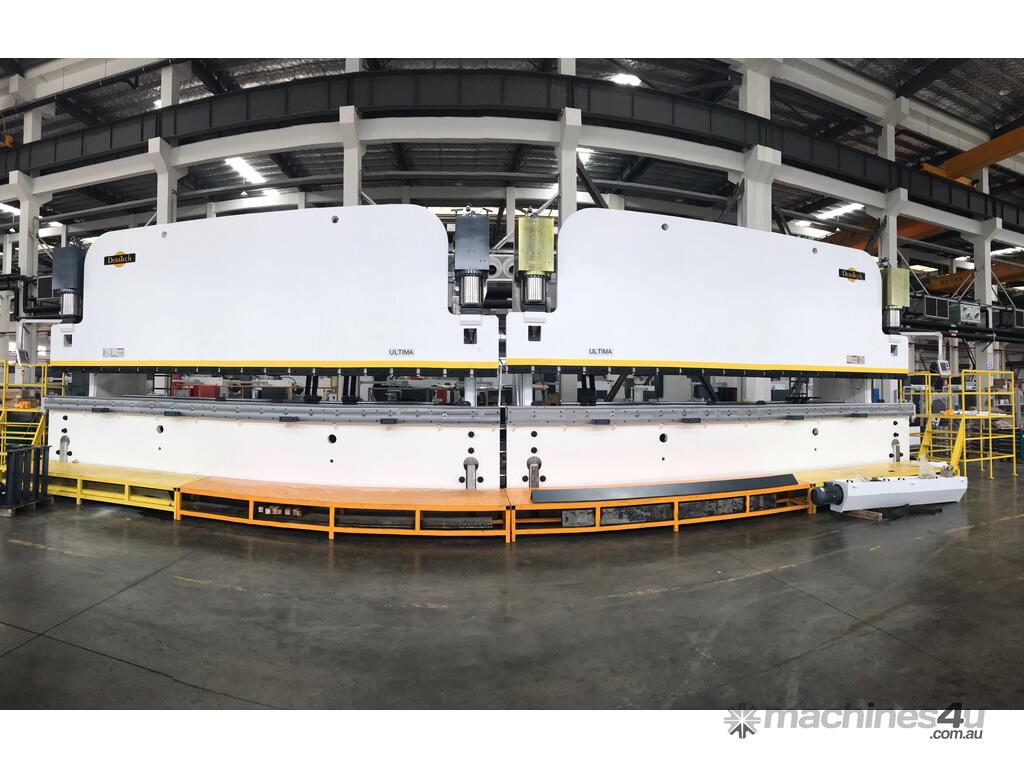

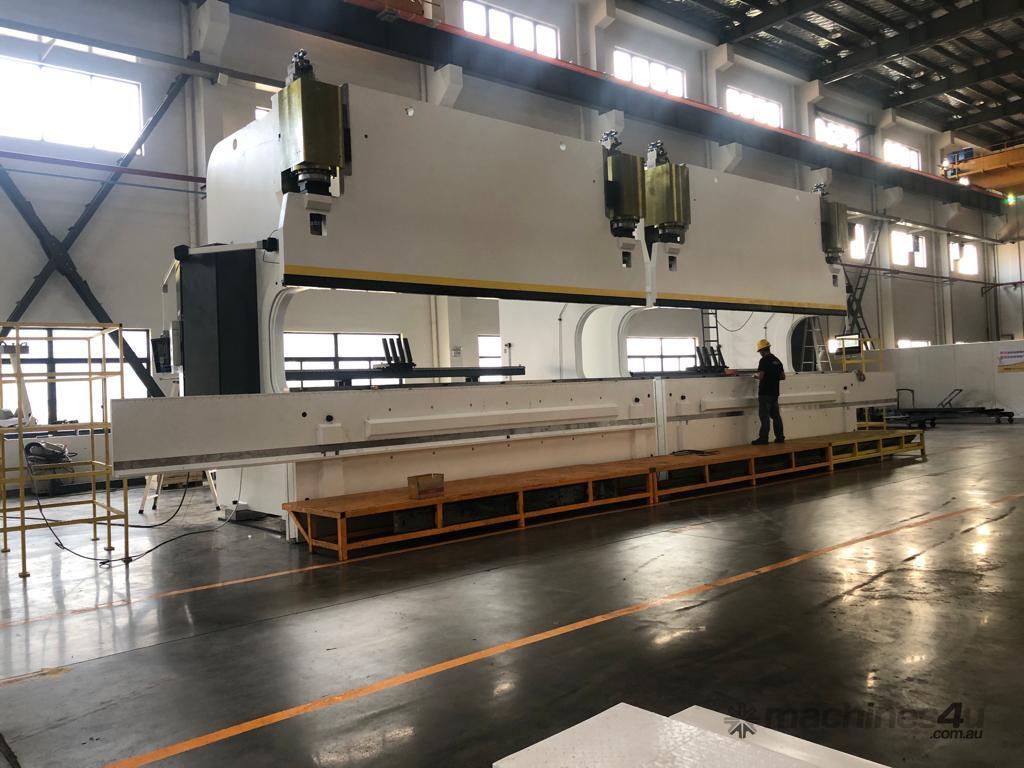

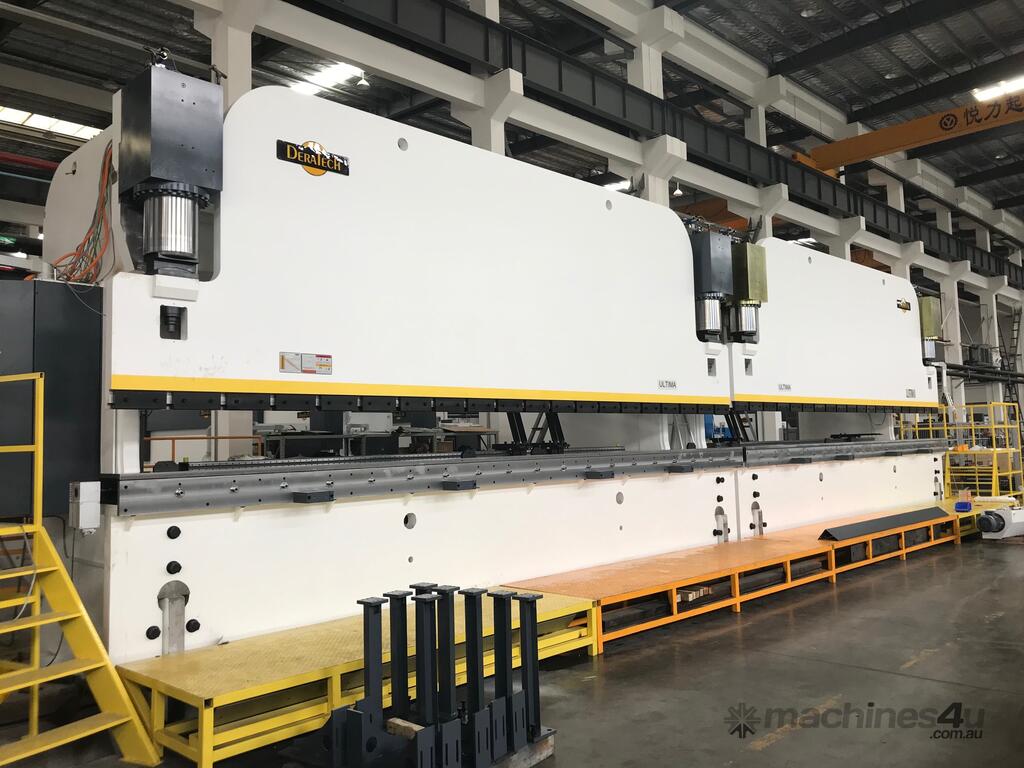

- Tandem or Tridem execution available
- Tandem press-brakes are in many cases more cost-effective than 1 long machine. In many cases, tandem press-brakes can be installed above the floor, making special foundations superfluous
- Design up on request of the end user

Available options
- D-Alpha: Automatic angle measurement system
- D-STM: Automatic sheet thickness measuring
-D-Crown: dynamic crowning
- D-Move extremely fast tool change system with tool storage
- E-Drive energy-saving drive system
- Bending Aid(s) CNC-controlled
- Automatic hydraulic hemming
- Servo controlled moving table
- Delta X

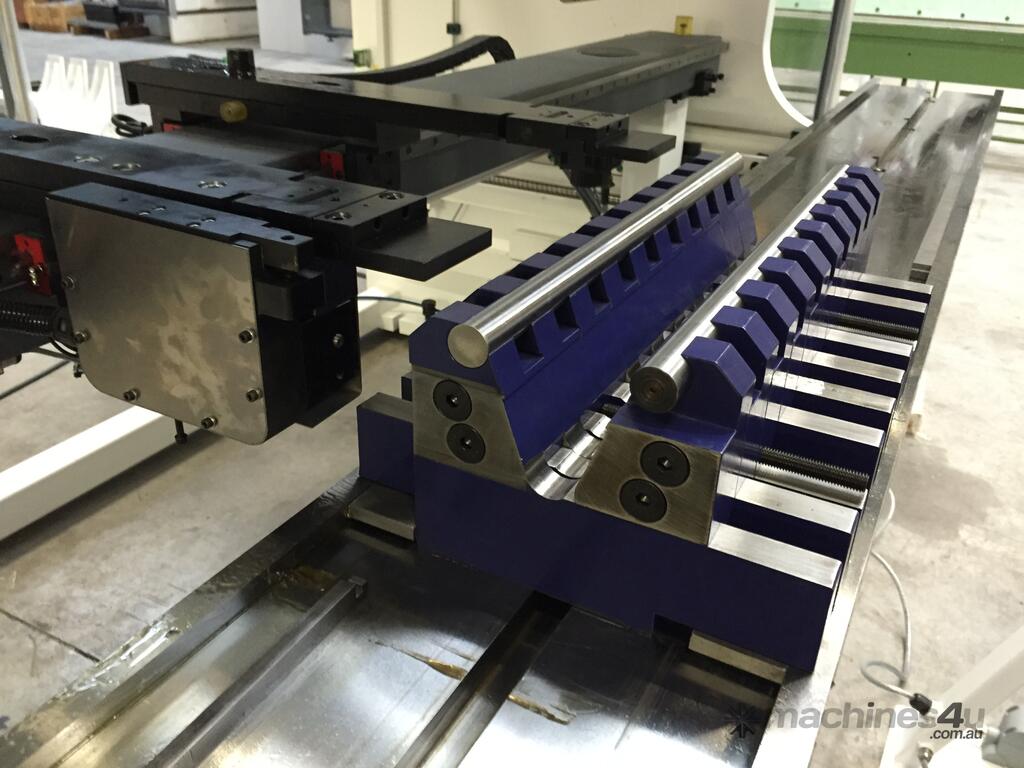

- 6 axis Backgauge: X1X2 / R1R2 / Z1Z2
- Automatic correction database
- Tandem configuration
- Barcode Scanner
- Backgauge with pneumatic support system
- Remote assistance
- 3D controller
- Hybrid hydraulic system
- ESA or DELEM or Cybelec controller
- LazerSafe safety lightguard with safety controller
