Heavy Duty Industrial 100mm Bar Steel Bender

SM-UB100. Bar Bender. Steelmaster Universal Type. 100mm x 6mm Capacity.
Heavy Duty Industrial Series

Description

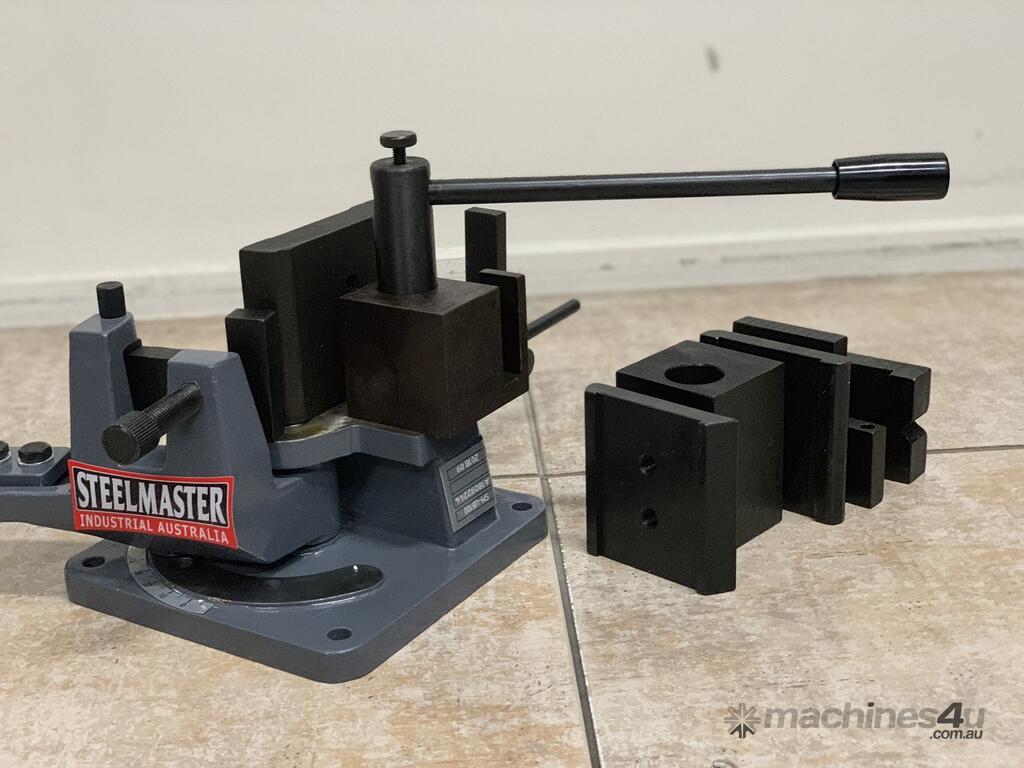

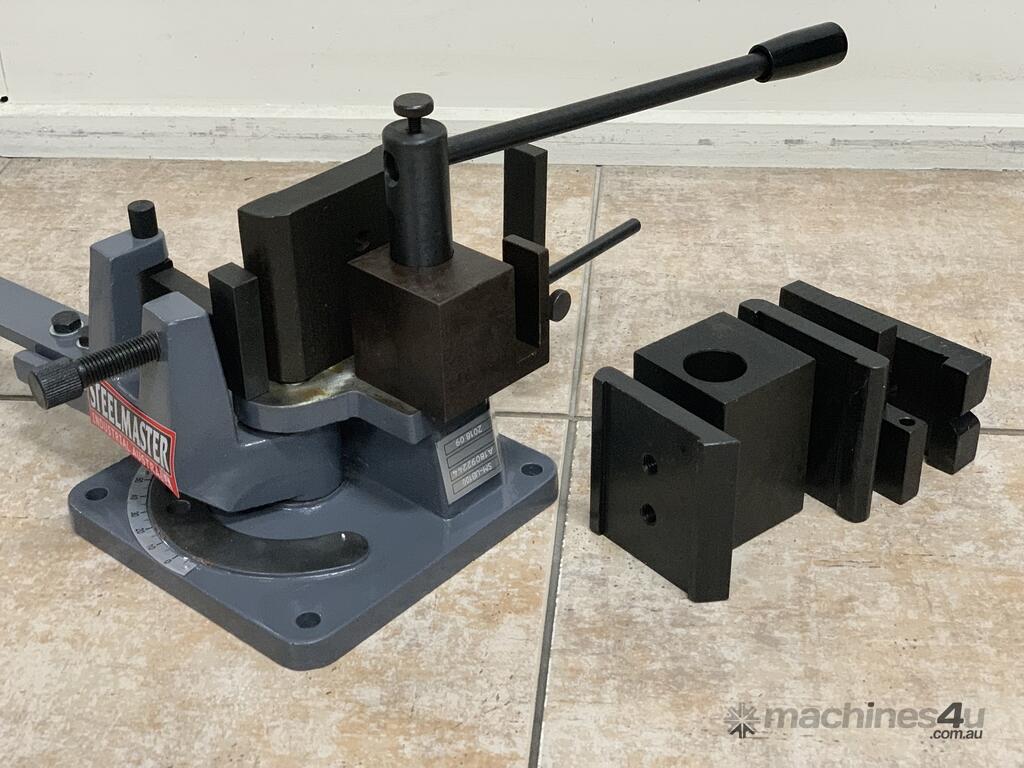

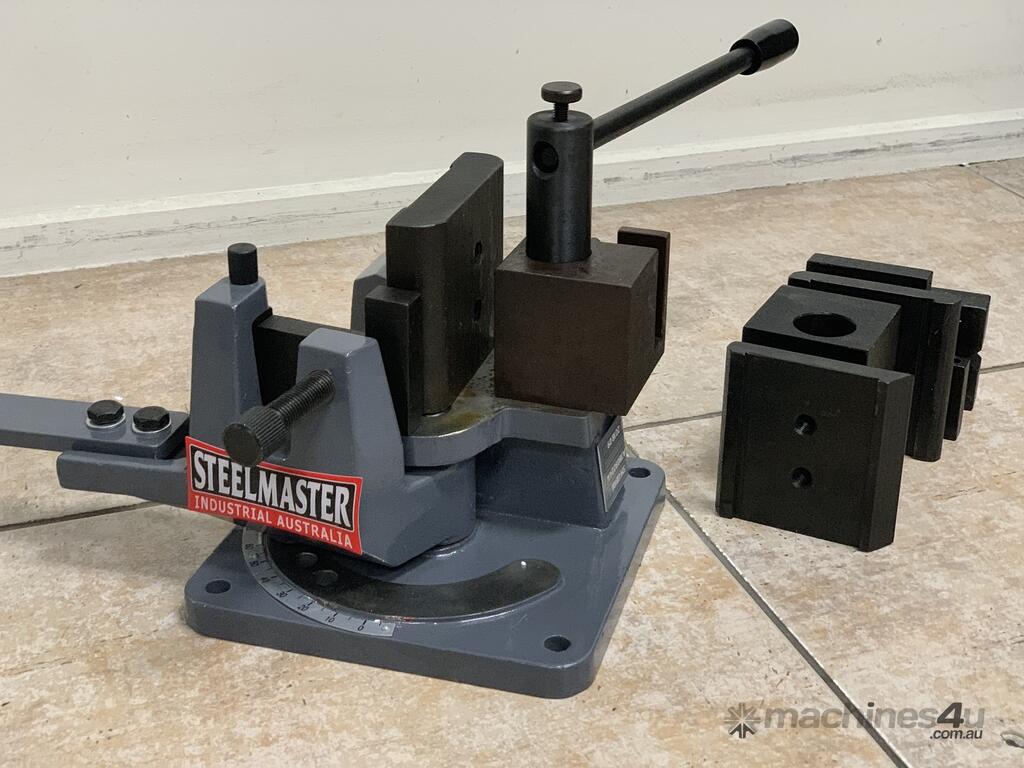

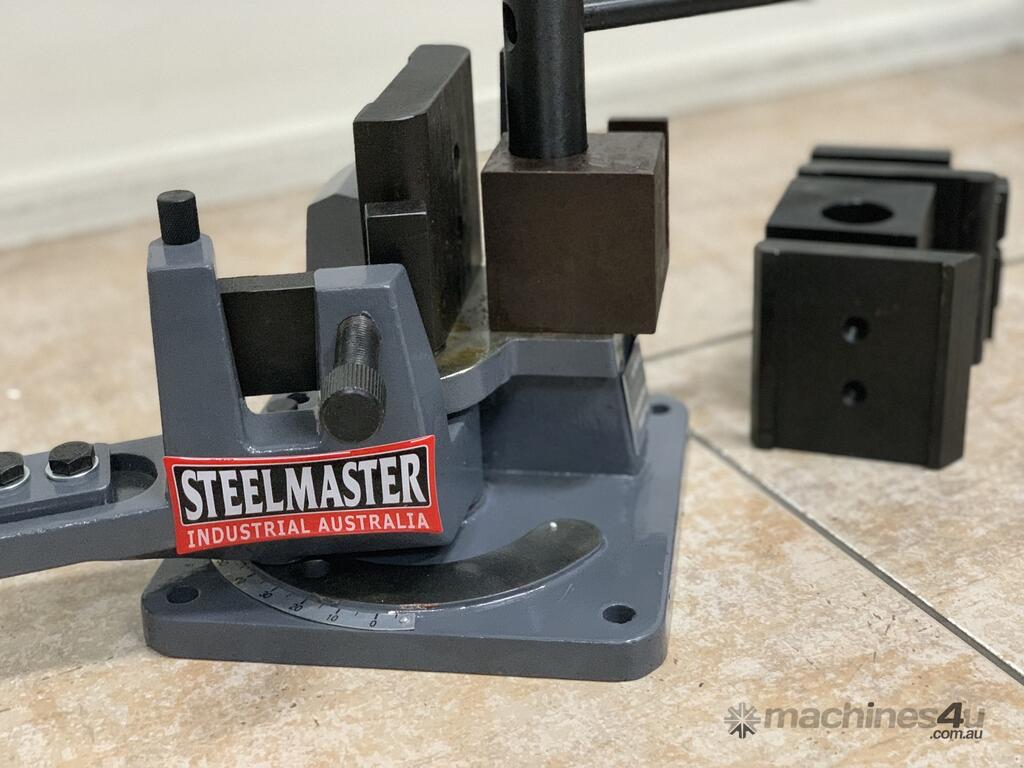

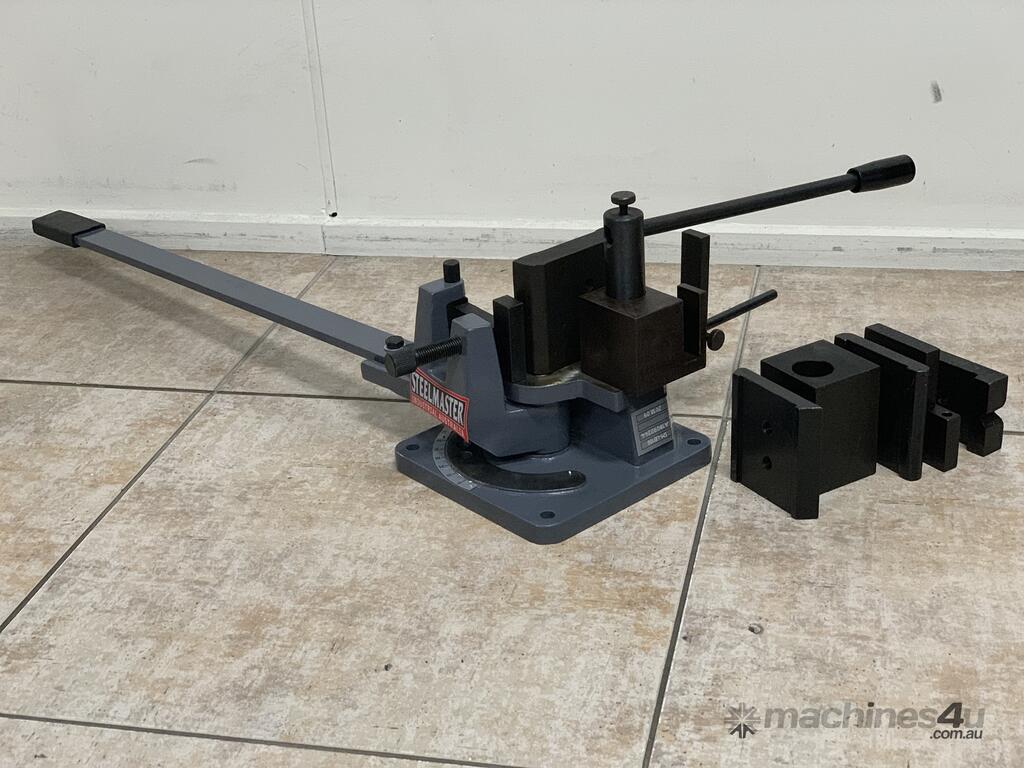

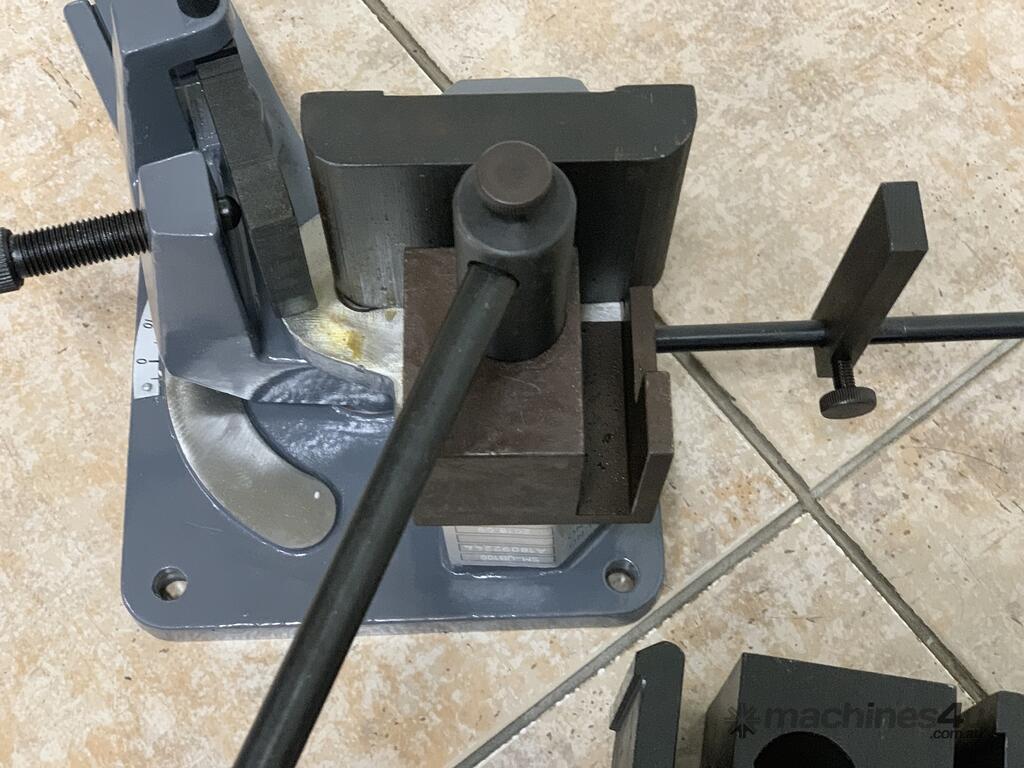

A simple design and heavy-duty construction make this benchtop Iron Bender easy to use. It bends iron bar stock from 100mm wide at 6mm thick with the use of a 4 sided die and variable eccentric adjustment. Bending range is 0° to 120° and includes an adjustable angle stop and work stop for repeat bends. A sturdy handle provides plenty of leverage. Approximate shipping weight: 35kgs.

Features
? sturdy design for screw mounting on work bench
? infinitely variable bending stop adjustment via positive stop
? eccentric quick-clamp for streamlined operation for smooth bending

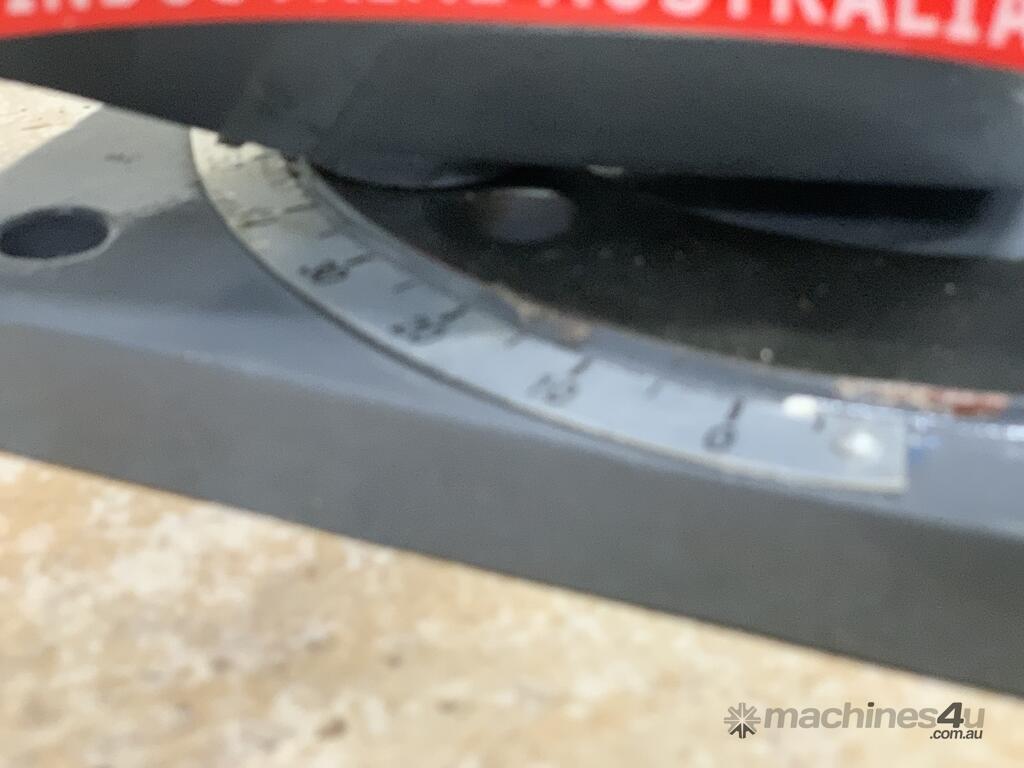

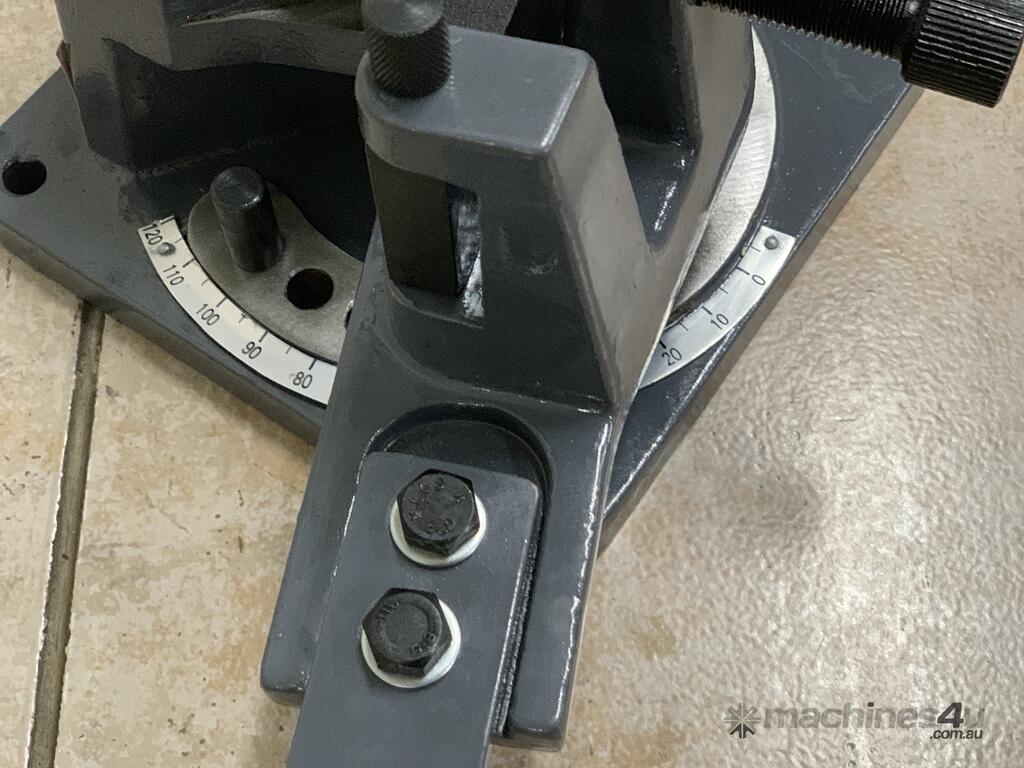

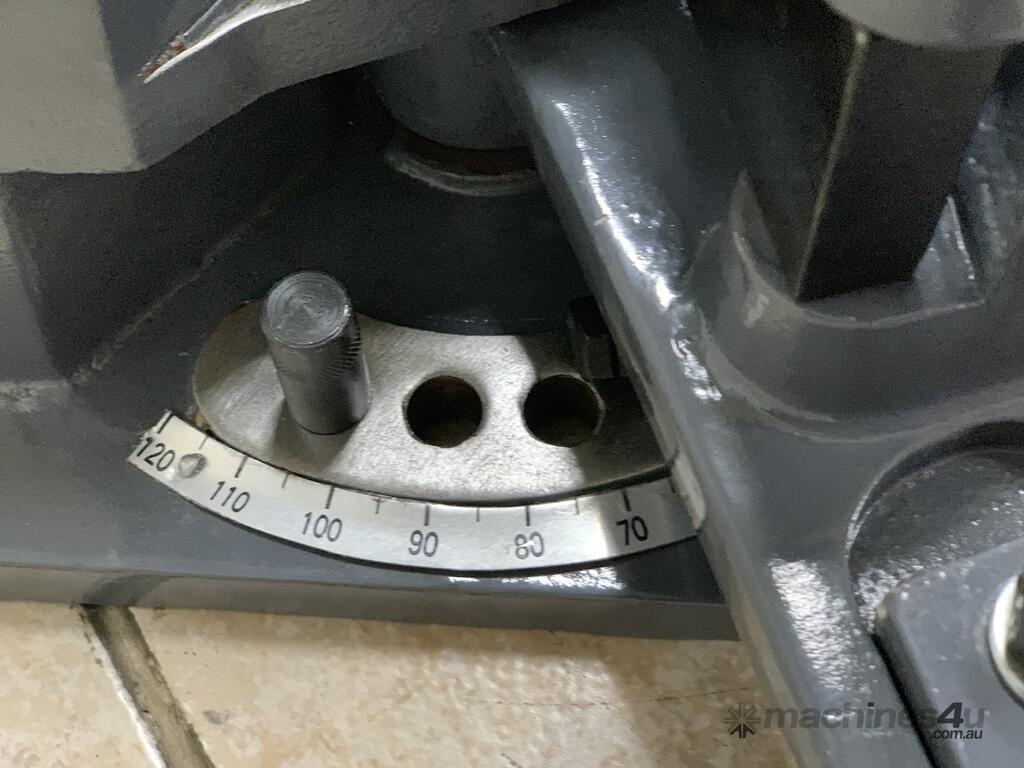

? bending angle read-out up to 120°

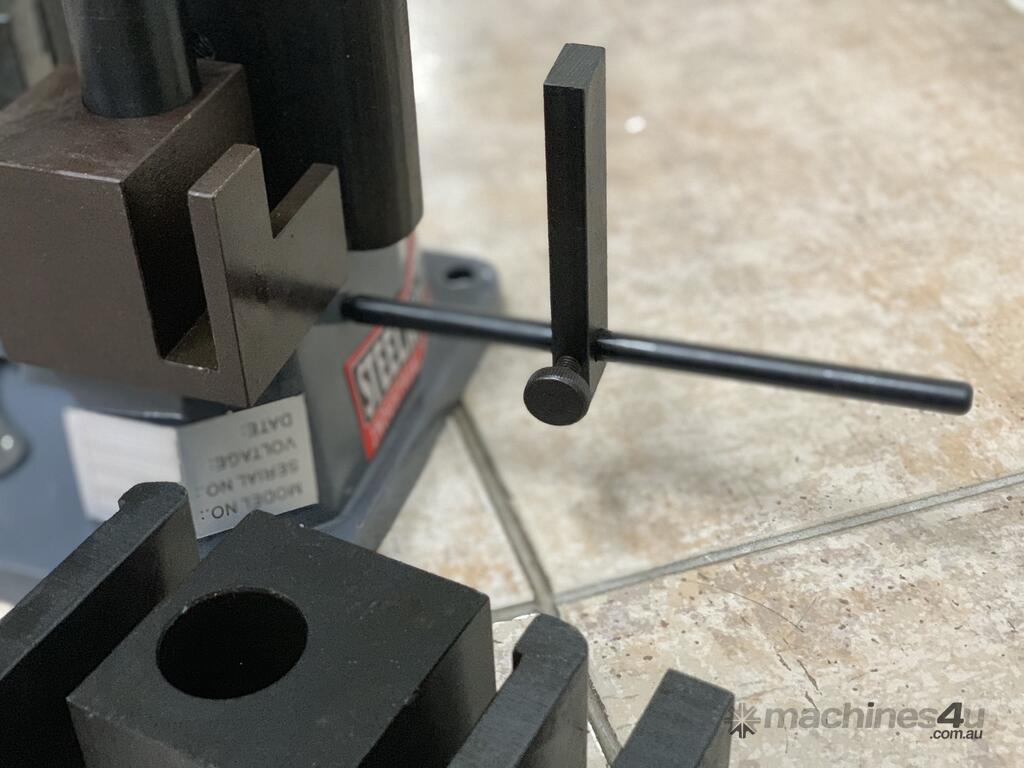

? bending angle stop for high repeatability
? ideal for repair and metal working shops
? In terms of cold bending, the capacity can up to 3" wide by 1/2" thick. Hold bending, on the other hand, can bend up to 4" wide by 5/8" thick flat bar.

Universal Metal Steel Bar Bender
Cold and hot bending of flat, round, and square steel, variable bending stop adjustment, with eccenter quick-clamp for streamlined operation, bending angles

COLD BENDING SPECIFICATION
-flat steel: 100x5mm
-square steel: 16x16mm
-round steel: 18mm
-angle steel: 60x8mm

HOT BENDING SPECIFICATION
-flat steel: 100x15mm
-square steel: 22x22mm
-round steel: 22mm
-angle steel: 100 x 12mmread-out up to 120°, bending angle stop for high repeatability, ideal for repair shops and metal working shops, easy to operator, safe and reliable.

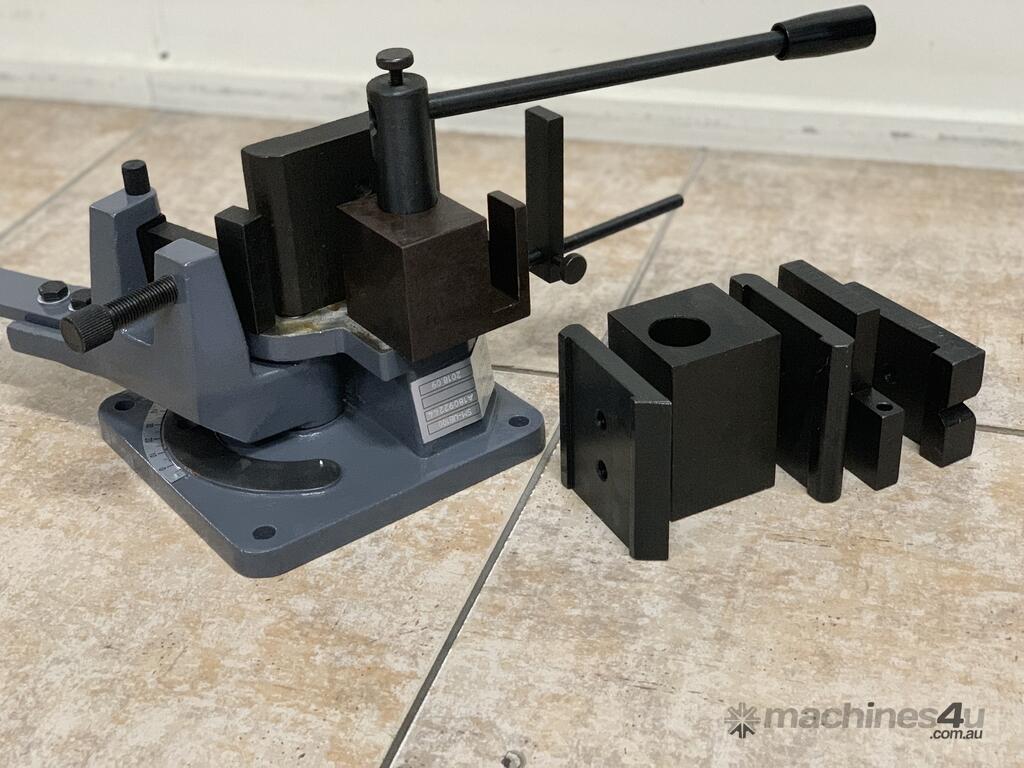

STANDARD EQUIPMENT:
-angle stop
-bending plates
-bending lever

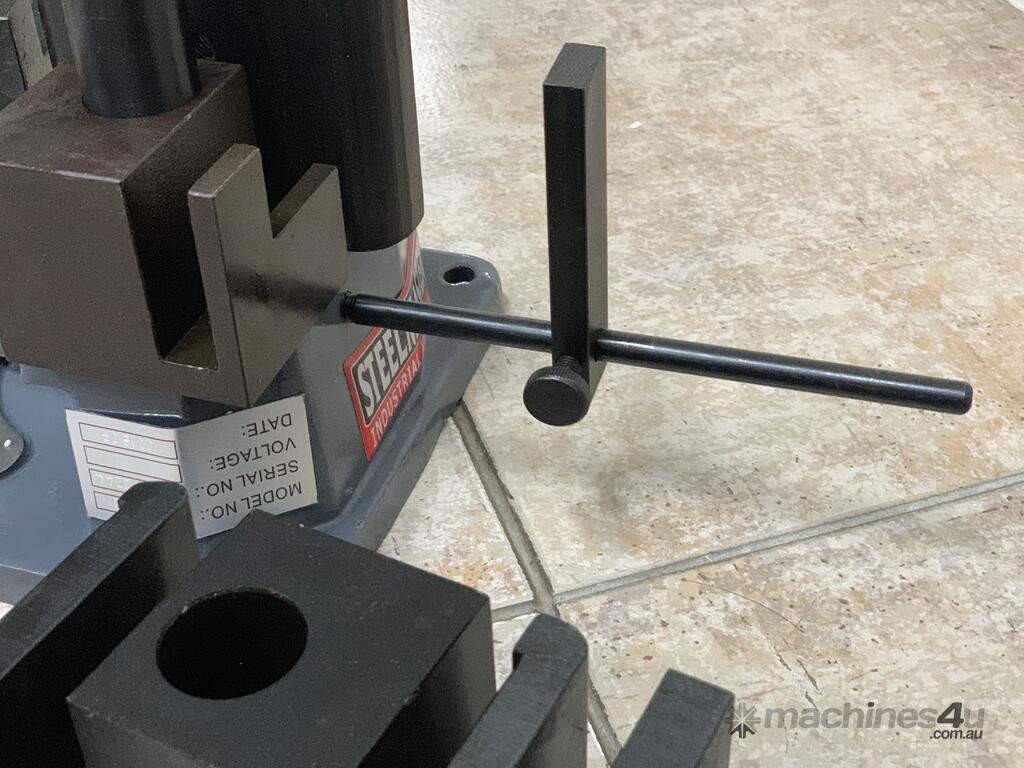

-material stop

SHIPPING WEIGHT: 35KGs
