STEELMASTER INDUSTRIAL SM-HEPM110 Hydraulic Workshop Press. 100Ton Capacity, Fixed & Sliding Head. 2 Speed Hydraulic Control With Manual Mode, Auto Return, Pressure Gauge, Lifting Chains. V
## Other Models In Stock - 66Ton, 160Ton & 200Ton
Description
NEW Fixed & Sliding Head Model – All in One! For your toughest shop pressing needs, these Motorized Hydraulic Presses do it all.

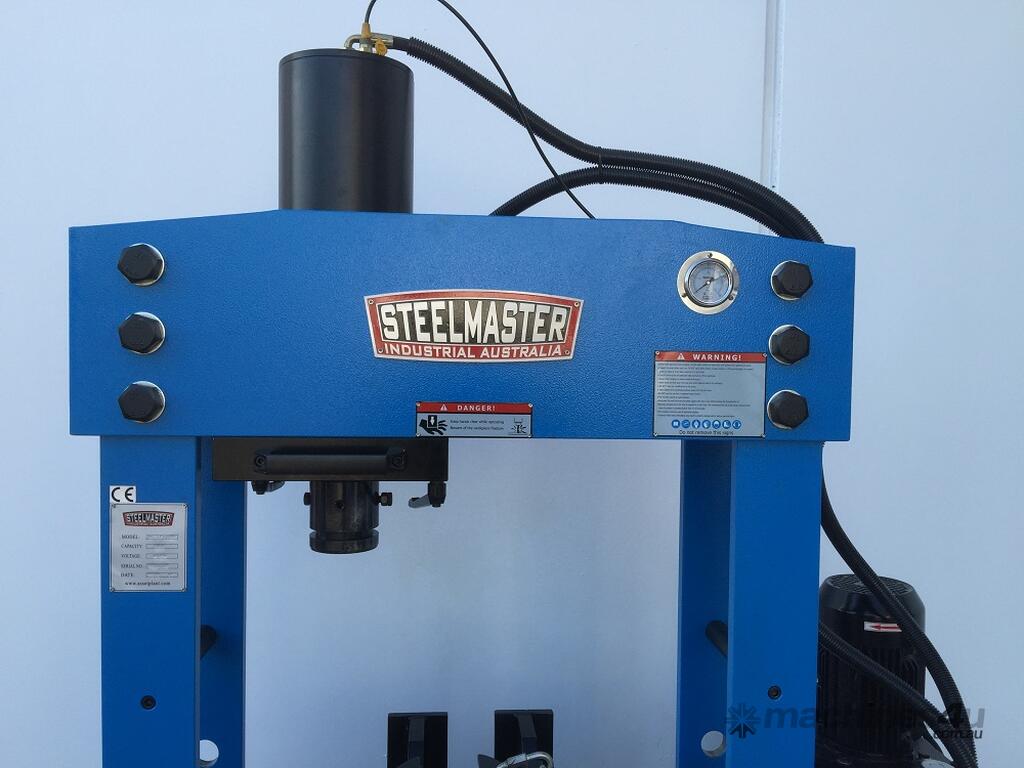

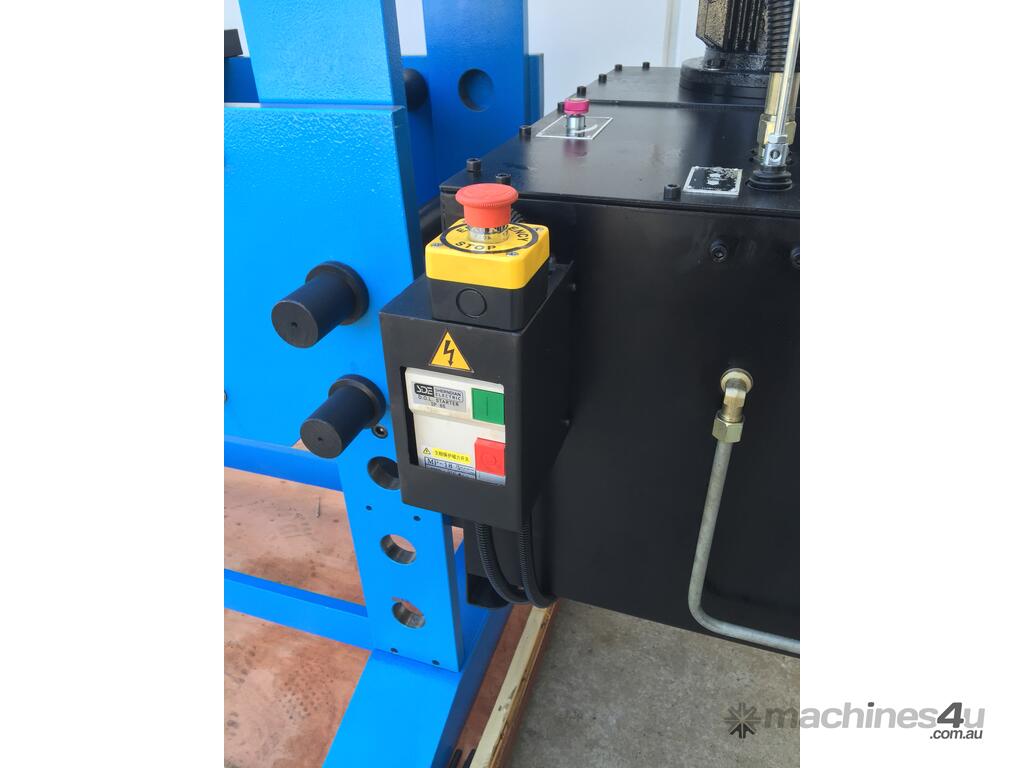

Simple Pendant control up & down control, built-in pressure gauge provides exact pressure readings.

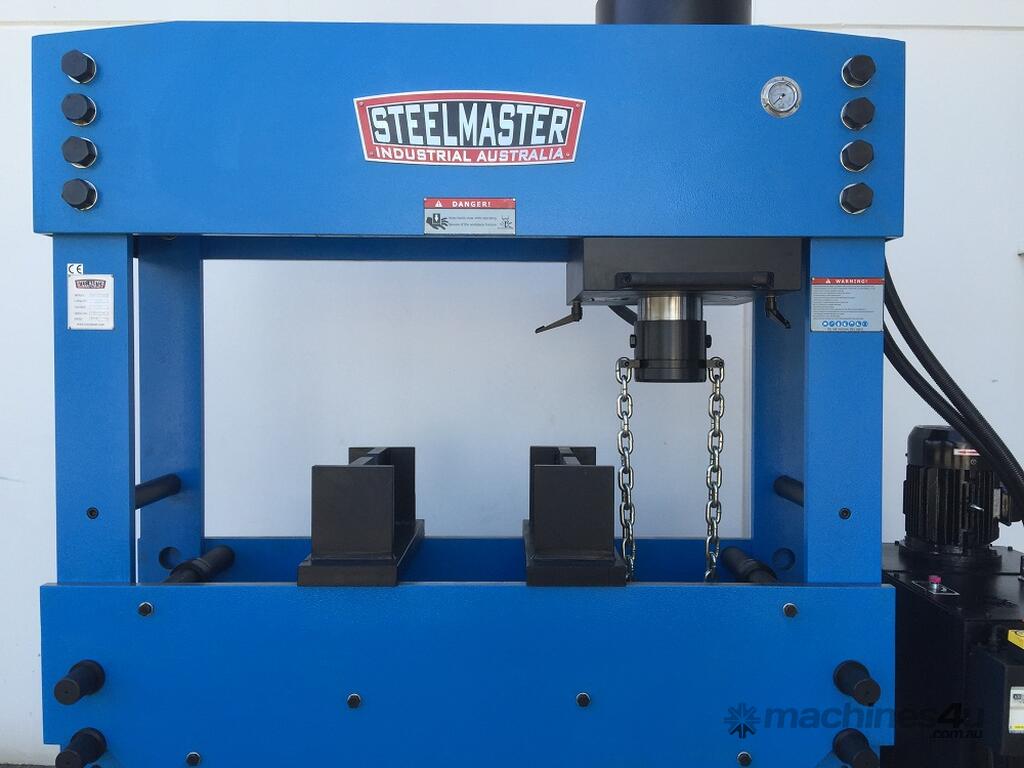

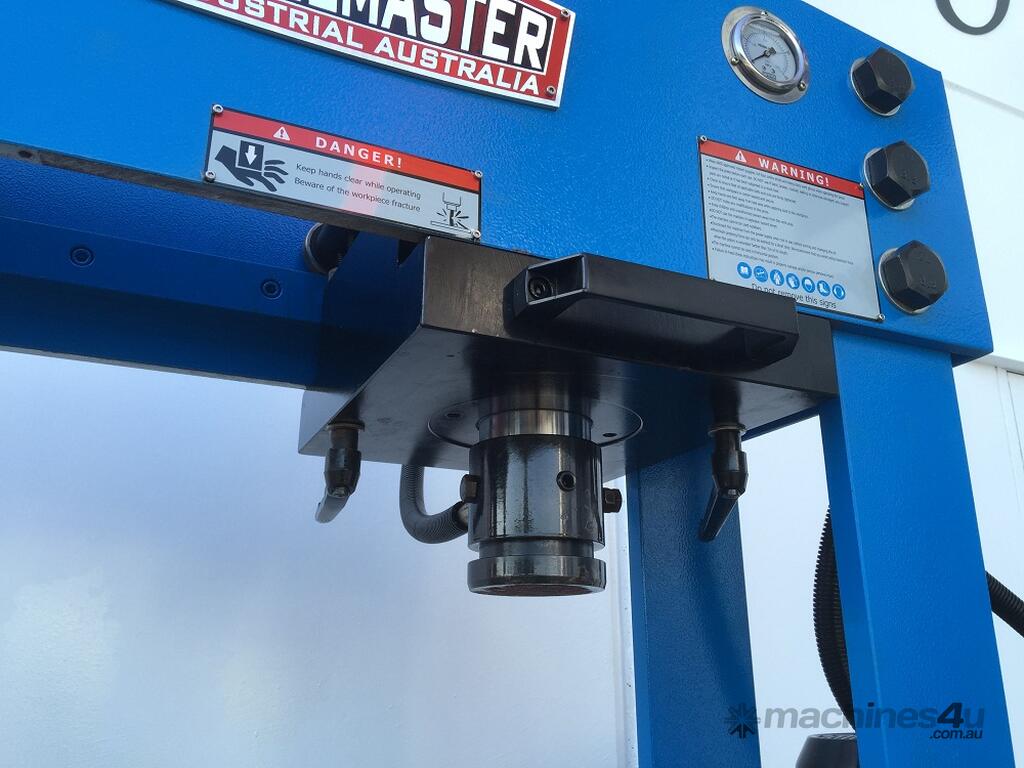

Fully adjustable fixed or left & right sliding adjustment of the hydraulic ram - offering full flexibility when offset bending required.
Quick lock power assist table raise and lowering of the bed, which can be adjusted multiple locations along its massive steel frame.

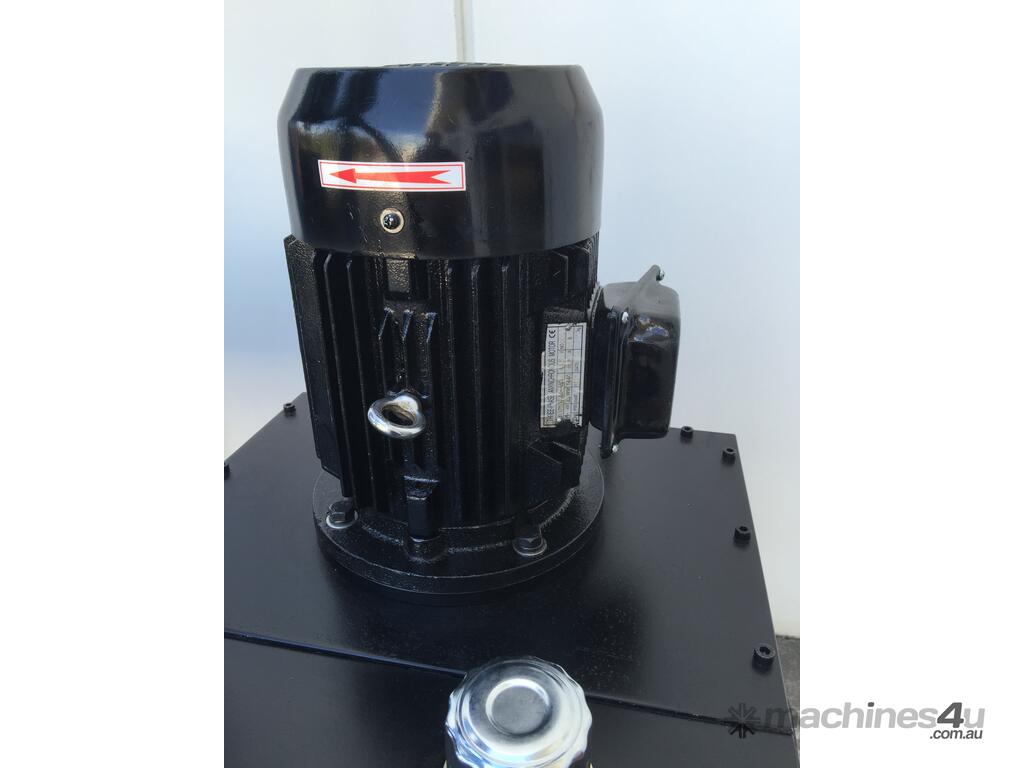

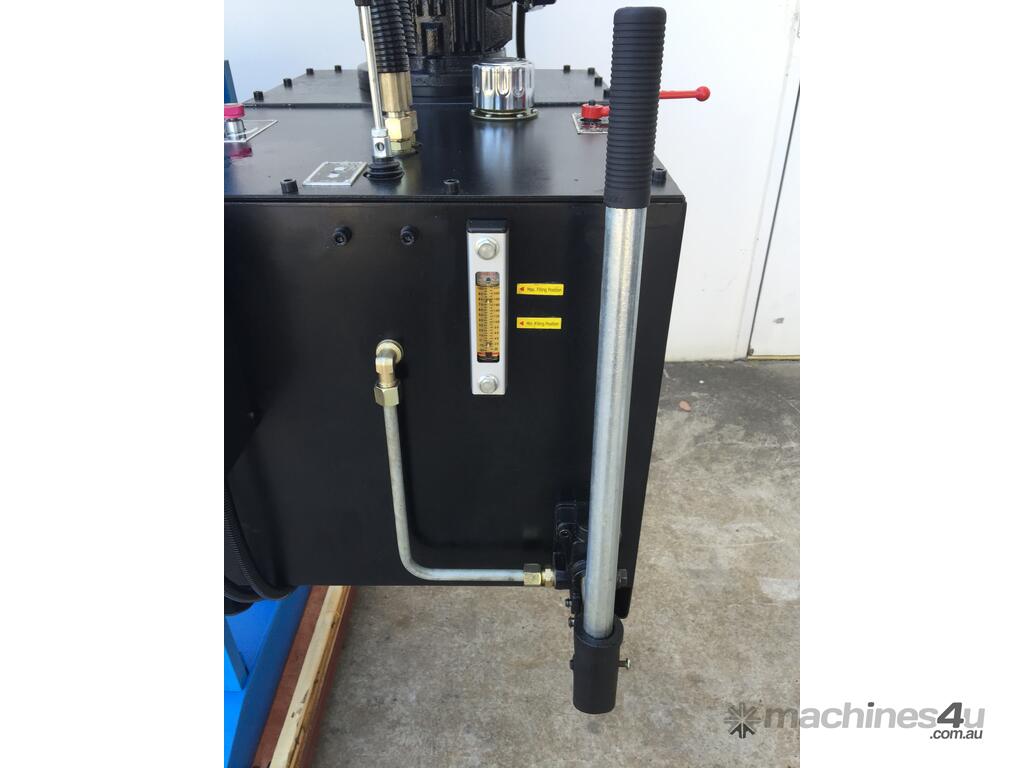

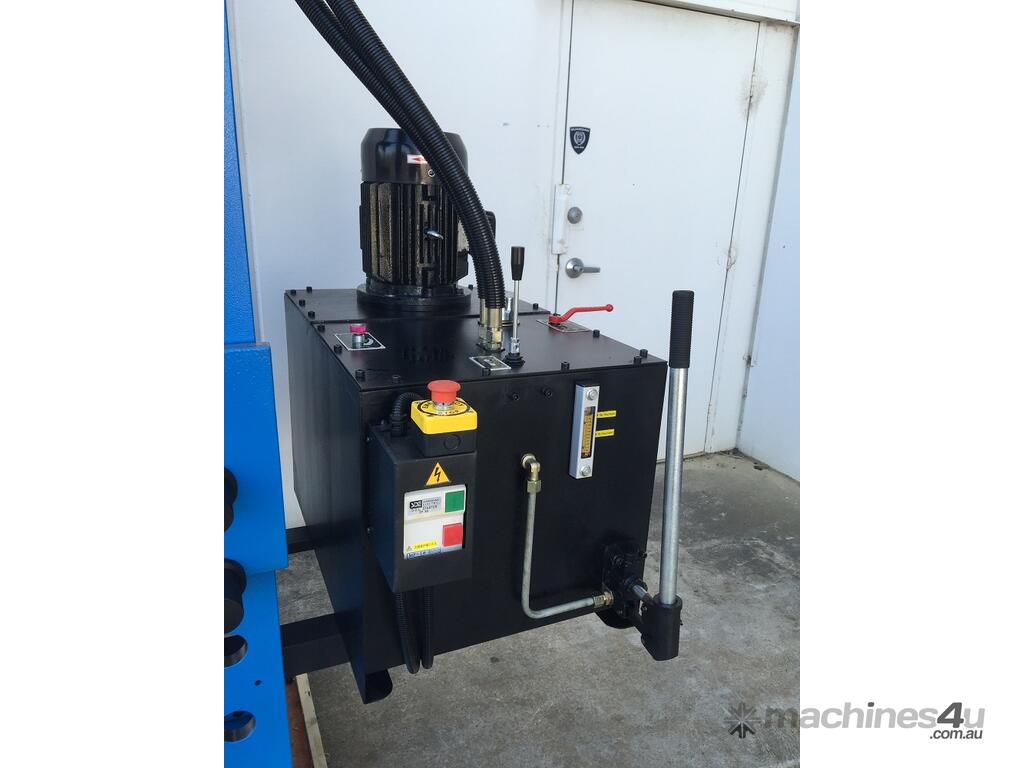

The operator can chose operate the ram in automatic (motorized) or manual (hand pump) for even more control.
Features
* 100 ton force
* fixed central Ram position or slide left or right.
* offering more flexibility to your pressing applications

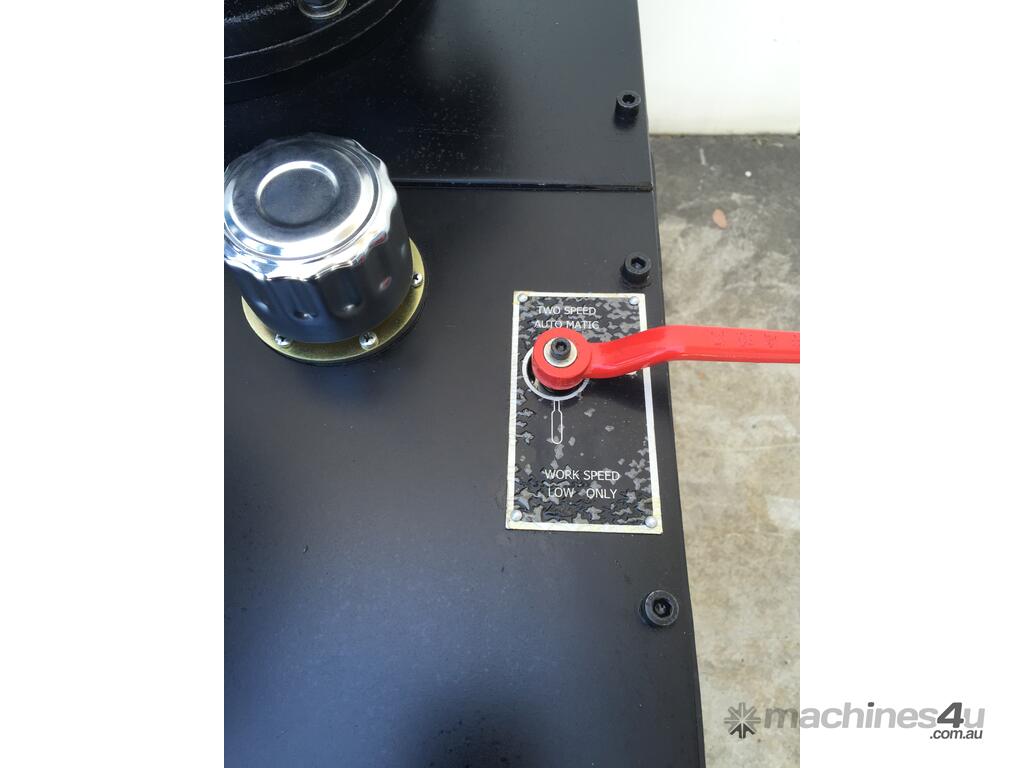

* twin speed control with manual adjustment
* for the removal and press-fit of bearings and bushings

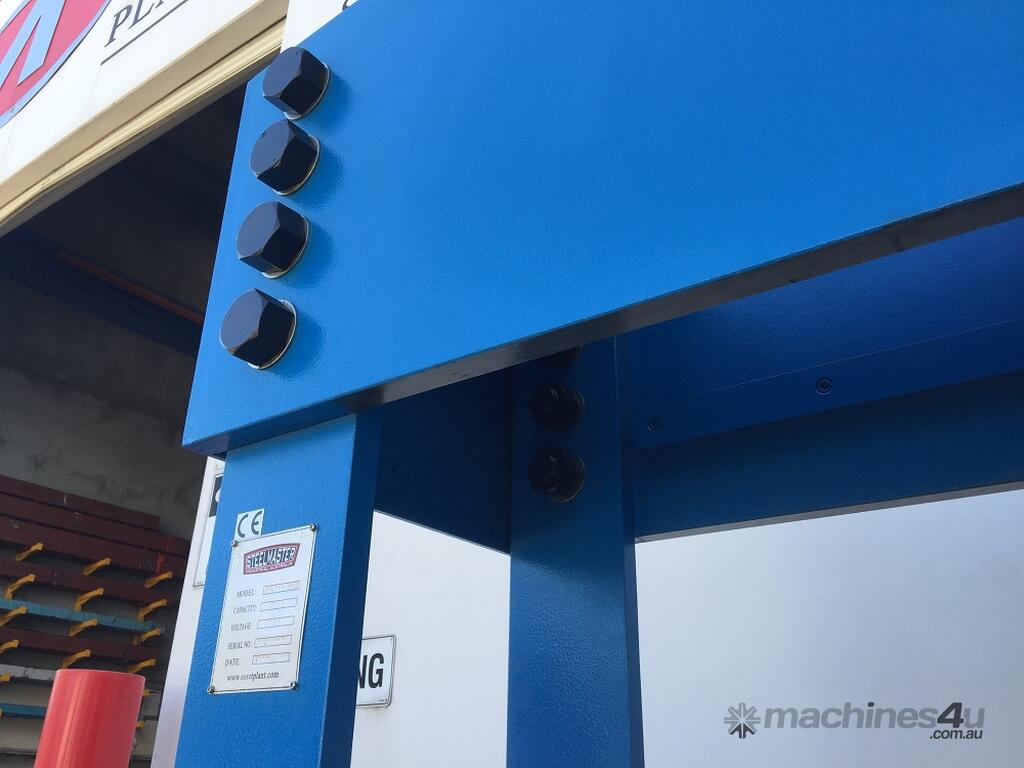

* extremely torsion proof steel welded frame

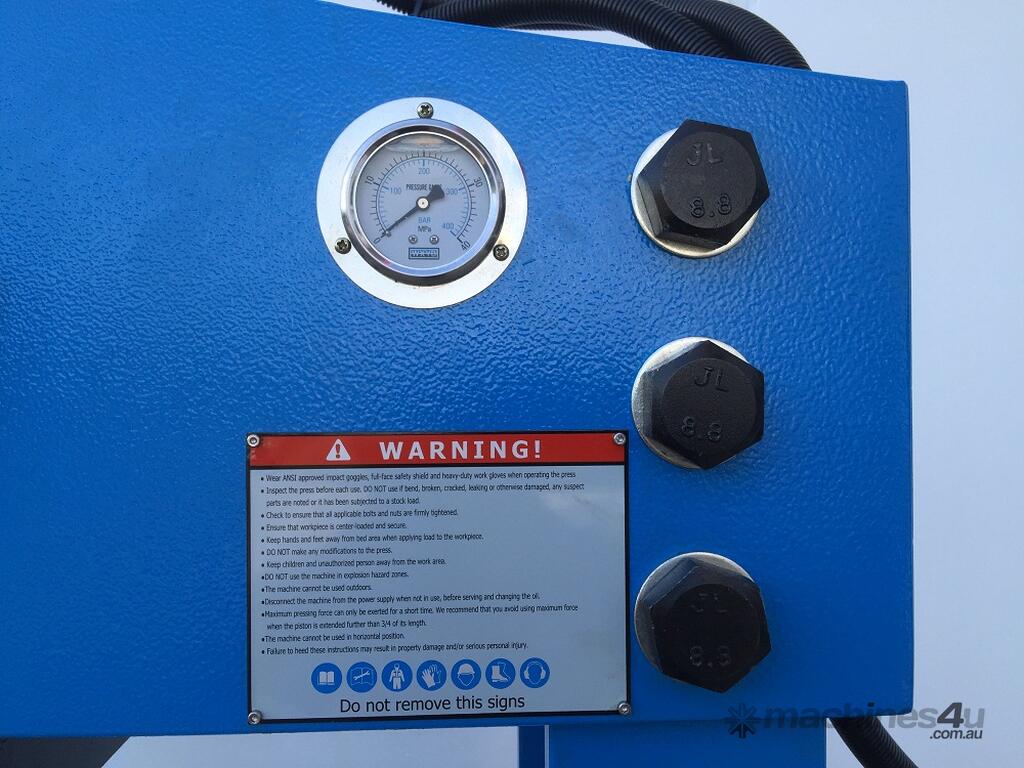

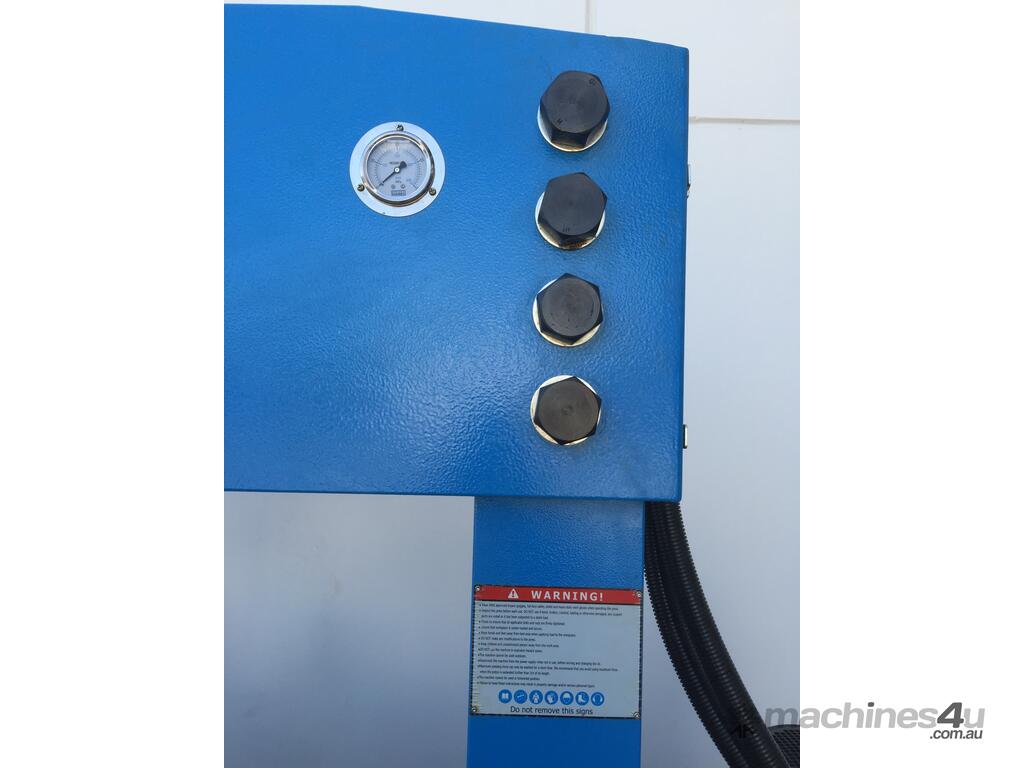

* hydraulic pressure gauge fitted

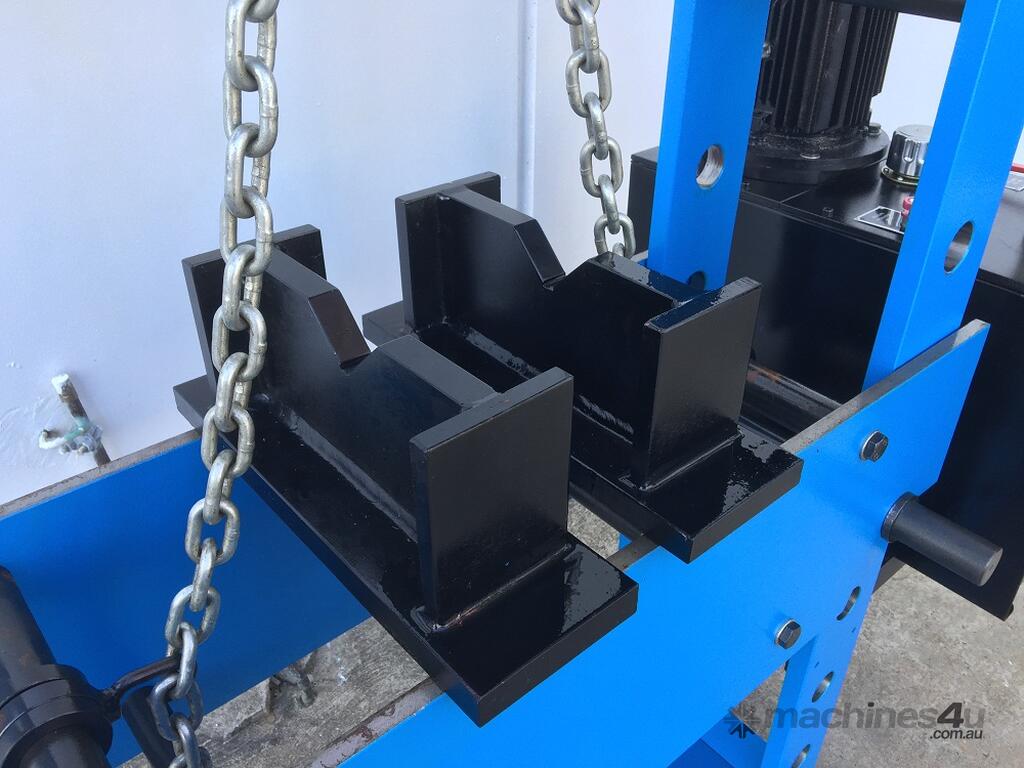

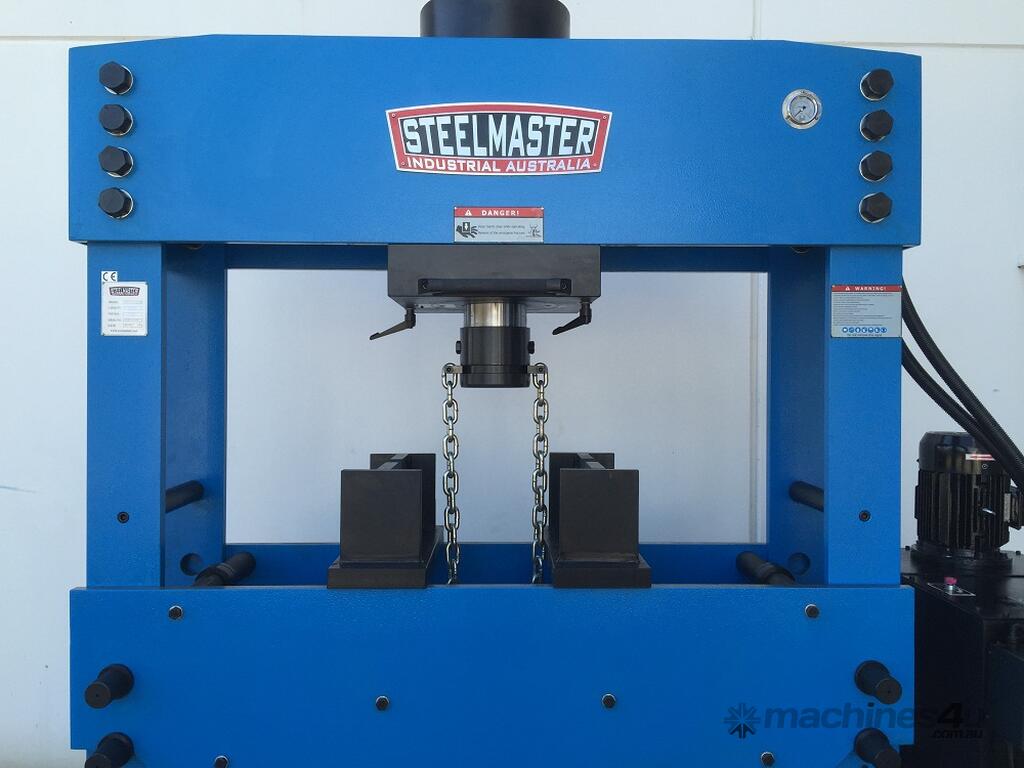

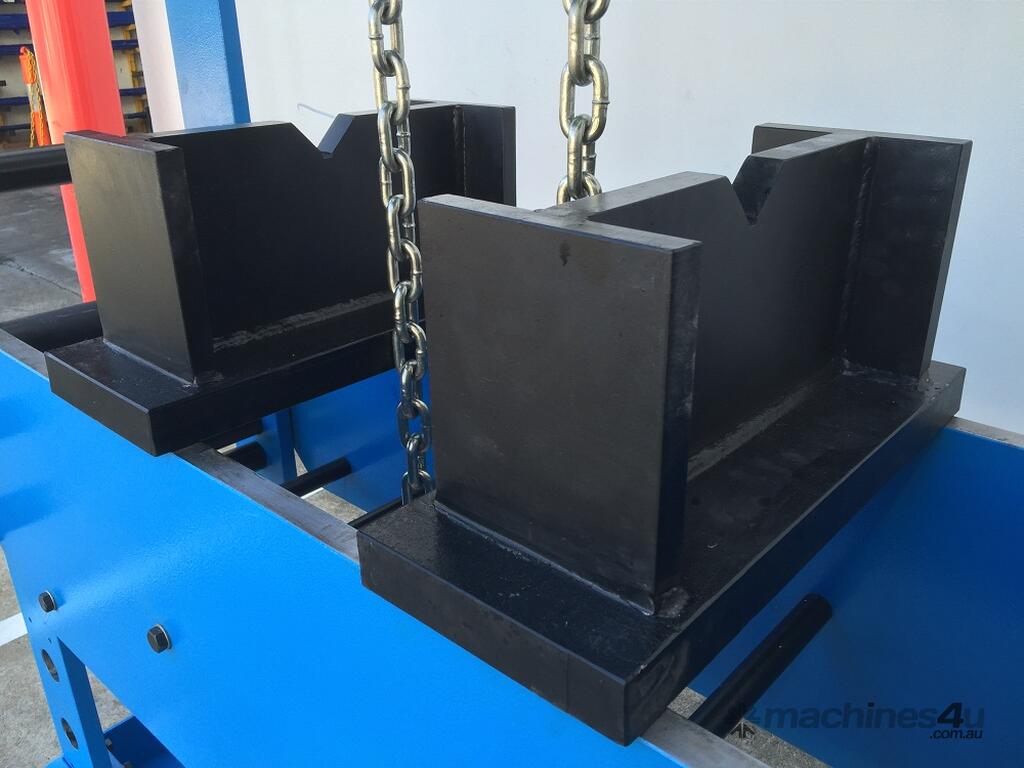

* quick fit work plate with vee blocks supplied.

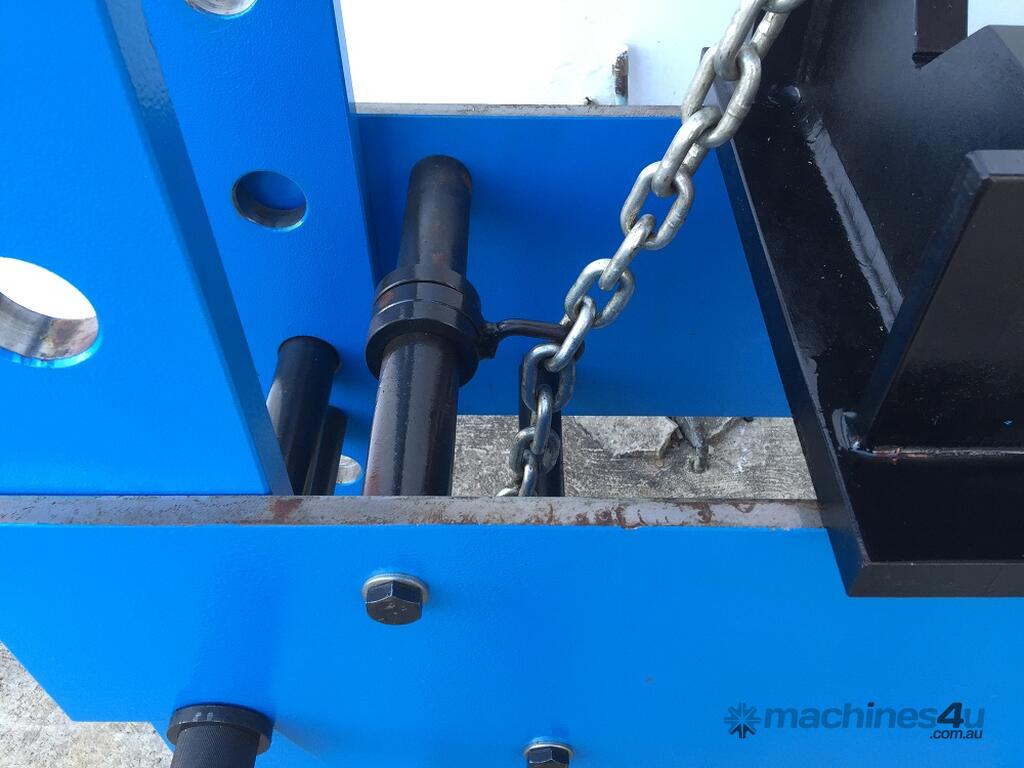

* lifting chains included
* wide frame models available up to 1500mm wide
Technical Snapshot
*capacity - 100Ton
*frame width distance - 920mm (can offer up to 1500mm)
*stroke length - 400mm
*max. pressure – 236 bar
*cylinder – fixed & sliding
*working speed – 6 (2.4)mm / sec
*approach speed – 6 (9.3)mm / sec
*return speed – 9.5 (12)mm / sec
*oil tank capacity – 30 litres
*power – 4.0kw / Volt
*dimensions - 1700mm x 940mm x 2134mm x 1000kg
*freight crate dimensions - 1350mm x 980mm x 2260mm x 1030kg
Optinal Guards
*Front Swing Out Door Guards & Rear Guards Available - Please quote SKU - 27+0013
*Factory fitted guards only applies to pricing
