Heavy Duty Industrial 370mm x 260mm Semi Auto Hydraulic Vice

Quality Saw Made in Taiwan
SM-HBS370-SAM. Bandsaw Double Mitre. 370mm x 260mm RHS, 270mm Round Capacity, Hyd Vice Auto Return Blade Tension, Blade Guides, Integrated Stand, Quick Set Angle & Vice. 3ph - V

Description

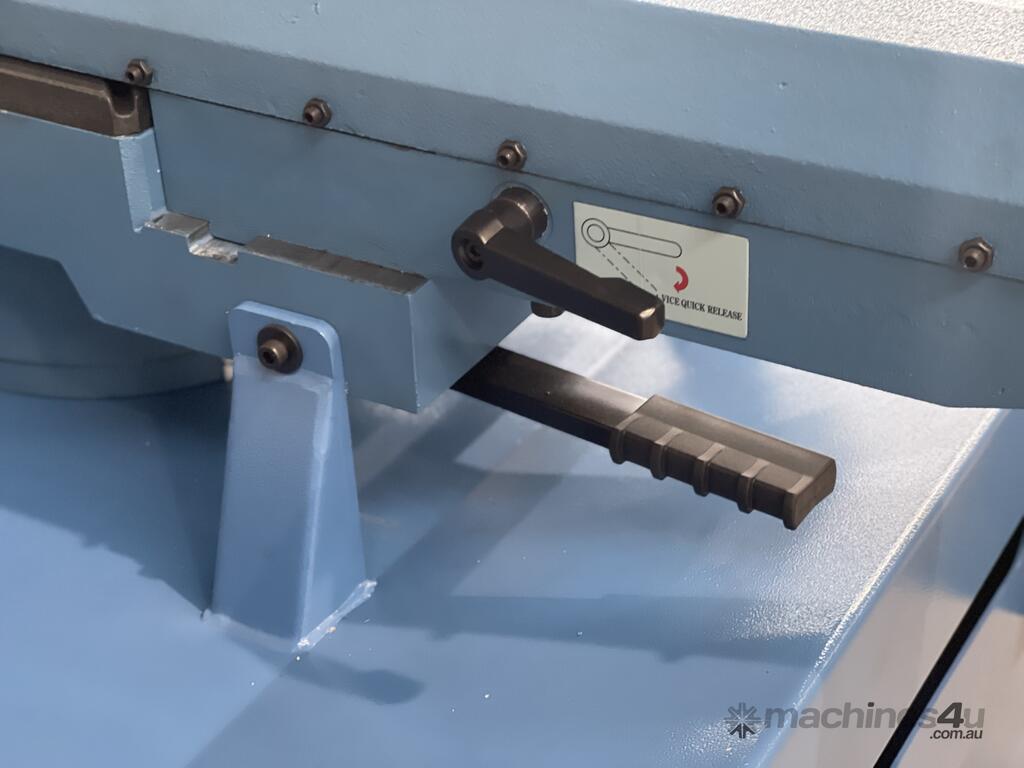

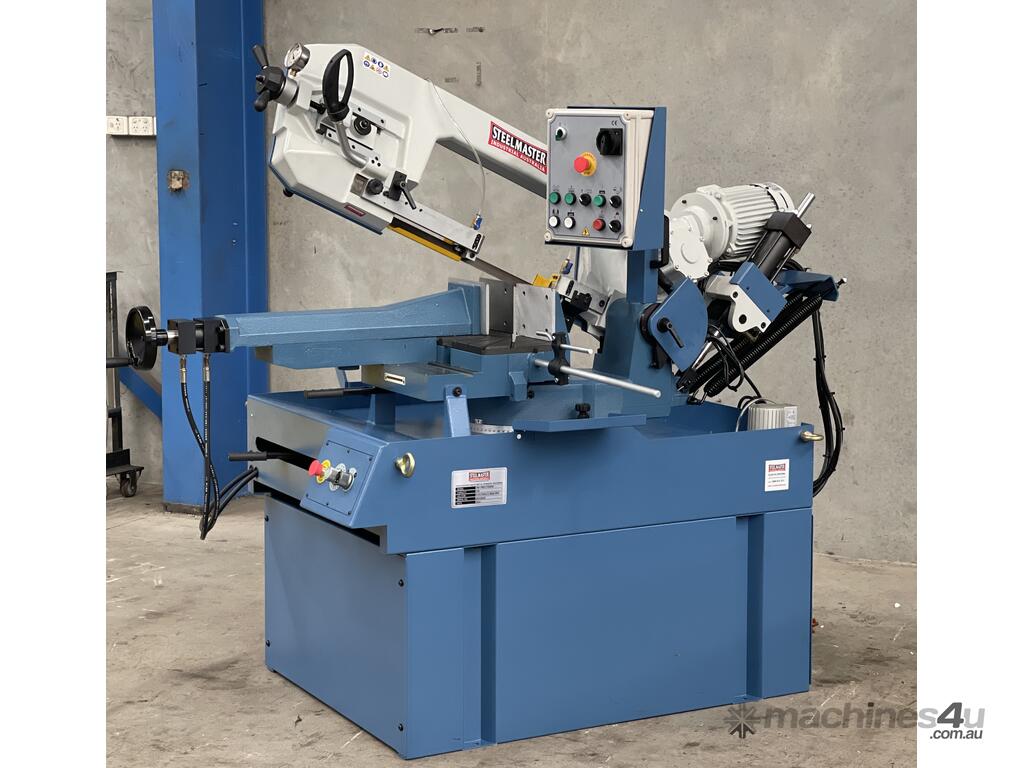

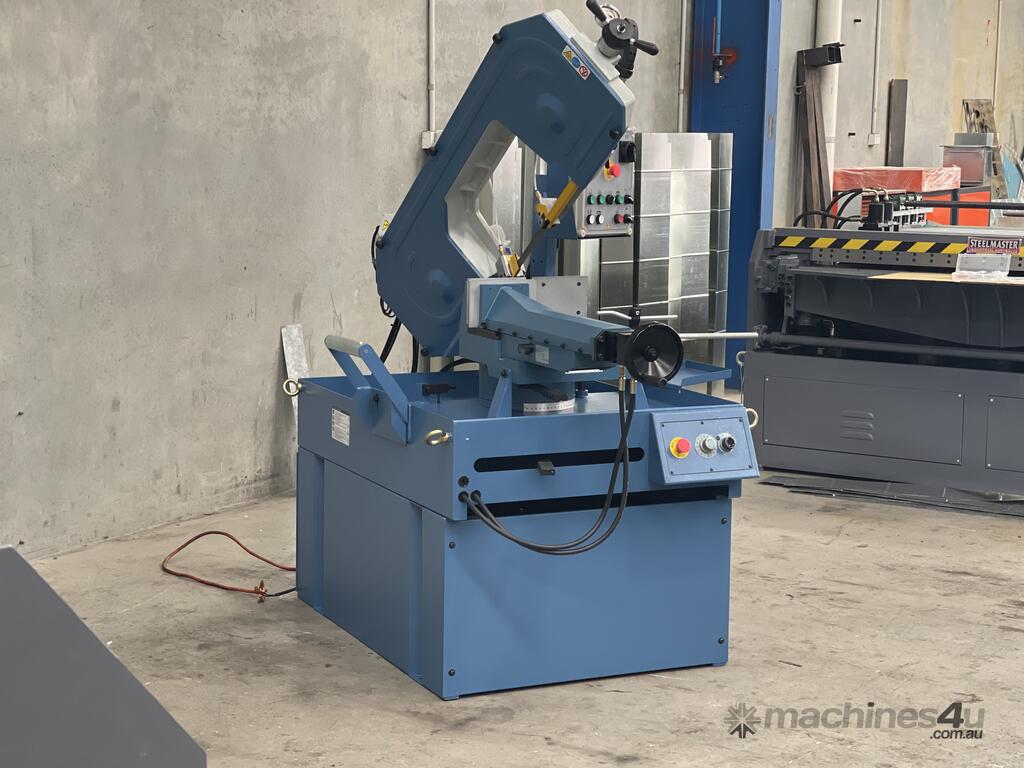

This variable speed heavy duty double miter saw is built for accuracy and production! Easy quick action angle set-ups between 0 and 60 degrees means no wasted time between cuts. Lever controlled blade guide locks allow adjustments right up to the work piece for optimum support and the blade guides have fully adjustable ball bearings, so you know you're going to get straight cuts. And when you're done, use the quick release lever and stock length stop to get on with the next cut. It's fast and simple to use! We have included other features including carbide blade guides, blade pressure gauge, hydraulic down feed, trigger switch operation, to set this aside from other base machines.

## AUTO BEAM RETURN & HYDRAULIC VICE- SAM ##

Features
?double miter cutting bandsaw with quick action angle positioning

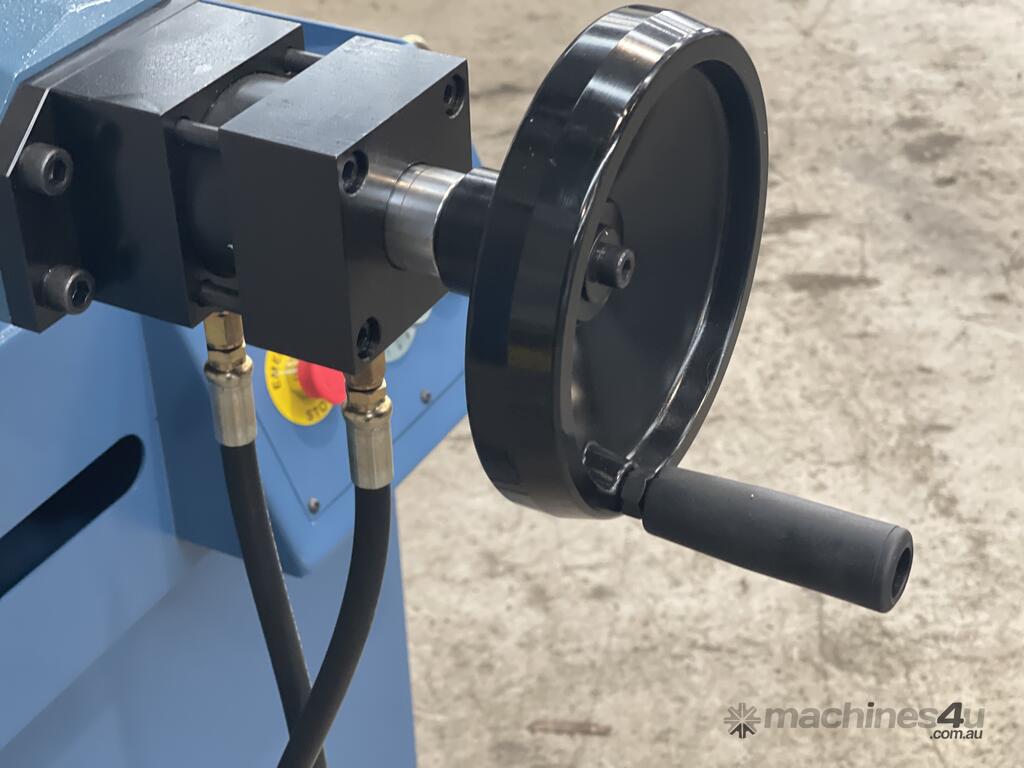

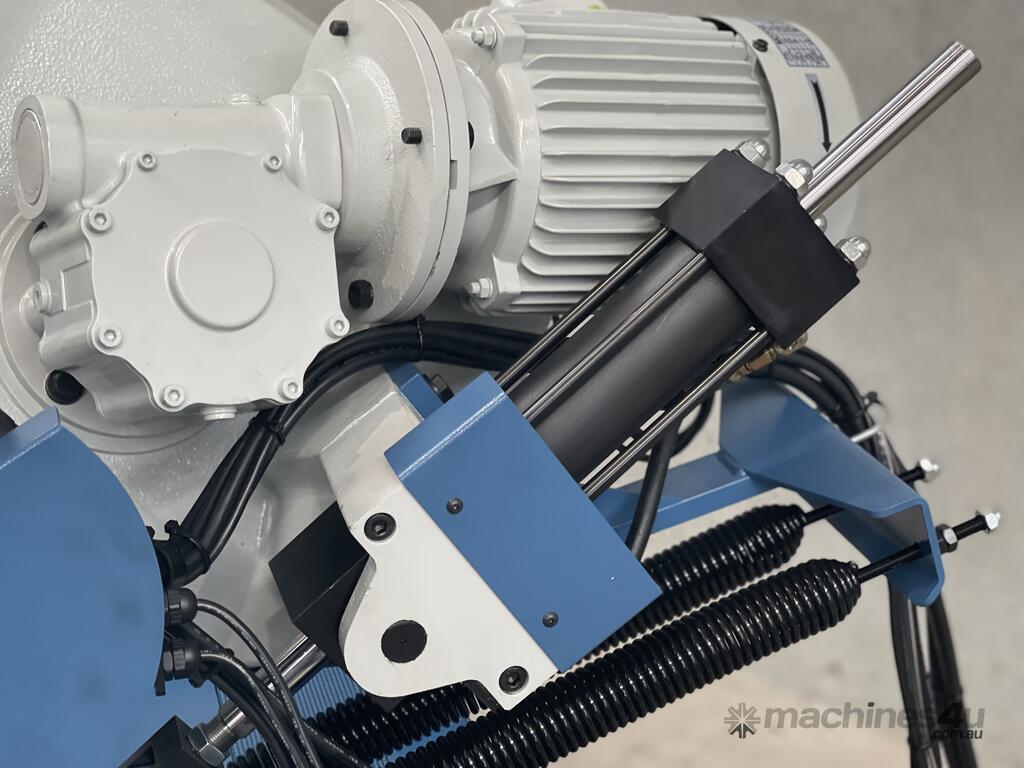

?hydraulic down feed system for automatic continuous lowering of the saw frame
?hardened, polished worm gear with bronze drive gear for longer service life
?variable blade speed operation to enable the cutting on a variety of materials
?machine stand with integrated cooling fitted as standard

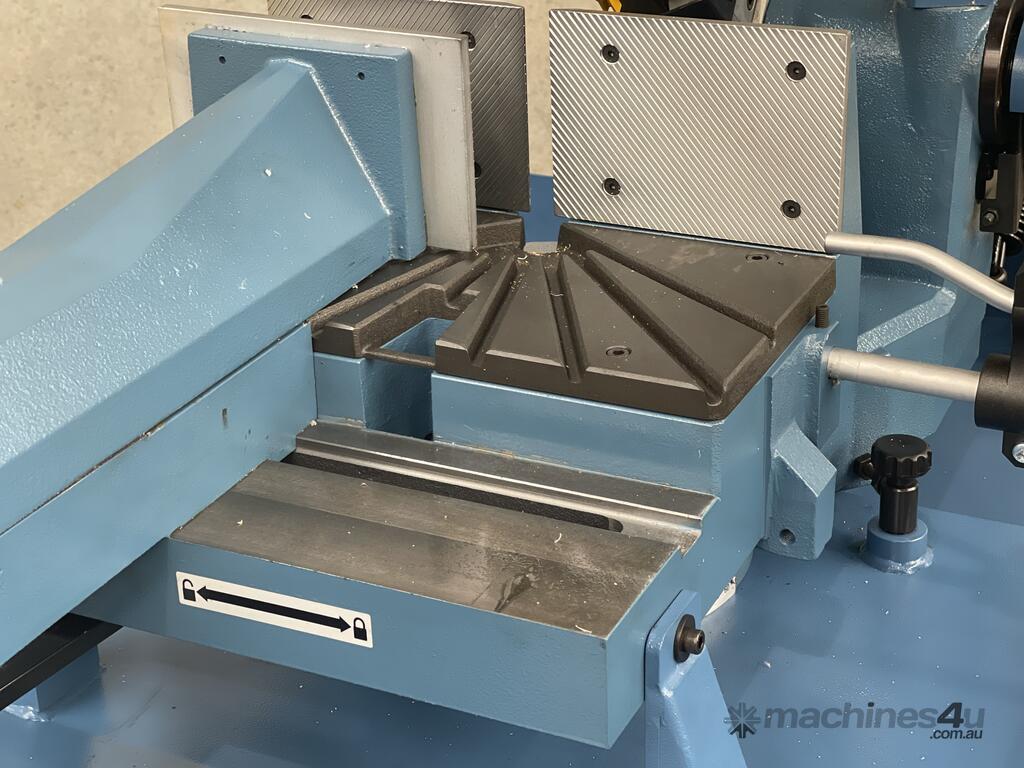

?quick action clamping vice
?powerful motor suitable for continuous operation
?saw arm miters up to 60° featuring space saving and convenient miter cutting
?vibration free, low noise operation ensures clean cut and high precision
?carbide blade guides

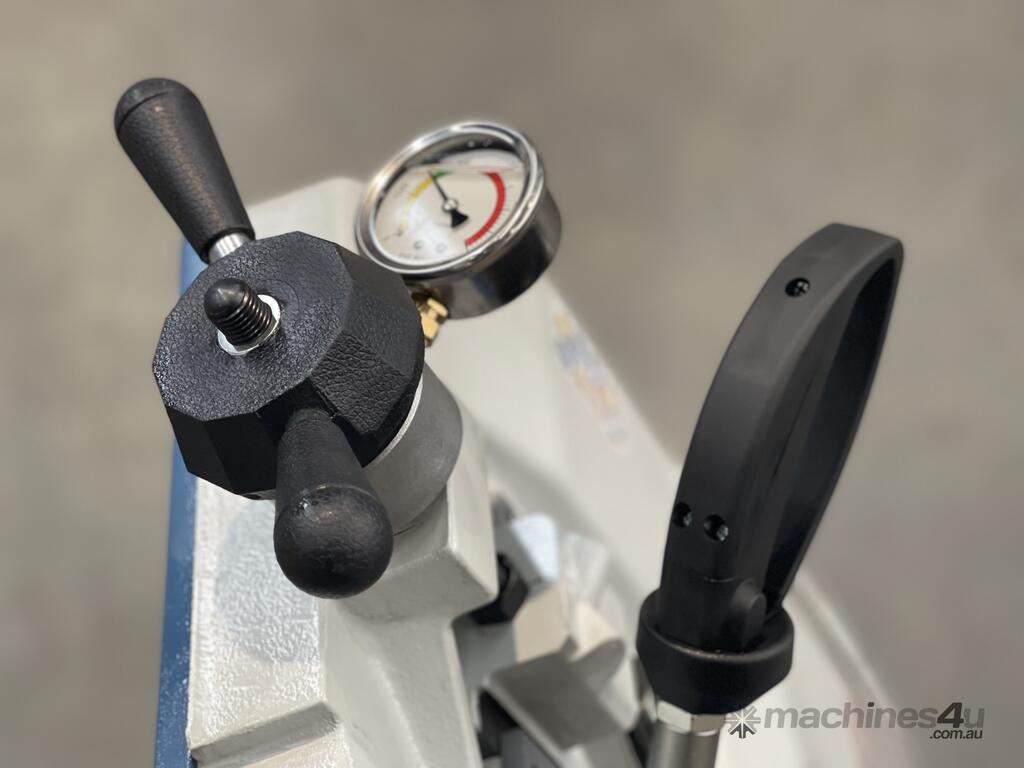

?blade tensioning gauge
?stand included
?CE compliant

Technical Data
?270mm round capacity
?370mm x 260mm rectangular capacity.
?miter cutting range - 0 ~ 60 degrees
?blade speed: 35 ~ 72m/min
?blade size: 2925mm x 27mm x 0.9mm
?dimensions: 1930mm x 970mm x 1650mm
?crate size: 1750mm x 1000mm x 1300mm x 500kg
?weight: 495Kg
