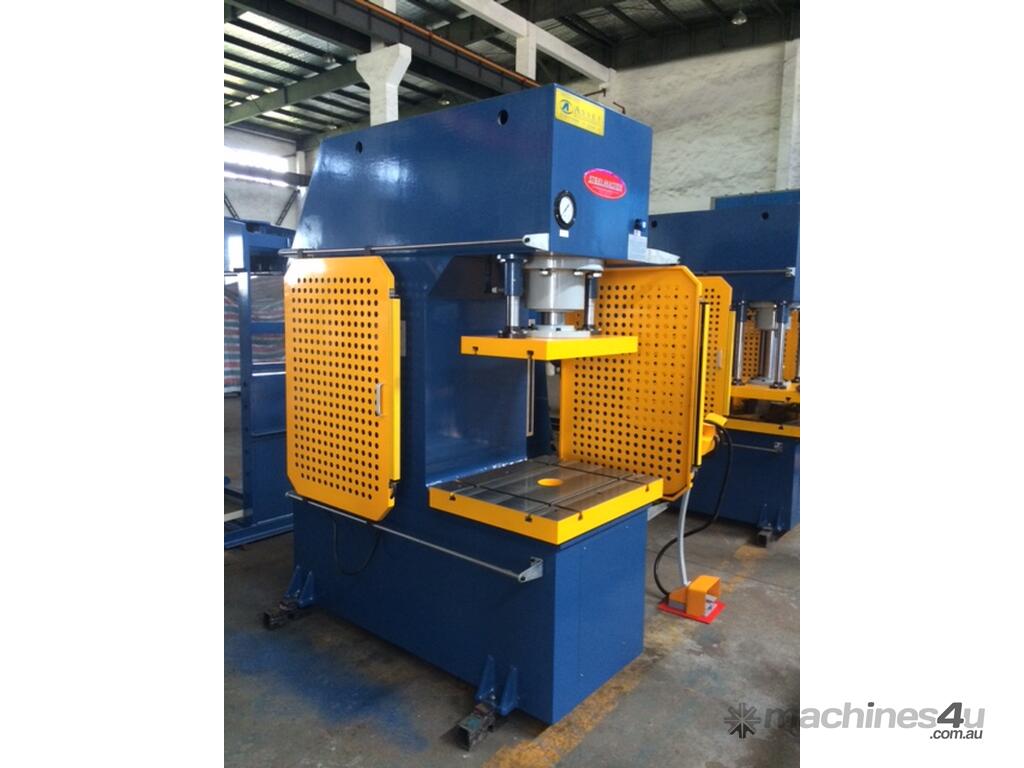

SM-CDY100 Open Front Hydraulic Press. 100Ton Capacity Heavy Duty Industrial Type, Single Cylinder, Twin Guided, 350mm Ram Stroke, 780mm x 640mm Tee Slotted Table 3 Speed Operation. V
Other Models From 80Ton ~ 300Ton Available
Description
Our NEW Steelmaster Industrial Open Front Presses offer Solutions for Pressing, Bending, Punching & Moulding.

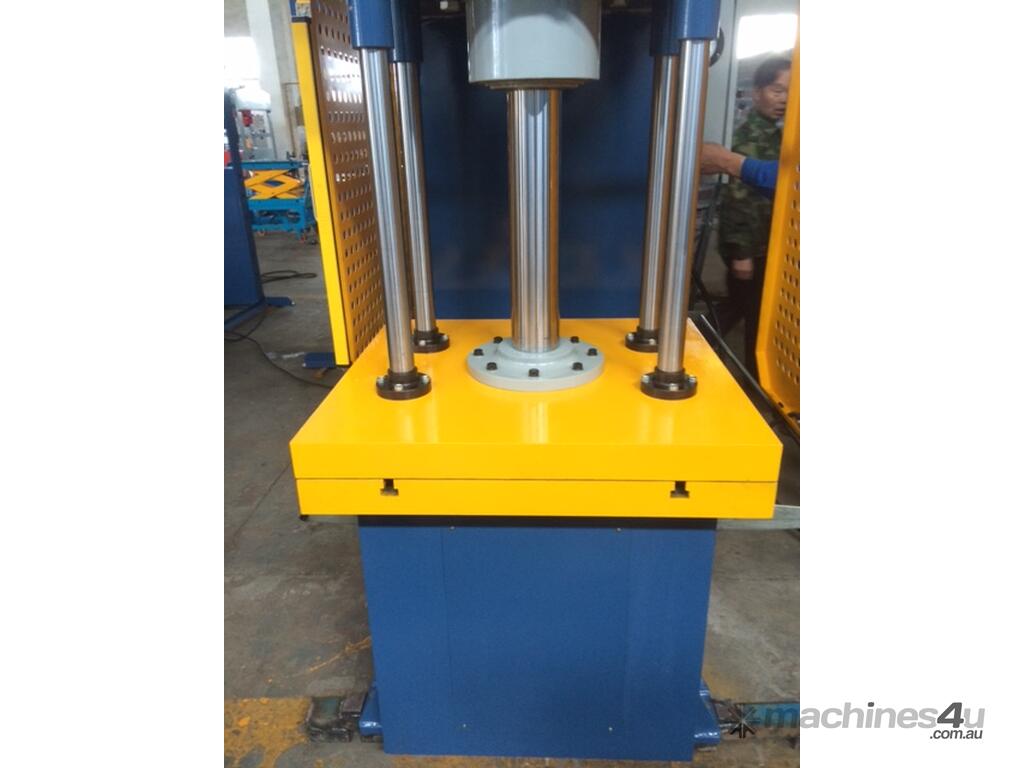

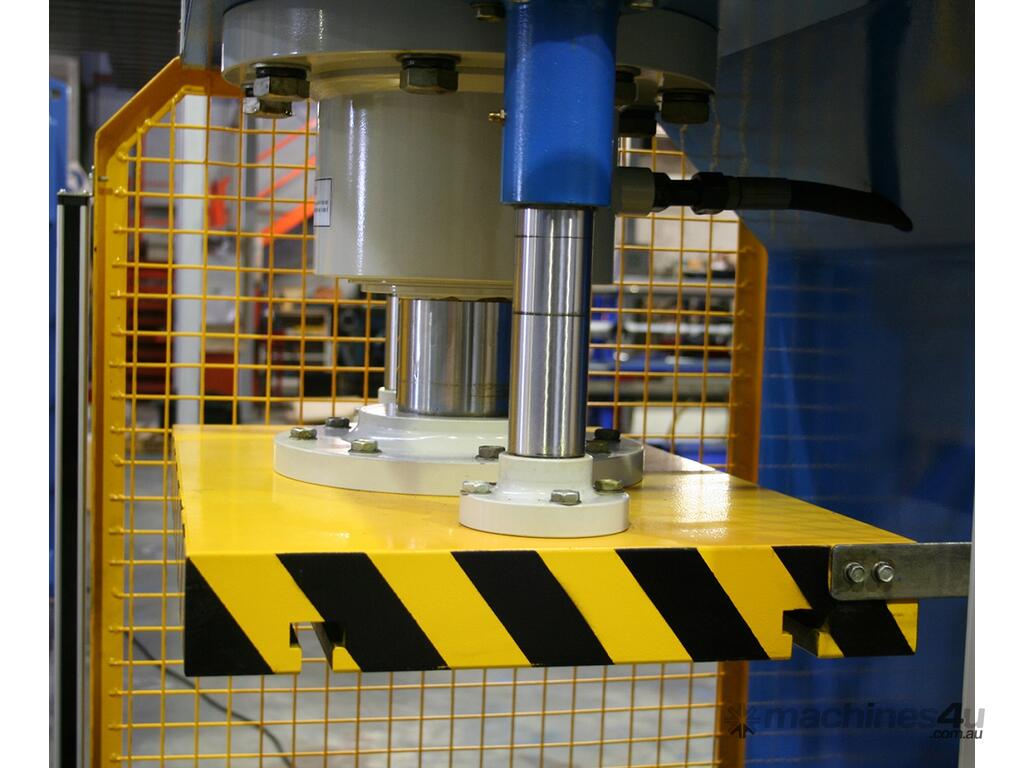

A Powerful Hydraulic Cylinder & Two Side Guides Ensure Precise & Uniform Feed of the Ram During Pressing Applications.

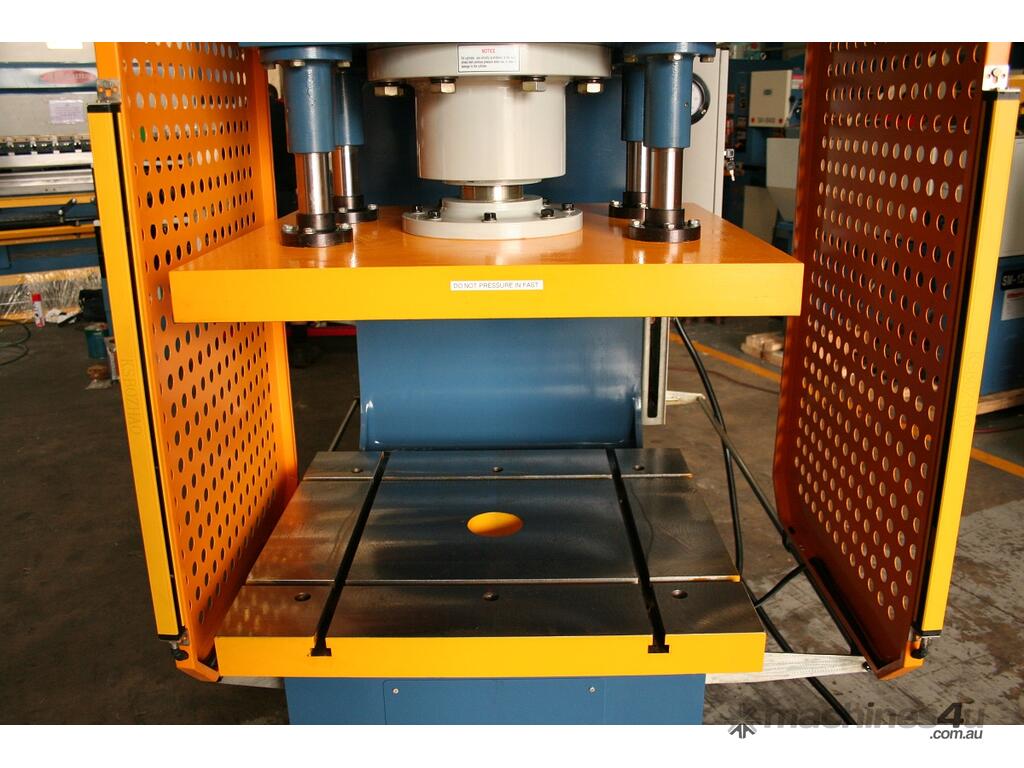

Top Ram Plate, Along with Large Fixed Bottom Worktable with T-Slots for tool Clamping.

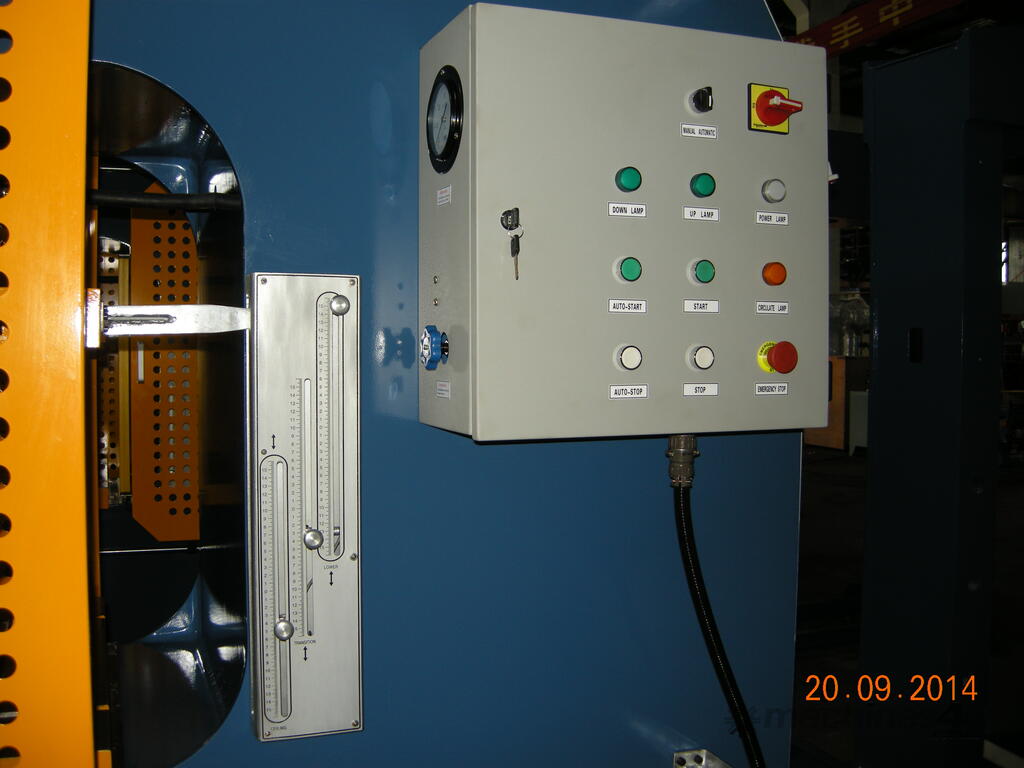

Fitted With Adjustable Limit Switches For Top and Bottom Settings.
Features
- 80 ~ 200 ton force models available
- strong hydraulic cylinder ensures uniform and precise pressing during operation
- ideal for pressing, bending, punching & moulding
- fixed T-Slotted bottom bed for tool and job clamping
- three speed operation, rapid & working speed & retract.
- extremely torsion proof steel welded frame

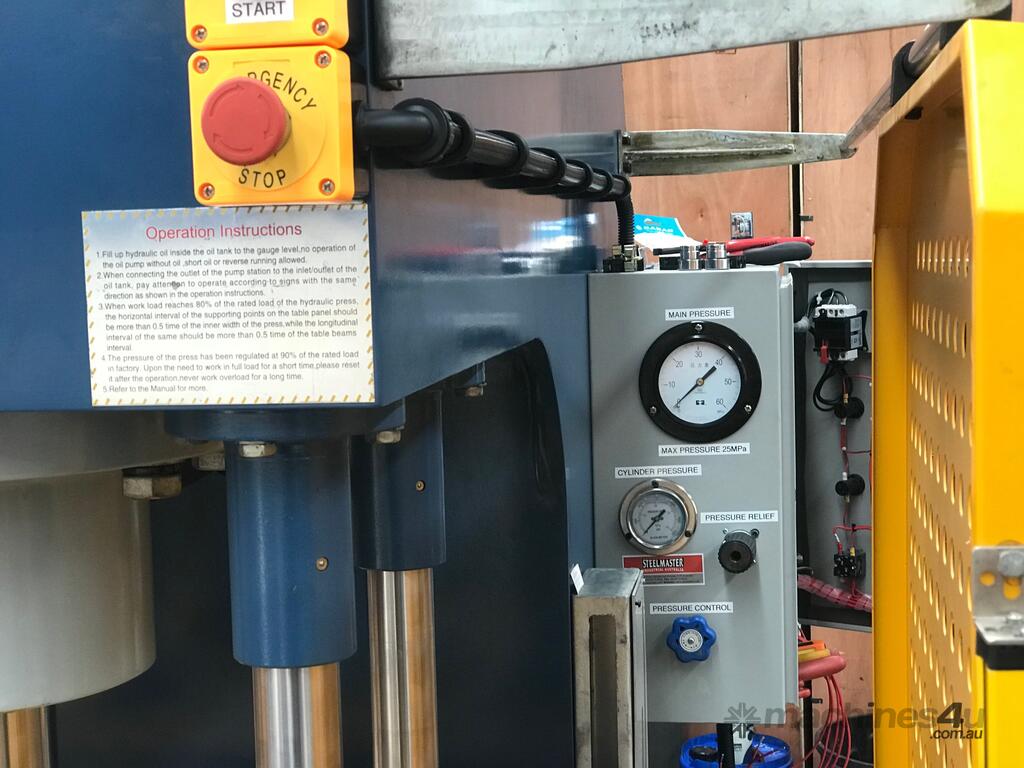

- hydraulic pressure gauge fitted

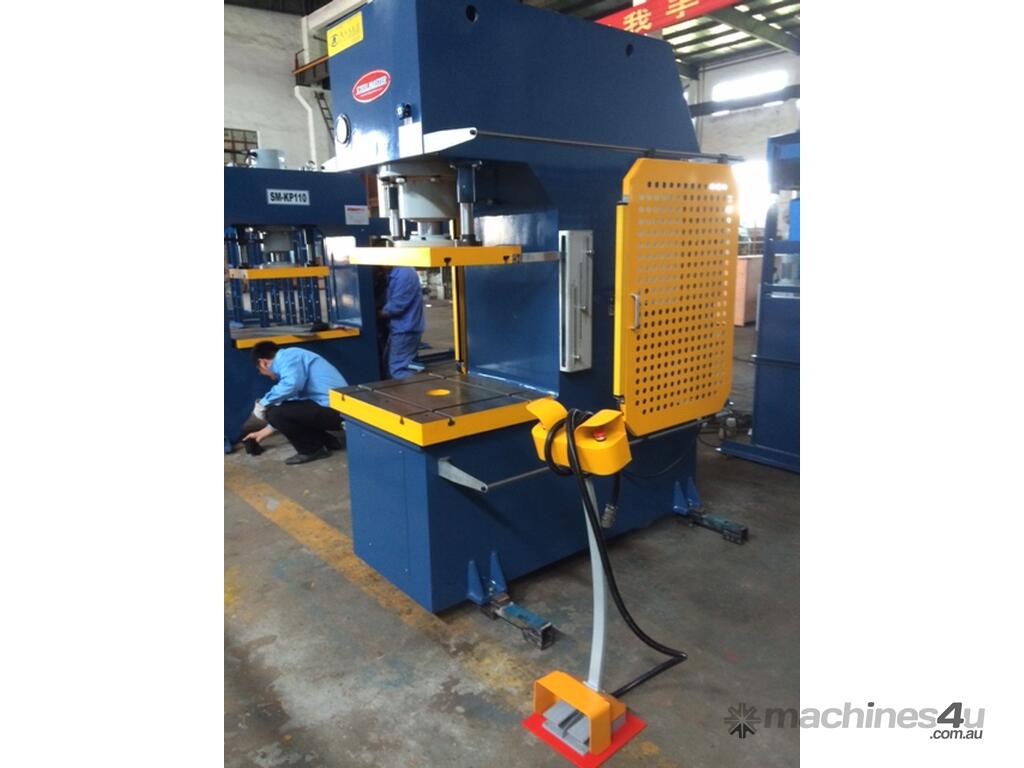

- foot pedal operation option.

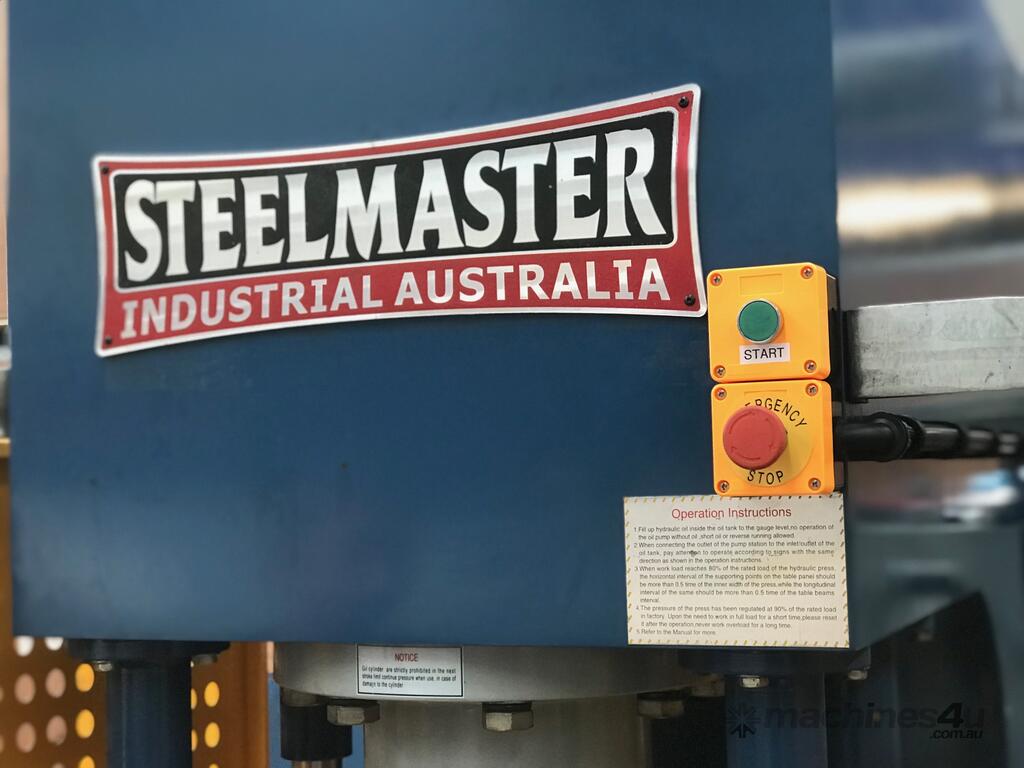

- CE standard and safety E stops and standard.
Technical Snapshot
- capacity – 100Ton
- table dimensions – 780mm x 640mm

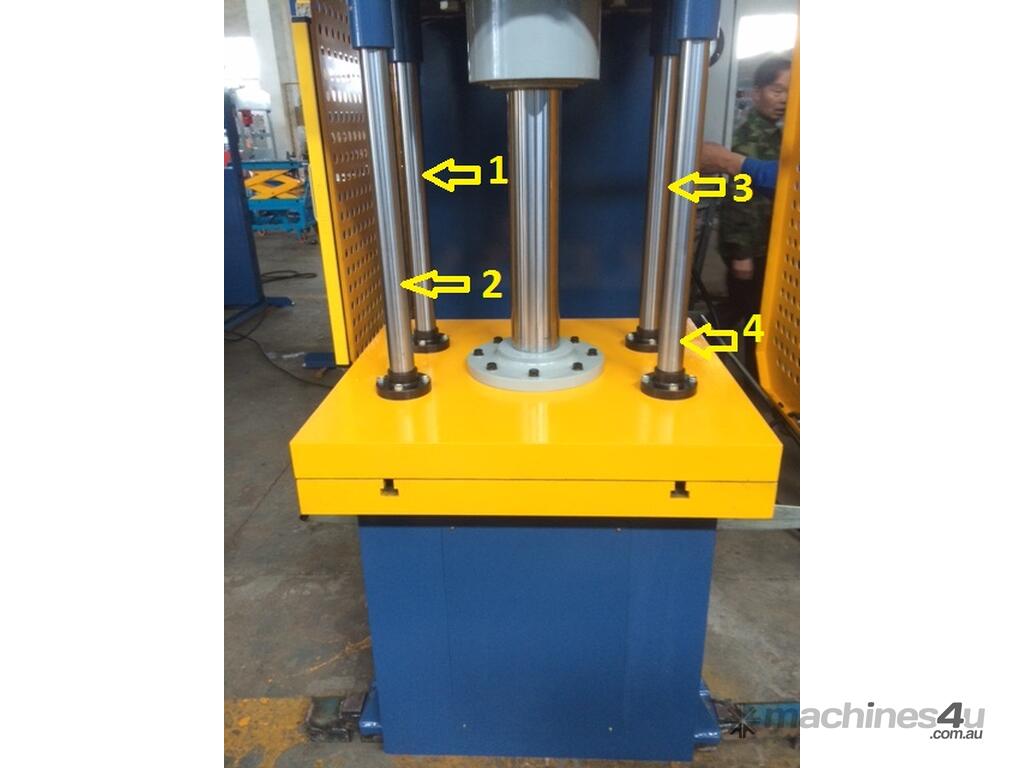

- guide positioning pillars - 4
- throat depth - 400
- stroke length - 350mm
- open height - 586mm
- table height - 780mm
- speed- approach, pressing, return – 19 / 5 / 24mm/sec
- power – 5.5kw / Volt
- dimensions - 1785mm x 1000mm x 2252mm x 3800kg
Options

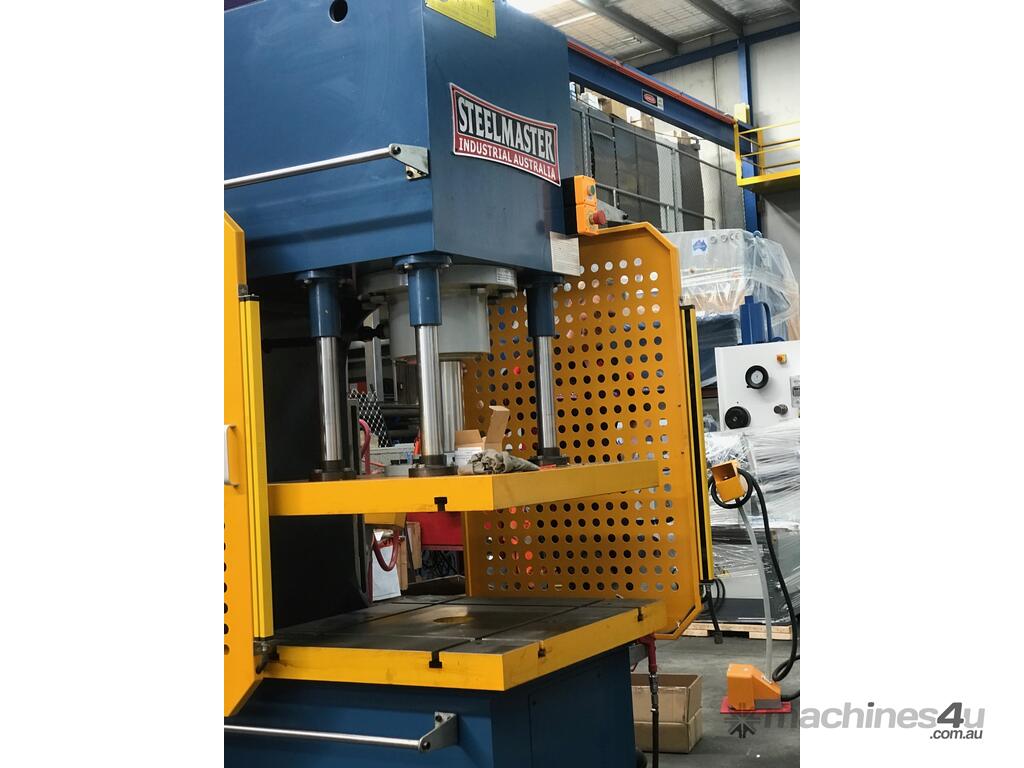

- We also offer OH&S Front Safety Laser Guards as Pictured To Ensure Safe WorkplacePlease Quote Product Code: 27+0006
