Heavy Duty Oil Country Lathe with 260mm Bore

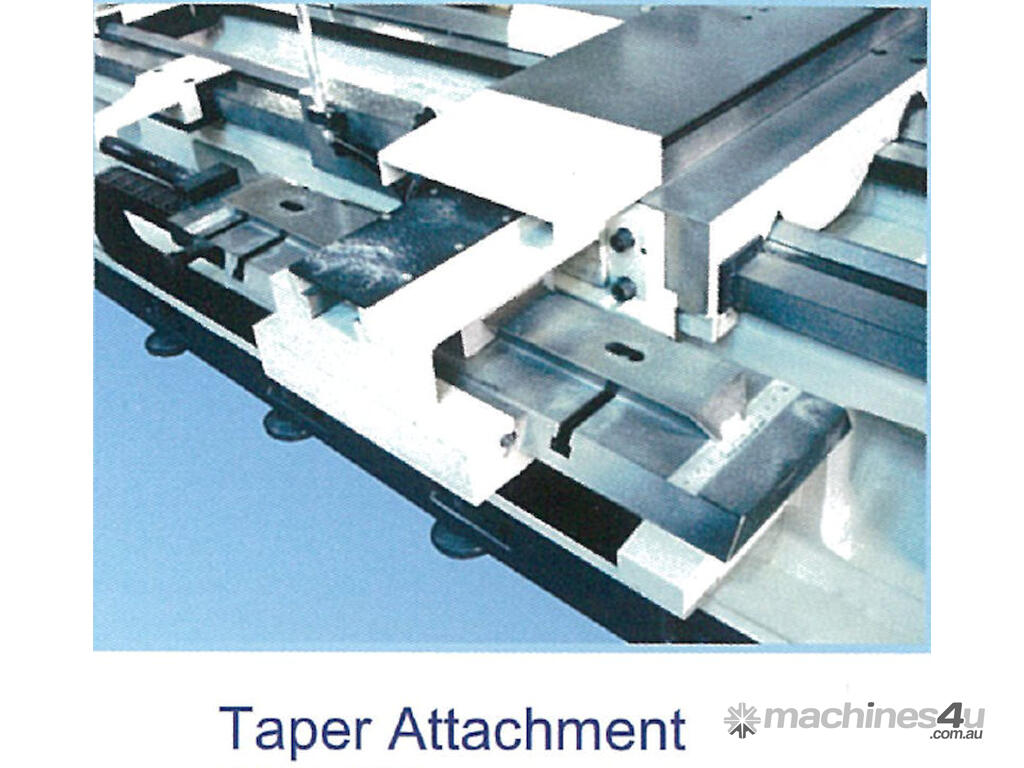

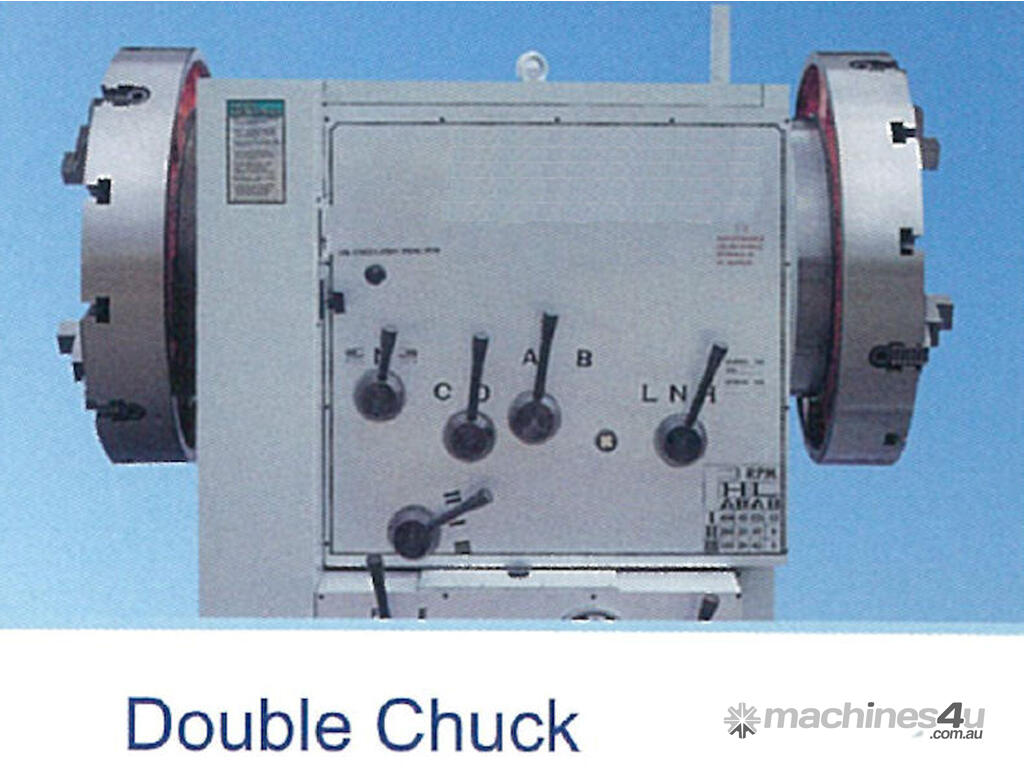

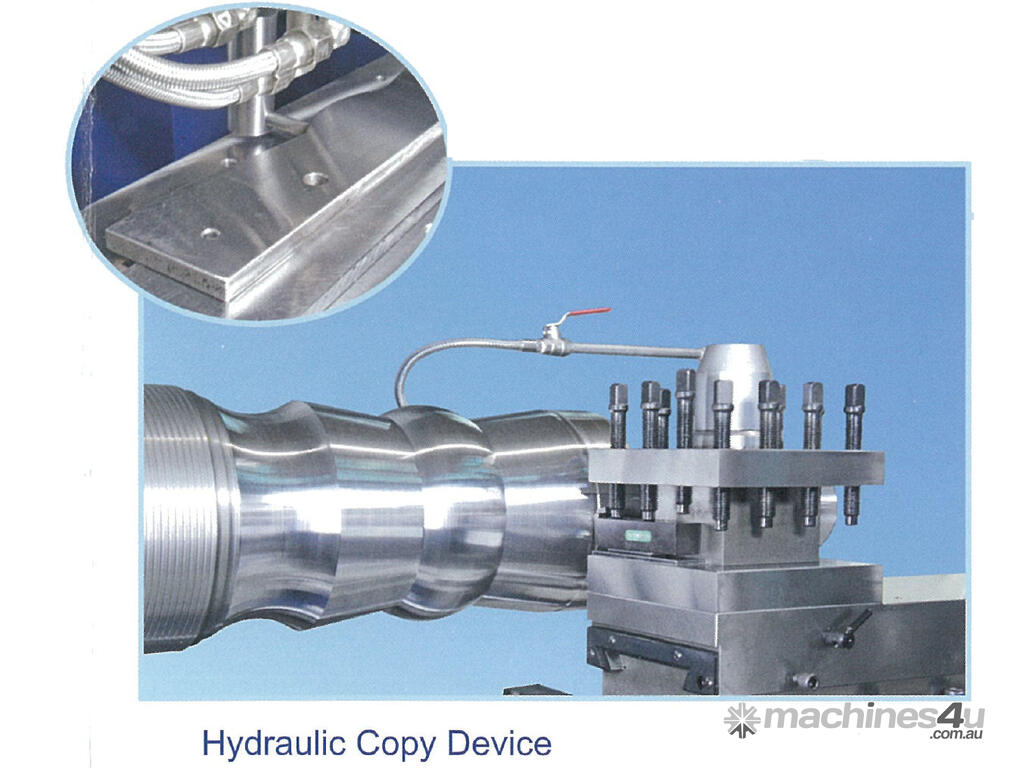

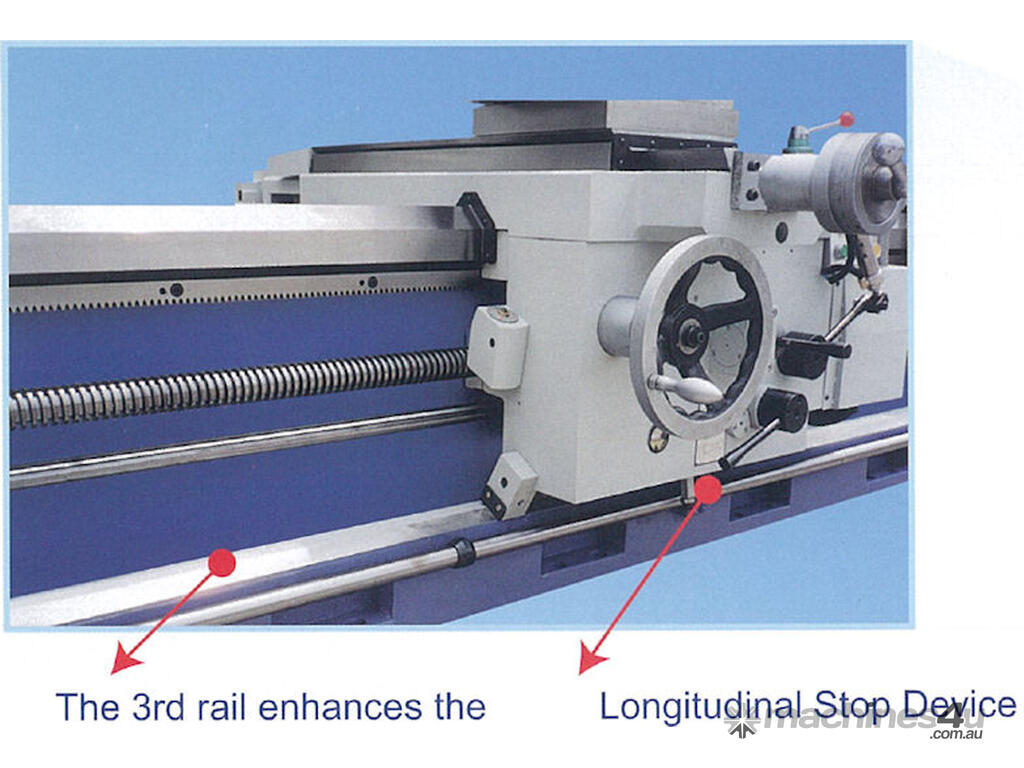

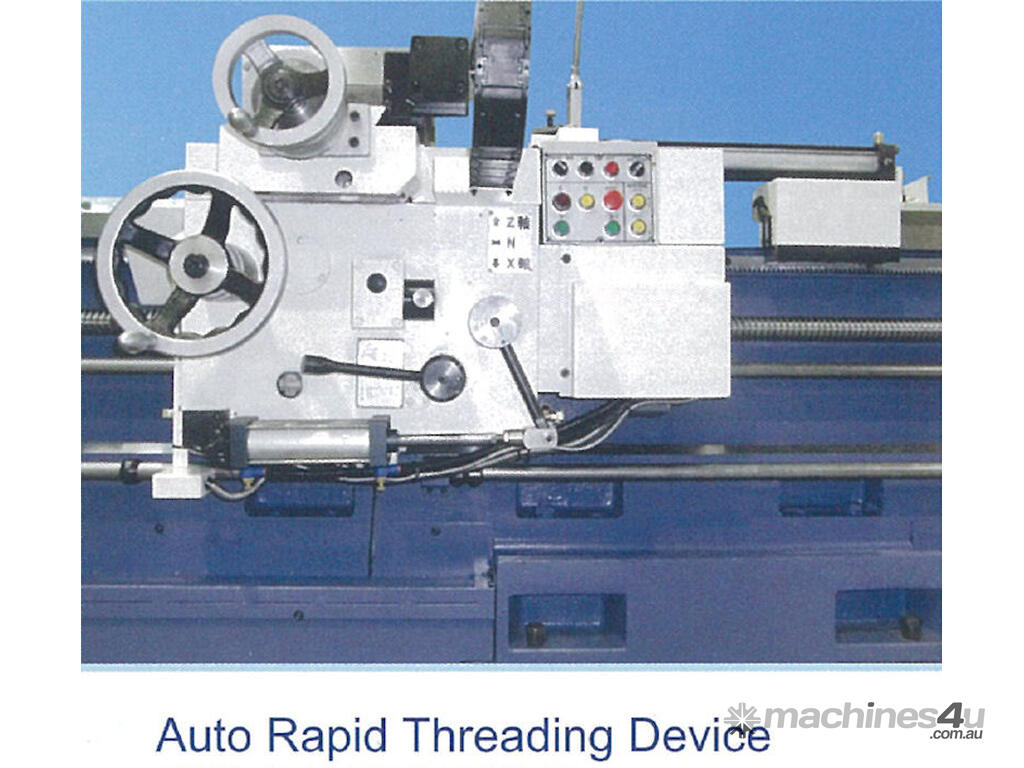

Price includes: 2 x 4 jaw chucks, auto rapid threading device, hydraulic copy attachment (or taper turning attachment), additional (3rd) front guide way for the ultimate rigidity, and 2 axes digital readout!

Heavy Duty Oil Country Lathe with Ø260mm Big Spindle Bore x 3000mm Between Centres, high quality lathes made in Taiwan.

Designed to provide the best available performance, offering high cutting power and versatility for use in a wide range of industries including mining industry, power industry, oil industry, paper plants, and shipyards.

Bed Width (mm): 560 mm
Swing Over Bed (mm): 1,060 mm
Swing Over Carriage (mm): 750 mm
Distance Between Centres (mm): 3000 mm
Spindle Bore (mm): 260 mm
Spindle Nose: A2-15
Spindle Speed (RPM): 400 rpm
Spindle Motor (HP): 30
Machine Weight (Kg): approx 10,000 kg
Option variable speed spindle and spindle bores available from Ø156mm up to Ø535mm
