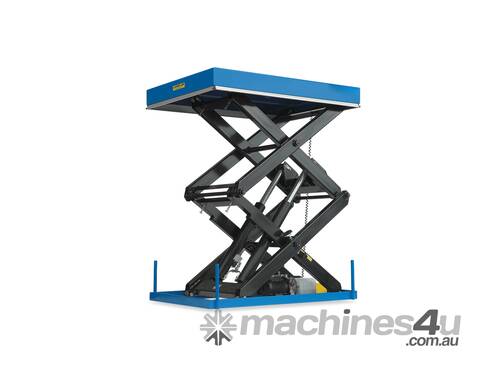

High Lift Scissor Lift Table

The Logistec High Scissor Lift Tables are designed to assist with issues faced by multi-level warehouses. These high-quality scissor lift tables are driven by an electric motor mounted under the table, which is controlled by a pendant hand controller on a curly cable. The table utilizes a safety bar around the perimeter to sense any foreign objects in which case it will stop the movement instantly. These tables are normally operated from the factory floor but can be installed in a pit (require eye bolt lifting lugs). There are a range of standard models with varying capacities, lifting heights, table sizes etc. but they can be fully customised to user specifications.

Product Features
-Inbuilt compact hydraulic power unit. The unit is IP65 with the motor IP55
-Cylinders fitted with a hose burst valve
-Box beam scissor arms give superior lateral stability
-Aluminum safety trip bar minimizes risk of injury
-Upper travel limit switch with easy adjustment of stroke
-Safety props for service and maintenance work
-Electric components with protection class IP55
-24V control voltage unit with 4m cable
-Constant pressure push button controls

Product Code: 1941127
Product Name: High Lift Scissor Lift Table
Capacity (kg): 1000
Max Platform Height (mm): 2050
Min Platform Height (mm): 450
Motor (kW): 3 Phase
Platform Size (mm): 1350 x 1200
