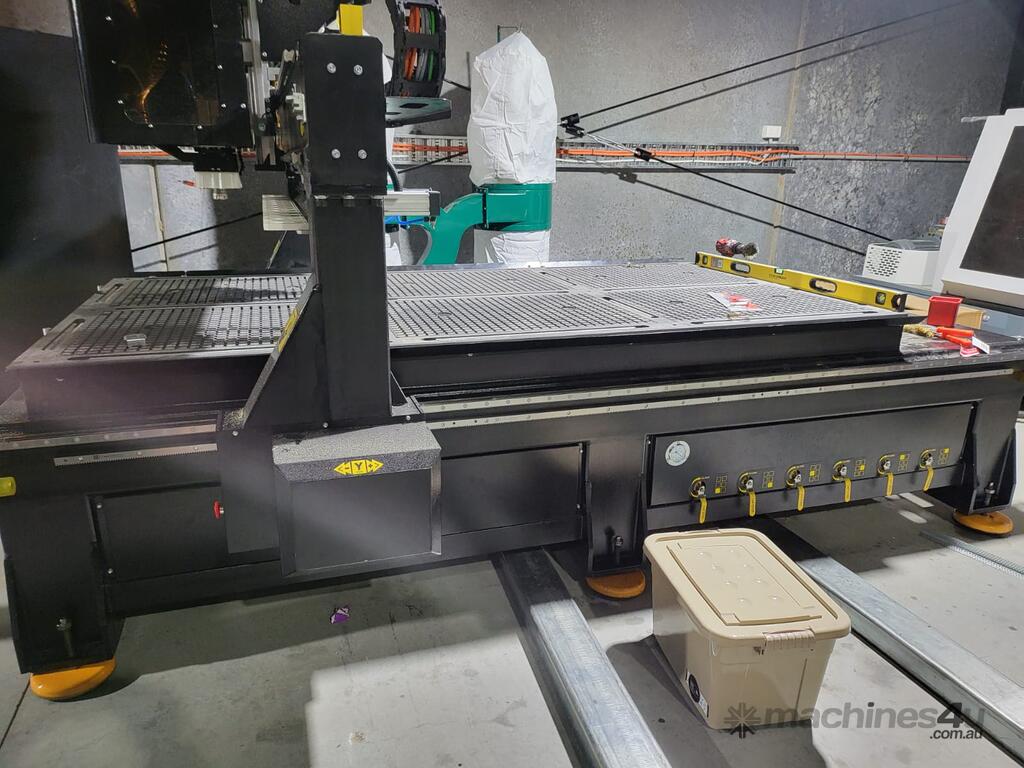

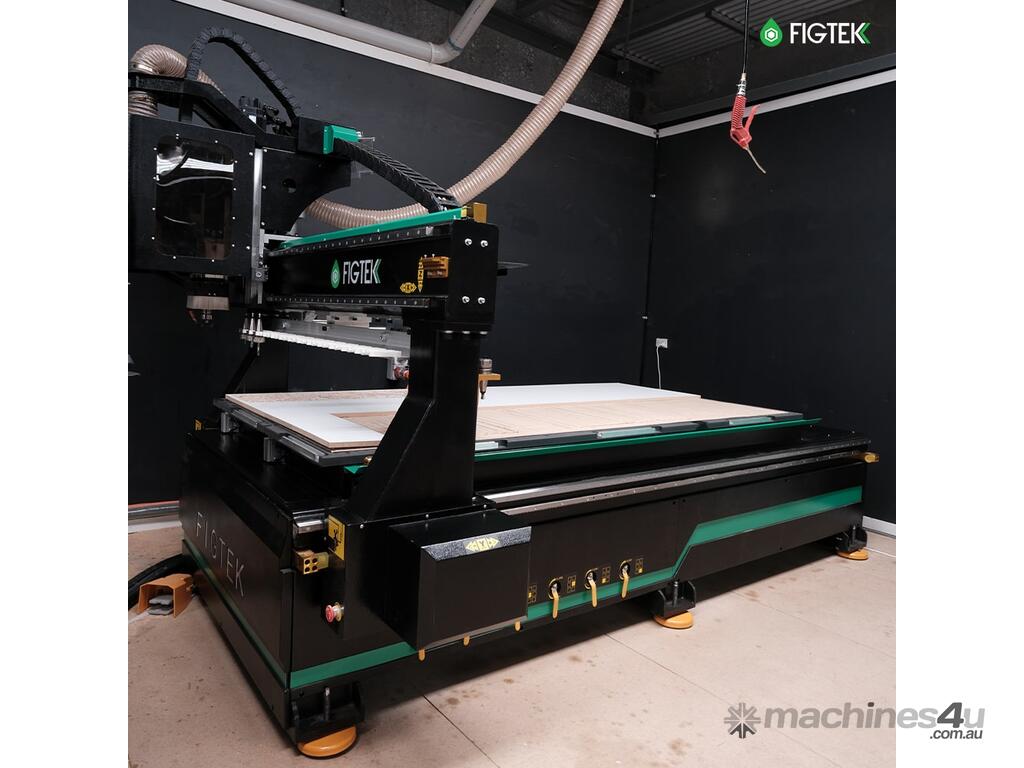

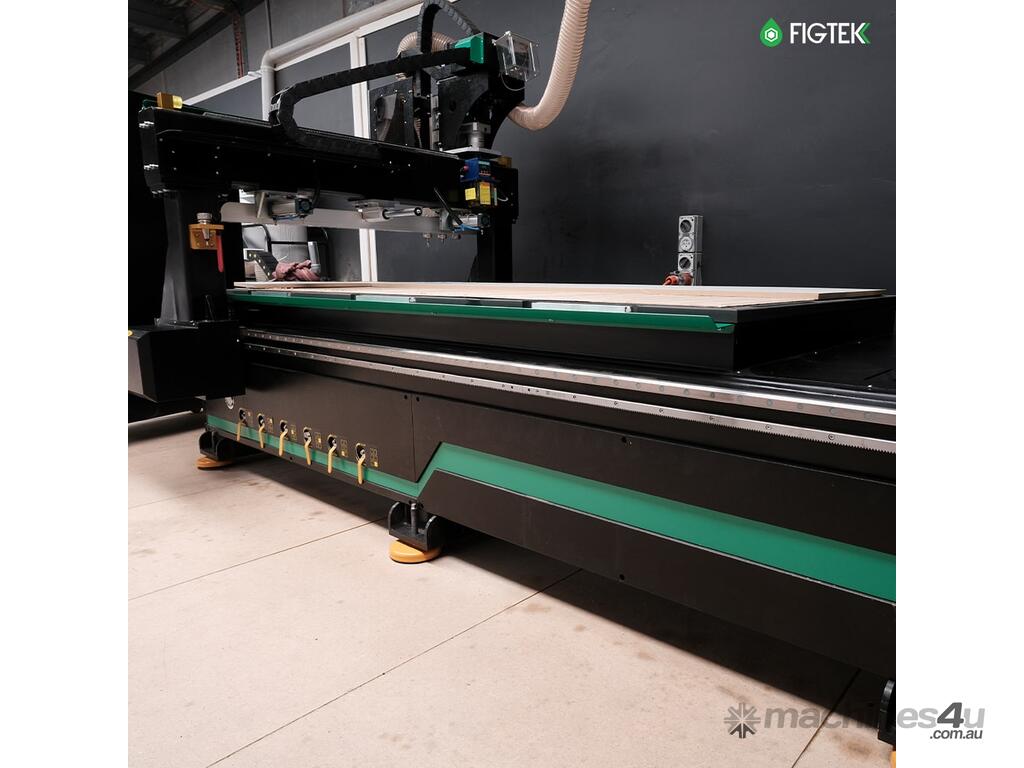

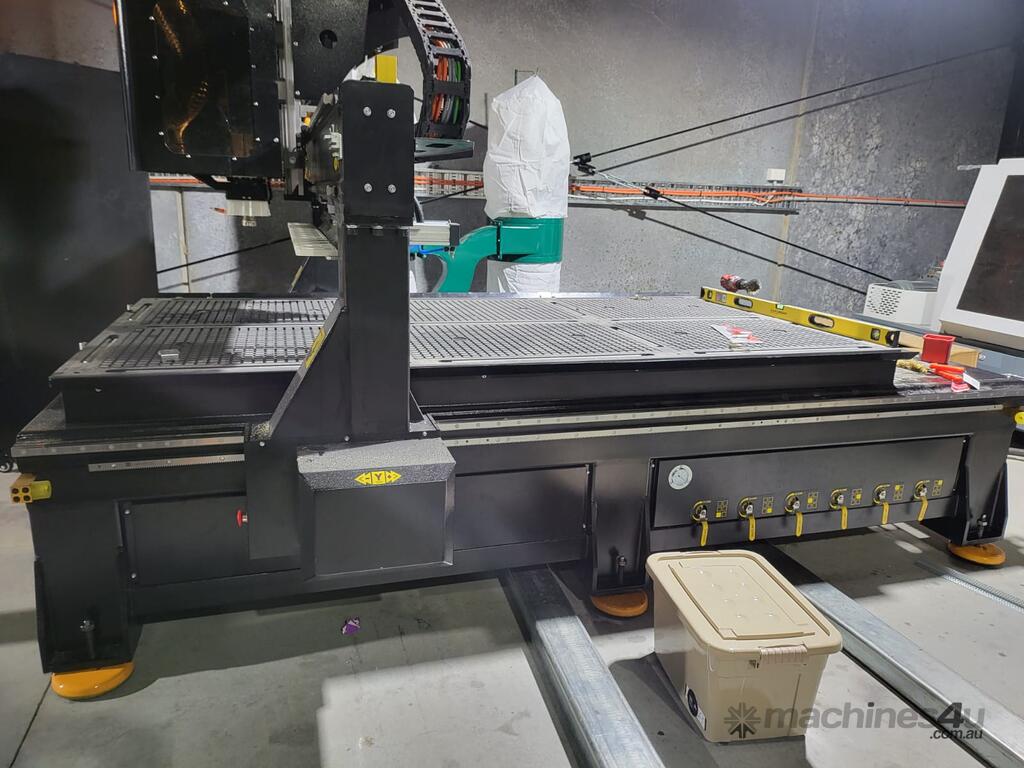

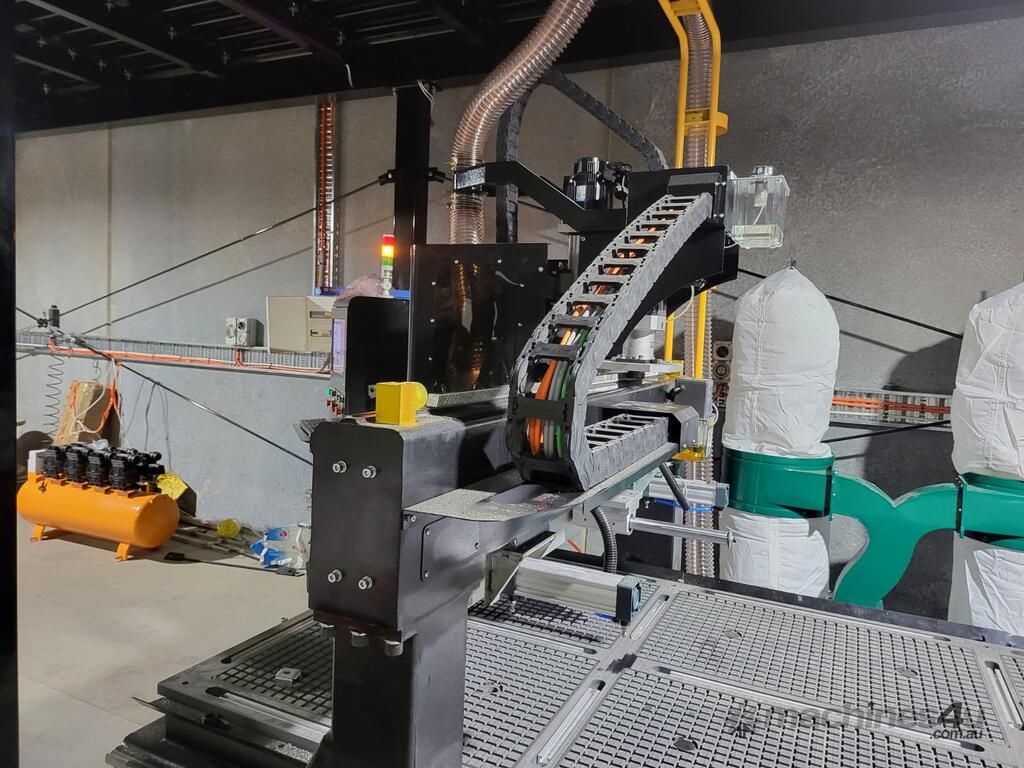

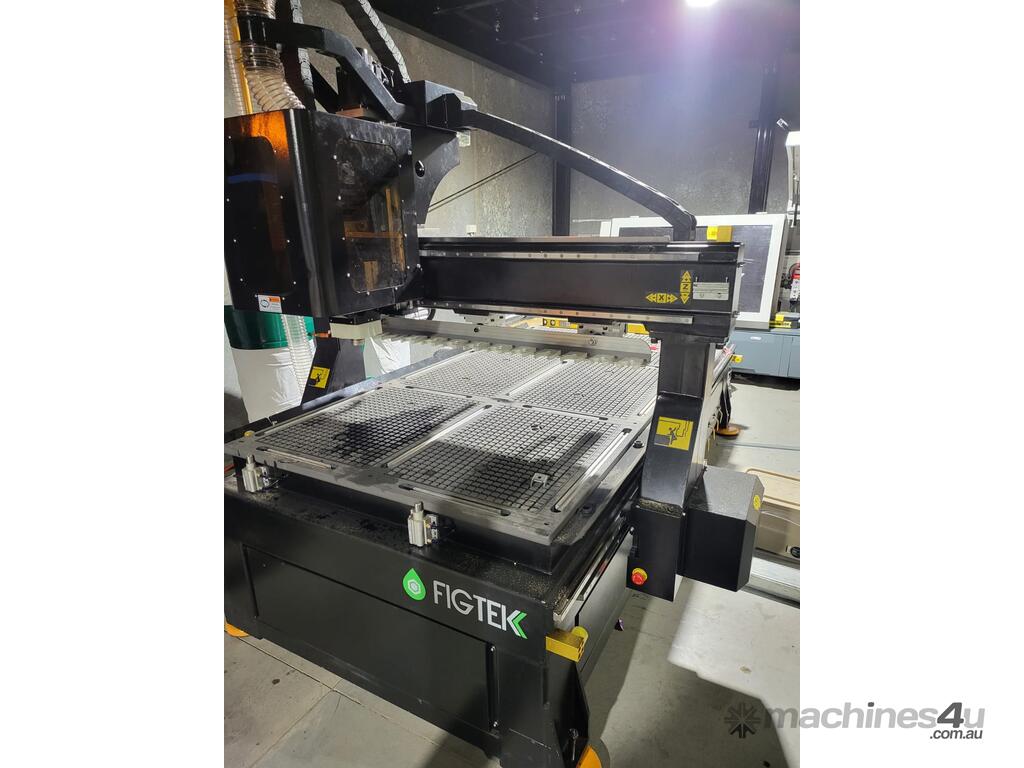

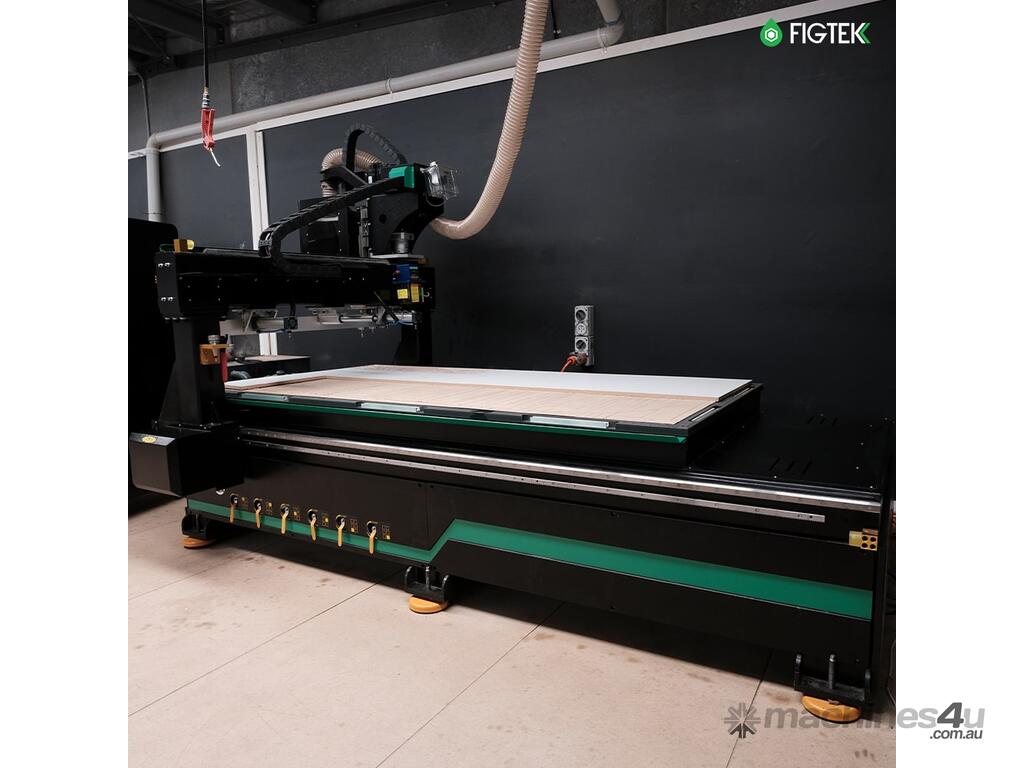

High Precision LNC 1530 ATC Router

Machine Specifications:

Working Area: 1500 x 3000 x 300mm
Acceptable Material Thickness: 150mm

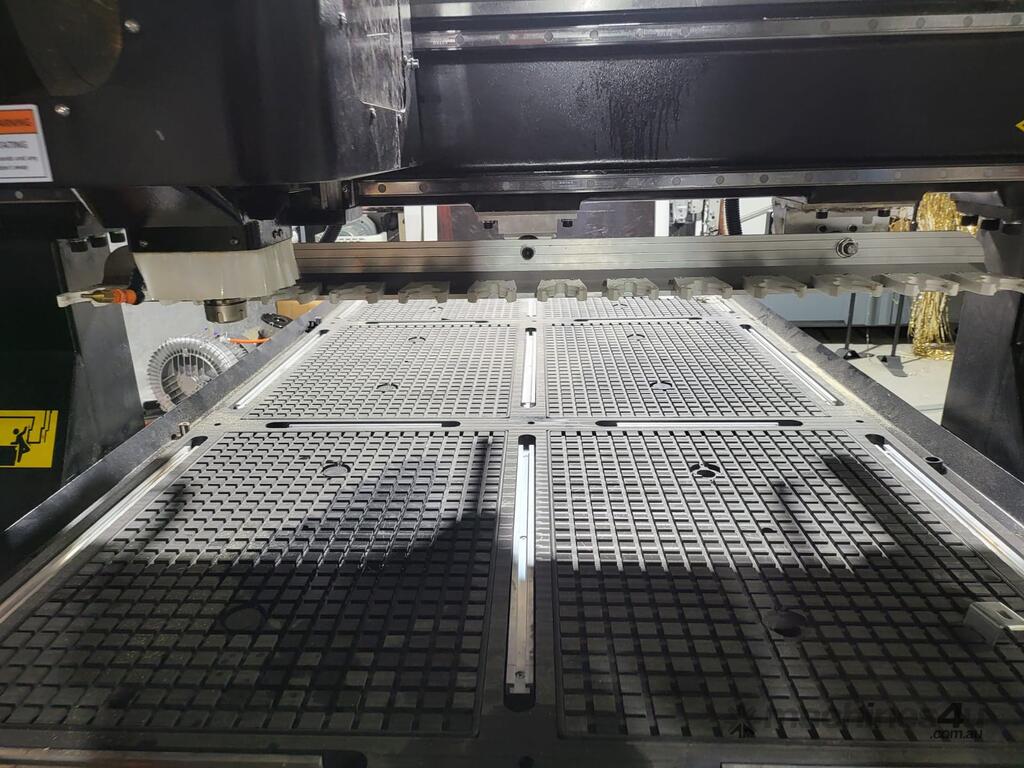

Working Table: Vacuum Table
Vacuum Pump: 7.5 KW Water Vacuum Pump
Processing Resolution: ±0.1mm
Re-positioning resolution: ±0.02mm
Spindle Motor: 7 Spindle motor 9 kW Air Cooled Spindle

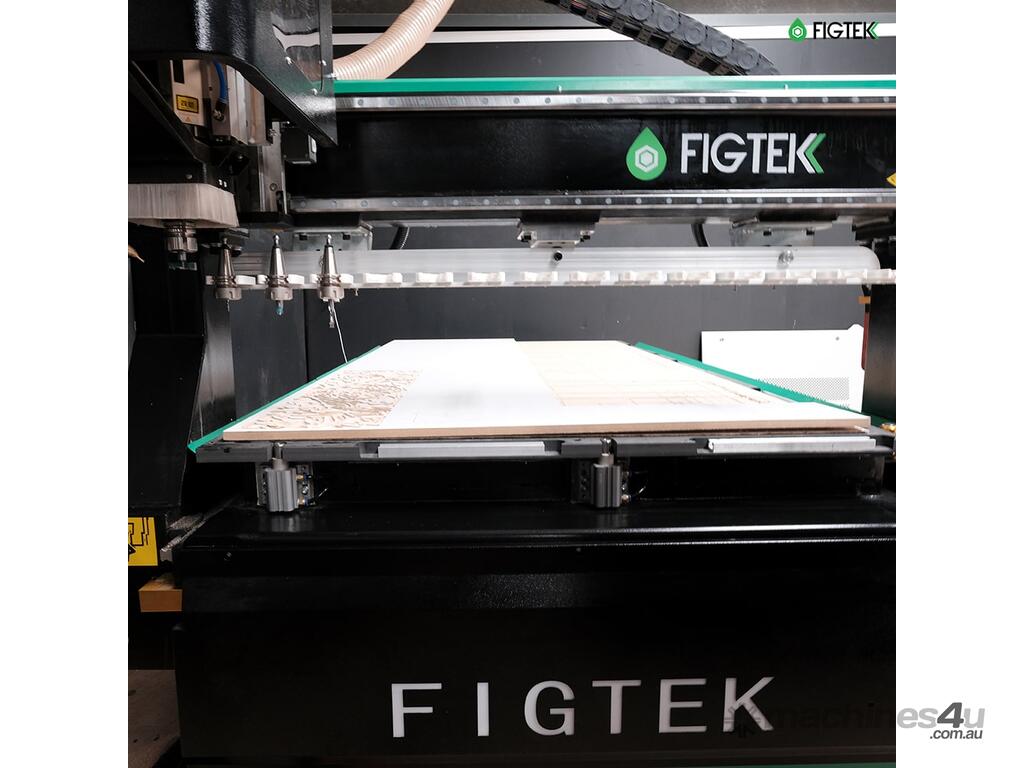

Tool Changer: Duel-process Pneumatic Tool Changer
Spindle Rotating Speed: 24000rpm
Transmitting System: X\Y axis Rack and Opinion Square guide; Z axis ball screw Square guide
Driving Motor: 11 Driving motor X/Y/Z 1.5KW Yaskawa Servo Motor & Driver
Inverter: Fuling 11KW

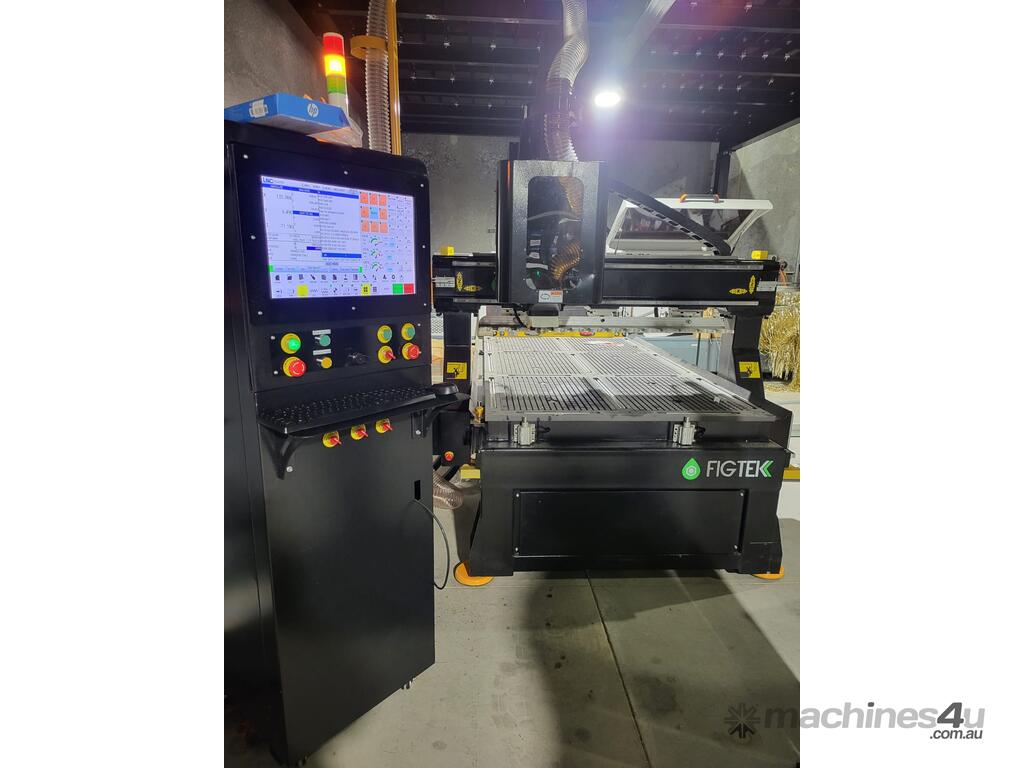

Control System: LNC-MW2200
Processing Speed: ?20000mm/min
Tool Holder: 12Pieces
Voltage: 3 Phase 415V, 50HZ

Key Features:

Solid integrally cast lathe bed ensures stability.
3-axes transmission with imported ball screws for smooth movement.
High-definition subdivision driver for fast speed and accuracy.
High-power spindle, brushless, air-cooled for long-time mass processing.
Optimized mechanical and electrical design minimizes breakdowns.
Humanized design for easy disassembly and transportation.

Applications:

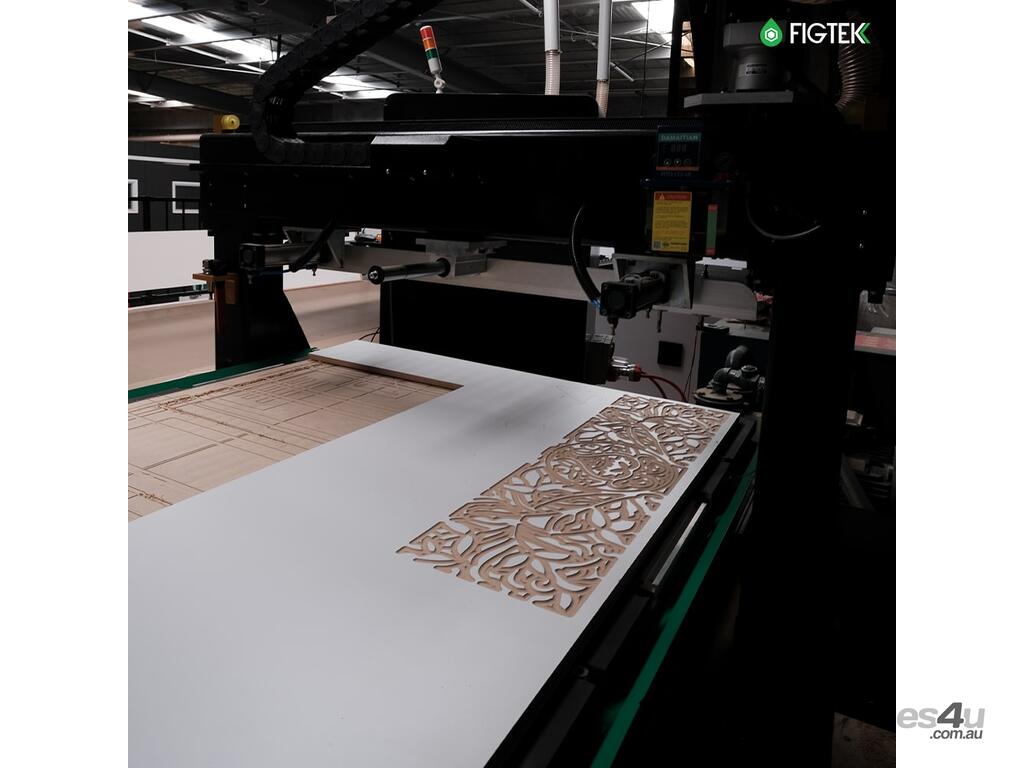

Ideal for single lines, milling, 3D cutting, and engraving.
Suitable for furniture processing, woodworking, decoration, wood art, home decor, and door manufacturing.

Benefits:

Tool changer enables switching between tools without human intervention.
Enhanced accuracy and efficiency.
Reduced labor costs and production downtime.
Increased tool storage capacity and machine versatility.
Improved safety for personnel and equipment.
Ability to handle larger and heavier tools with ease.
Better edge finish due to appropriate tooling per process.

Why Choose Us:

Australian local support.
High-quality parts and engineering.
Customization options available.
3-year Australian warranty (with installation package).
