Manford Machinery Co., LTD was founded in 1987 with a vision to produce high-quality machine tools. Over the years, Manford has expanded its operations, owning four companies in Taiwan, including Avemax, Automac Smartauto, and Manford Guarding Co. Ltd. Our product range includes 5-axis machining centers, vertical and horizontal machining centers, CNC lathes, and more. We also offer OEM/ODM solutions, catering to diverse industries like aeronautics, high-tech electronics, and automotive sectors. Today, Manford products are sold worldwide, delivering precision, reliability, and innovation.
With the High-Speed Bridge Type Machining Center, Manford offers the VF series with 2 model types.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

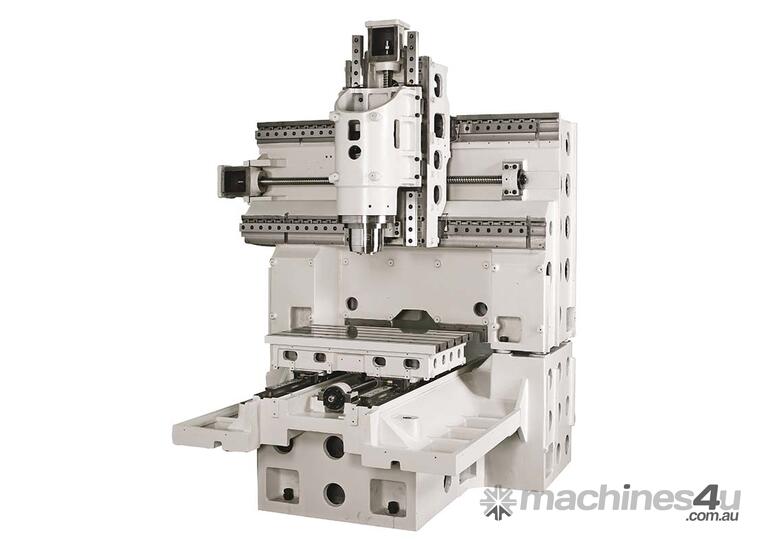

High Speed Bridge Type Machining Center
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
- - - - - - - - - - - - - - -

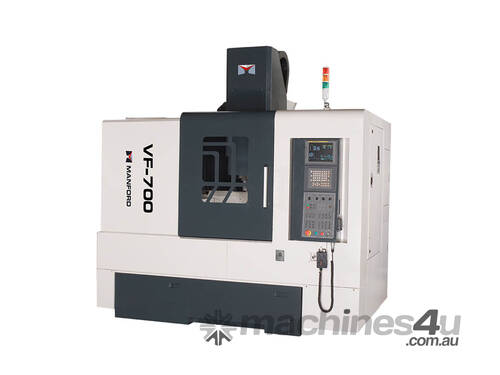

VF-700
- - - - - - - - - - - - - - -
Product Specifications:
X Travel: 700 mm
Y Travel: 510 mm
Z Travel: 410 mm
Spindle Nose to Table Surface Distance: 150–560 mm
Table Size: 800 x 510 mm
Table Load Capacity: 500 kg
Spindle Taper: BT40
Spindle Speed: 12,000 rpm
Spindle Motor Power: 7.5/11 kW
ATC (Automatic Tool Changer) Capacity: 16 tools
_________________________________________________________________________________________________________________________
- - - - - - - - - - - - - - -

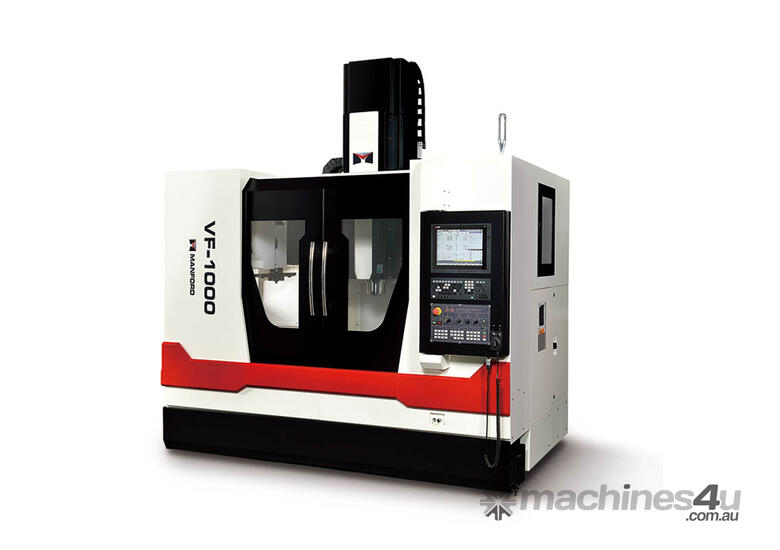

VF-1000
- - - - - - - - - - - - - - -
Product Specifications:
X Travel: 1020 mm
Y Travel: 610 mm
Z Travel: 510 mm
Table Size: 1100 x 600 mm
Table Load Capacity: 1000 kg
Spindle Taper: BT40
Spindle Speed: 12,000 rpm
Spindle Motor Power: 7.5/11 kW
ATC (Automatic Tool Changer) Capacity: 24 tools
For more information and to see this product in action: youtu.be/ktdBjgH_nWw
