High Volume Diesel Cast Iron Water Pumps 2, 3 & 4 Inch

If you are looking for a reliable water pump to transfer water over long distances, our cast iron pumps are the solution. The advantage these high volume pumps have over standard transfer pumps is, that if high pressure, high volume and above average head height is required, these pumps are the answer.

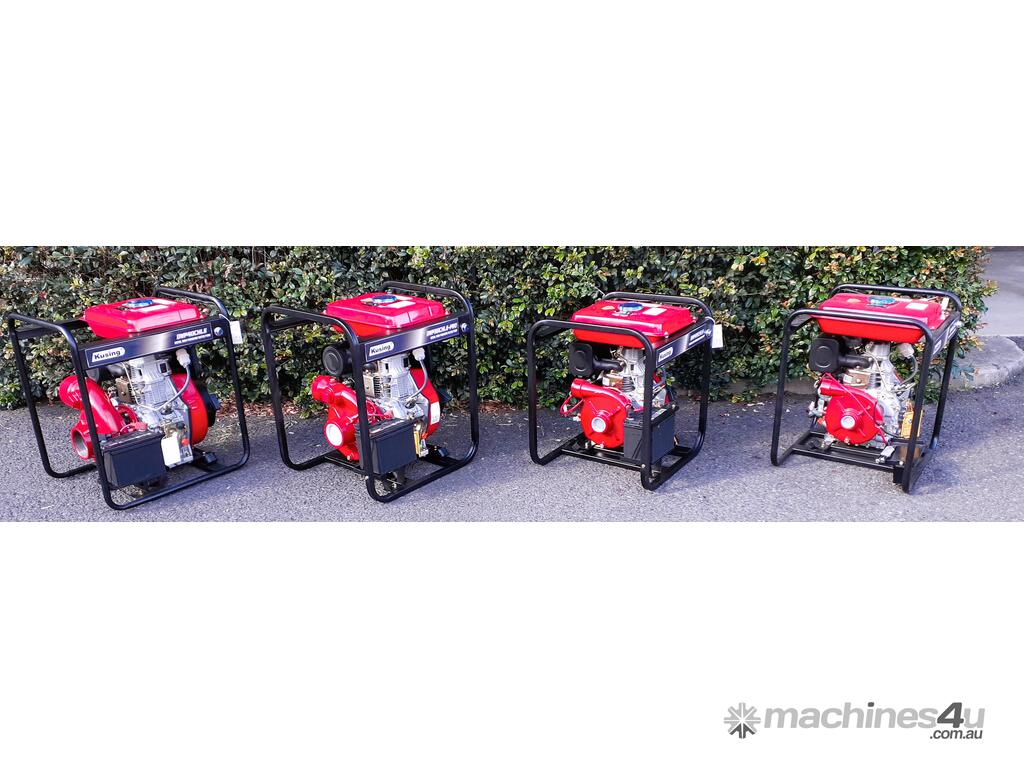

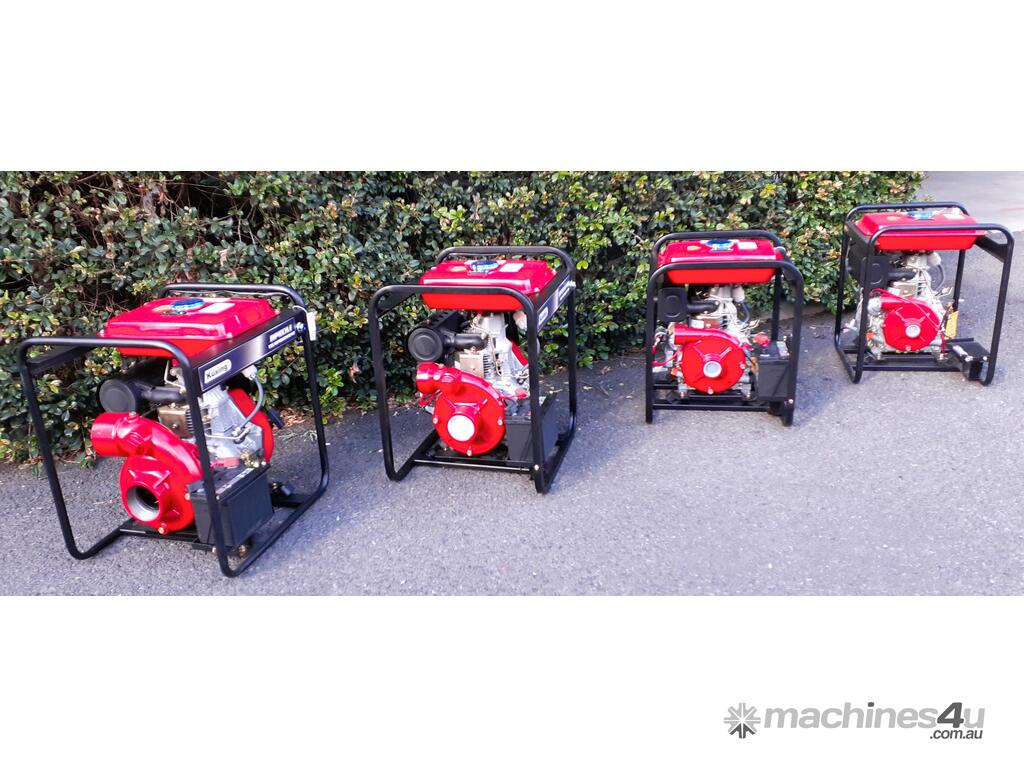

We stock these in 2, 3 & 4 inch with high horsepower diesel engines. Stainless steel threaded fittings are also available in all sizes at competitive prices.

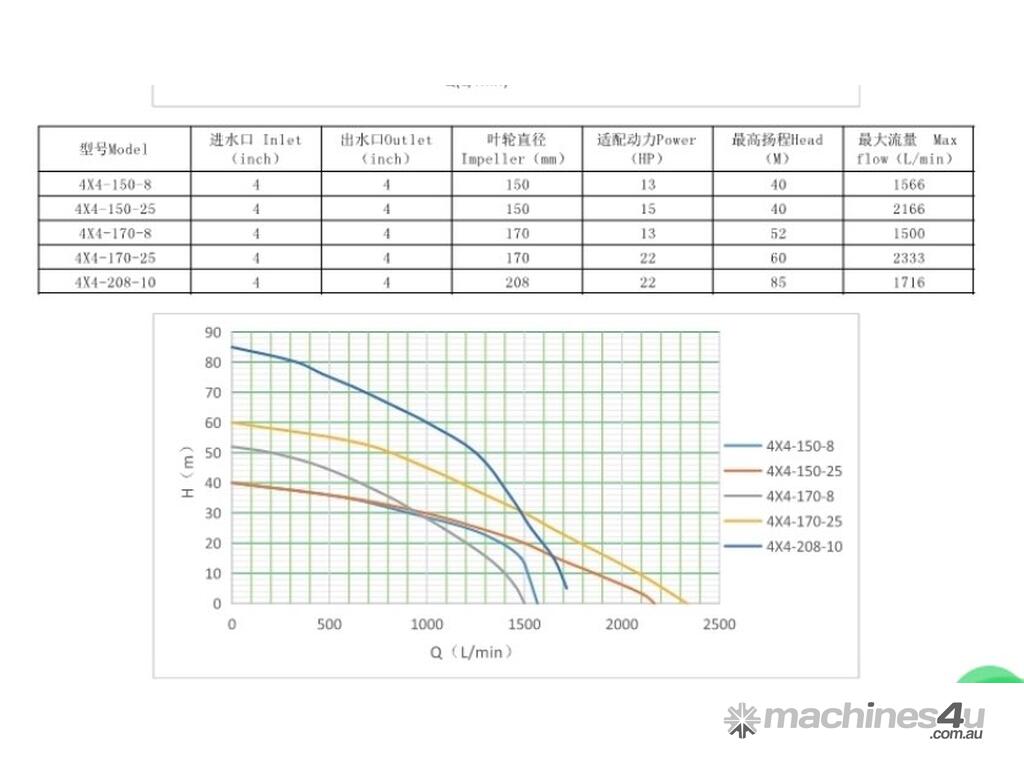

Specifications for each pump are below All pumps are covered by a 12 month warranty and we stock spare parts in our Darra warehouse. See the photos for individual pricing for each size pump.

Specifications:

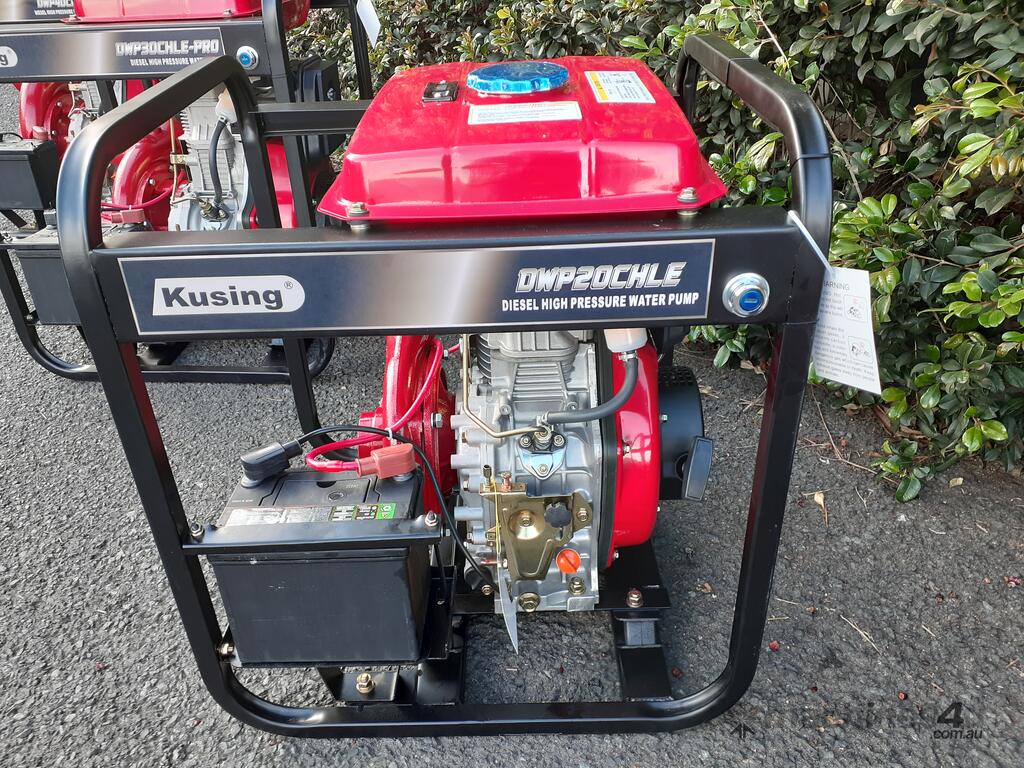

Model: DWP20CHLE
Suction Port Diameter: 2 inch
Discharge Port Diameter: 2 inch
Suction Head Lift: 7m
Total Discharge Head Lift: 63m
Discharge Flow: 27 m3/h
Engine Type: Single cylinder 4 stroke direct injection diesel

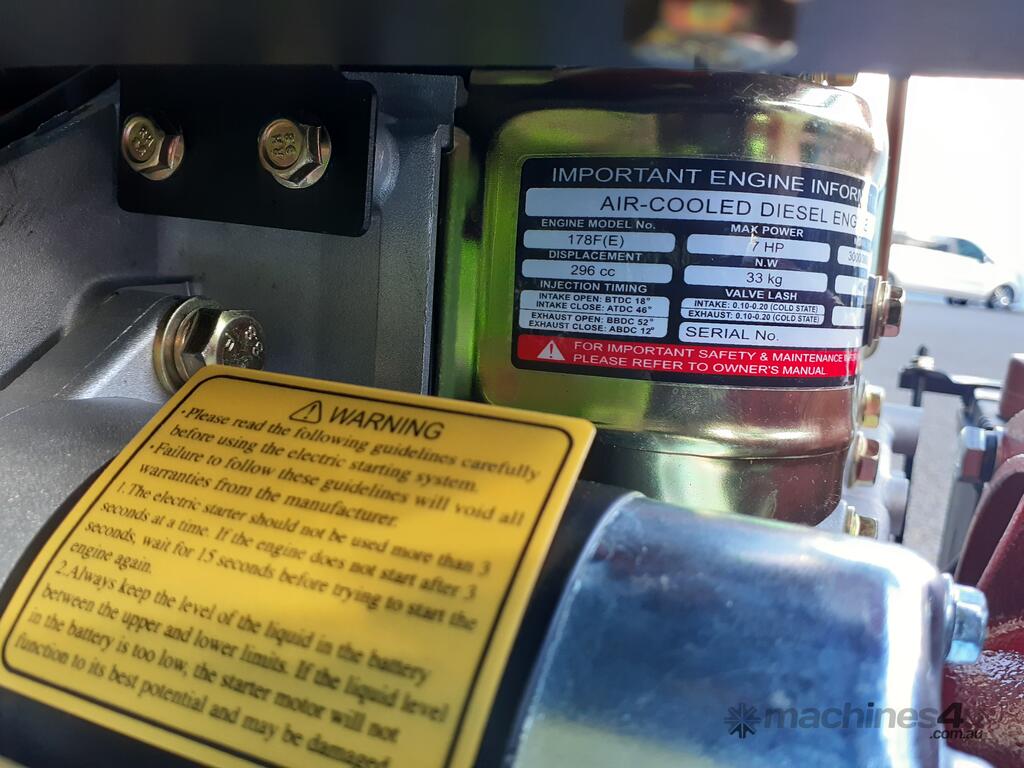

Engine Model: ETK178FE Air cooled 7HP
Engine Size: 296cc
Maximum Engine RPM: 3600
Continuous Power Rating: 4.4KW
Engine Oil Capacity: 1.1L
Fuel Tank Capacity: 12 litres
Fuel Economy: 1.1 L/hr 3000RPM
Dimensions: 58 x 52 x 65 cm
Shipping Dimensions: 60 x 54 x 67 cm
Weight: 47KG
Shipping Weight: 49KG

Specifications:

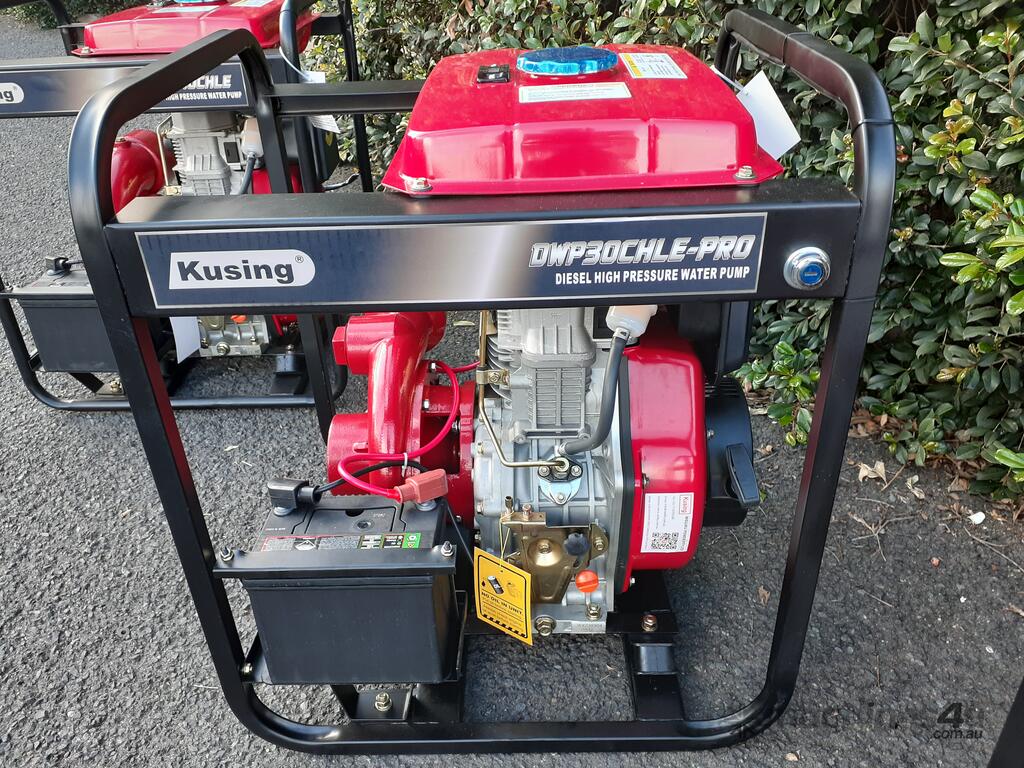

Model: DWP30CHLE-PRO
Suction Port Diameter: 3 inch
Discharge Port Diameter: 3 inch
Suction Head Lift: 5 metres
Total Discharge Head Lift: 66 metres
Discharge Flow: 38 m3/hr
Engine Type: Single cylinder 4 stroke direct injection diesel

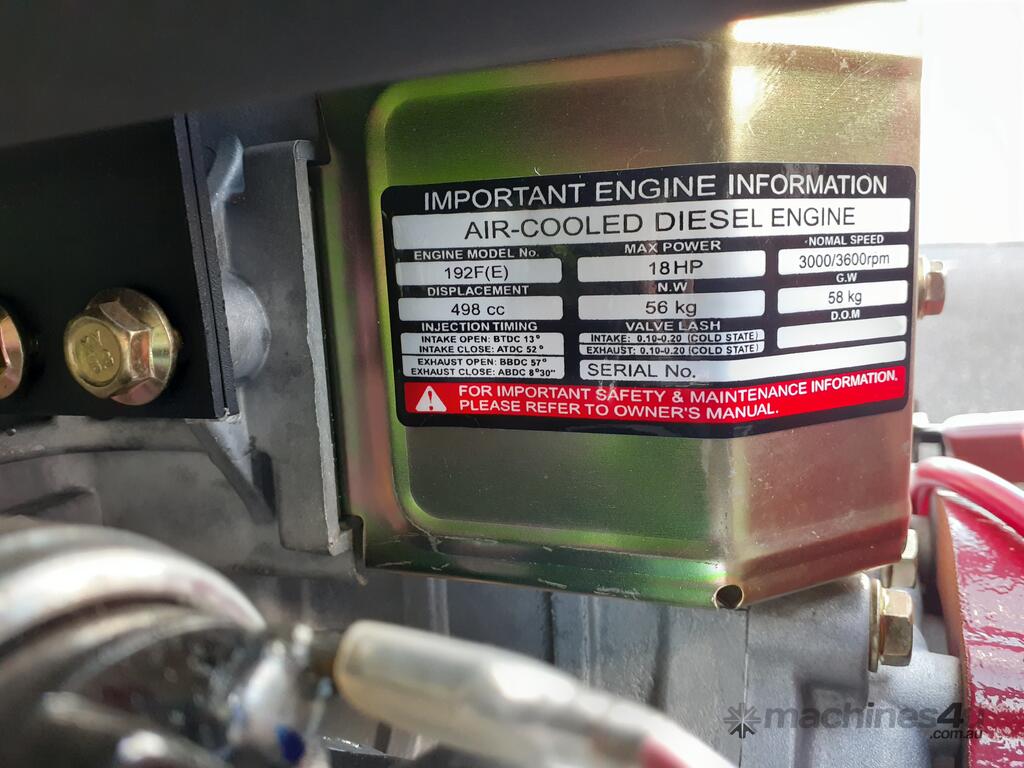

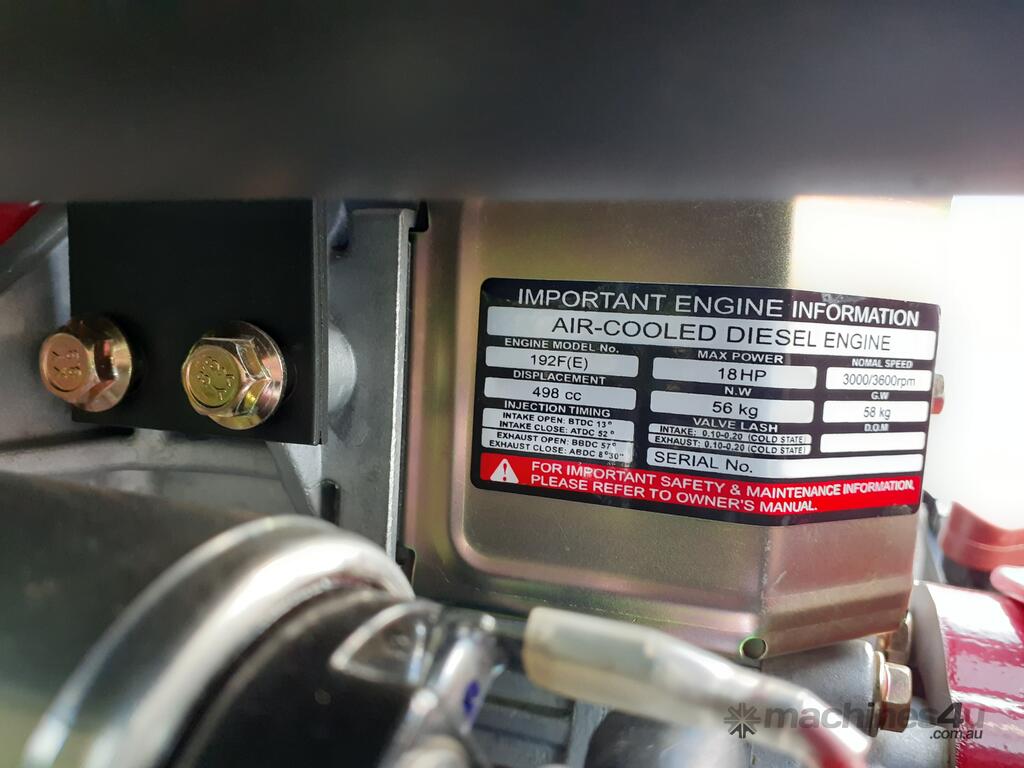

Engine Model: ETK192FE Air cooled 18HP
Engine Size: 498cc
Engine Maximum RPM: 3600
Continuous Power Rating: 6.6KW
Engine Oil Capacity: 1.65 litres
Fuel Tank Capacity: 12 litres
Fuel Economy: 1.2 L/hr 3000RPM
Dimensions: 62L x 54W x 72H cm
Shipping Dimensions: 64L x 56W x 74H cm
Weight: 77kg
Shipping Weight: 80kg

Specifications:

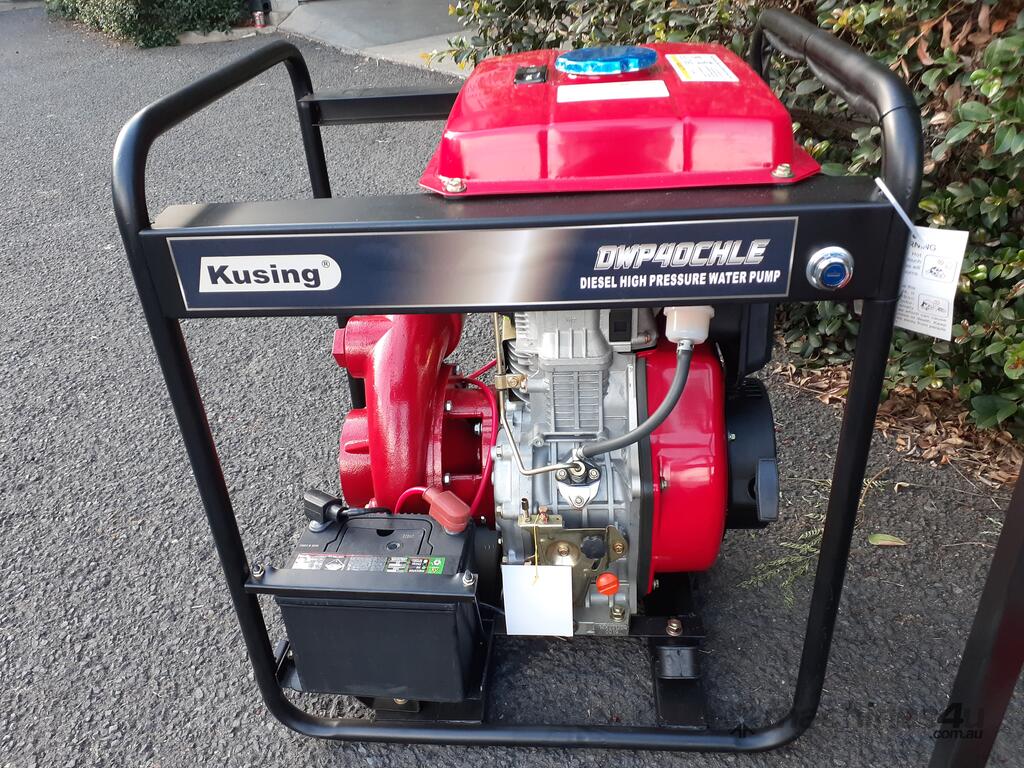

Model: DWP40CHLE
Suction Port Diameter: 4 inch
Discharge Port Diameter: 4 inch
Suction Head Lift: 5m
Total Discharge Head Lift: 45m
Discharge Flow: 120 m3/h
Engine Type: Single cylinder 4 stroke direct injection diesel
Engine Model: ETK192FE Air cooled 18HP
Engine Size: 498cc
Maximum Engine RPM: 3600
Continuous Power Rating: 8.1KW
Engine Oil Capacity: 1.65L
Fuel Tank Capacity: 12 litres
Fuel Economy: 1.2 L/hr 3000RPM
Dimensions: 62 x 54 x 72 cm
Shipping Dimensions: 64 x 56 x 74 cm
Weight: 77KG
Shipping Weight: 80KG

Specifications:

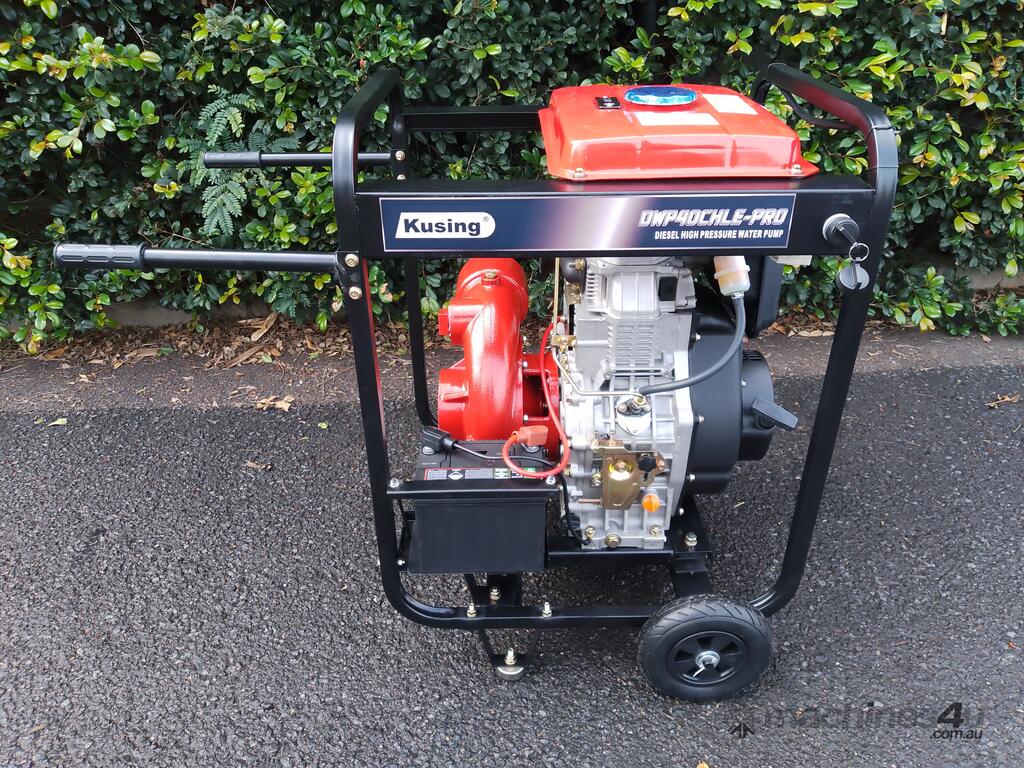

Model: DWP40CHLE-PRO
Suction Port Diameter: 4 inch
Discharge Port Diameter: 4 inch
Suction Head Lift: 5m
Total Discharge Head Lift: 45m
Discharge Flow: 120 m3/h
Engine Type: Single cylinder 4 stroke direct injection diesel

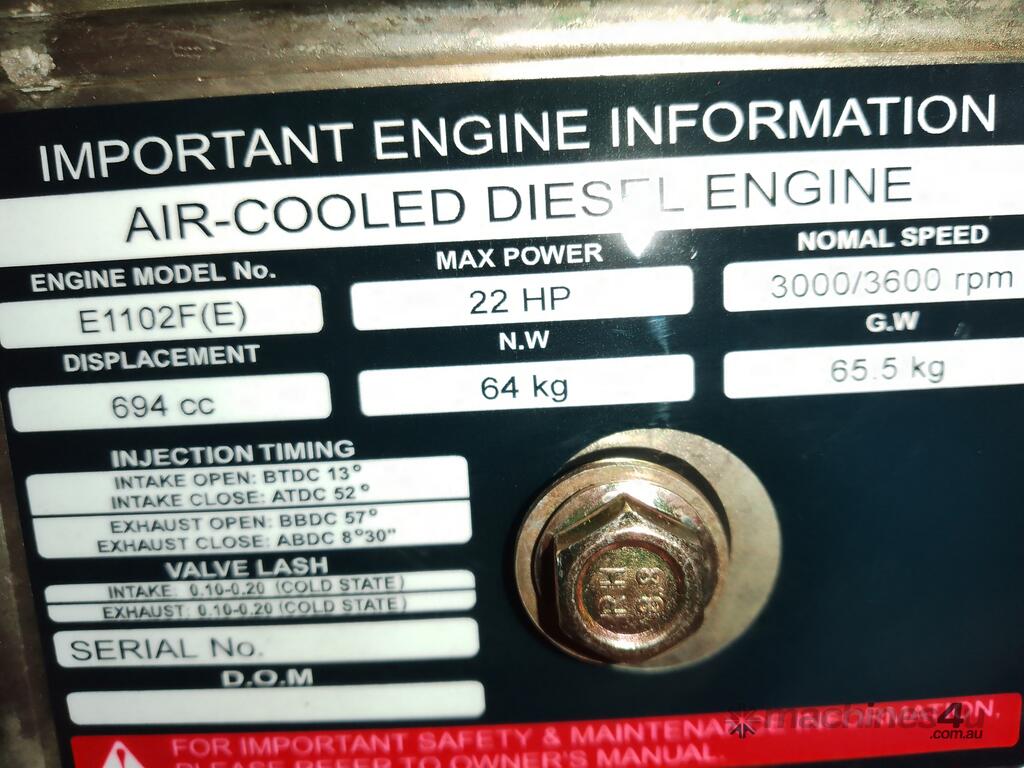

Engine Model: 1102FE Air cooled 22HP
Engine Size: 694cc
Maximum Engine RPM: 3600
Continuous Power Rating: 10.5KW
Engine Oil Capacity: 1.8L
Fuel Tank Capacity: 12 litres
Fuel Economy: 1.2 L/hr 3000RPM
Dimensions: 99 x 66 x 90 cm (handles attached)
Shipping Dimensions: 67 x 57 x 81 cm
Weight: 87KG
Shipping Weight: 91KG
