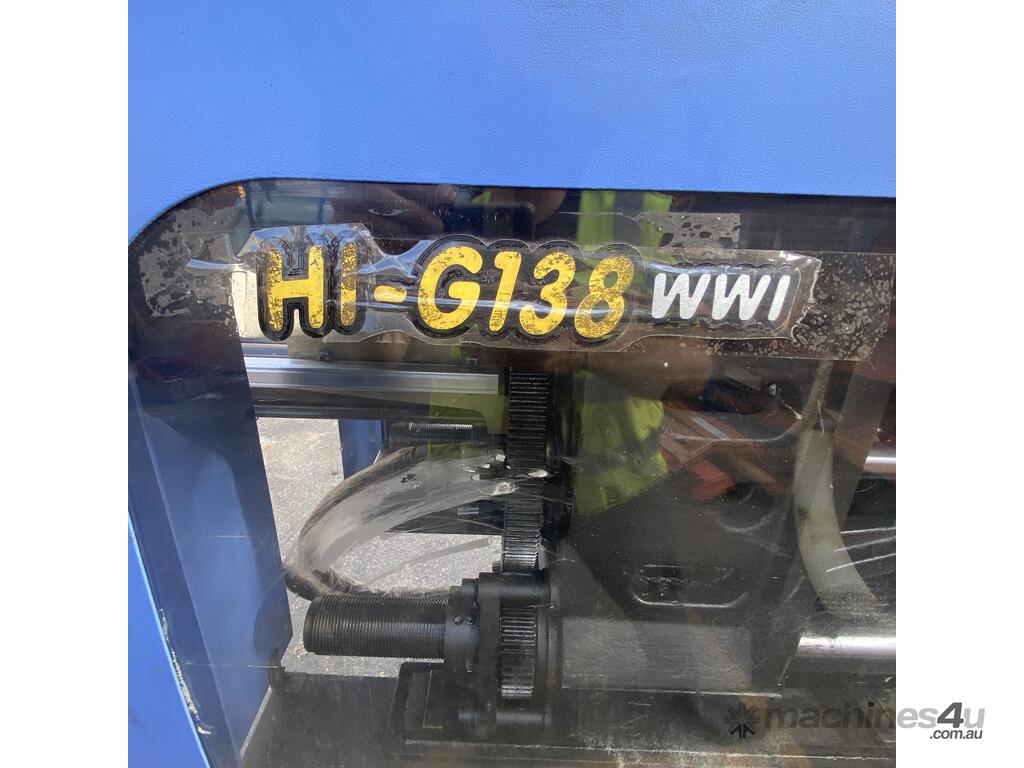

Hisson Plastic Injection Molding Machine HI-G138 1380kN 2008 DOM 7.8kW

Name: Hisson Plastic Injection Molding Machine HI-G138 1380kN 2008 DOM 7 8kW
Brand: Hisson
SKU: 956297
Price: 13354 AUD
Availability: InStock

OTTOWAY, SA - Delivers Nationally

$13,355 AUD($14,690 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$46.52
Per Week

3.7% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Injection Molders

Make:

HISSON

Model:

HI-G138

Year:

Not specified

Member Since: Oct 2015

Gold Member

Listings: 1149

Description

Hisson Plastic Injection Molding Machine HI-G138 1380kN 2008 DOM 7.8kW

This unit was in use up until recently.

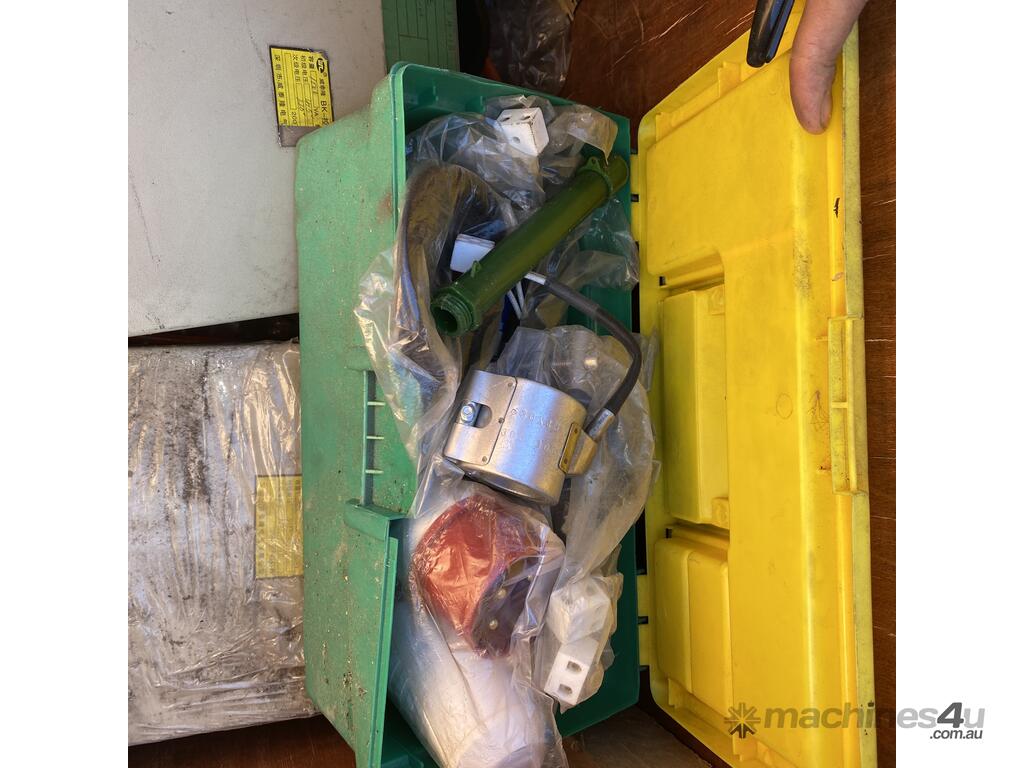

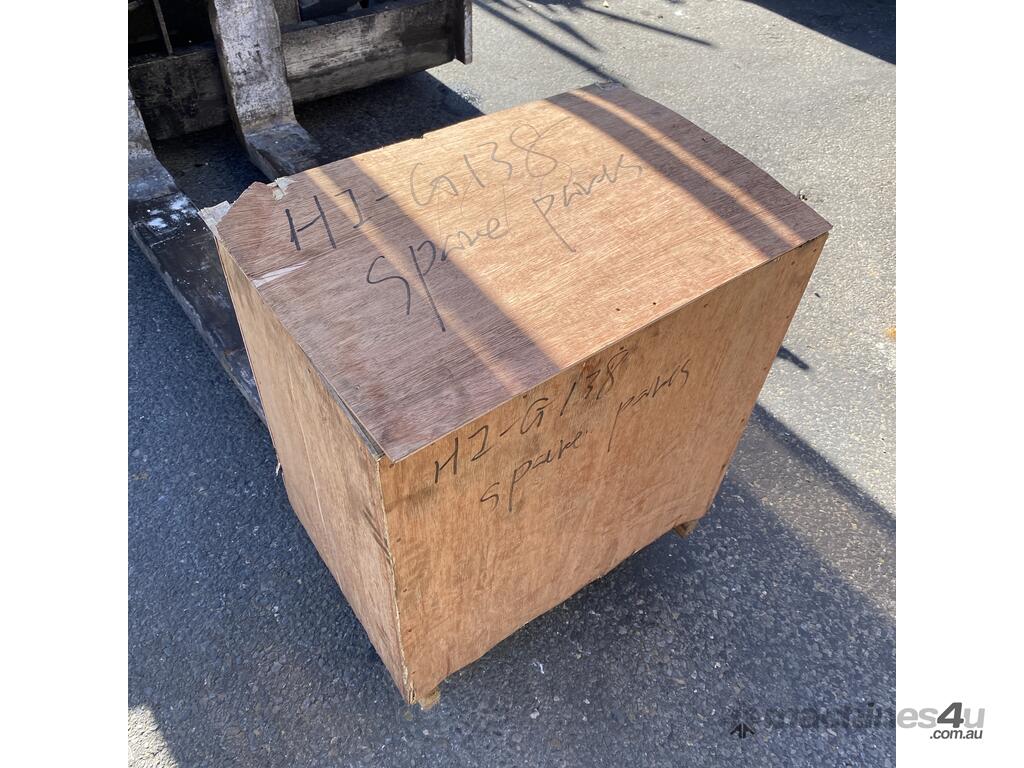

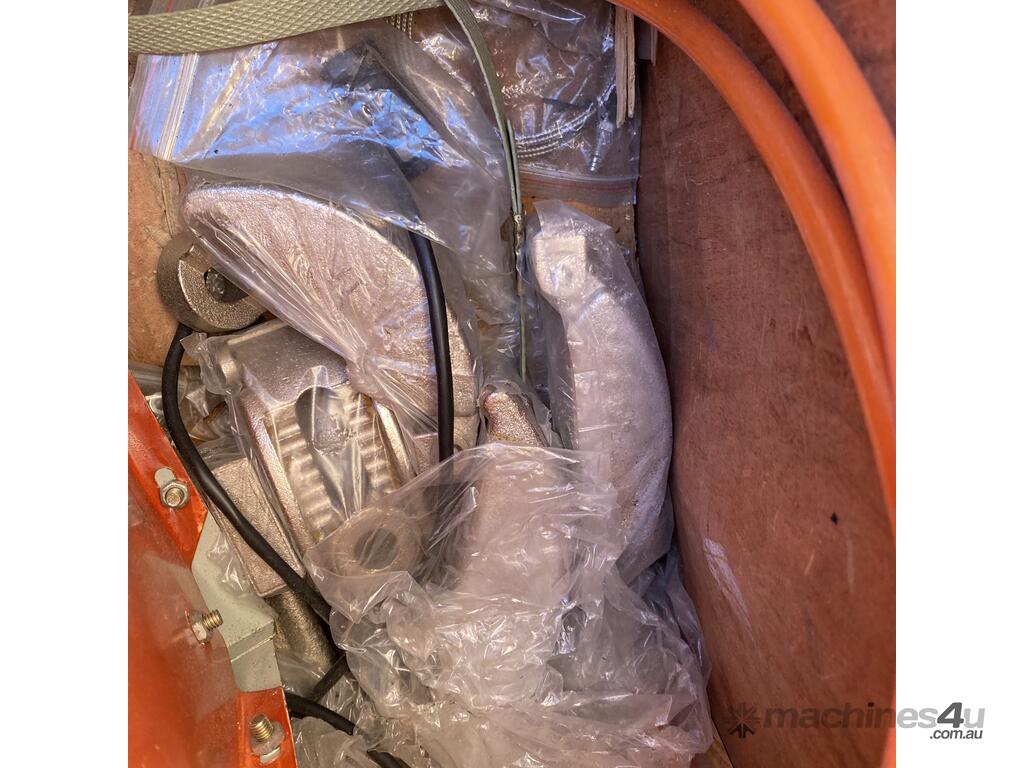

includes a box with some spares.

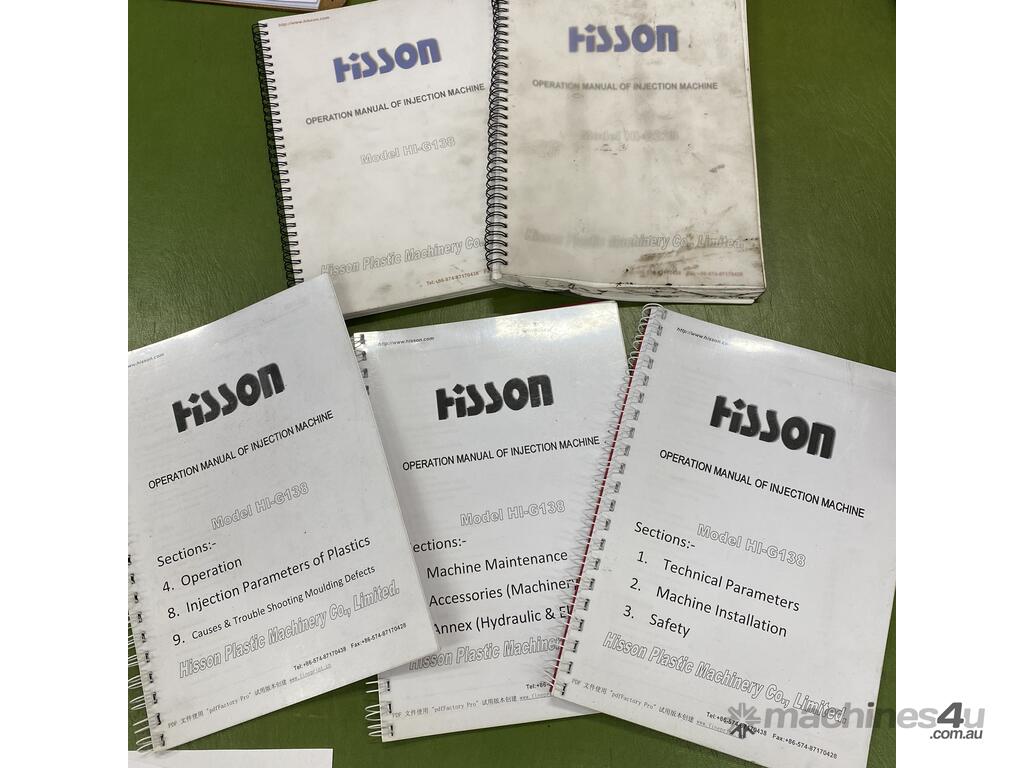

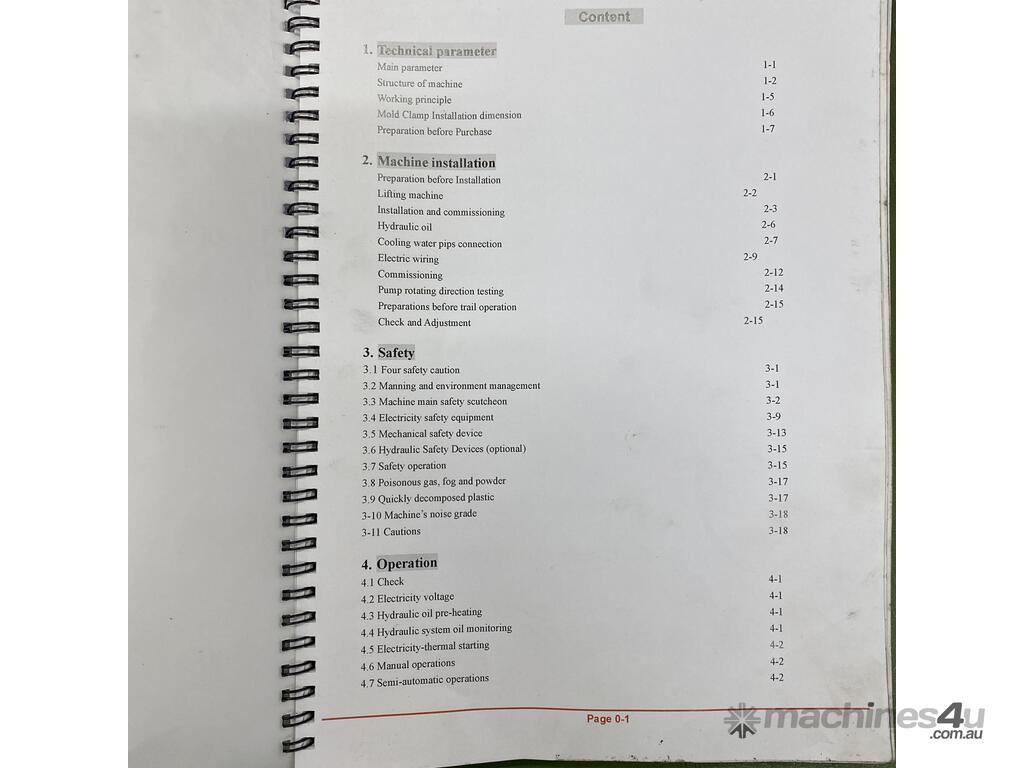

also includes manuals.... see photos.
Two 1kva Transformers that were in it are listed separately here:
AZFAROBOT Power supply Stepdown transformer 415V to 220V 1kVA - SPARE HI-G138

4500 x 1300 x 1900mm
4000kg

Basic Info.
Model NO.
HI-G138
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Clamping Force
1380kn
Screw Dia.
38/42/45mm
Shot Volume
198/242/278cm3
Tie Bar Distance
410*410
Trademark
HISSON
Transport Package
Nude packing
Specification
ISO9001:2000, CE
Origin
Zhejiang, China (Mainland)
HS Code

Product Description
Horizontal PE Plastic Injection Molding Machine
Quick Detail:

HI-G138 Plastic Injection Molding Machine is for normal type plastic material injection, e.g. PC, PP, PE, Nylon, A.B.S. PVC etc., this machine is with clamping force 138tons, there are three available screws, the corresponding real shot weight 145g, 180g, 215g. This machine is mainly used to produce small industrial parts, household appliances and other plastic products.

Machine main components adopt world famous brand, e.g.:
Controller:TECHMATION (TAIWAN),
Low voltage contactor: SCHNEIDER(FRANCE),
Low voltage air switch: SCHNEIDER(FRANCE),
Proportional Valve: Dofluid HNC(TAIWAN)

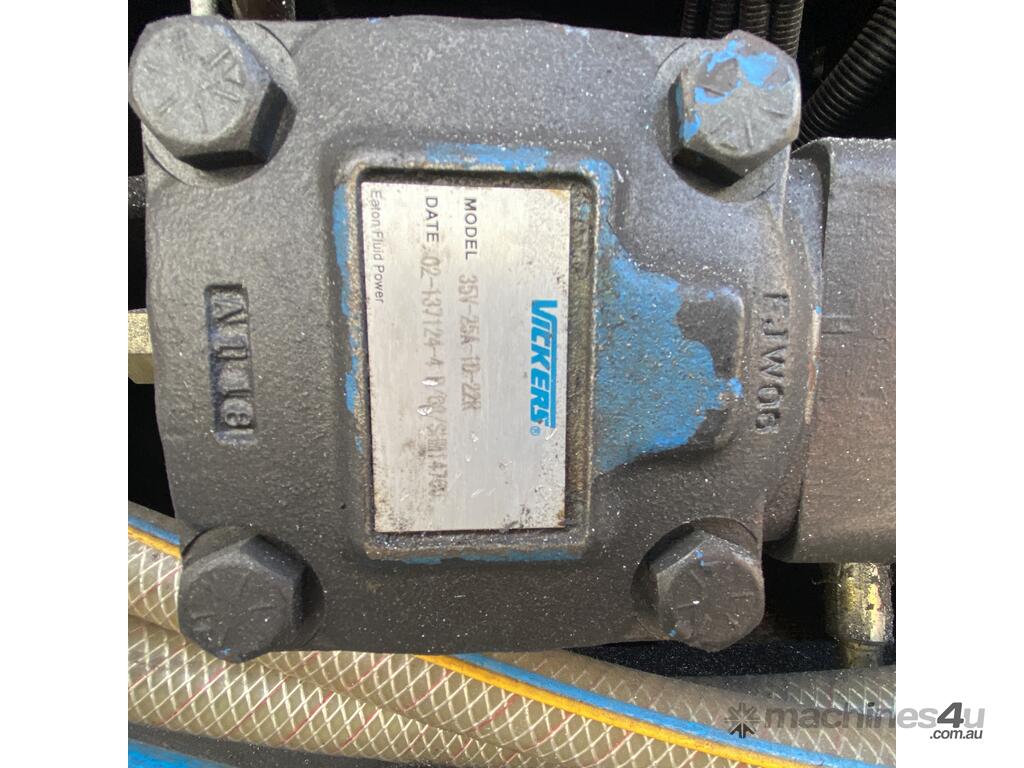

Oil pump: VICKERS(USA)
Directional Valve: VICKERS(USA)
Induction travel switch: OMORON (JAPAN)
Inductor potentiometer: FORT(USA)

Description:

HI-G138 Plastic Injection Molding Machine is the type of fully-automatic machine, being provided with high efficiency, high reliability, high speed, low noise, low power consumption and other advantages.

Applications:

HI-G138 Plastic Injection Molding Machine is for small industrial parts, household appliances and other plastic products, material PC, PP, PE, Nylon, A.B.S. PVC etc., suitable plastic products weight 10g-210g, mold cavity can be: 1 Cavity, 2 Cavities, 3 Cavities, 4 Cavities, 6 Cavities, 8 Cavities, 10 Cavities, 12 Cavities, 16 Cavities

Specifications:

HI-G138 Technical Parameters
HI-G138 Optional Parameters
TECHNICAL PARAMETER TABLE Unit A B C
INJECTION
UNIT SCREW DIAMETER mm
SCREW L/D RATIO L/D 23.1 20.9 19.5
SHOT VOLUME(THEORETICAL) cm 278
INJECTION WEIGHT(PS) g
INJECTION RATE g/s
PLASTICIZING CAPACITY g/d
INJECTION PRESSURE Mpa
SCREW SPEED rpm 0-200
CLAMPING
UNIT CLAMP TONNAGE kN 1380
TOGGLE STROKE mm 380
SPACE BETWEEN TIE BARS mm 410×410
MAX.MOULD HEIGHT mm 430
MIN.MOULD HEIGHT mm 170
EJECTOR STROKE mm 115
EJECTOR TONNAGE kN 40
EJECTOR NUMBER Piece 5
OTHERS Max.PUMP PRESSURE Mpa 16
PUMP MOTOR POWER KW 13
HEATING POWER KW 7.2
MACHINE DIMENSION(L×W×H) m 4.7×1.3×1.8
MACHINE WEIGHT T 4.6
HOPPER CAPACITY kg 25
OIL TANK CAPACITY L 230
Competitive Advantage:

1. Heaters adopt ceramic, the using life is double than stainless steel.
2. Machine with oil filter system to ensure hydraulic oil clean , to prolong action valves using life.

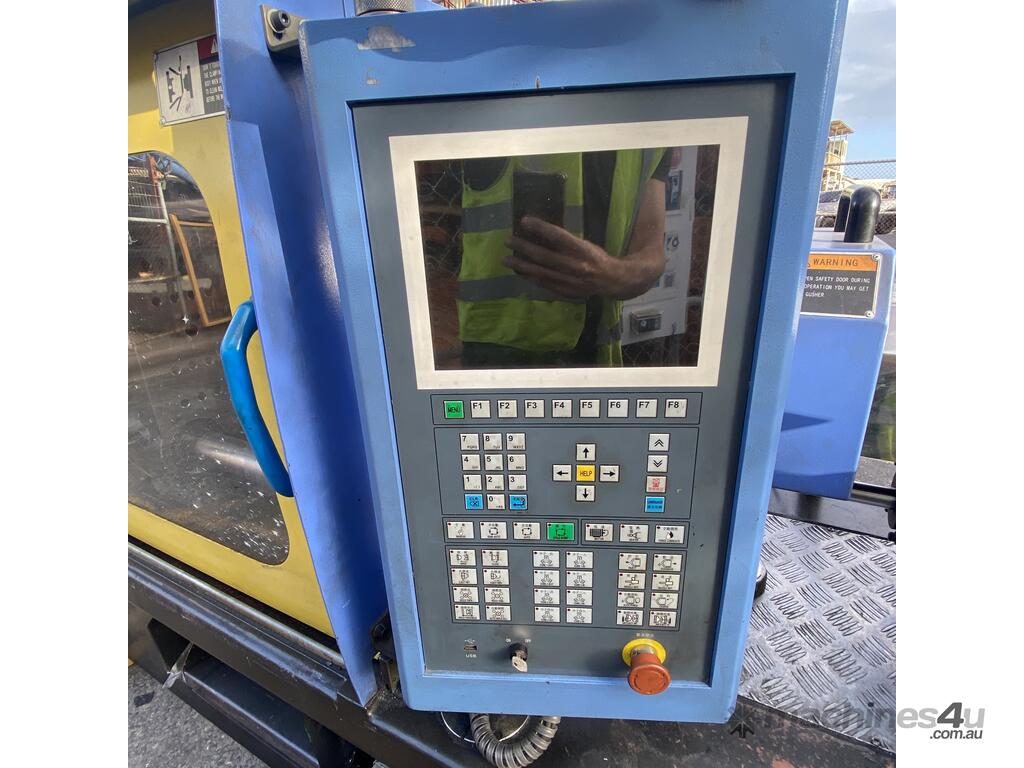

3. The machine equipped with 7 inch colorful screen controller, brand Techmation from Taiwan, the controller is with several languages include English, French, Spanish, Portuguese, Russian, Arabic etc.
4. The machine equipped with hydraulic protection
5. The machine equipped with double Hydraulic pulling device
6. The machine equipped with double Air Ejector
7. The machine equipped with single slots on the mold plates

Price includes loading costs unless you need it in a shipping container, we can do that but it will cost more due to the crane time involved.

We have alot more plastics machinery available on our store... please get in touch.

Contact and inspection of goods
Please contact Tim Marshman with any questions. This item may be inspected by appointment at 9 Vernon Smith Court, Ottoway, South Australia

. Please check out my store, we have a large inventory of high quality industrial automation and process equipment and we are constantly adding new stock. If you would like to be notified of new arrivals you have the option of signing up for my store newsletter.
