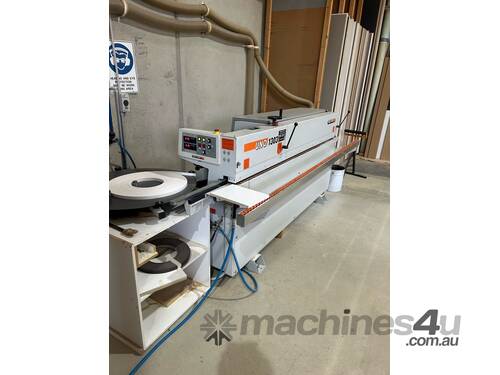

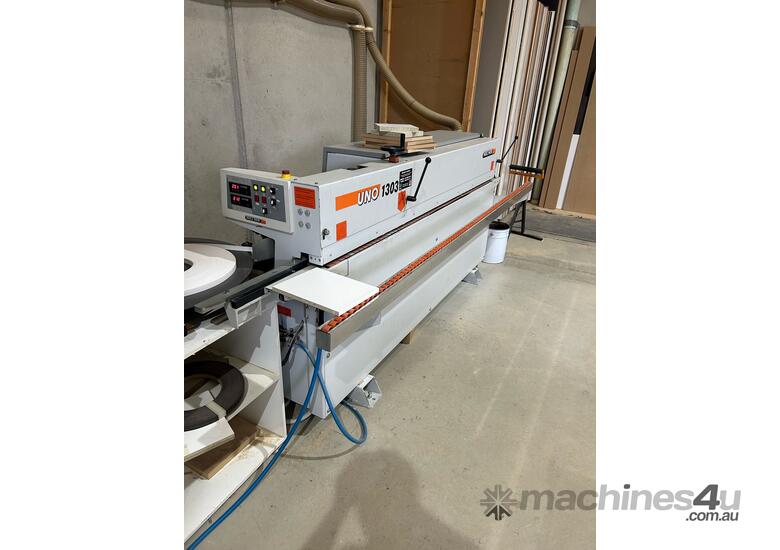

Holzher Edgebander - Located at Riverstone, New South Wales -
Model Uno 1303 (2009)
Cut off saw.
2mm radius trimmers
2mm radius scrappers
Surface scrappers
Regularly serviced, Pressure Roller Motor replaced 08/2023.
Overall length of machine 3,917mm. Weight 930kg. Pull out workpiece support up to 600mm.
Feed speed 10 m/min
Suits coils and edge strips 0.4 – 6 mm (depending on material) Work piece width minimum 65 mm.
Work piece length minimum 160 mm Work piece thickness 8 – 60 mm

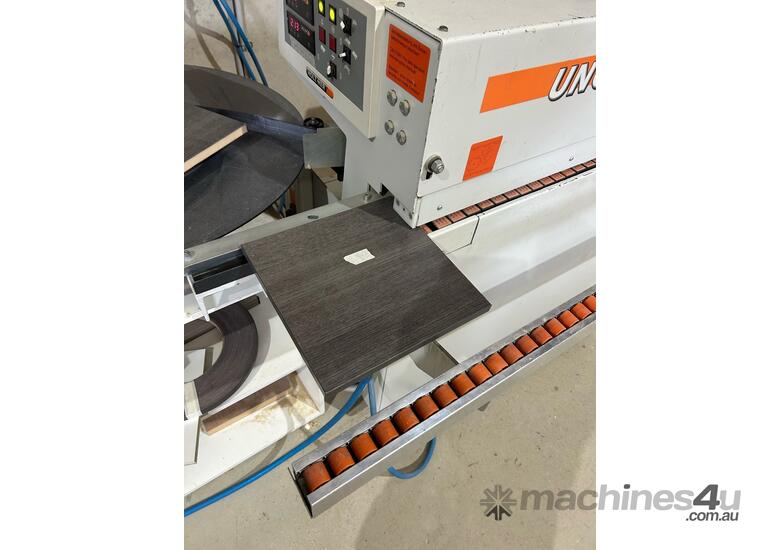

Edge feeder 1903, for automatic transport of coils and single strips with feed belt.
Glue application system nozzle 1906 M suitable for processing EVA and PUR adhesives.
Heat up time only 3 minutes with patented nozzle technology.
Pressure unit 1912-3, with first roller driven and two support pressure rollers.
End trimming unit 1918 (60mm), twin saw, pneumatic adjustment for chamfer-type end trimming. Multifunctional trimming unit, FR201, for flush trimming, radius and chamfering.
Includes 2mm radius diamond cutters (left and right-handed), with LEUCO technology and integrated chip removal patented Pro Lock screw-in clamping system for rapid tool change.
Finishing scraper unit 1929 with chip removers and 2 scraper carriers.
Surface scraper unit 1964 for scraping off glue residue, including blow nozzles.
